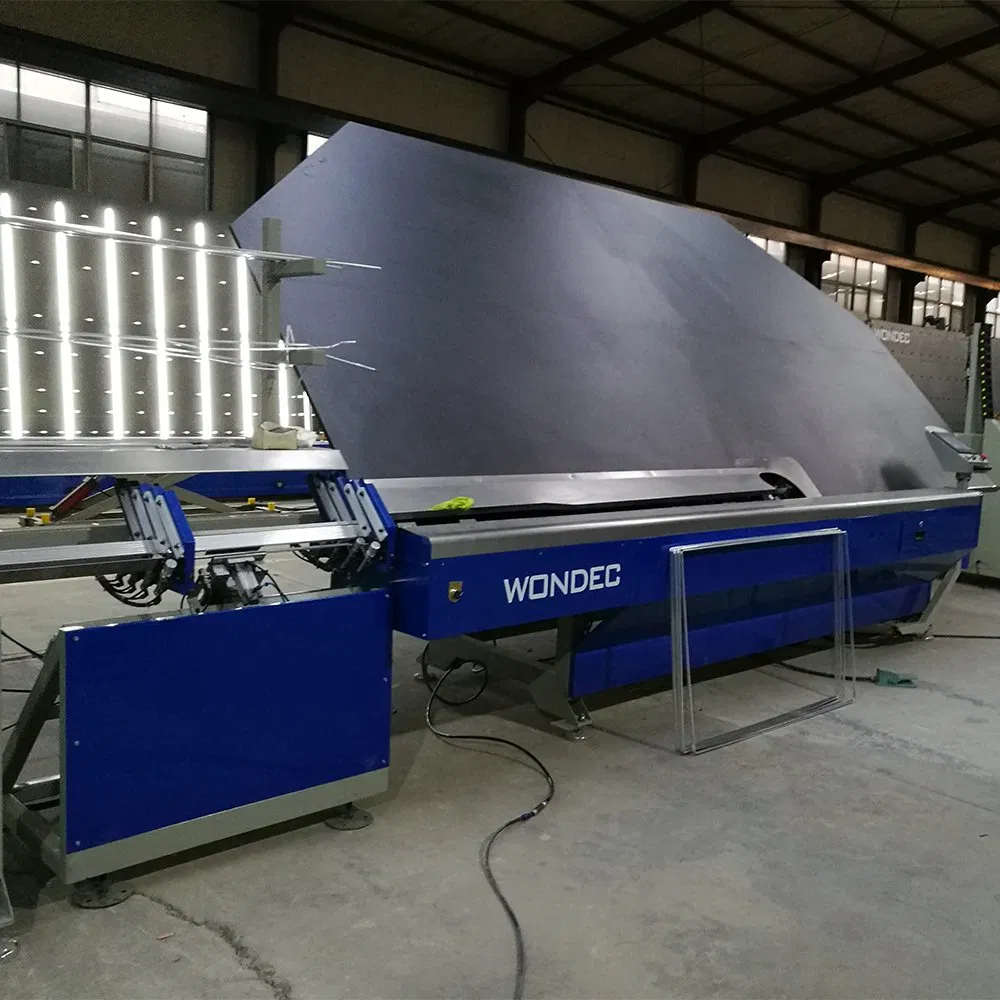

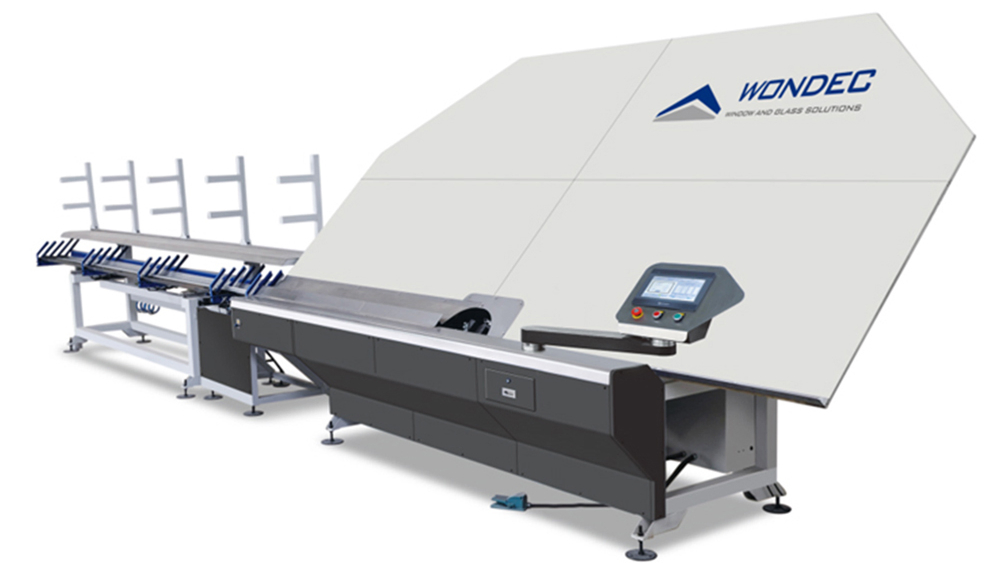

2022 New Automatic Spacer Bending Machine for Insulating Glass Machine
2022 New Automatic Spacer Bending Machine for Insulating Glass Machine
2022 New Automatic Spacer Bending Machine for Insulating Glass Machine
2022 New Automatic Spacer Bending Machine for Insulating Glass Machine
2022 New Automatic Spacer Bending Machine for Insulating Glass Machine
1 / 5
2022 New Automatic Spacer Bending Machine for Insulating Glass Machine
2022 New Automatic Spacer Bending Machine for Insulating Glass Machine
2022 New Automatic Spacer Bending Machine for Insulating Glass Machine
2022 New Automatic Spacer Bending Machine for Insulating Glass Machine
2022 New Automatic Spacer Bending Machine for Insulating Glass Machine

2022 New Automatic Spacer Bending Machine for Insulating Glass Machine

Certification: CE, ISO
Control System: PLC
Max. Frame Size: 2500X2500mm
Send Inquiry

Product Description

i
Basic Specification
Model NO.
ABM02N
Type
Automatic Spacer Bending Machine
Min. Frame Size
200X250mm
Aluminum Spacer Width
6-27mm
Structure
Vertical
Data Base
4 Specification x 8 size
Logo Printing
Supported (Laser)
Warranty
1 Year
HS Code
847529000
Production Capacity
100 sets
★
Machine Features
PLC control system with touch screen for simple and intuitive operation.
Feeding system adopts high-precision CNC servo motor.
Bending angle utilizes a CNC control system for accurate results.

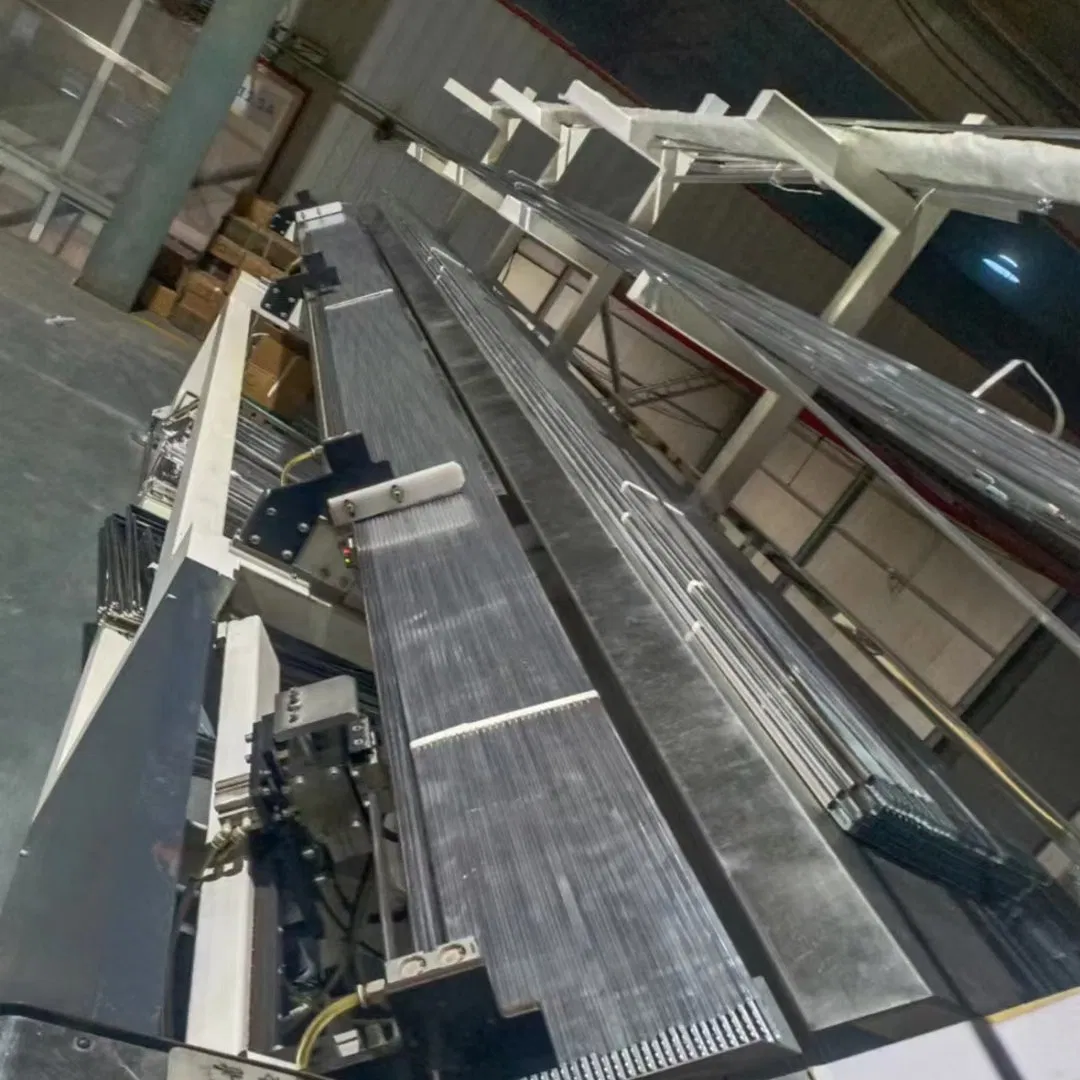

Equipped with four material storage slots for different spacer specifications.
Automatic bending and cutting process designed to avoid connection points.
Manual operation mode included for easy debugging and maintenance.
Capable of processing multiple shapes: triangle, rectangle, positive pentagon, hexagon, round shapes, and more.
Integrated Laser logo printing function.
⚙
Technical Parameters
Parameter Item Specifications
Air pressure 0.7Mpa
Aluminum bar specification 6~27mm
Aluminum bar size 200*250 ~ 2500*2500mm
Bending angle error ±0.3°
Total power 4Kw
Feeding speed 0~90m/min
Overall dimension 10000*2200*2600mm
📷
Product Gallery

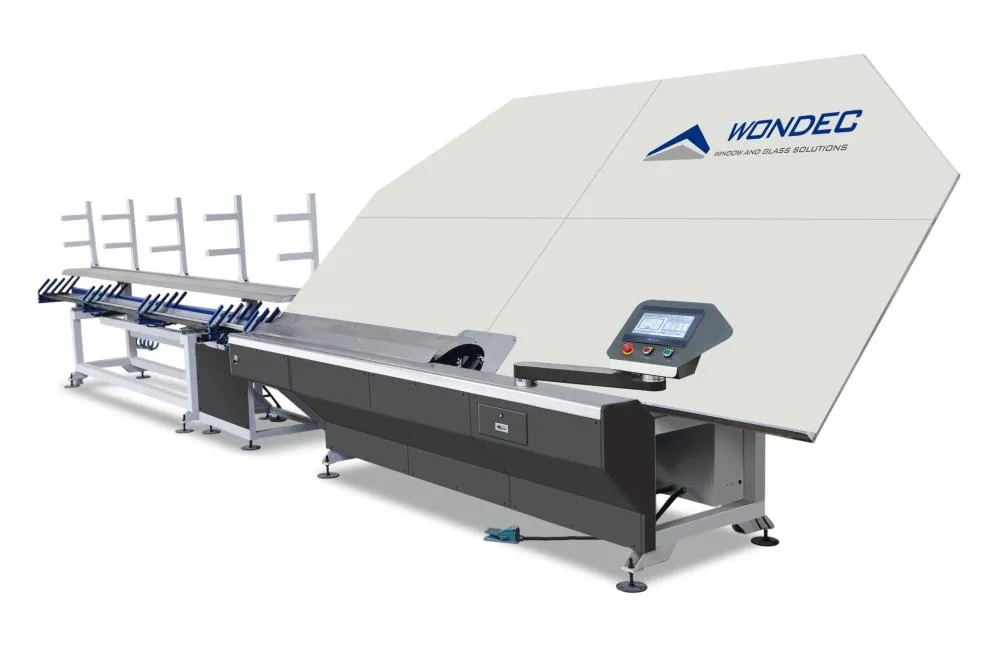

Automatic Spacer Bending Machine Overview
Machine Structure Detail
Bending Mechanism
CNC Control Interface
Spacer Processing Result

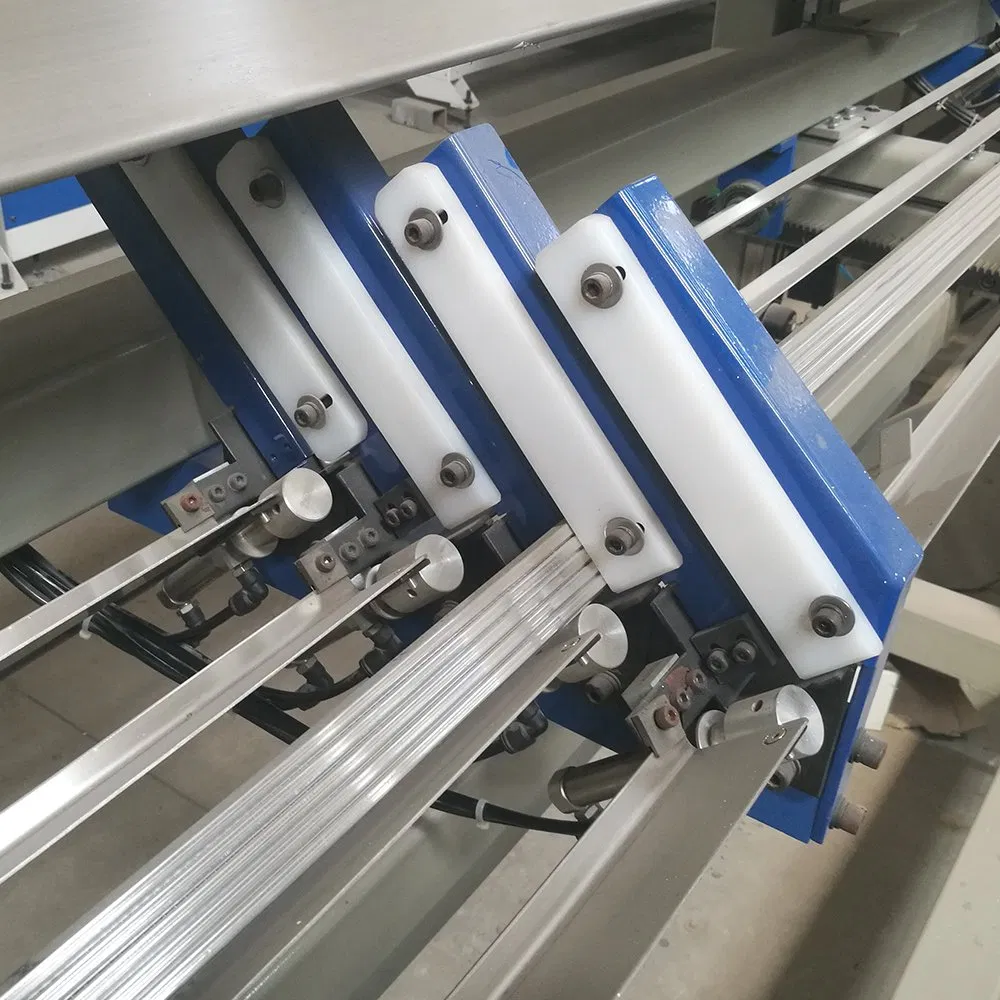

Storage Slots
Technical Layout
?
Frequently Asked Questions
What shapes can the ABM02N machine create?
The machine is highly versatile and can produce various shapes including triangles, rectangles, positive pentagons, positive hexagons, and circular shapes.
What is the range of aluminum spacer widths supported?
This machine supports aluminum spacers with widths ranging from 6mm to 27mm.
Does the machine support custom logo branding on the spacers?
Yes, the ABM02N is equipped with a laser logo printing function, allowing for precise branding during the production process.
How accurate is the bending process?
Thanks to the CNC control system and servo motors, the bending angle error is kept within a very tight tolerance of ±0.3°.
Can the machine handle different spacer specifications simultaneously?
The machine features four material storage slots, which allows it to hold and switch between four different specifications of spacers efficiently.
What are the power requirements for installation?
The machine has a total power consumption of 4Kw and requires a standard air pressure of 0.7Mpa for operation.
