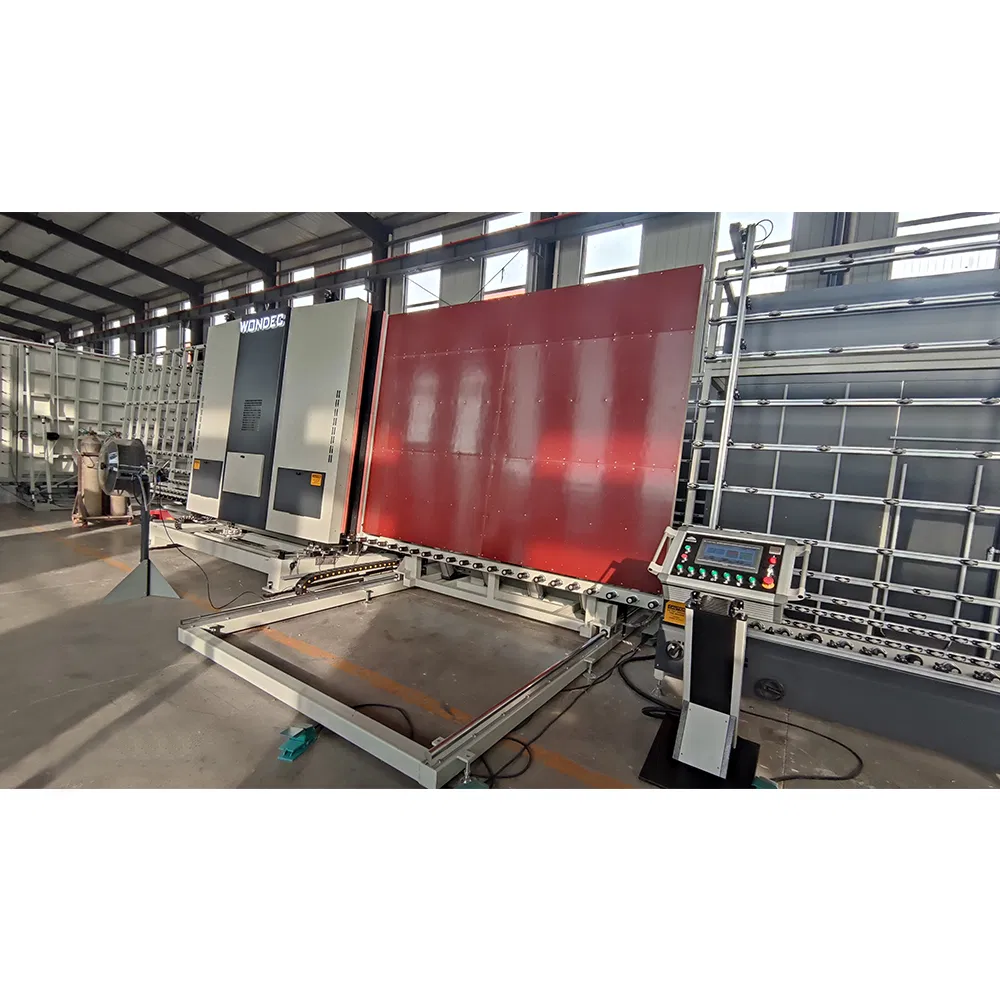

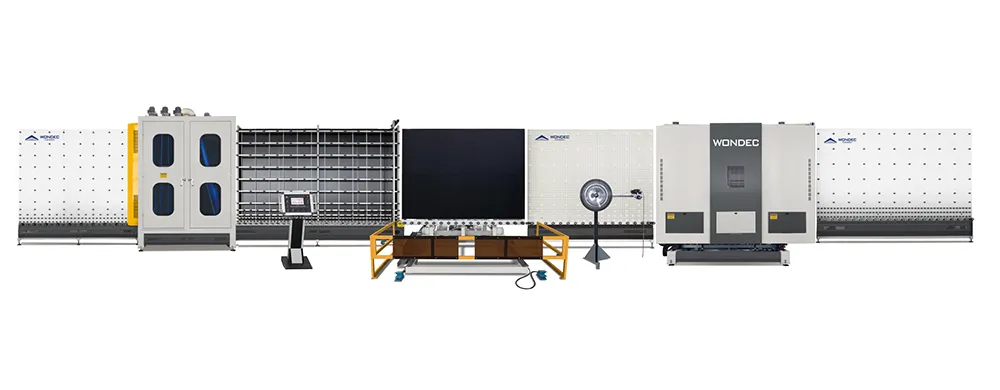

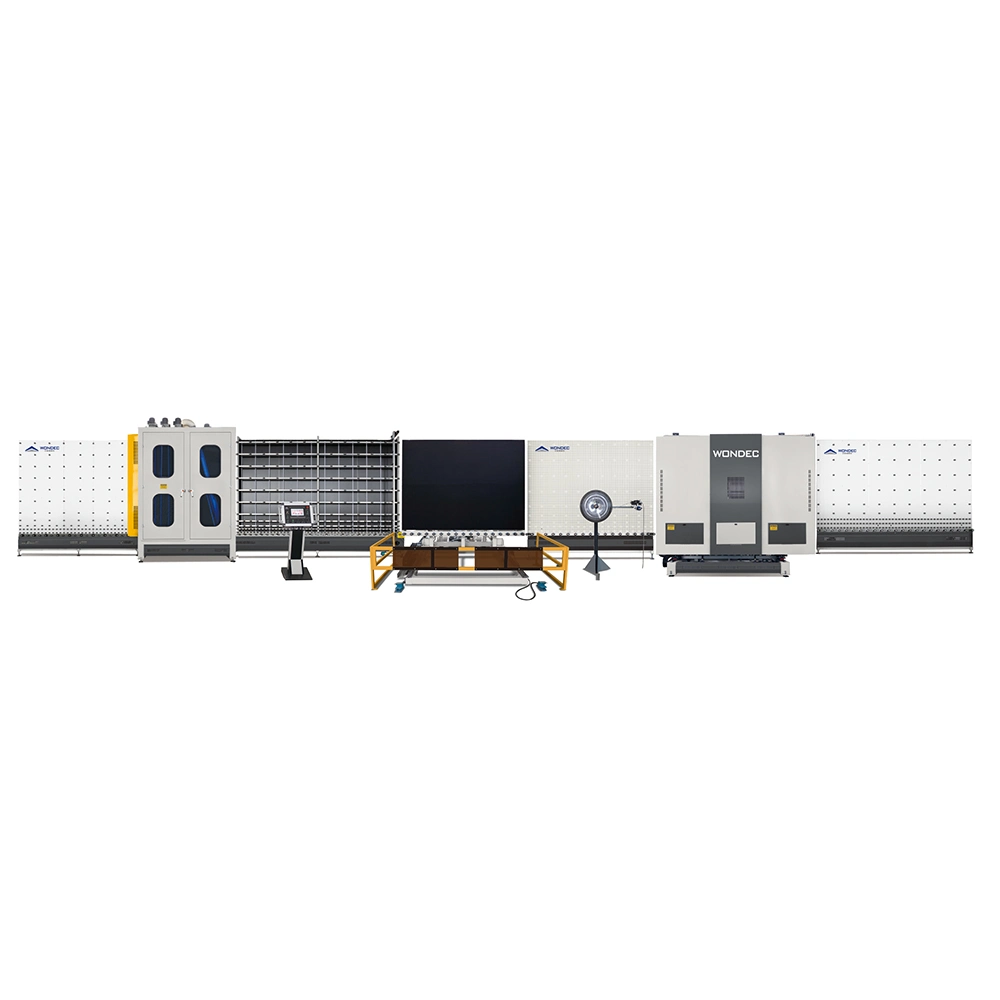

2025 Automatic Vertical Super Spacer Insulated Glass Production Line Machine Insulating Glass Processing Machine Double Glazing Glass Machine

▶ Section 01: Input Conveyor

Equipped with carbon fiber conductive brushes specifically designed for coating glass and Low-E glass detection to ensure seamless transmission into the washing section.

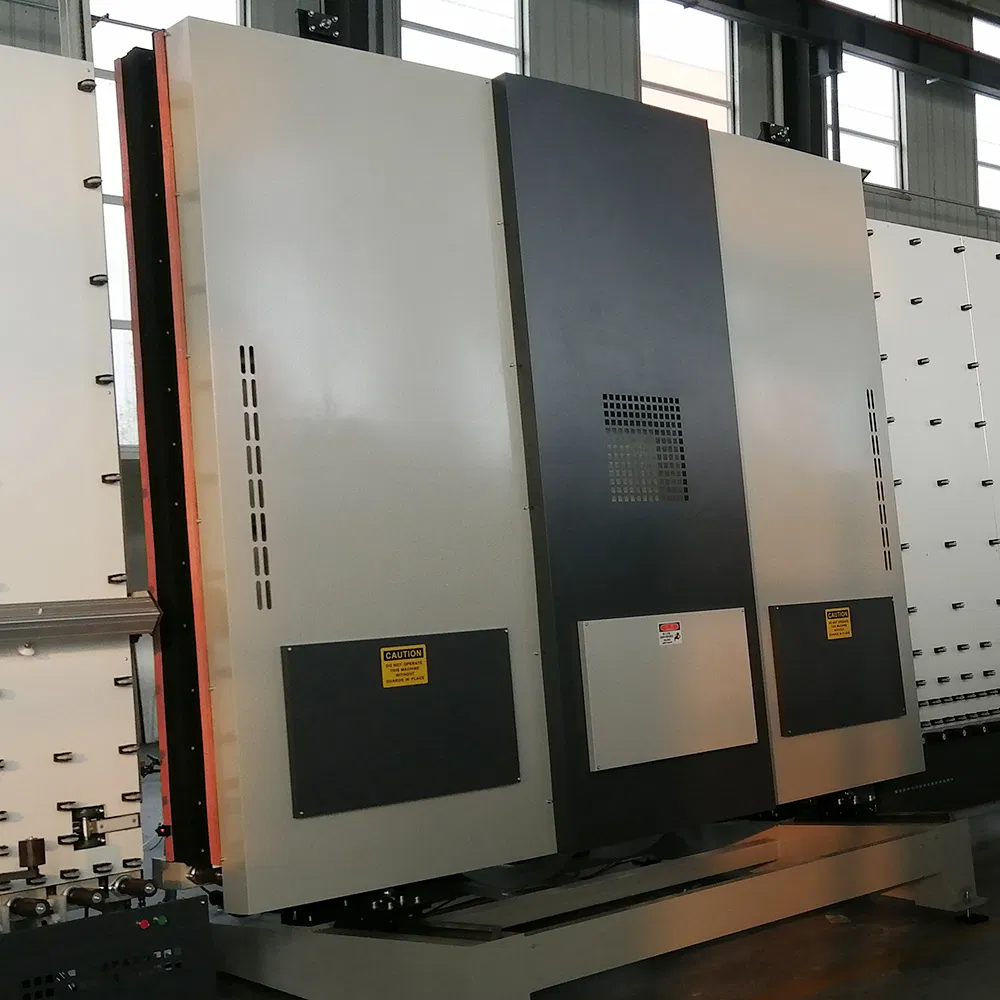

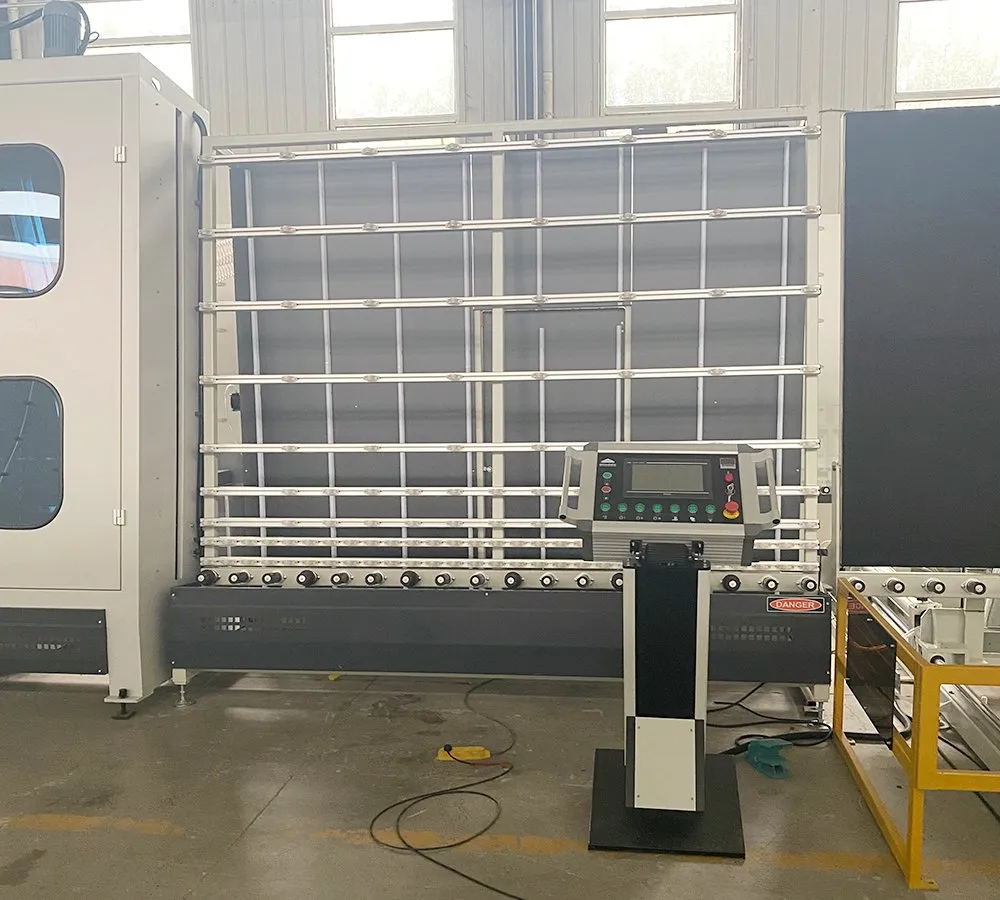

▶ Section 02: Glass Washing and Drying Section

• Constructed with high-grade stainless steel and corrosion-resistant materials throughout the washing area and water system.
• Features 6 independent motors driving 6 brushes, ensuring continuous operation even if one motor requires maintenance.
• Direct coupling connection between motor and brush prevents slippage or idling.
• Specialized brush configuration: 3 soft brushes (0.1mm) for delicate Low-E film and 3 hard brushes (0.2mm) for standard glass.

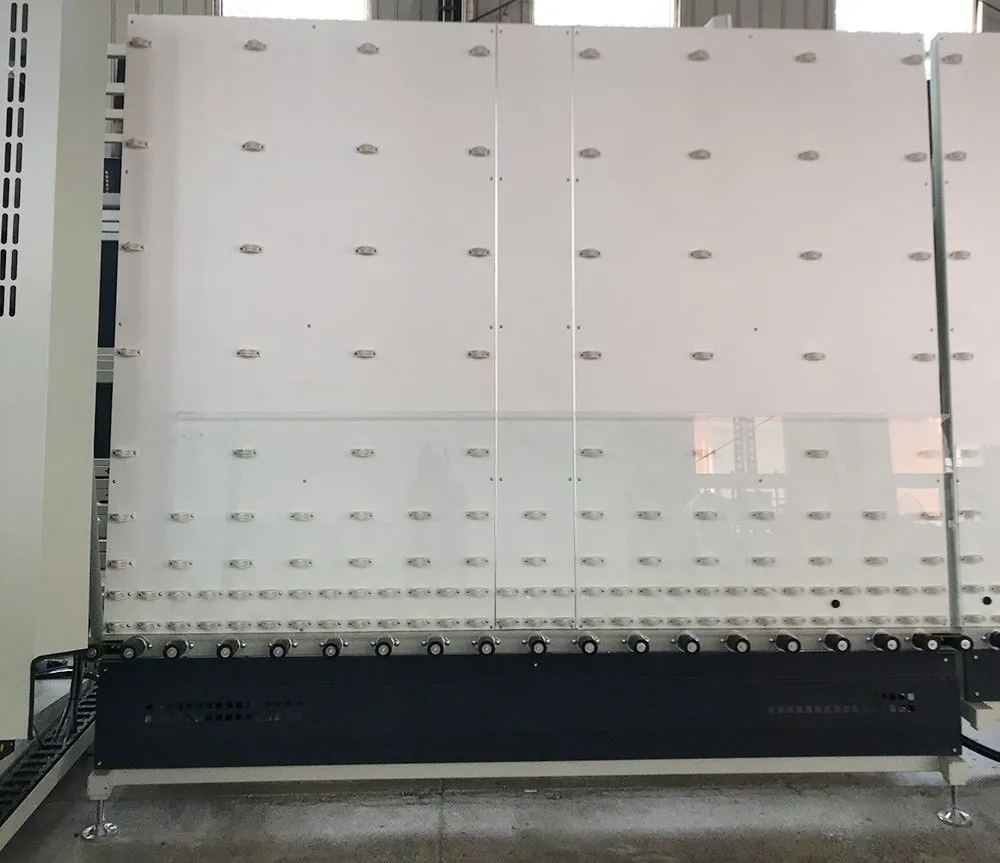

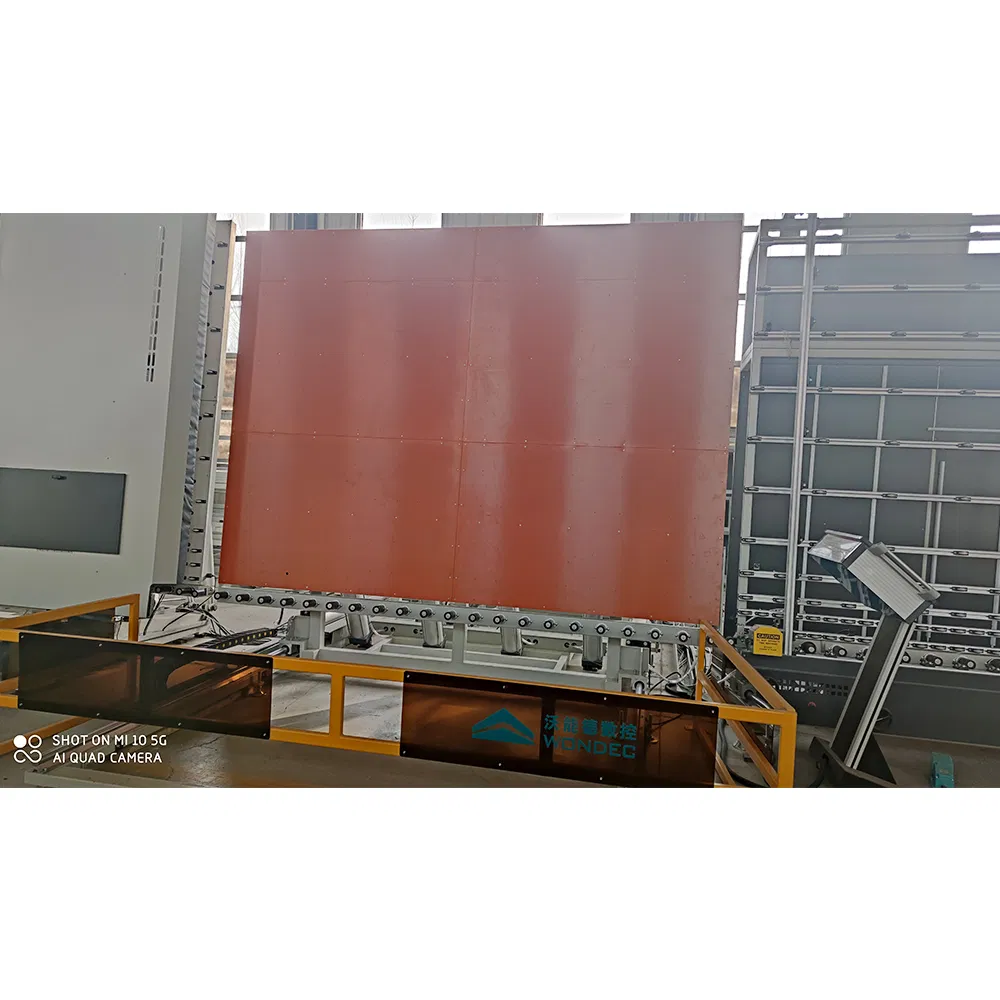

Section 06: Inside Assembly & Panel Press with Argon Gas Inflation

• Denser steel frame design provides a stronger, more stable machine body.
• Panel press operations are precisely controlled by a Servo motor.
• The front pressing plate features a dual-layer adjustable frame to maintain perfect flatness over long-term use.
• Suction cups utilize individual logic valves and work in partitions based on glass size.
• Integrated online gas filling system from the bottom side, suitable for both double and triple IGU.

Section 07: Output Conveyor

Designed for transmission and temporary storage to improve overall workflow efficiency, especially when integrated with sealing robots.
