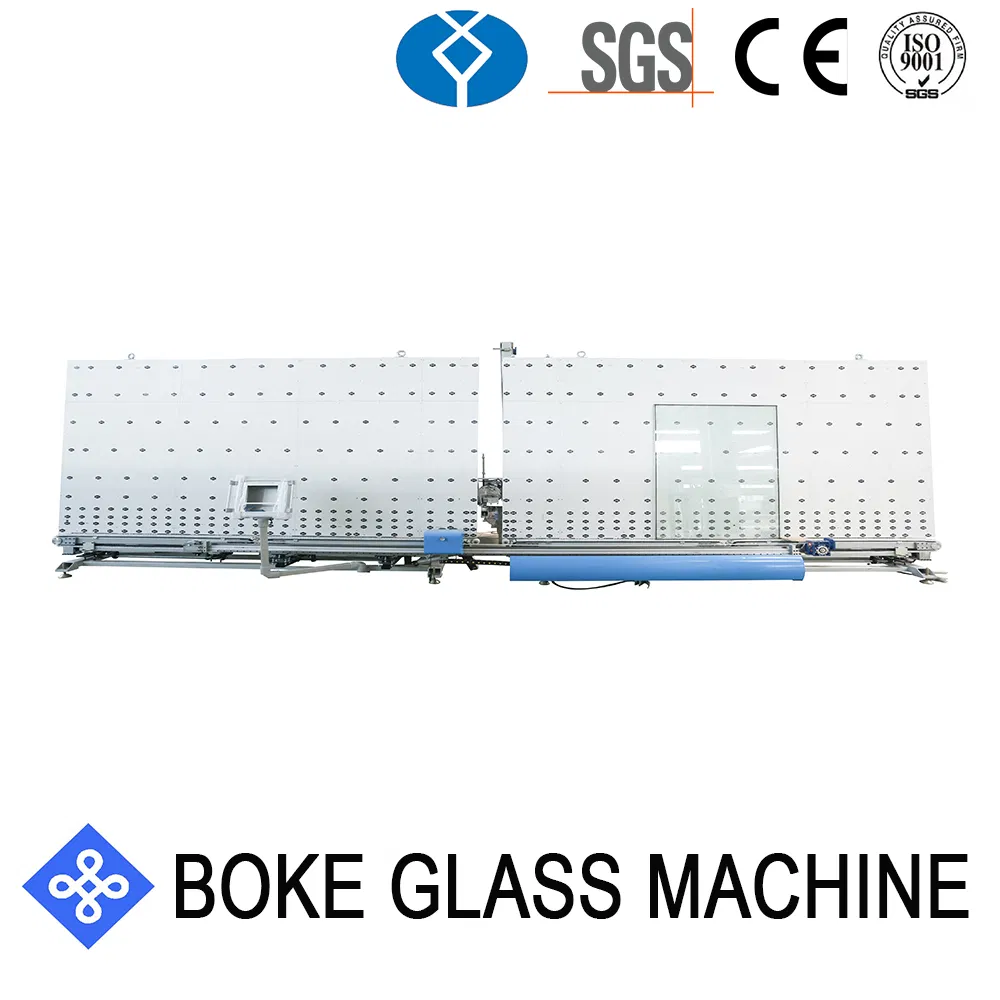

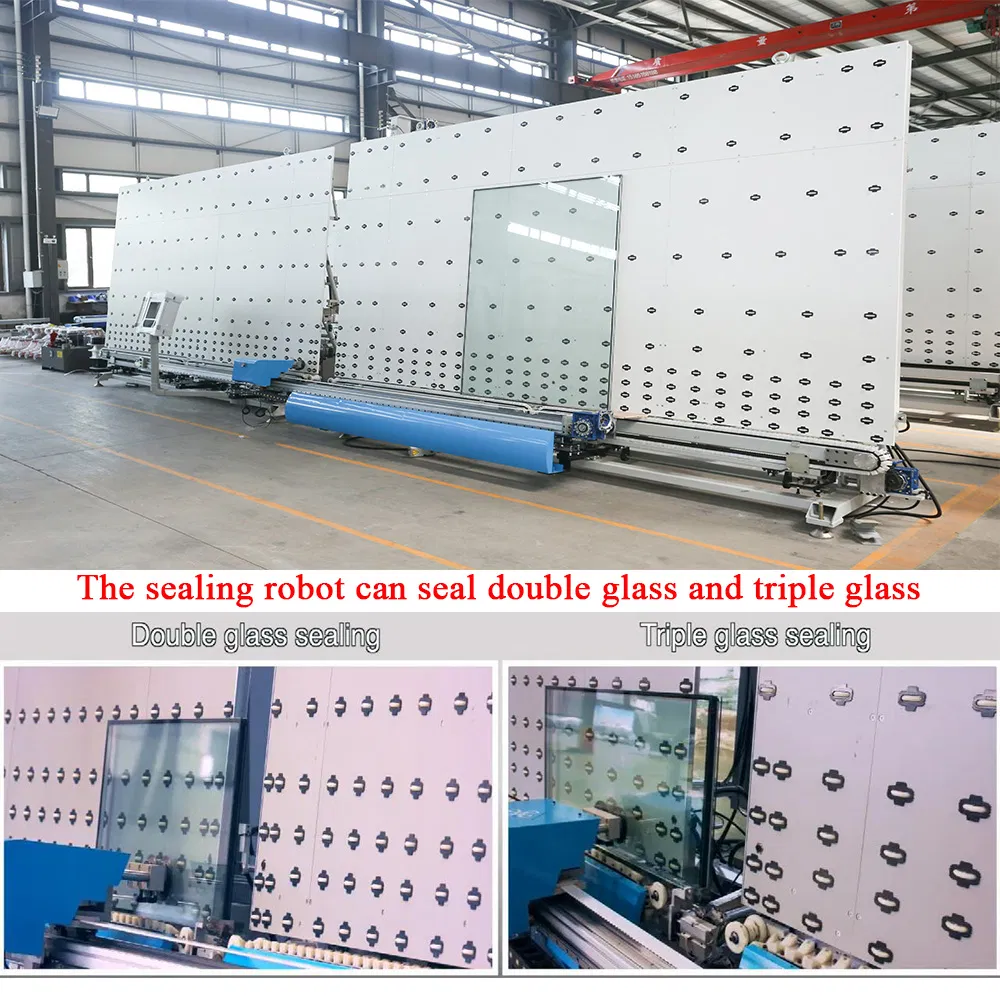

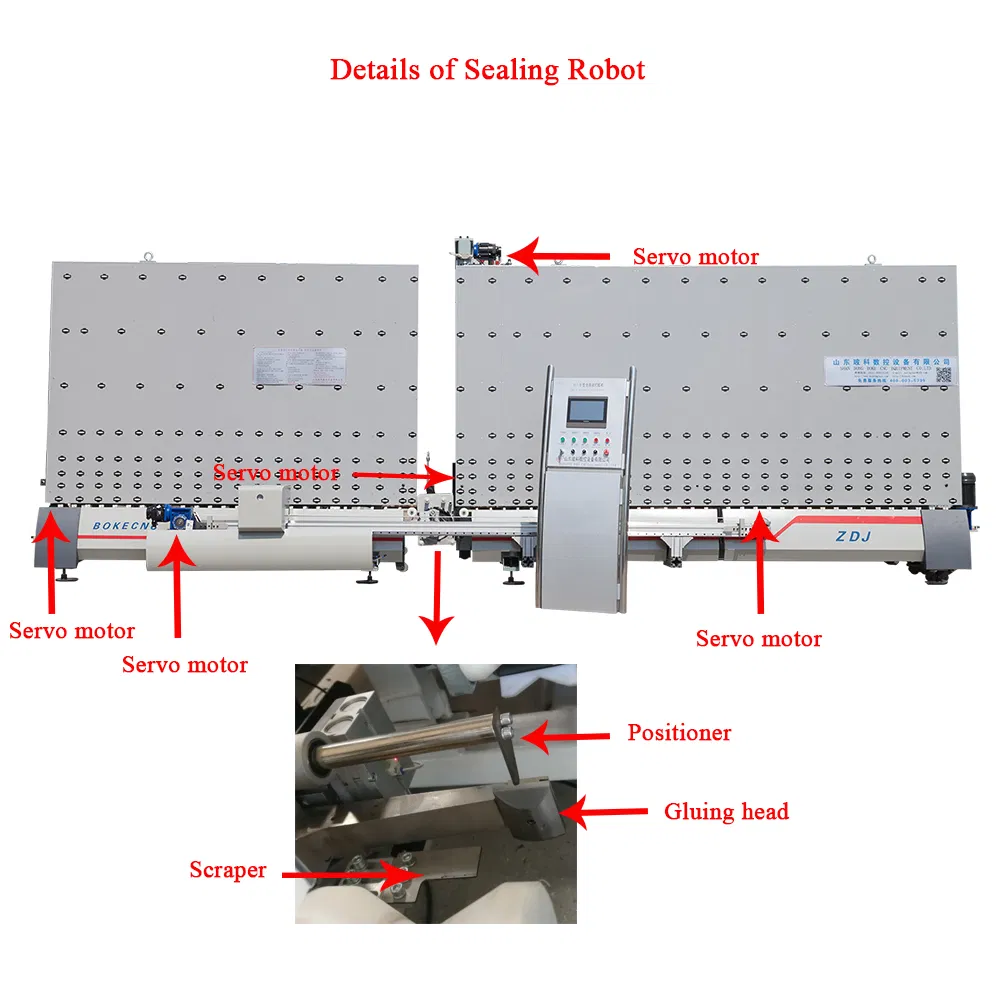

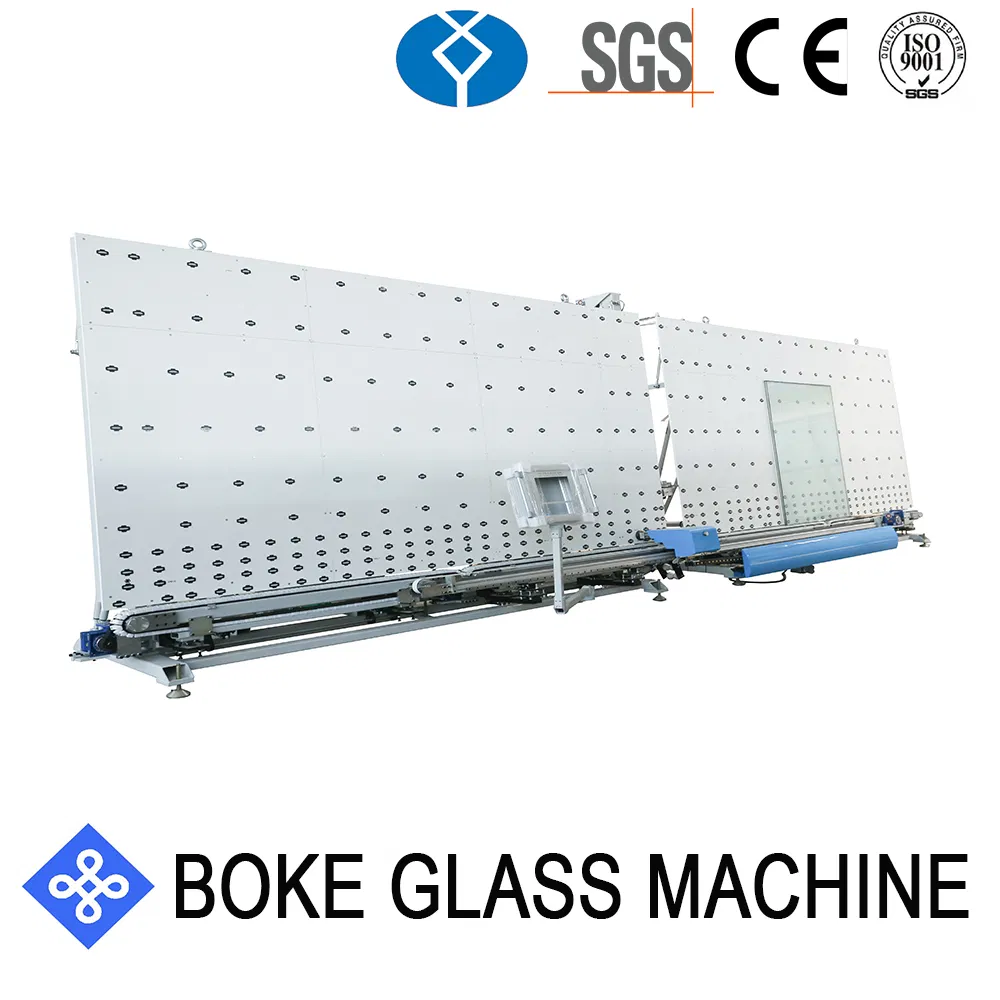

This sealing robot ZDJ-V28.5 is a high-precision glue applicator for the second sealing of insulating glass. It integrates seamlessly into the production workflow including glass cleaning, drying, aluminum frame placement, and plate pressing.
| Parameter Item | Data Specification |
|---|---|
| Sealing Speed | 5-35 m/min |
| Sealing Depth | <18 mm |
| Thickness of IG unit | 12-50 mm |
| Max. IG unit size | 6000*2850 mm |
| Glue Supply Pressure | <30 MPa |
| Elevation (Standard) | 400 mm |
| Angle of Inclination | 6° |
| Air Pressure | 0.6-0.8 MPa |
| Outline Dimension | 14000*3500*3550 mm |

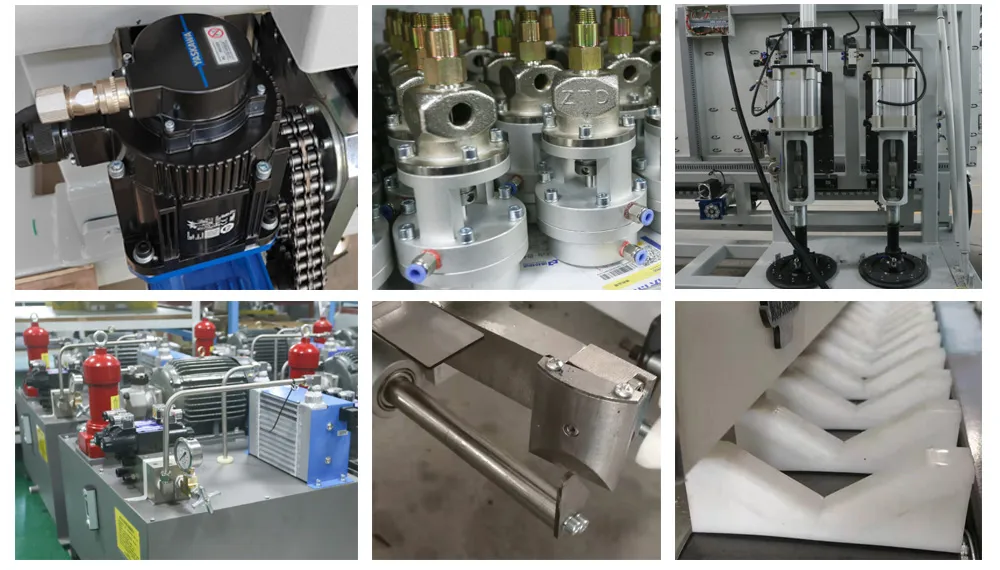

| Component Name | Model/Type | Brand Origin |
|---|---|---|
| Servo Motors & Actuators | SGMGV / SGDV Series | Yaskawa (Japan) |
| Pneumatic Components | TN / TCM Series | Airtac / SMC (Japan) | CDD-11N | OPTEX (Japan) |
| PLC / Motion Control | MP2300S | High-Performance Series |
| Guide Rails & Sliders | HSR25 | HIWIN |
| Precision Regulator | IR1010-01BG | SMC (Japan) |

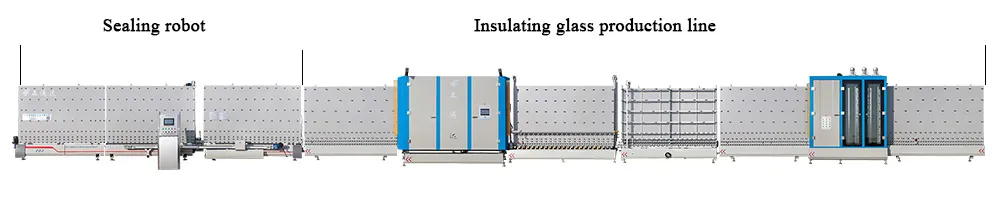

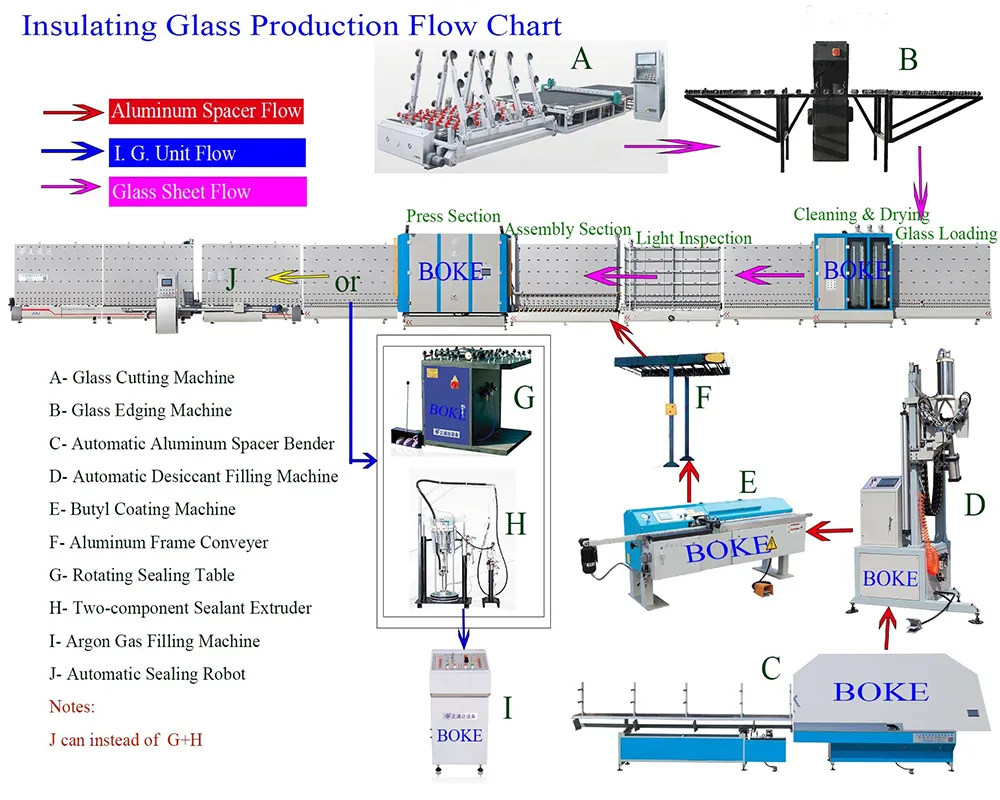

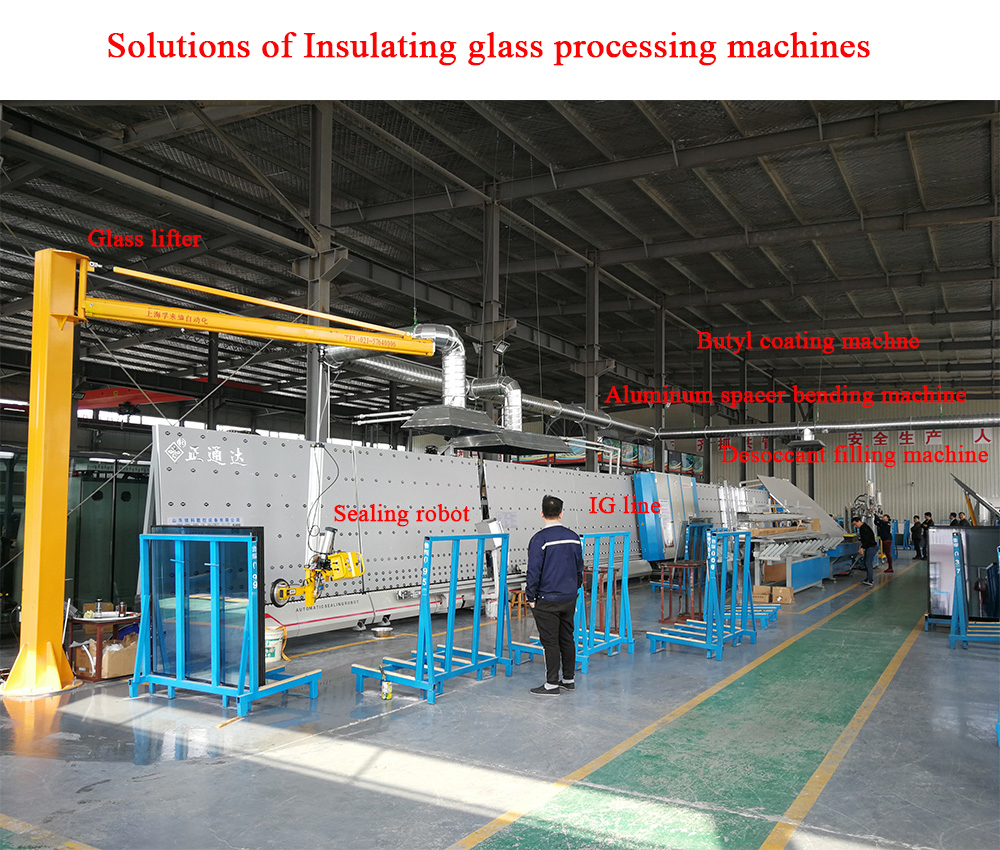

This equipment can operate as a standalone unit or be fully integrated into an Insulating Glass (IG) production line. A complete processing line typically includes:
Our equipment is manufactured under strict quality control systems and holds both ISO9001 and CE Certification. We hold multiple national inventions and utility model patents.
