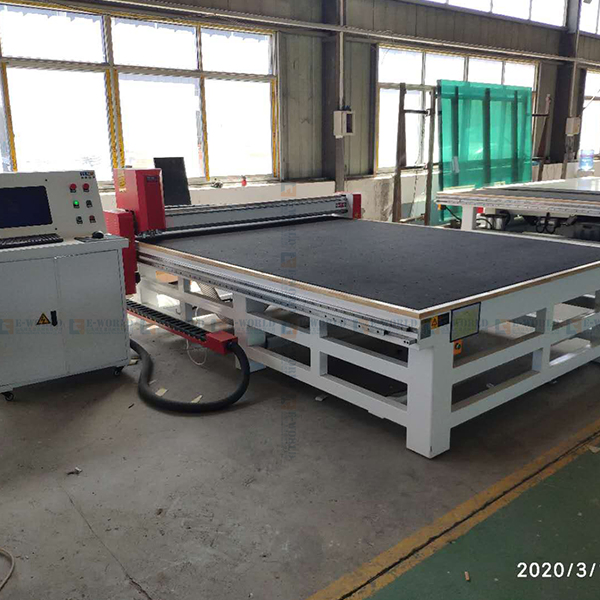

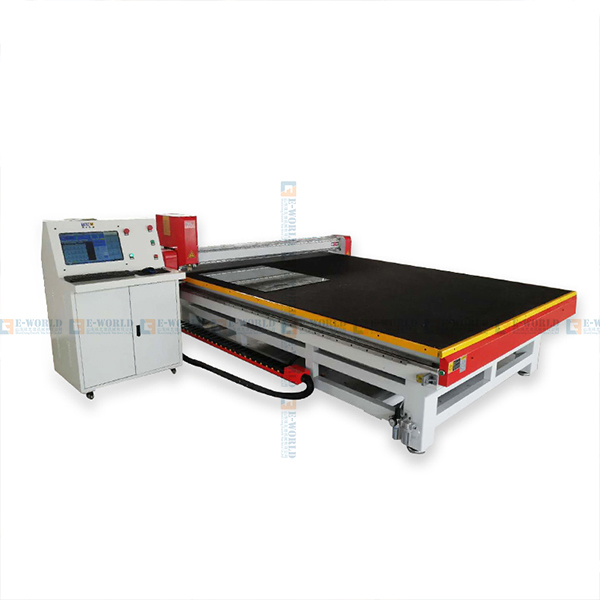

Advanced 3726 Automatic CNC Glass Cutting Table for Precision

Customization:	Available
Certification:	CE, FDA
Name:	CNC Glass Cut Machine

Send Inquiry

Product Description

Basic Information

Model NO.: CNC3726

Thickness: 2-19mm

Speed: 0~120m/Minute (Adjustable)

Application: Automatic Glass Cutting Machine

Control System: PLC

Warranty: 1 Year

Structure: Multi-Function

Production Capacity: 100 Set/ Month

Product Description

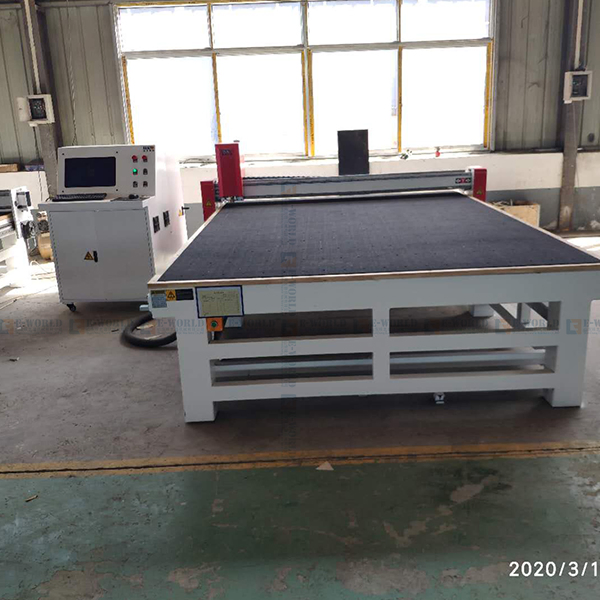

3726 Automatic CNC Glass Cutting Table Machine

Introduction:

1) Workflow: After starting the inputting machine, arms automatically suck glass from the shelf. Under sensor-controlled, glass automatically finds glass edge in the X and Y directions. After moving glass sheets to the designated location, transport glass to the automatic cutting table. Cutter will move to coordinate origin, and automatically start to cut according to the preinstall graph.

2) The operator can edit the glass size for cutting with the computer. The computer can optimize the cutting size, and give out the data for processing.

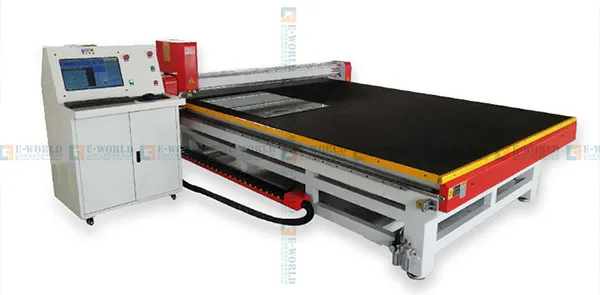

Advanced 3726 Automatic CNC Glass Cutting Table

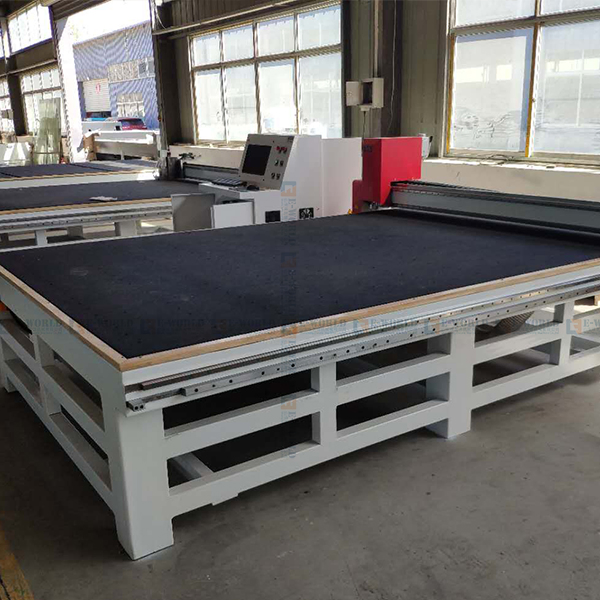

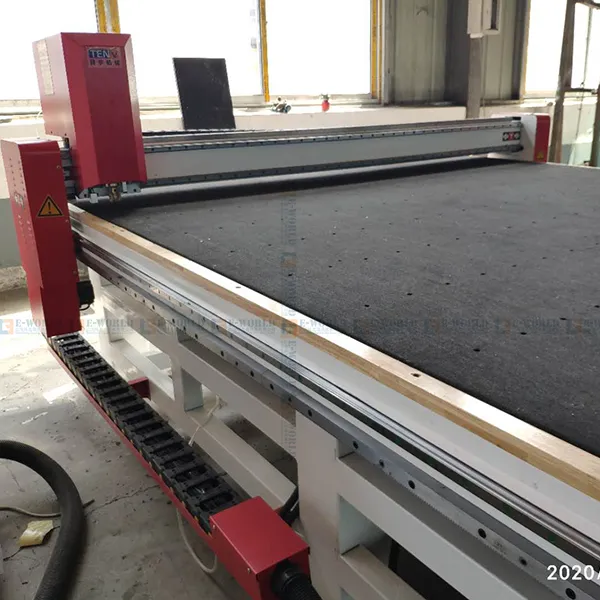

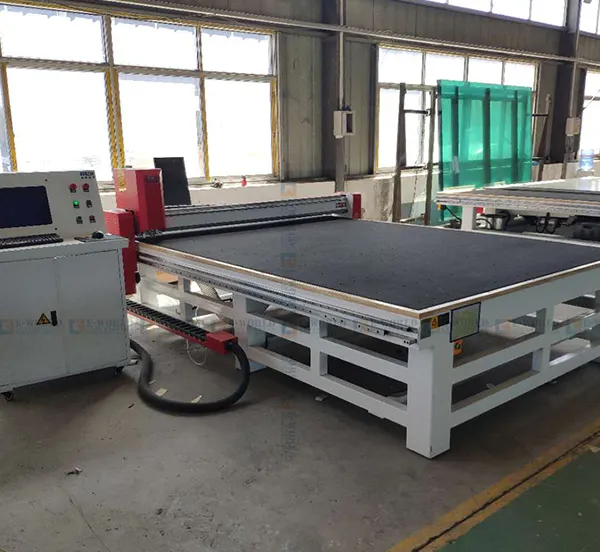

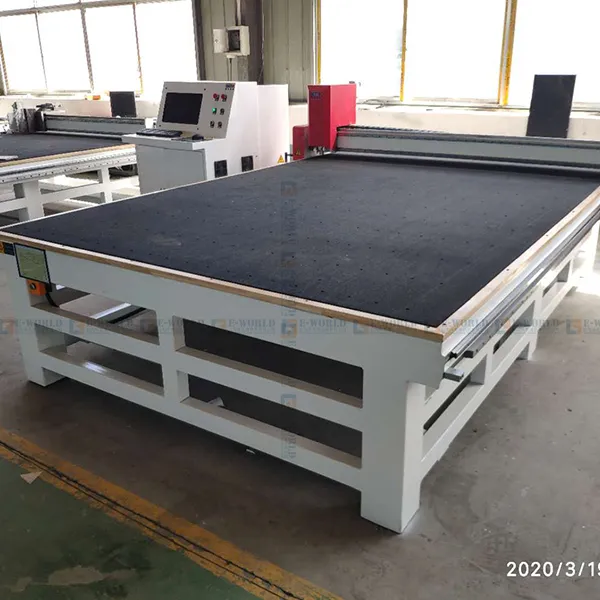

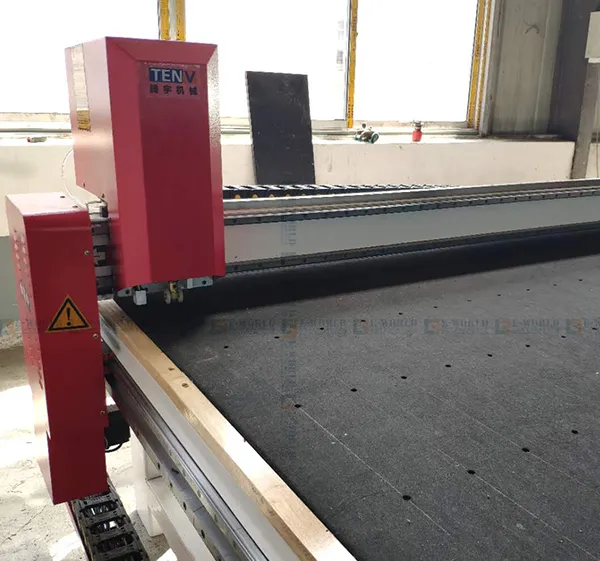

Detailed Photos & Key Features

Main Features

Bed using thick wall pipe welding with high-temperature tempering treatment for stability.
X, Y-axis adopt reliable motor drive ensuring smooth movement.
High precision level gear rack drive for speed and strength.
Imported linear guide square ensures high precision and long life.
Full excellent mechanical and electrical design with premium accessories.
Software compatibility: supports Type3, Artcam, Castmate, Wentai, and other CAD/CAM software.
Human-centric design: breakpoint renewal, power-off recovery, and processing time prediction.

Technical Parameters

Specification	Details
Cutting Thickness	2~19mm
Cutting Accuracy	Parallelism: ≤±0.20mm; Catercorner: ≤±0.2mm
Cutting Speed	0~150m/minute (adjustable)
Outline Size	42003800900mm
Tabletop Size	2600×2100mm
Max Cutting Size	3660*2440mm
Transmission System	X, Y, Z Axis equipped with Yaskawa JAPAN servo motors and THK precision gears.
Cutter Block	Pneumatic and spring system; holder rotates 360°.
Oiling Method	Auto oiling
Positioning System	Pneumatic positioning system
Material of Tabletop	Metal tabletop with flotation device

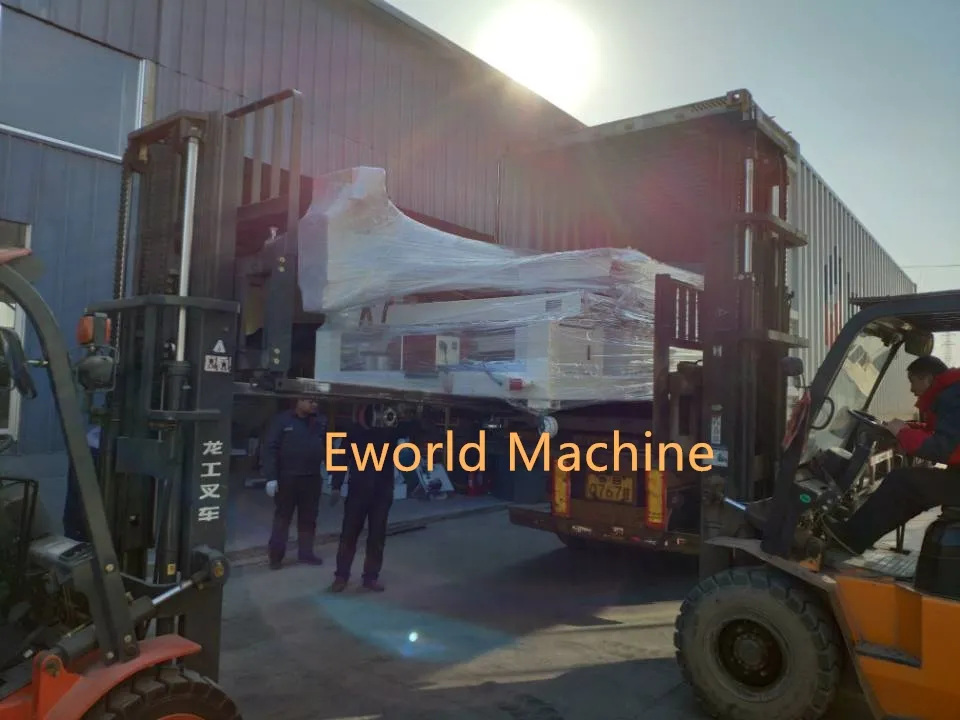

Packaging & Shipping

Package Size:310.00cm * 245.00cm * 145.00cm

Gross Weight:800.000kg

Our Advantages

★Pre-sale Service: Free professional design tailored to each customer and consultation for the most suitable machinery.

★After-sale Service: 24 hours technical support via phone or email. We offer a comprehensive warranty period and senior engineer support for installation and training.

★Quality Commitment: We use famous and reliable internal electric parts to ensure long-term stability and minimize breakdown rates.

Frequently Asked Questions

Q1: What is the delivery time for the glass cutting machine?

For standard machines, the delivery time is 3-15 days. For non-standard or customized machines based on specific requirements, it ranges from 15 to 30 days.

Q2: What kind of after-sales service do you provide?

We provide 24-hour technical support, an 18-month to 2-year quality guarantee (depending on components), and on-site training. Our engineers are available to travel for installation and maintenance.

Q3: How do you ensure the quality of your CNC machines?

We use high-quality components, such as Yaskawa Japan servo motors and THK precision gears. All machines undergo rigorous testing, and we use reliable electrical parts to prevent common breakdowns.

Q4: Is the equipment easy to operate for new users?

Yes, we provide English manuals, video tutorials, and professional on-site training. The system is designed to be user-friendly with CAD/CAM software compatibility.

Q5: What are the supported payment methods?

We accept various payment methods including T/T (30% deposit, 70% before shipment), L/C, Western Union, and other flexible options as required by the client.

Q6: Can this machine handle different glass thicknesses?

Yes, the CNC3726 model is designed to cut glass with thicknesses ranging from 2mm up to 19mm with high precision and adjustable speeds.
