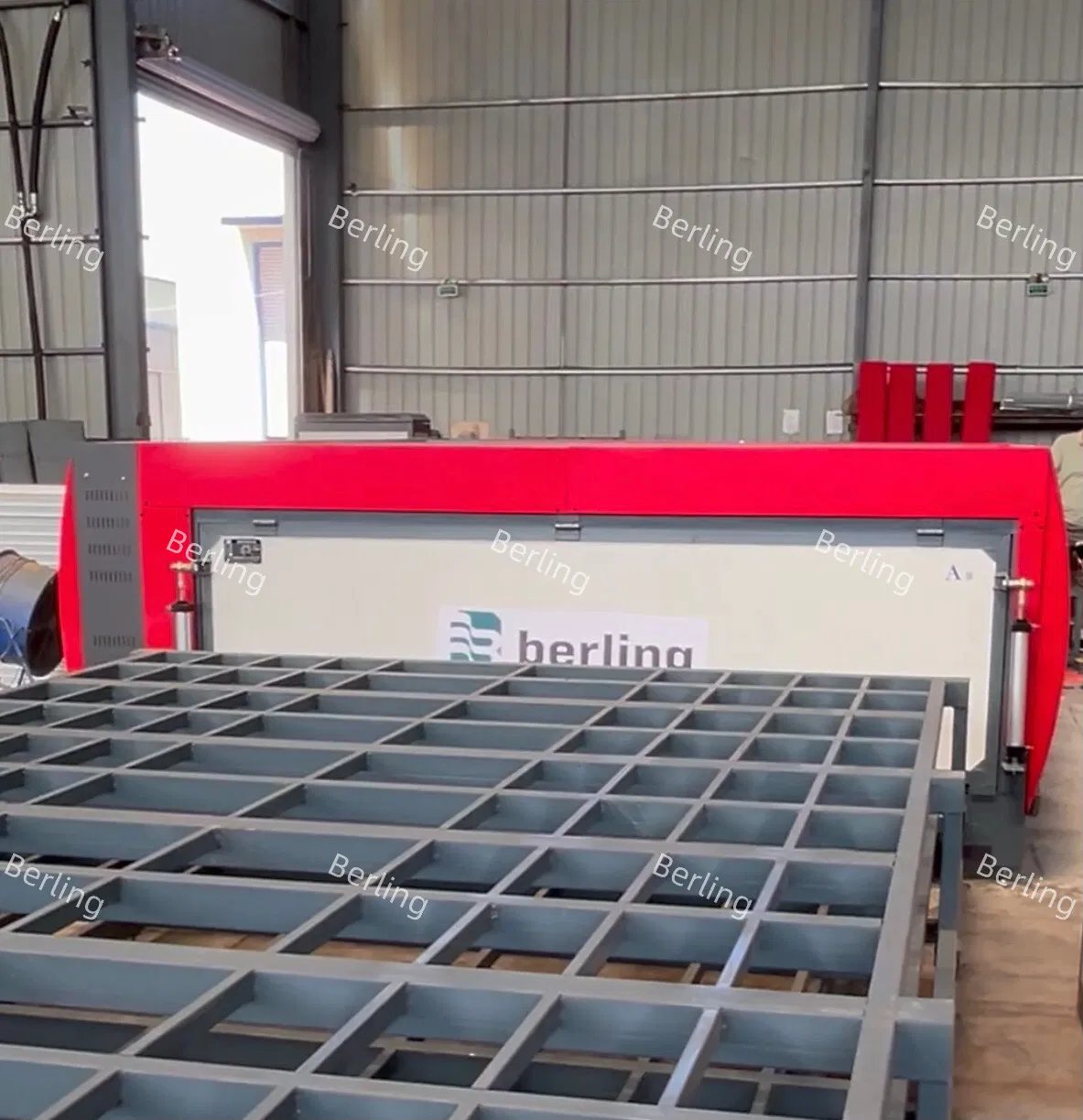

Advanced EVA Laminating Equipment for High-End Glass Processing and Laminating Machine
Advanced EVA Laminating Equipment for High-End Glass Processing and Laminating Machine
Advanced EVA Laminating Equipment for High-End Glass Processing and Laminating Machine
Advanced EVA Laminating Equipment for High-End Glass Processing and Laminating Machine
Advanced EVA Laminating Equipment for High-End Glass Processing and Laminating Machine
1 / 5
Advanced EVA Laminating Equipment for High-End Glass Processing and Laminating Machine
Advanced EVA Laminating Equipment for High-End Glass Processing and Laminating Machine
Advanced EVA Laminating Equipment for High-End Glass Processing and Laminating Machine
Advanced EVA Laminating Equipment for High-End Glass Processing and Laminating Machine
Advanced EVA Laminating Equipment for High-End Glass Processing and Laminating Machine

Advanced EVA Laminating Equipment for High-End Glass Processing and Laminating Machine

Customization: Available
Certification: CE, ISO
Control System: PLC Control
Send Inquiry

Product Description

Basic Specifications

Model NO.
BL2SS-2030
Glass Thickness
4-19 mm
Power
84kw
Silicone Bag Size
3800*2600mm
Max Glass Size
3660*2440mm
Power Supply
380V/50Hz
HS Code
84752919
Package Gross Weight
4300.000kg

Product Overview

This high-efficiency, double-layer laminating machine is designed for the thermal bonding of EVA (or EN) film between various types of glass sheets. Featuring intelligent PLC temperature control, internal air circulation, vacuum systems, and durable silicone vacuum bags, it ensures stable, even heating and strong bonding, making it ideal for safety, decorative, and specialty glass manufacturing.

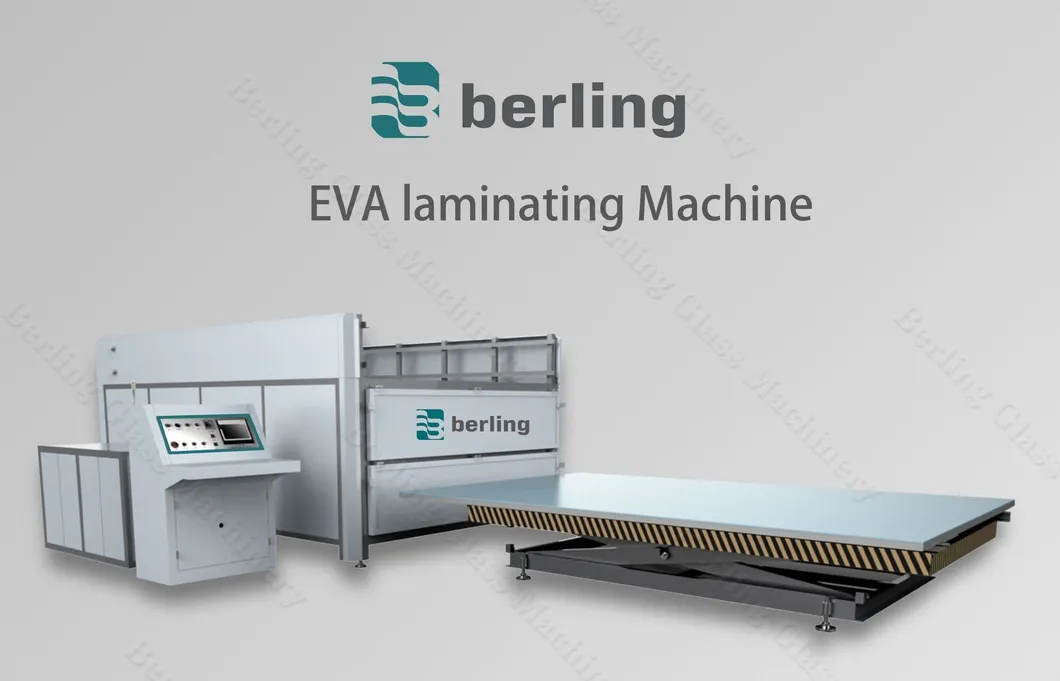

EVA Laminated Glass Furnace
Efficient Heating: Fin-type circulation system with fast and even temperature distribution.
Accurate Control: PLC-controlled intelligent temperature regulation with programmable operations.

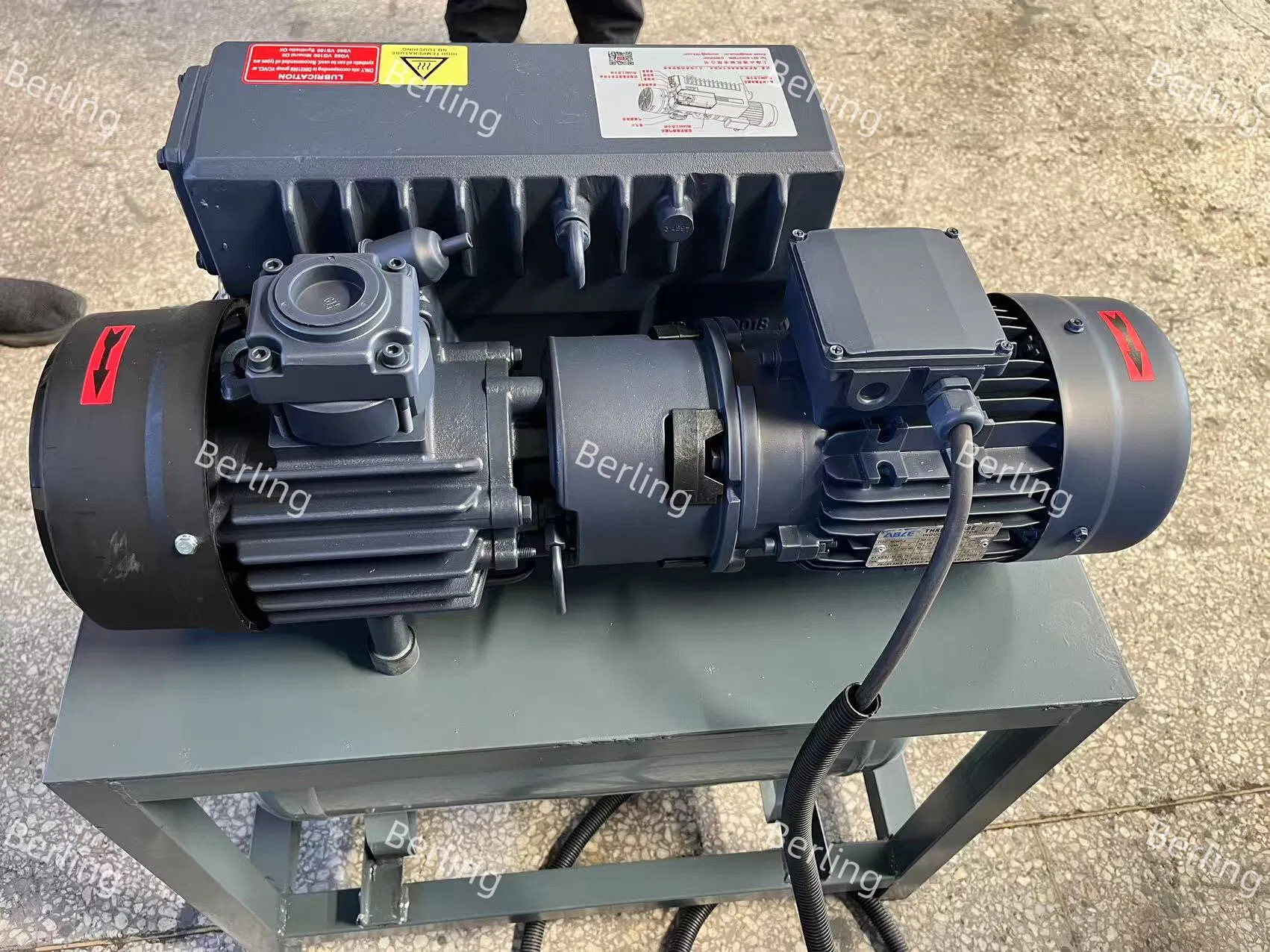

Strong Vacuum System: High-performance pump with air-oil separation and cooling protection.
Durable Structure: Thick galvanized steel frame and double insulation for stable use.
High Output Capacity: Silicone plates with strong vacuum sealing for large-scale production.
Labor-Saving Design: Dual-layer and optional lifting system reduce manual handling.

Technical Parameters

Items Specification Power Supply Total Power(KW) Silicone Bag Size(MM) Max Glass Size(MM) Overall Dimension(MM) Bag Qty
BL2SS-2030single station, 2 layers380V/50HZ272000*30001900*29007800*2500*15902
BL4DD-2030double stations, 4 layers380V/50HZ272000*30001900*290012200*2500*15904
BL2SS-2638single station, 2 layers380V/50HZ422600*38002500*37009400*3100*15902
BL4DS-2638double stations, 4 layers380V/50HZ422600*38002500*370014600*3100*15904
BL2SS-2650single station, 2 layers380V/50HZ482600*50002500*490011800*3100*15902
BL4DS-2660double stations, 4 layers380V/50HZ602600*60002500*590021200*3100*15904

Application Scope

Laminated flat or curved glass
Toughened laminated safety glass
Decorative colored laminated glass
Bulletproof and explosion-proof glass
Marble rock composite panels
Art glass (printed, wired, textured)

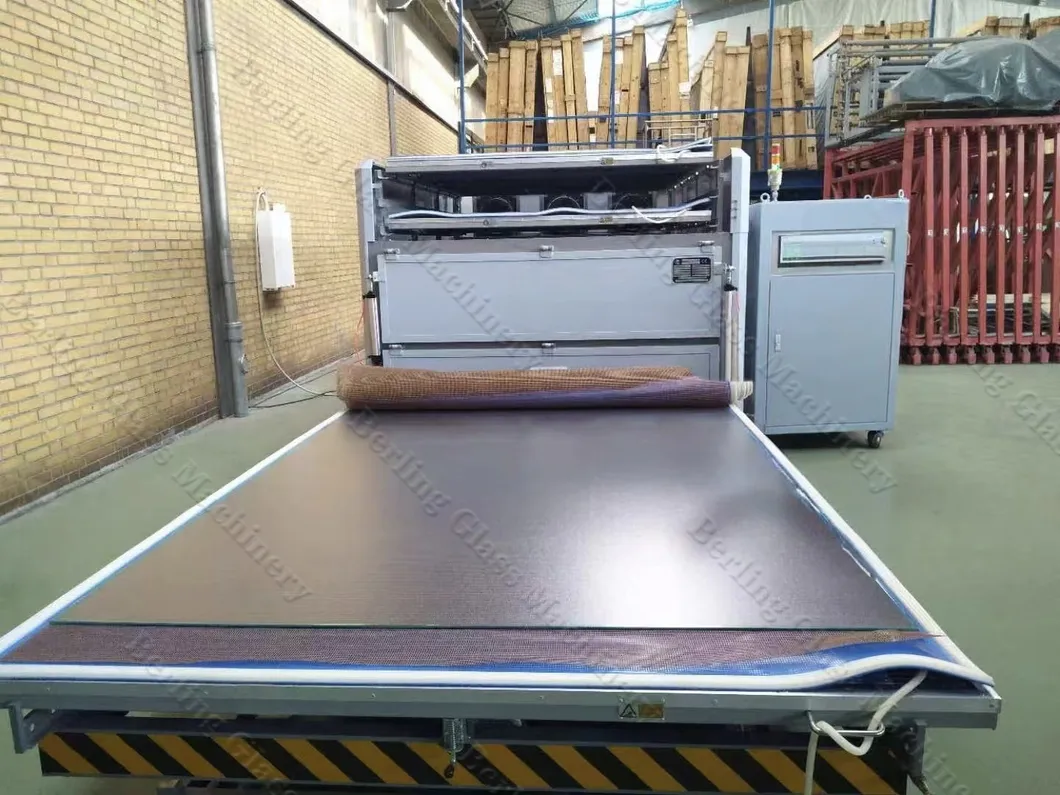

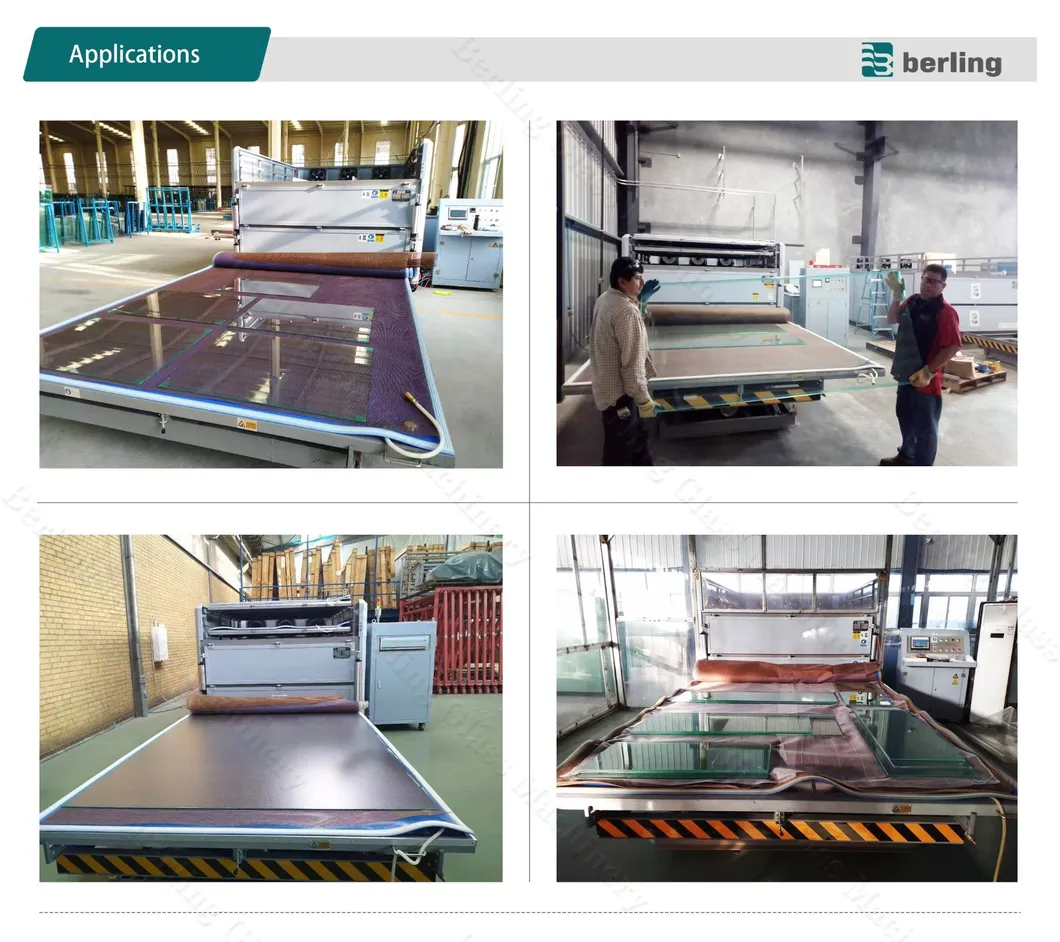

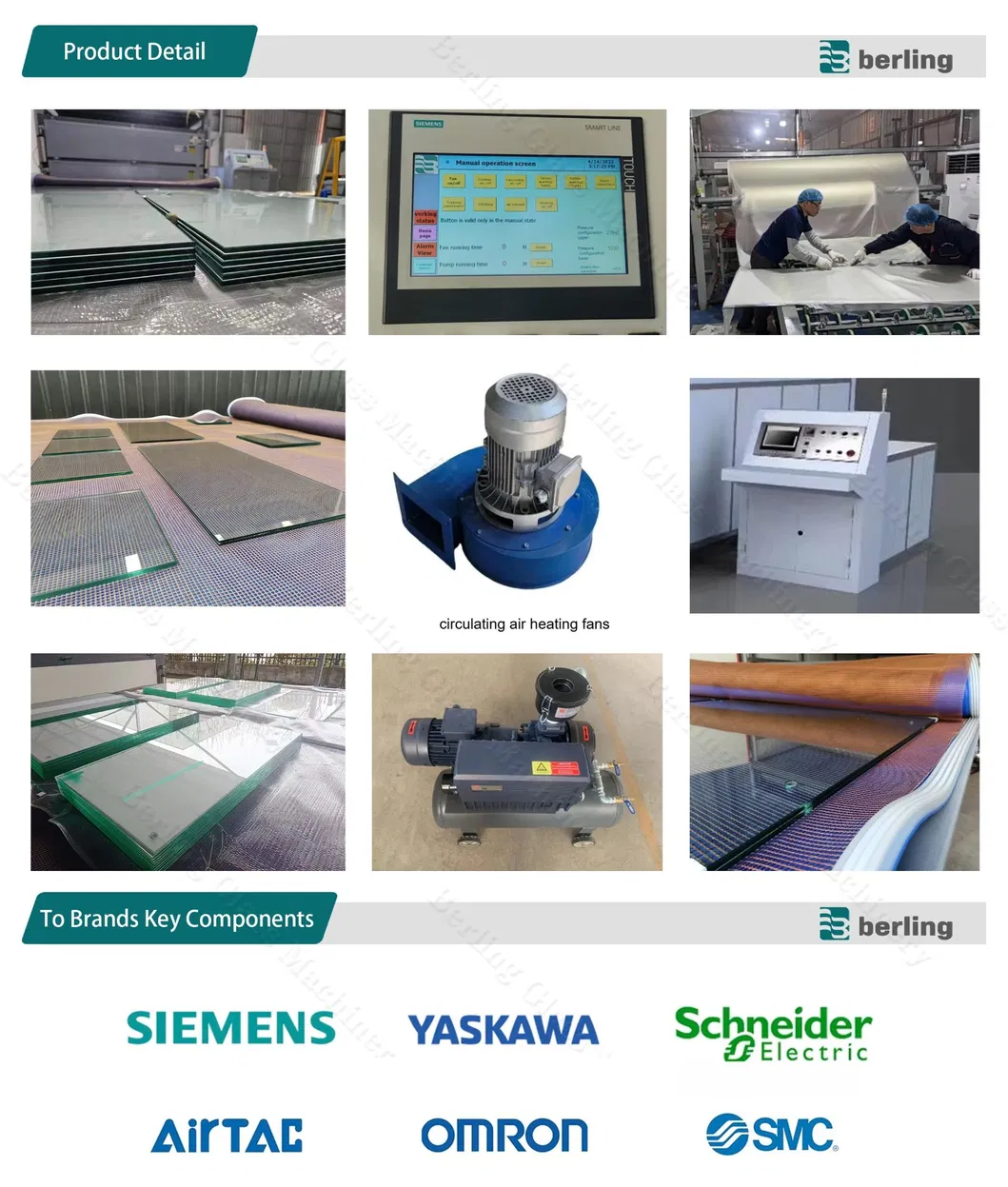

Machine Detail 1 Machine Detail 2 Machine Detail 3

Quality & Logistics

Certifications Packaging Service

Frequently Asked Questions

1. How do you guarantee the quality of the equipment?
We always provide a pre-production sample before bulk production and conduct a strict final inspection before shipment to ensure stable and excellent product quality.
2. What types of glass machinery can I purchase?
We offer a full range of solutions including Insulated Glass Production Lines, Glass Cutting Machines, Glass Washing Machines, Glass Edging Machines, Tempering Furnaces, and Laminated Glass Lines.
3. Why should I choose your machines over other suppliers?
With over 20 years of production experience, an excellent engineering team, and a professional after-sales service department, we provide reliable and stable glass processing equipment.
4. What delivery terms and payment methods are accepted?
We accept various delivery terms including FOB, CFR, CIF, EXW, and DDP. Payments can be made via T/T, L/C, Credit Card, or PayPal in USD, EUR, or CNY.
5. Which languages does your support team speak?
Our team is multi-lingual and can communicate in English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, and more.
6. What is the production capacity of the furnace?
The furnace features dual-layer systems and silicone plates with strong vacuum sealing, enabling large-scale batch production with high output efficiency.
