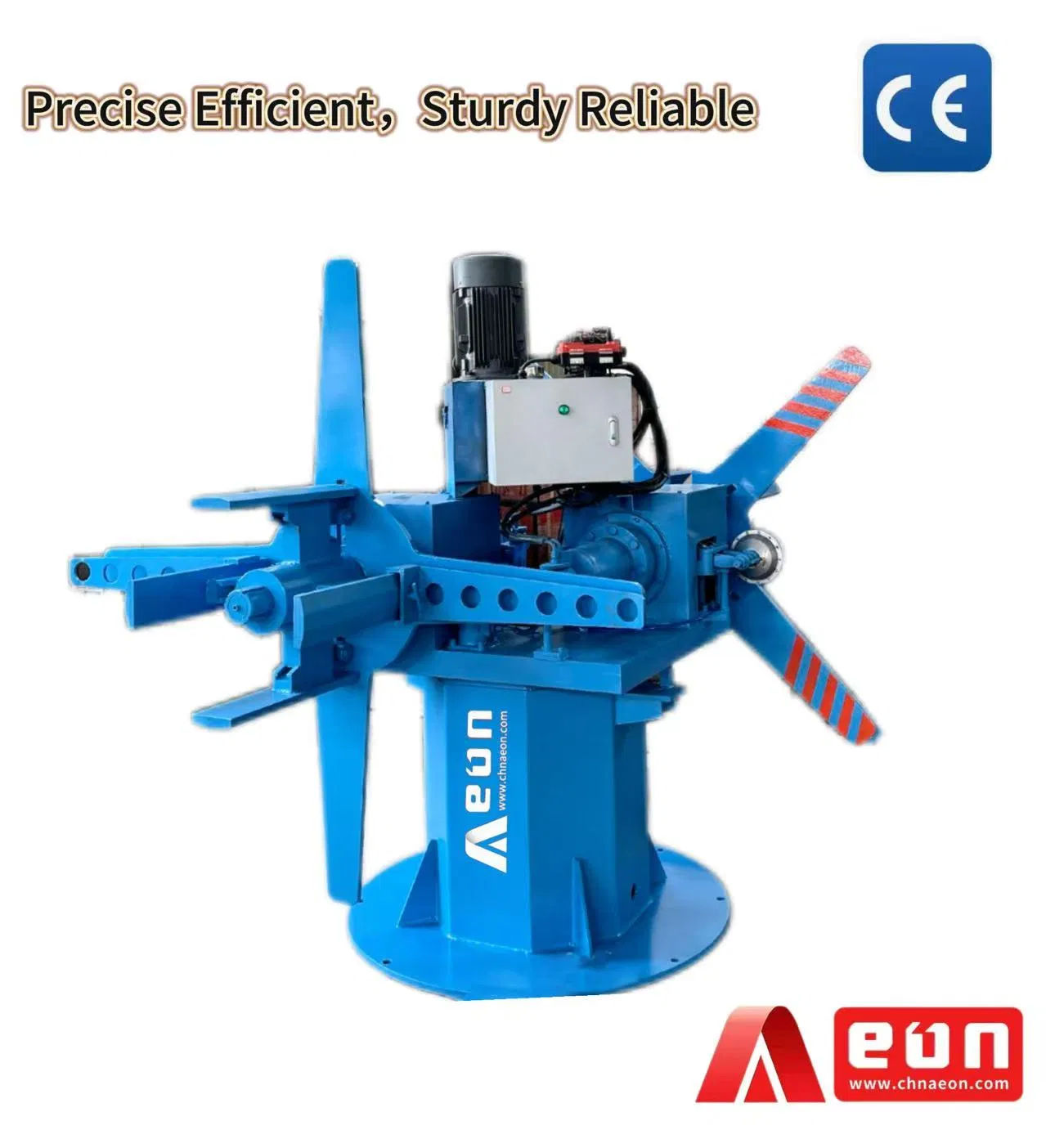

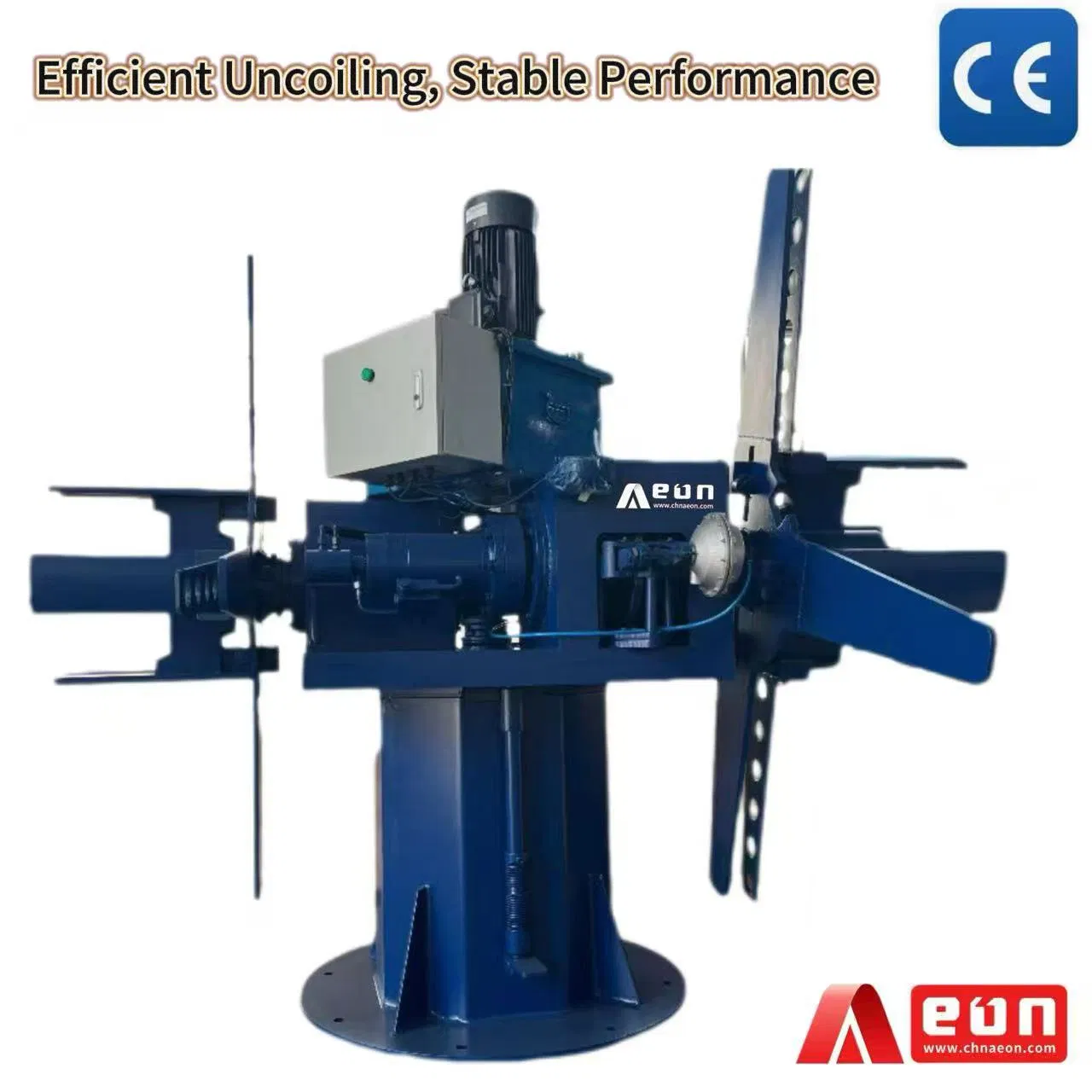

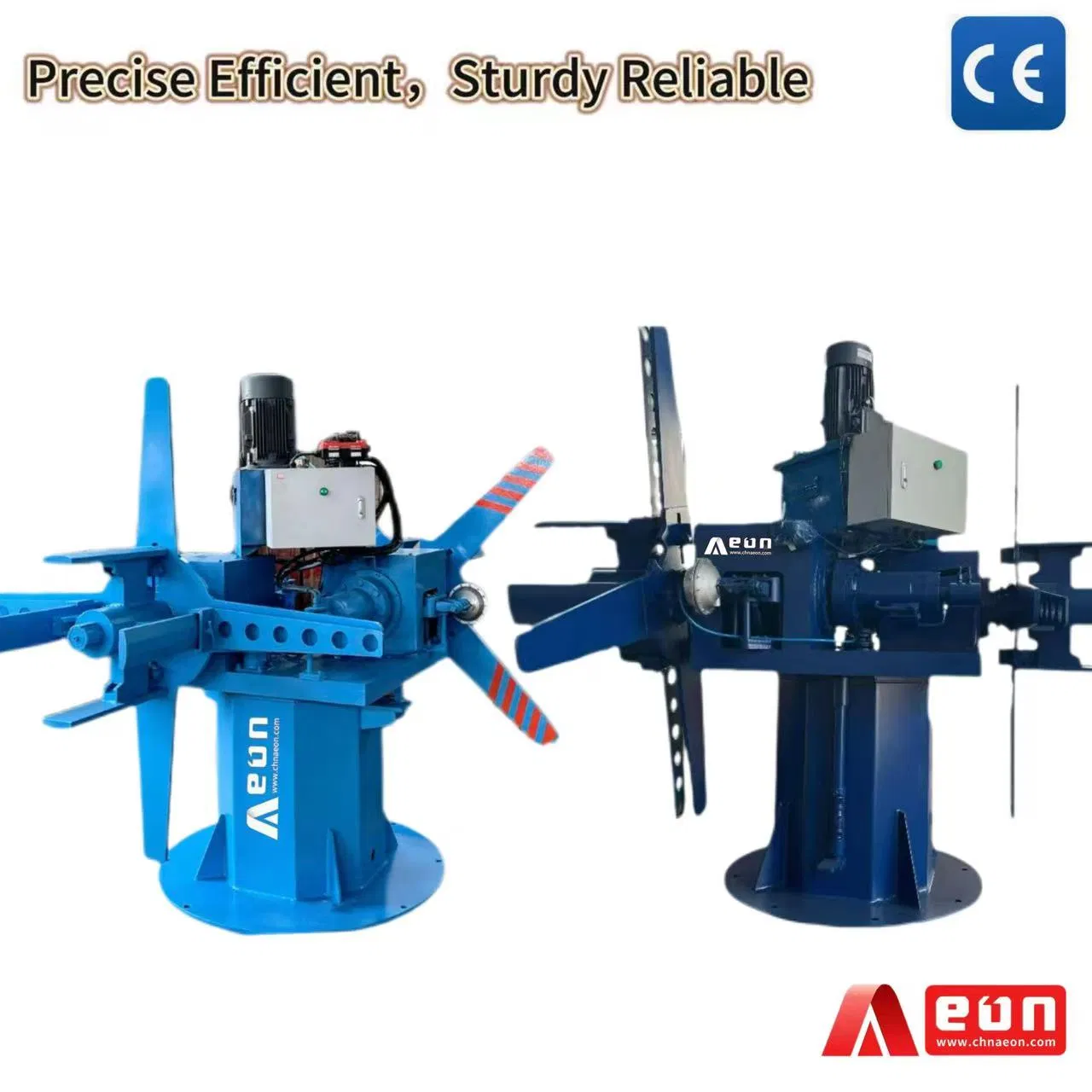

The unwinding machine is specialized equipment used to support metal coils and provide tension. Its core function is to achieve smooth unwinding and establish the necessary steel strip tension for subsequent processing like straightening, shearing, and stamping.
Designed with a cylindrical drum, it uses hydraulic or mechanical means to clamp or release coils. Equipped with a central control (CPC) system, it achieves automatic centering for high operational stability.

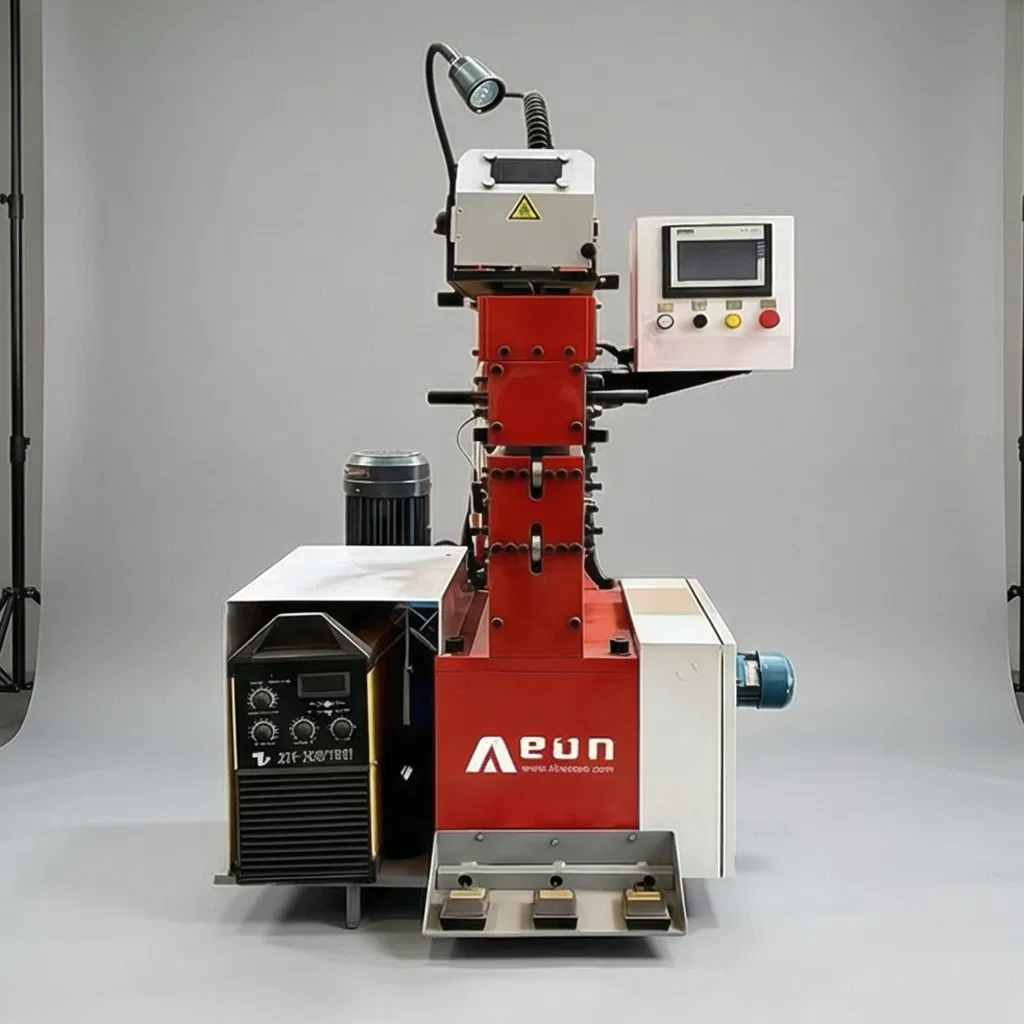

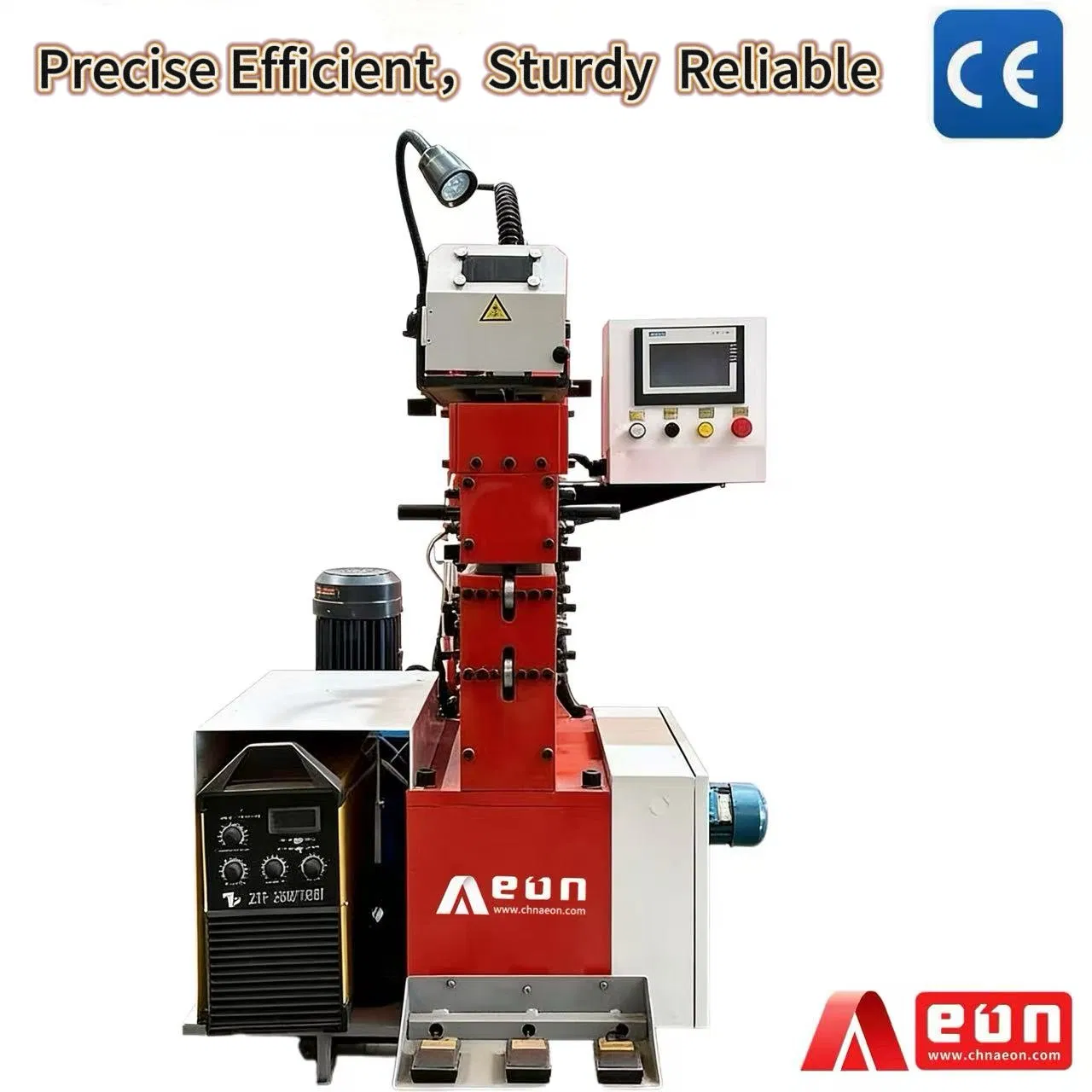

Used for precise shearing and welding of steel heads and tails. The steel strip is pushed by hydraulic cylinders for shearing, then joined for argon arc welding.
Argon gas creates a dense protection layer to isolate air, while the electric arc fuses the metal together, ensuring seamless continuous production.

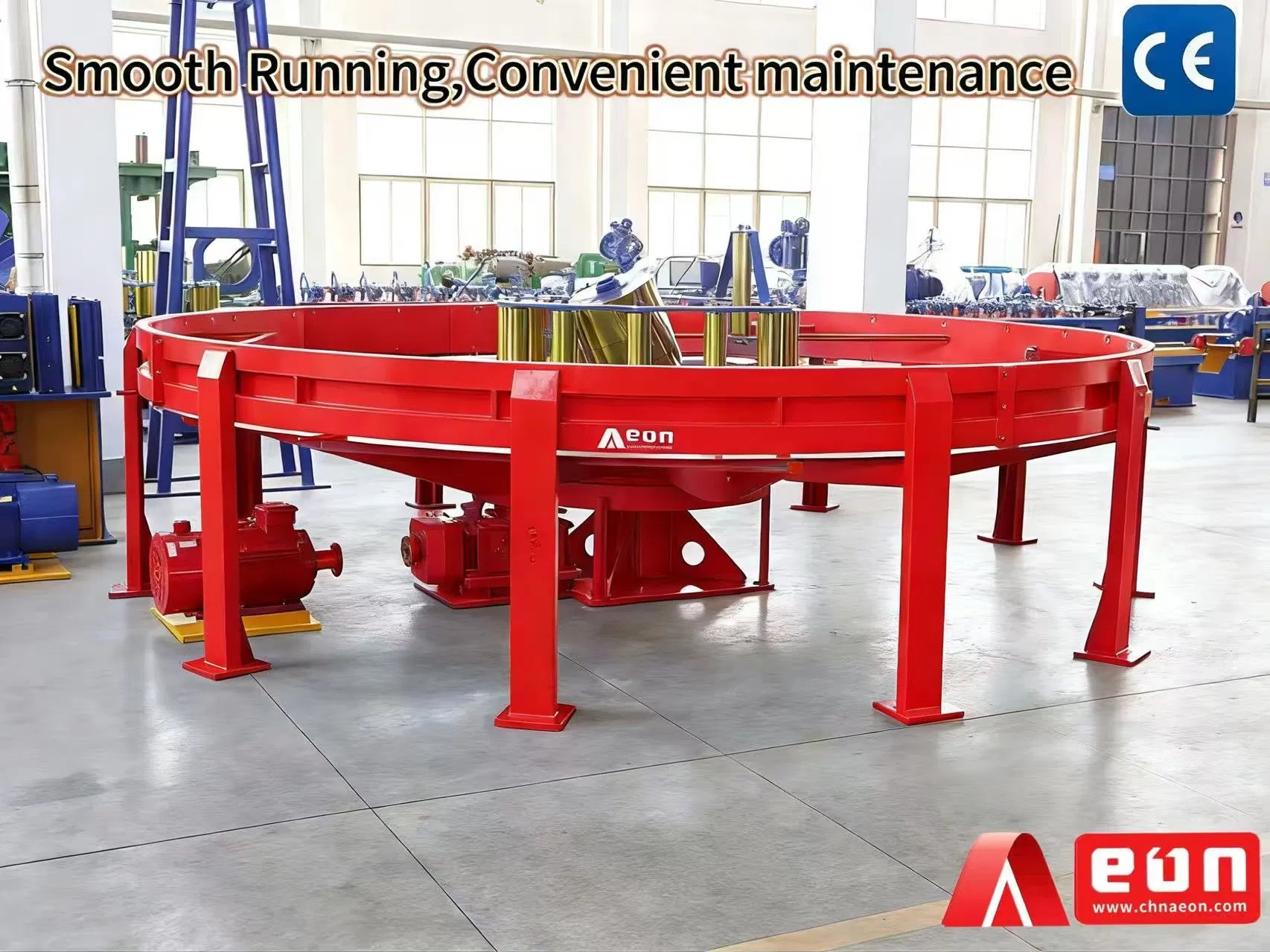

A horizontally arranged loop device that achieves dynamic storage and adjustment of materials. It ensures the main machine operates continuously without stopping during head and end welding.
Features a spiral storage structure for buffering, maintaining stable tension and output, which is critical for high-speed rolling processes.
| Horizontal Accumulator Specs | |
| Accumulation Diameter | 4.0m |
| Coil Width Range | 60 ~ 200mm |
| Coil Thickness | 0.7 ~ 2.5mm |
| Feeding Speed | 120 ~ 200m/min |
| Main Motor | 18.5kw inverter motor |
| Volume Capacity | 120 - 800m |
| Hydraulic Uncoiler Specs | |
| Structure | Double-side 180° rotary hydraulic |
| I.D. of Steel Coil | Φ450mm ~ Φ550mm |
| O.D. of Steel Coil | Φ800mm ~ Φ1500mm |
| Max Load Weight | ≤3000 kgs |

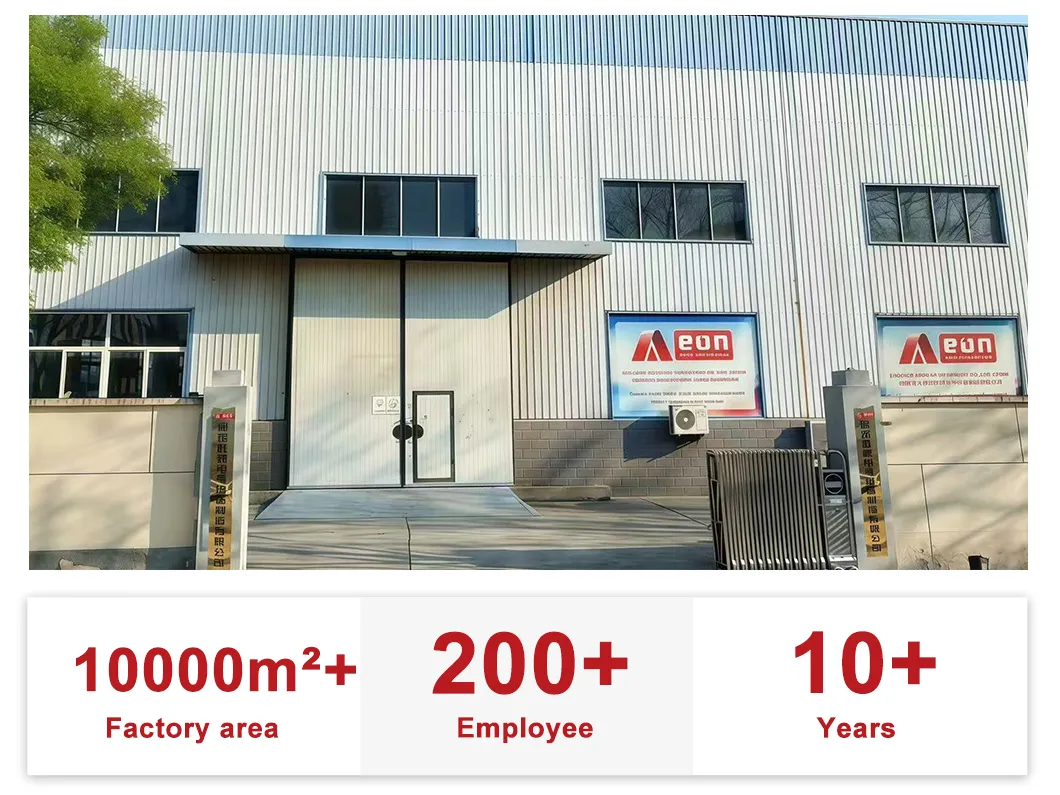

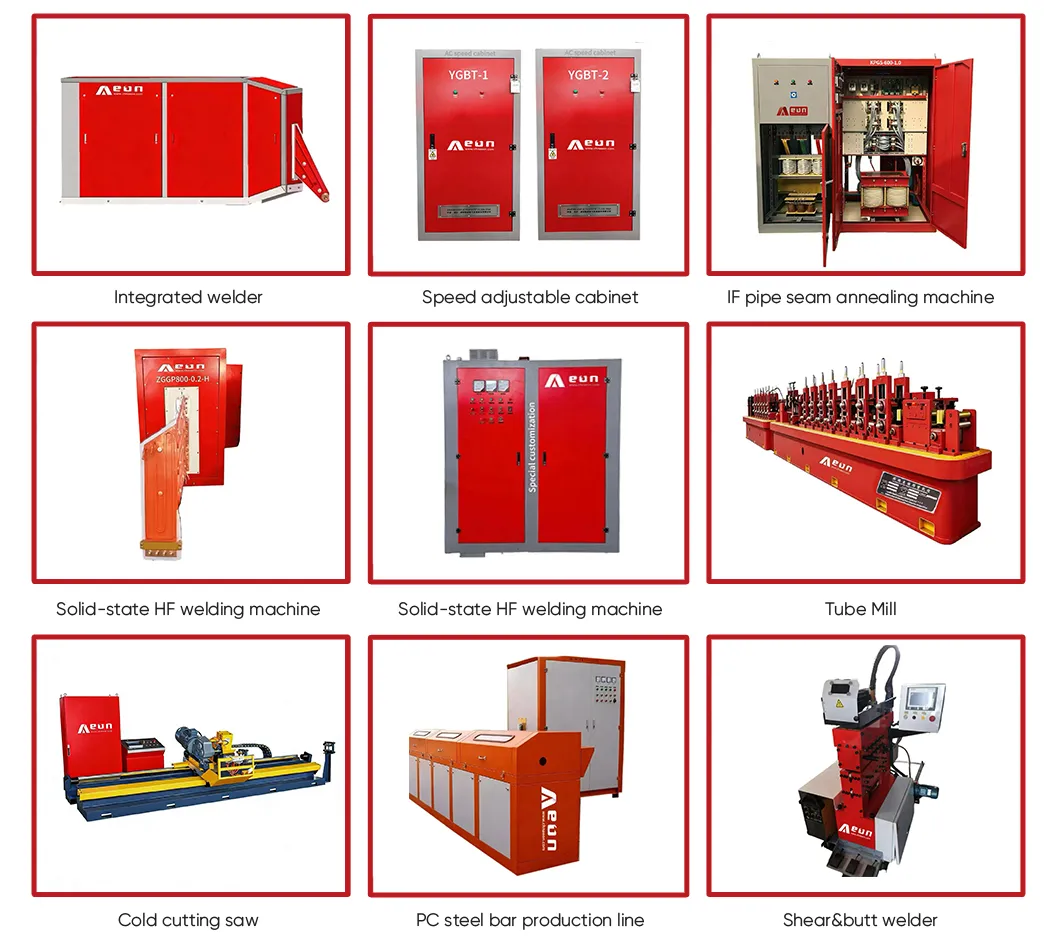

Established in 2015, we are a high-tech enterprise integrating design, R&D, production, and sales. We focus on welded pipe materials, covering the full range of induction heating related equipment such as ERW pipe rolling mills, solid-state high-frequency welders, and IF weld seam annealing machines.
All our products have passed CE and UL international certifications. We are committed to "winning the market with integrity" and "creating brilliance with technology," continuously deepening innovation to repay the trust of our global customers in Asia, the Middle East, America, and Europe.
