Advanced Welding Pipe Machine Auxiliary Equipment for Precision Tasks

Customization:	Available
After-sales Service:	Lifelong Service
Warranty:	One Year

Basic Information

Pipe Material	All	Condition	New
Customized	Customized	Theory	Vertical Type
Application	Industry	Type	High Frequency Weld Pipe Mill Line
Transport Package	Box	Origin	China

Product Introduction

Advanced Welding Pipe Machine Auxiliary Equipment

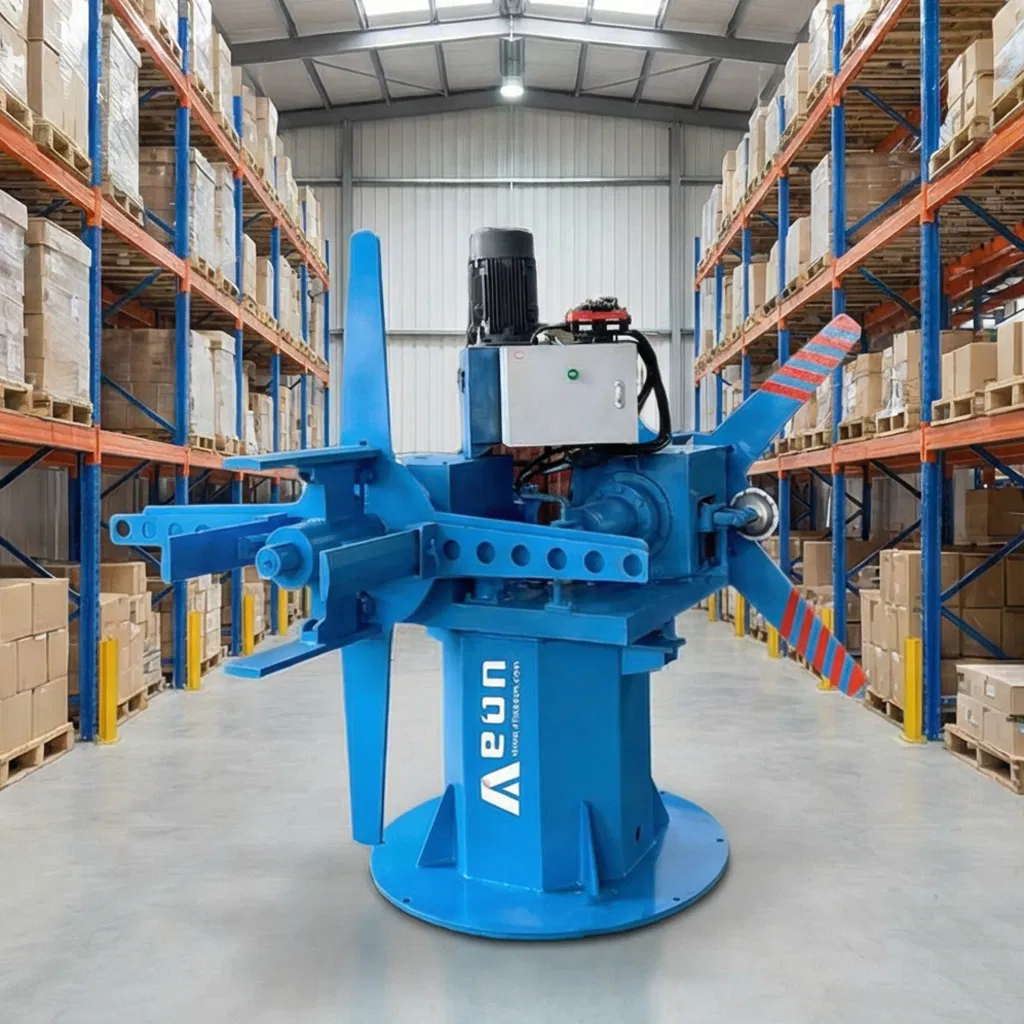

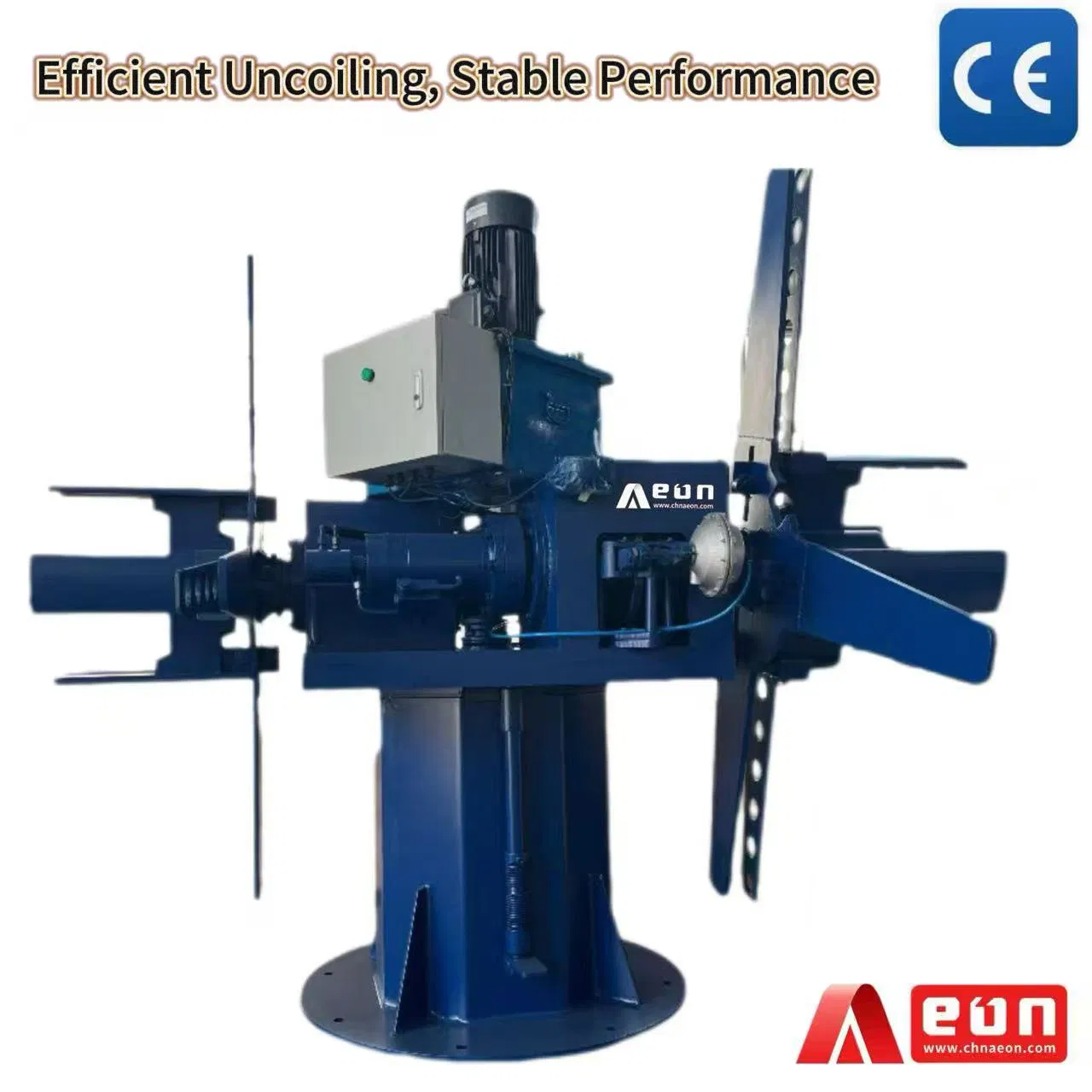

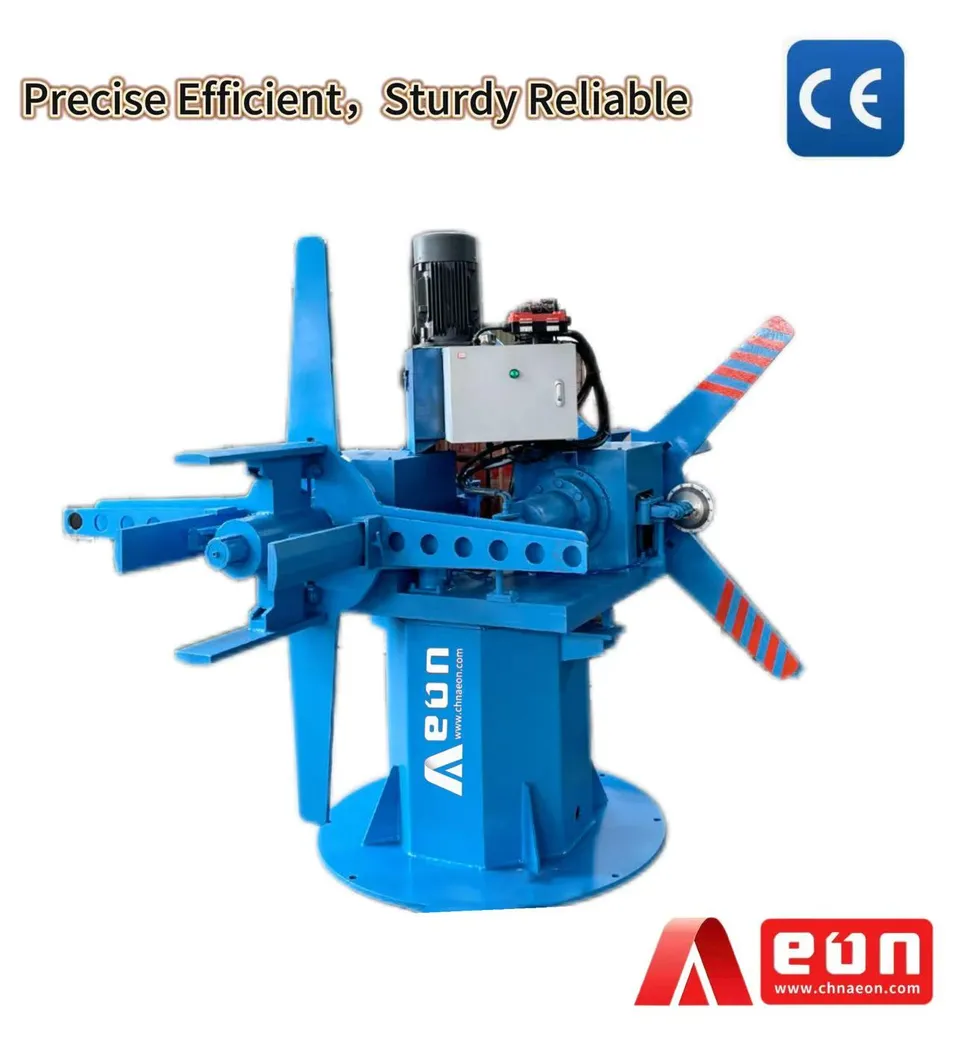

Hydraulic Double-Side Uncoiler

The unwinding machine is a specialized equipment used to support metal coils and provide tension. Its core function is to achieve smooth unwinding and establish the necessary steel strip tension for subsequent processing like straightening, shearing, and stamping. It features a cylindrical drum with radial expansion via hydraulic or mechanical means to clamp or release the coil, equipped with a central control (CPC) system for automatic centering.

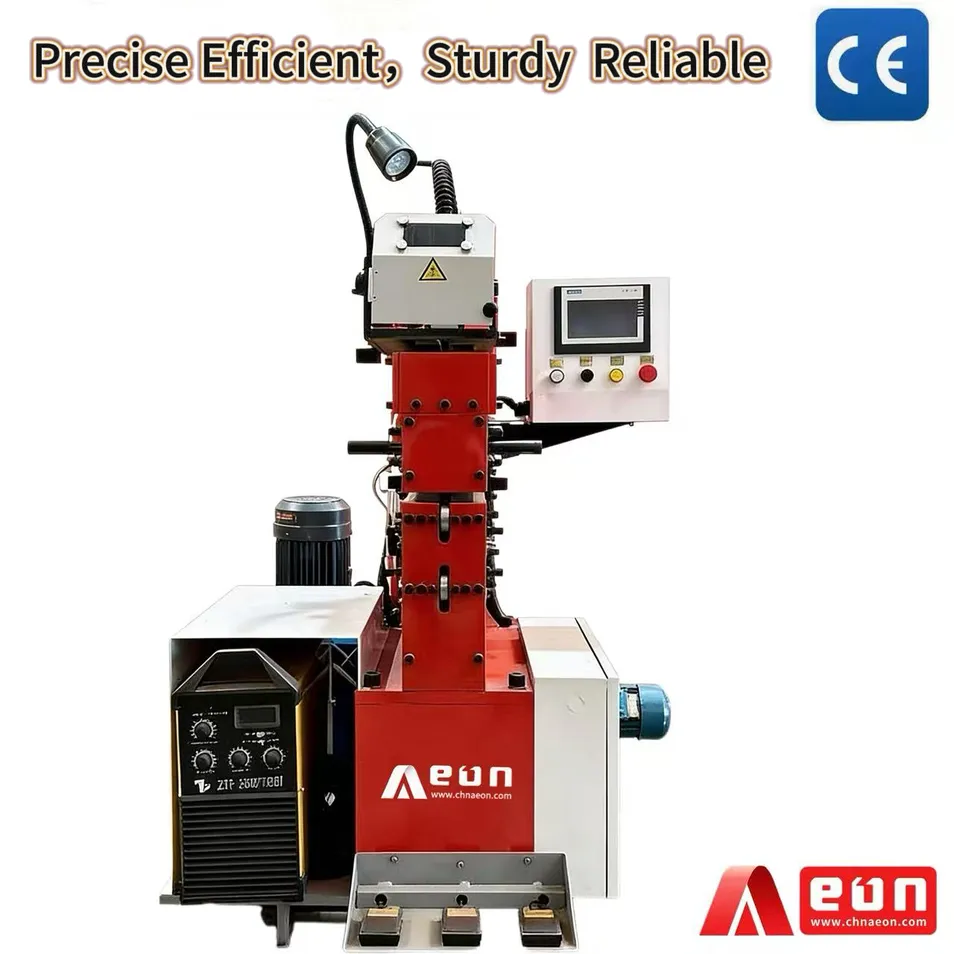

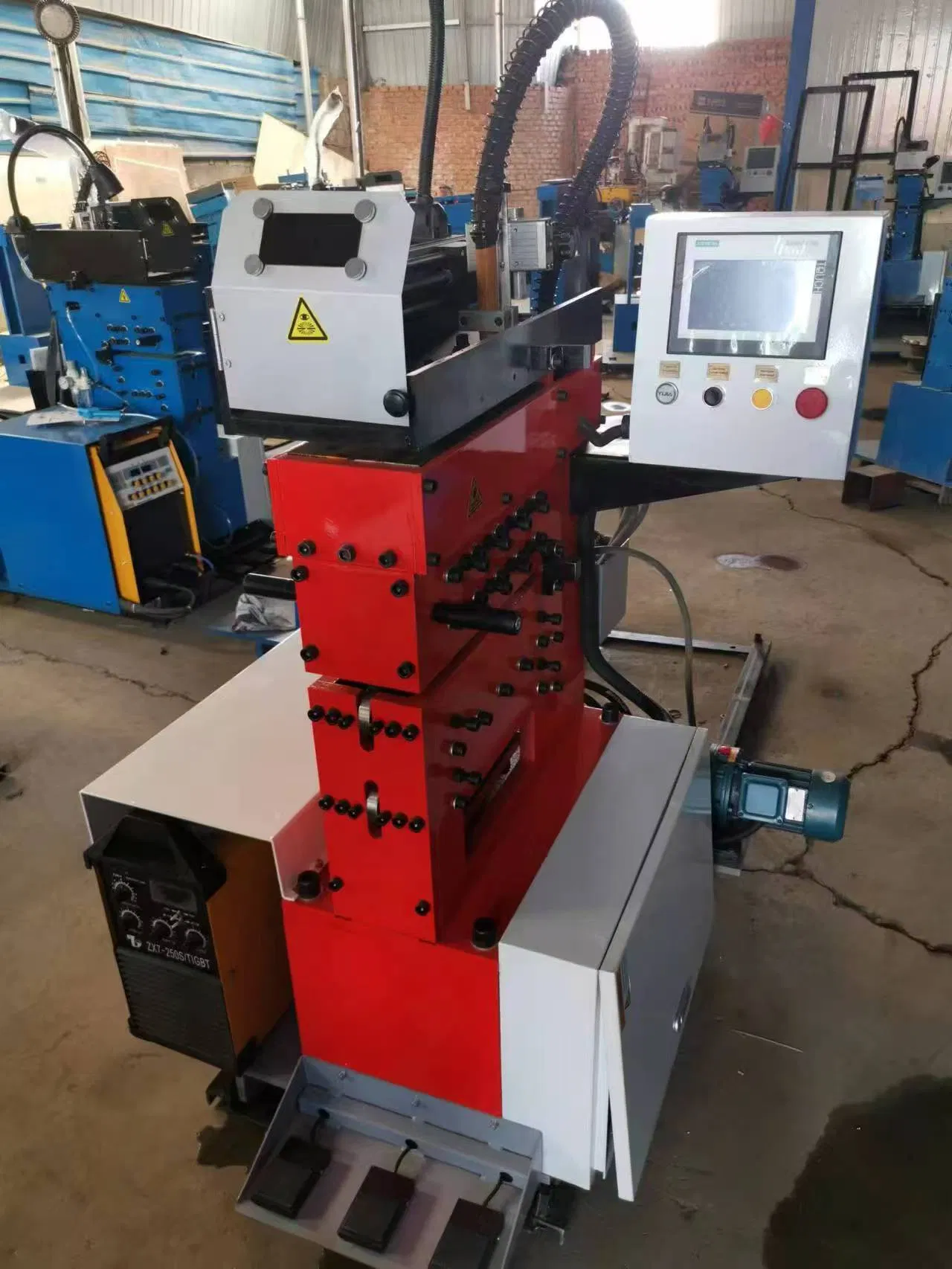

Shearing & Butt Welder

Used for shearing and welding steel heads and tails. The steel strip is pushed by a hydraulic cylinder for shearing, then joined for welding. Argon gas protection is utilized to isolate air, and an electric arc fuses the welded metal together, ensuring a thick and dense protection layer.

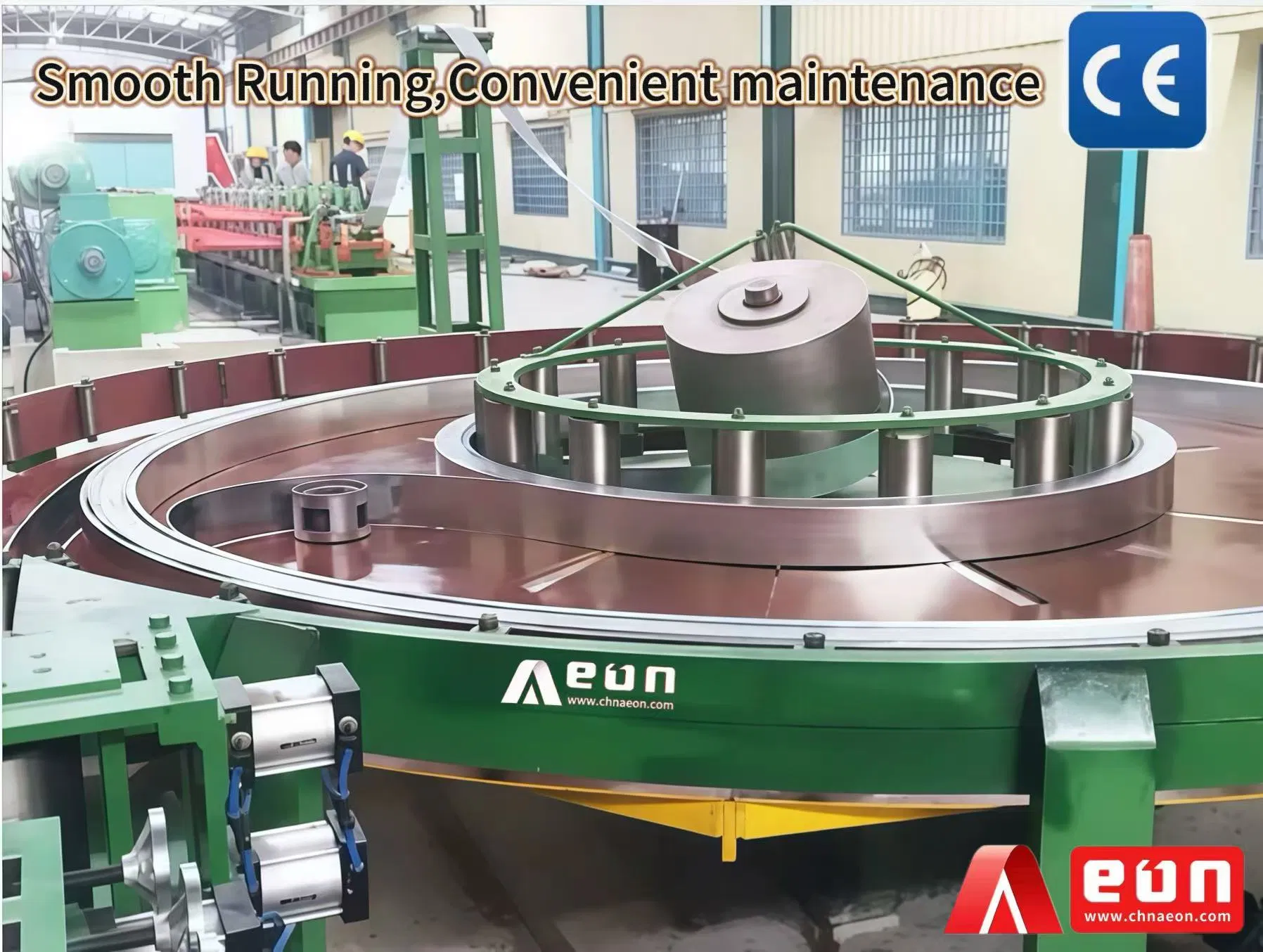

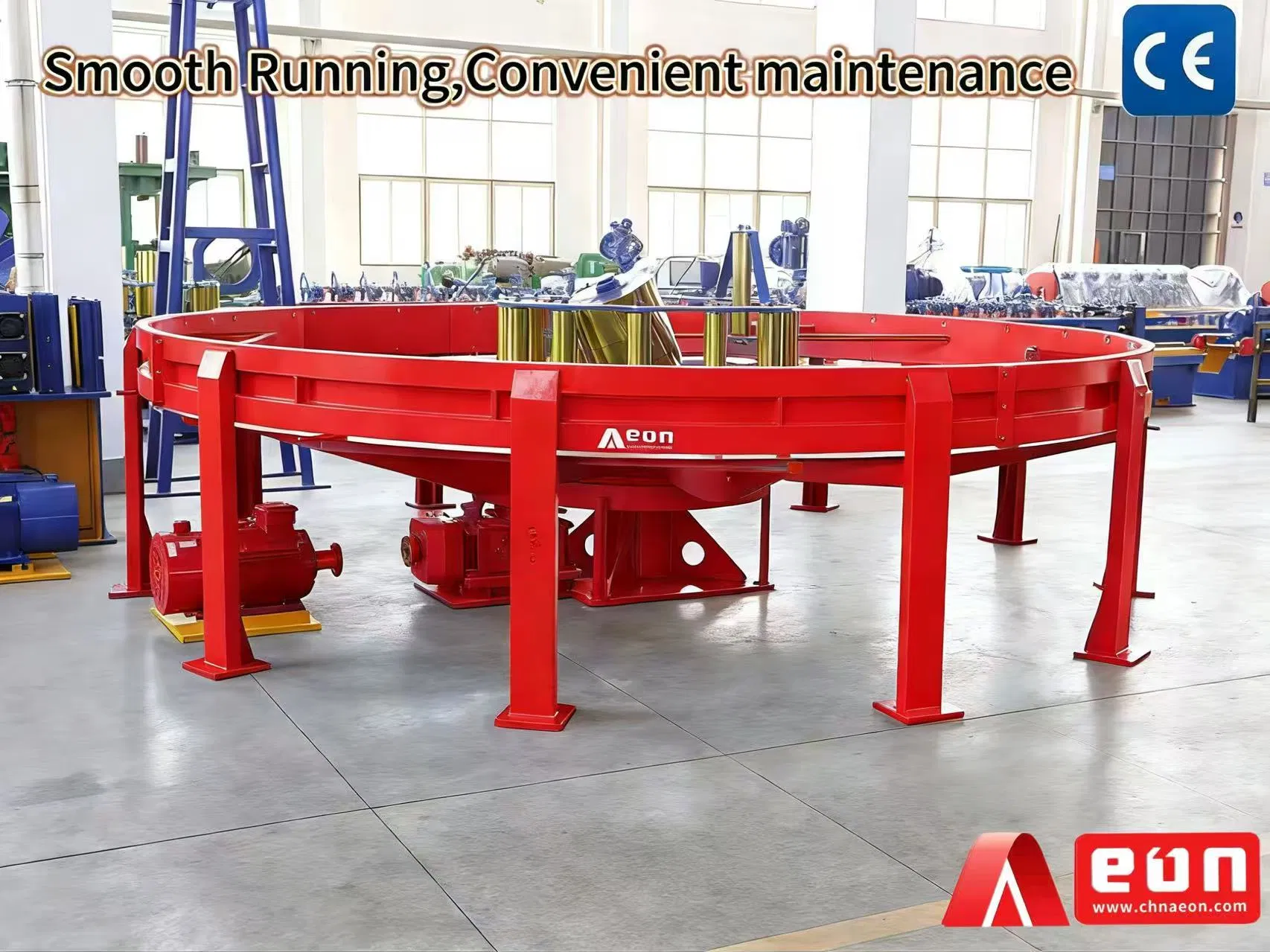

Horizontal Accumulation

A horizontally arranged loop device for dynamic storage and material adjustment. It uses a spiral winding mechanism or tension control device to provide continuous material buffering. This ensures a stable output and maintains tension of the strip material for processing accuracy.

Technical Specifications

Horizontal Accumulation Data
Accumulation Diameter	4.0m
Coil Width	60~200mm
Coil Thickness	0.7~2.5mm
Feeding Speed	120~200m/min
Feeding Motor	11kw AC Motor
Accumulator Volume	120-800m

Uncoiler Parameters
Structure Type	Double-side 180° Rotary Hydraulic
I.D. of Steel Coil	Φ450mm~Φ550mm
O.D. of Steel Coil	Φ800mm~Φ1500mm
Width of Strips	50~240mm
Max Load Weight	≤3000kgs

Core Advantages

1

High-Precision Tension Control: Advanced servo or variable frequency drive systems enable precise control, ensuring stability in forming and welding.

2

Dynamic Buffering: Rapidly absorbs or releases material during speed changes to prevent equipment damage.

3

Reduced Strip Damage: Prevents stretching, wrinkling, and warping through precise position control.

4

High Automation: Automated adjustment of loop height and tension without manual intervention.

5

Maintenance Friendly: Modular design with low failure rates and easy operational access.

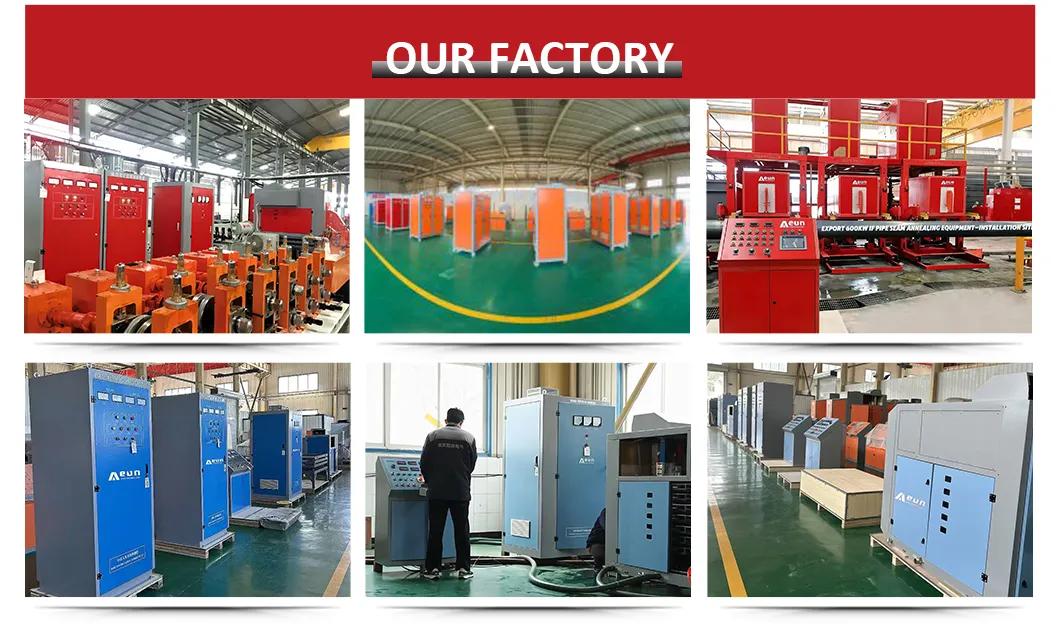

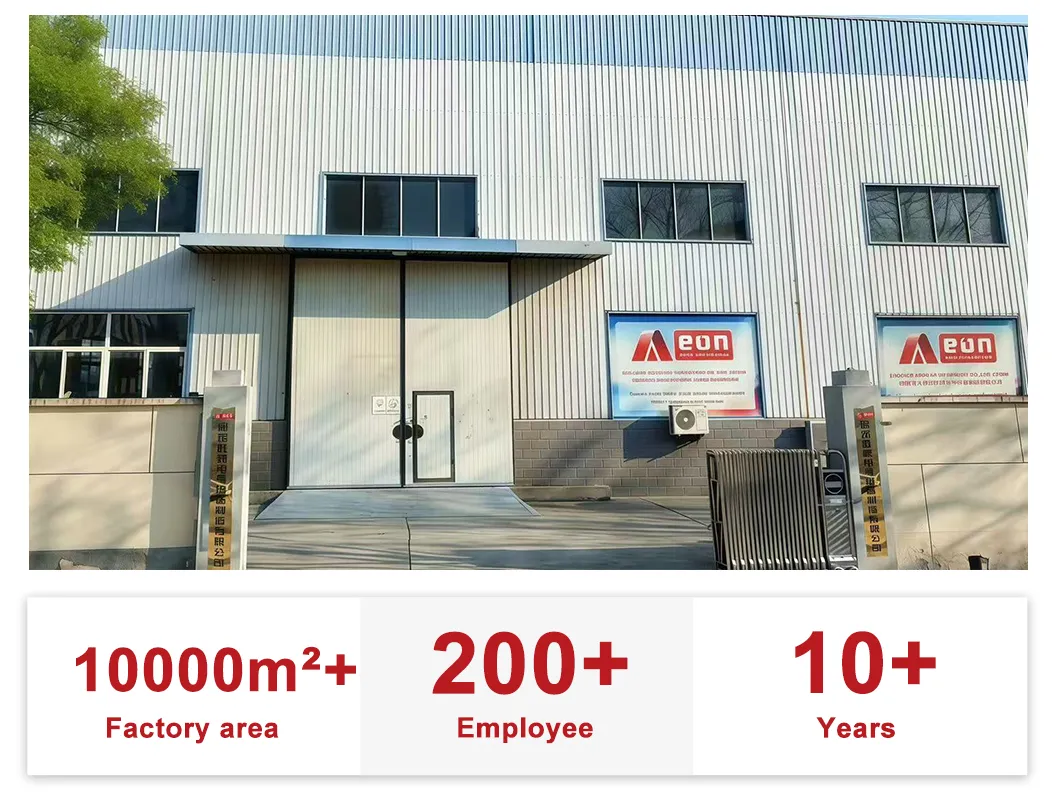

About Our Facility

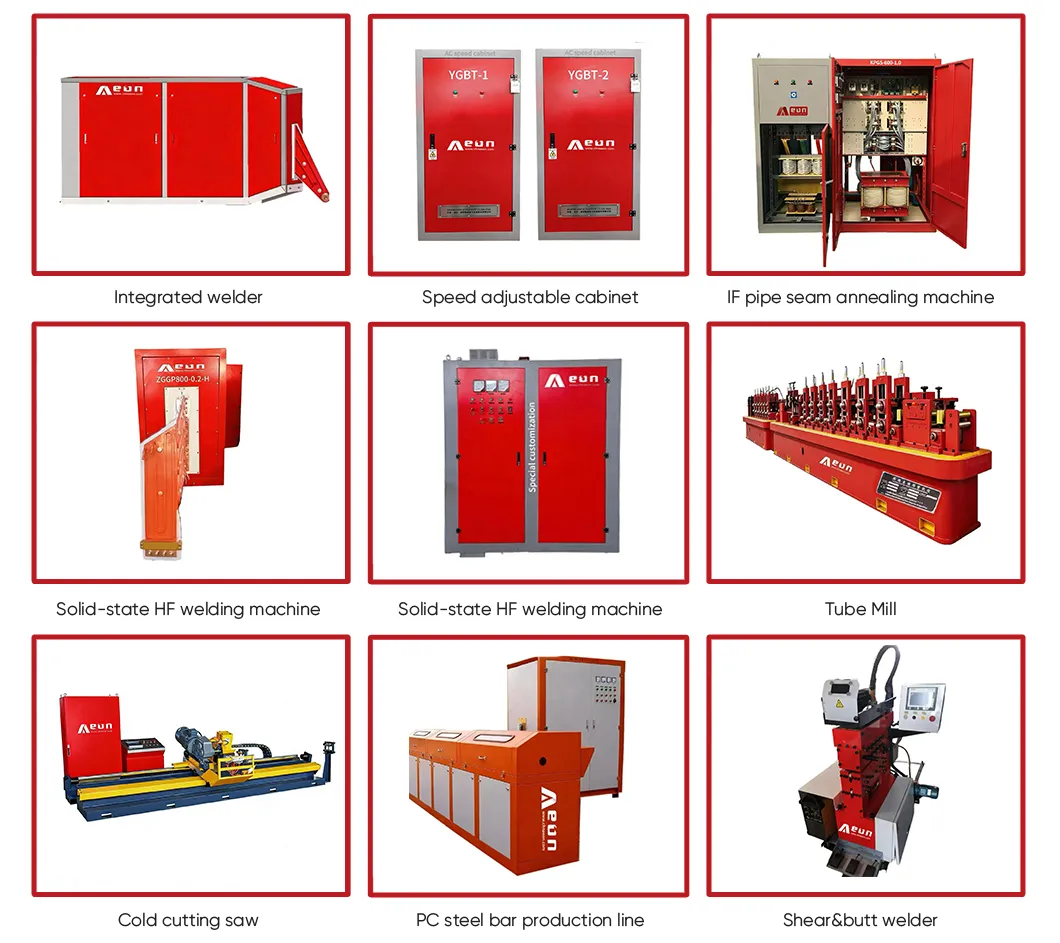

Established in 2015, we are a high-tech enterprise integrating design, research, development, and production. We focus on welded pipe materials, covering a full range of induction heating equipment such as ERW pipe rolling mills, solid-state high-frequency welders, and IF weld seam annealing machines. All products have passed CE and UL international certifications.

Certificates & Global Presence

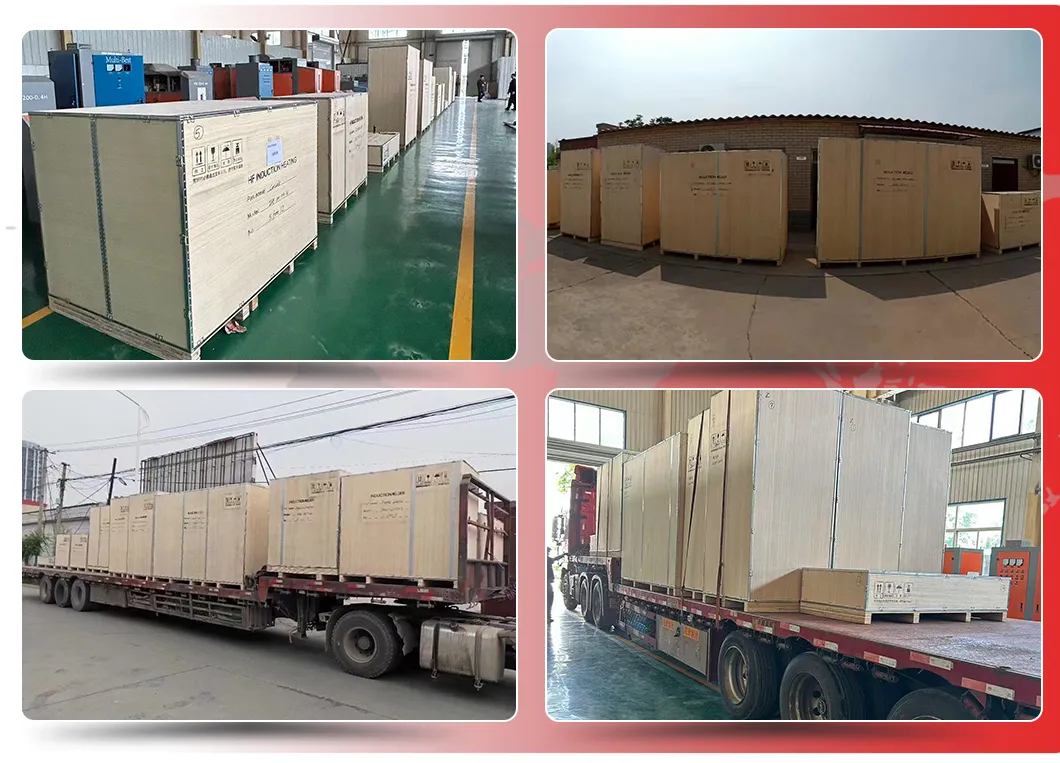

Packaging & Shipping

We provide professional industrial packaging to ensure safe delivery to Asia, the Middle East, America, and Europe. Each unit is secured for long-distance transport.

Frequently Asked Questions

1. Are you a professional manufacturer? Yes, we have been specializing in the production of solid-state high-frequency welders and induction heating equipment since 2015.

2. What international certifications do your products hold? Our products are CE certified and compliant with UL standards, and we hold several invention patents for our core technology.

3. What are the core strengths of your equipment? We use components from leading international brands to match diverse voltage specifications, offering a significant cost advantage through mature manufacturing and independent R&D.

4. Can you provide customized solutions? Absolutely. We tailor products and supporting solutions to meet specific application scenarios, technical specifications, and personalized industry standards.

5. How do you ensure product stability? By utilizing high-precision tension control and dynamic buffering systems, our equipment minimizes fluctuations and risks of material defects during high-speed production.

6. What kind of after-sales support do you offer? We provide a comprehensive system including pre-sales consultation, on-site installation, commissioning, and continuous maintenance support.
