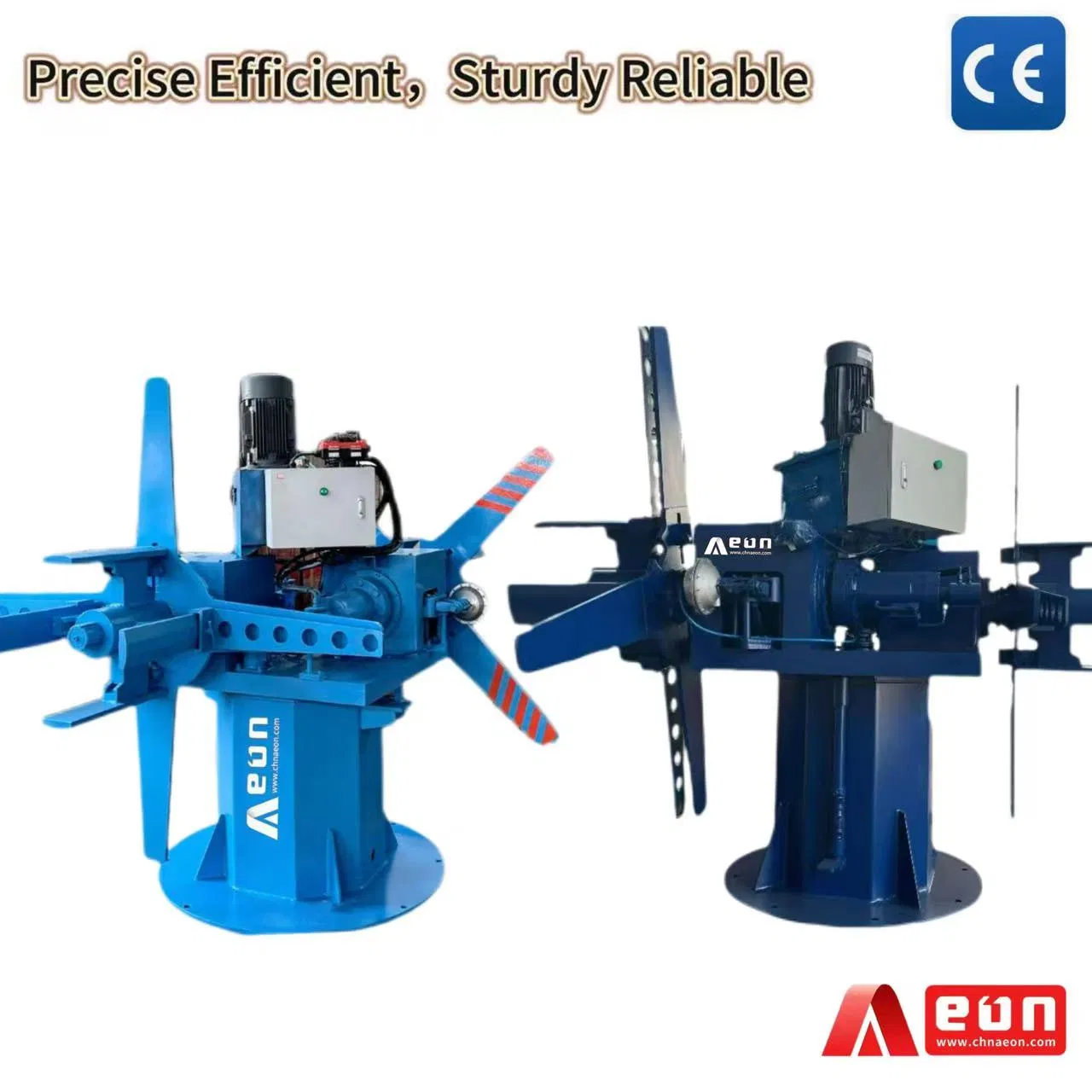

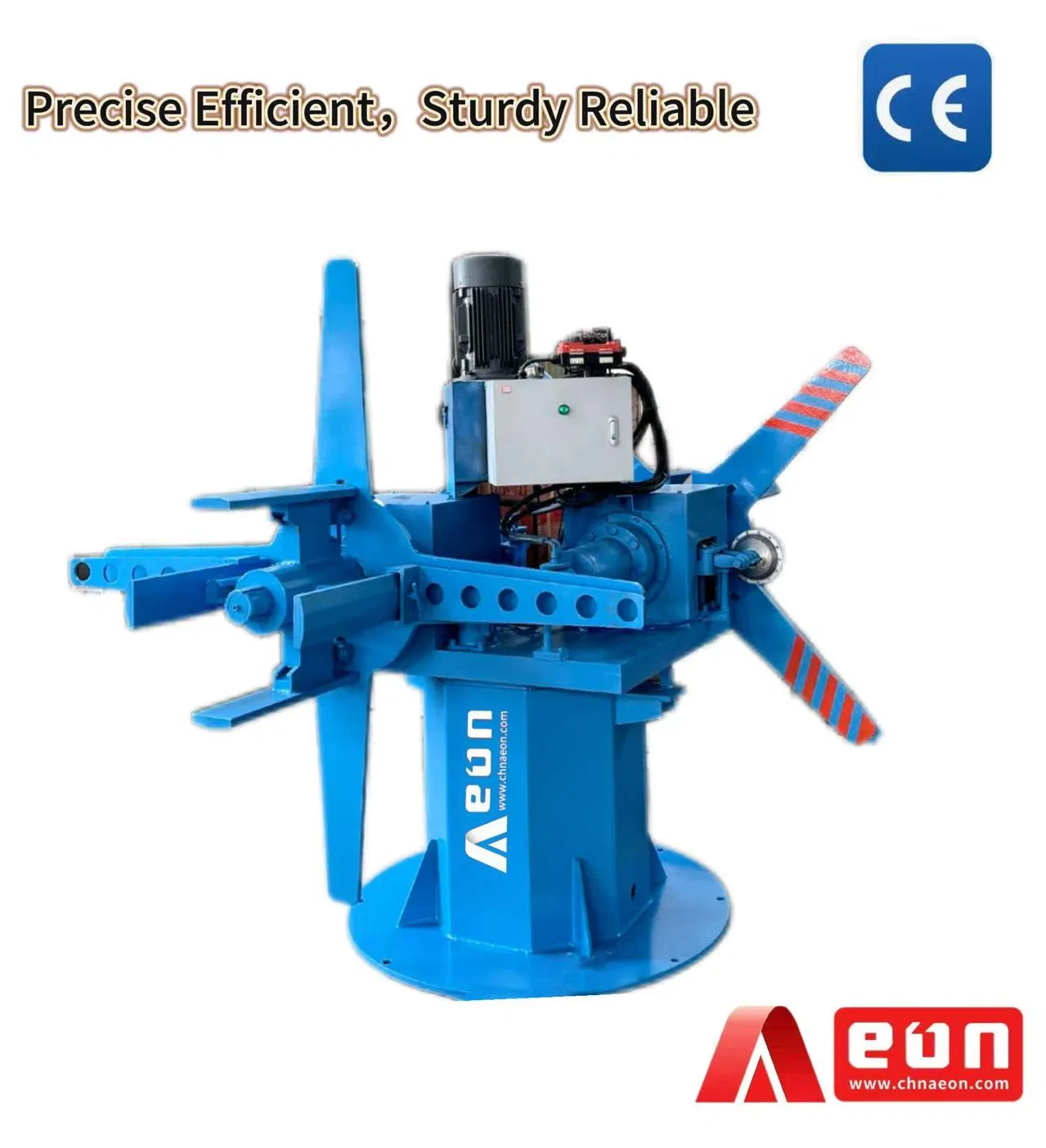

Hydraulic double-side uncoiler
The unwinding machine is a specialized equipment used to support metal coils and provide tension. It is widely employed in metal sheet processing production lines. Its core function is to achieve the smooth unwinding of the coil and establish the necessary steel strip tension for subsequent processing.
Designed based on the expansion and contraction of a cylindrical drum, it drives radial movement through hydraulic means to clamp or release the coil. Equipped with a central control (CPC) system to achieve automatic centering.

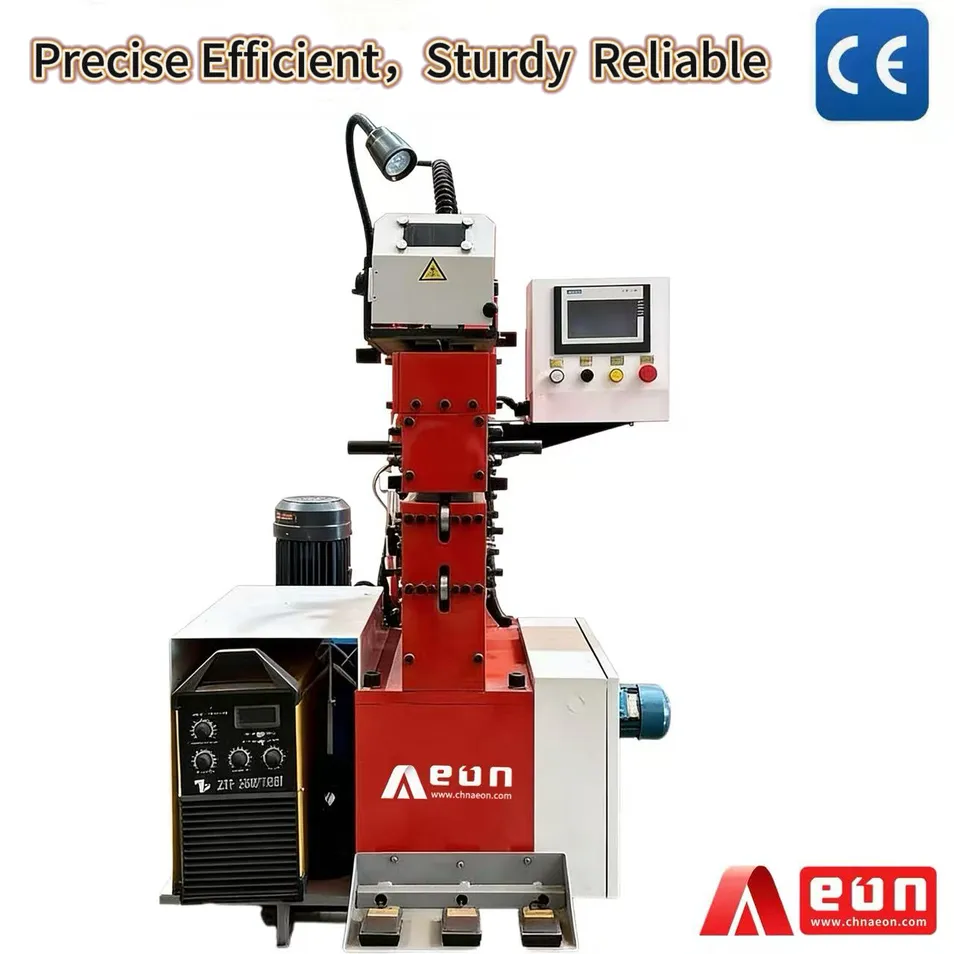

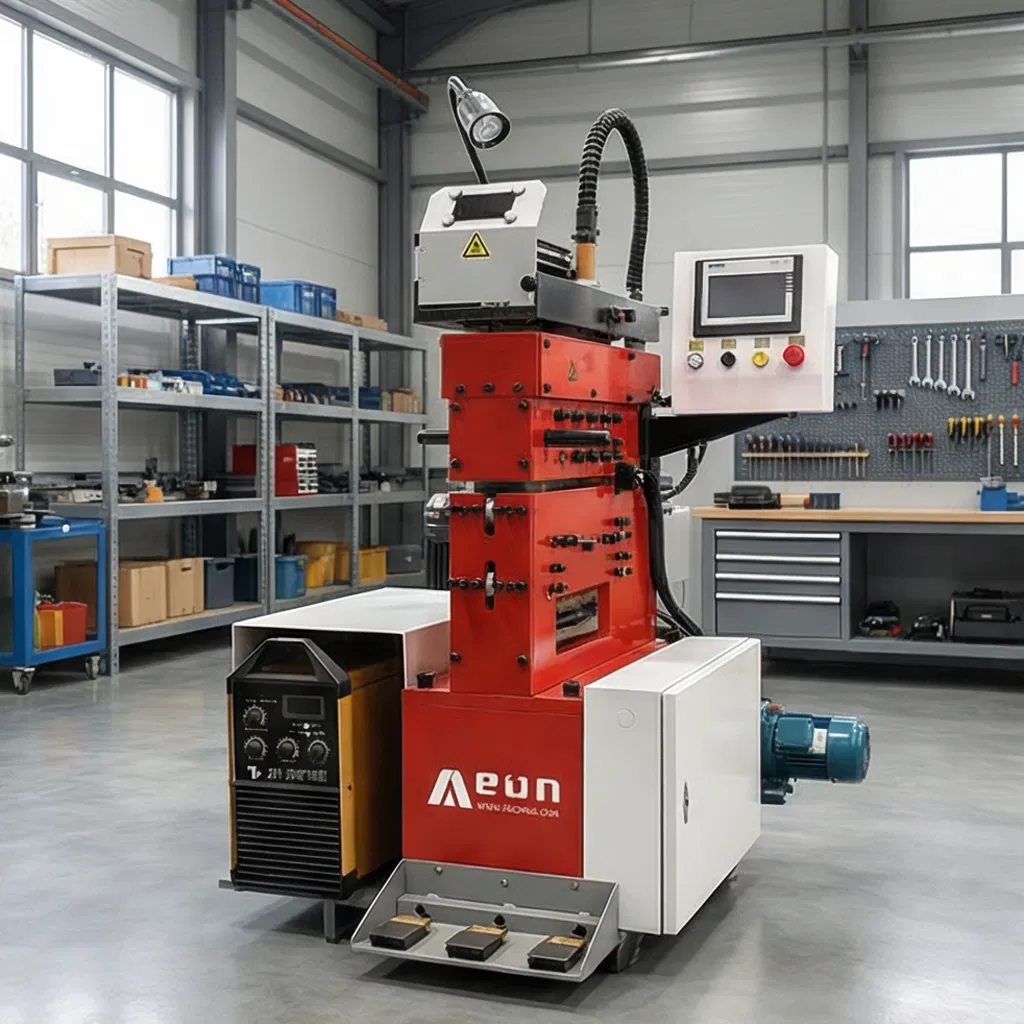

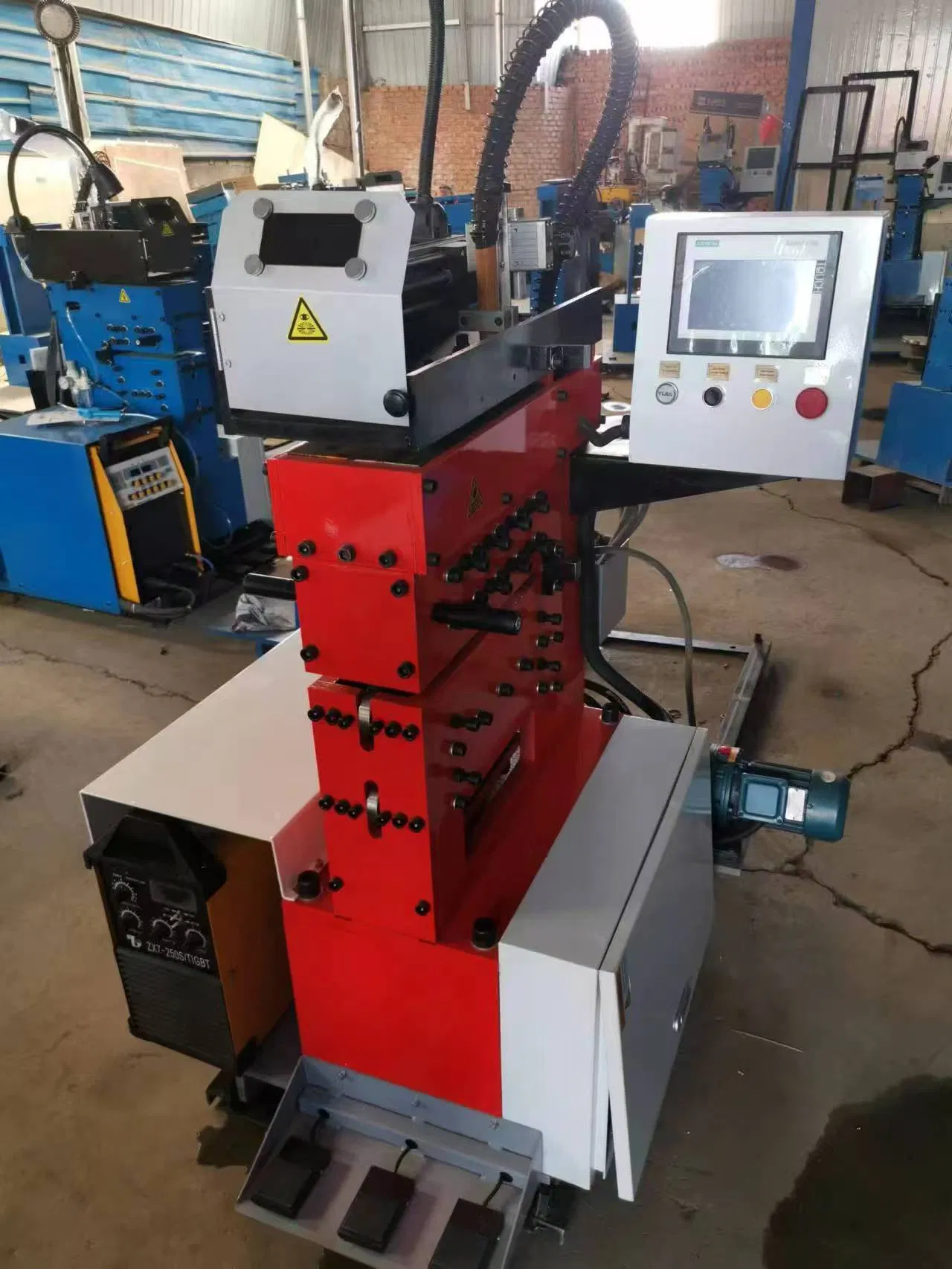

Shearing & Butt Welder
Mainly used for shearing and welding of steel heads and tails. The steel strip is pushed by the hydraulic cylinder for shearing, and the cut steel strip is then joined for welding.
Argon gas is sprayed through the nozzle to form a dense gas protection layer, utilizing an electric arc to heat and fuse the metal together smoothly.

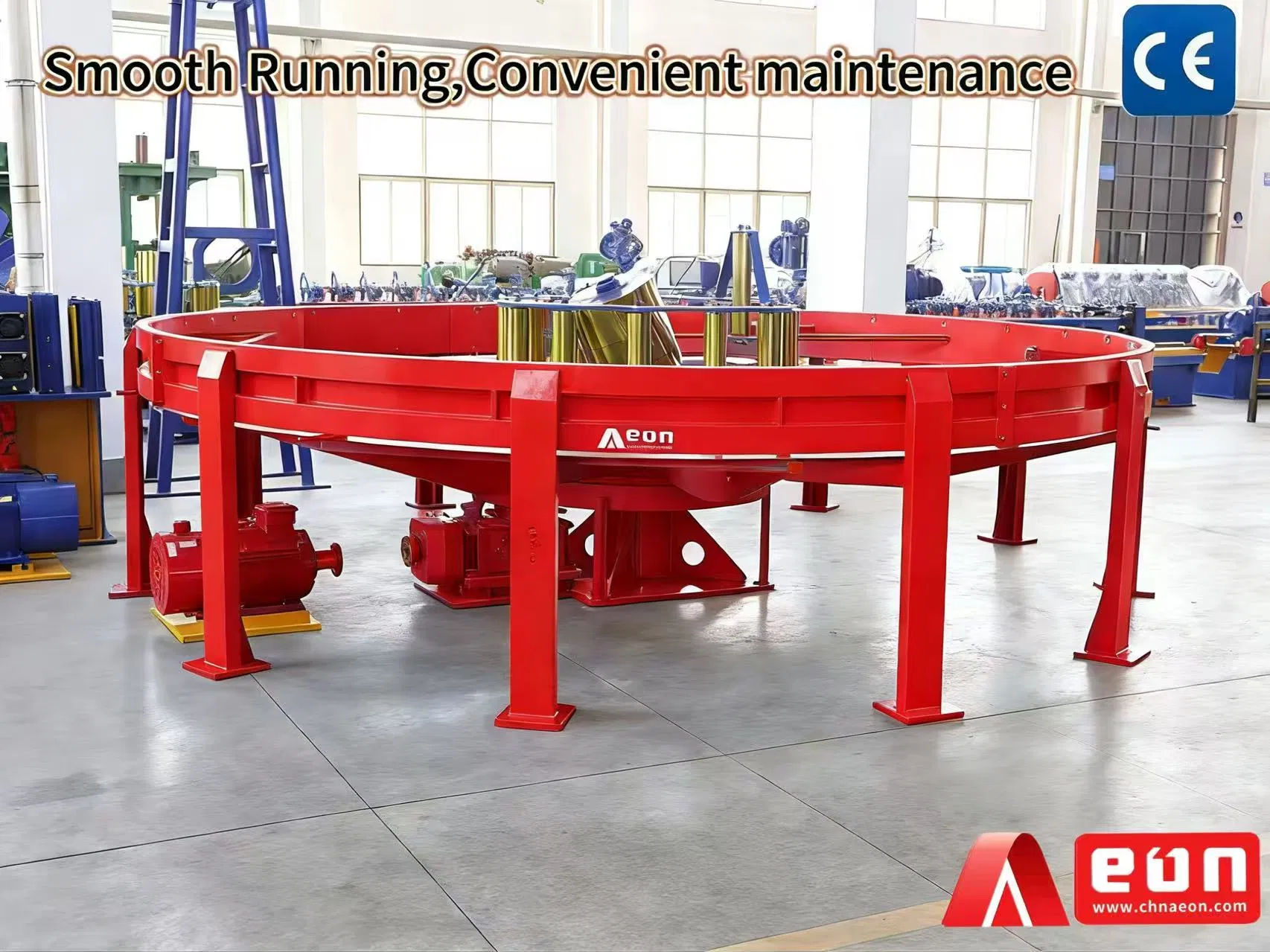

Horizontal Accumulation
A horizontally arranged loop device for dynamic storage and adjustment of materials. It uses a horizontal structure to achieve material buffering.
Typically composed of a spiral winding mechanism and tension control device, it ensures continuous buffering and stable output for the rolling process.
Utilizing advanced servo or variable frequency drive systems enables extremely precise control of strip tension, reducing risks of strip misalignment and weld defects.
The looping device rapidly absorbs or releases strip material, providing effective buffering to prevent equipment damage from sudden tension shifts during production speed changes.
Precise tension and position control prevents defects like stretching, wrinkling, and warping, improving strip utilization and final product quality.
Equipped with a comprehensive automated control system that automatically adjusts loop height and tension without manual intervention.
| Horizontal Accumulation Parameters | |
| Accumulation diameter | 4.0m |
| Coil width | 60~200mm |
| Coil thickness | 0.7~2.5mm |
| Feeding speed | 120~200m |
| Feeding motor | 11kw AC motor |
| Main motor | 18.5kw inverter motor |
| Accumulator volume | 120-800m |
| Uncoiler Parameters | |
| I.D. of steel coil | Φ450mm~Φ550mm |
| O.D. of steel coil | Φ800mm~Φ1500mm |
| Width of strips | 50~240mm |
| Maxi. Load weight | ≤3000kgs |

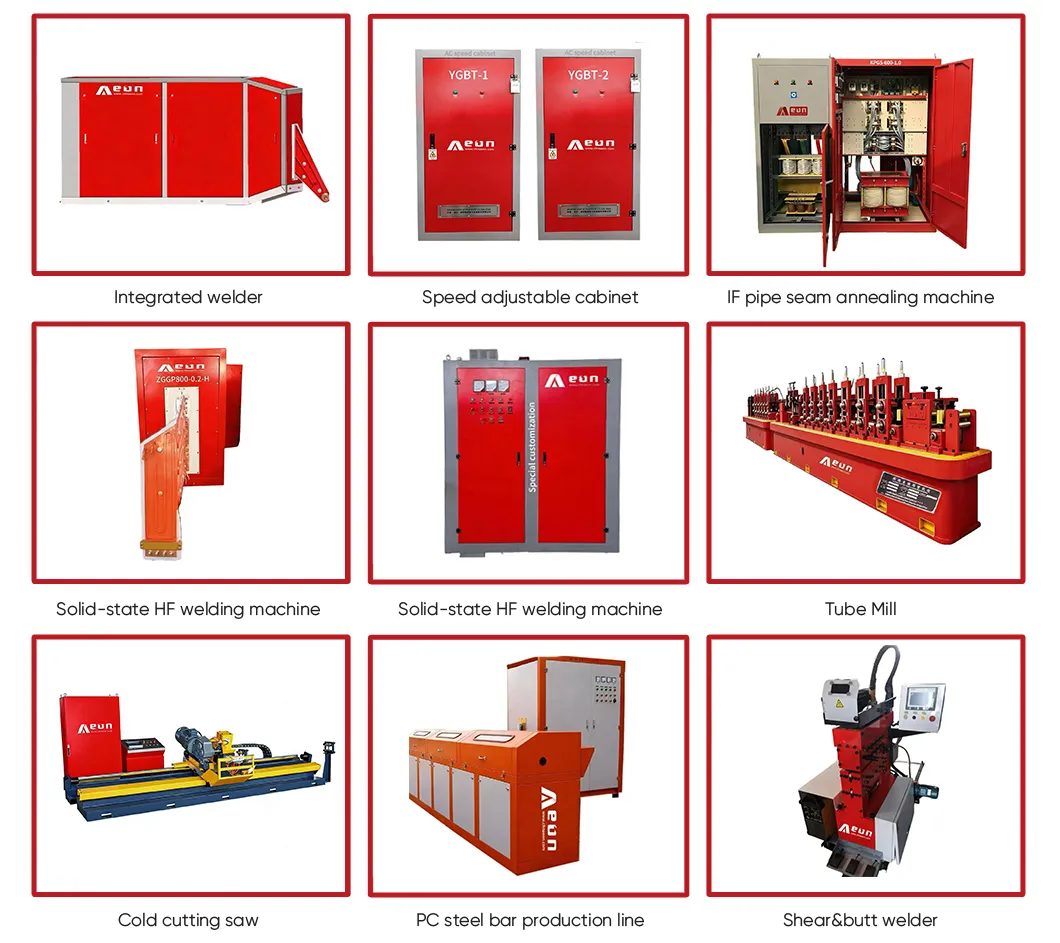

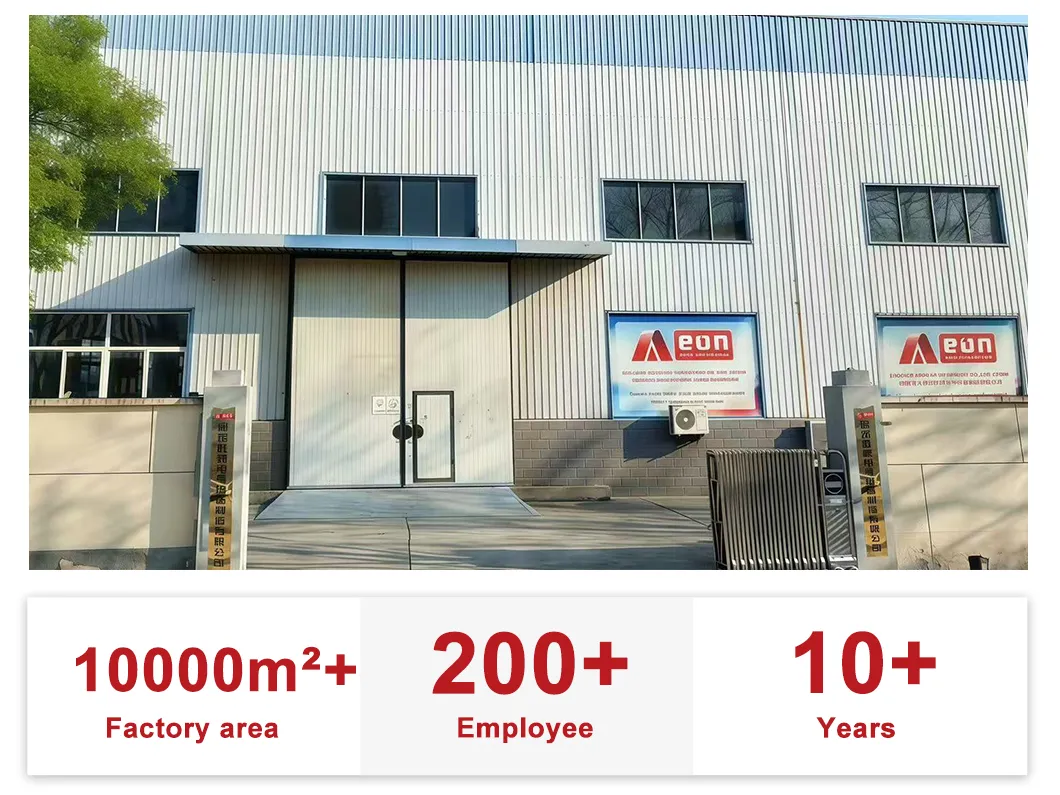

Established in 2015, we are a high-tech enterprise integrating design, research and development, production, and sales. We focus on the field of welded pipe materials, covering ERW pipe rolling mills, solid-state high-frequency welders, and IF weld seam annealing machines, all of which have passed CE and UL international certifications.
We are a professional manufacturer established in 2015, specializing in solid-state high-frequency welders, medium-frequency annealing equipment, and induction heating solutions.
Our company is recognized as a high-tech enterprise. Our products hold relevant invention patents and have applied for or received CE and UL international certifications.
Core components are sourced from leading international brands. We precisely match voltage specifications across different countries to eliminate compatibility risks and ensure stable long-term operation.
Yes, we possess strong customization capabilities. We can tailor products and supporting solutions to meet diverse technical specifications and personalized needs across different global markets.
We provide high-precision tension control, independent R&D in induction heating, and high automation levels that reduce manual intervention while ensuring consistent product quality.
We offer a comprehensive after-sales system including pre-sales technical consultation, in-process installation and commissioning, and continuous post-sales maintenance support.
