| Model | DT-OFM |
| Type | Piston Filling Machine |
| Automatic Grade | Fully Automatic |
| Material Type | Oil / Liquid |
| Filling Principle | Pressure / Plunger |
| Structure | Linear Multi-Head |
| Material | High-Grade Stainless Steel |

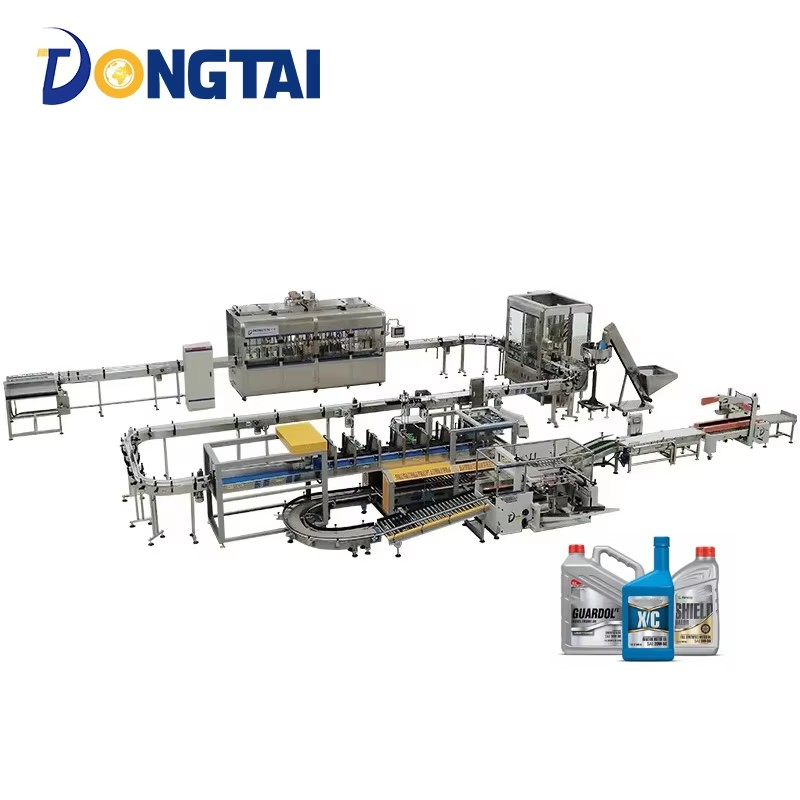

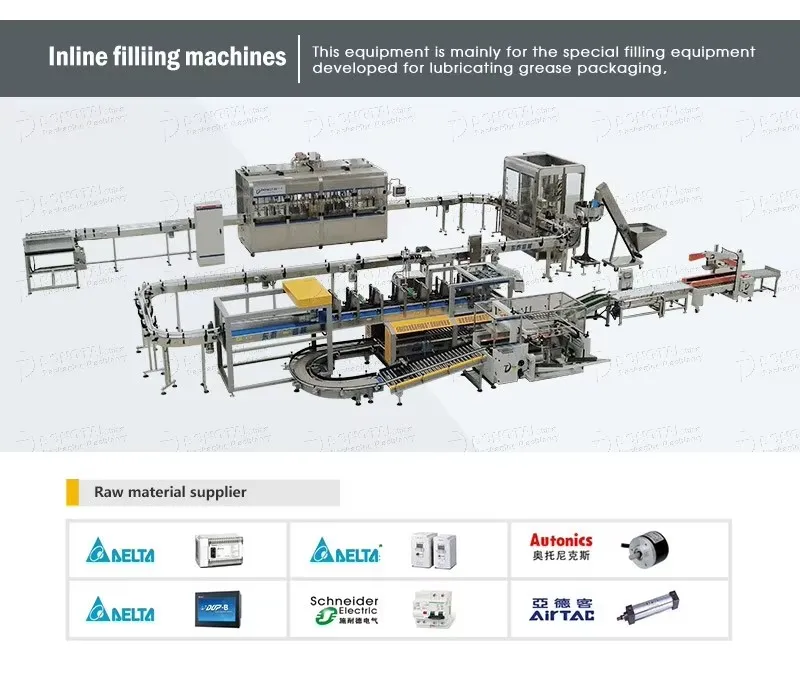

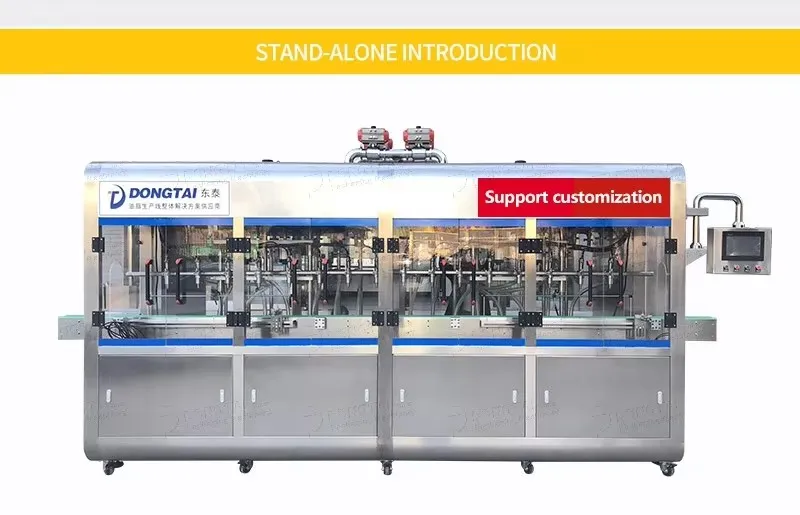

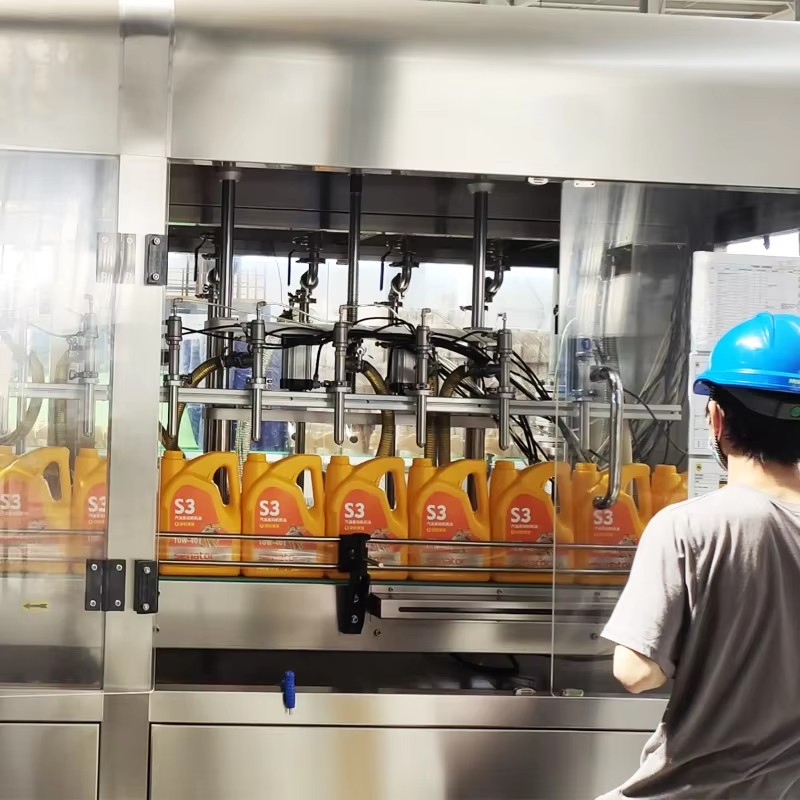

1-4L GEAR OIL FILLING LINE: This automatic lubricating oil filling machine is a new type of filling machine meticulously designed for industrial efficiency. Utilizing a servo plunger system, it adopts PLC and touch screen automatic control for superior precision.
It is characterized by accurate measurement, stable operation, low noise, and a large adjustment range. The system is highly adaptable, handling volatile, crystallized, and foamable liquids, as well as high-viscosity semi-fluids and corrosive substances.
Measurement is digitally adjusted via the man-machine interface, allowing for quick settings (e.g., 100ml to 5L) with one-touch fine-tuning for individual filling heads.
| Filling Head Count | 16 Heads |
| Filling Range | 100-1000ml, 1-5L, 5-20L |
| Applicable Containers | Glass Bottle, PET Barrel, PE Barrel, Cans |
| Measurement Error | +/- 1% |
| Power Supply | 5.6kw |

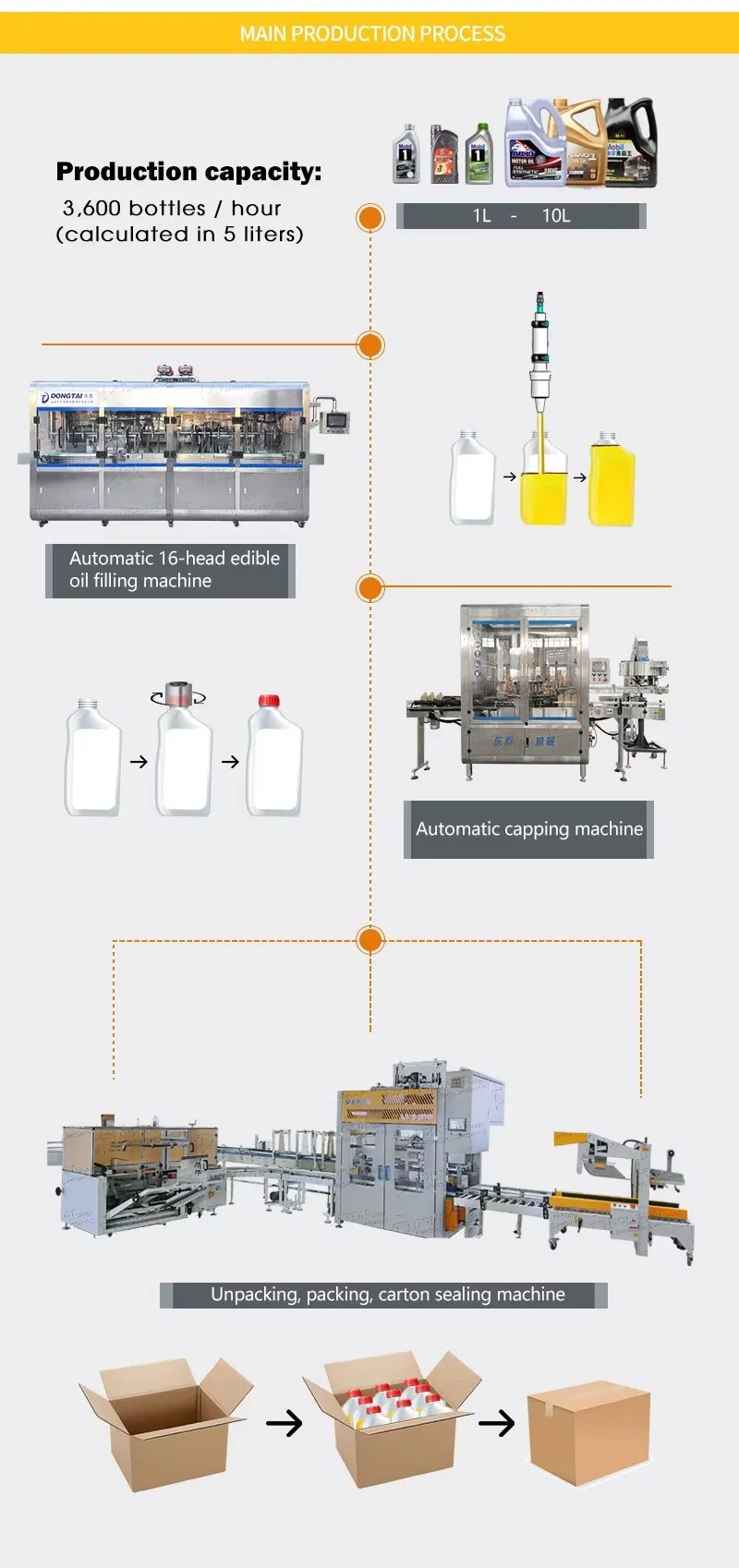

| Filling Speed | 3600 B/H (based on 5L) |
| Machine Weight | 1200kg |
