| Model NO. | BL-J02 | Control System | Automatic, PLC Control, Semi-Automatic |
|---|---|---|---|
| Power Supply | 380V 50Hz | Total Power | 4kw |
| Aluminum Bar Spec | 5.5-26.5 | Max Aluminum Bar Size | 2000*2000mm |
| Min Aluminum Bar Size | 300*300mm |
| Item | BL-J02 (Automatic) | BL-J03 (Semi-Automatic) |
|---|---|---|
| Total Power | 4.0KW | 2.0KW |
| Air Pressure | 0.7MPA | 0.7MPA |
| Spec of Aluminum Bar | 5.5-26.5MM | 5.5-26.5MM |
| MAX. Aluminum Bar Size | 2000*2000MM | 2500*2500MM |
| Min Aluminum Strip Size | 300*300MM | 350*350MM |
| Thickness of Strip | 6.5MM | 6.5MM |
| Bending Angle Error | 0.3° | 0.3° |
| Bending Speed | <20S/UNIT | / |

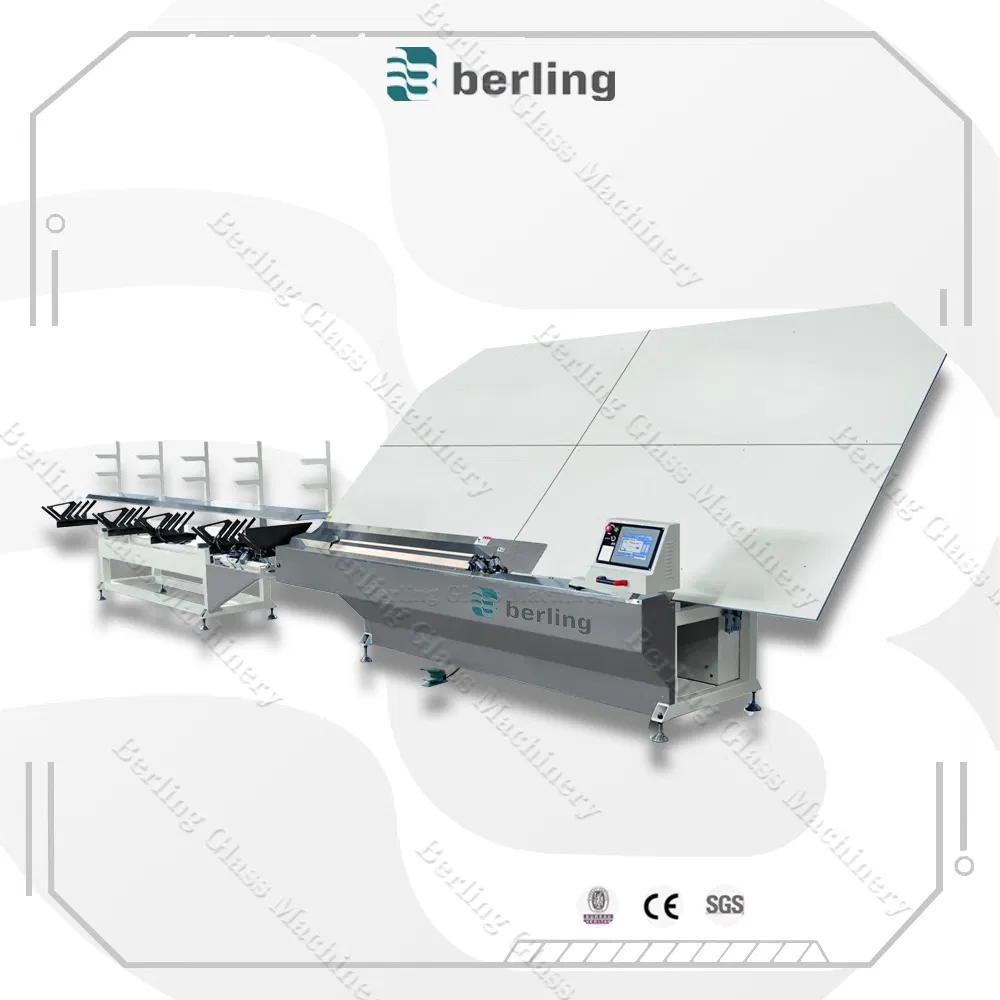

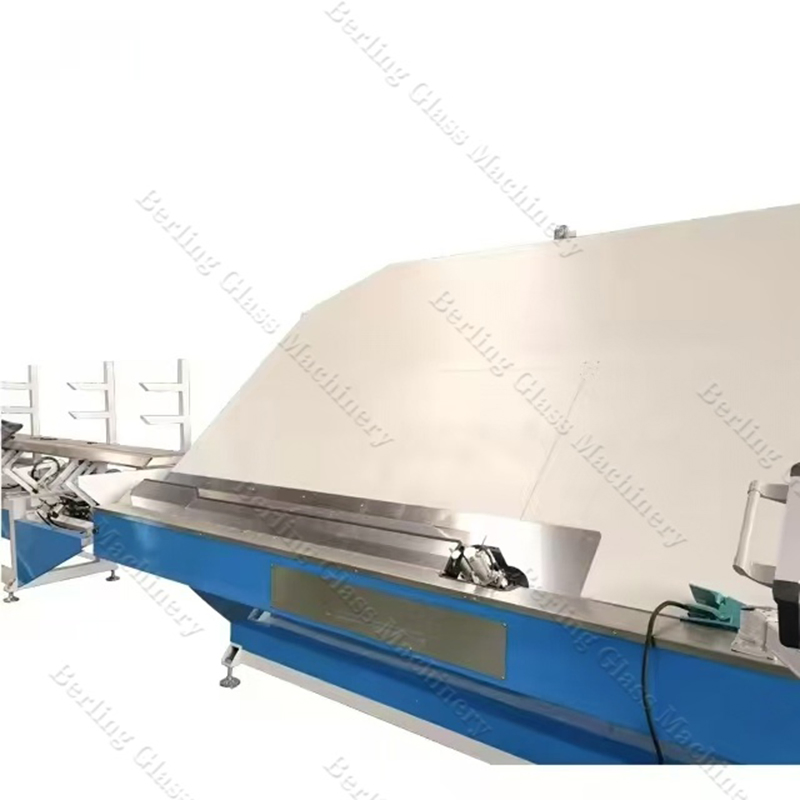

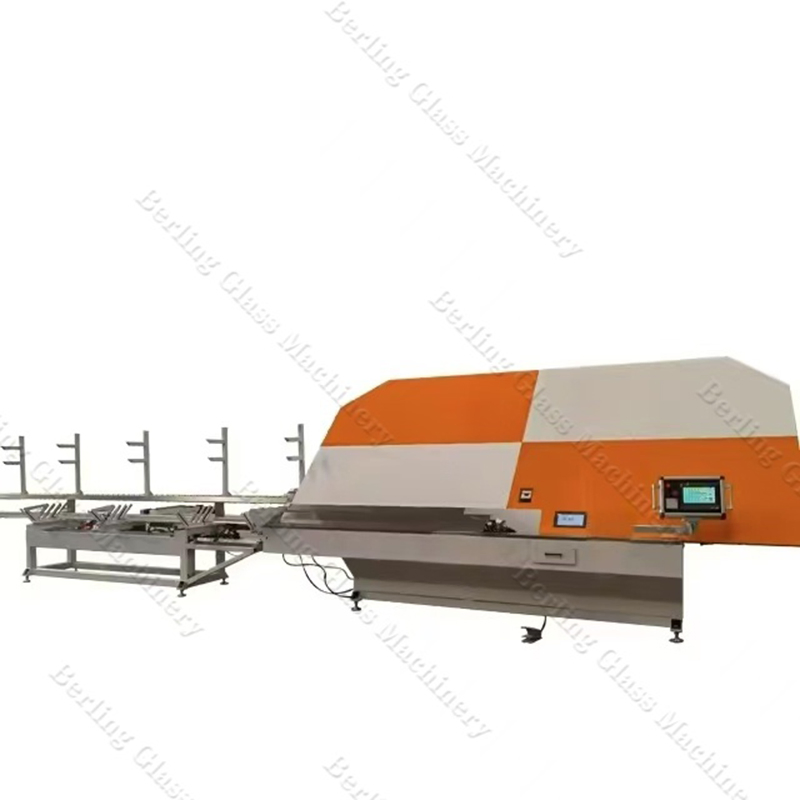

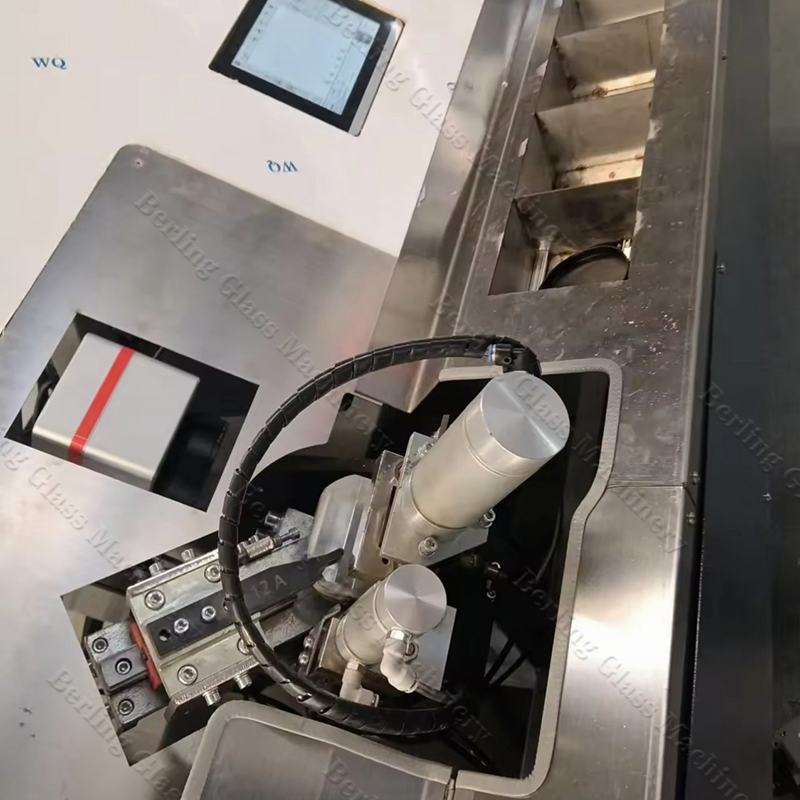

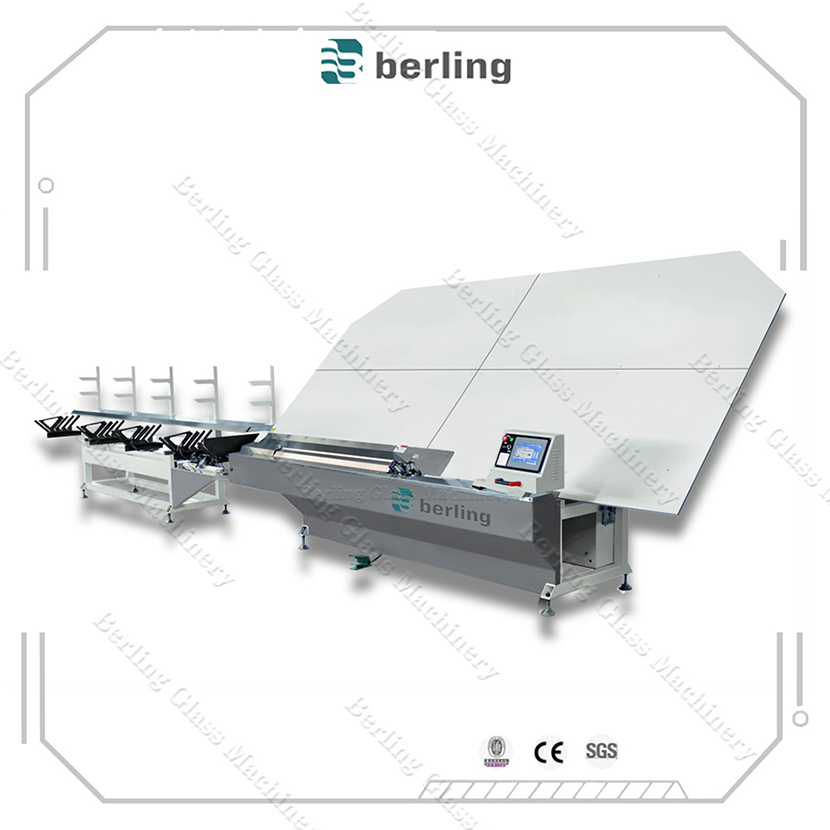

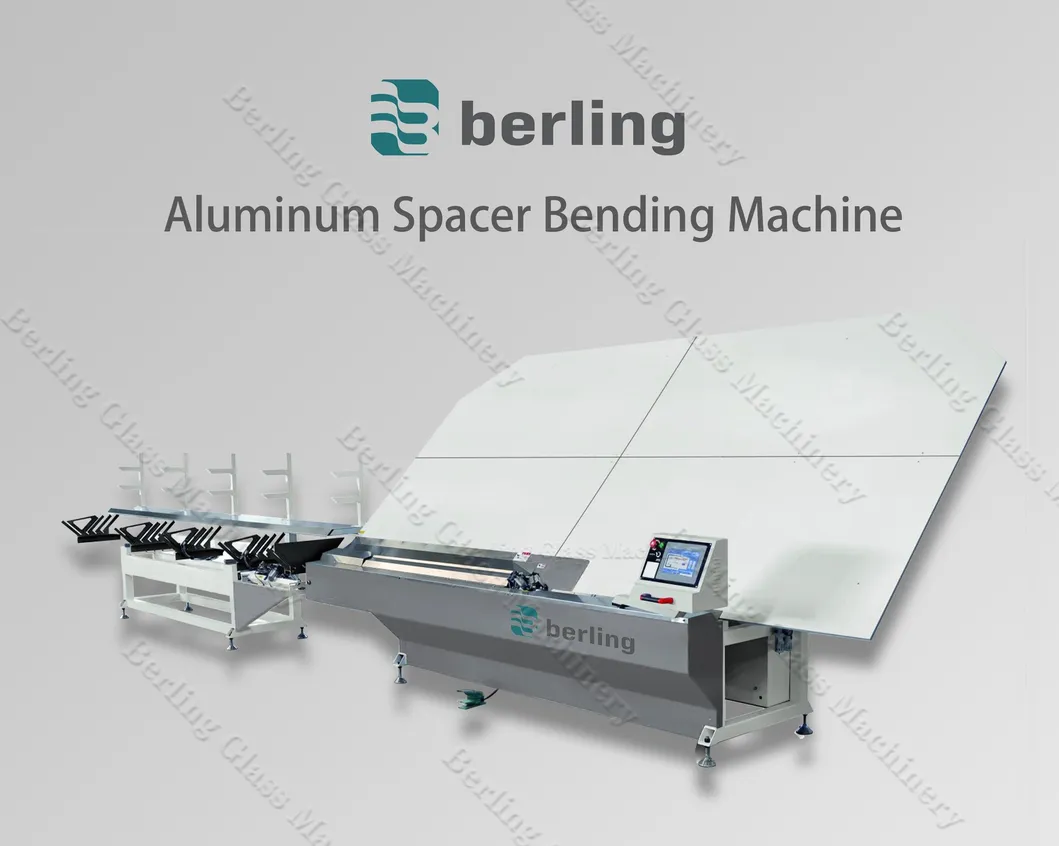

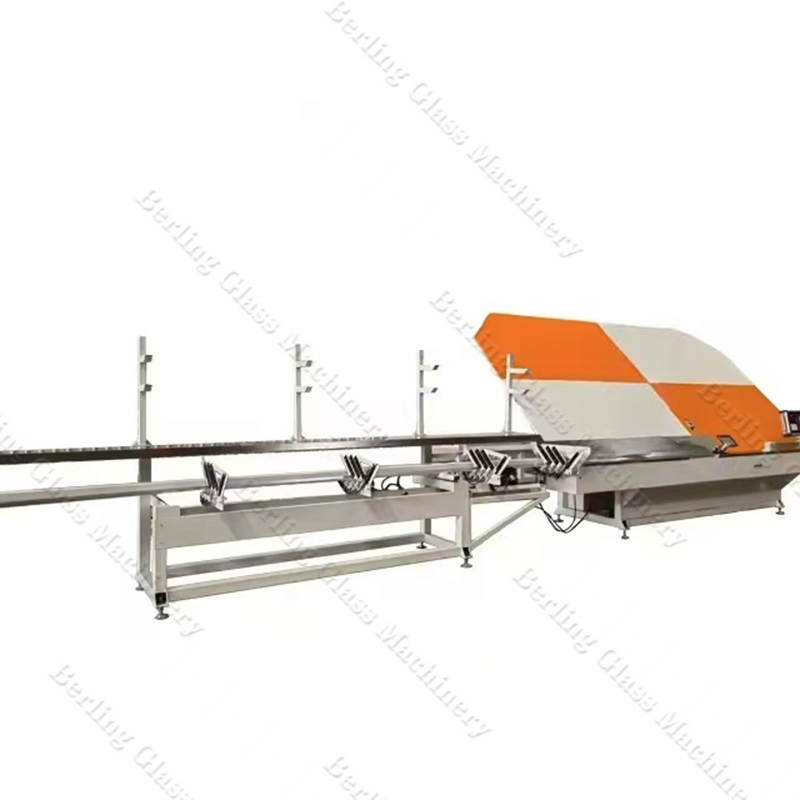

The fully automatic aluminum spacer bending machine is a special equipment for making grooved aluminum insulating glass, replacing the original traditional production process. This equipment can complete the production of various convex polygonal aluminum frames with one aluminum strip at a time, enhancing the strength of the aluminum frame and making the insulating glass more sealed with a longer life.

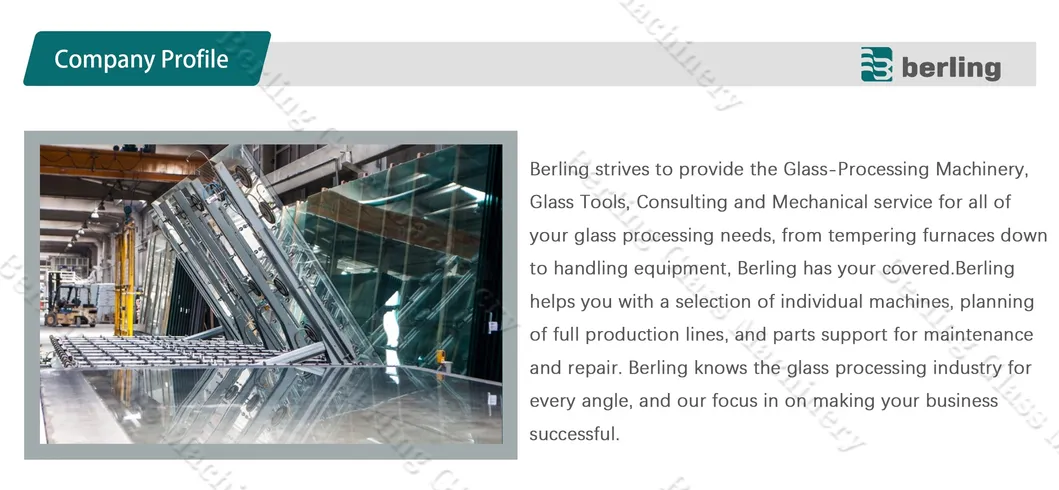

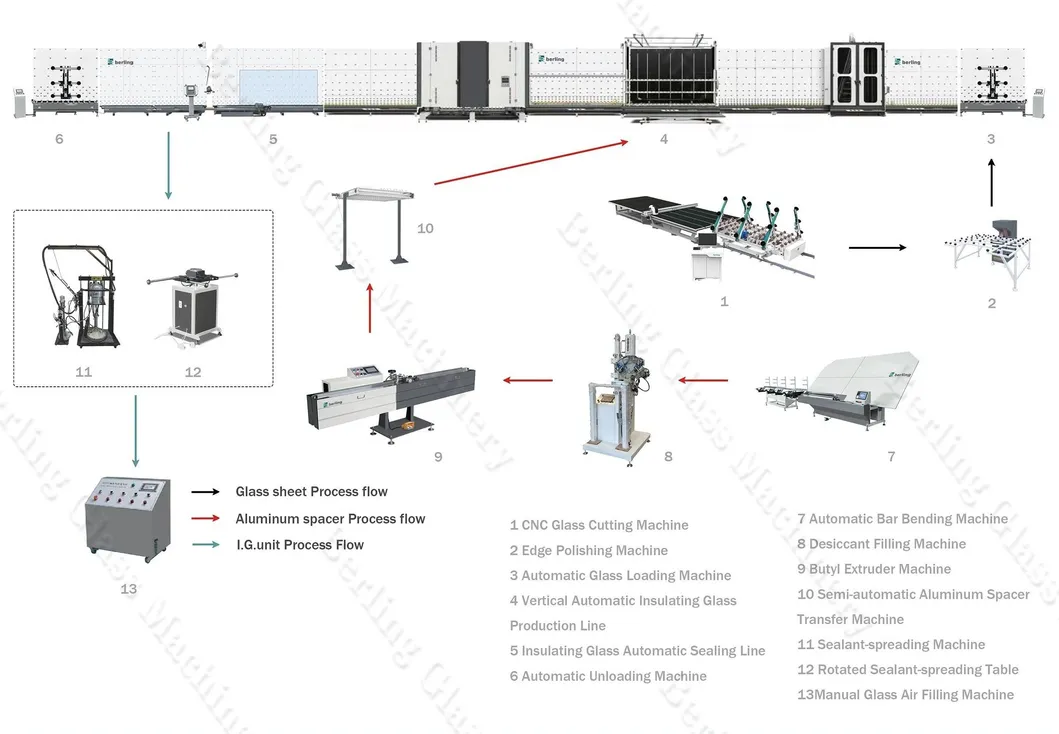

Our company specializes in glass processing solutions, including individual machines and full production lines. We focus on Insulating Glass Production Lines, Glass Washing Machines, Automatic Glass Cutting Machines, and Aluminum Spacer Bending Machines.
