Automatic Vertical CNC Insulating Glass Sealing Robot for Double Glazing Glass Processing

Customization:	Available
Certification:	CE, ISO
Control System:	PLC

Send Inquiry

Product Description

Basic Information

Model NO.:ZNJ2537

Customized:Available

Glass Thickness:3-19 mm

Type:Insulating Glass Production Line

Structure:Vertical

Warranty:1 Year

After-Sales Service:1 Year

Transport Package:Sea Worthy Package

Specification:3500kg

Production Capacity:30 sets/Month

Product Description

Automatic Insulating Glass Sealing Robot

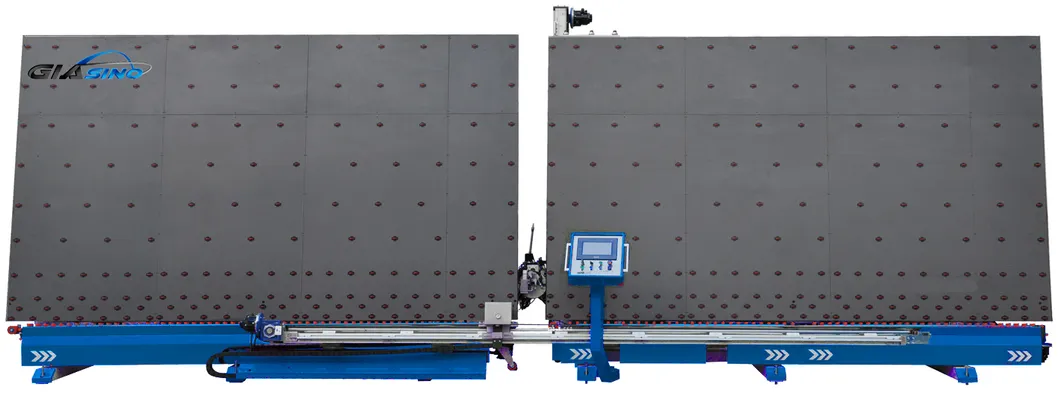

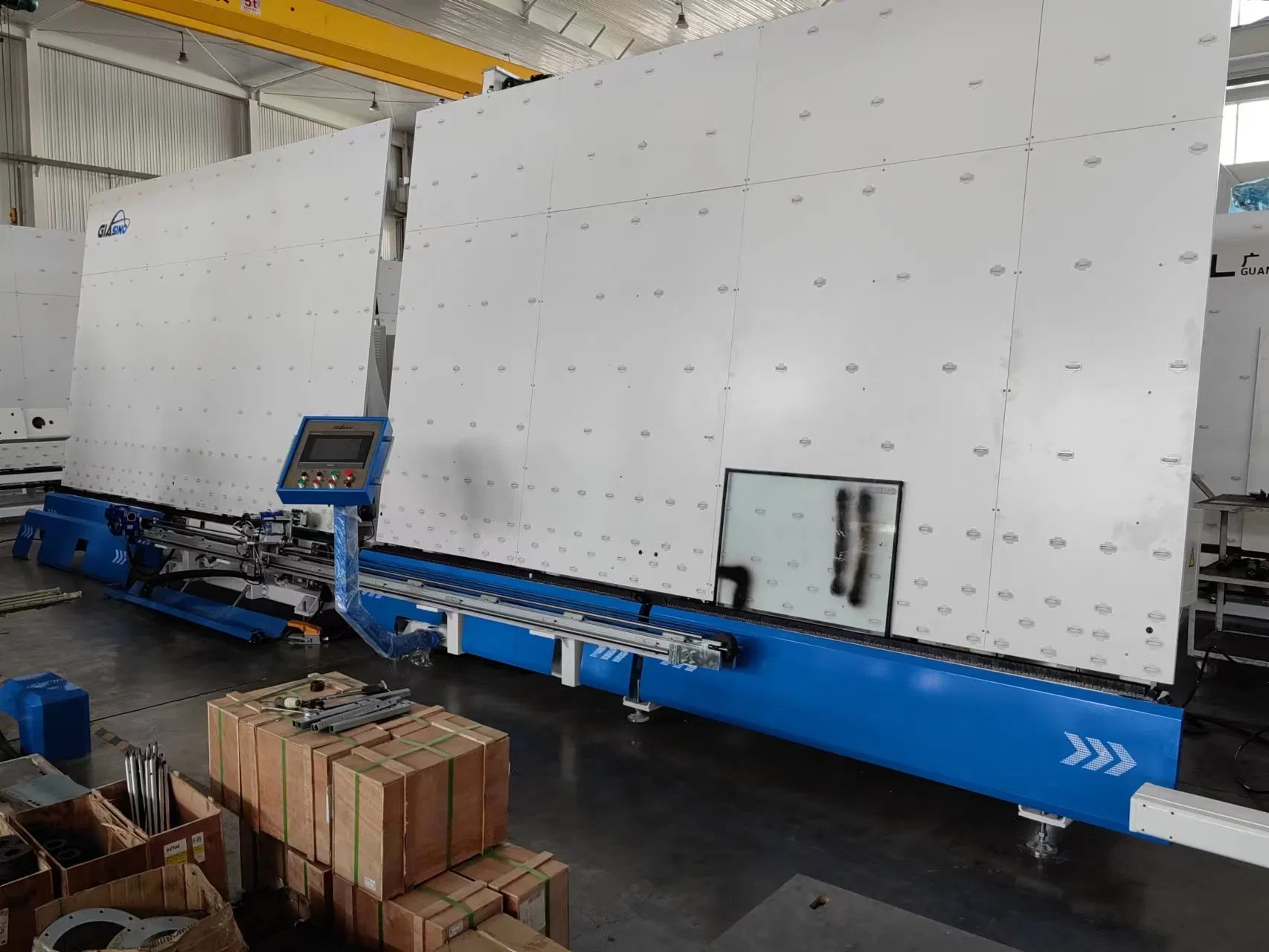

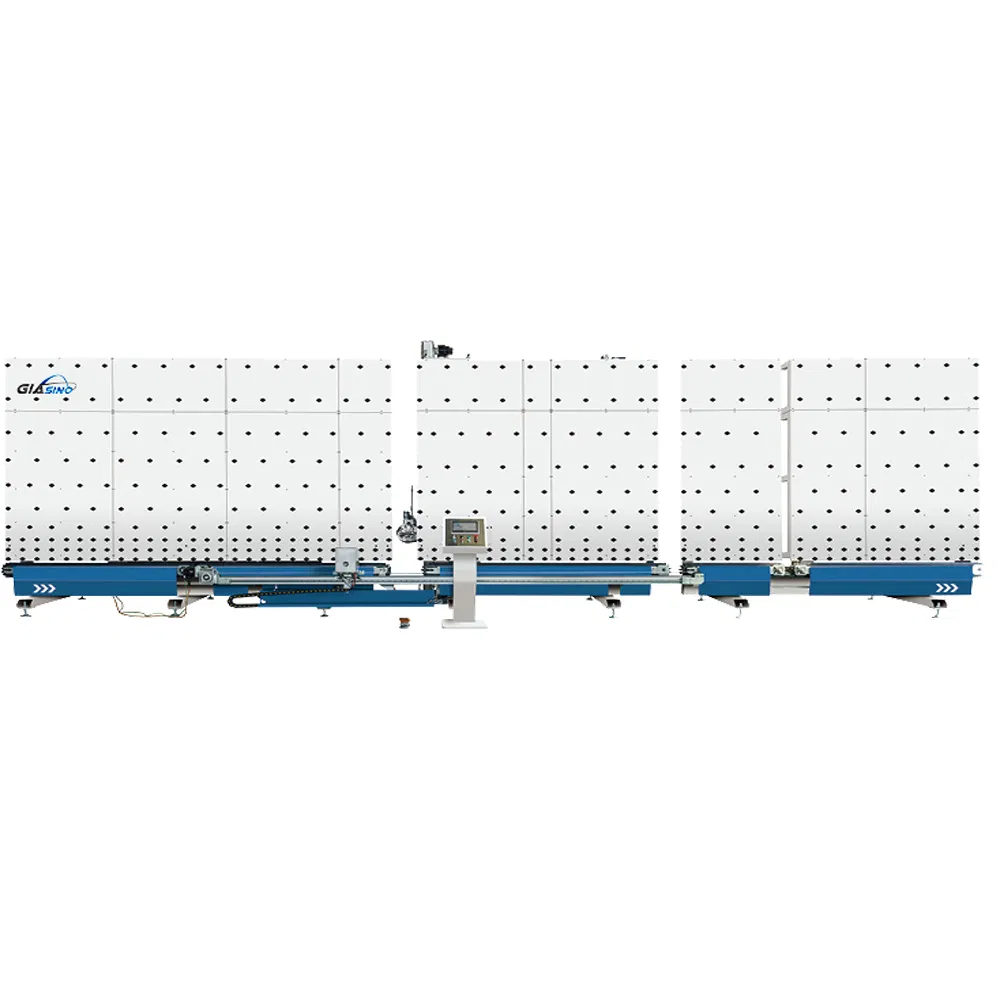

Automatic Vertical CNC Insulating Glass Sealing Robot

Key Features:

✔ Controlled by Japan Yaskawa servo control system for high precision.
✔ Dual system A and B rubber plunger pumps with hydraulic proportional pump for rapid sealant switching and improved efficiency.

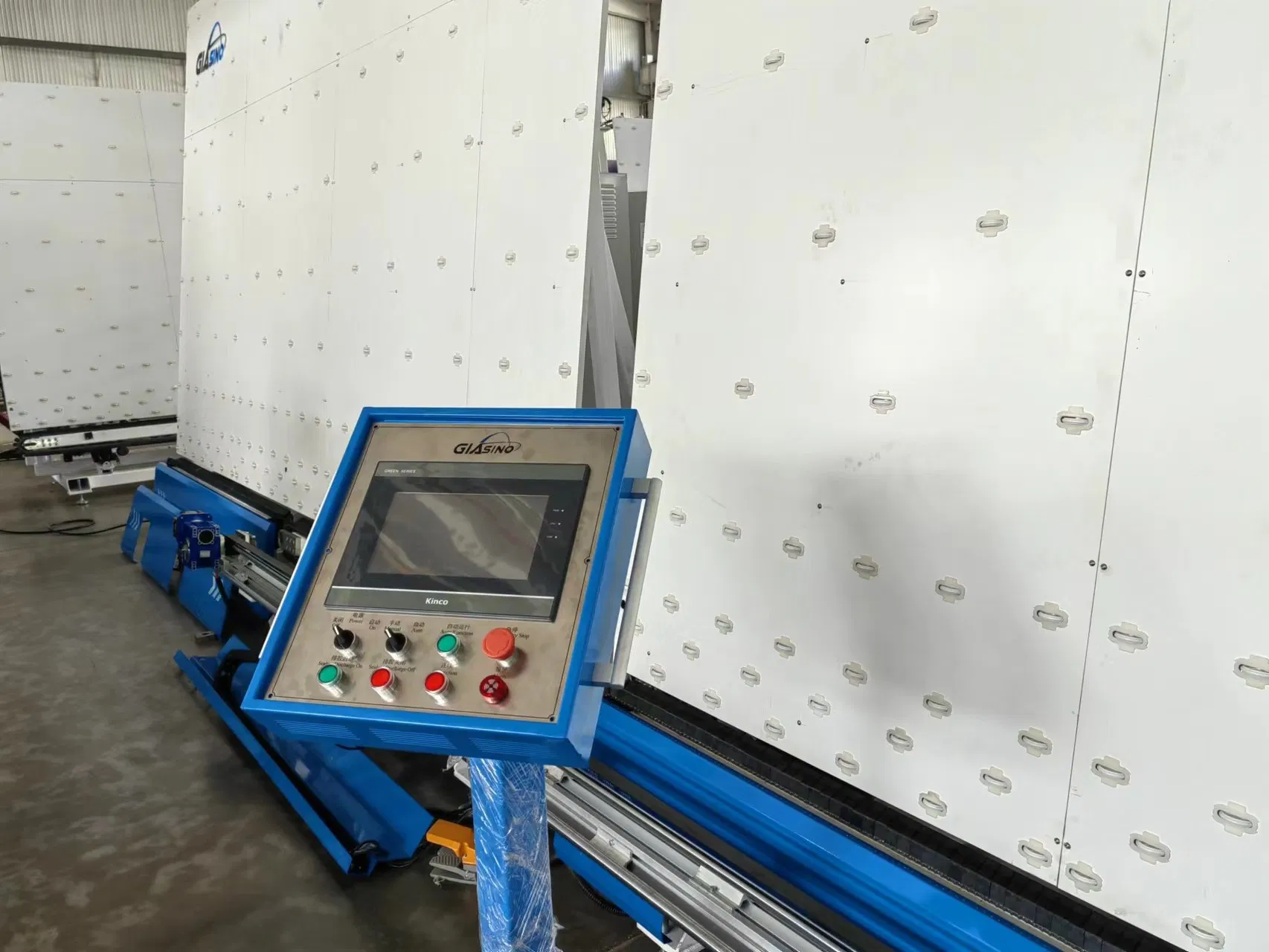

✔ Touch screen interface for easy manual operation and real-time fault diagnosis.
✔ Equipped with two sets of mixer cleaning systems for easy maintenance.
✔ Versatile application for both rectangular and square hollow glass processing.
✔ Special sealant depth detection device automatically controls the application amount.
✔ Hydraulic supply system ensures stable output and precise ratio of components.
✔ Automatic sealant discharge function prevents pipeline blockage.

Technical Parameters

Max. Glass Size	2500*3500mm	Coating Speed	5-40m/min
Coating Depth	3-18mm	Power	11Kw
Alu Spacer Width	6-27mm	Air Pressure	1Mpa

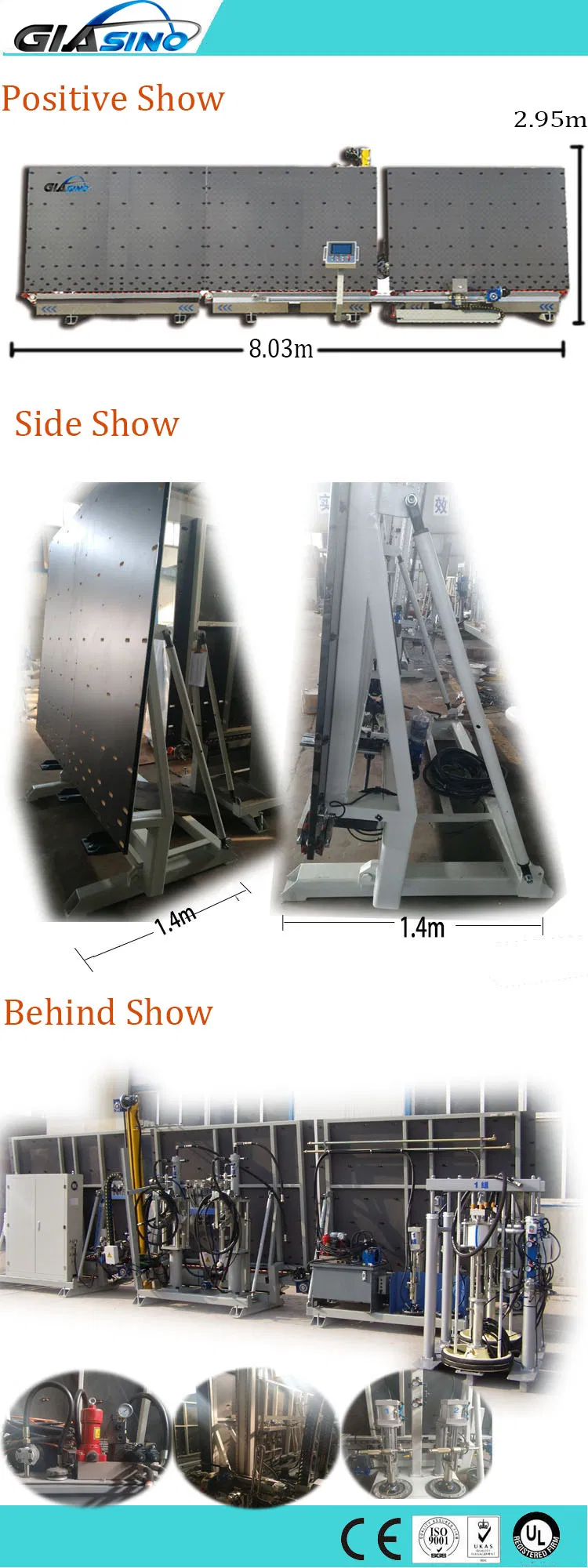

Conveying Speed	5-50m/min	Overall Dimension	830030003400mm

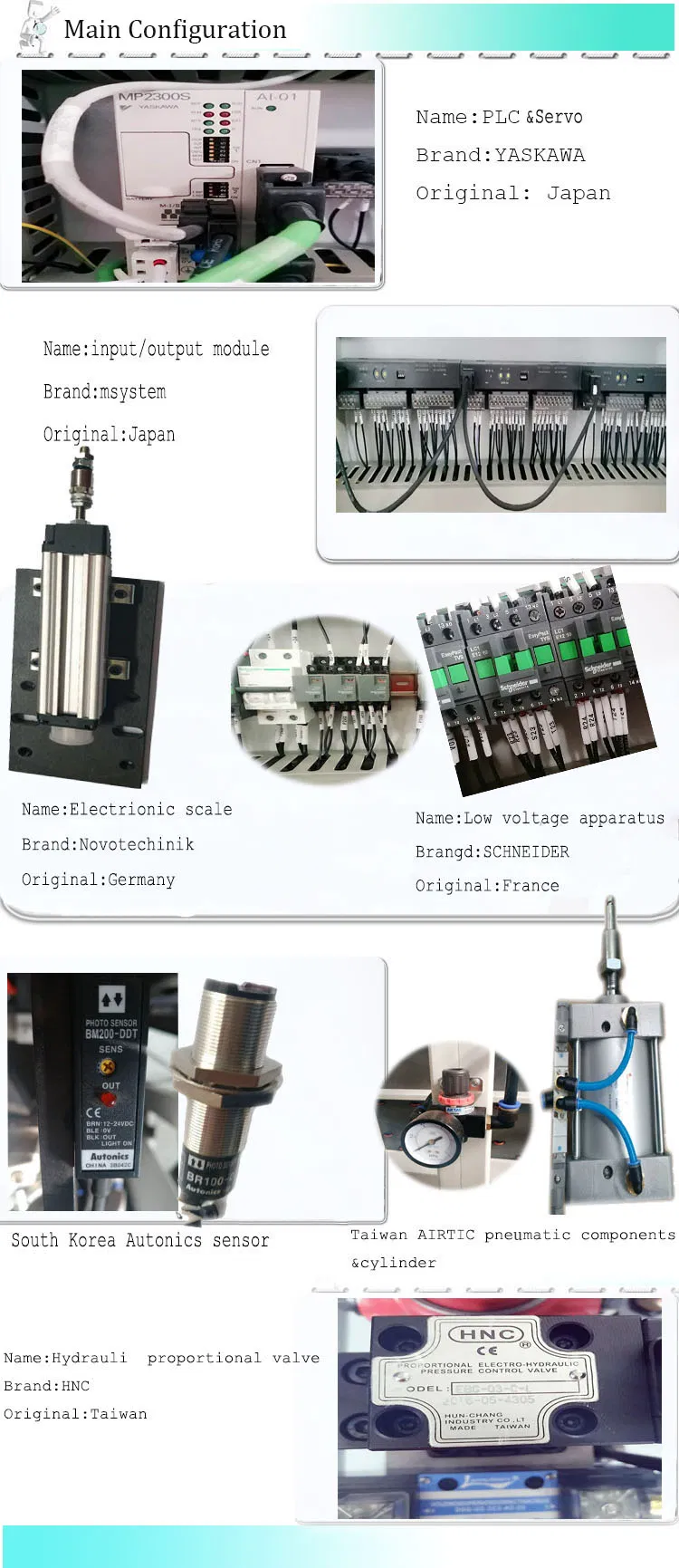

Spare Parts Brands

NO	Name	Brand	Country
1	Motion Controller	YASKAWA	Japan
2	Touch Screen	PANELMASTER	Taiwan
3	Frequency Converter	YASKAWA	Japan
4	AC Contactor	SCHNEIDER	France
5	Intermediate Relay	SCHNEIDER	France
6	Breaker	SCHNEIDER	France
7	Air Cylinder	SMC	Japan
8	Intermediate Relay	Weidmuller	Germany
9	Photoelectric Switch	AUTONIC	South Korea
10	Solenoid	AIRTAC	Taiwan
11	Servo Motor	YASKAWA	Japan
12	Low-voltage Electrics	SCHNEIDER	France

Frequently Asked Questions

Q1: What is the maximum glass size this sealing robot can process? A: The machine can handle a maximum glass size of 2500mm x 3500mm, making it suitable for large-scale double glazing production.

Q2: Which control system is used in this equipment? A: It is equipped with the world-renowned Japan Yaskawa servo control system for high precision and stable performance.

Q3: Can it handle different types of glass shapes? A: Yes, it is designed to apply sealant to both rectangular and square hollow insulating glass units automatically.

Q4: How does the machine ensure the correct amount of sealant is applied? A: The robot features a special sealant depth detection device that automatically measures the space and controls the sealant output precisely.

Q5: Is it easy to switch between different sealants? A: Yes, the dual system (A and B rubber plunger pumps) allows for a one-key switch function, making sealant changes quick and convenient.

Q6: What is the warranty period for this sealing robot? A: We provide a 1-year warranty and 1-year after-sales service to ensure the reliable operation of your production line.
