Automatic Air Breaking Manual Glass Processing Glass Uploading Machine

1 / 5

Automatic Air Breaking Manual Glass Processing Glass Uploading Machine

Customization:	Available
Application:	Glass Processing Industry
Control System:	PLC

Send Inquiry

Product Description

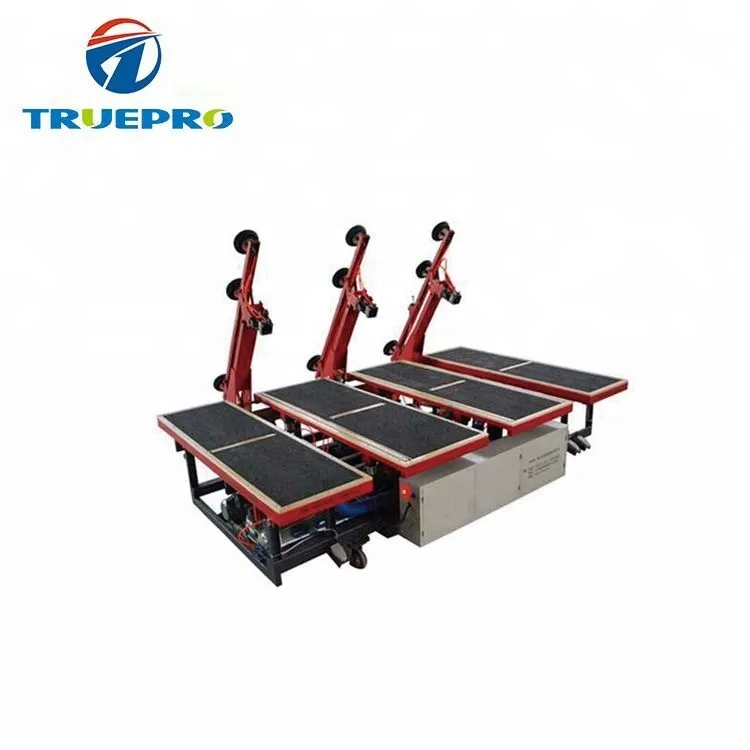

Automatic Glass Processing Glass Uploading Machine

Specifications & Basic Info

Model NO.:JYX-03

Safety Features:Safety Sensors

Warranty:12 Month

Input Power:7kw

Air Pressure:0.5-0.8MPa

Max. Glass Size:3660*2440mm

Working Pressure:32MPa

Transfer Speed:5-40m/Min

Machine Dimension:4200*2900*900mm

Weight:2500kg

Certification:CE

Production Capacity:200 Sets/Year

★

Feature and Function

Mainly used for automatic unloading of glass after processing.
This machine has single/double stations to unload glass; four systems are connecting together, could work together and separately.
Equipped with Mitsubishi PLC and Delta servo system for enhanced stability, efficiency, and safety.
Features an auto-counting function and preset unloading quantities for automatic operation stops.

⚙

Technical Parameters

Parameter Item	Details
Voltage	380V
Outer Size	34002400800mm
Transfer Speed	1-15m/min
Max. Glass Size	2500*2000mm
Min. Glass Size	300*500mm
Processing Glass Thickness	2-19mm
Arm Number	4

📷

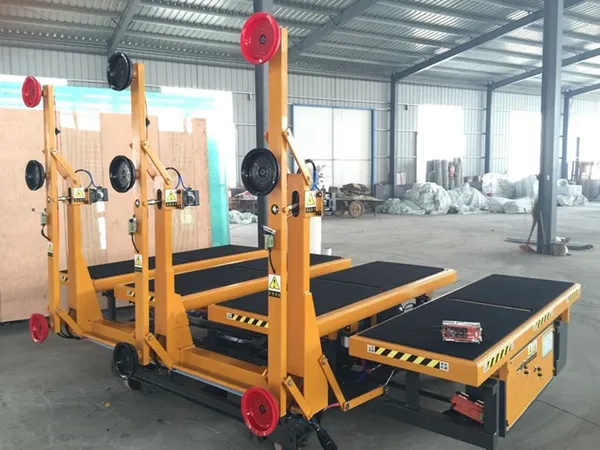

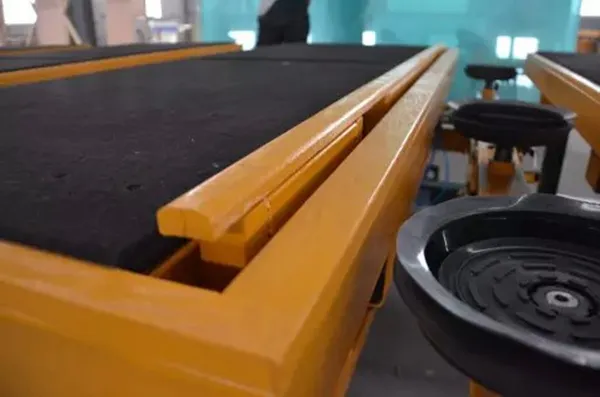

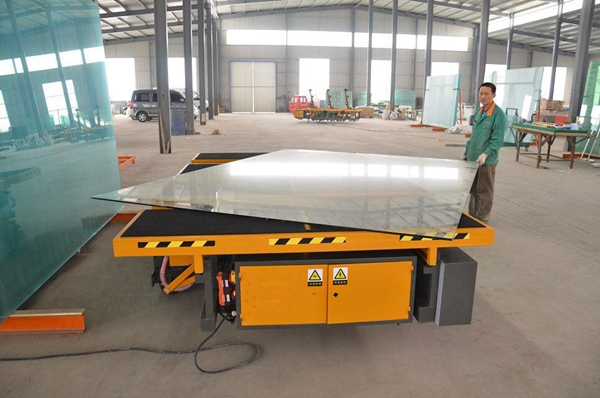

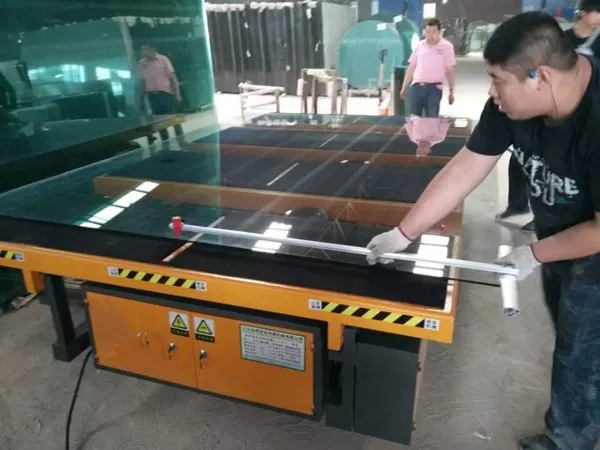

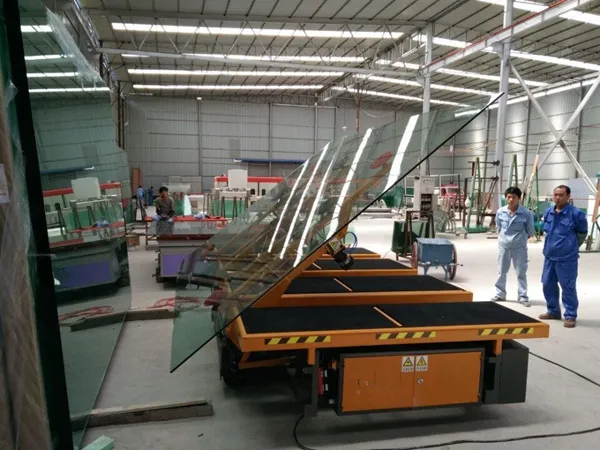

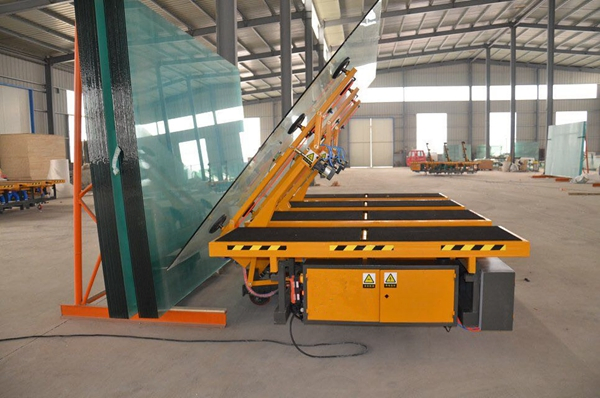

Product Display

Frequently Asked Questions

1. When can we arrange shipment for the equipment? Standard machines usually ship within 15 days of deposit. Customized machines typically require more than 25 days.

2. What support is provided if the machine encounters problems? We provide free replacement components if the machine is within the warranty period. Additionally, engineers can be dispatched for on-site repairs.

3. Do you provide operation training for the staff? Yes, professional engineers are available for on-site installation, adjustment, and comprehensive operation training.

4. What is the range of glass thickness the machine can handle? The machine is capable of processing glass with a thickness ranging from 2mm to 19mm.

5. What is the maximum glass size for this processing line? The machine can handle a maximum glass size of up to 3660*2440mm, according to model specifications.

6. What control system is used in the machine? The equipment utilizes a Mitsubishi PLC and a Delta servo system to ensure stable and efficient performance.
