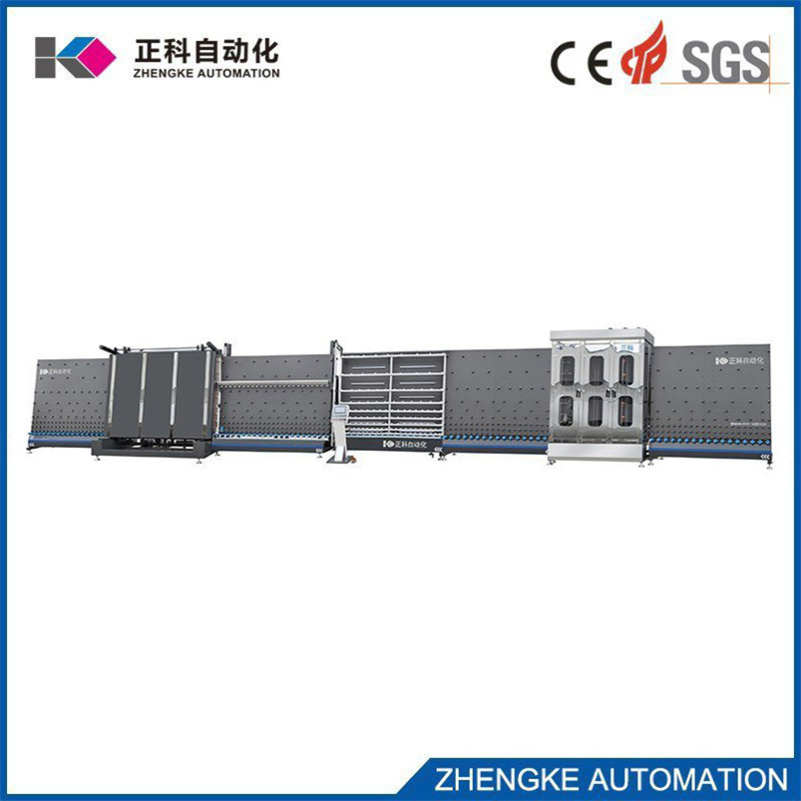

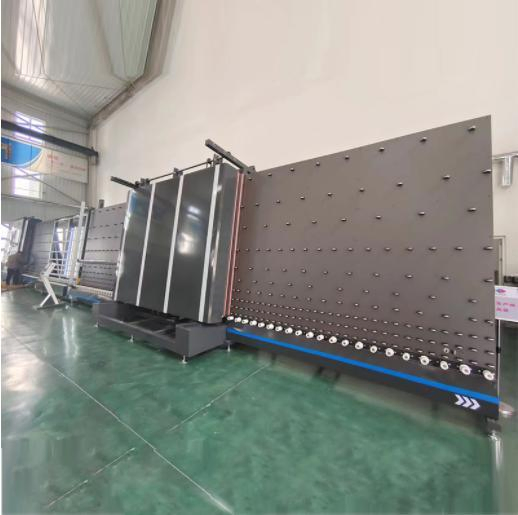

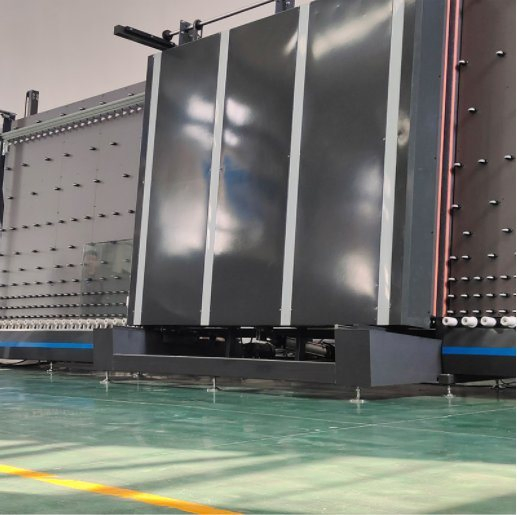

Automatic Insulating Glass Flat-Press Production Line Machine CNC Vertical Insulating Glass Exterior Lamination Production Line Machine with CE ISO

1 / 5

Automatic Insulating Glass Flat-Press Production Line Machine CNC Vertical Insulating Glass Exterior Lamination Production Line Machine with CE ISO

Customization:	Available
Certification:	CE, ISO, CE
Control System:	PLC

Send Inquiry

Product Description

Basic Information

Model:LB2500A

Type:Insulating Glass Production Line

Structure:Vertical

Max Working Size:2500 × 3500mm

Min Working Size:280 × 480mm

Glass Thickness:3 ~ 18mm

IG Thickness:≤ 80mm

Power:30kw / 380V / 50Hz

Air Pressure:0.6 ~ 0.8MPa

Washing Speed:2 ~ 15m/Min

Transfer Speed:0 ~ 50m/Min

Warranty:One Year

Product Description

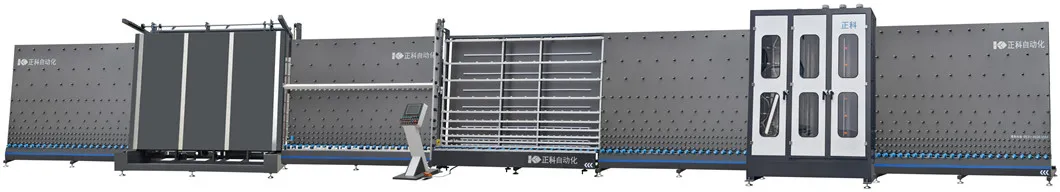

AUTOMATIC INSULATING GLASS PRODUCTION LINE

This numerical control insulating glass production line is designed to significantly save work time and improve production efficiency. It features PLC control and a touch-sensitive screen human-machine interface, making operation convenient and intuitive.

Key Features & Capabilities

PLC control with touch sensitive screen for intuitive operation.
Automatic identification of coated glass and Low-E glass.
Segmented acceleration and automatic positioning system for glass.
Capable of producing Step IG Units and three-piece IG production.
Specially designed for two, three, and four layers of insulating glass processing.
Feeding automatic sheet arrangement with independent transmission.

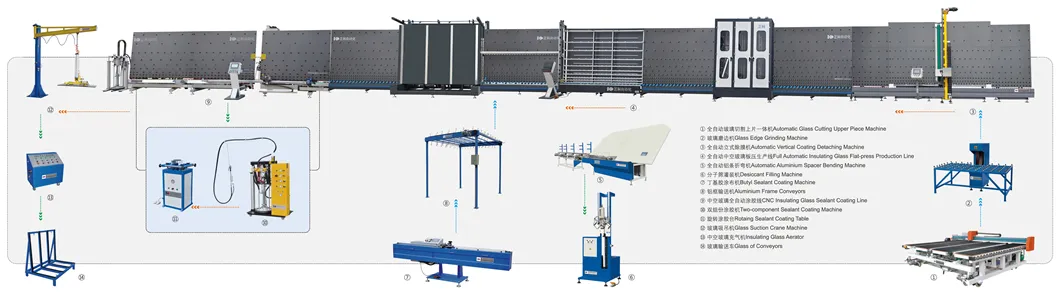

Production Process

Technical Specifications

Power	380V 50Hz 30KW
Air Pressure	0.6~0.8Mpa
Max Working Size	2500 × 3500mm
Min Working Size	280 × 480mm
Glass Washing Thickness	3 ~ 18mm
Insulating Glass Thickness	≤ 80mm
Transfer Speed	0 ~ 50m/min
Washing Speed	2 ~ 15m/min
Overall Dimension	24800 × 2700 × 3550mm

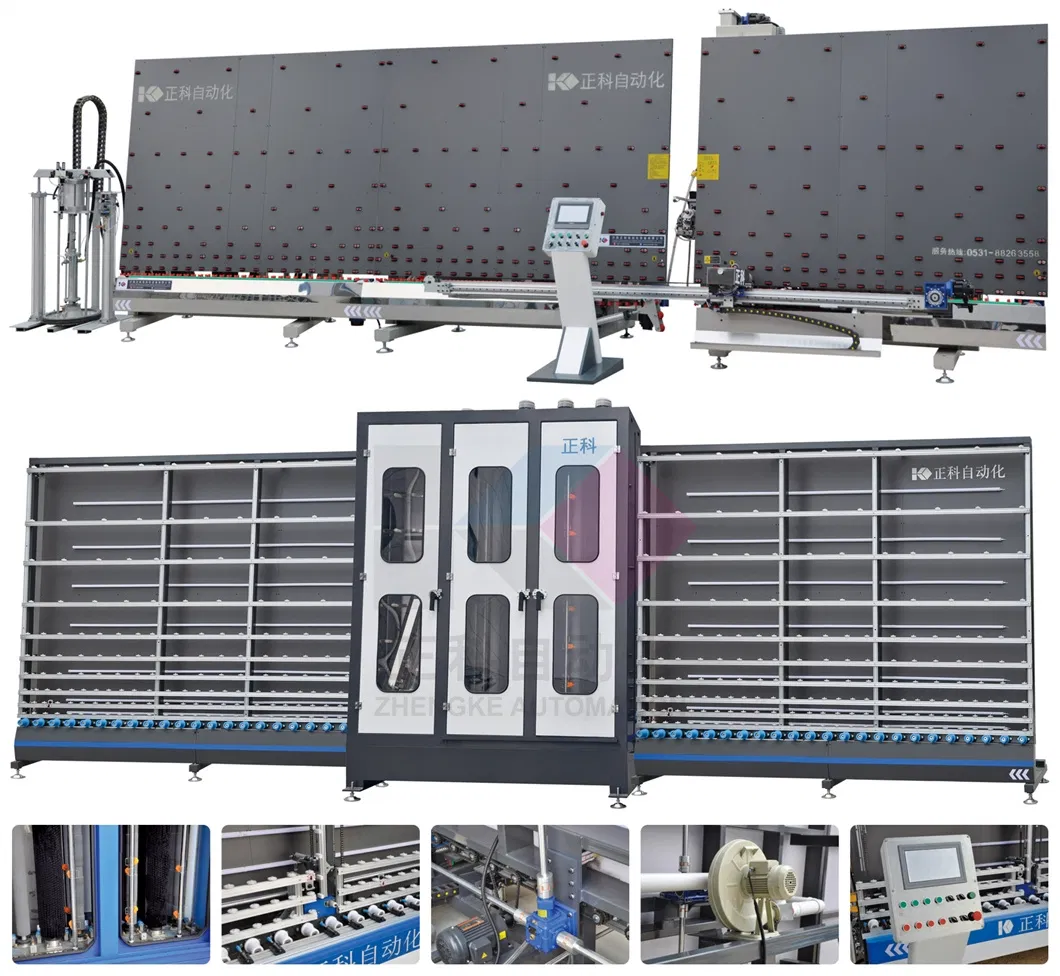

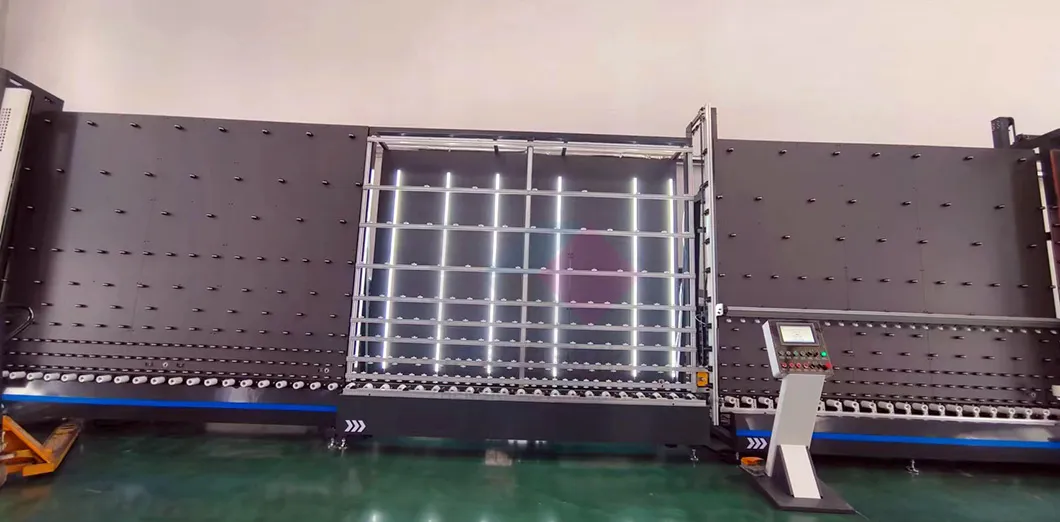

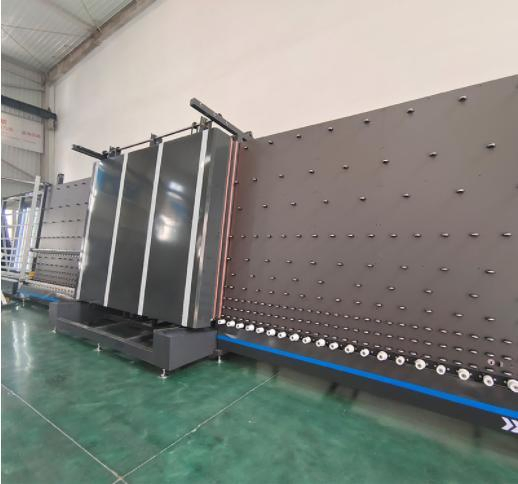

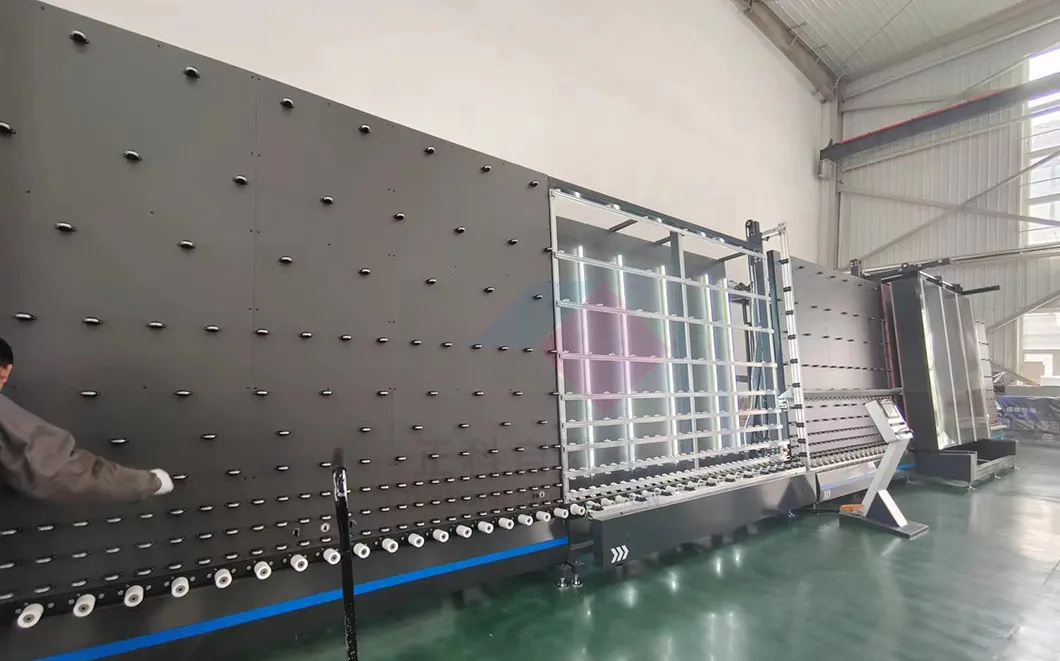

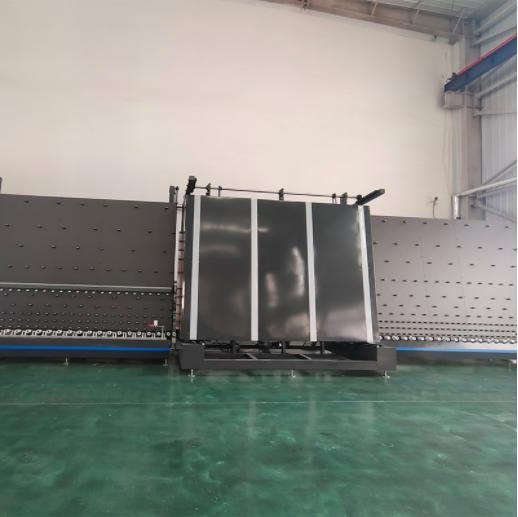

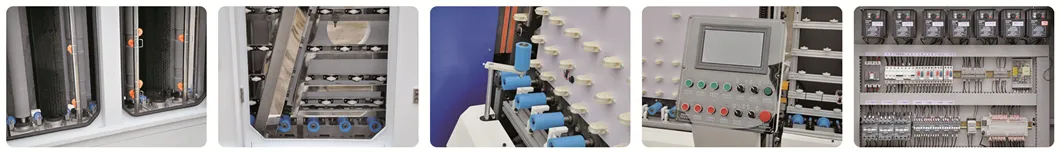

Detailed Photos

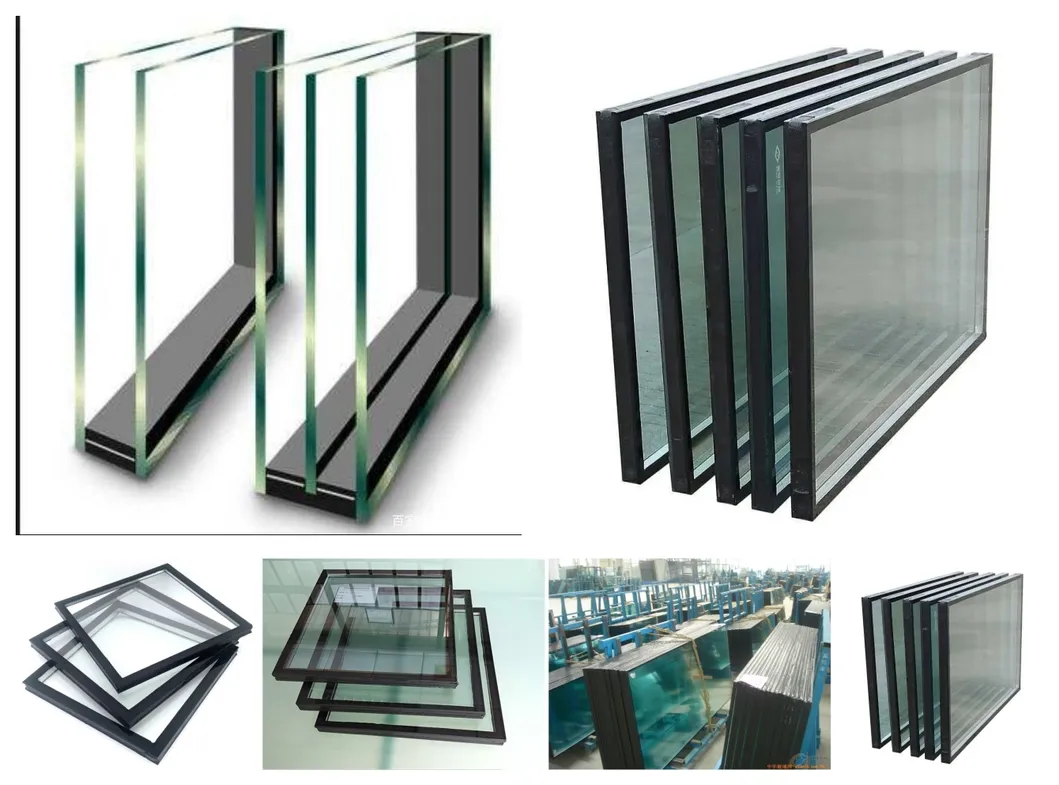

Sample & Packing Details

Professional Advantages

Founded in 2014, the company specializes in professional glass machinery high-tech solutions. With a core team of 50 people and independent R&D capabilities, we serve over 1500 terminal customers worldwide.

Comprehensive glass production solutions and 24-hour online service.
Advanced production equipment with strict quality control systems.
OEM & ODM customized design, branding, and packaging options.
Direct manufacturer pricing without middleman markups.
Fast delivery times through optimized factory management.

Frequently Asked Questions

Q1: What is the maximum glass size this production line can handle? A: The LB2500A model supports a maximum working size of 2500mm x 3500mm.

Q2: Can the machine identify Low-E or coated glass automatically? A: Yes, the production line is equipped to identify coated glass and Low-E glass automatically during the feeding process.

Q3: What types of insulating glass units can be produced? A: It is designed for processing standard insulating glass, Step IG Units, and units with two, three, or four layers.

Q4: What is the washing and transfer speed of the line? A: The washing speed ranges from 2 to 15m/min, while the transfer speed can reach up to 50m/min.

Q5: What control system is used for operation? A: The line utilizes a PLC control system with a touch-sensitive human-machine interface for intuitive operation.

Q6: What is the warranty period for the equipment? A: The machine comes with a standard one-year warranty and one-year after-sales service support.
