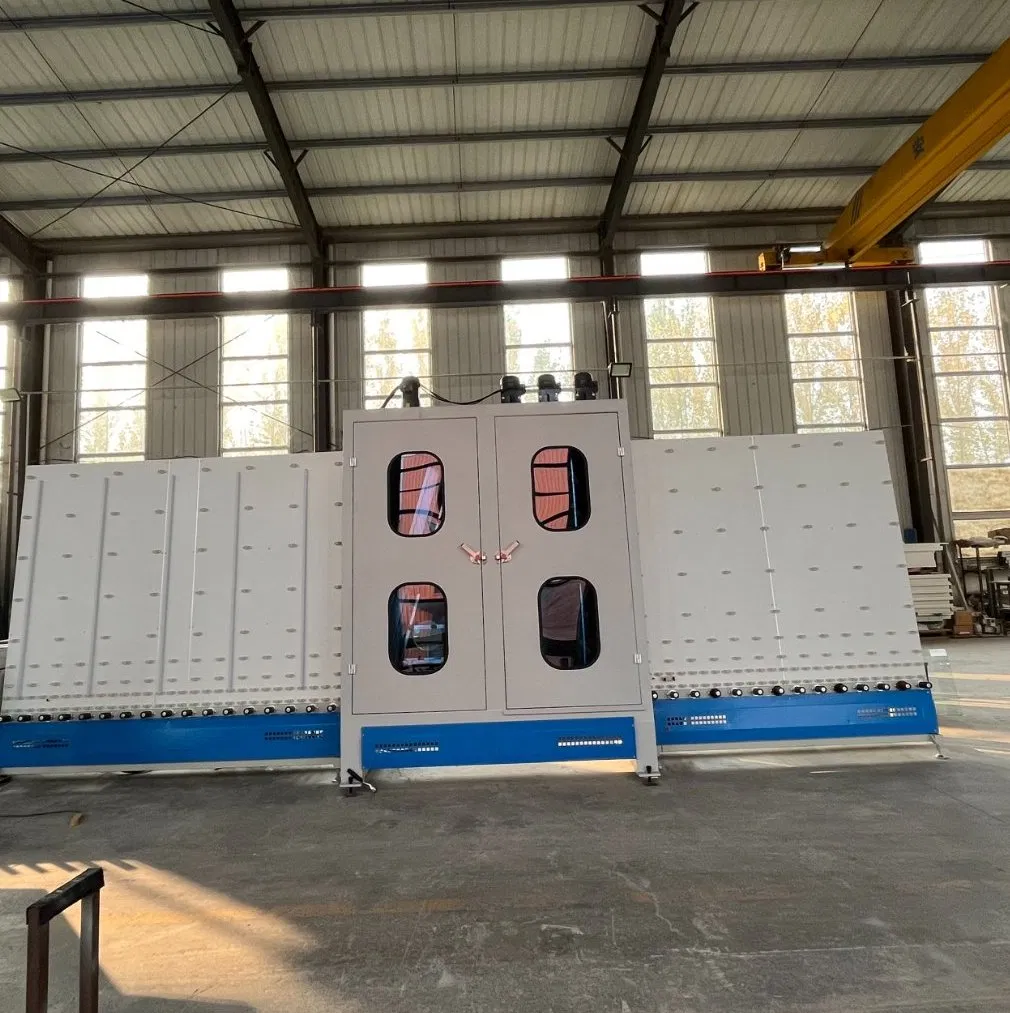

Automatic Vertical Insulating Glass Processing Line Insulated Glass Washing Drying Machine

Basic Information

Model NO.

VGM2500

Min Glass Size

200*400mm

Total Power

31kw

Overall Dimension

9300*2300*3400mm

Type

Glass Washing and Drying Machine

Structure

Vertical

Control System

PLC

Warranty

1 year

Product Description

Provide the Best Equipment Configuration Schedule and Personalized Customization

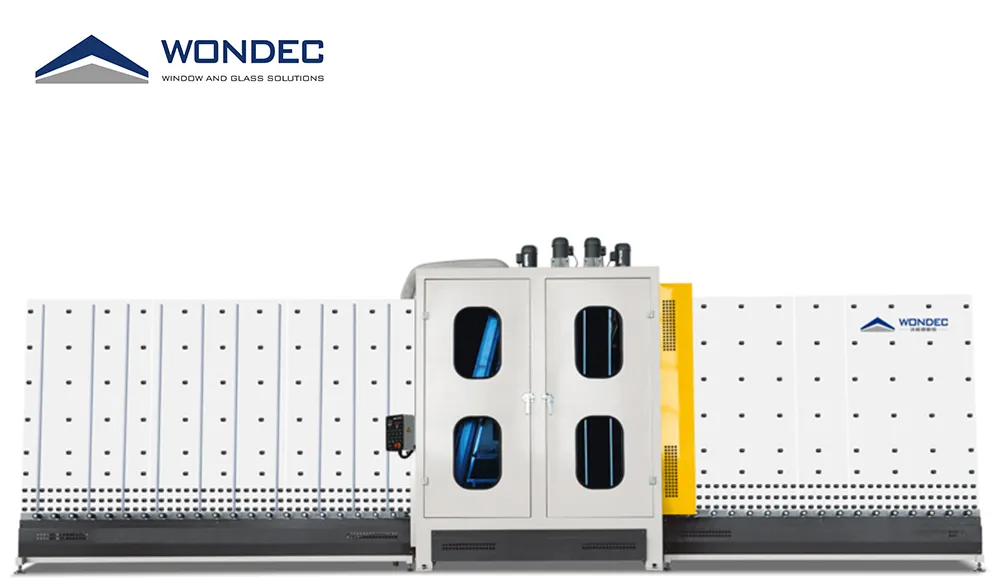

Vertical Insulating Glass Processing Line

High Quality Automatic Vertical Insulating Glass Washing Machine

●Carbon fiber conductive brushes are used for Low-e glass detection.
●Cleaning section is made of stainless steel, including all bearing bases.
●Self-aligning brush bearings provide long service life and high precision.
●Direct coupling motor connection avoids idling and reduces belt maintenance.
●Washing zone includes water heating function for optimal cleaning.

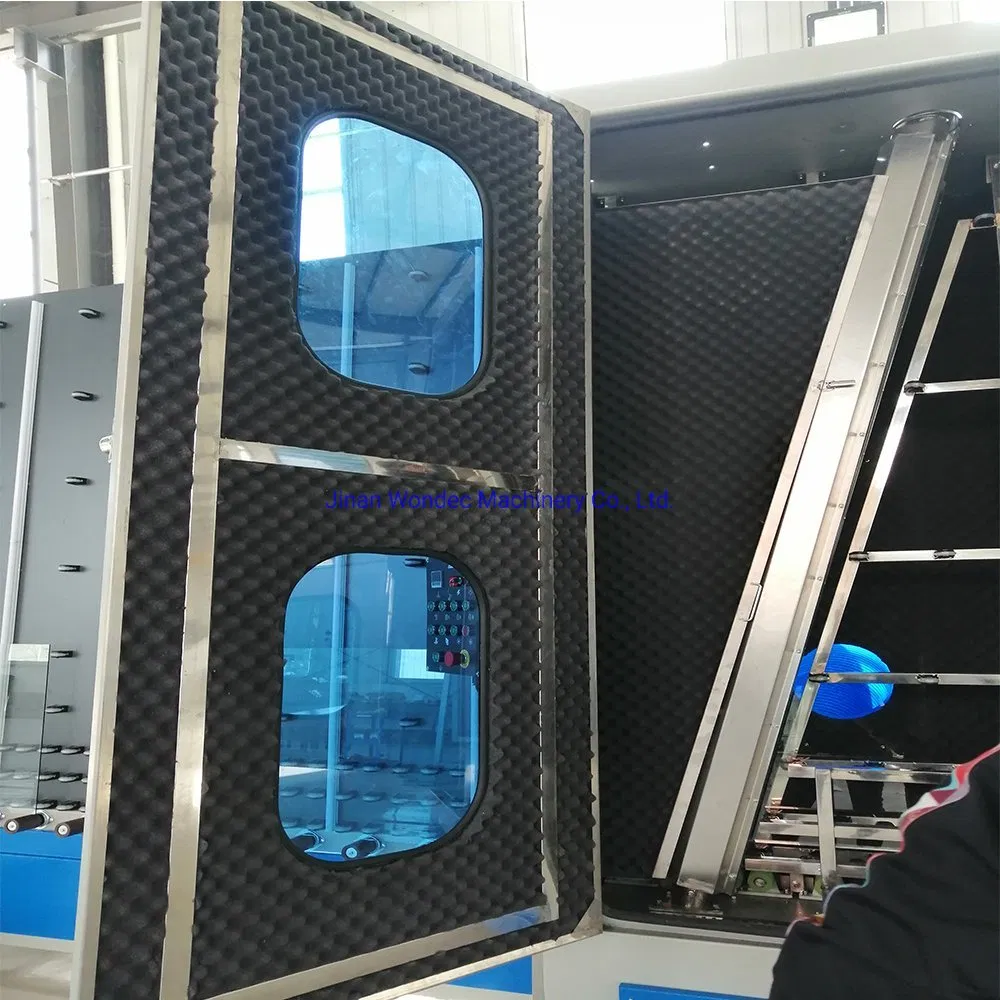

●Drying cabinet features 10mm thick sound insulation cotton to reduce noise.
●Advanced air knife technology with adjustable angles (standard 40°).

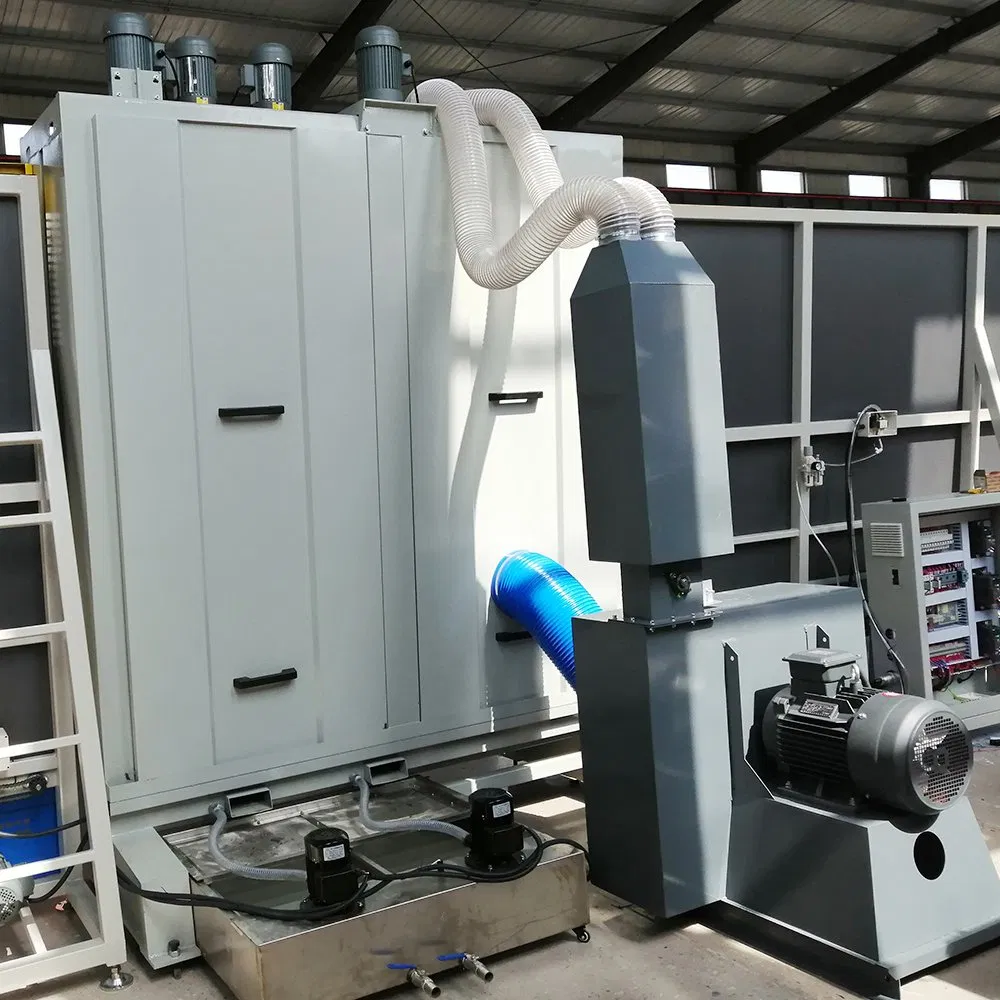

●High-speed air blower equipped with air heating device for rapid drying.

Detailed Component Analysis

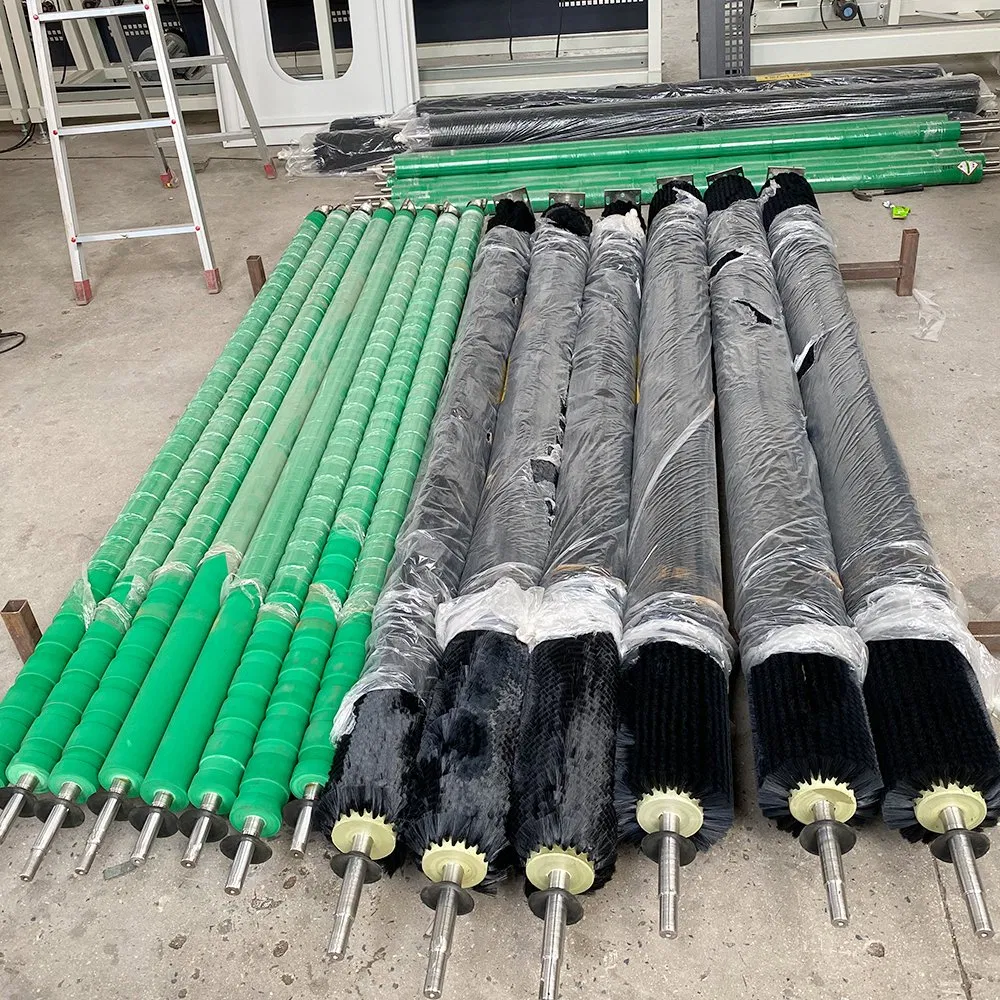

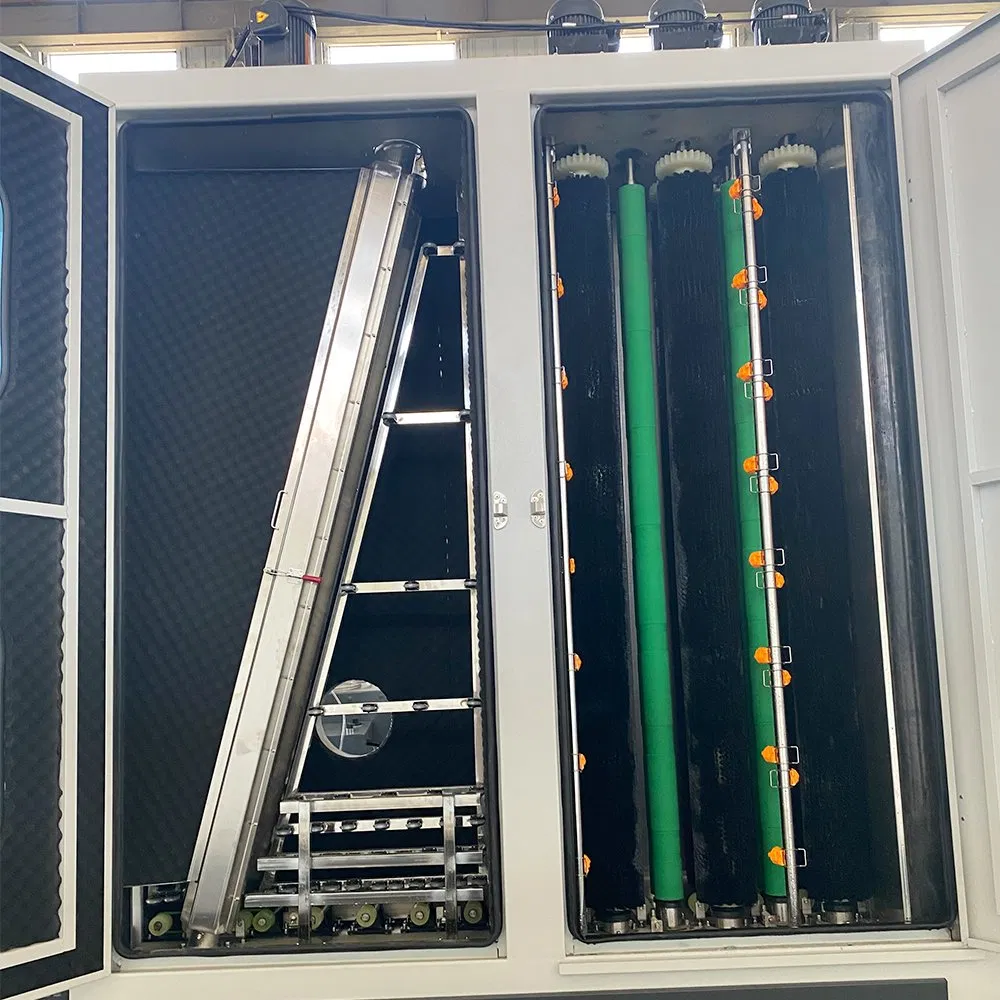

3 pairs of soft brushes (0.1mm/0.2mm) for Low-E glass washing.

Hexagonal air knife design for strong wind and fast drying.

Technical Parameters

Parameter Item	Specifications
Model	VGM2500
Input Voltage	380V / 50Hz
Input Power	31Kw
Max. Glass Size	2500 * 4000mm
Min. Glass Size	200 * 400mm
Glass Thickness	3 - 16mm
Glass Washing Speed	3 - 12m/min
Overall Dimension	9300 * 2300 * 3400mm
Weight	2000 Kgs

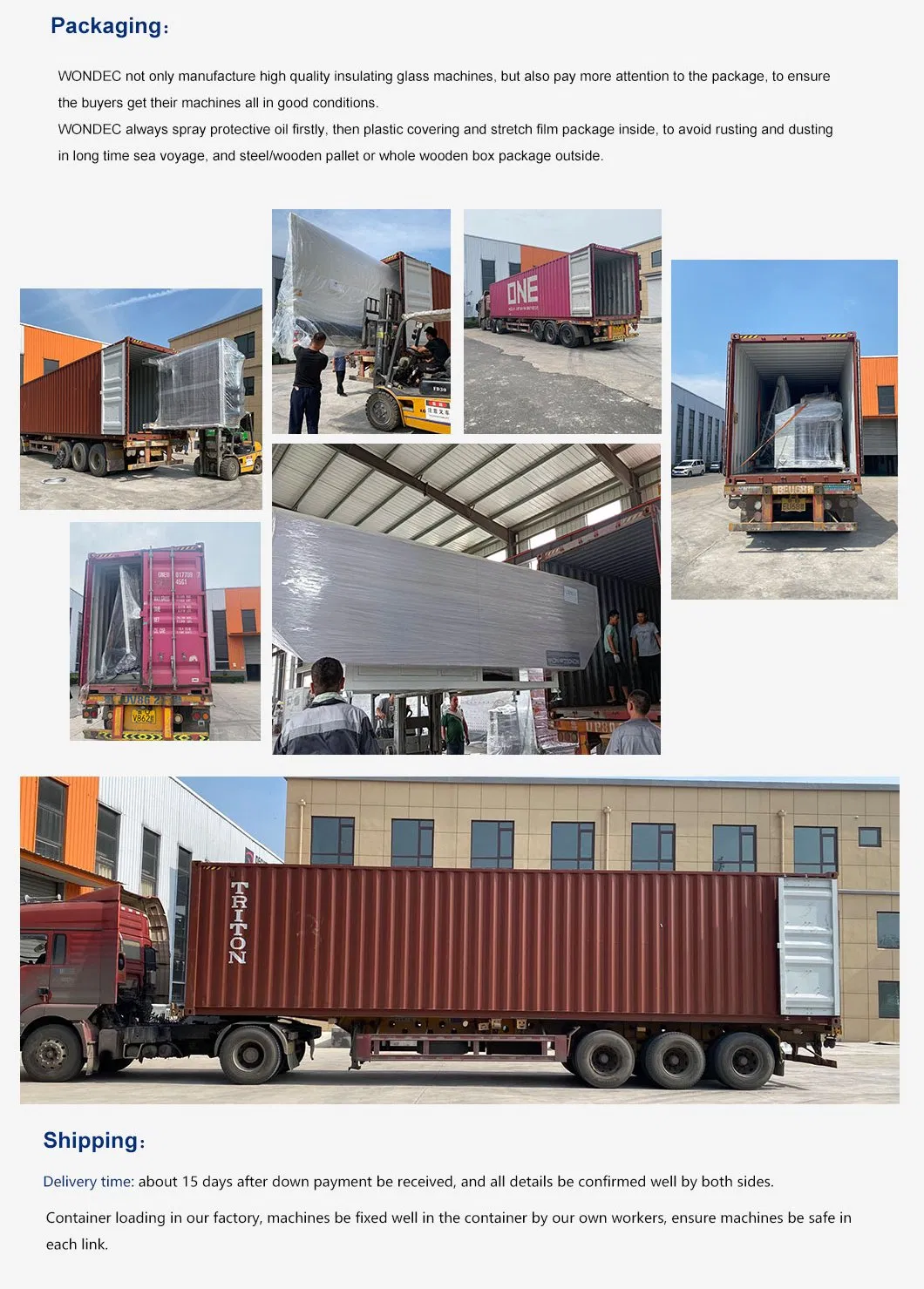

Packaging & After-Sales Service

Pre-sales Support

● Customized equipment layout based on your building floor plan.
● Technical drawings provided according to specific equipment footprints.

After-sales Service

● Weekly production reports to track progress.
● Professional installation, debugging, and personnel training.
● English operation manuals and 24/7 technical support.
● Lifetime maintenance and technical service supply.

Frequently Asked Questions

How is the quality control managed?

The entire production procedure undergoes regular inspection and strict quality control. Every component is inspected before use, and the complete machine is tested to ensure perfect performance before leaving the factory.

How do I operate the glass processing machinery?

We provide comprehensive paper instructions in English and offer hands-on training until your operators are proficient with the equipment.

What happens if the machine has problems after ordering?

Free parts are sent during the warranty period for any machine issues. We offer 24/7 support via phone, mail, and messaging apps to ensure continuous operation.

Are you a manufacturer or a trading company?

We are a professional manufacturer with over 10 years of experience in the glass processing industry, providing both high-quality machinery and integrated solutions.

Is on-site installation available in my country?

Yes, we arrange for engineers to visit your factory to install the machinery and provide training for your staff once the equipment arrives.

What shipping documents will be provided?

After shipment, we provide all necessary original documents including packing lists, commercial invoices, bills of lading, and any specific certificates required for your region.
