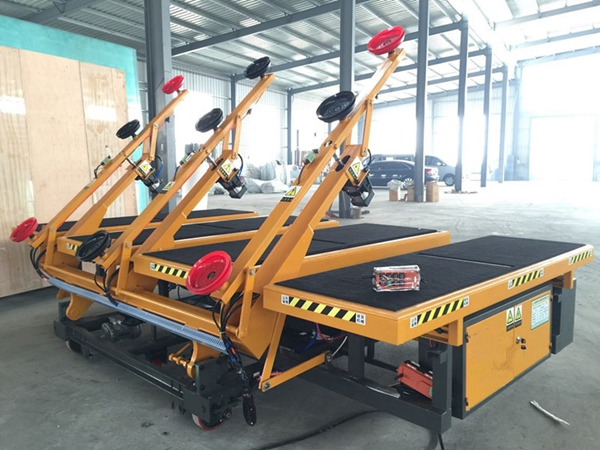

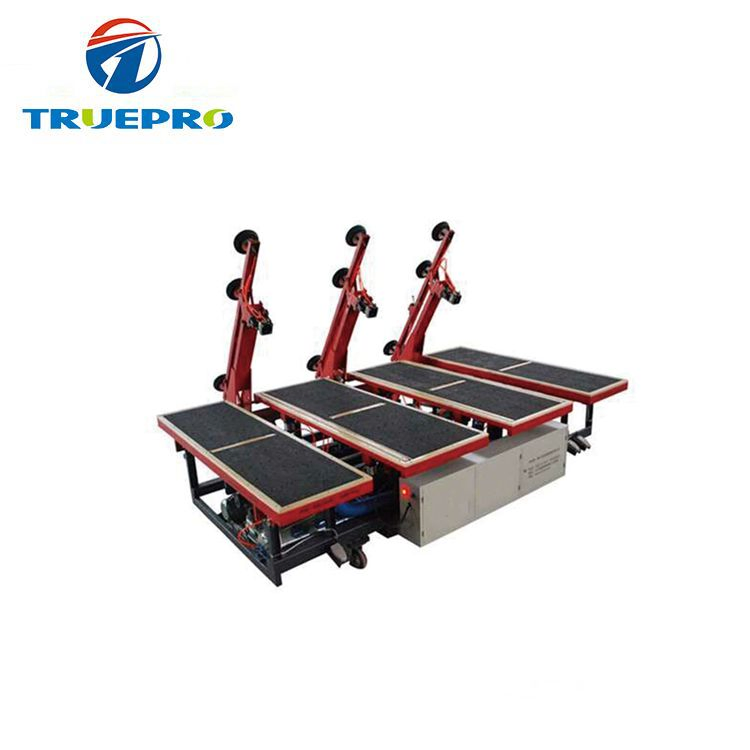

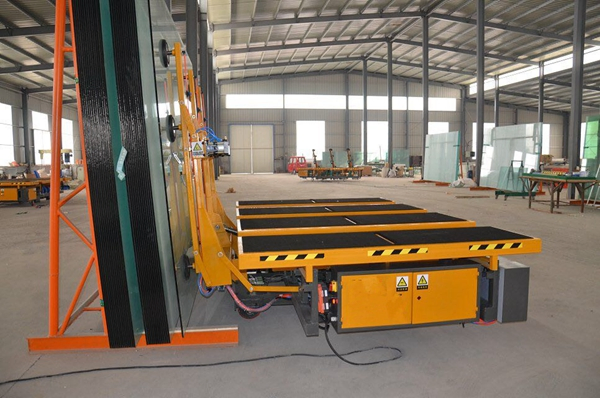

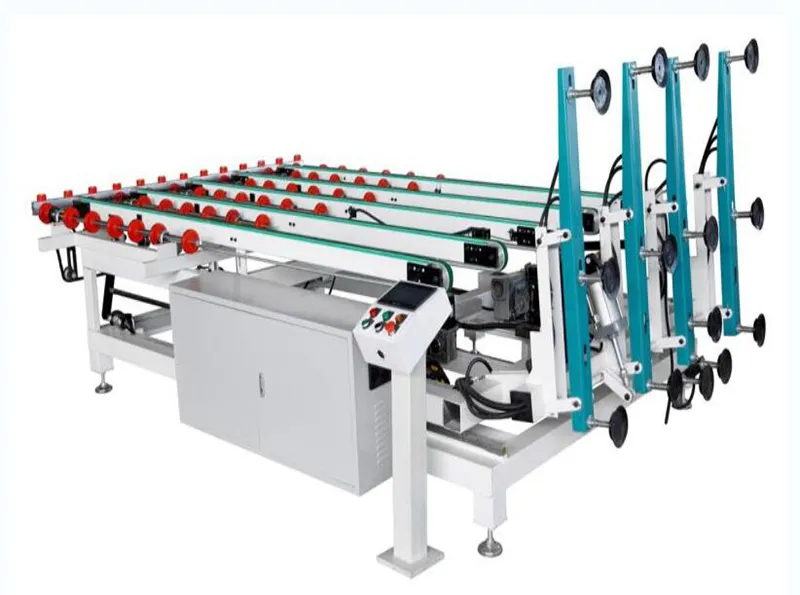

Automatic Portable CNC Glass Processing Glass Uploading Machine

Customization:	Available
Control System:	PLC
Warranty:	12 Month

📊 Basic Specifications

Model NO.

JYX-03

Product Name

Smart Glass Processing Line Automatic Glass Loading

Input Power

7kw

Air Pressure

0.5-0.8MPa

Max. Processing Size

3660*2440mm

Working Pressure

32MPa

Transfer Speed

5-40m/Min

Machine Dimension

4200*2900*900mm

Weight

2500kg

Certification

CE

Grinding Head Number

9

HS Code

846490

⚙️ Features & Functions

Mainly used for automatic unloading of glass after processing tasks.

Equipped with single/double stations; four systems connect to work together or separately.

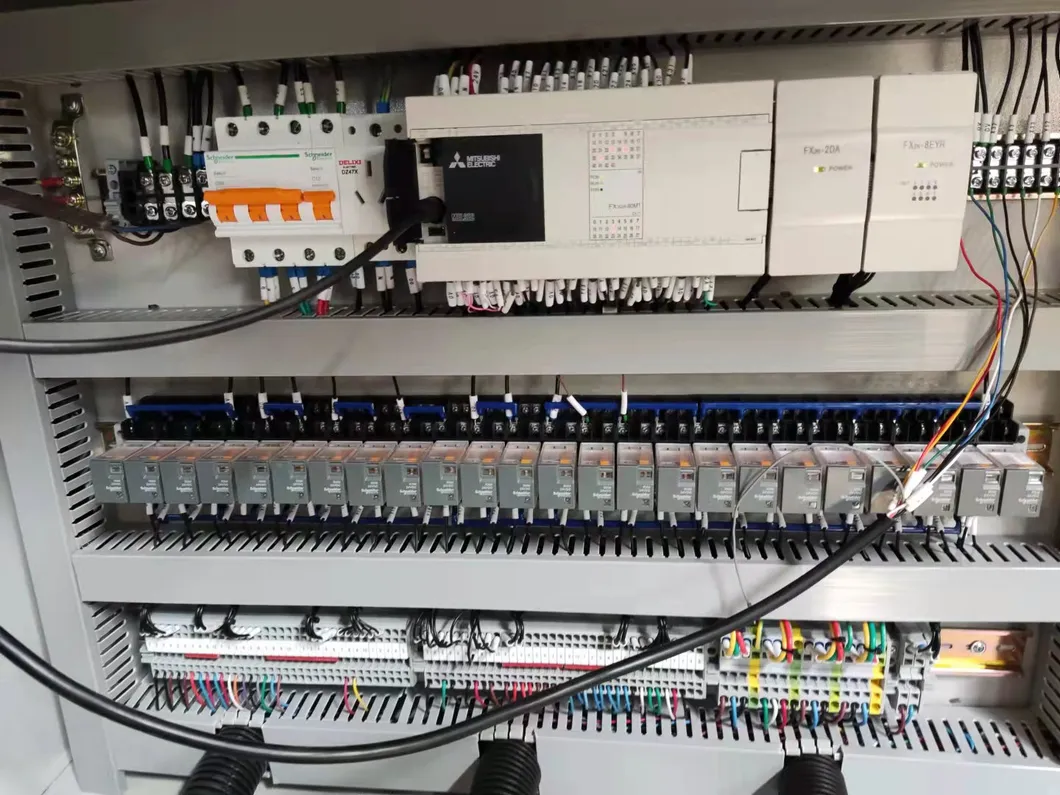

High-end control: Mitsubishi PLC and Delta servo system for stability and efficiency.

Labor-saving design: Simple and safe operation reduces manual workload.

Auto counting function: Set desired quantities; the machine stops automatically when reached.

Customizable configurations to meet specific industrial requirements.

📋 Technical Parameters

Specification Item	Details
Voltage	380V
Outer Size	34002400800mm
Transfer Speed	1-15m/min
Max. Glass Size	2500*2000mm
Min. Glass Size	300*500mm
Processing Thickness	2-19mm
Arm Number	4
Production Capacity	200 Sets/Year

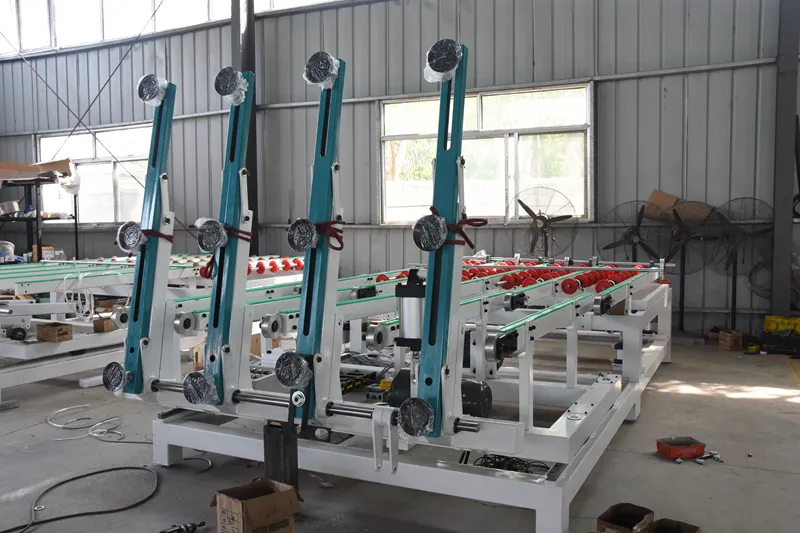

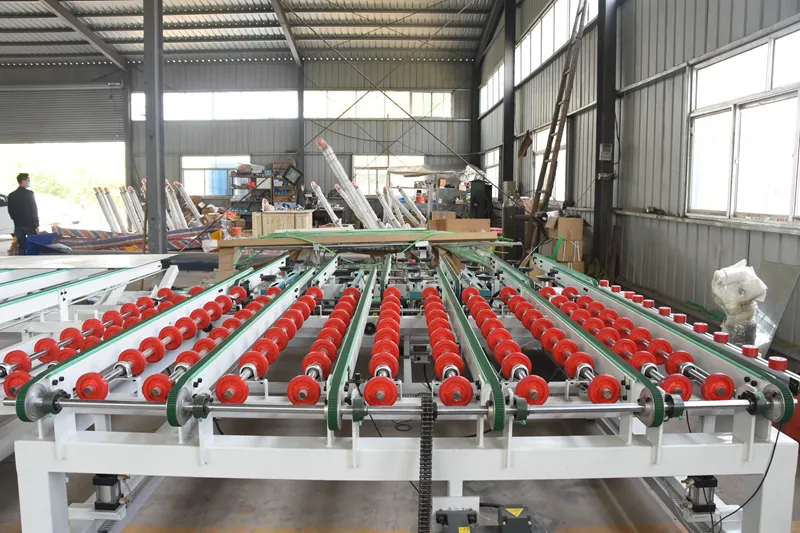

🖼️ Product Gallery

❓ Frequently Asked Questions

What is the typical lead time for shipment?

Standard machines are usually arranged for shipment within 15 days after deposit. For customized glass processing equipment, the timeline is generally more than 25 days.

How do you handle technical issues or machine malfunctions?

If the machine is within the warranty period, we provide free replacement components. We can also dispatch professional engineers to perform repairs.

Is on-site operation training provided?

Yes, we provide comprehensive on-site services including equipment installation, precision adjustment, and full operation training by our experienced engineers.

What control systems does the glass loading machine use?

Our machines utilize high-performance Mitsubishi PLC and Delta servo systems to ensure maximum stability and operational efficiency.

Can the machine handle different glass thicknesses?

Yes, the automatic loading line is designed to process glass with thicknesses ranging from 2mm to 19mm.

Are the machines customizable for specific workshop needs?

Absolutely. We believe the best fit is the one that meets your specific needs. Every machine can be customized to fulfill unique production requirements.
