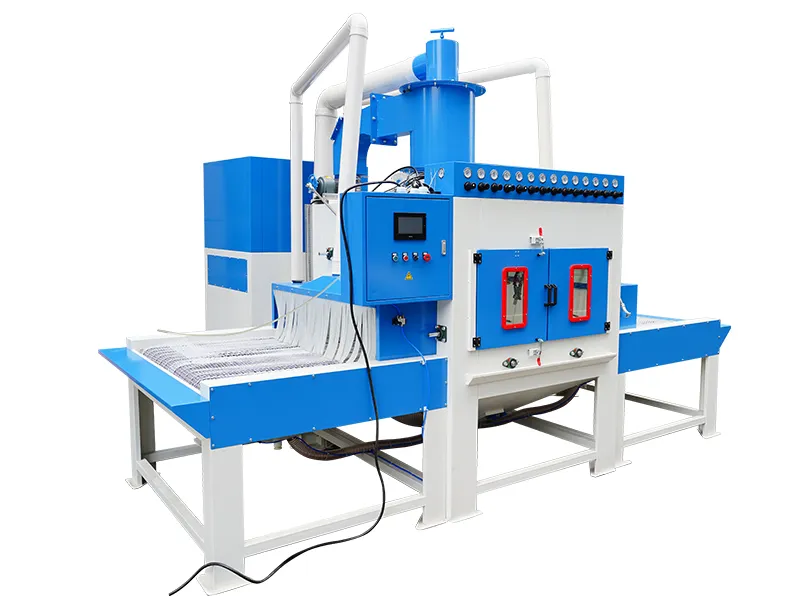

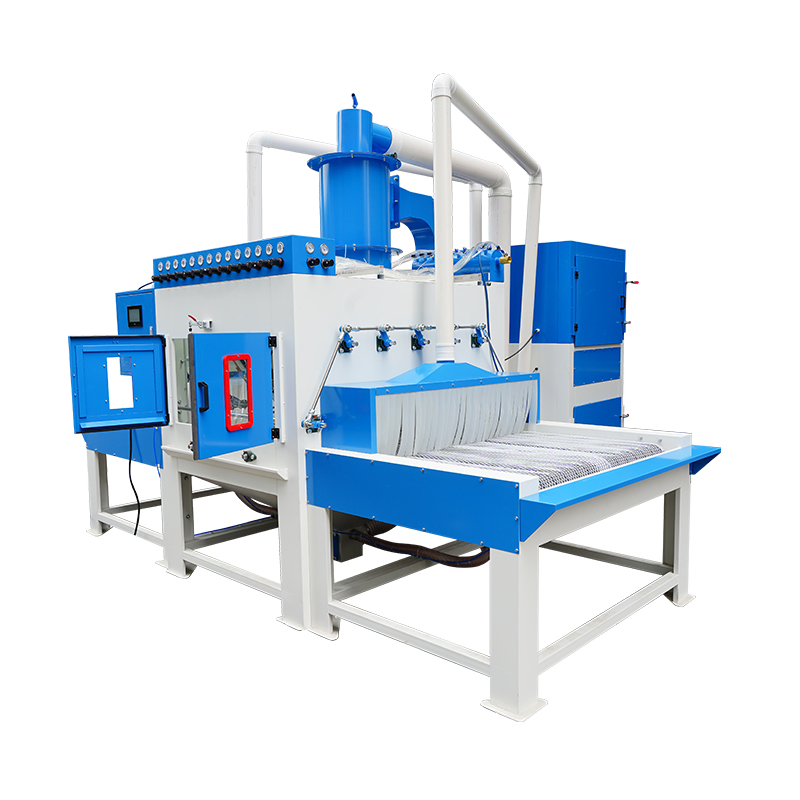

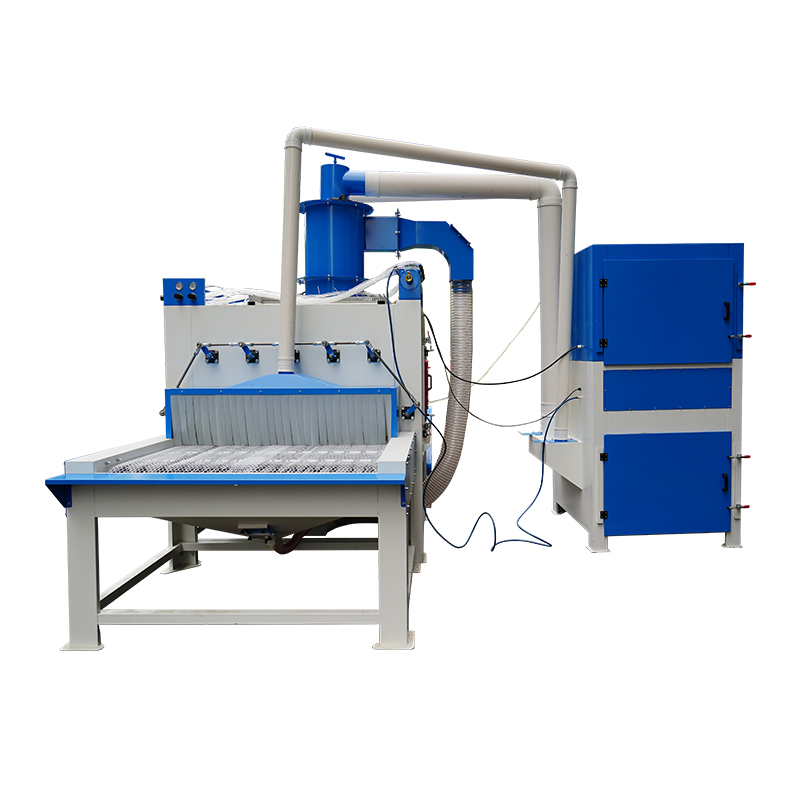

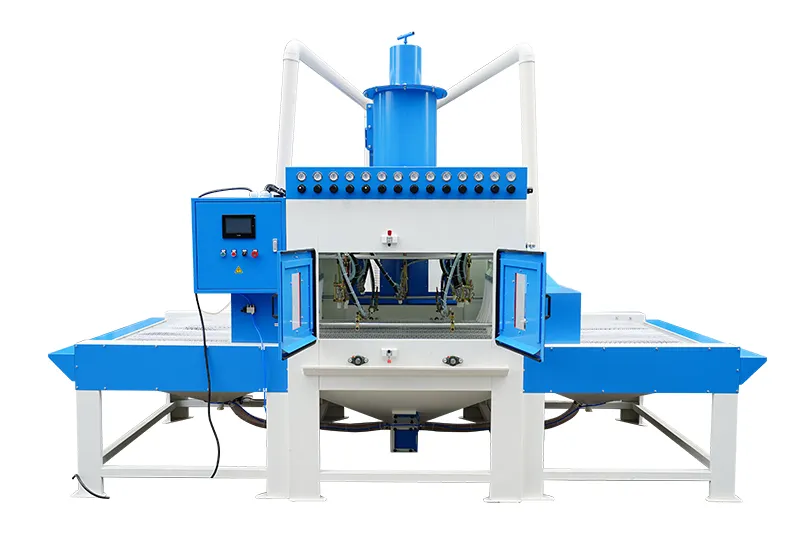

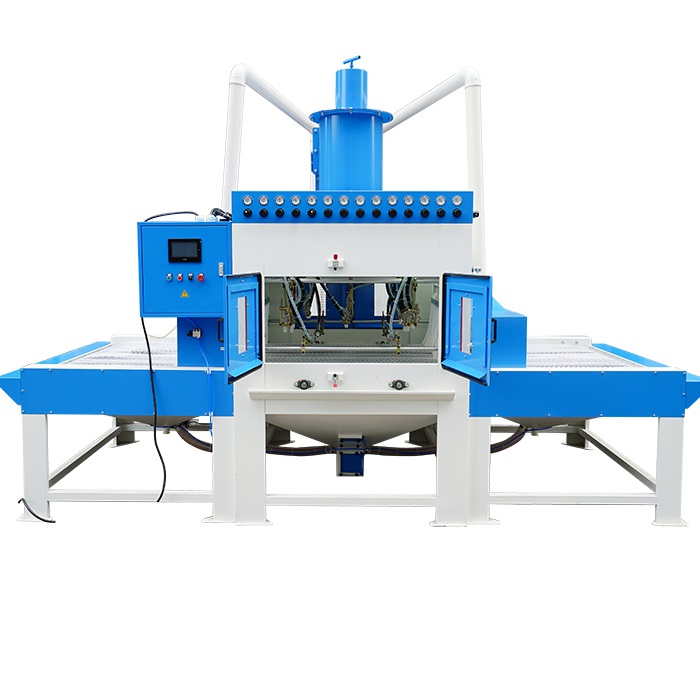

Full Automatic Sand Blasting Machine Industrial Conveyor Sandblasting Machine for Glass Plate

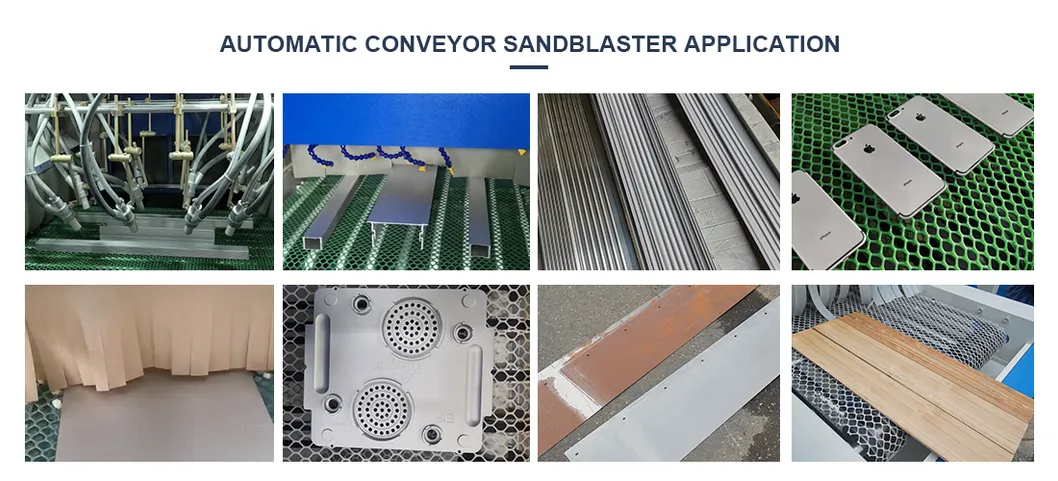

Automatic Sand Blasting Machine is designed for continuous sandblasting of flat shape workparts, such as Steel H Beam, metal plates, glass plates, aluminum pan, mobile phone shell, notebook mainboard, etc.
Automatic continuous conveying and blasting realizes a required big output with uniform quality. The conveyor blasting system can be customized in different sizes to suits your products and production.
| Model | KF-3814-12A |
| Outer Size | Length 3800 * Width 1400 * Height 2139mm |
| Working Chamber Size | Length 1400 * Width 1100 * Height 1000mm |
| Size of Feeding Workpiece | Width 1000 * Height 3500mm |
| Dust Collector Cabin Size | Length 1200 * Width 130 * Height 2400mm |

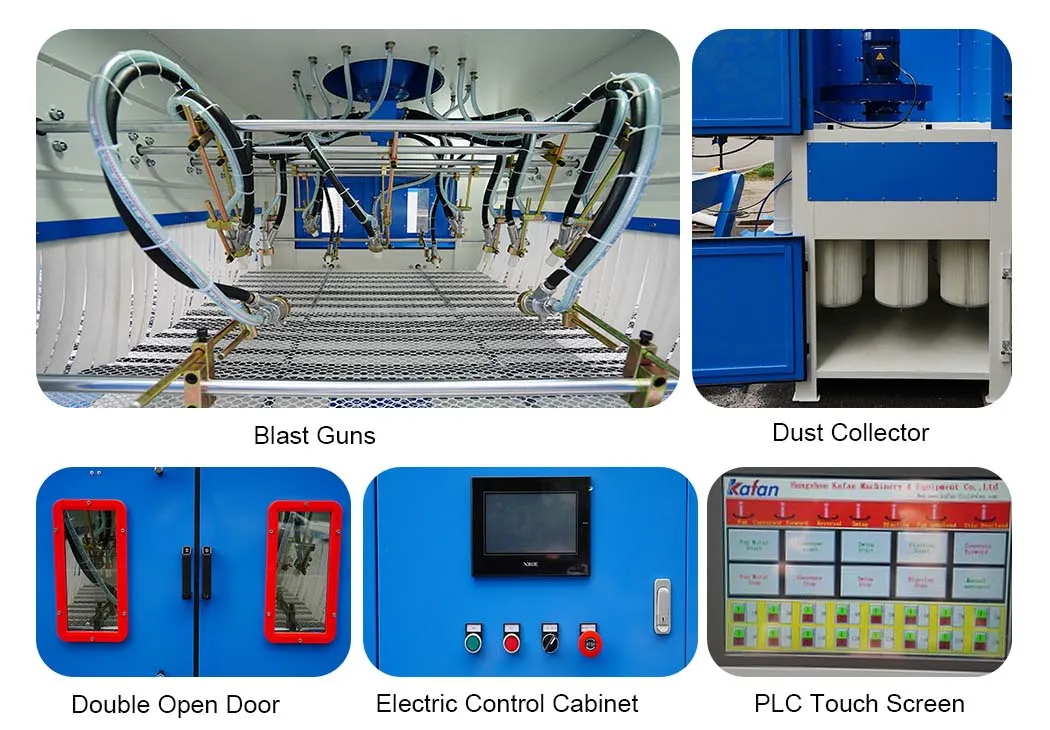

| Dust Collector Motor | 5.5kw, 1set |

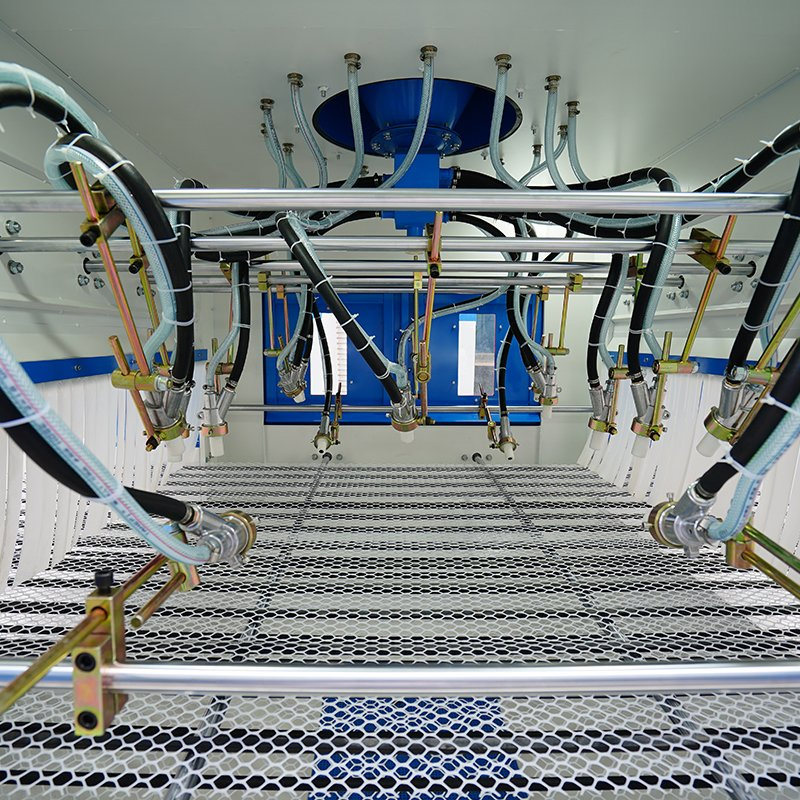

| Sandblasting Gun | 12 PCS (Boron Carbide Nozzle) |
| Cleaning Gun | 1 PC |
