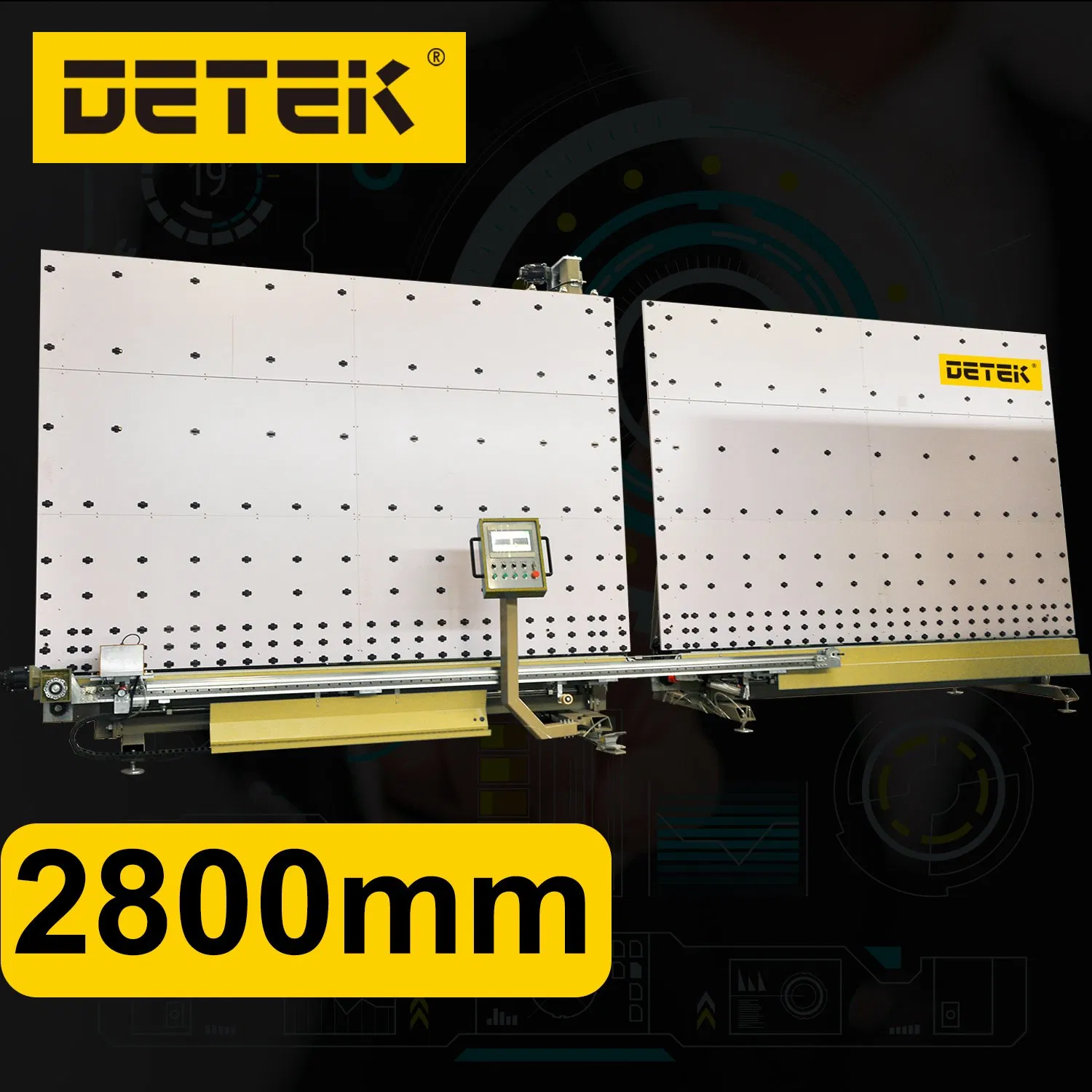

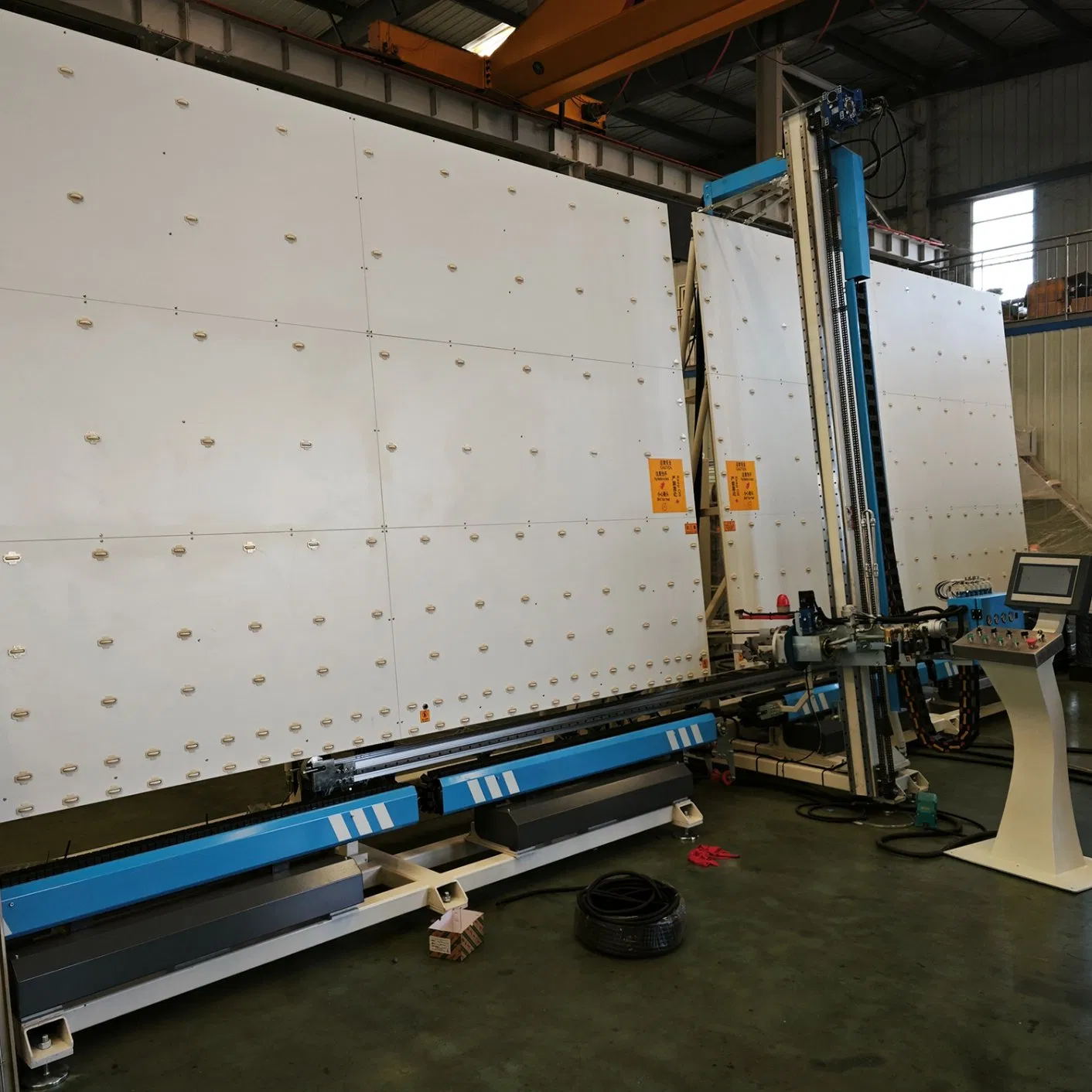

Insulating Glass Automatic Sealing Robot with Corner Cleaning Function

Customization:	Available
Certification:	CE

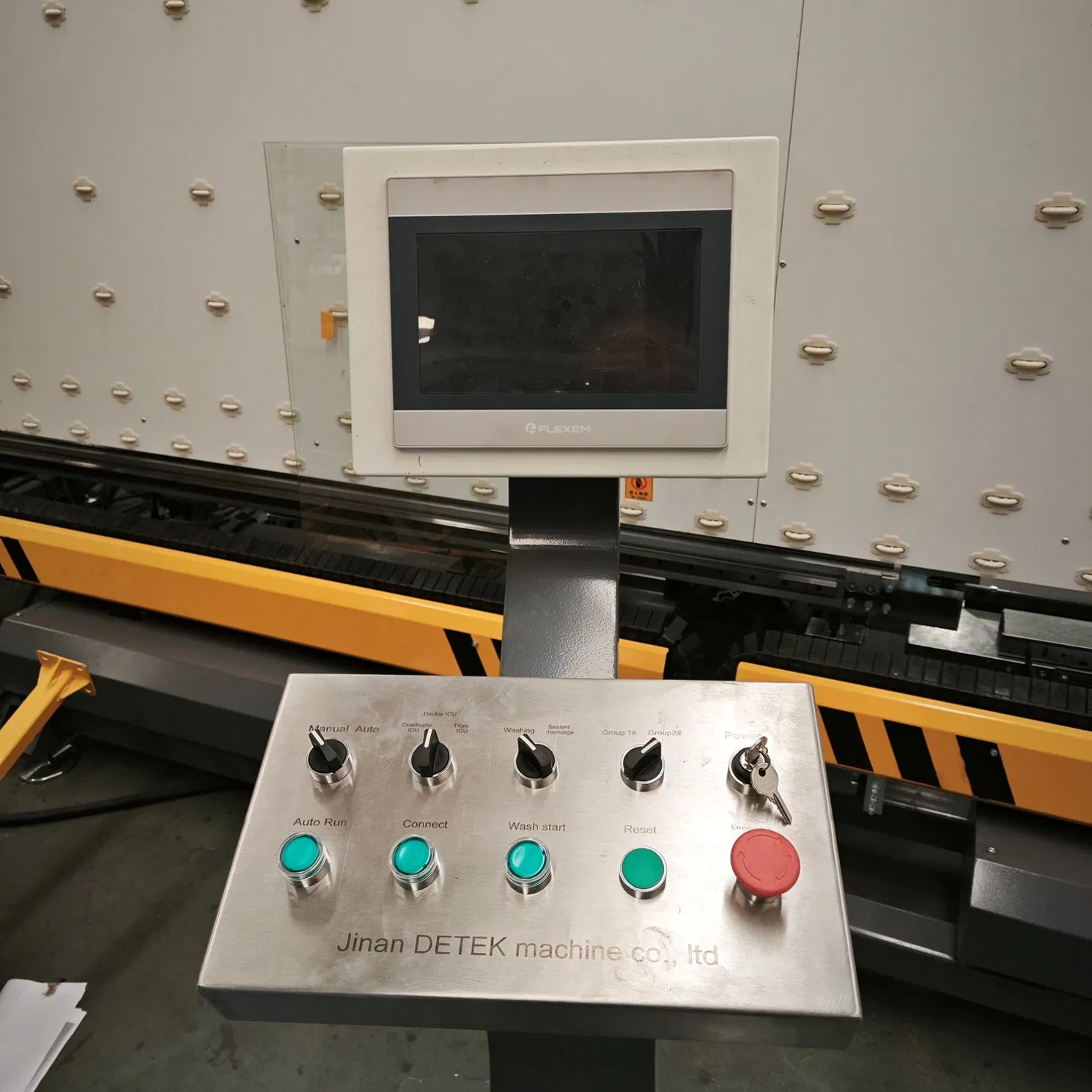

Control System:	PLC Control

📋 Basic Info

Model NO.	ASR2840	Customized	Supported
Glass Thickness	3-19 mm	Brand Parts	Schneider
Direction	Right to Left/ Left to Right (Optional)	Structure	Vertical
Specification	2800×4000	HS Code	8464901900
Production Capacity	500sets/Year	Origin	China

📦 Packaging & Delivery

Package Size: 942.00cm * 160.00cm * 369.00cm

Package Gross Weight: 5600.000kg

Transport Package: Seaworthy Package

🚀 Product Description

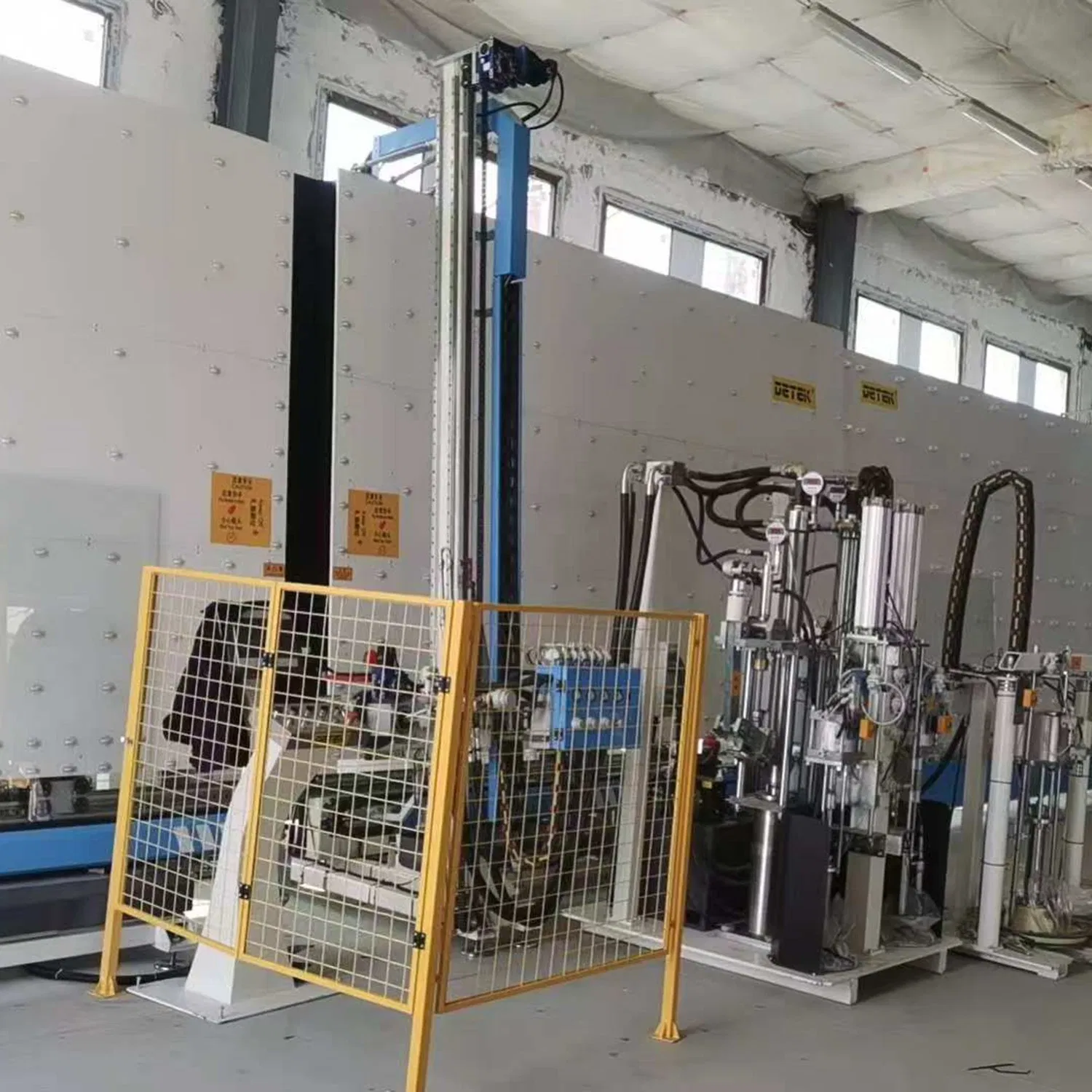

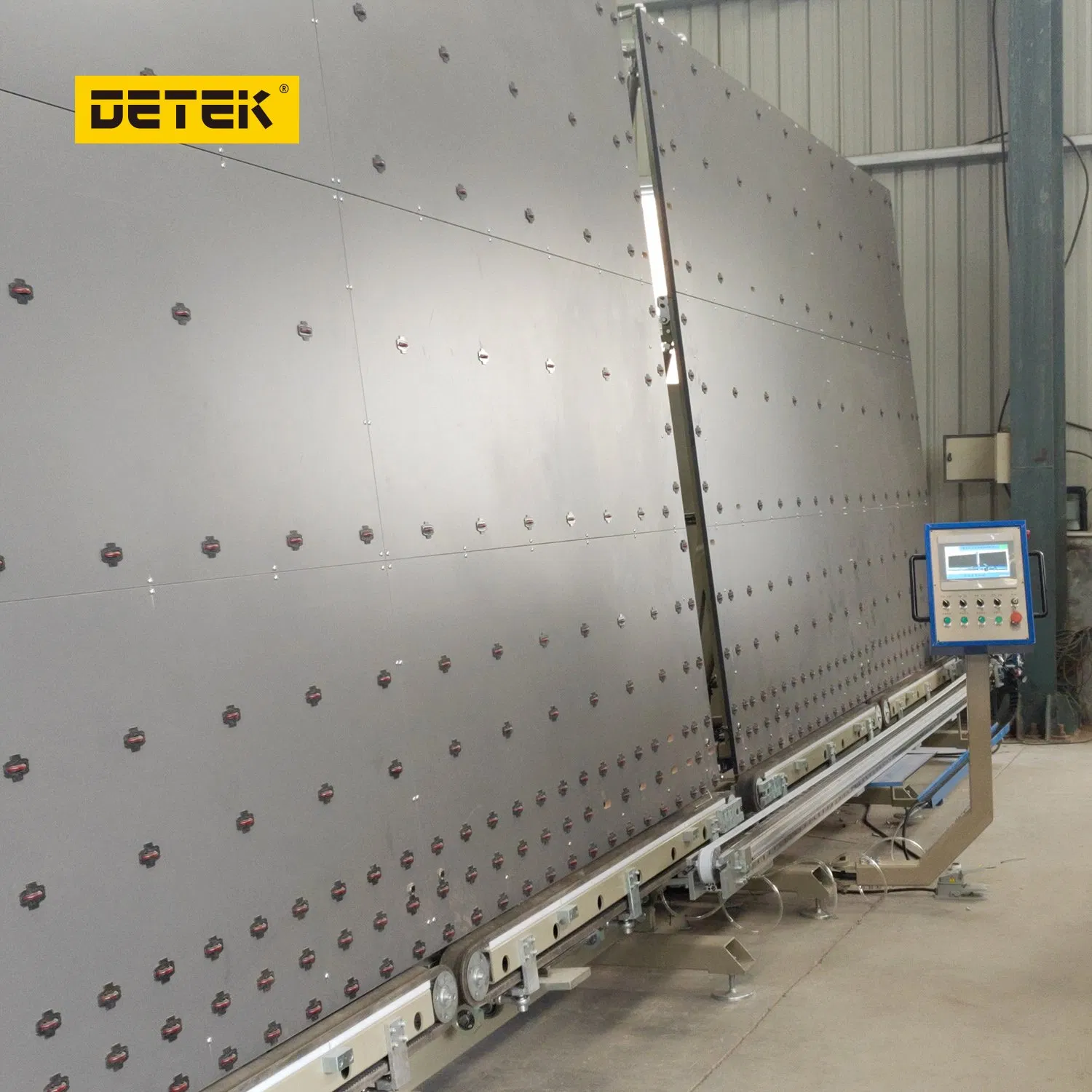

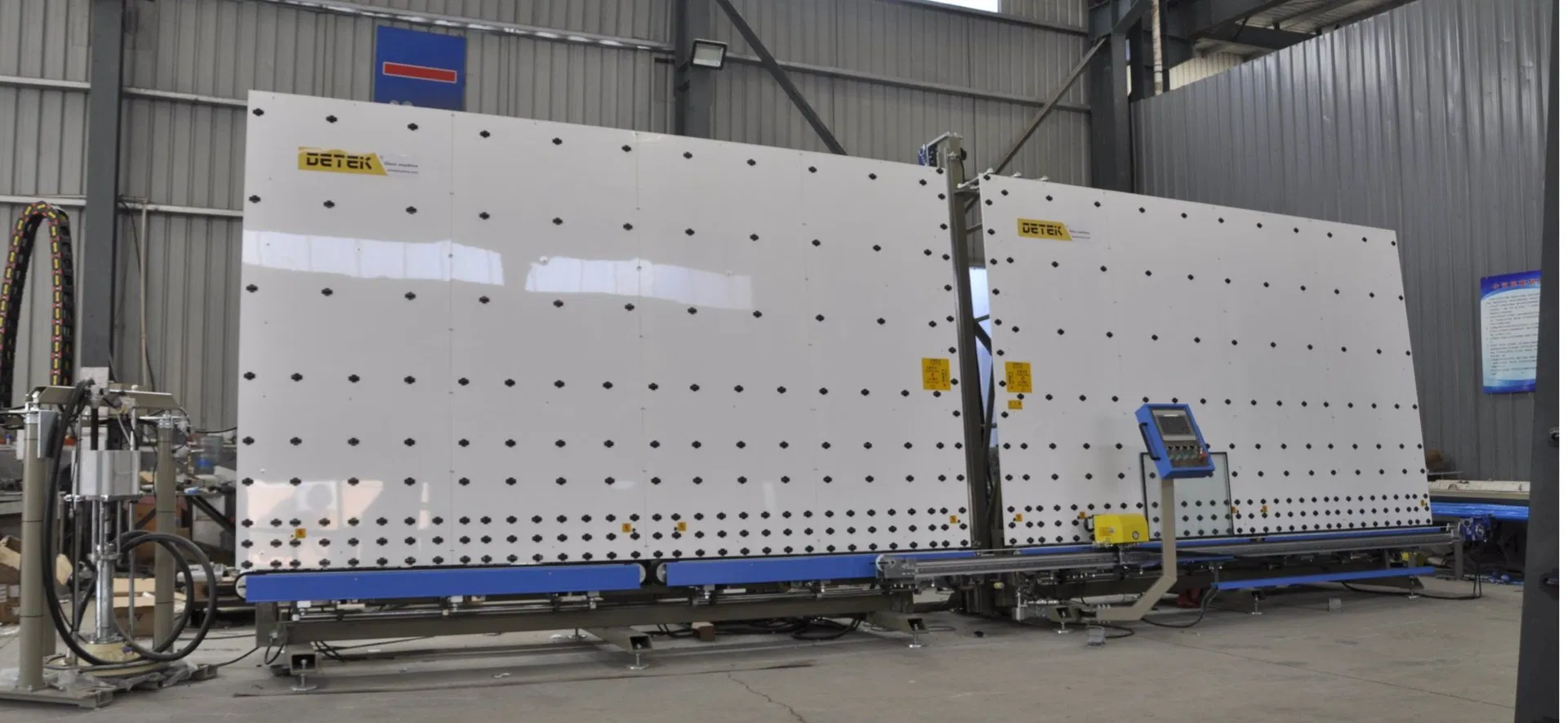

ASR2840 The secondary sealant sealing robot

The ASR2840 is a fully automated secondary sealant application robot used in Insulating Glass Unit (IGU) production, designed to dispense silicone or polysulfide sealants. As a critical piece of equipment that directly influences the service life of insulating glass, it ensures consistent high-quality IGUs for glass processors.

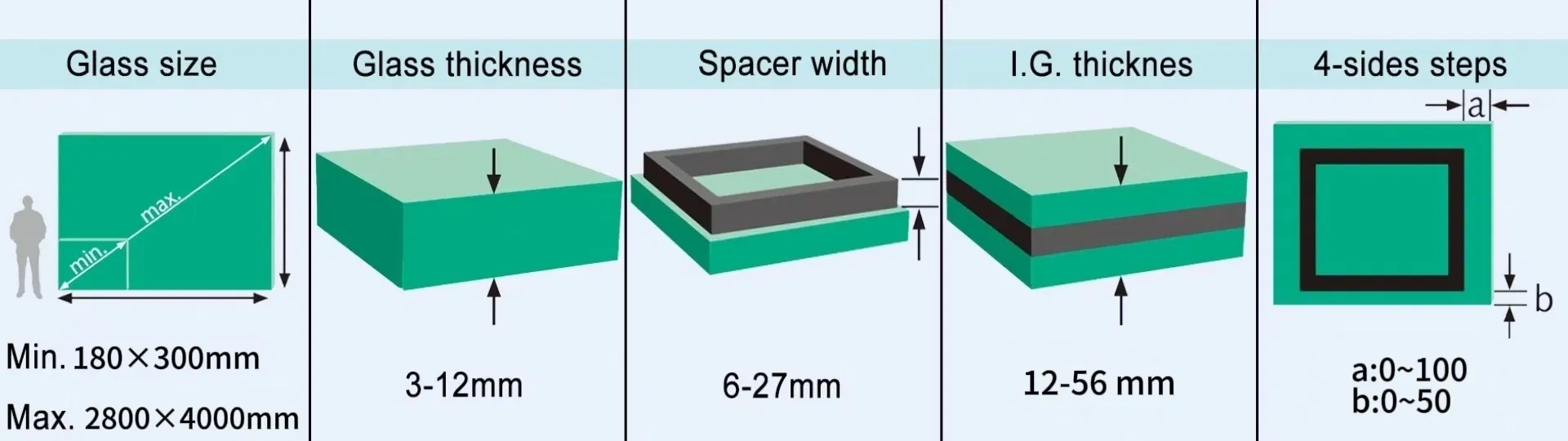

⚙️ Specification

Parameter	Detail
Max. IGu size	2800×4000mm
Min. IGu size	300×300mm
IGu thickness	12-56mm
Sealing depth	3-18mm
Power supply	3P 380V 50HZ 13KW
Air pressure	0.6-0.8Mpa
Max. squeeze pressure	32Mpa
Sealing speed	5-40m/min
Dimension	9420×1600×3690mm

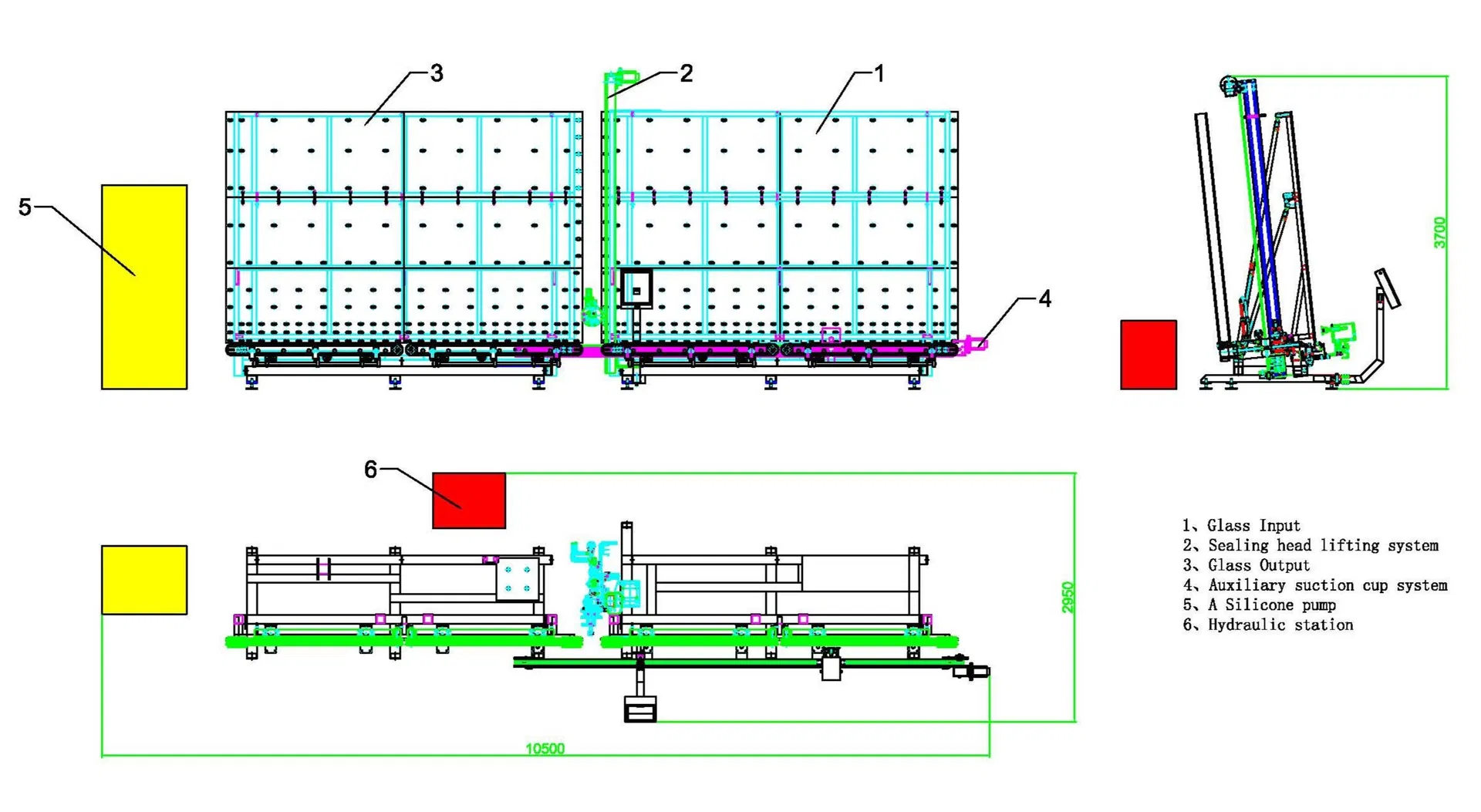

🛠️ Brand Parts & Components

Component	Brand	Origin
PLC / Servo Driver / Motor	Yaskawa	Japan
Touching Screen	WEINVIEW	Taiwan
Inverter	TECO	Taiwan
Breaker / Contactor / Relay	Schneider	France
Sensor / Proximity Switch	AUTONICS	S. Korea
Solenoid / Air Cylinder	Airtac	Taiwan
Proportional Valve / Regulator	SMC	Japan

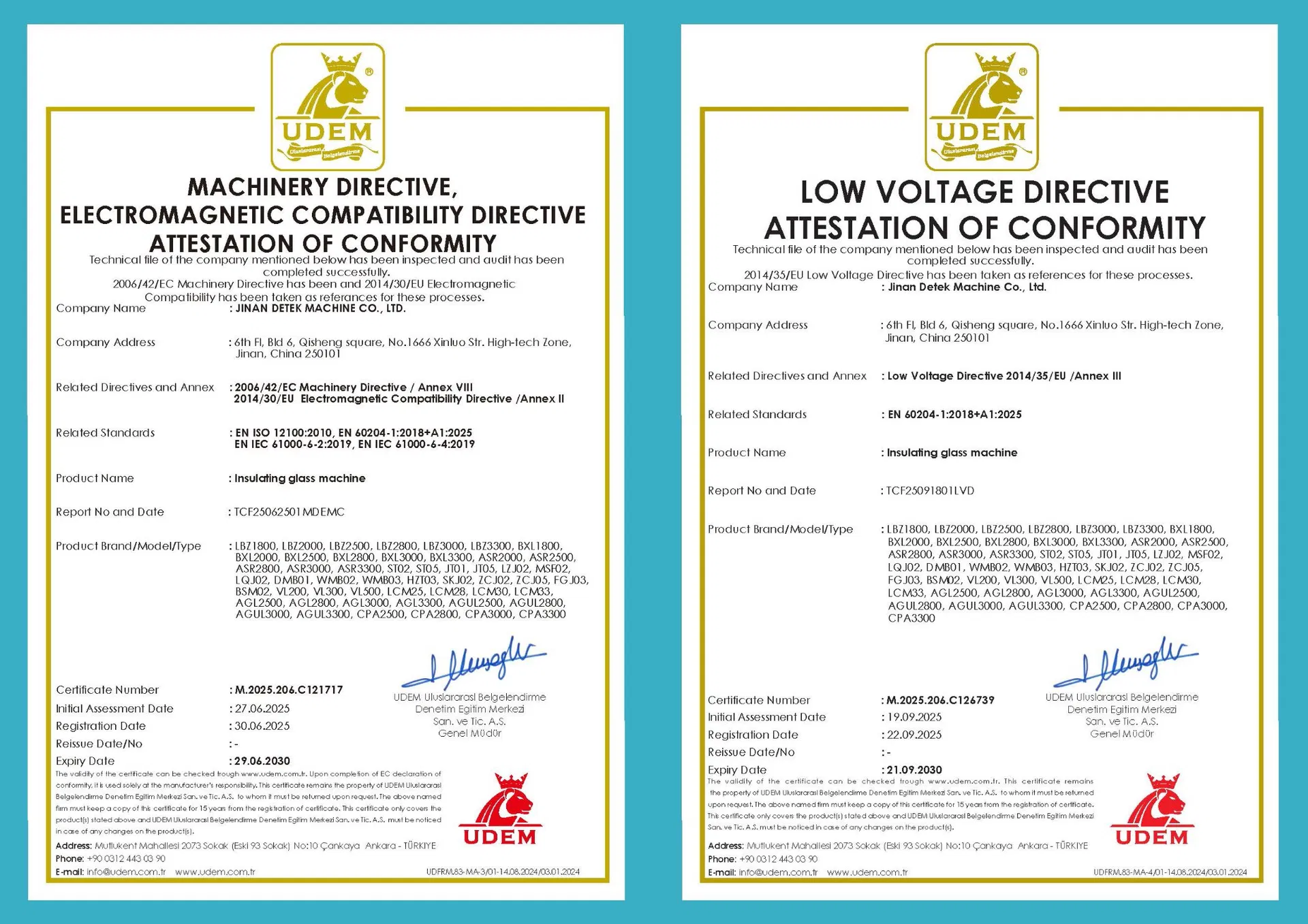

🏆 Certifications & Exhibition

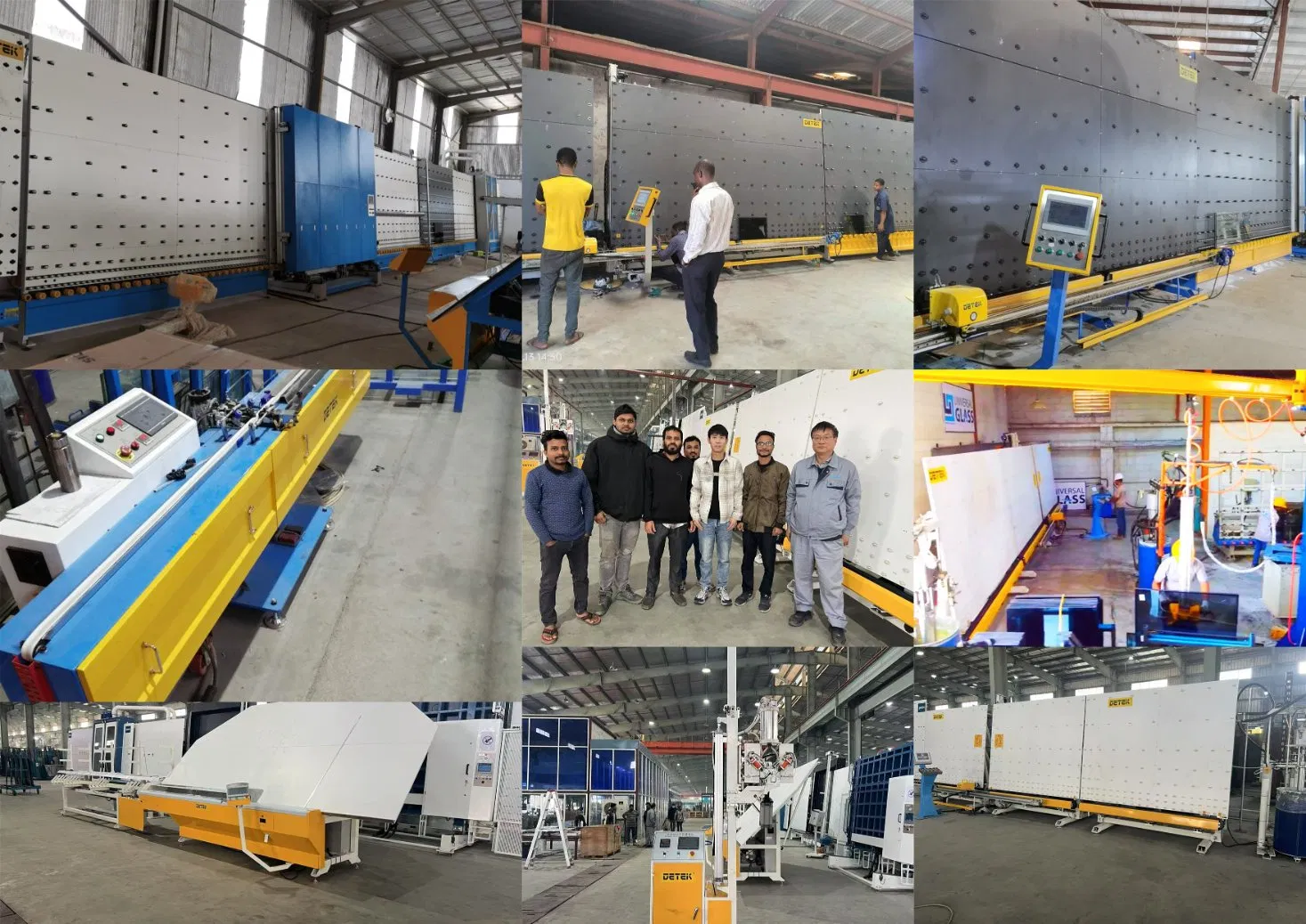

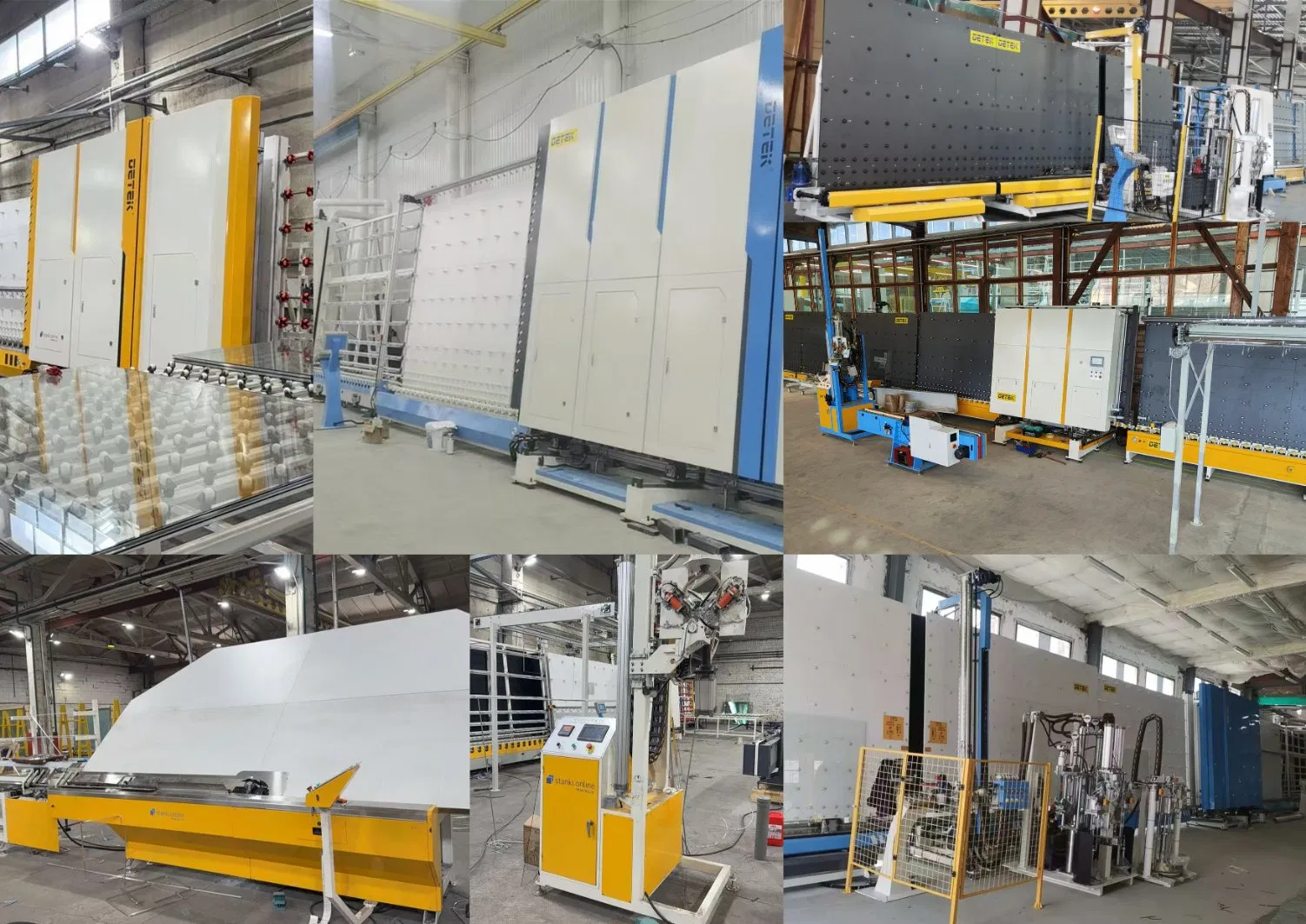

🏢 Customers' Workshop

🏭 Production & Manufacturing

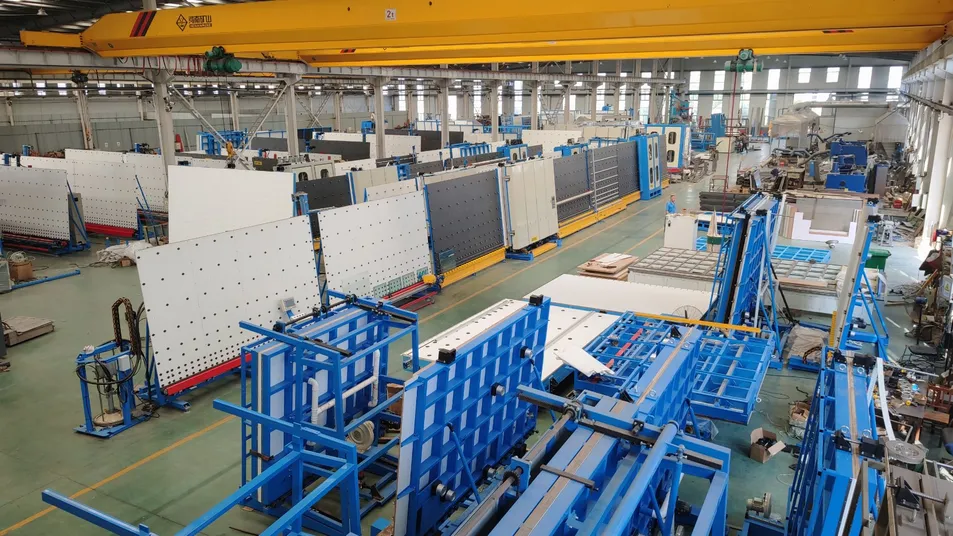

Assembly workshop for insulating glass production line

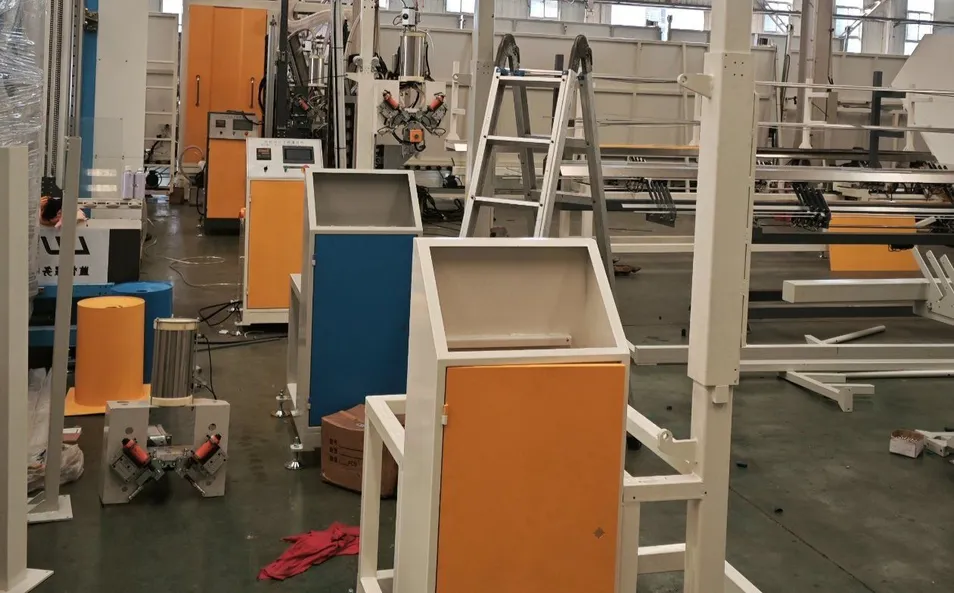

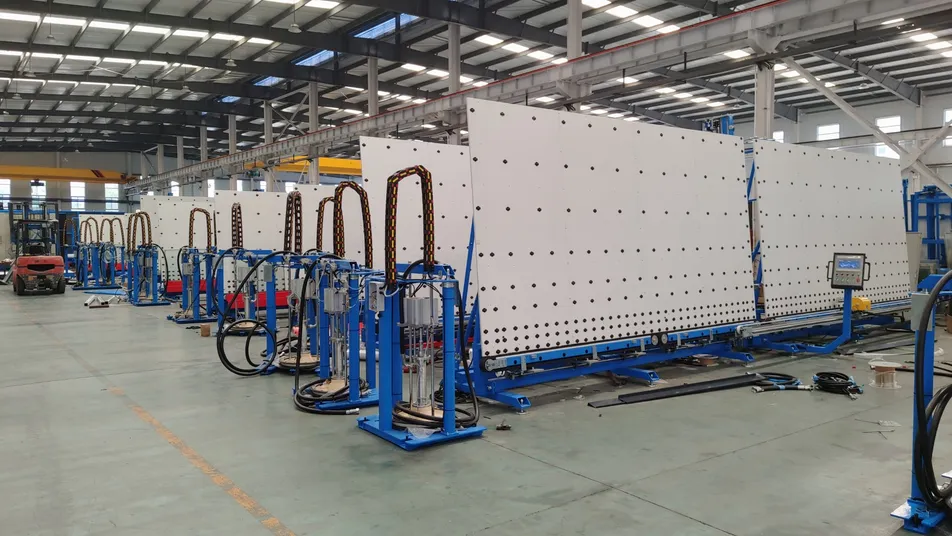

Assembly workshop for auto sealing robot

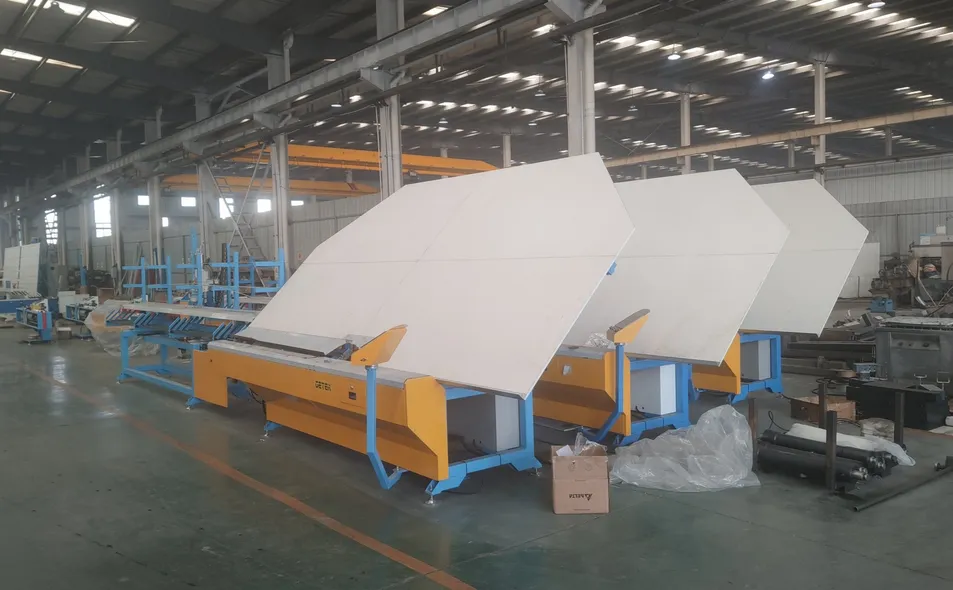

Auto spacer bending machine

Auto desiccant filling machine

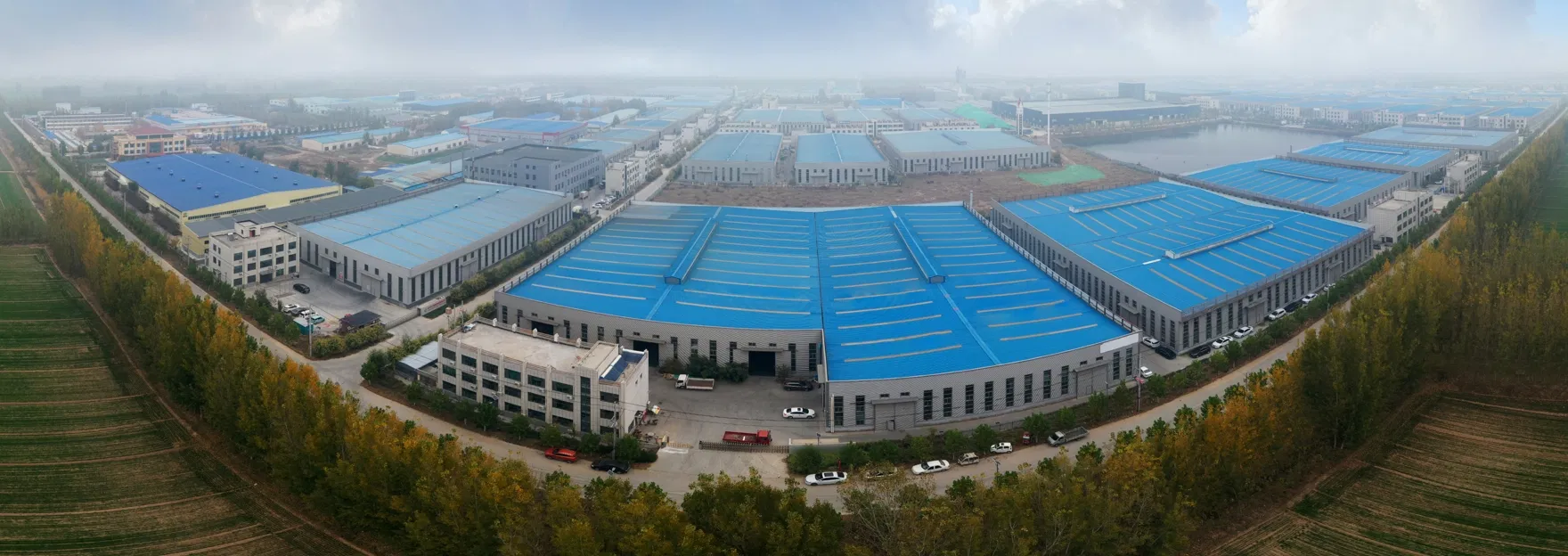

🔍 About the Manufacturing Center

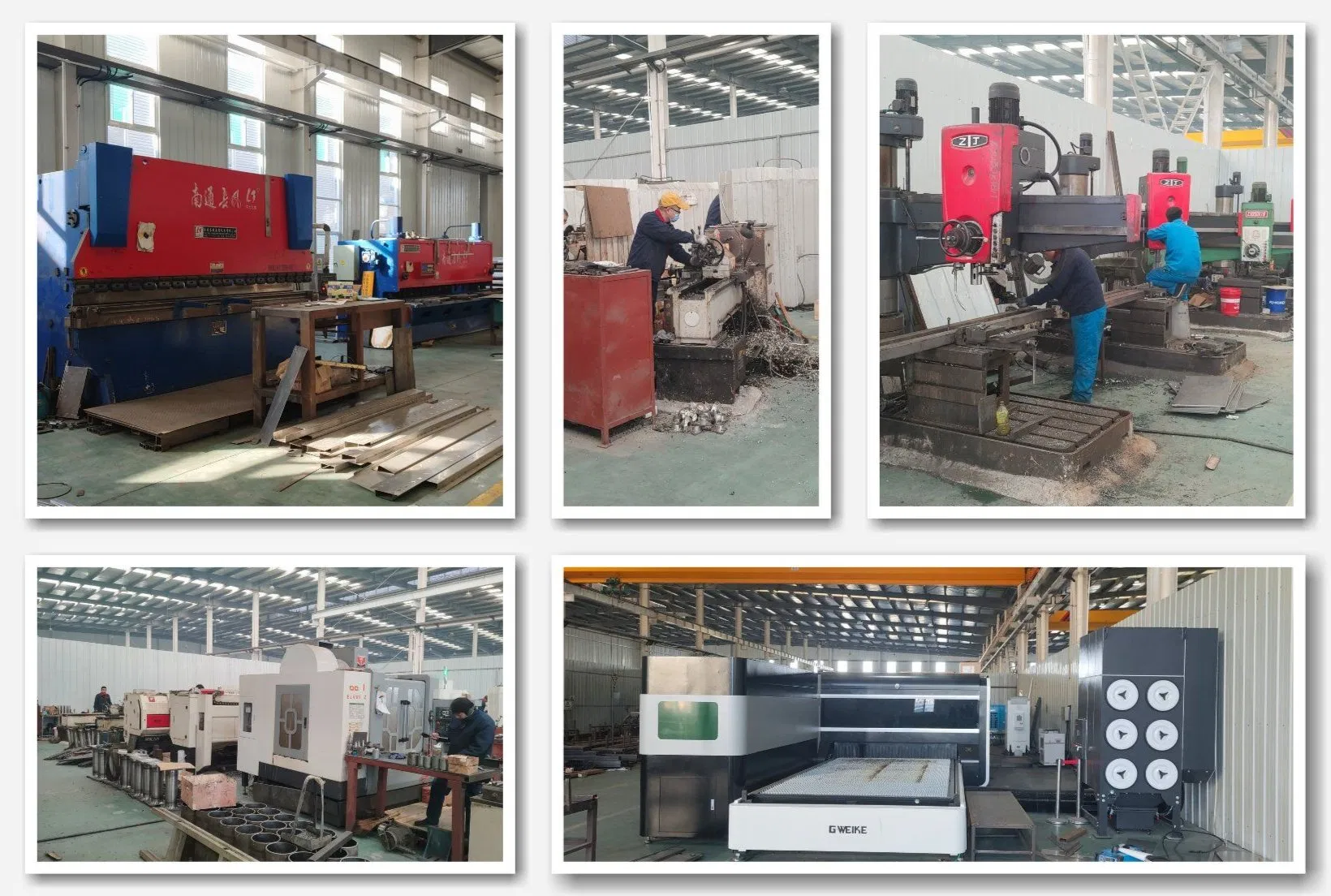

The facility includes a 20,000 sqm workshop equipped with its own machining center, laser cutting, bending, and plastic spray capabilities. The professional researching and developing team ensures machines offer high production efficiency and stable performance.

❓ Frequently Asked Questions

1. What is your soonest lead time?

60 days for a whole production line, and 30 days for a single machine. Special requirements should be checked with the sales team.

2. How do you arrange the shipment?

All machines are designed to fit GP containers for sea freight savings. We use seaworthy packaging and professional workshop container loading to ensure safe arrival.

3. What is the guarantee period?

We provide a one-year guarantee (wearing parts excluded) and life-long service. Technical support and engineers can be dispatched for on-site service upon request.

4. How are the machines installed?

Installation is included. However, customers are responsible for the engineer's round-trip air tickets, local transportation, and accommodation. Installation is typically finished within 15 days.

5. What is the after-sales response time?

Spare parts can be provided within 72 hours. Our experienced technical team and service engineers are ready for on-site instruction and troubleshooting.

6. Can the machine direction be customized?

Yes, the machine direction can be configured from Right to Left or Left to Right depending on your workshop layout.
