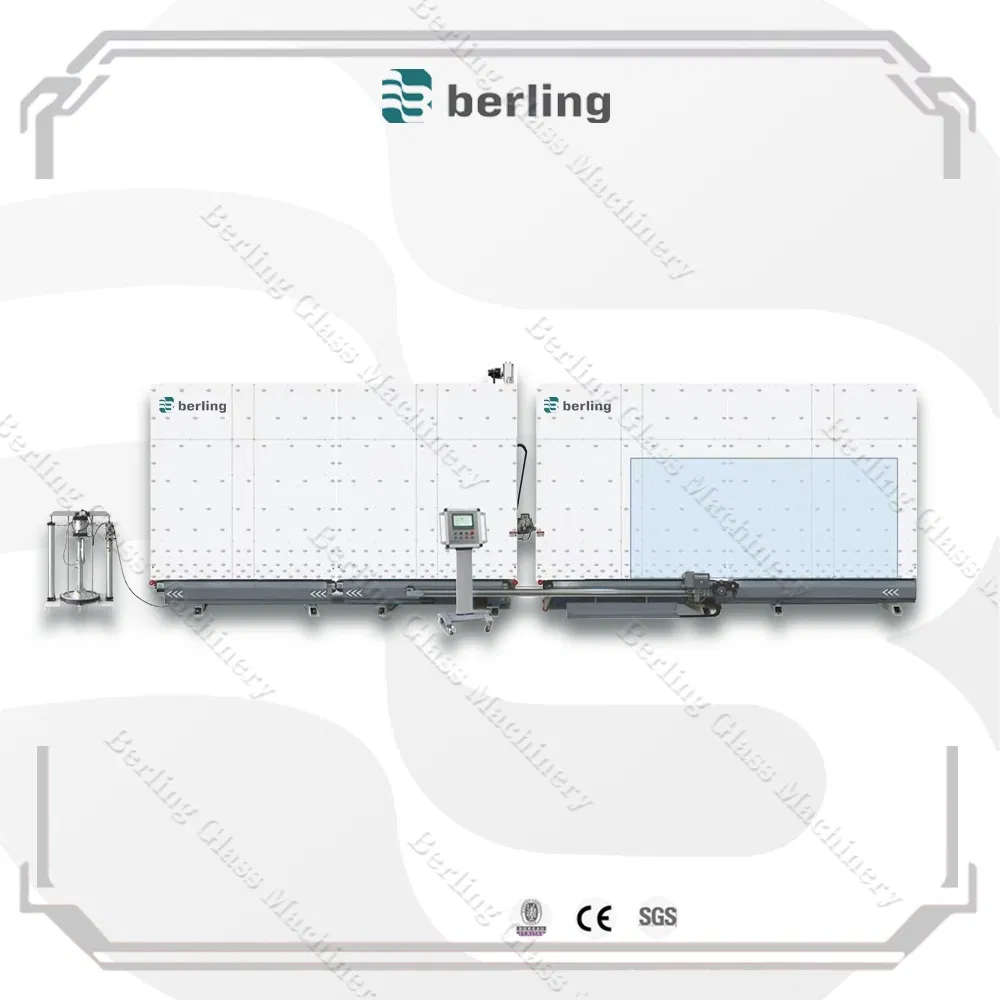

Full Automatic Sealing Robot for Insulating Glass Production Line

1 / 5

Full Automatic Sealing Robot for Insulating Glass Production Line

Customization:	Available
Certification:	CE, ISO
Control System:	PLC Control

Send Inquiry

Product Description

Basic Information

Model NO.

BL-ZNJ3390

Glass Thickness

3-19 mm

Max Glass Size

2000*3000mm

Min Glass Size

200*300mm

Working Speed

2-40m/Min

Total Power

7kw

Voltage

380V/50Hz

Control System

PLC (Mitsubishi)

Production Capacity

300 sets/Year

Origin

China

Product Description

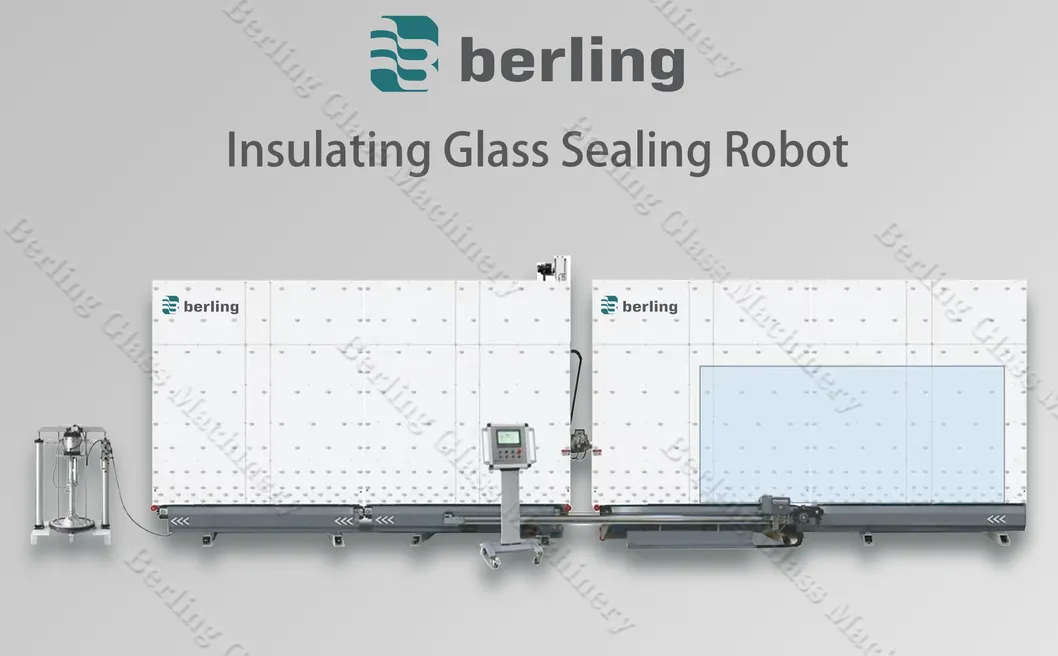

The Automatic Insulating Glass Sealing Robot is an advanced, fully automatic glue applicator designed for the secondary sealing of IG units. After cleaning, drying, framing, and pressing, this sealing robot completes the final step to ensure the IGU is perfectly sealed for long-term performance.

Equipped with a servo-driven control system, a user-friendly touch screen interface, and dual independent glue supply systems, the robot ensures high-precision, high-efficiency sealing operations. It supports pre-storage of glass units for continuous production, automatic adjustment of sealing width and depth, optional automatic corner trimming, and special-shaped glass coating.

High Compatibility Suitable for extra-large IG units, special-shaped glass, and multi-cavity structures.

Efficiency Boost Third-stage glass pre-storage allows continuous online sealing to enhance production speed.

Precision Engineering CNC pressure control, servo drive, and accurate belt transmission for superior sealing quality.

User-friendly Simple touch-screen operation via HMI interface for easy control.

Technical Parameters

Item	BL-ZNJ3390	BL-ZNJ3060	BL-ZNJ2850	BL-ZNJ2540	BL-ZNJ2030
Max glass size	3300*9000mm	3000*6000mm	2800*5000mm	2500*4000mm	2000*3000mm
Min glass size	200*300mm	200*300mm	200*300mm	200*300mm	200*300mm
Working Speed	2-45m/min	2-45m/min	2-45m/min	2-45m/min	2-40m/min
Total power	15KW	12KW	10KW	9KW	7KW

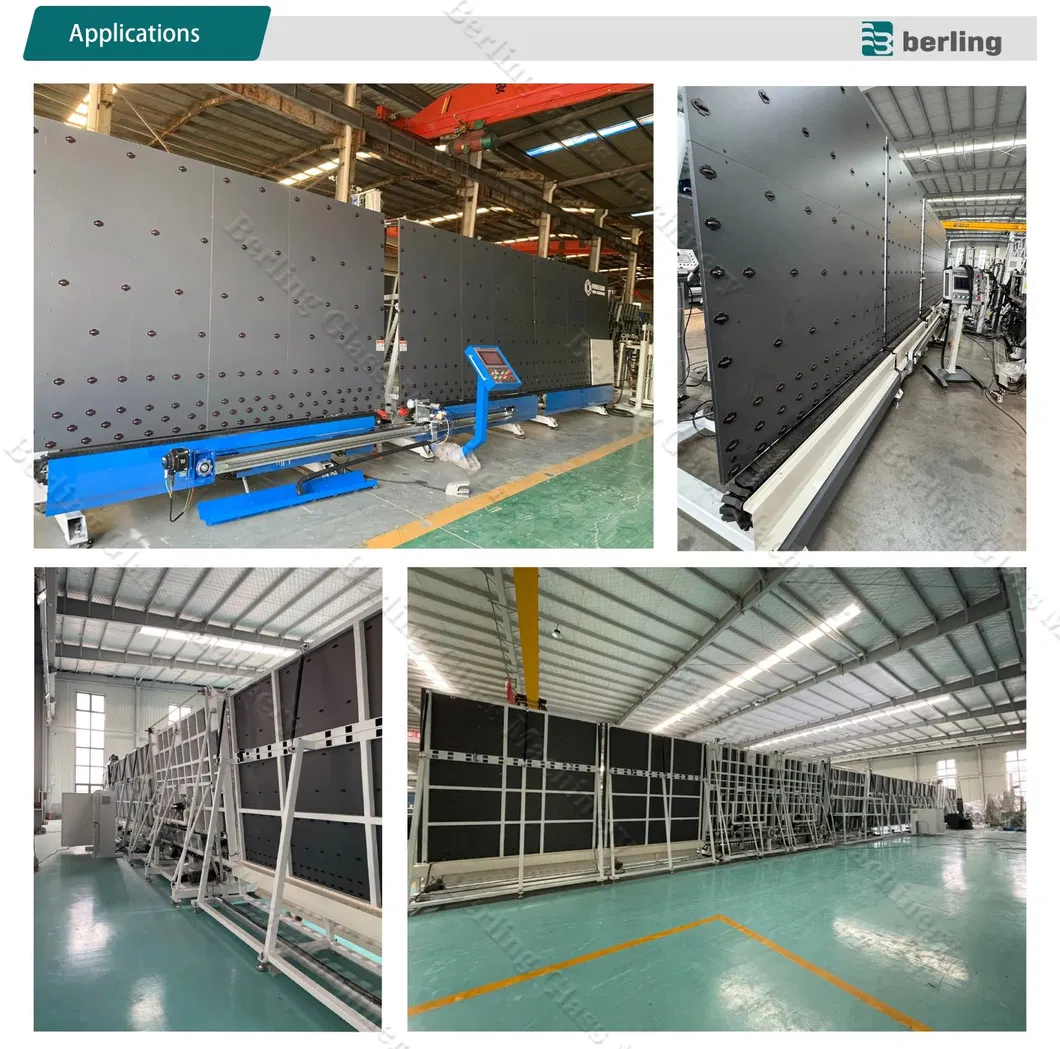

Applications

Insulated Glass Unit (IGU) production
Double glazing window and door manufacturing
Curtain wall insulating glass processing
Commercial and residential building energy-saving glass production

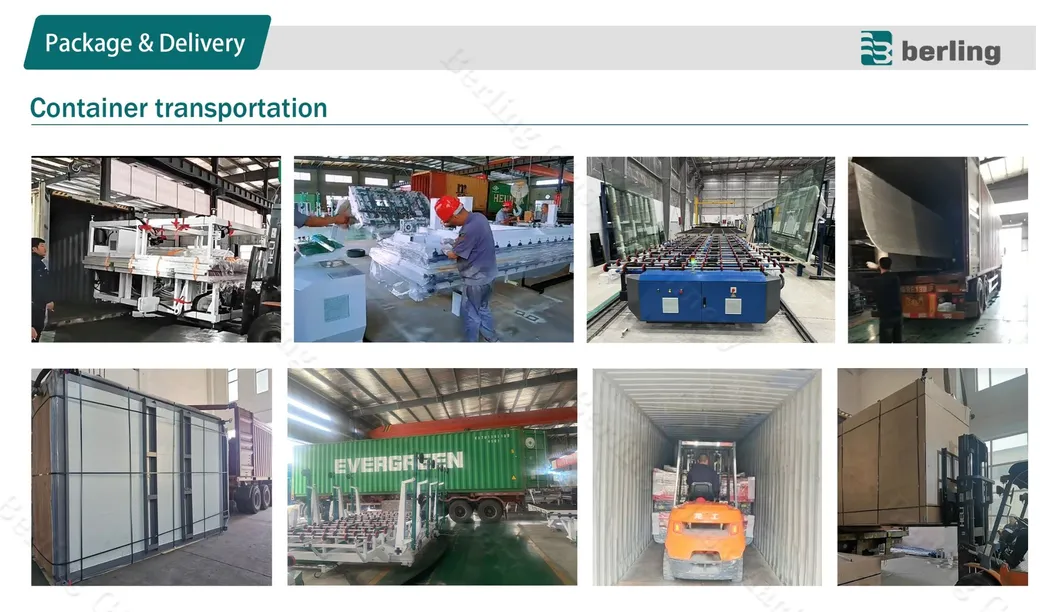

Certifications & Shipping

After Sales Service

FAQ

How is the quality of the glass machinery guaranteed?

We maintain strict quality control by always providing a pre-production sample before bulk production and conducting a comprehensive final inspection before every shipment to ensure performance and stability.

What types of glass processing equipment do you offer?

Our range includes Insulated Glass Production Lines, Glass Cutting Machines, Glass Washing Machines, Glass Edging Machines, Glass Tempering Furnaces, and Laminated Glass Production Lines.

What payment and delivery terms are accepted?

We accept various delivery terms including FOB, CFR, CIF, and EXW. Accepted payment methods include T/T, L/C, Credit Card, and PayPal, with transactions supported in USD, EUR, and CNY.

Can the sealing robot handle special-shaped glass units?

Yes, the automatic sealing robot is designed with high compatibility to support rectangular, special-shaped, triple-glazing, and even quadruple-glazing IGUs.

What are the advantages of the servo-driven control system?

The high-speed servo motion control system ensures superior precision in glue application, resulting in clean, full sealing without air bubbles or the need for manual trimming.

Is technical support available after purchase?

Yes, we provide professional after-sales service and engineering support to ensure your production line operates efficiently and any technical issues are resolved promptly.
