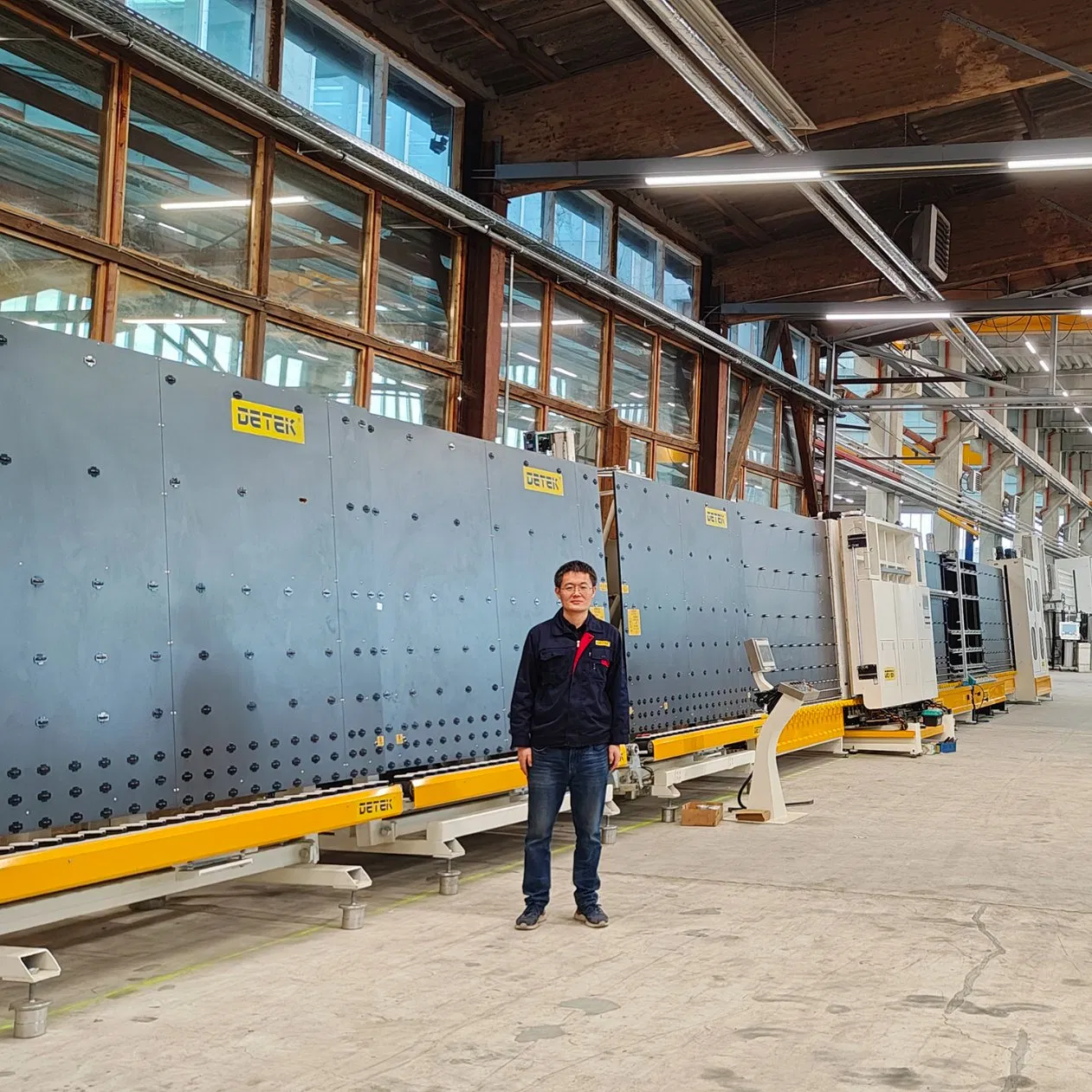

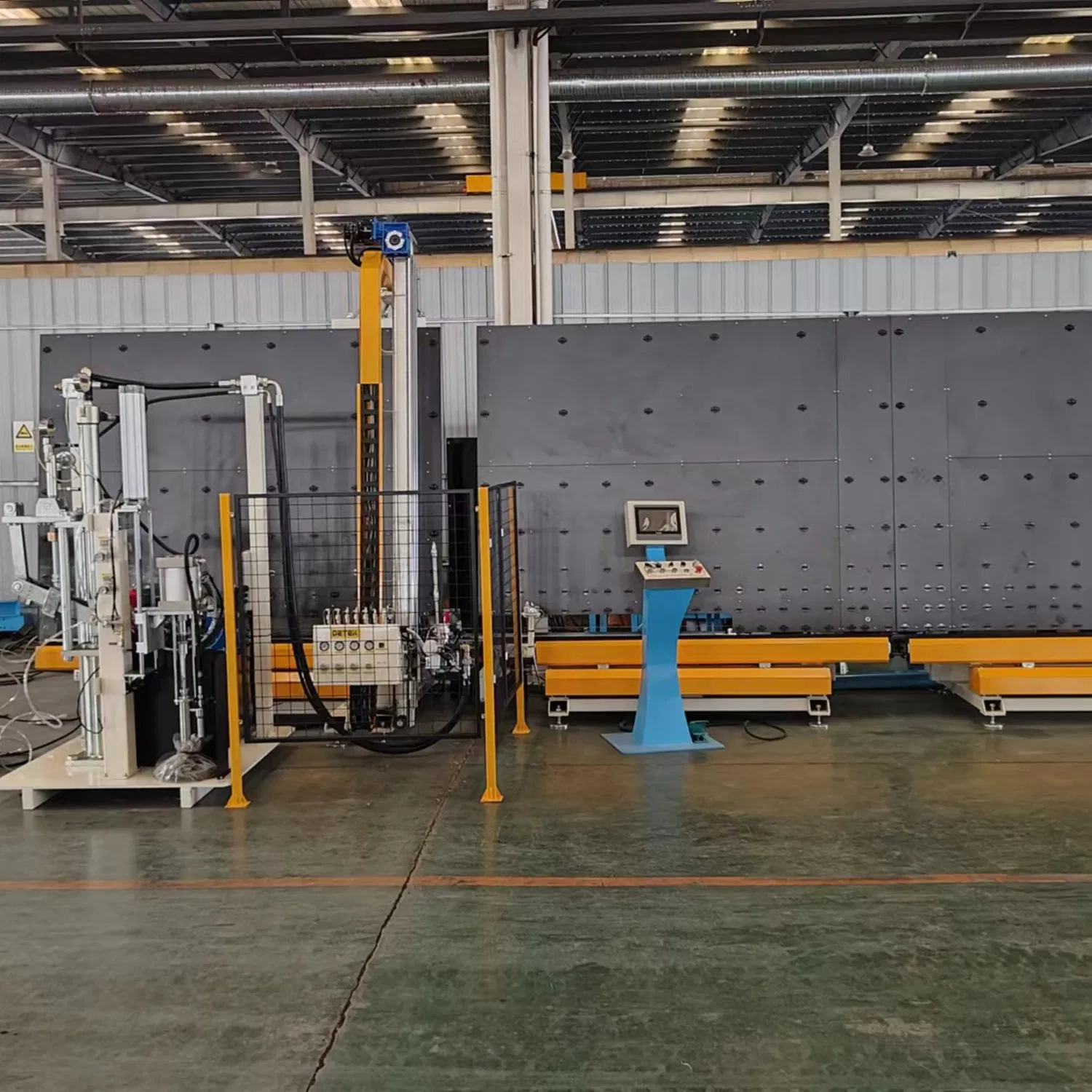

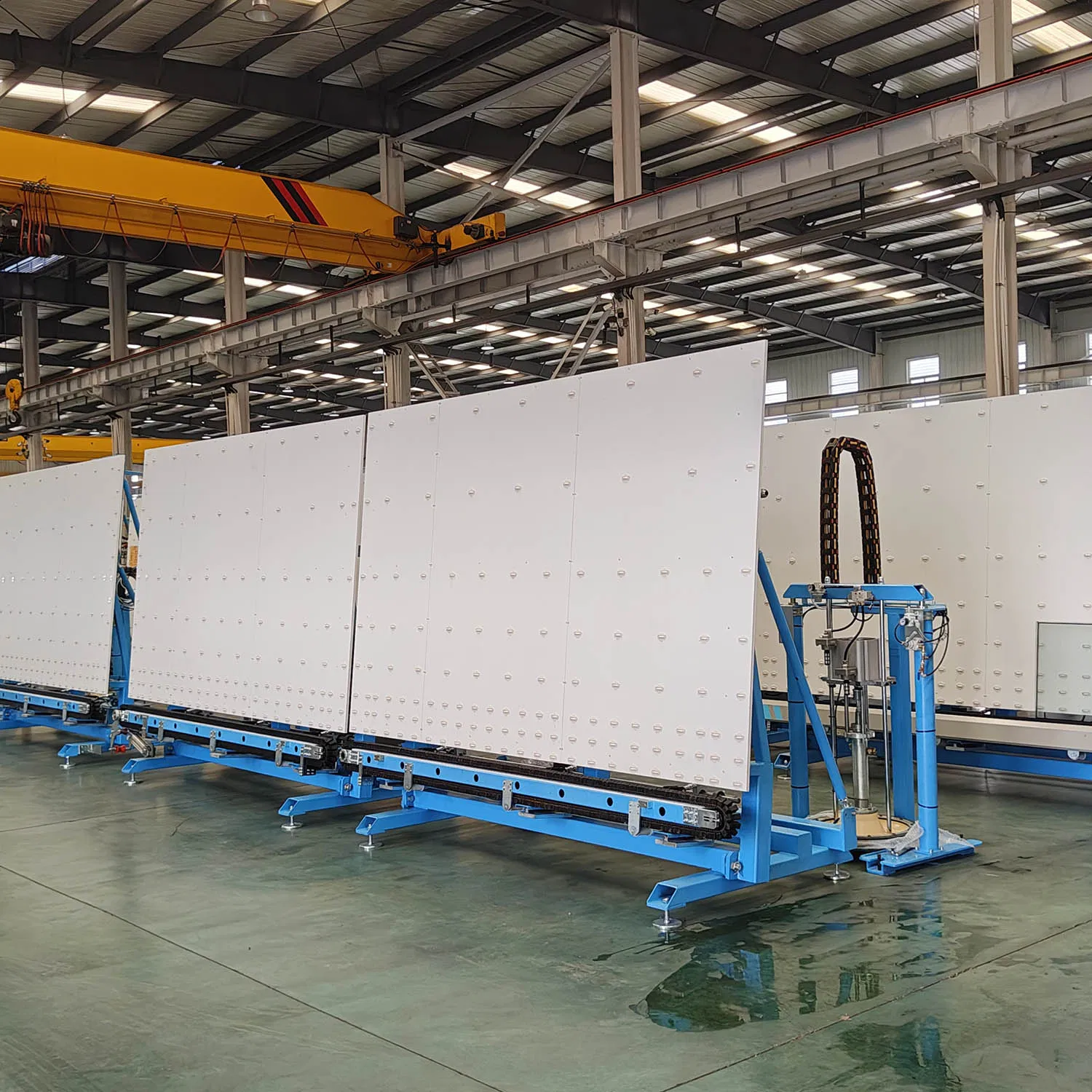

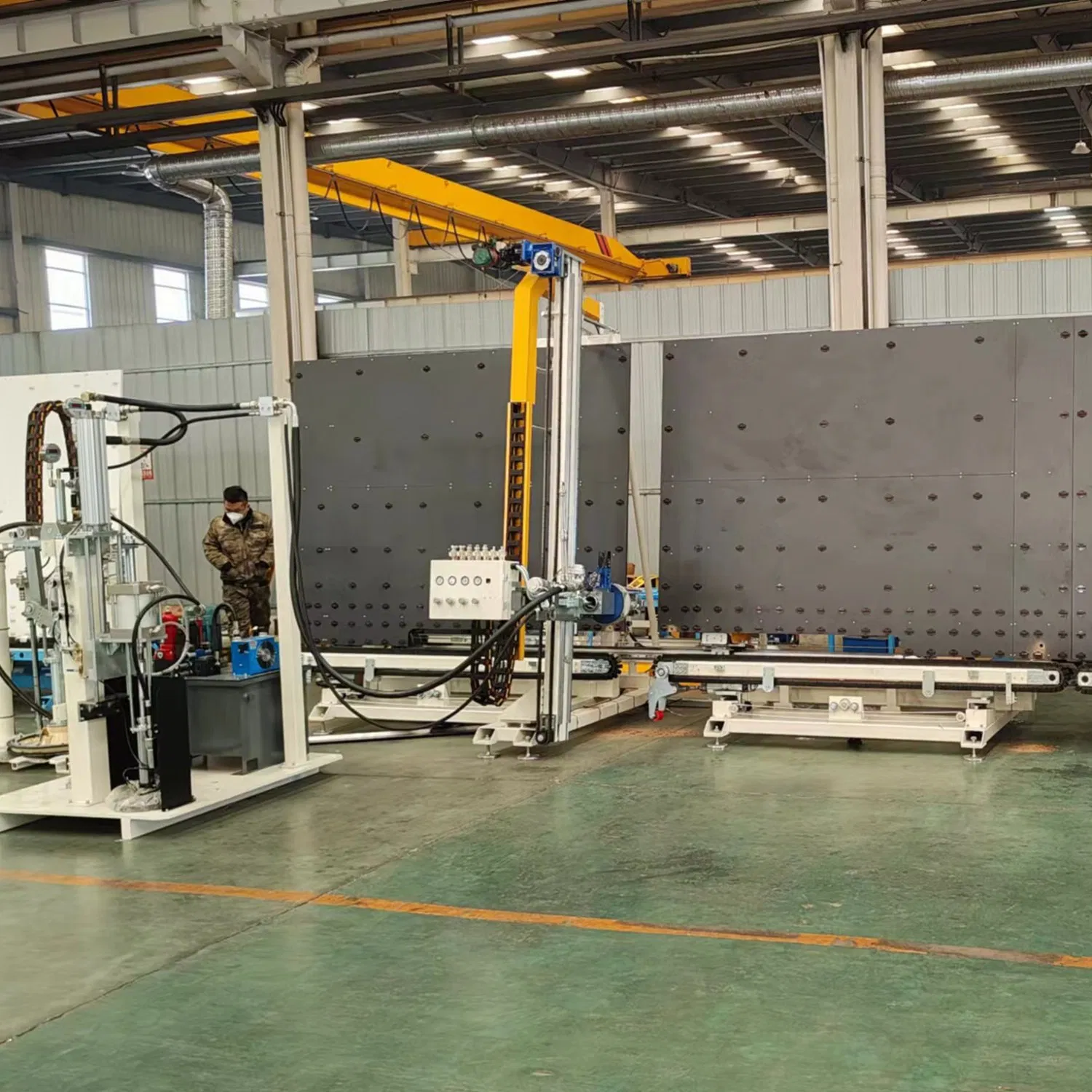

Automatic Sealing Robot for Insulating Glass Production with One Dosing System

Customization: Available
Certification: CE
Control System: PLC Control

Product Description

ℹ️

Basic Information

Model NO.
ASR2025
Glass Thickness
3-19 mm
Brand Parts
Siemens
Direction
Right to Left/ Left to Right (Optional)
Sealing Depth
3-18mm
Air Pressure
0.6-0.8MPa
Sealing Speed
5-40m/Min
Production Capacity
500sets/Year
⚙️

Product Description

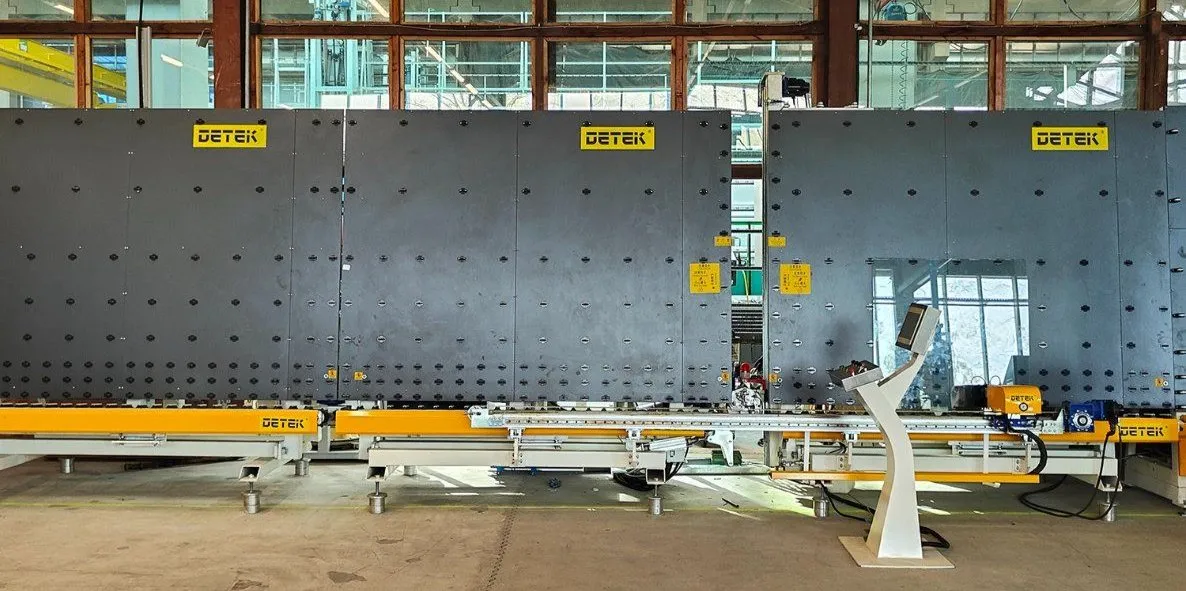

Automatic Sealing Robot Overview
Automatic secondary sealing robot ASR2025
The ASR2025 is a fully automated secondary sealant sealing robot used in Insulating Glass Unit (IGU) production, designed to dispense silicone or polysulfide sealants. As a critical piece of equipment that directly influences the service life of insulating glass, it ensures consistent high-quality IGUs for glass processors.

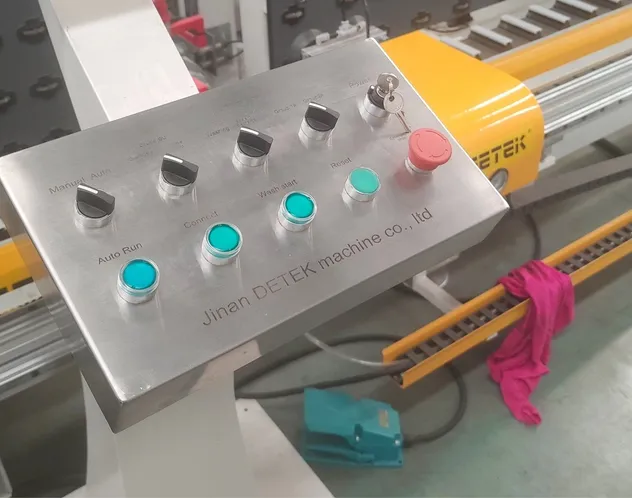

Robot Detail 1

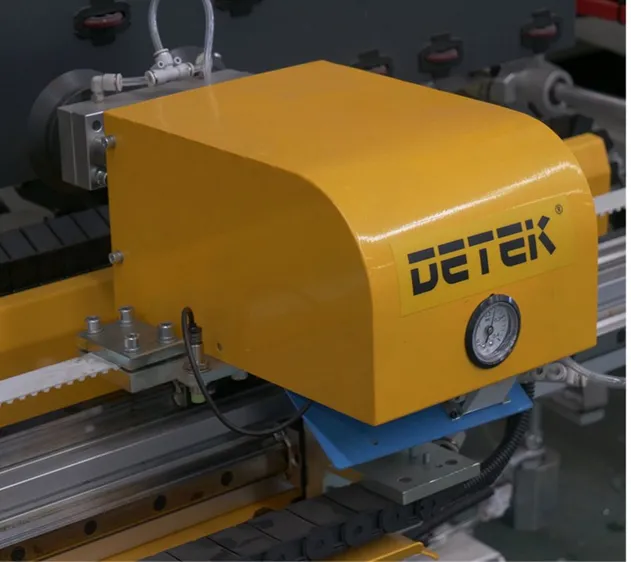

Robot Detail 2

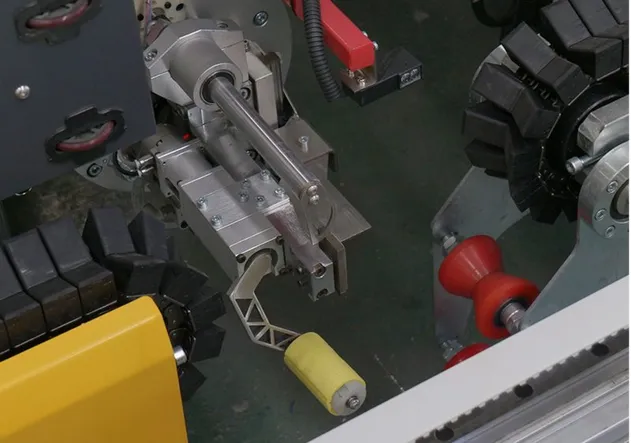

Robot Detail 3
📊

Technical Specification

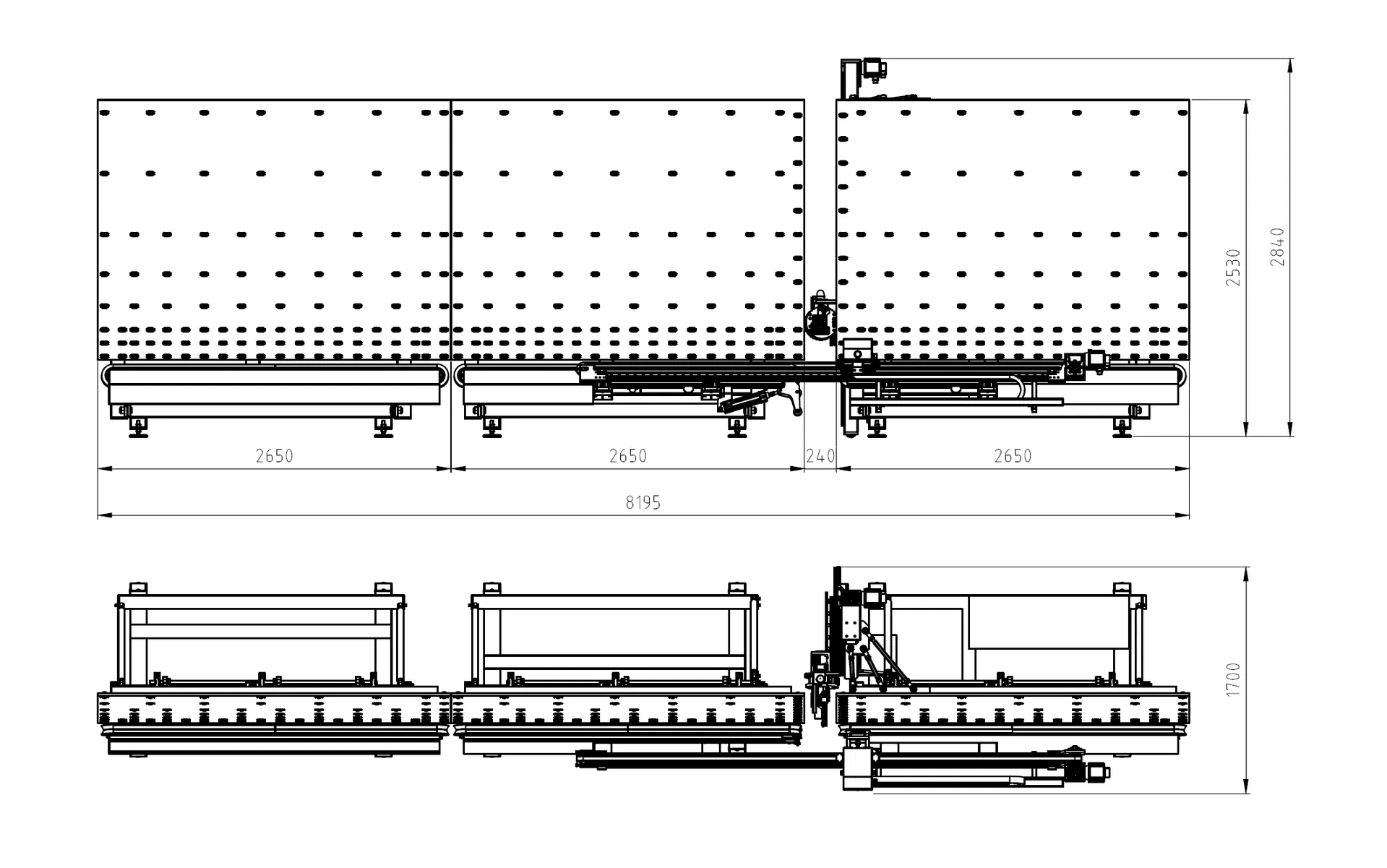

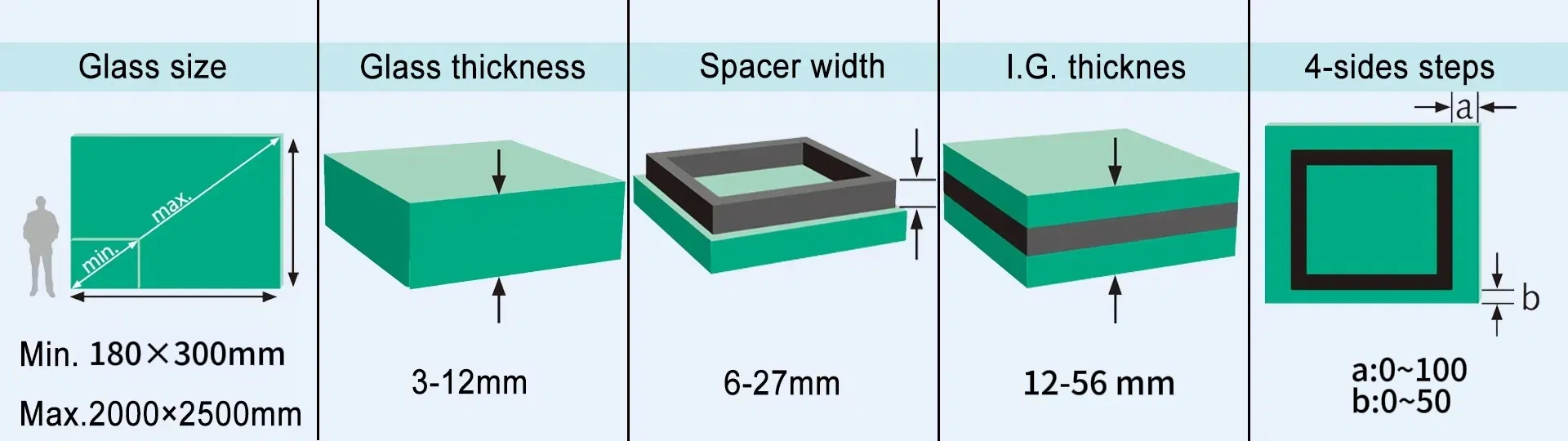

Technical Layout
Max. IGu size2000×2500mm
Min. IGu size300×180mm
IGu thickness12-56mm
Sealing depth3-18mm
Power supply3P 380V 50HZ 7KW
Air pressure0.6-0.8Mpa
Sealing speed5-40m/min
Dimension8340×3500×2900mm
🧩

Main Components Brand

Component Brands
PLC / Servo Driver / MotorYaskawa (Japan)
Touching ScreenWEINVIEW (Taiwan)
Electrical ComponentsSchneider (French)
SensorsAUTONICS (S. Korea)
Pneumatic ComponentsAirtag (Taiwan)
Proportional ValveSMC (Japan)
🏆

Certifications & Exhibition

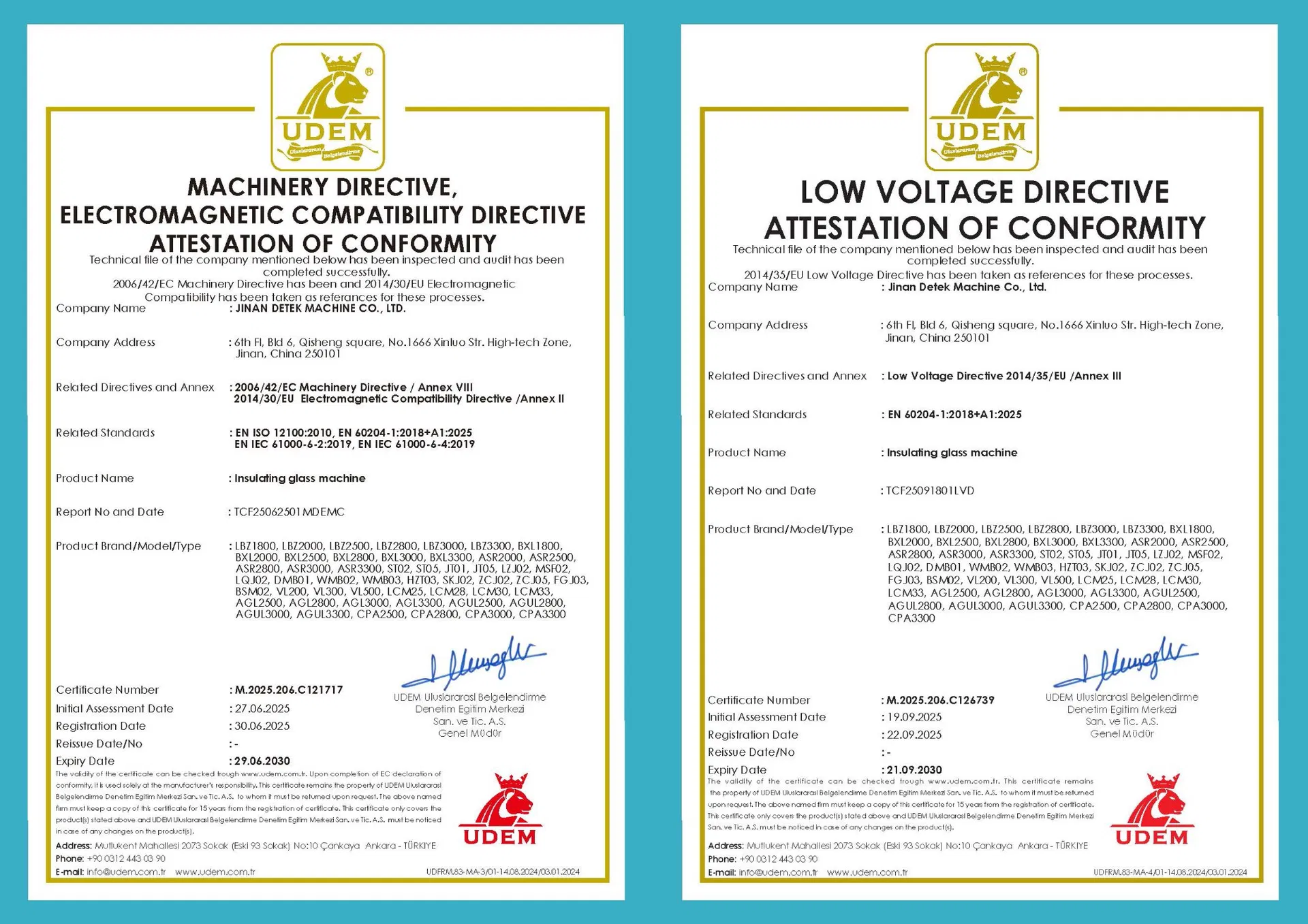

Certification
Exhibition 1
Exhibition 2
🏭

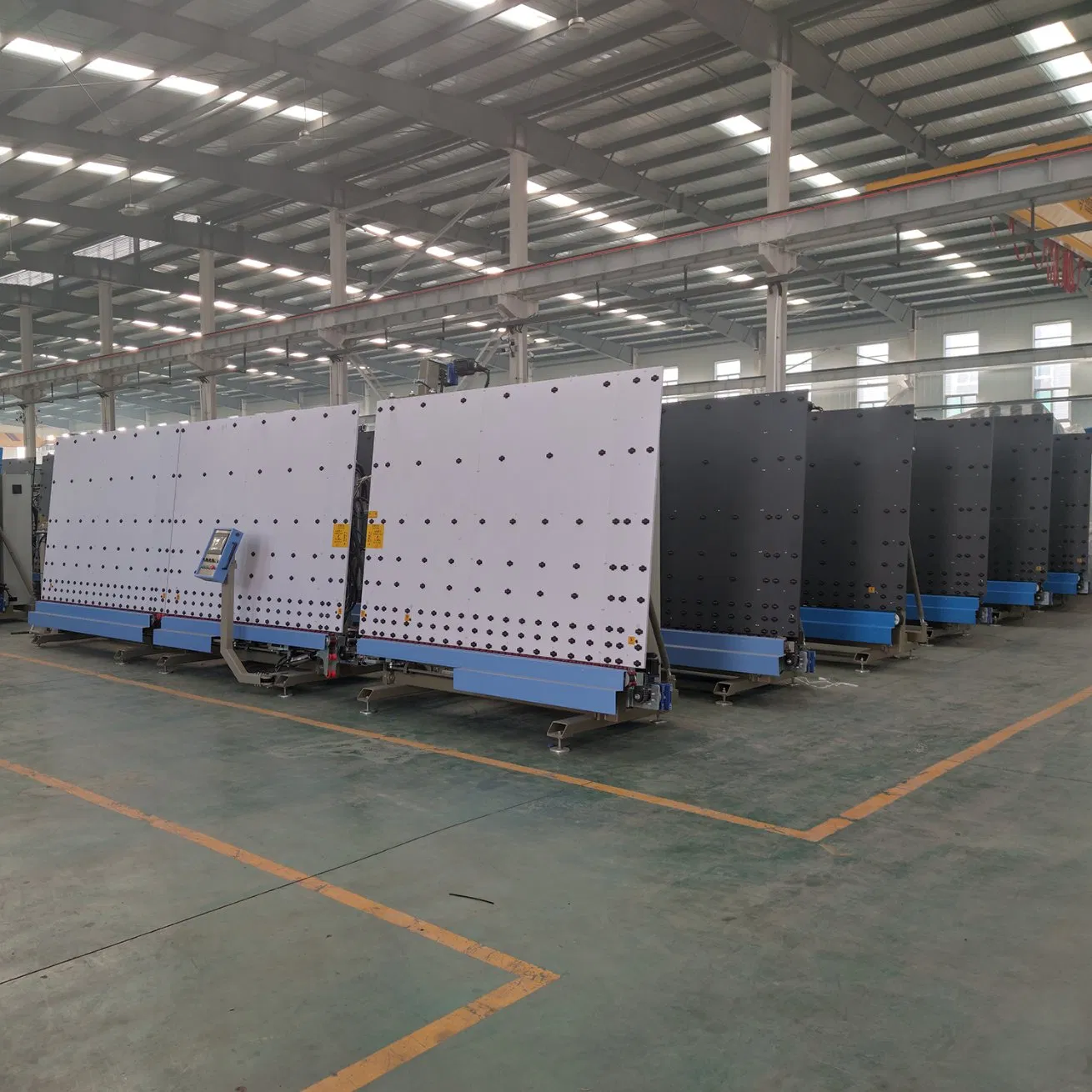

Production Workshop

Professional manufacturer of insulating glass processing machinery, focusing on design, research and development. 20,000 sqm workshop with dedicated machining center, laser cutting, bending, and plastic spray facilities.

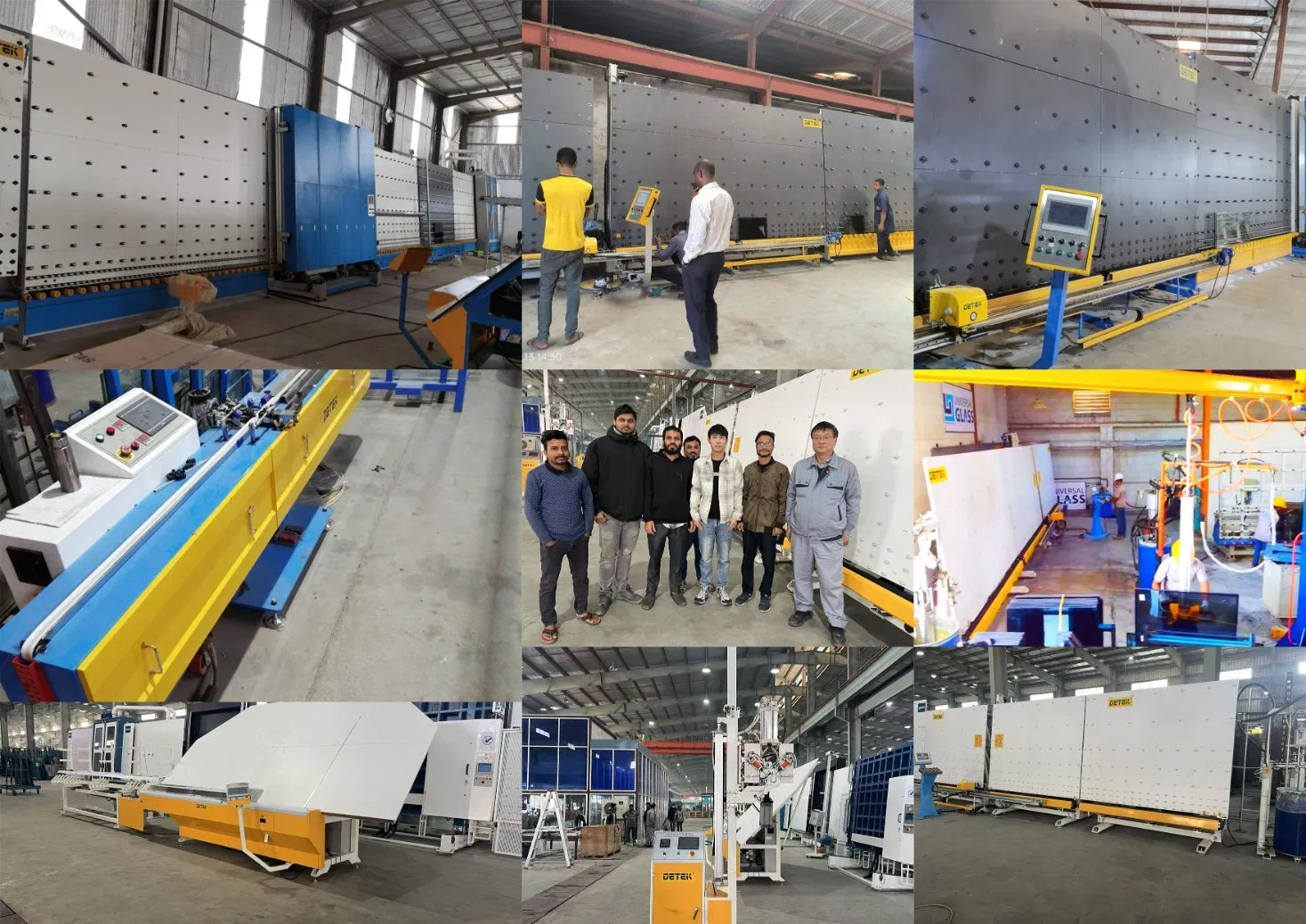

Workshop 1

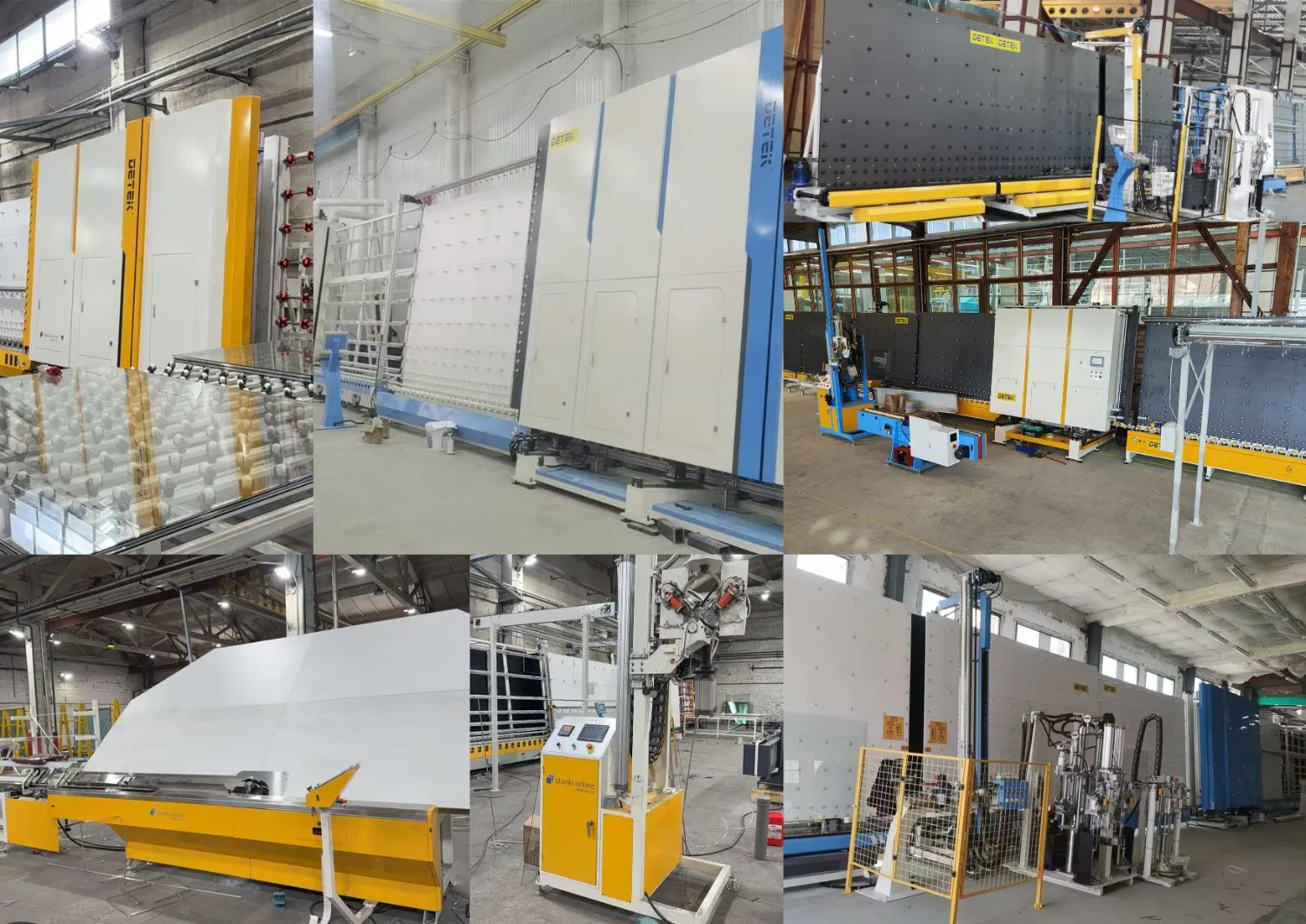

Workshop 2

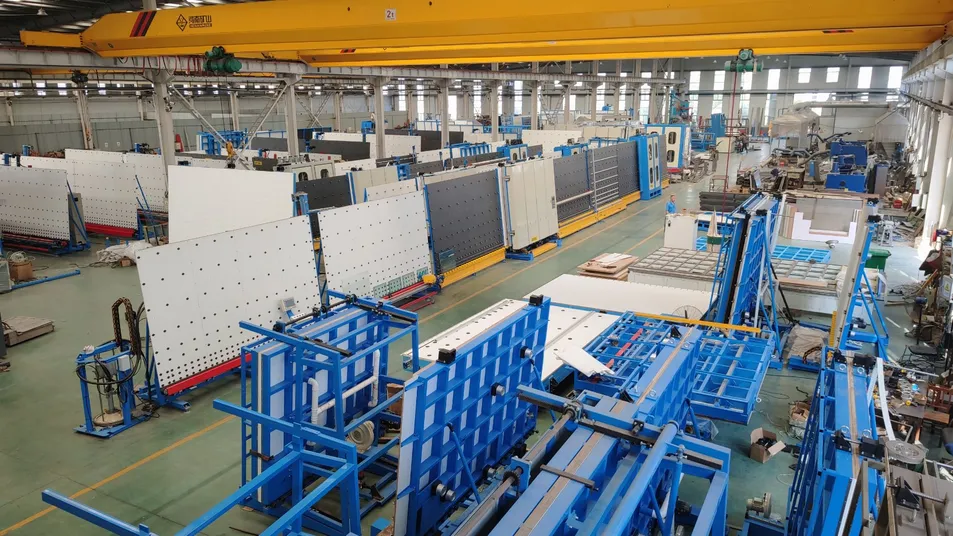

Assembly 1

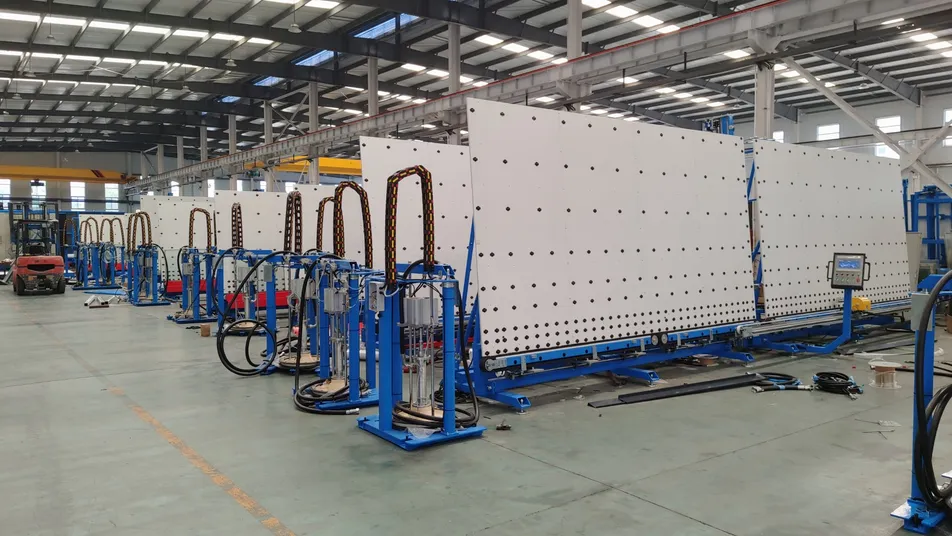

Assembly 2
📦

Packaging & After Sales

Packaging

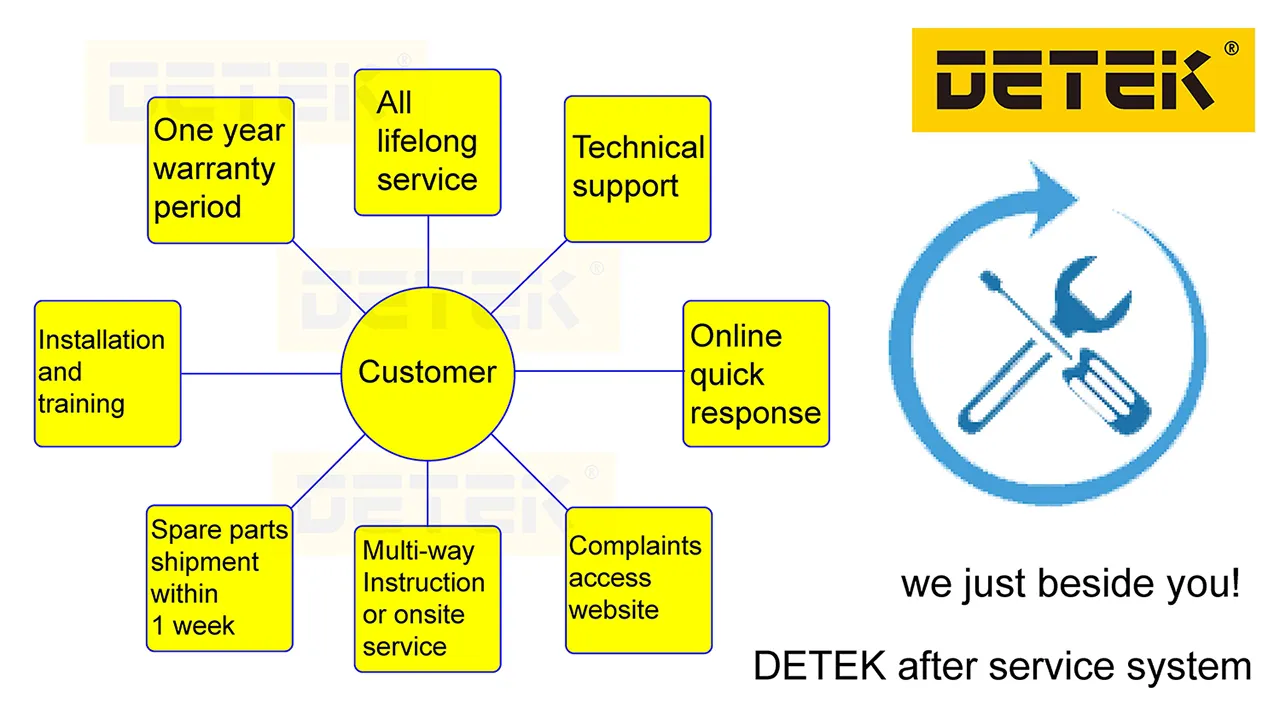

Service Team

Frequently Asked Questions

1. What is the typical lead time for orders?
The lead time is approximately 60 days for a complete production line and 30 days for a single machine. For special requirements, please consult with the sales team.
2. How is the shipment and packaging handled?
All machines are designed to fit into standard GP containers for sea freight cost savings. We use seaworthy packaging and professional workshop container loading to ensure safe arrival.
3. What kind of guarantee do you provide?
We offer a one-year guarantee (excluding wearing parts) and lifelong service support. Technical assistance and onsite engineer visits are available upon request.
4. How is the machine installation managed?
Installation service is included. Customers are responsible for the engineer's round-trip airfare, local transportation, and accommodation. Installation is typically completed within 15 days.
5. What is the response time for after-sales support?
Spare parts can be dispatched within 72 hours. Our experienced technical sales and service engineers are ready to provide on-site instruction and troubleshooting.
6. Are the machines compatible with different sealant types?
Yes, the sealing robot is designed to dispense various secondary sealants, including silicone and polysulfide, to meet different IGU production requirements.
