Basic Information
Outline Dimension
10500*2200*2100mm
Type
Insulating Glass Production Line
Machine Type
Vertical Glass Washing Machine
After-Sales
Lifetime Service
Product Description & Main Features

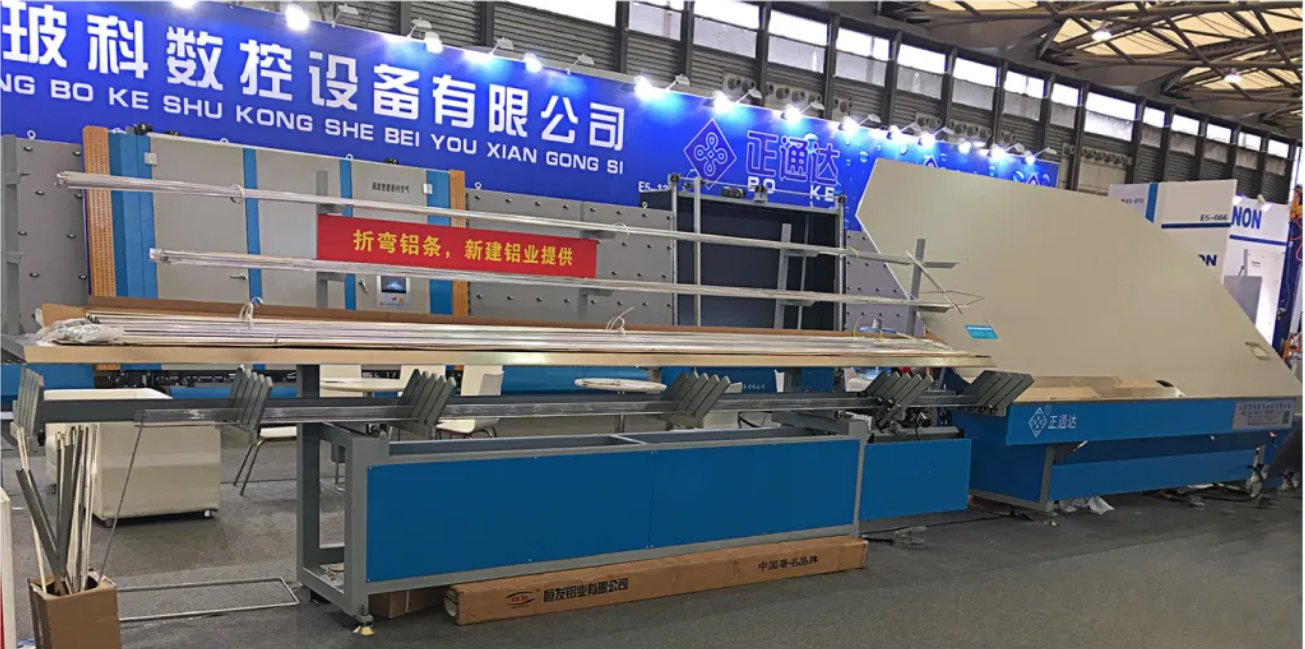

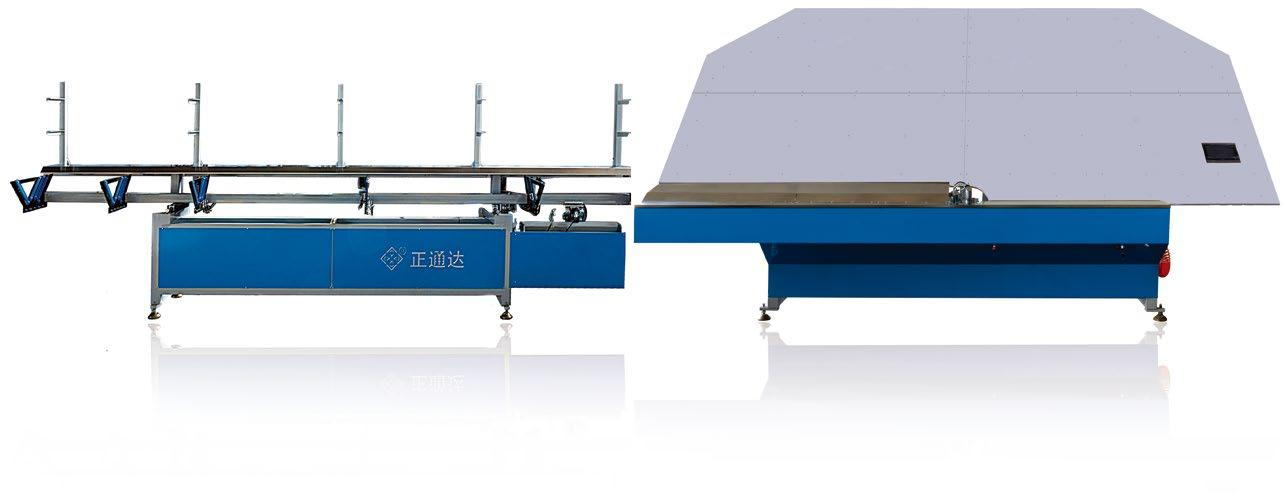

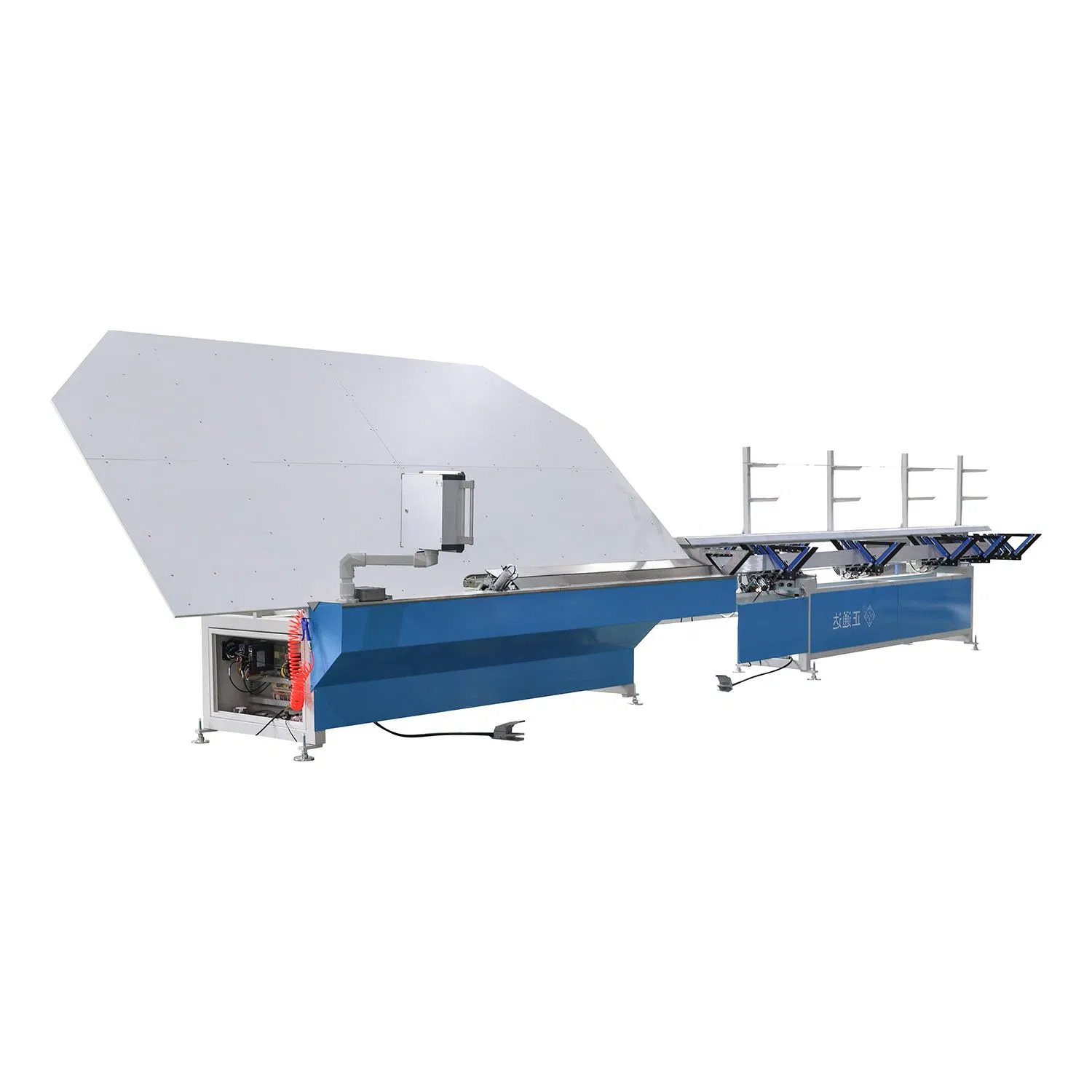

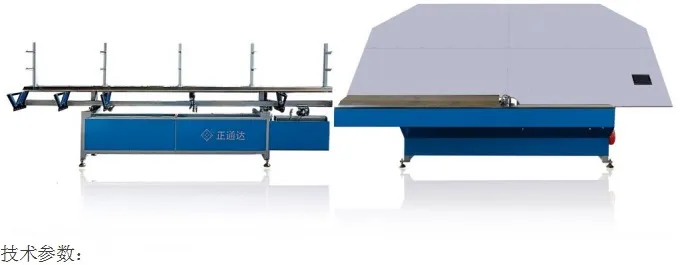

Automatic Aluminum Spacer Bending Machine in Insulating Glass Production Machine
01
Adopt PLC control system and touch human-machine interface. Multi-screen clear and technical parameter simply input.
02
Feeding material and bending aluminum spacer by servo motor guarantees the precision of the bending form (angle and arc).
03
Aluminum frame have smooth arc, which is beautiful after butyl coating.
04
Bending aluminum frame and theoretical size error is less than 1mm, high speed, high efficiency.
05
Can feed four different size of aluminum spacer with four store tanks.
06
Automatic avoid spacer joint when bending and cutting spacer.
07
Can do shaped aluminum frame.
Gallery Showcase
Frequently Asked Questions
What is the maximum aluminum frame size this machine can handle?
The ZLZW03 model can process a maximum aluminum frame size of 2000*2000mm.
What type of control system does the machine use?
It adopts a PLC control system combined with a touch human-machine interface for simple and clear technical parameter input.
How accurate is the spacer bending process?
Thanks to the servo motor system, the theoretical size error is less than 1mm, ensuring high precision for angles and arcs.
Does it support different sizes of aluminum spacers simultaneously?
Yes, the machine is equipped with four store tanks and can feed four different sizes of aluminum spacers (ranging from 6-30mm width).
Can this machine produce shaped aluminum frames?
Yes, the machine is capable of producing various shaped aluminum frames in addition to standard rectangular shapes.
What is the warranty and after-sales service?
The machine comes with a 1-year warranty and lifetime after-sales service support.
