Auxiliary Supporting Equipment for The Main Steelmaking Equipment

1 / 5

Auxiliary Supporting Equipment for The Main Steelmaking Equipment

Customization:	Available
After-sales Service:	Guided Installation
Warranty:	6 Months

Send Inquiry

Product Description

Basic Information

Model NO.

1~300T

Customized

Non-Customized

Condition

New

Power Source

Electric

Automatic Grade

Automatic

Type

Steel-Making Equipment

Certification

ISO

Packing

Wooden Case

Production Capacity

2000 pieces/Year

Packaging & Delivery

Package Size

1500.00cm * 200.00cm * 400.00cm

Gross Weight

5000.000kg

Product Description

⚙️

Auxiliary Supporting Equipment

Our range includes high-performance ladle trucks, bakers, spraying machines, automatic electrode connection devices, automatic temperature measurement and sampling devices, wire feeders, point valve boxes, ladle capping devices, ladles, and slag gates.

Applications & Intelligent Systems

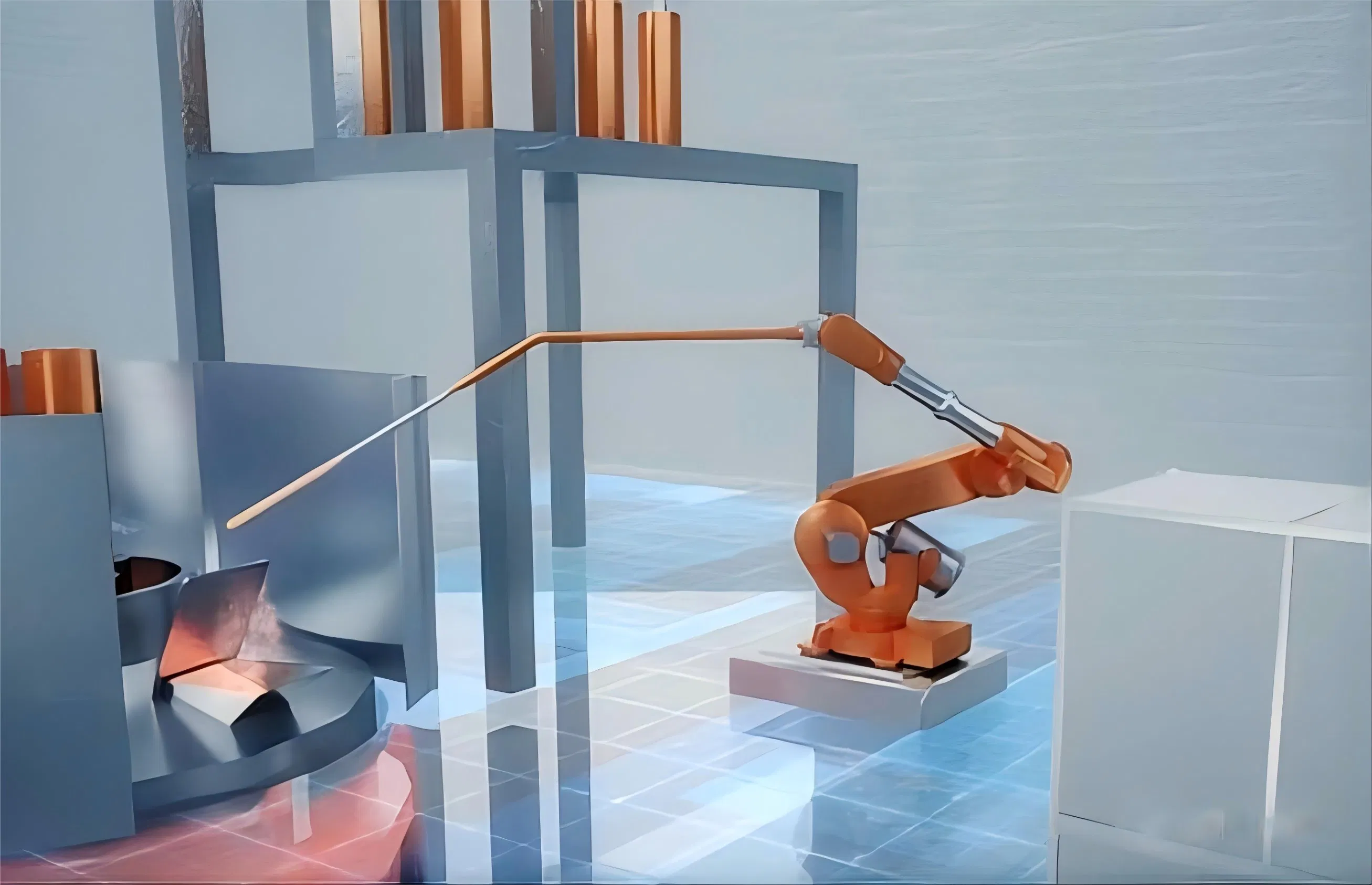

The automatic temperature measurement and sampling system enables remote monitoring and protects employees from hazardous conditions. Equipped with an intelligent sensing system, the robot achieves millisecond-level response times, preventing burns from steel slag splashes and exposure to 1600°C molten steel and high-concentration dust.

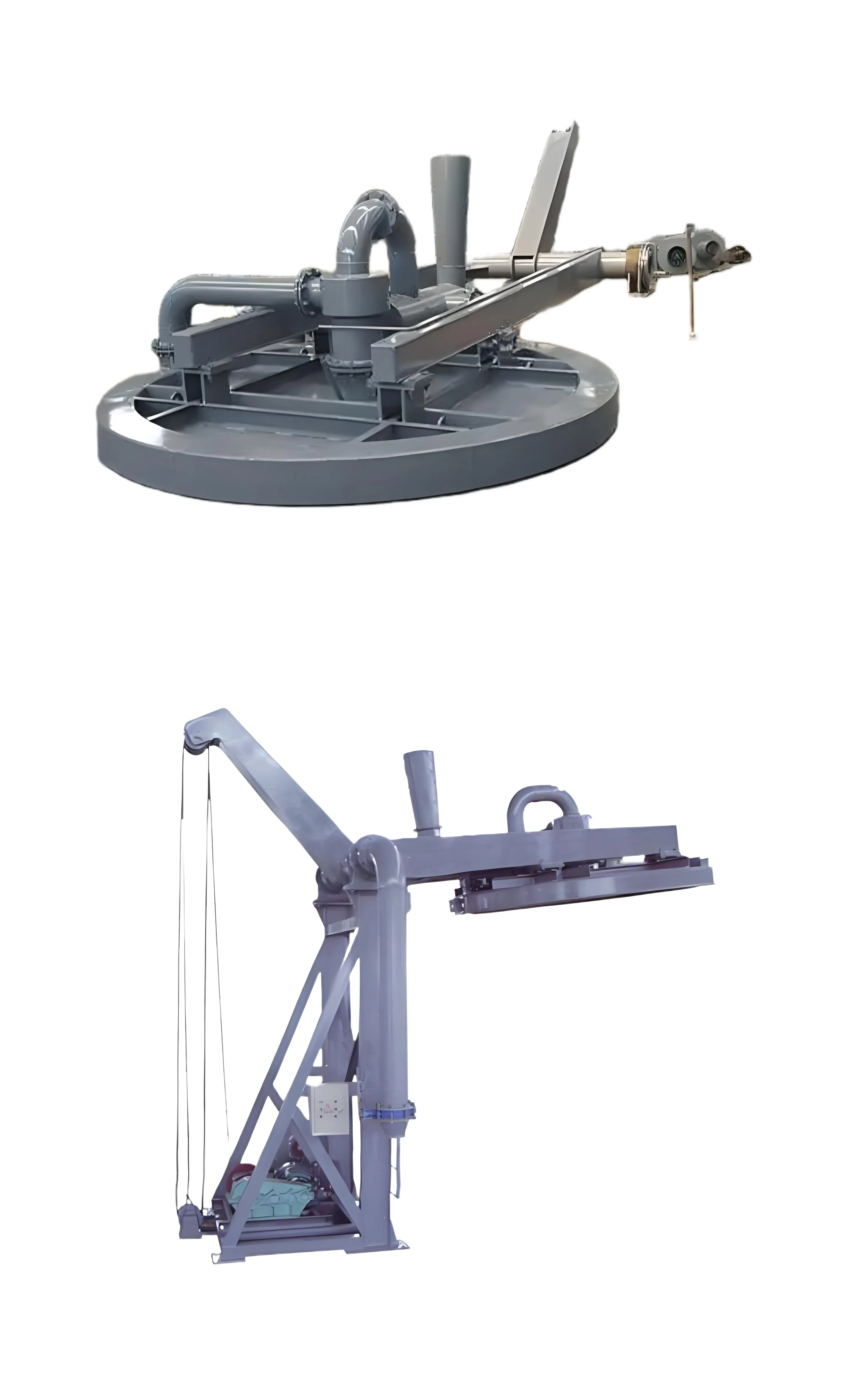

Roaster

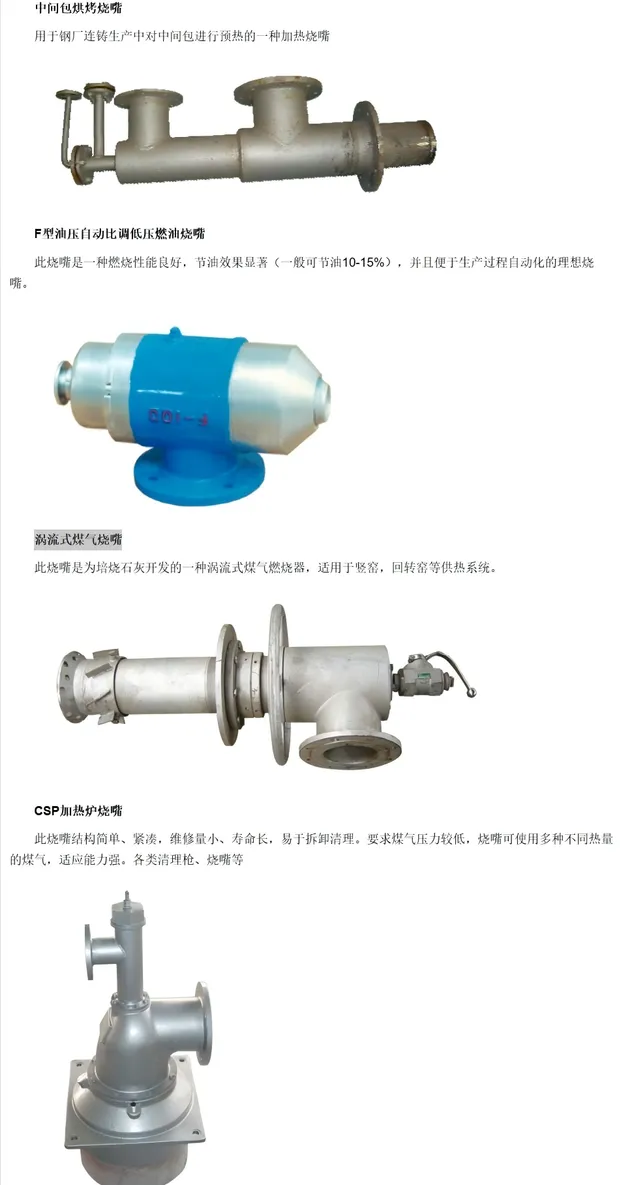

Burner

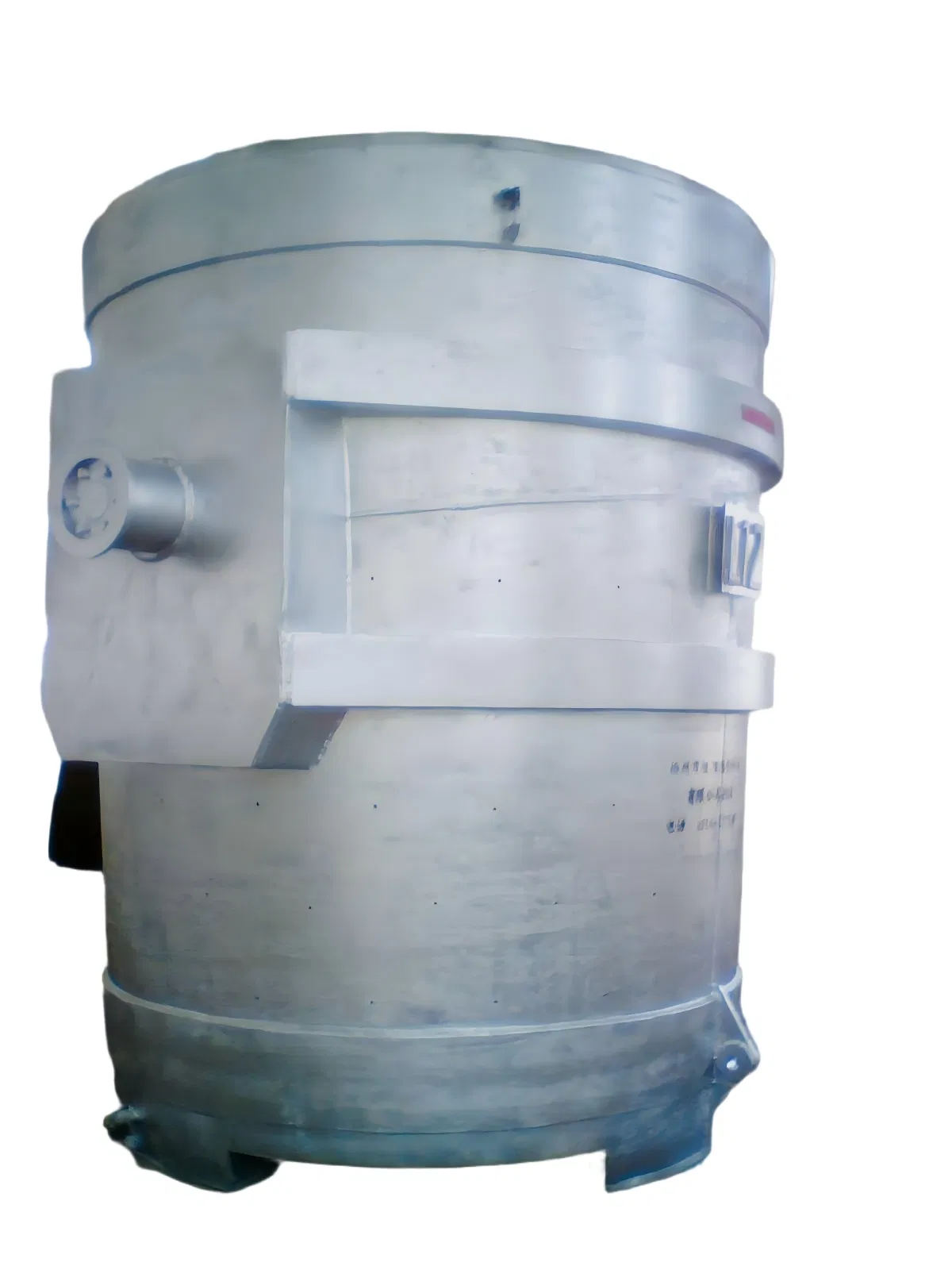

Ladle

Technical Specifications

Model	Specification	Combustion Medium	Combustion Gas
Scrap heating	1~20T	Natural Gas/Oil	Oxygen
Ladle baking	1~200T	Natural Gas/Gas/Oil	Oxygen/Air
Water mouth baking	1~200T	Natural Gas/Gas/Oil	Oxygen/Air
Tundish baking	1~200T	Natural Gas/Gas/Oil	Oxygen/Air
Alloy baking	1~20T	Natural Gas/Gas/Oil	Oxygen/Air
Industrial burners	1~200T	Natural Gas/Gas/Oil	Oxygen/Air

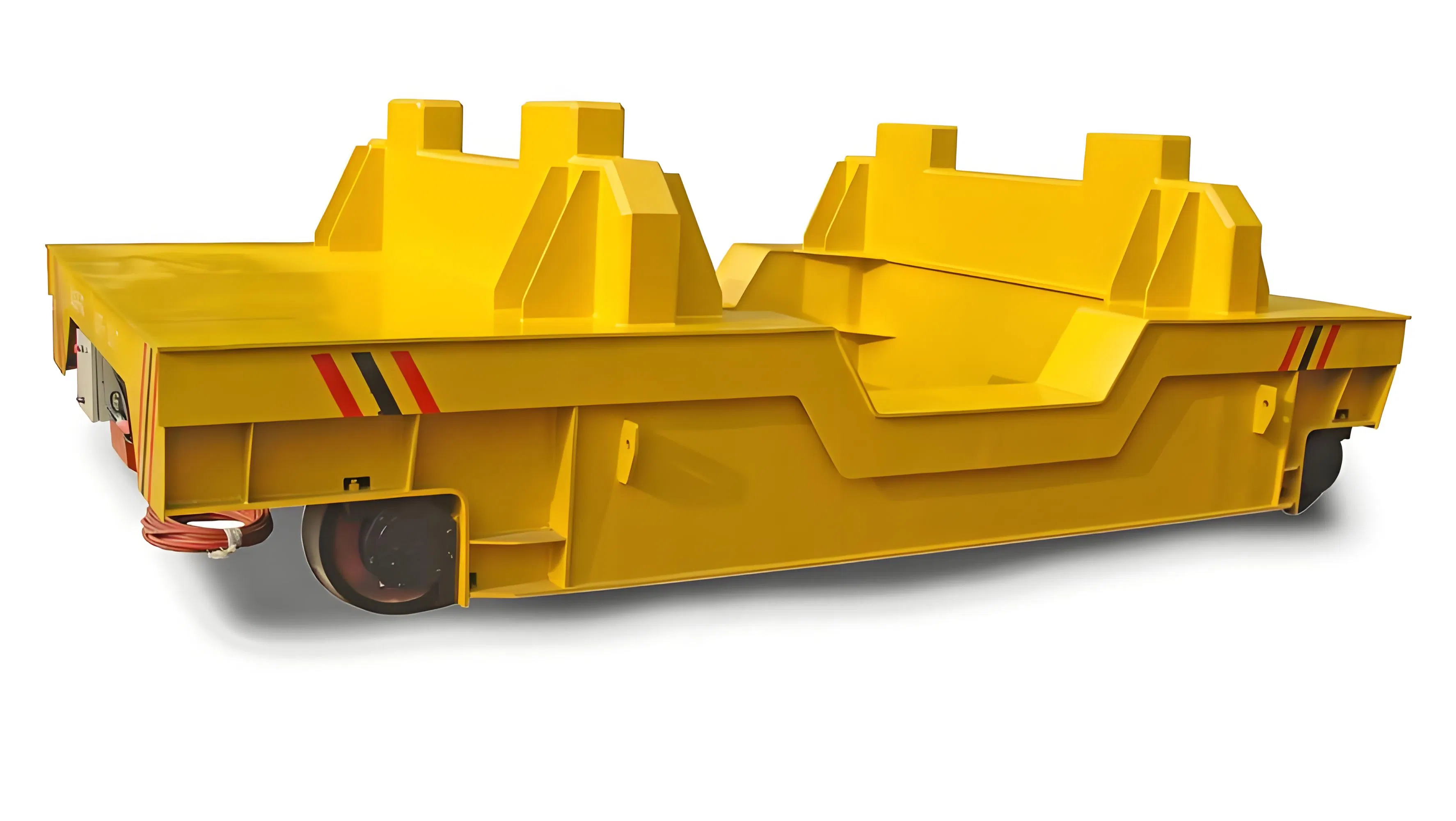

Ladle Truck

A specialized rail-type electric transportation equipment for the metallurgical industry. Designed with high-temperature resistant steel and thermal insulation, it operates stably in conditions ranging from 100°C to 1000°C. Supports load capacities from 5 to 80 tons with modular automation control.

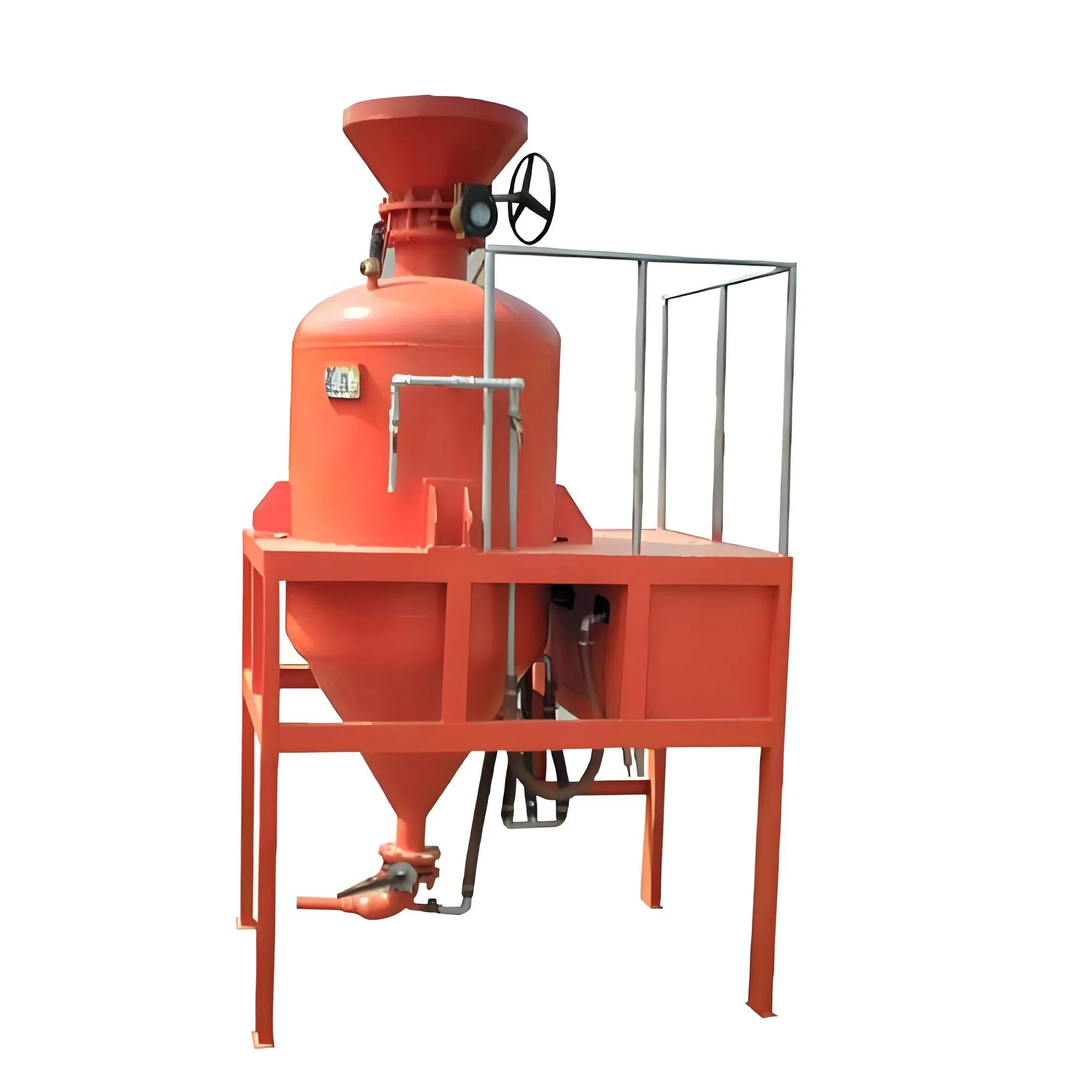

Spraying Machine & Control Systems

Fully pneumatic spraying machines with reasonable structure and easy maintenance. Used extensively in electric furnace and converter steelmaking for hot or cold spraying operations.

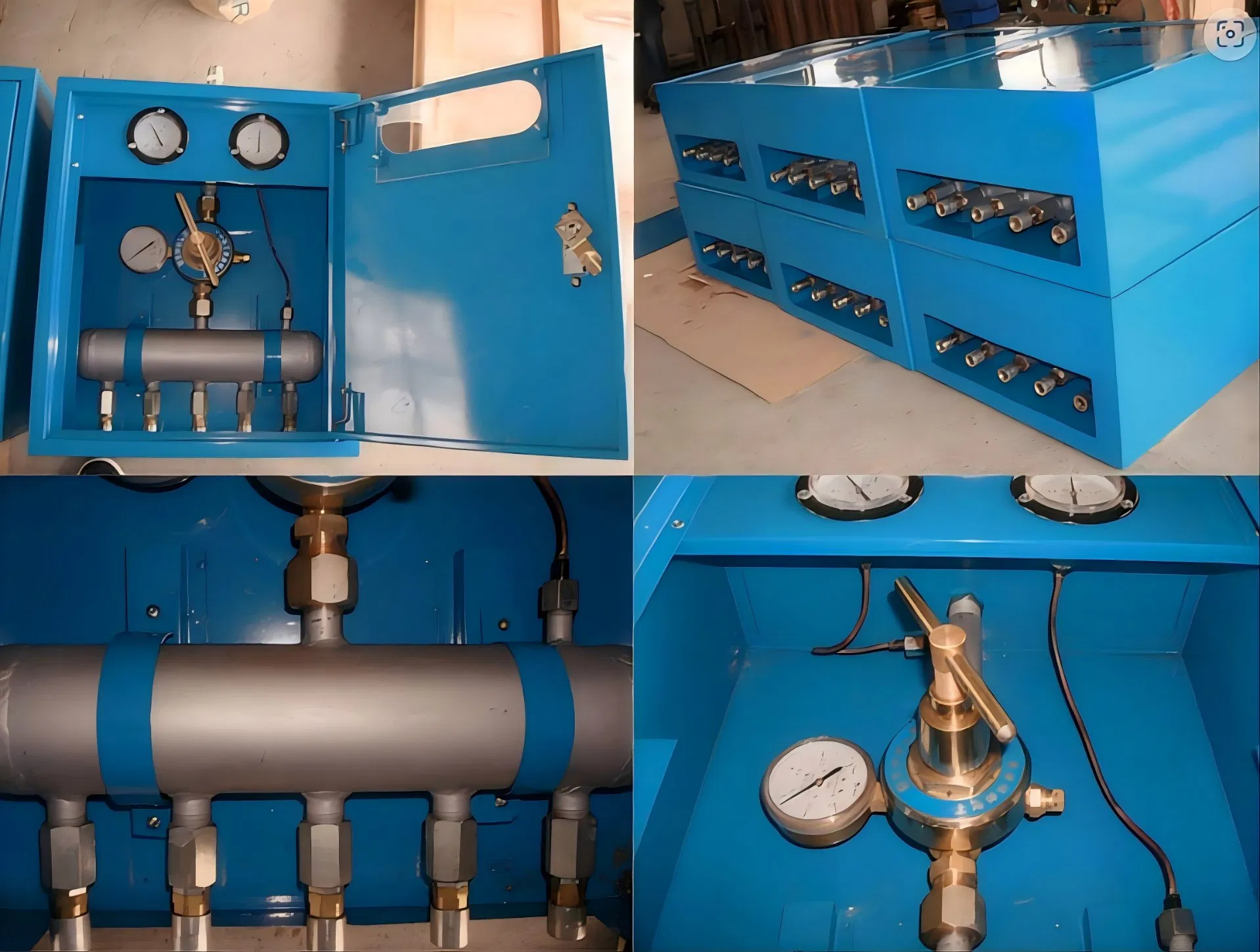

Point Valve Box

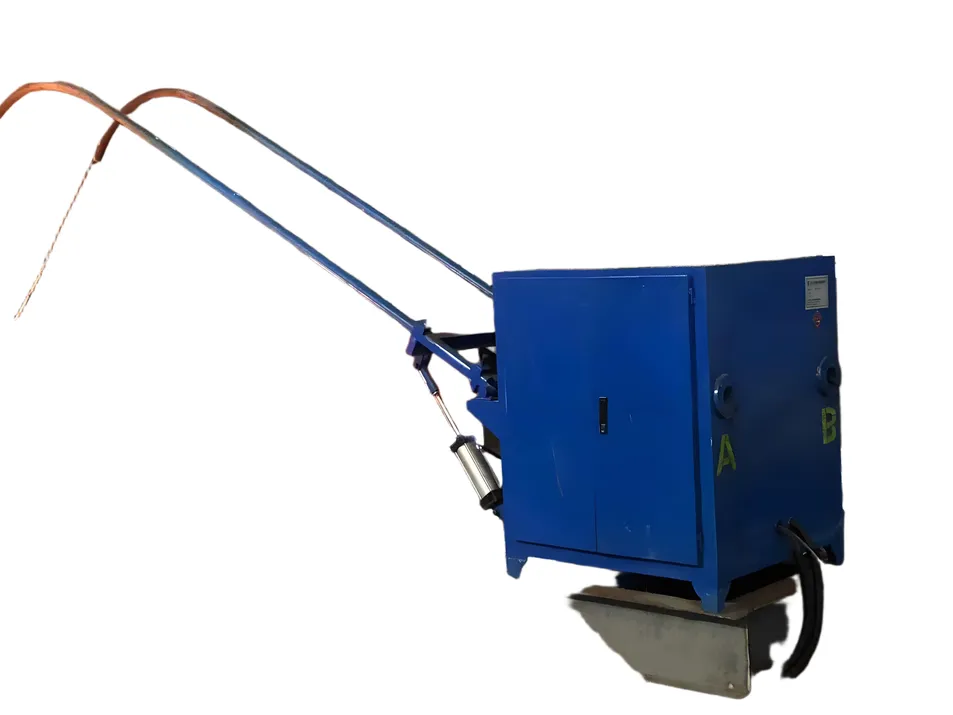

Silk Feeder

Frequently Asked Questions

What is the capacity range for your baking equipment?

Our baking equipment, including ladle and tundish bakers, typically ranges from 1T up to 200T depending on the specific model and customer requirements.

Can the ladle trucks withstand extreme temperatures?

Yes, our ladle trucks are built with high-temperature resistant steel and core components are protected by thermal insulation, allowing operation in environments up to 1000°C.

What are the safety benefits of the automatic sampling system?

It removes operators from hazardous zones, preventing burns from 1600°C molten steel splashes and reducing exposure to high-concentration dust through remote intelligent monitoring.

What types of combustion mediums are supported?

Our systems are versatile and can be configured for Natural Gas, Industrial Gas, or Oil, paired with either Oxygen or Air depending on the process needs.

Is the spraying machine easy to maintain?

Yes, the spraying machine is a full pneumatic design with no transmission parts, meaning it requires no lubrication and has very few points of failure, making it easy to install and maintain.

Do you offer custom configurations?

While we have standard models from 1~300T, custom configurations for specific track layouts, load capacities, and automation requirements are available upon request.
