CE Certified EPS Foam Block Molding Machine Auxiliary Equipment with Hydraulic Compression System

1 / 5

CE Certified EPS Foam Block Molding Machine Auxiliary Equipment with Hydraulic Compression System

Customization:	Available
After-sales Service:	Assemble and Install Service
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Type

EPS Auxiliary Equipment

Raw Material

EPS

Automation

Automatic

Computerized

Certification

CE, ISO9001:2015

Service

OEM/ODM

Delivery Time

Within 60 Days

Application

Packaging, Construction, Cold Chain

Key Selling Points

High-Accuracy

Production Capacity

1000 Sets /Year

Product Description

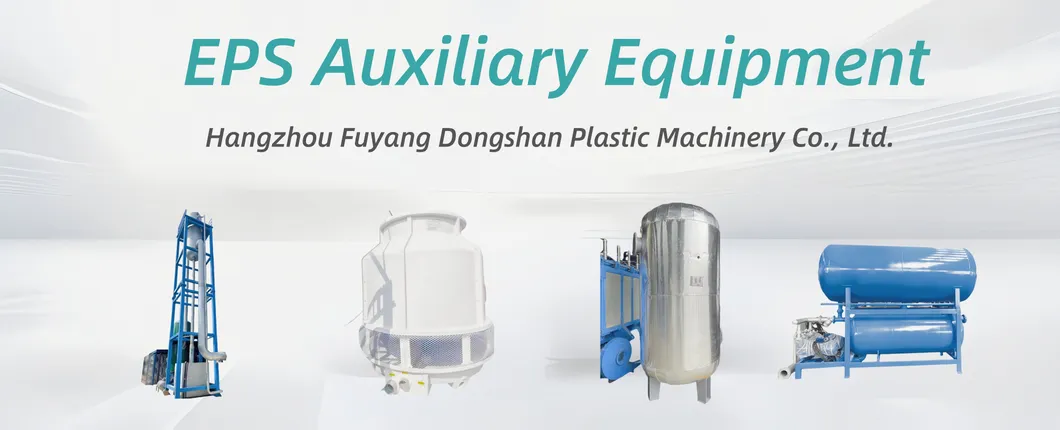

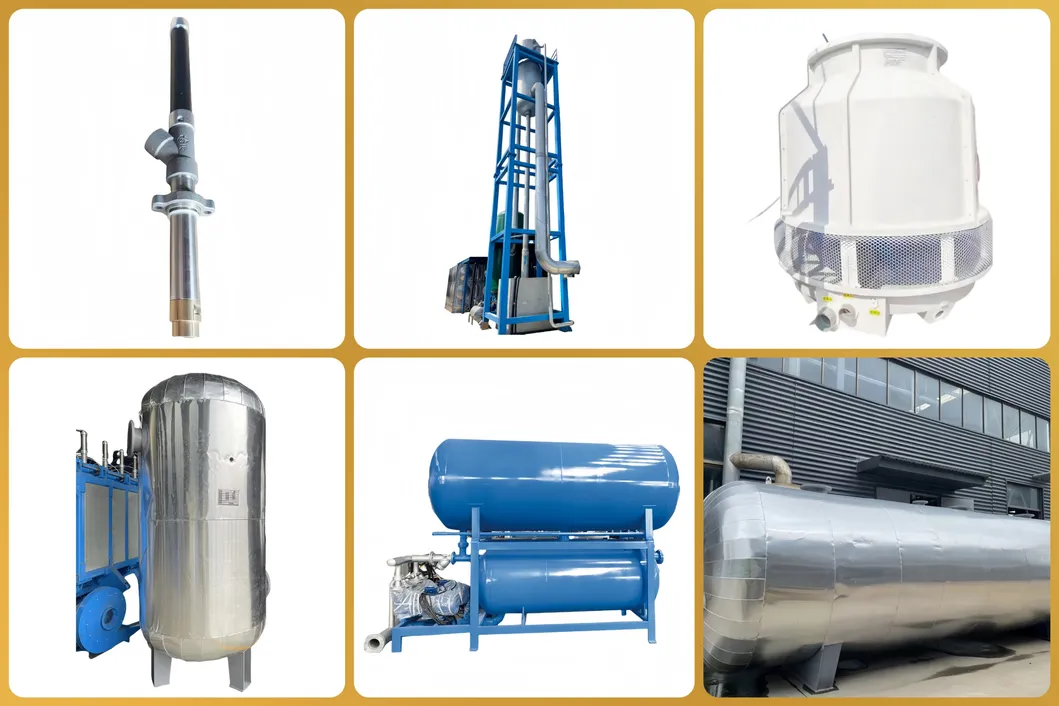

EPS Foam Block Molding Machine Auxiliary Equipment

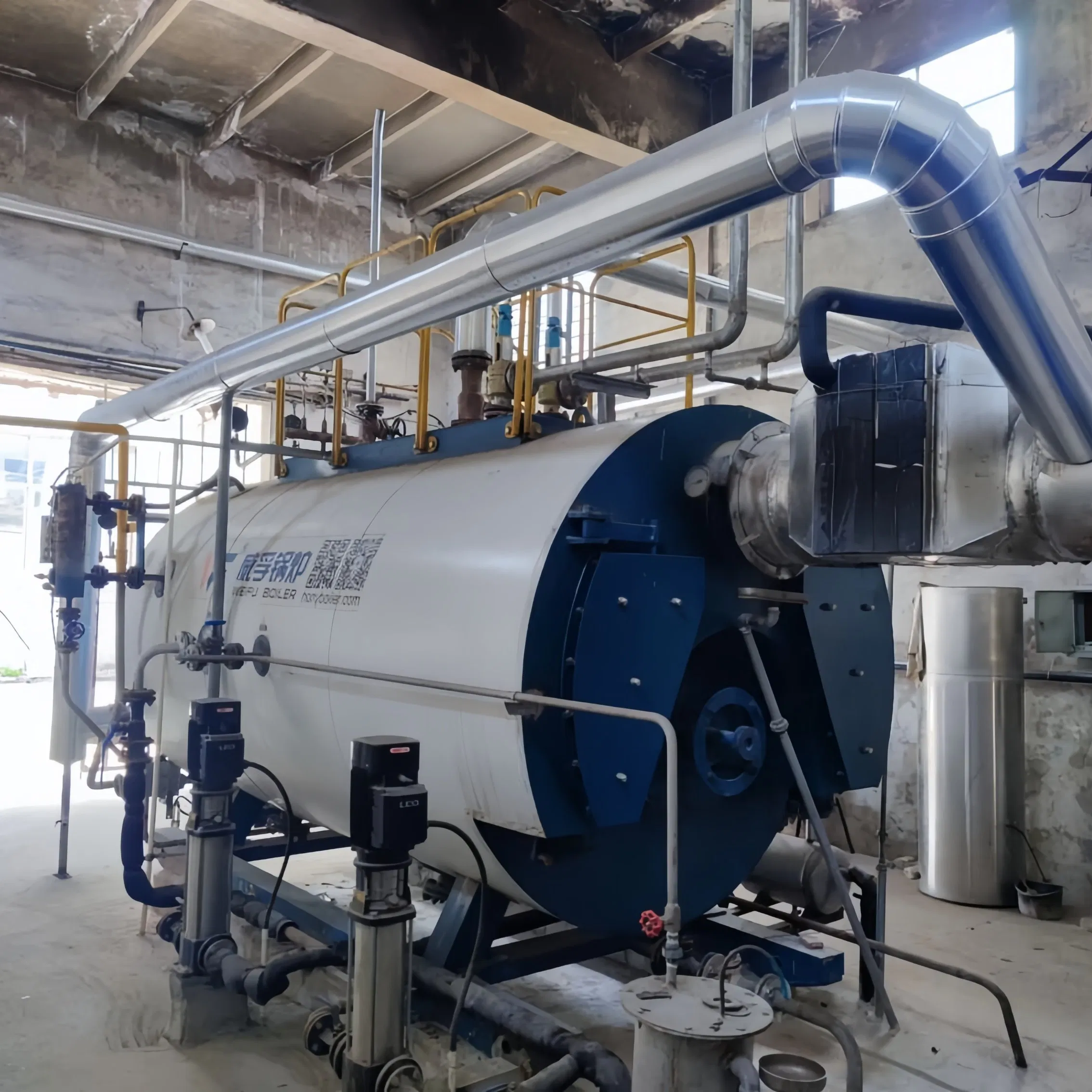

Gas/oil Steam & Hot Water Boiler Parameters
Model	Capacity (Ton/h)	HP	Pressure (Mpa)	Steam Temp (ºC)	Feed Water Temp (ºC)	Diesel (kg/h)	Natural Gas (Nm3/h)
WNS 0.5	0.5	35	0.4-3.82	130~450	20/105	32.5	35.7
WNS 1	1	71	0.4-3.82	130~450	20/105	64.6	70.1
WNS 2	2	150	0.4-3.82	130~450	20/105	129.3	140.3
WNS 4	4	300	0.4-3.82	130~450	20/105	258.2	283.4
WNS 10	10	700	0.4-3.82	130~450	20/105	641.7	707.8
WNS 20	20	1400	0.4-3.82	130~450	20/105	1276.2	1415.8

Storage & Compressed Air Systems

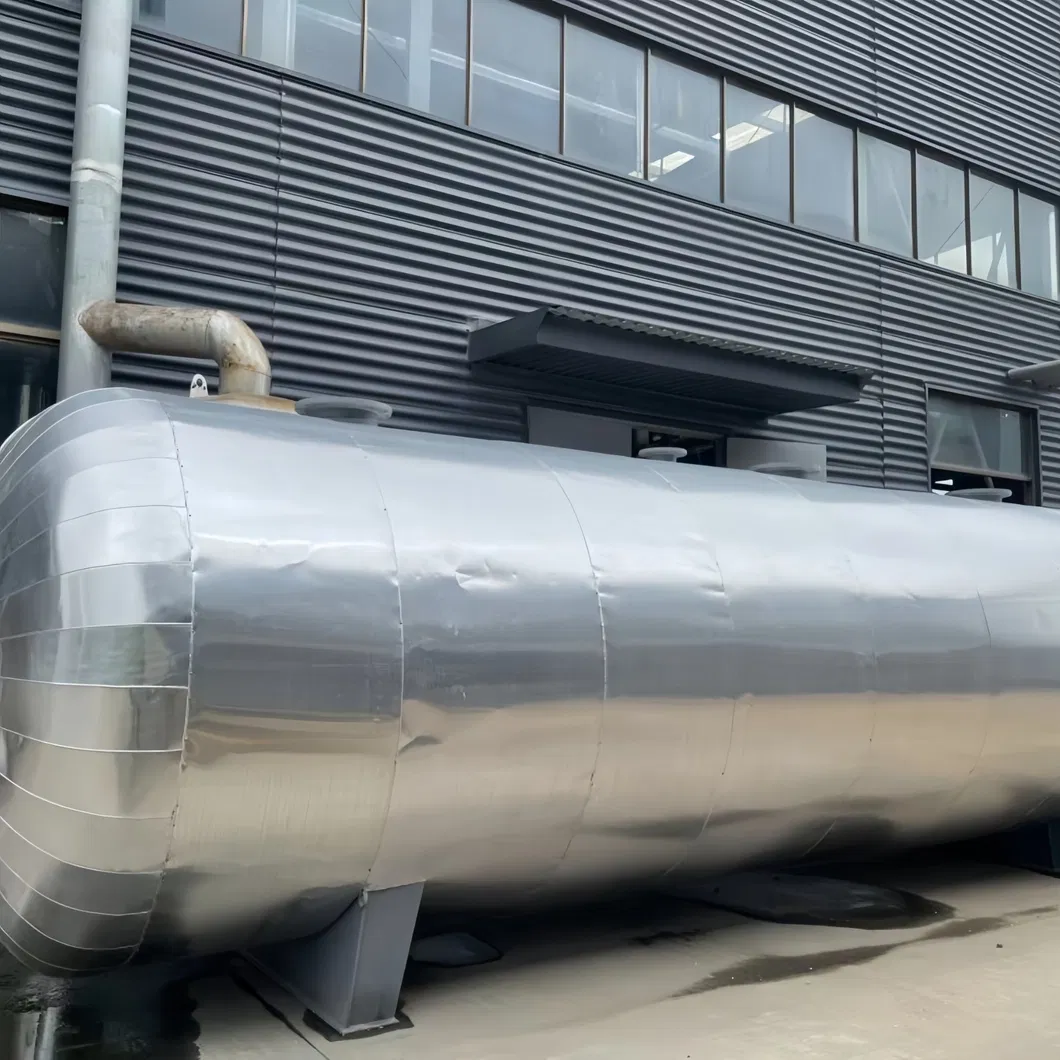

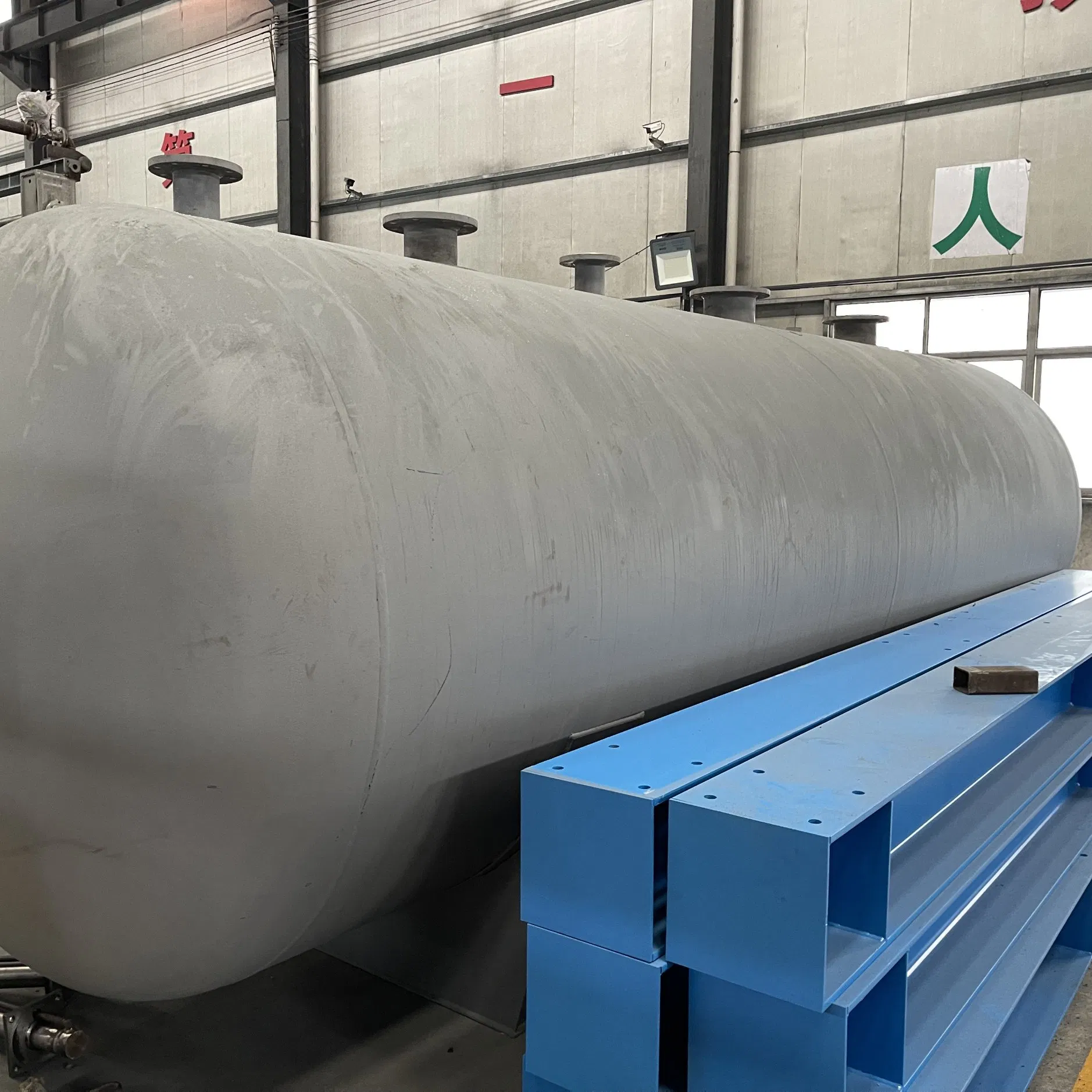

Direct Storage Tank

The tank is mainly composed of a box, agitator, manhole, inlet and outlet, and cleaning port. The conical head design ensures no dead corners for cleaning.

Inner/outer layers with polyester foam for heat preservation.
Miller version heating and cooling layers available.
Optional pneumatic valves and electric control panels for automation.

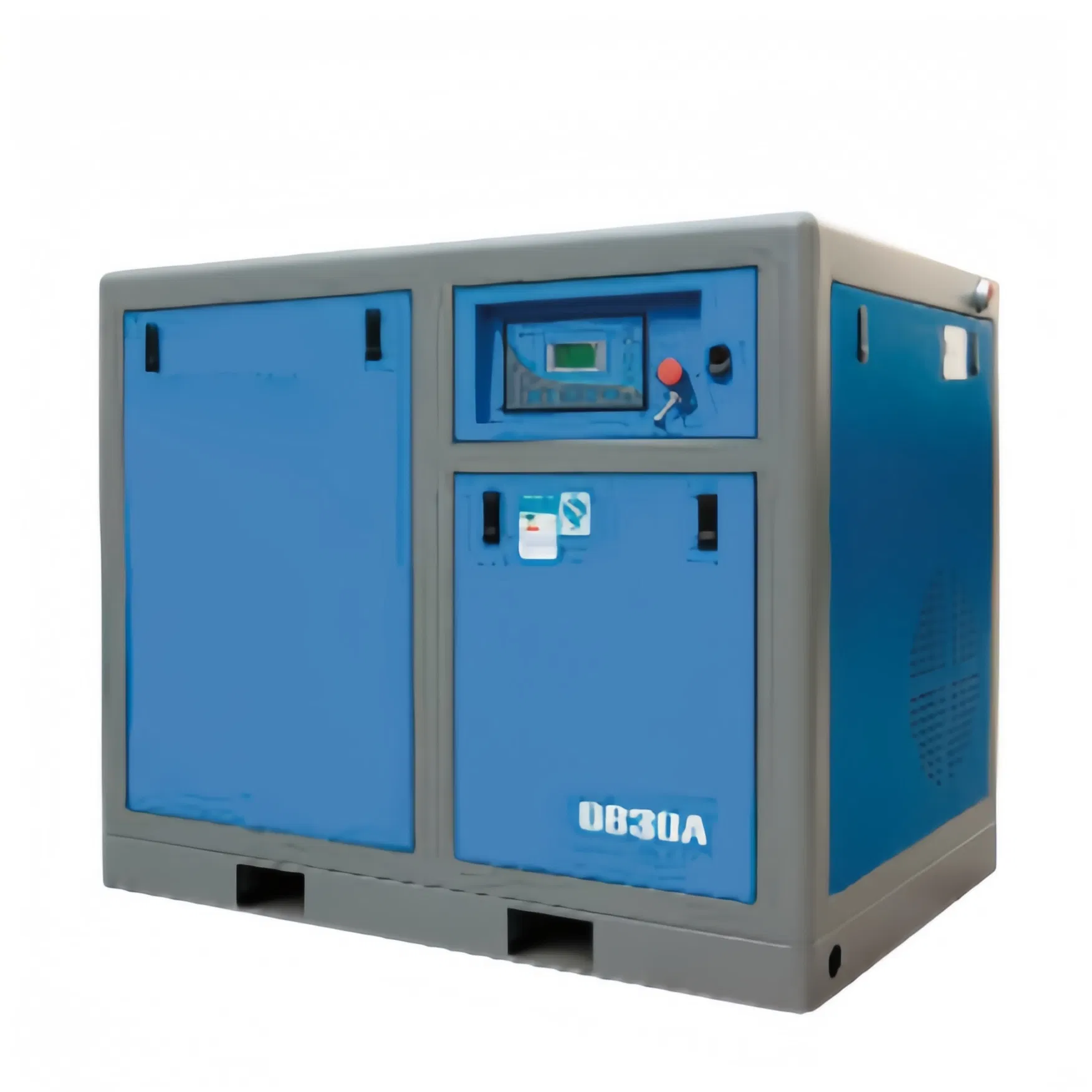

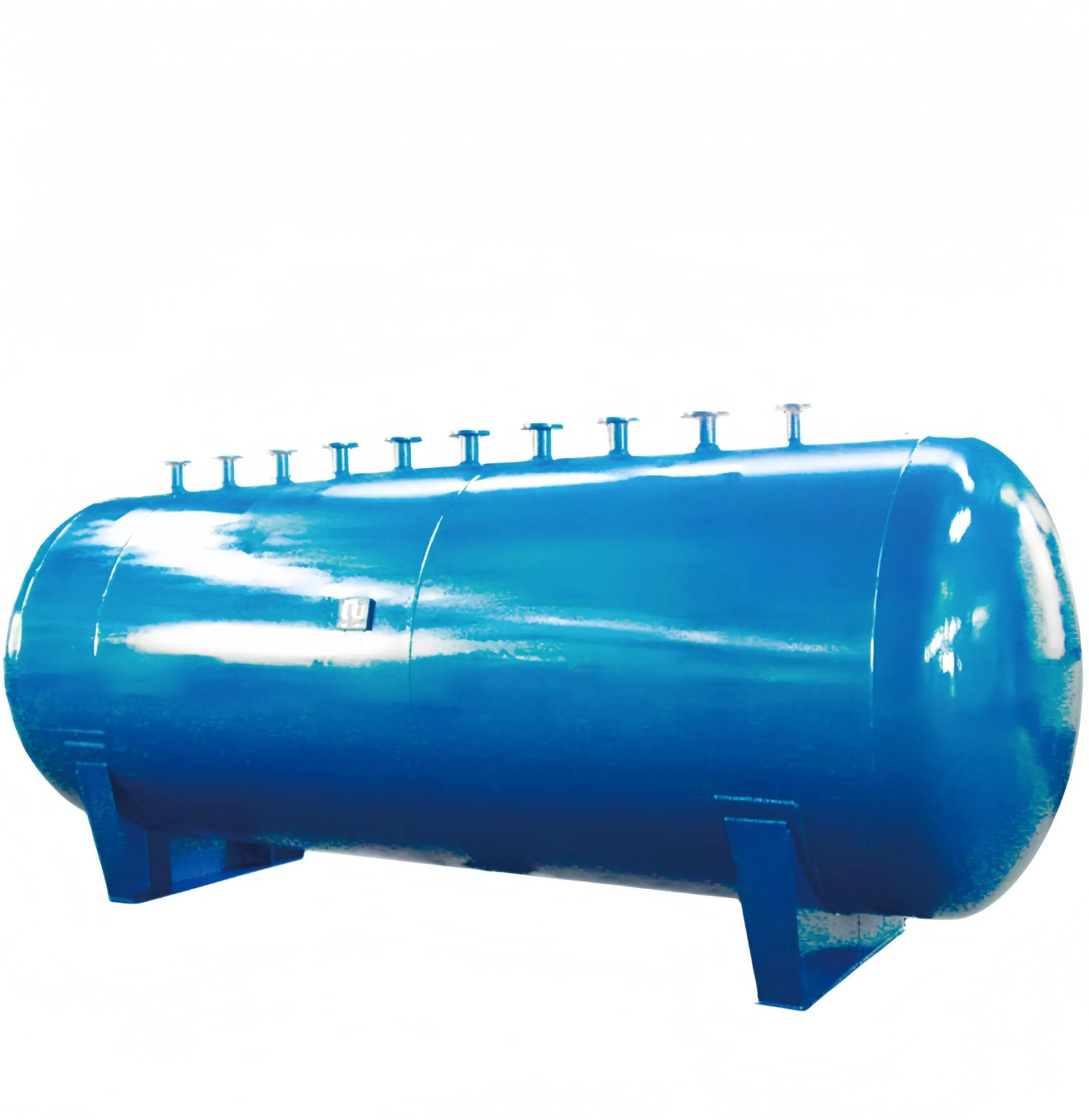

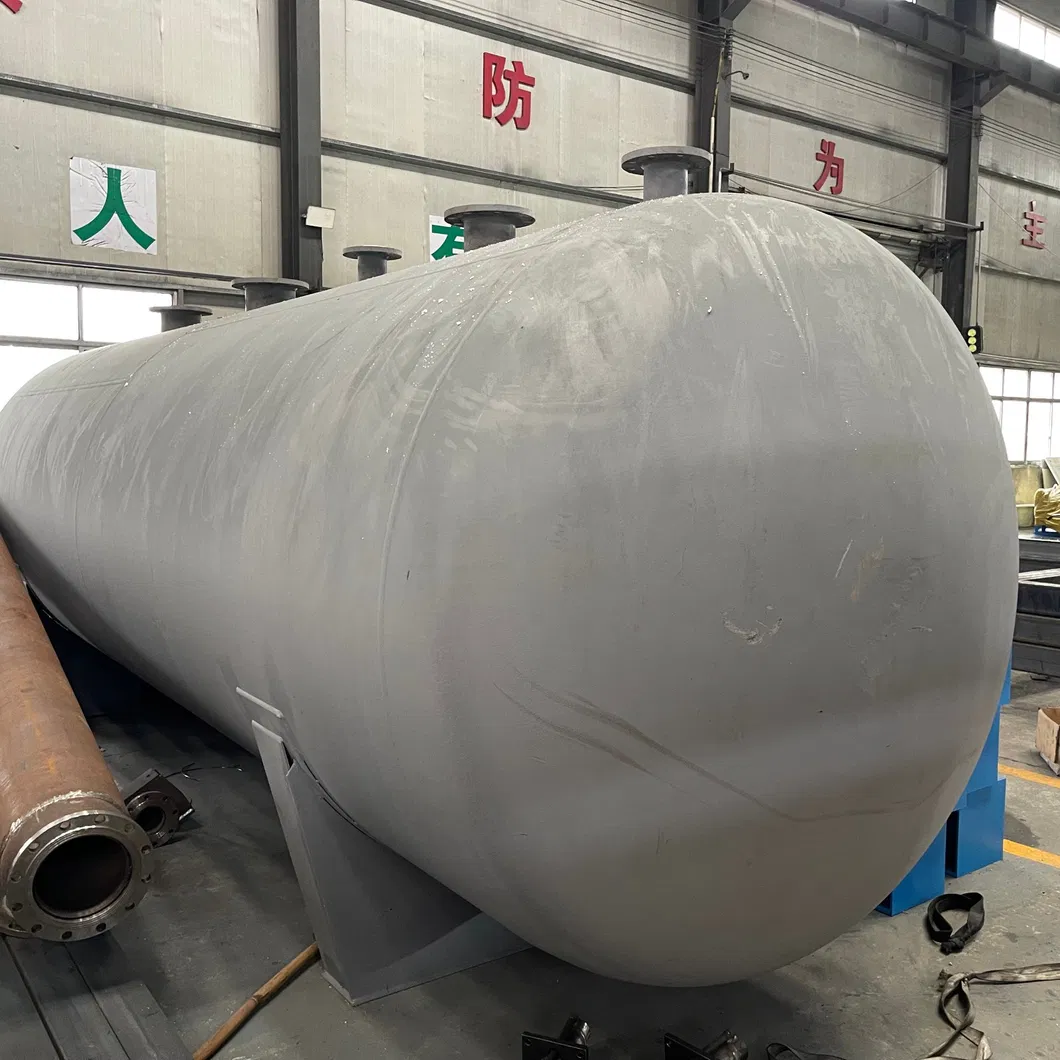

Compressed Air Tank

Stores pressurized air for pneumatic tools, HVAC systems, and industrial machinery. It provides a reliable source of compressed air, enhancing efficiency in industrial settings.

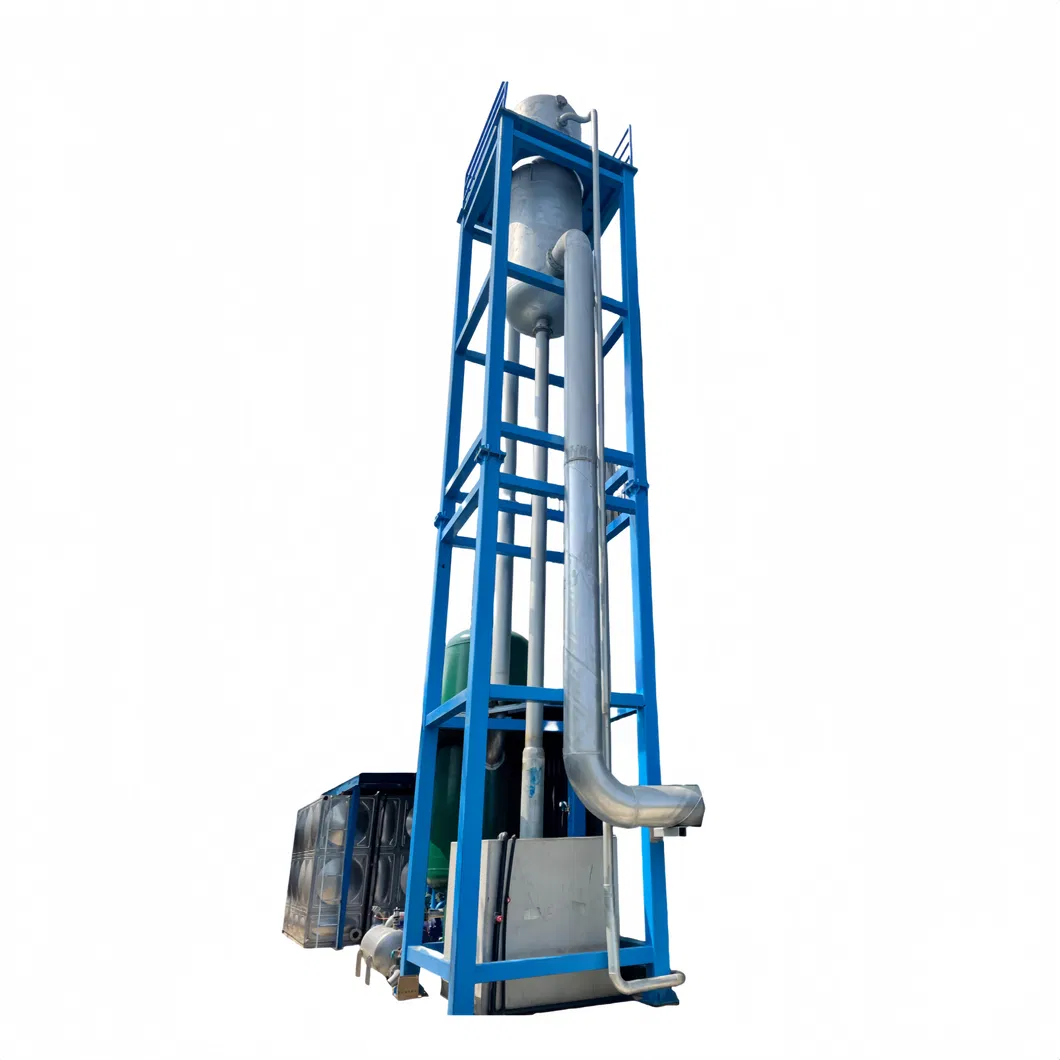

High-Efficiency Cooling Tower

Advanced Structure: Excellent matching of steam and water for full heat exchange.
Durable Body: High strength FRP materials, Richter 8 earthquake resistant, and anti-corrosion.
Low Noise: Specified motors and fan noise elimination technology.
Energy Saving: Motors can save up to 30% of power compared to standard styles.
Environmental Protection: Less than 0.01% water drifting rate.

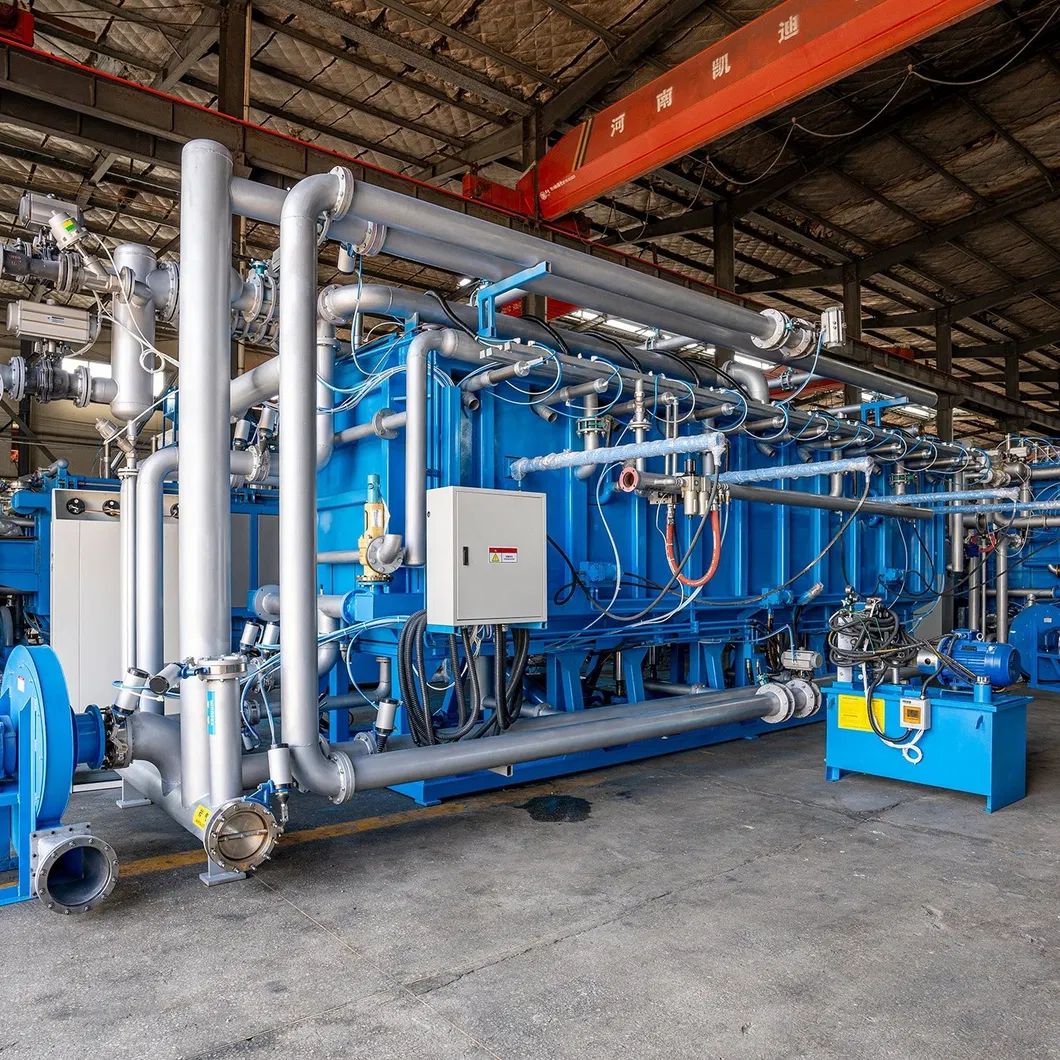

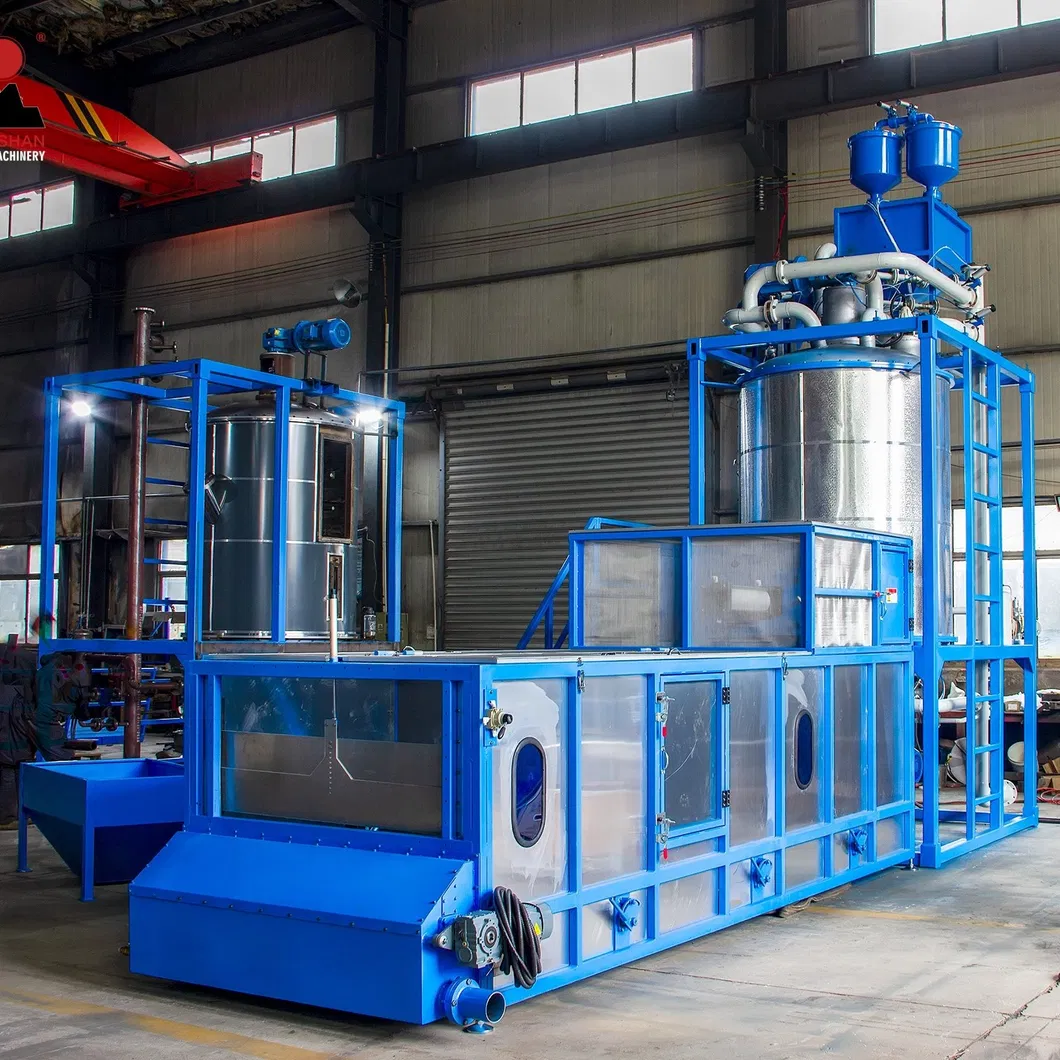

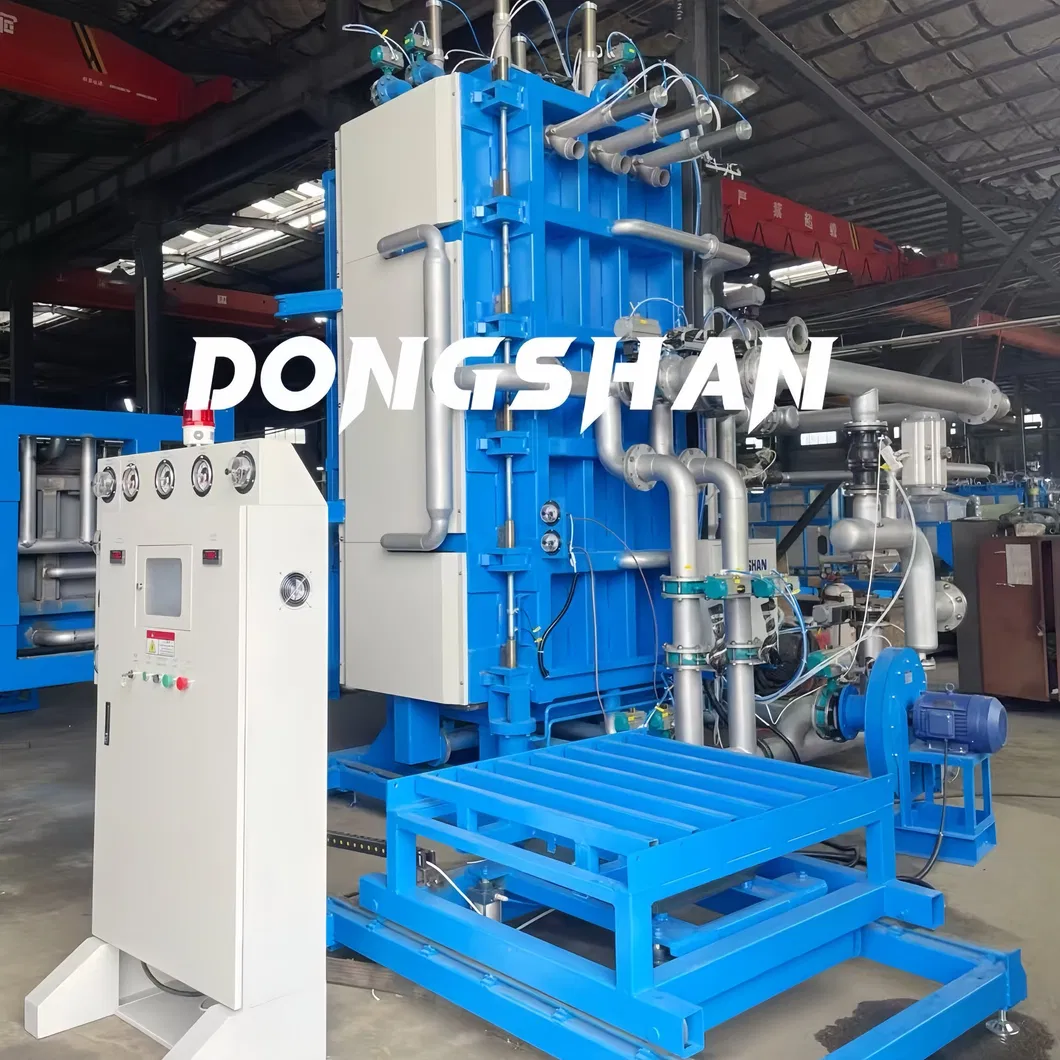

Main Product Range

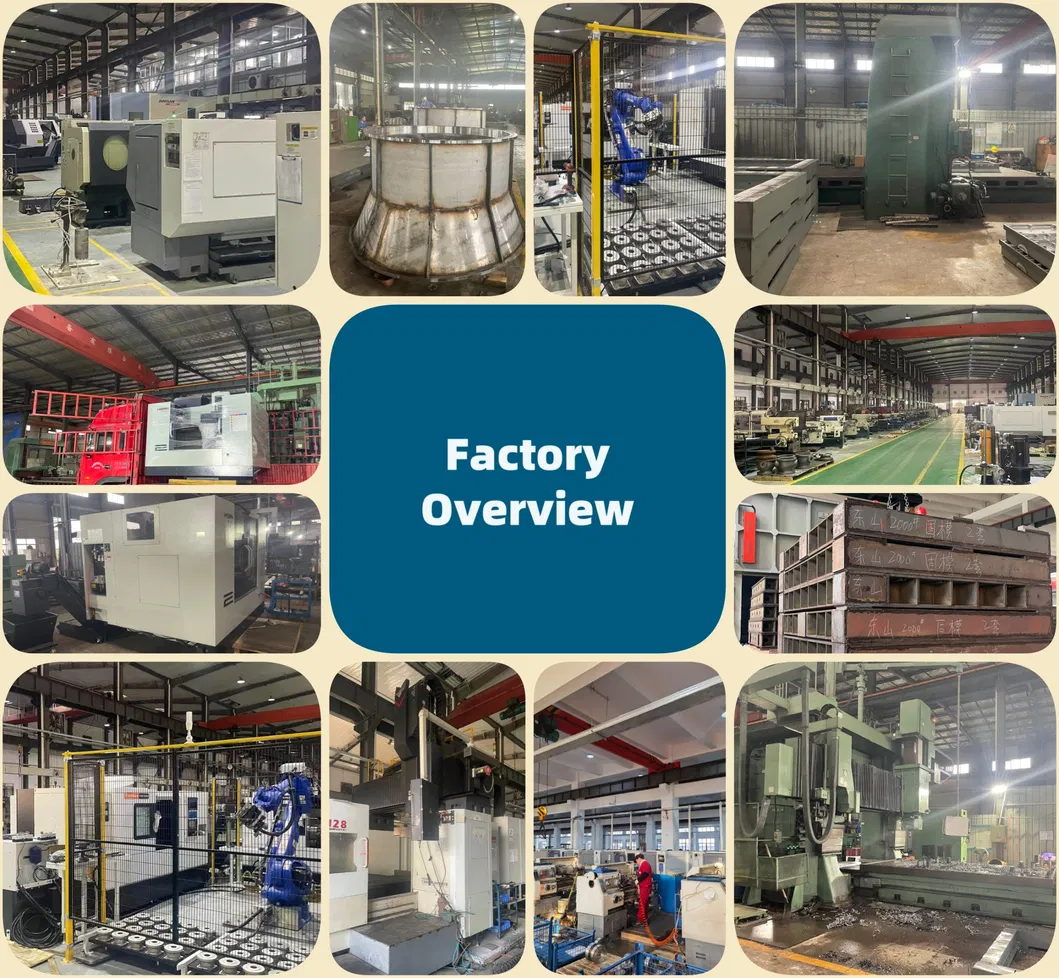

Manufacturing & Expertise

Specializing in EPS and EPP foam plastics machines for nearly 20 years, integrating R&D, manufacturing, sales, and service. The company has obtained CE certification and ISO9001 quality management system certification. With over 48 utility model patents and 6 invention patents, the products are recognized for their excellence in the plastic machine industry.

Certifications & Global Logistics

Frequently Asked Questions

How can I get an EPS machine quotation?

Please contact us via our website chat, email, or inquiry forms. Our experts will respond within 8 working hours with detailed quotation lists based on your requirements.

What is the typical delivery time?

EPS machines generally take 60 days, molds take 20-30 days, and spare parts are delivered within 3-7 days.

What are the accepted payment terms?

We accept both T/T (Telegraphic Transfer) and L/C (Letter of Credit) at sight.

How long is the warranty period?

We provide a 13-month warranty from the date of shipment, excluding quick-wear parts.

Do you offer installation and training?

Yes, we usually send technicians to the customer's factory for assembly and testing. We also provide comprehensive training books and onsite services until your staff is ready for production.

Do you provide EPS turnkey projects?

Yes, we offer complete turnkey solutions. While we manufacture the core EPS machines, we coordinate the supply and installation of all auxiliary equipment like boilers, tanks, and compressors.
