⚙️ Basic Information
Control System
Automatic, CNC, PLC, Touch Screen
Type
Insulating Glass Production Line
After-Sales
Lifetime Warranty
📋 Product Description

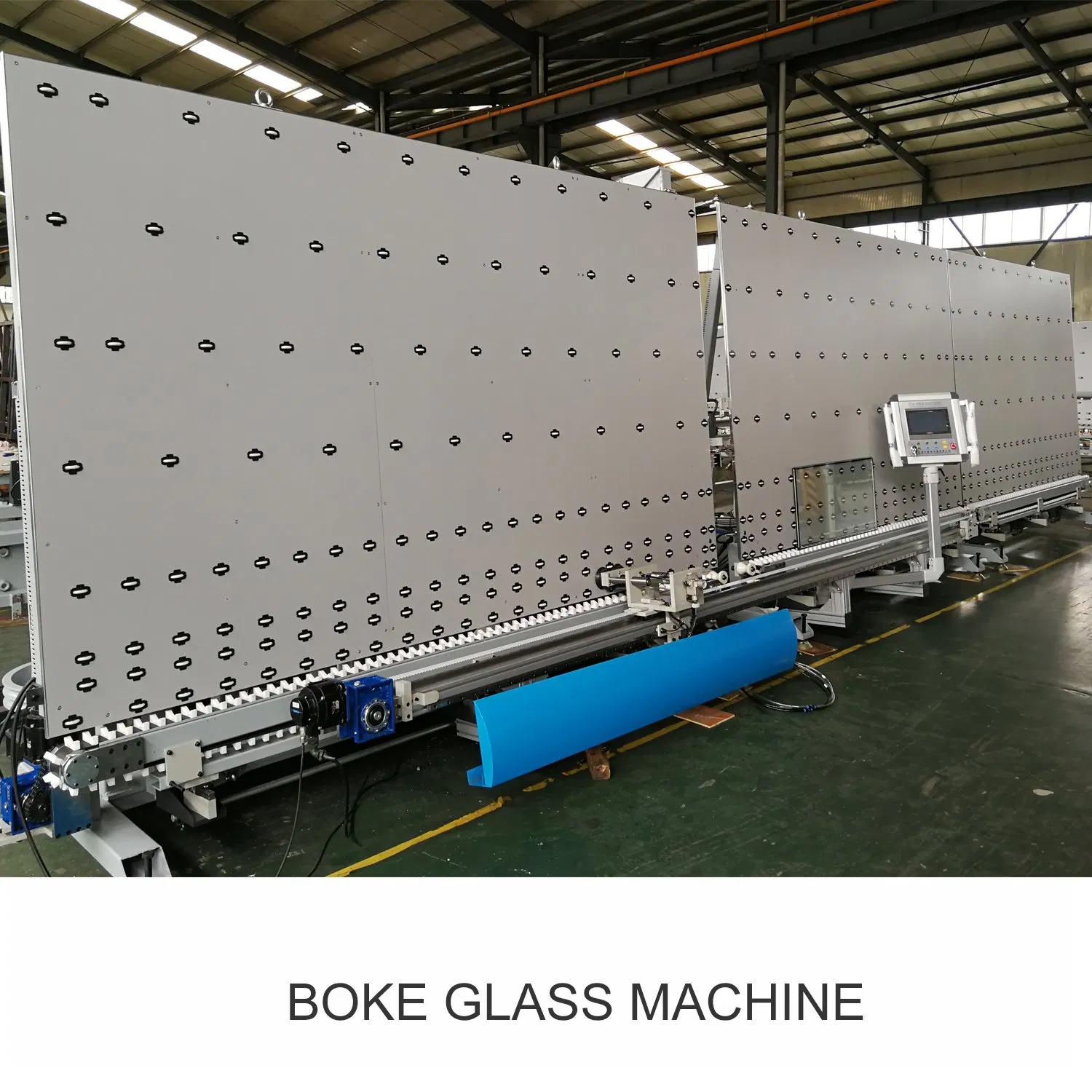

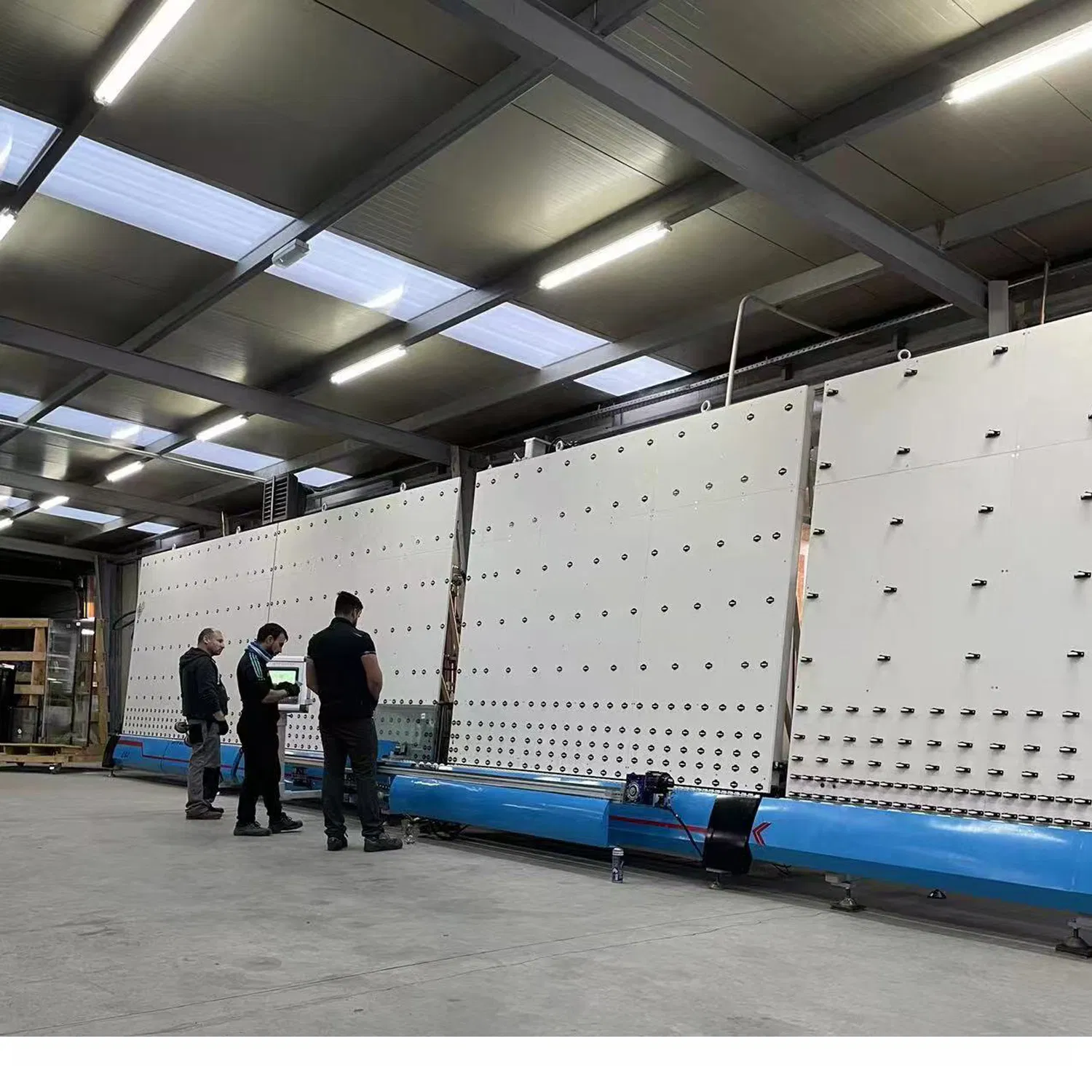

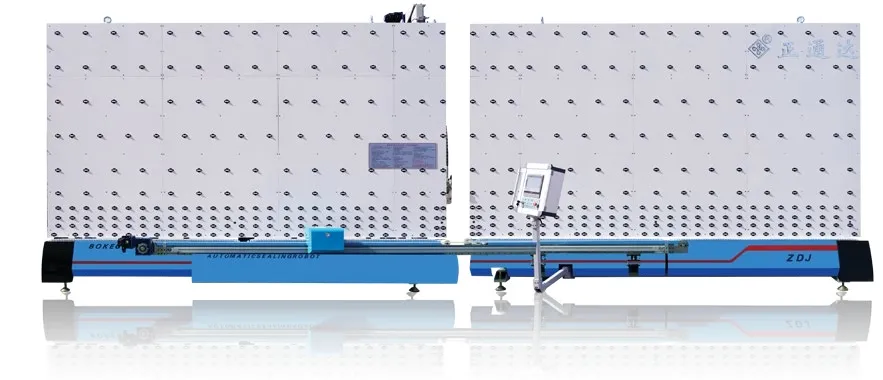

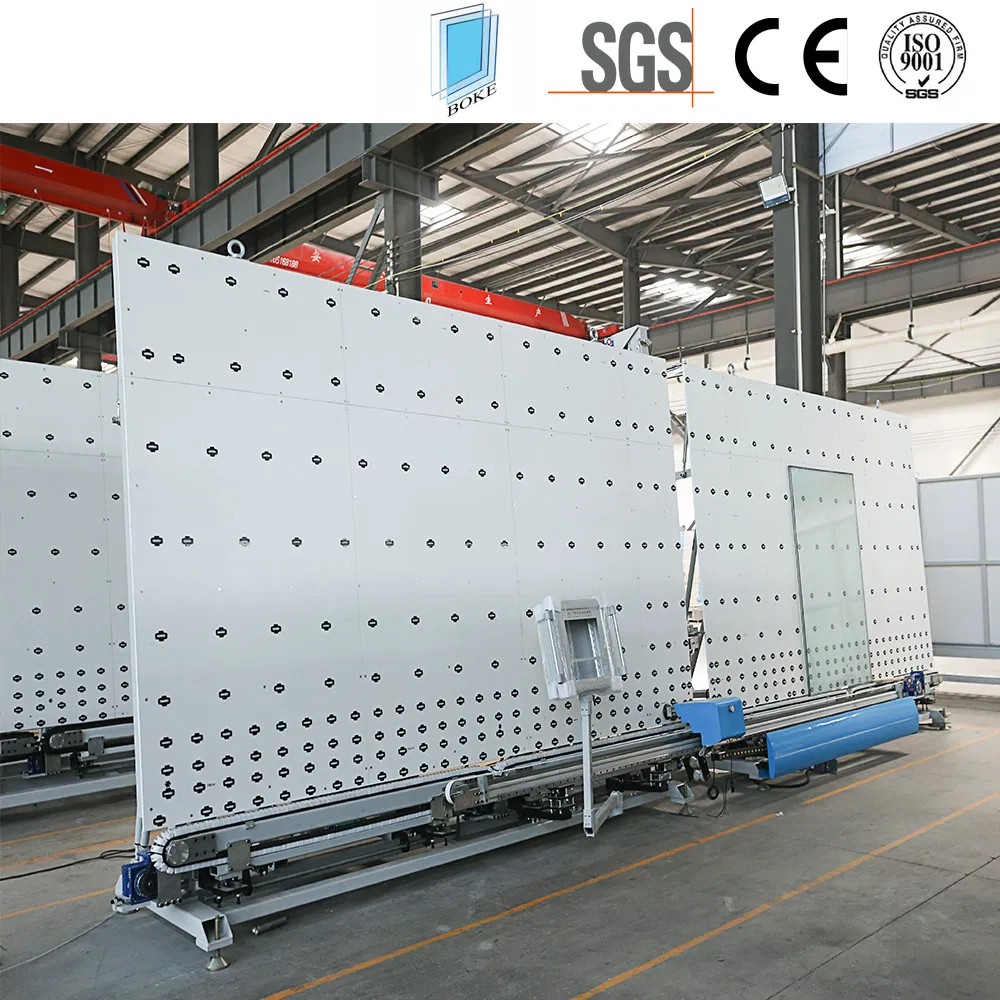

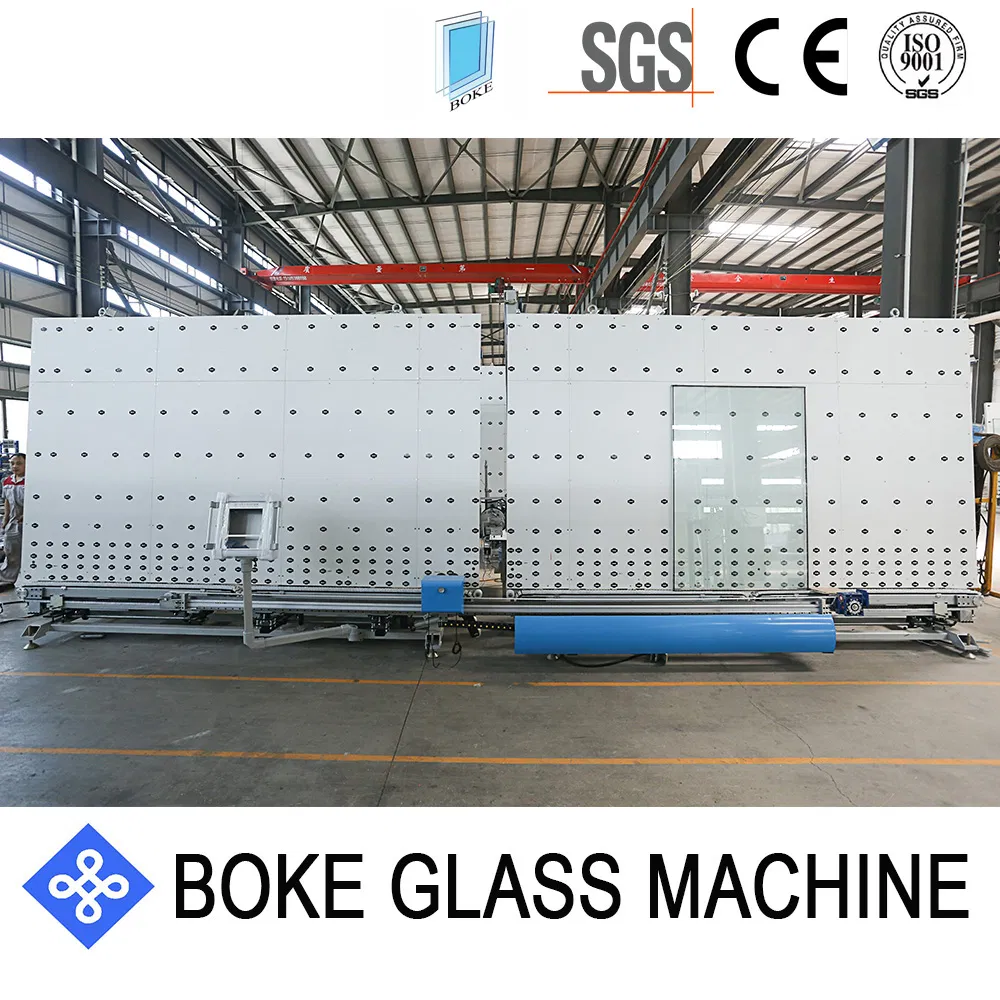

ZDJ-V25 Automatic Sealing Robot
Optimized for Insulating Glass Production Lines with a Max. Glass size of 2500*3600mm.
🚀 Main Features

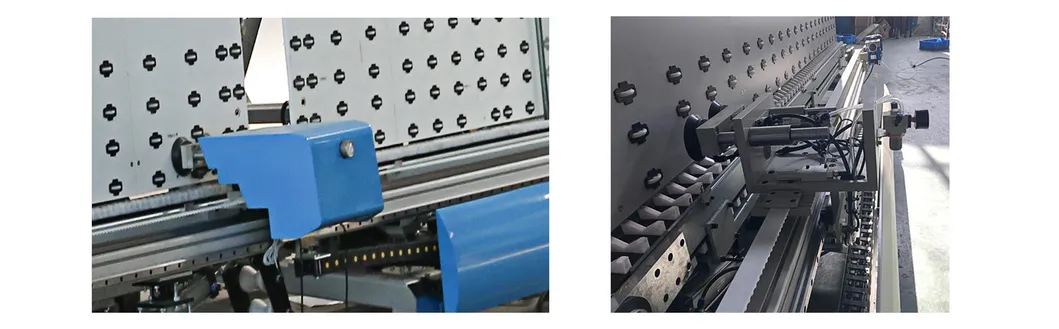

- Gluing part adopts special relocation mechanism, ensuring the nozzle touches the IG unit closely without breaking it.
- Sealing width and depth are adjustable via parameters; sealing speed is automatically controlled for top quality.

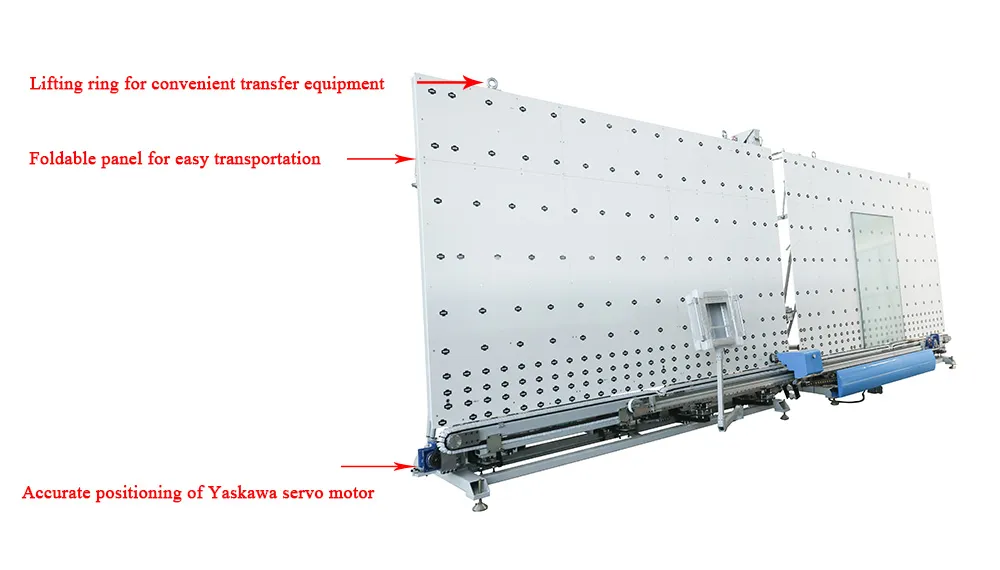

- High-end imported components: Servo motors, controllers, and fiber optic switches for long service life.
- Smooth glass transfer via foreign brand suckers, reducers, rails, and sliders.

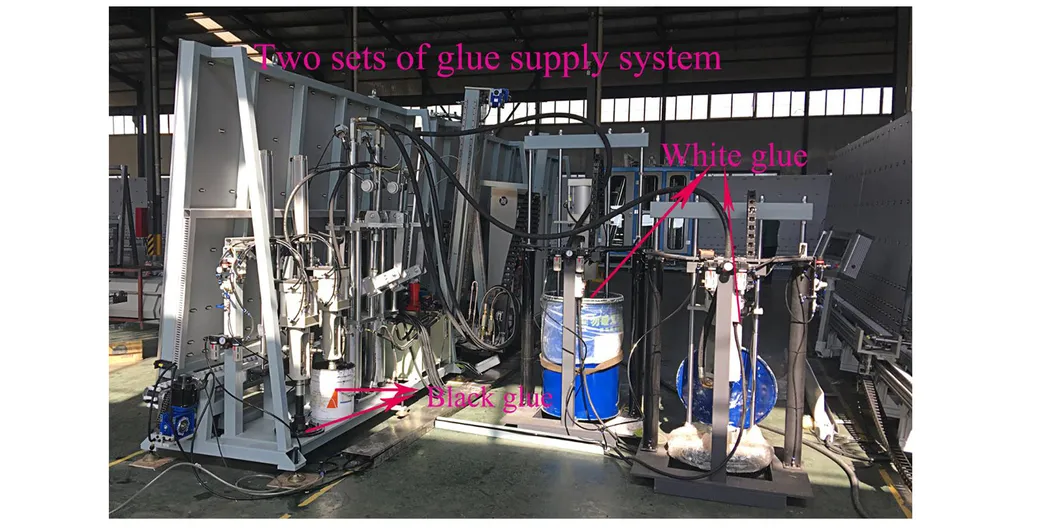

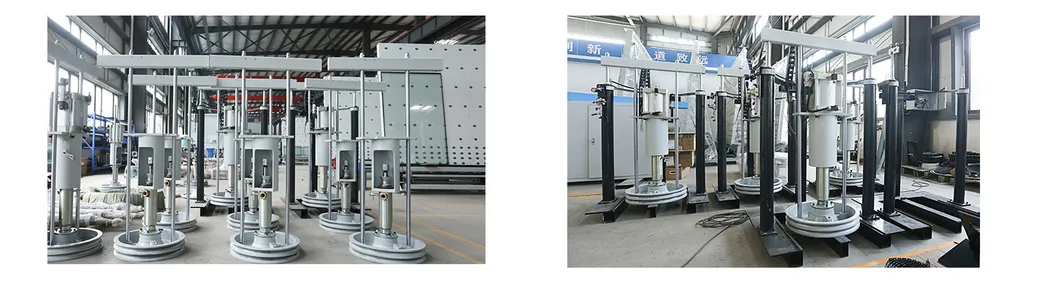

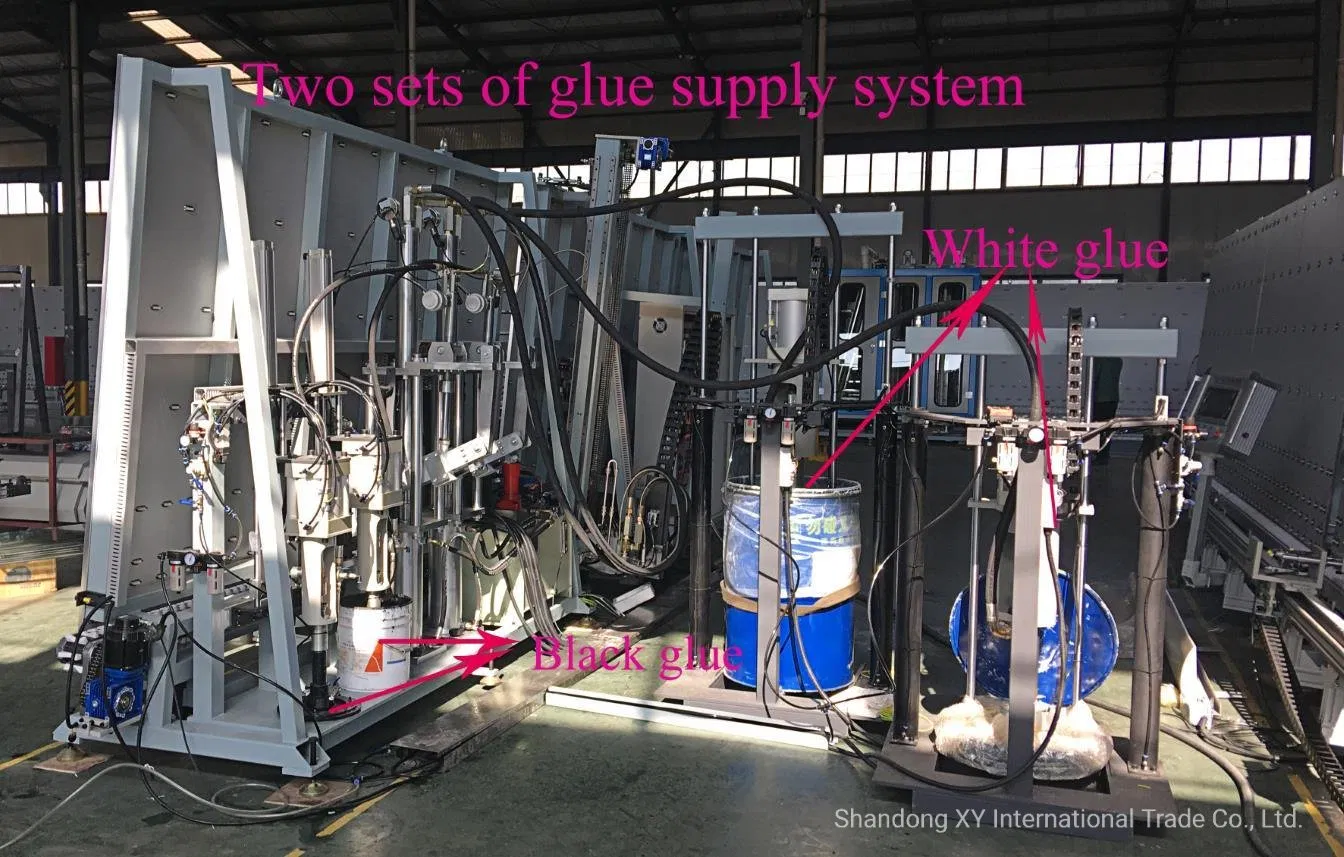

- Hydraulic glue station provides precise quantitative control of black and white glue.
- Unique 3-row roller chain and V-block transfer mode for stable glass processing.

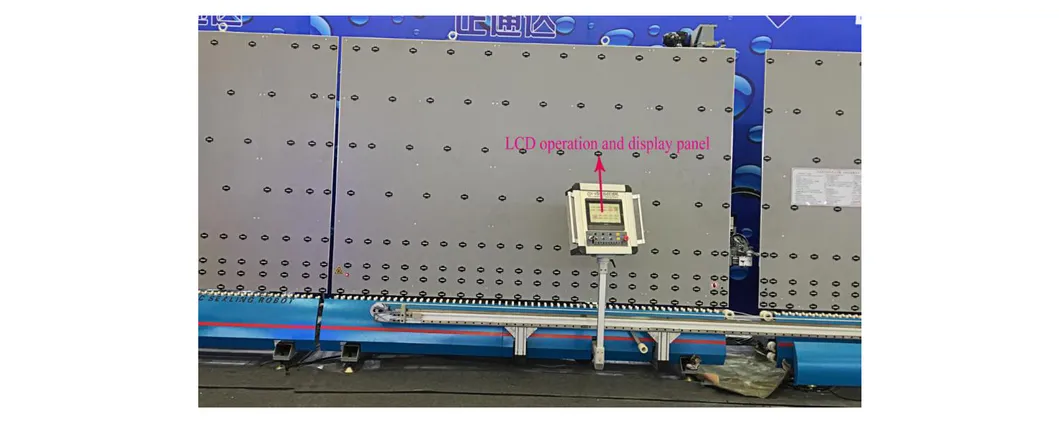

- User-friendly touch screen interface with graphic combinations for easy operation.
- Servo motor digital control system ensures high glue precision and safety alarm functions.
- Flexible operation: can work independently or integrated into a full production line.
- Beautiful and durable construction using high-quality NC machined boards.
- Optimized structure for low power consumption and high efficiency.
📊 Technical Parameters
| Parameter Item |
Specification (ZDJ-V25) |
| Sealing speed | 5-35m/min |
| Sealing depth | < 18mm |
| Thickness of IG unit | 12-50mm |
| Min. IG unit size | 350*200mm |
| Max. IG unit size | 3600*2500mm |
| Glue supply pressure | < 30MPa |
| Air pressure | 0.6-0.8MPa |
| Total power | 10 Kw |
| Max weight of IG unit | 800 Kg |
| Outline dimension | 14000*3500*3200mm |

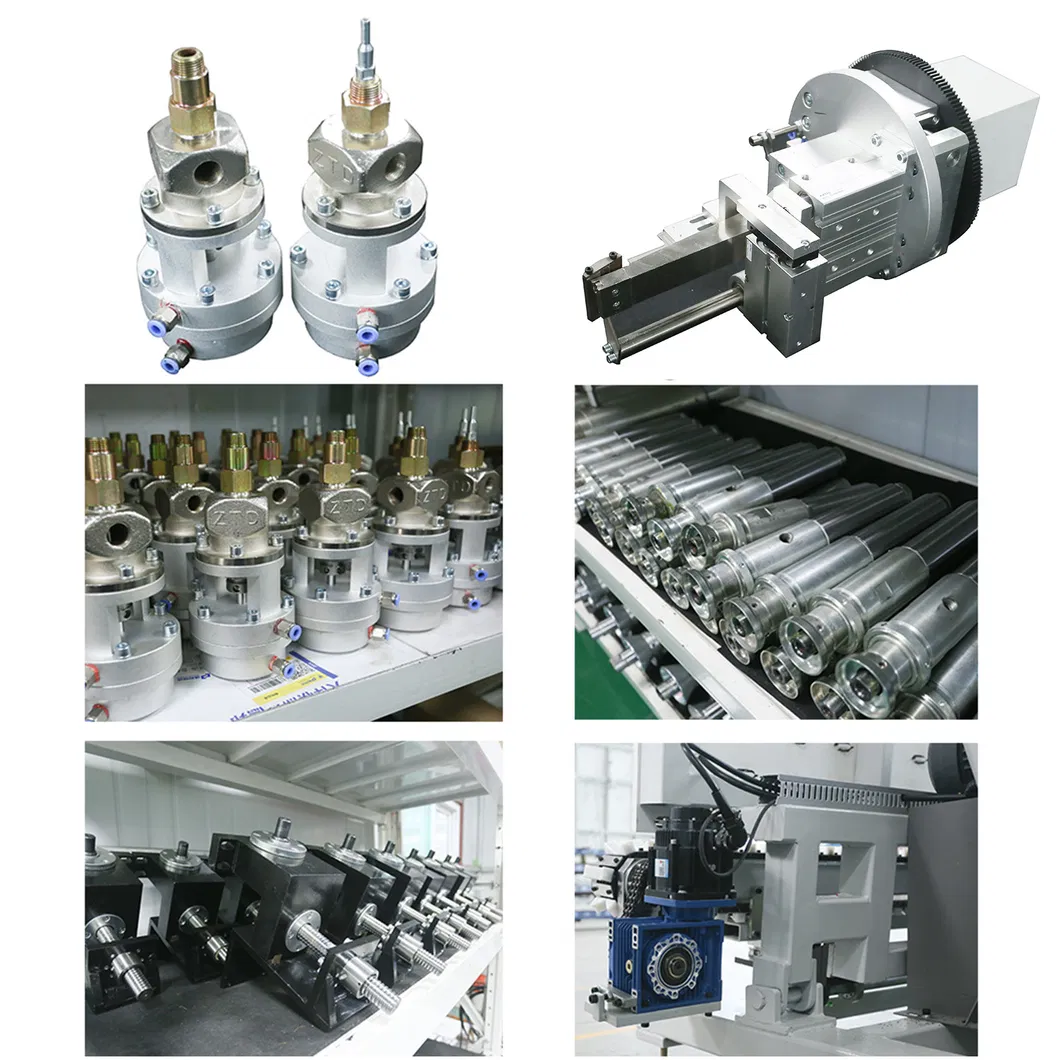

🛠️ Component Details
| Component Name |
Model/Brand |
Origin |
| Servo Motor & Actuator | Yaskawa SGMGV Series | Japan |
| Pneumatic Components | Airtac / SMC | Japan |
| PLC Control System | MP2300S / LT006 | International Brand |
| Photoelectric Switch | OPTEX / Autonics | Japan / Korea |
| Guide Rail & Slider | HIWIN HSR25 | High Precision |
| Vacuum Cup | SMC ZP100HS | Japan |

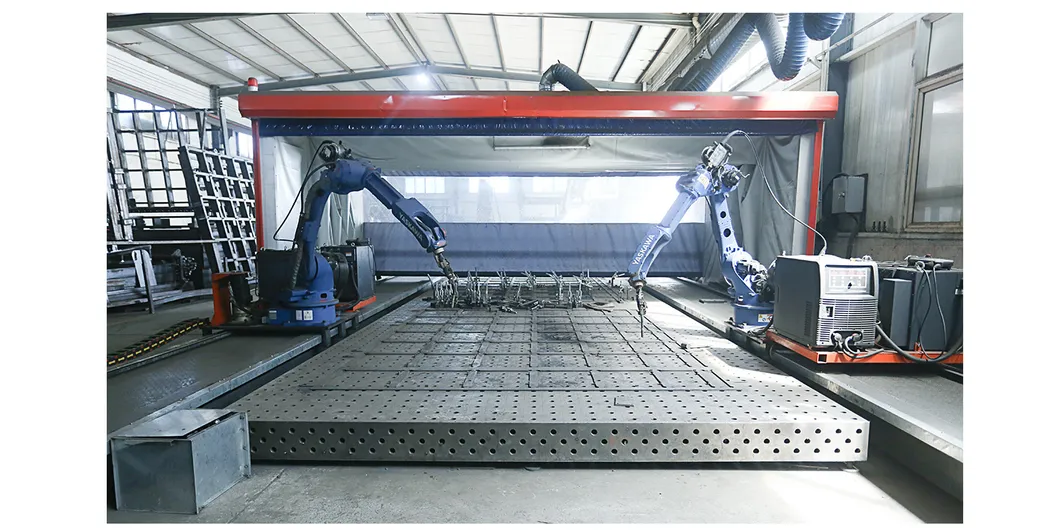

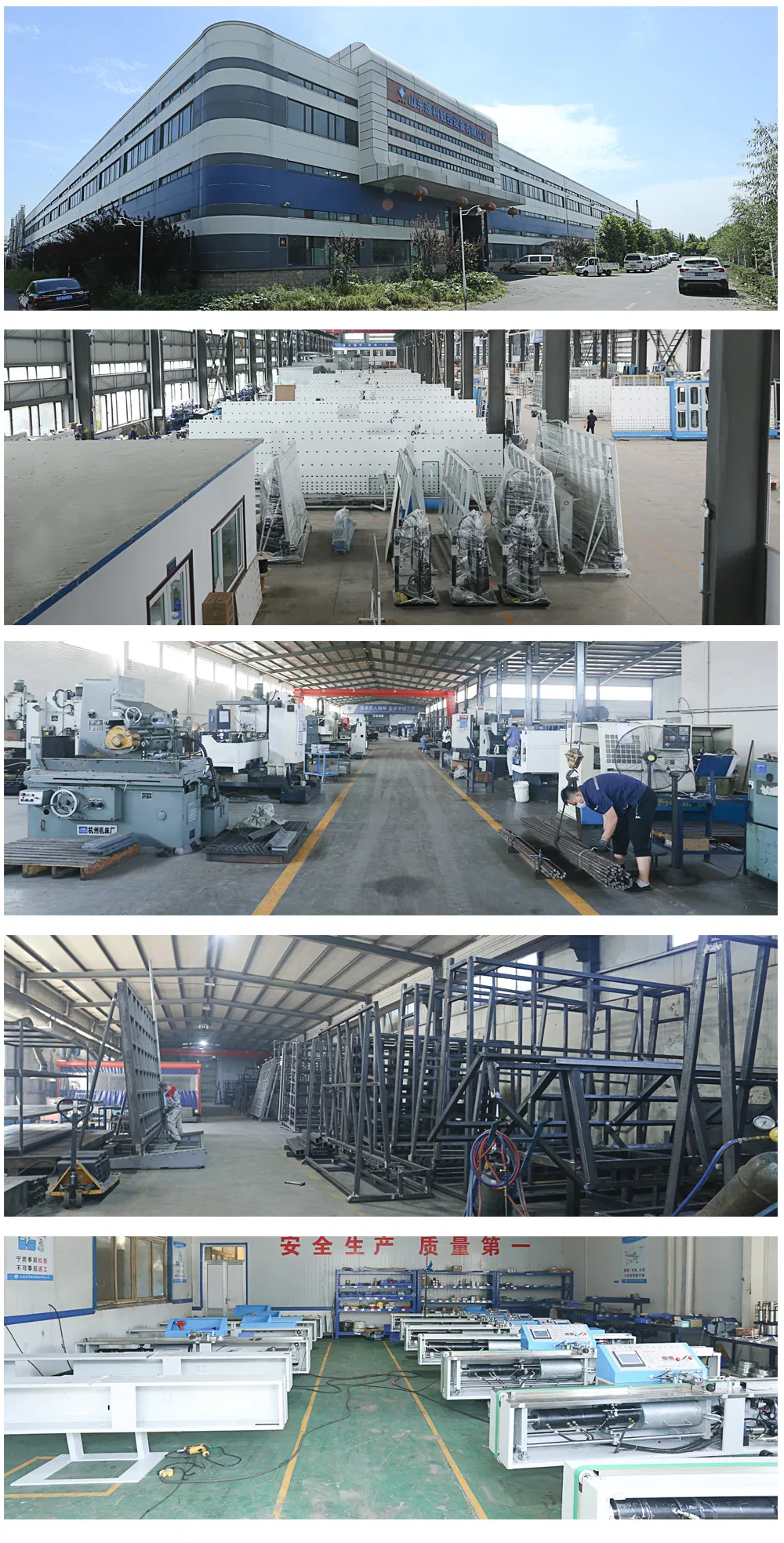

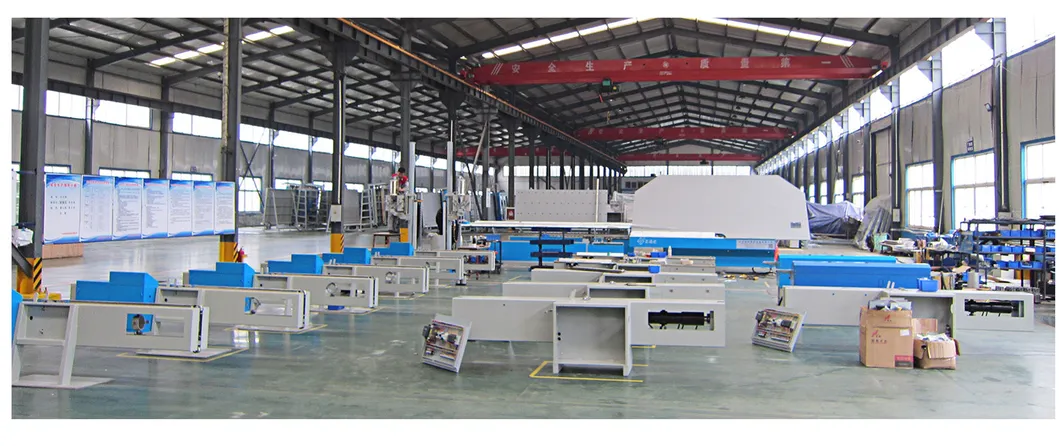

🏭 Workshop Overview
Established in July 2000, we are a high-tech enterprise integrated production, scientific research, and development of middle and high-grade insulating equipment. With over 21 years of experience in the insulating glass production field, our machinery holds CE Certification and adheres to ISO9001 standards.
🖼️ Product Gallery
❓ Frequently Asked Questions
Are you a professional manufacturer?
Yes, we are a professional manufacturer of insulating glass production lines with more than 21 years of industry experience.
What products are included in your production range?
We produce full Insulating Glass Production Lines, Automatic Sealing Robots, Butyl Coating Machines, Aluminum Spacer Bending Machines, Desiccant Filling Machines, and Glass Washing Machinery.
What is the standard delivery time for the equipment?
Normally, the delivery time is about 30 days. For certain special cases and specific products, we can expedite production within 2 weeks.
Which payment methods do you support?
We accept standard international payment methods, including T/T (Telegraphic Transfer) and L/C (Letter of Credit).
Where is the primary loading port for shipping?
Our primary loading port is Qingdao Port, China, providing convenient global shipping access.
Does the machine support triple glass sealing?
Yes, the ZDJ-V25 Automatic Sealing Robot is fully capable of sealing triple-glazed insulating glass units.
