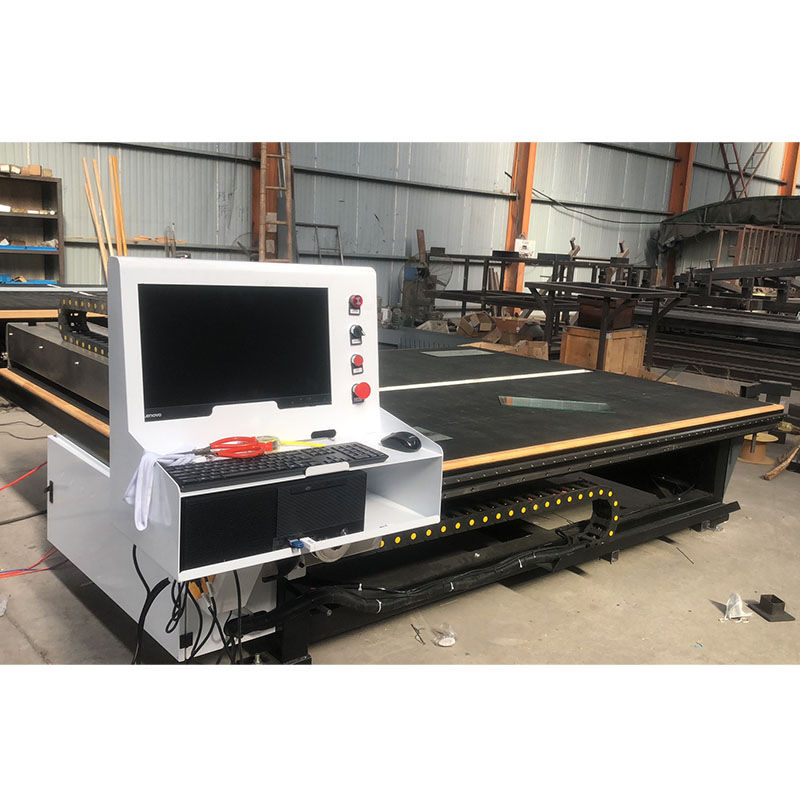

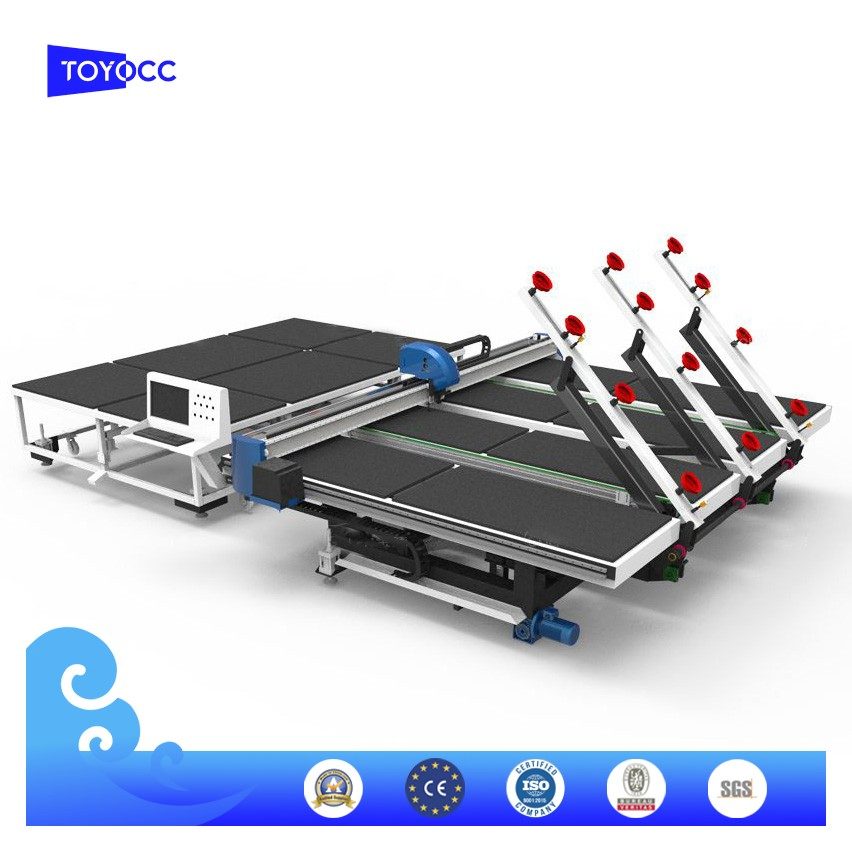

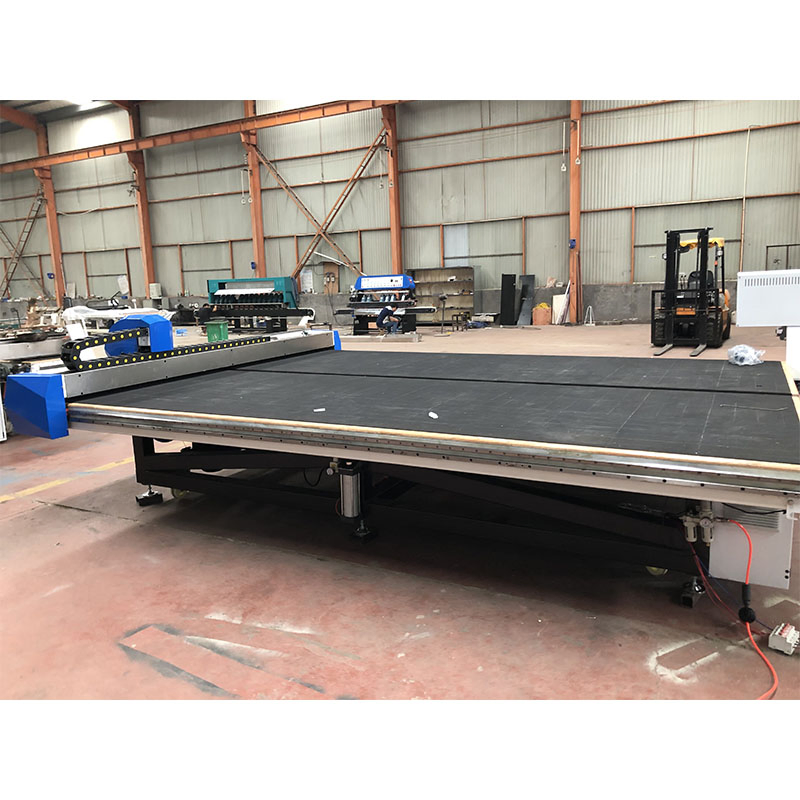

CNC Glass/Slab/Stone/Tile/Ceramic Cutting Table Only

1 / 5

CNC Glass/Slab/Stone/Tile/Ceramic Cutting Table Only

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Safety Features:

Emergency Stop Button, Overload Protection, Safety Sensor

Cutting Thickness:

2-19mm

Cutting Speed:

0-180m/Min

Loading Speed:

15-40 Seconds

Working Table Height:

850mm

Driven:

Electricity and Air

Operation Type:

Remote

Control System:

PLC

Warranty:

1 Year

Production Capacity:

10000 Pieces/Year

Product Description

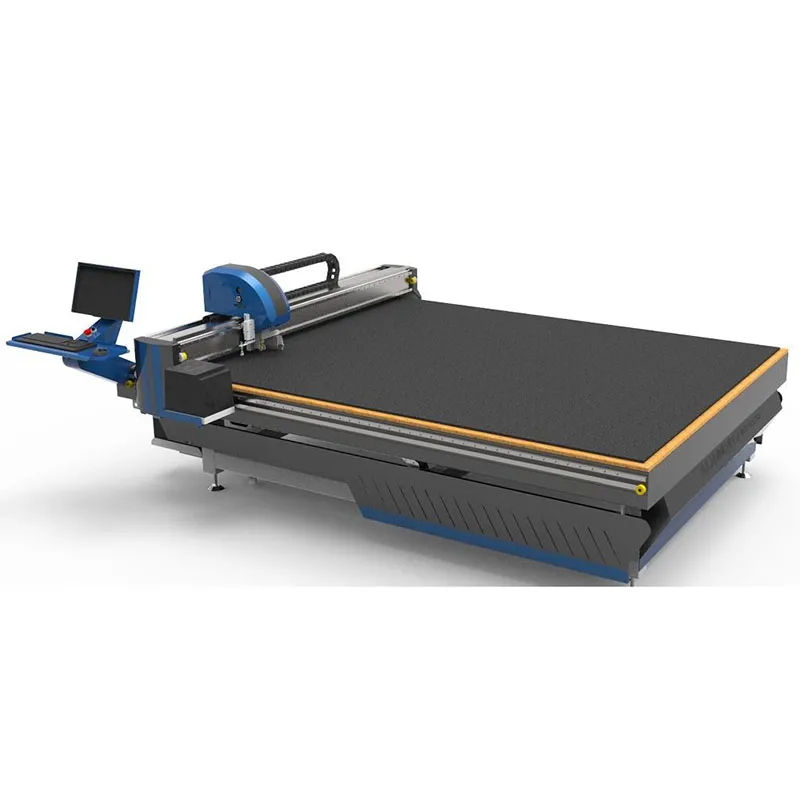

CNC Cutting Table Only

How to evaluate a high-quality glass cutting machine?

Choosing a reliable glass cutting machine is essential for production efficiency. We focus on structural integrity and precision components to ensure long-term performance.

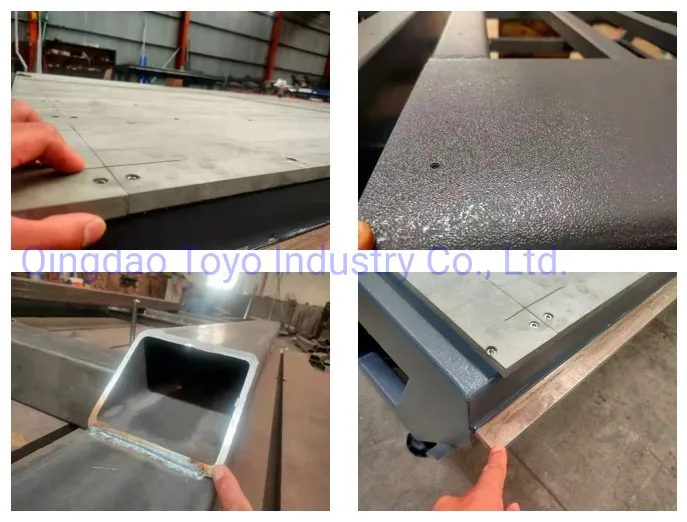

Premium Countertops

Our countertops are constructed from PVC resin plate, featuring high hardness, waterproof and oil-proof properties, and zero deformation. Unlike density boards or foam boards, our PVC resin board maintains perfect flatness, allowing for the precise cutting of glass as thin as 2mm.

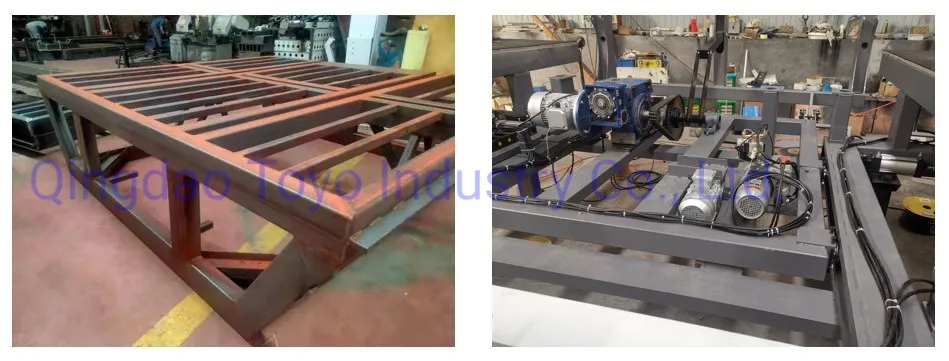

Robust Frame Structure

The entire frame undergoes annealing treatment after welding to release internal stress, preventing future deformation and maintaining a cutting accuracy of ≤0.2mm. We utilize annealed steel beams rather than aluminum to ensure superior stability and longevity.

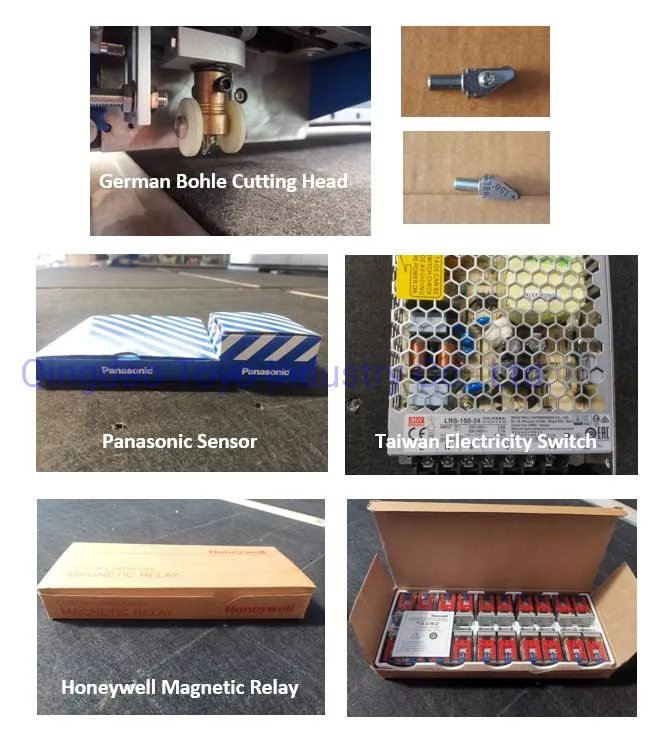

Key Technical Configurations

Japan Panasonic Sensor
German Bohle cutter head
American Honeywell Electrical Relay
Taiwan AirTAC air cylinder
Taiwan Meanwell Power Supply
Japan Mitsubishi PLC
Dual motor heads for cutting drive
360-degree rotation and free movement

Technical Parameters

Technical Parameters	TYJT-2420	TYJT3628
Dimensions	363047001400mm	391047001450mm
Table Height	850mm	850mm
Max Processing Size	2440*2000mm	3660*2800mm
Cutting Thickness	2-19mm	2-19mm
Cutting Speed	0-180m/min	0-180m/min
Installed Power	11.8 KW	11.8 KW
Net Weight	3000KG	3100KG

Break-off Table Parameters

Technical Parameters	TYJT-2420	TYJT3628
Dimensions	25002000810mm	26004020810mm

Detailed Features

Smart Suction
Equipped with a one-touch start and suction monitoring system, the machine automatically locates, angles, scans, and lifts the glass sheet for cutting.

Smart Typography
Simply input dimensions and shapes into the control panel; the machine optimizes layout automatically to save time and material.

Automatic Cutting
Features a German Bohle head with 360-degree rotation capability, allowing for computer-controlled automated cutting of any complex shape.

Air Floating Platform
Features over one hundred evenly arranged air holes to create a stable air cushion, making the movement of heavy glass effortless.

Certifications & Gallery

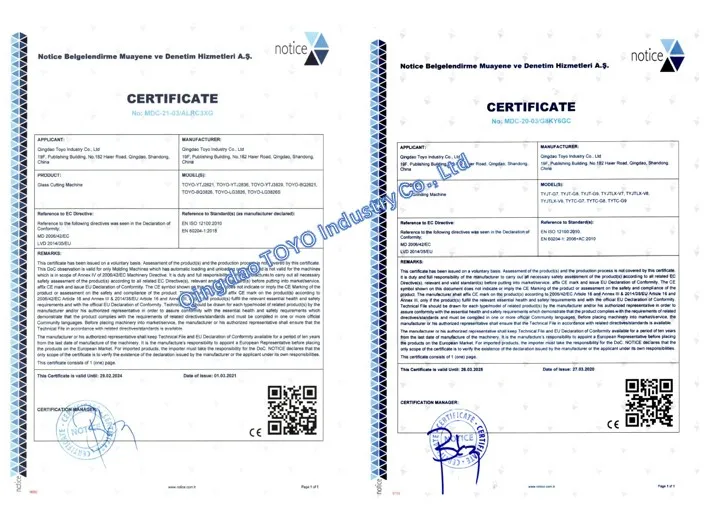

CE Certification

Frequently Asked Questions

Q: What is the range of glass thickness this machine can cut? A: The machine can cut glass with a thickness ranging from 2mm to 19mm using air pressure control.

Q: What is the maximum cutting speed? A: The machine can achieve a cutting speed of up to 180 meters per minute.

Q: How accurate is the cutting process? A: Thanks to the annealed steel frame and precision linear guides, the cutting accuracy is guaranteed to be ≤0.2mm.

Q: Can the machine cut shapes other than rectangles? A: Yes, the German Bohle cutter head can rotate 360 degrees, allowing for the automatic cutting of any shape programmed into the system.

Q: What makes the countertop better than others? A: We use high-hardness PVC resin plates which are waterproof, oil-proof, and non-deforming, unlike standard foam or density boards.

Q: Does the machine come with technical support? A: Yes, technical support is fully available for this machine.
