Product Description

Basic Information

Model NO.	WASR2030
Igu. Thickness	12~60mm
Power	10kw
Weight	3000kg
Color	Can Be Customized
Max. Glass Size	2000*3000mm
Type	Glass Coating Machine
Structure	Vertical
Condition	New
Warranty	1 Year
Production Capacity	60 set/Per Quarter

★

Product Description

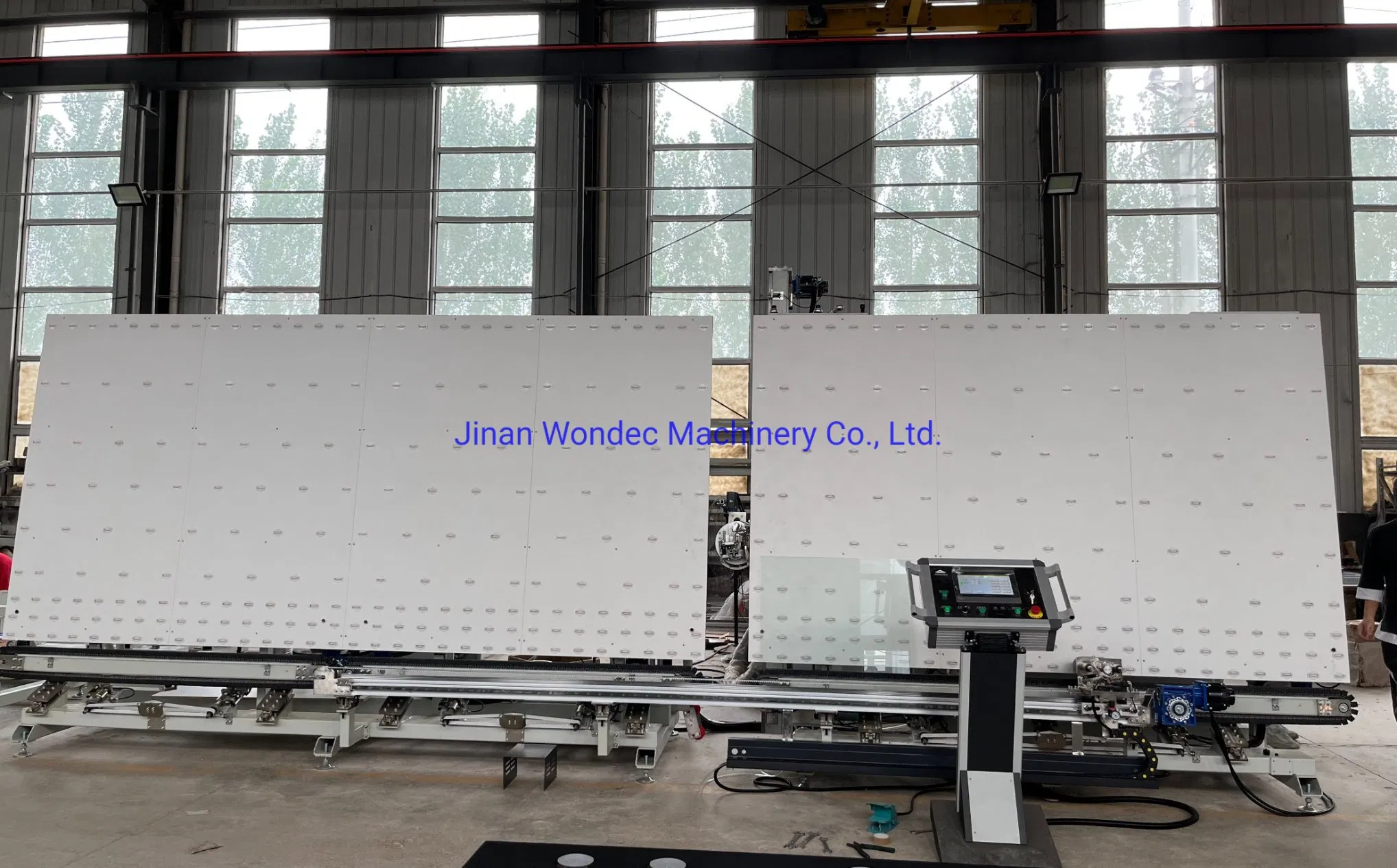

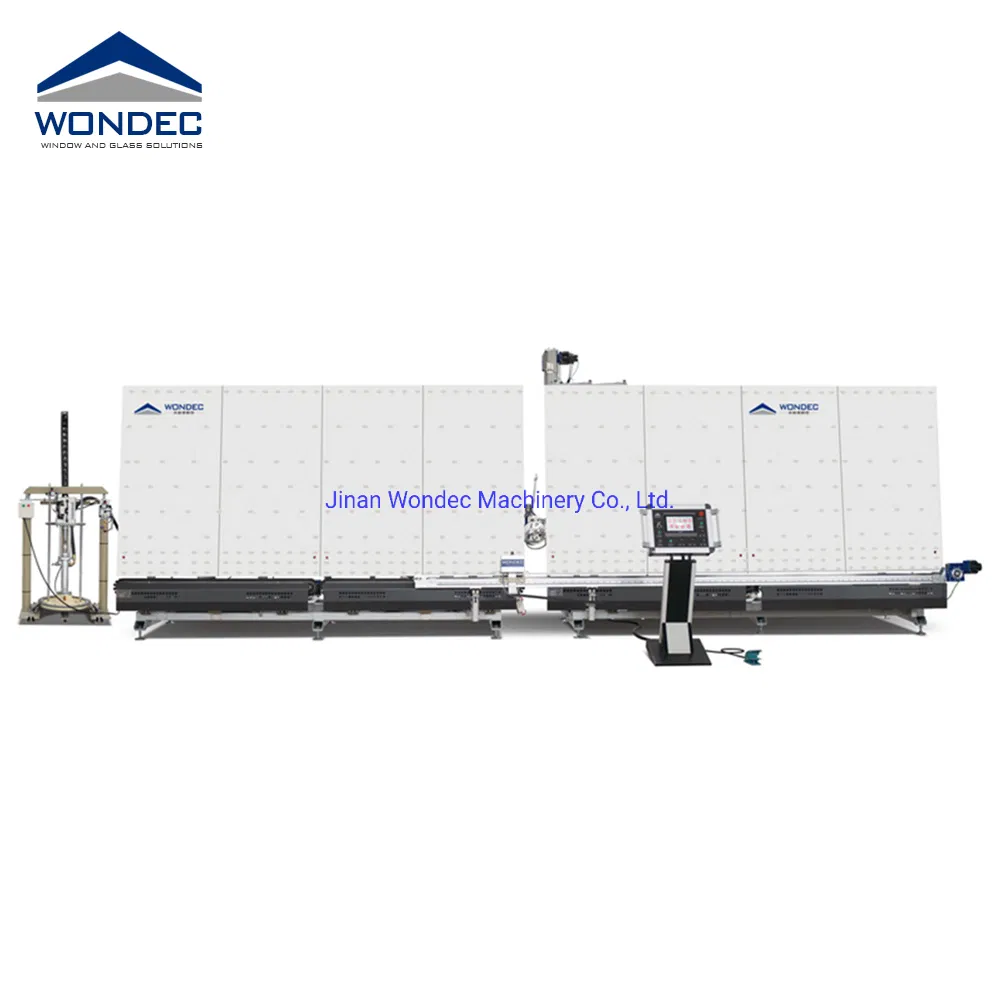

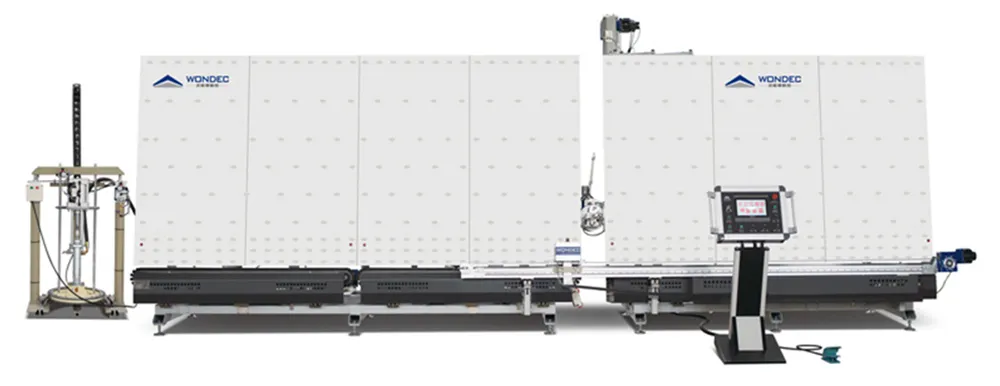

Insulating Glass Automatic Sealing Robot WASR2030

Integrated rack design minimizes the overall size and saves operation space.
Equipped with YASKAWA control system for fast operation and high stability.

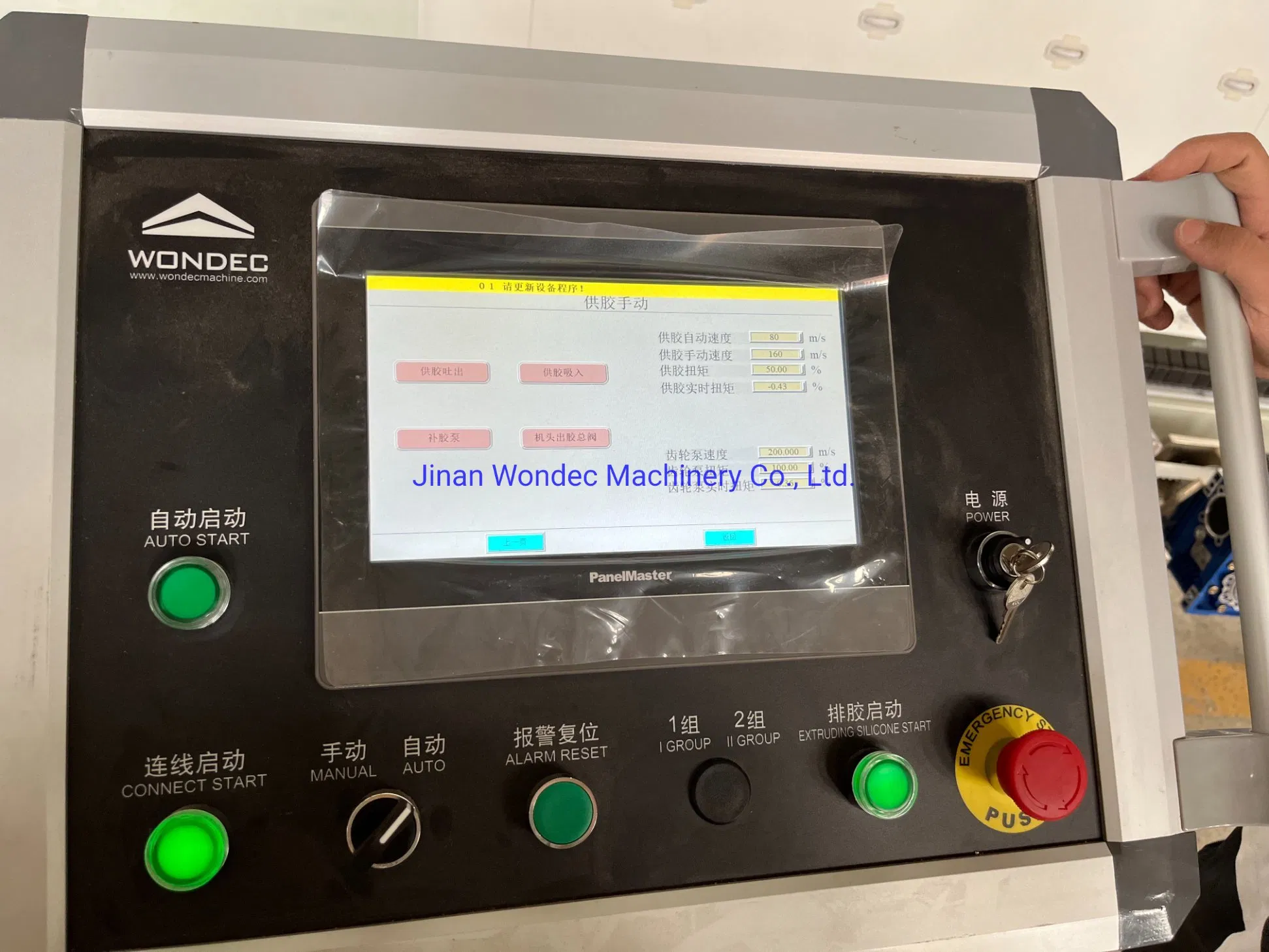

Touch screen interface for easy manual operation and fault diagnosis.
Memory function allows calling different glass parameters with one key.
Chain-type V-shaped block conveying ensures stable and accurate movement.
Special V-type transmission belt prevents sealant sticking and keeps edges clean.
Supports sealant coating for quadruple glasses and step units.
Automatic corner repair function for perfect finishing.
Independent double-spreading sealant systems with one-key switch.

📷

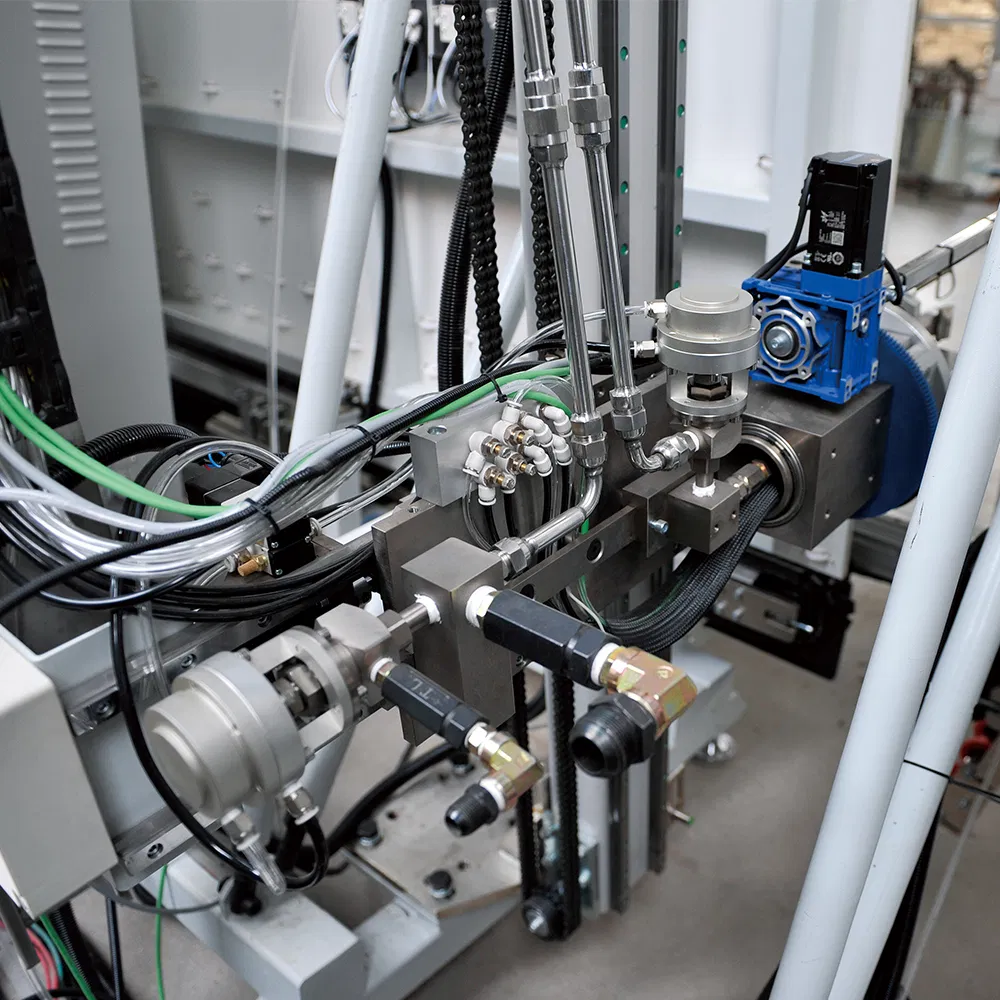

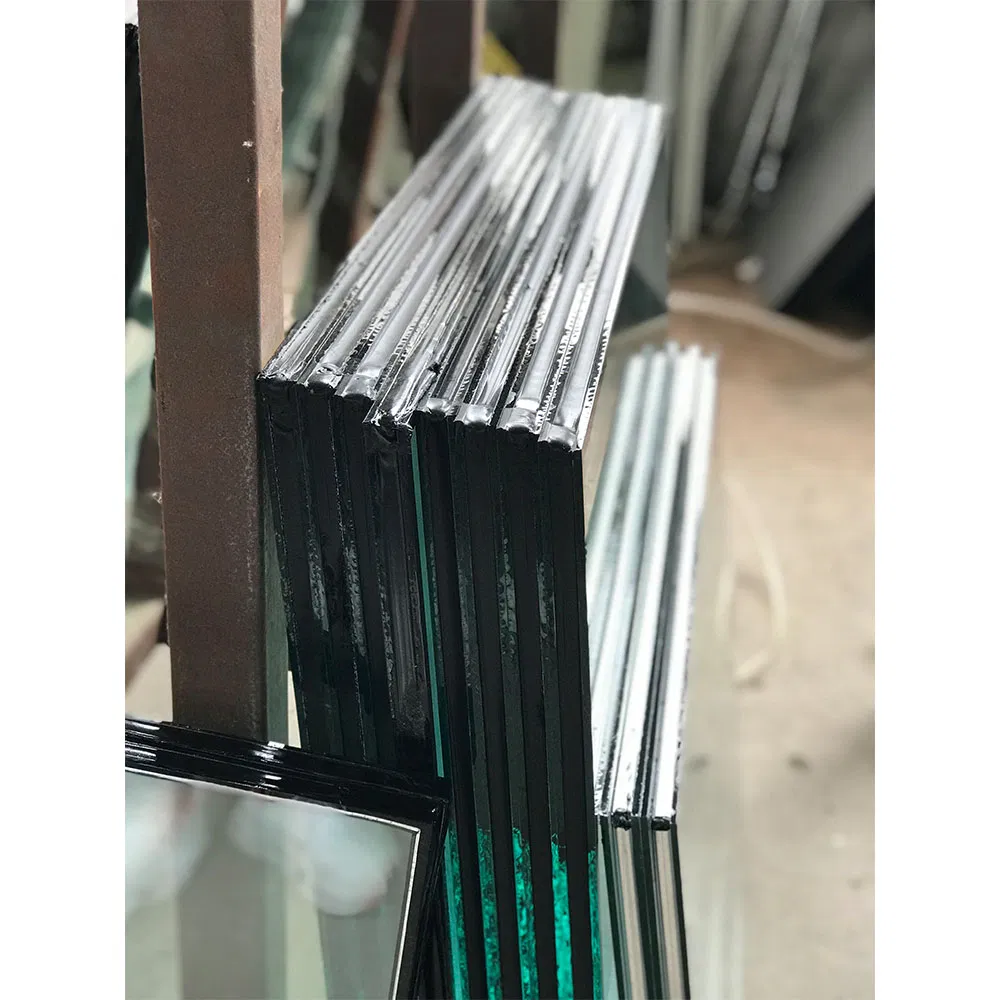

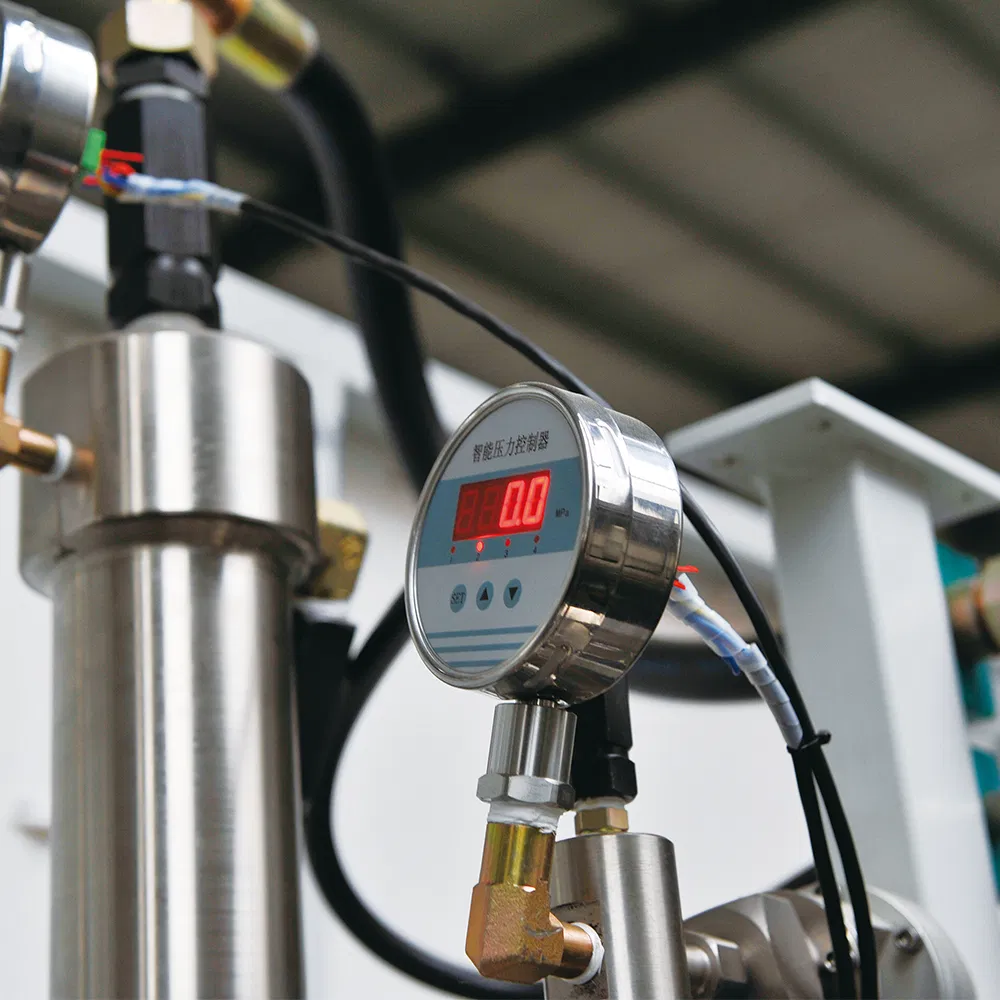

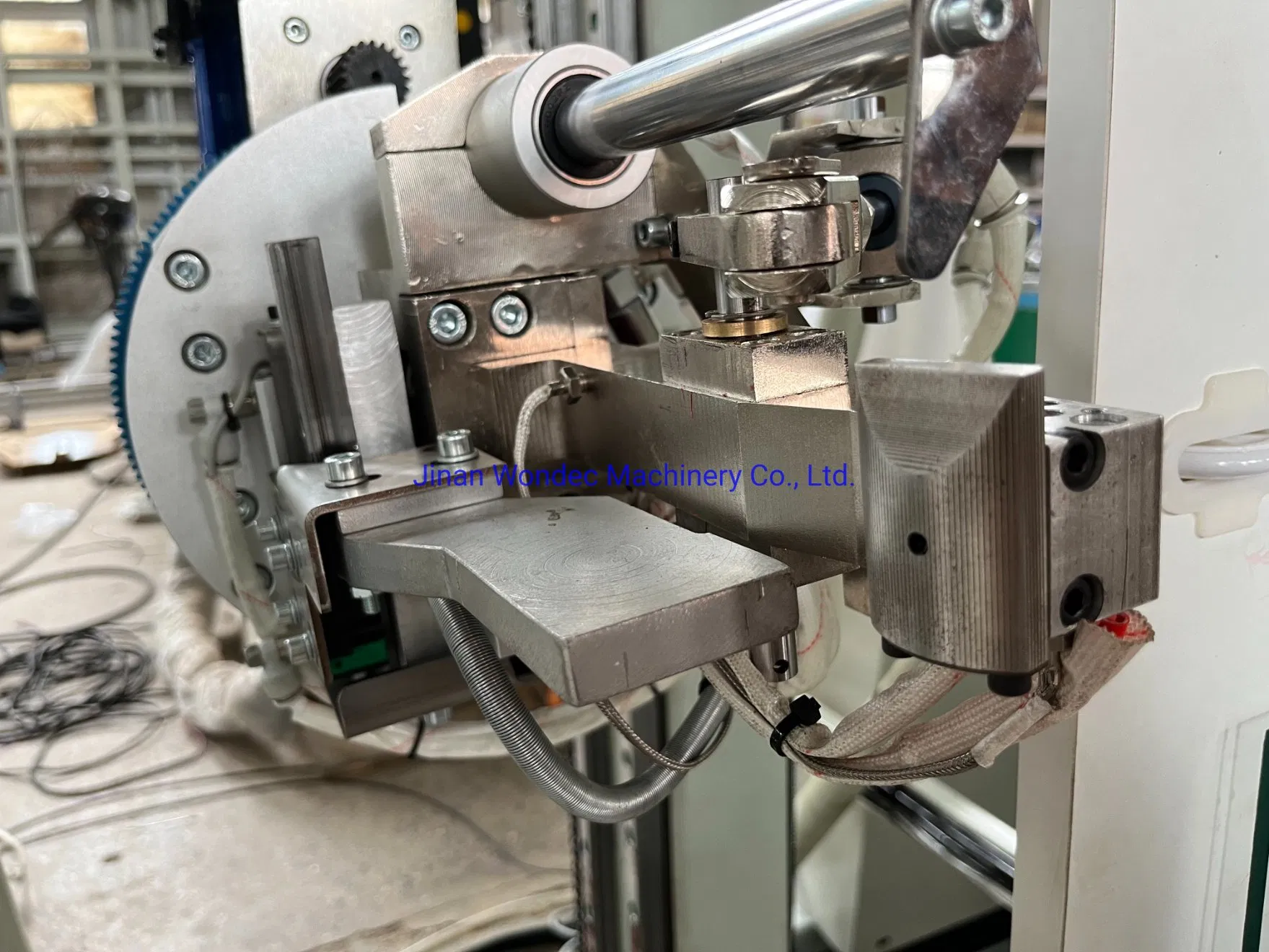

Detailed Gallery

1. Unique intelligent connection: digital reading of production line data automatically adjusts sealant distance.

2. Supports rectangular double-glass and triple-glass double-cavity sealant coating.

3. High-speed positioning function for accurate transmission.

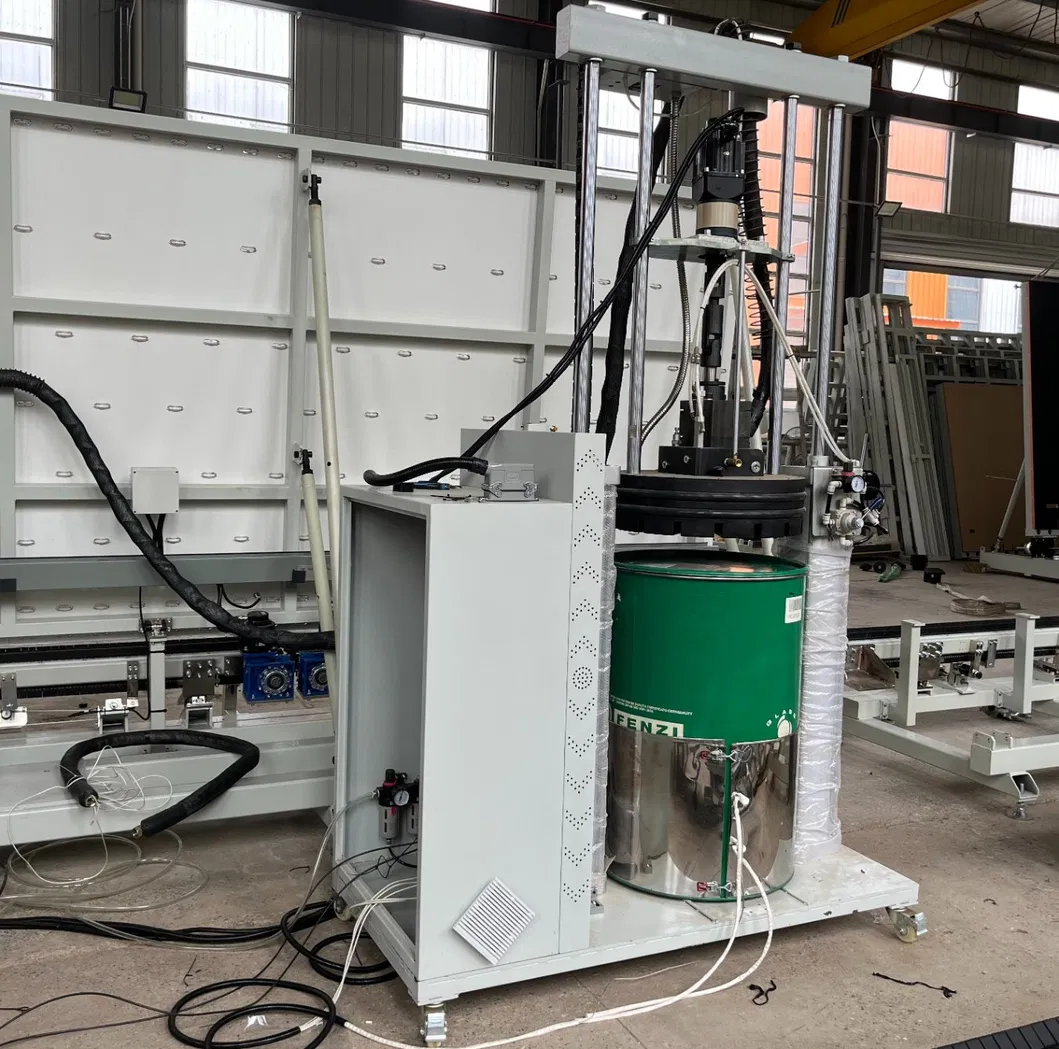

4. Hydraulic dispensing and proportioning system for precise A & B component mixing.

⚙

Product Parameters

Technical Parameter	WASR2030 Specification
Max. glass size	2000*3000mm
Min. glass size	300*180mm
Glass thickness	12-60mm (80mm optional)
Coating depth	3-18mm
Aluminum frame width	6-27mm
Coating speed	5-40m/min
Transmission speed	5-50m/min
Hydraulic pressure	<100kgf/cm²
Air pressure	0.6~0.8Mpa
Total power	10kw
Overall dimension	900025003400mm

🔄

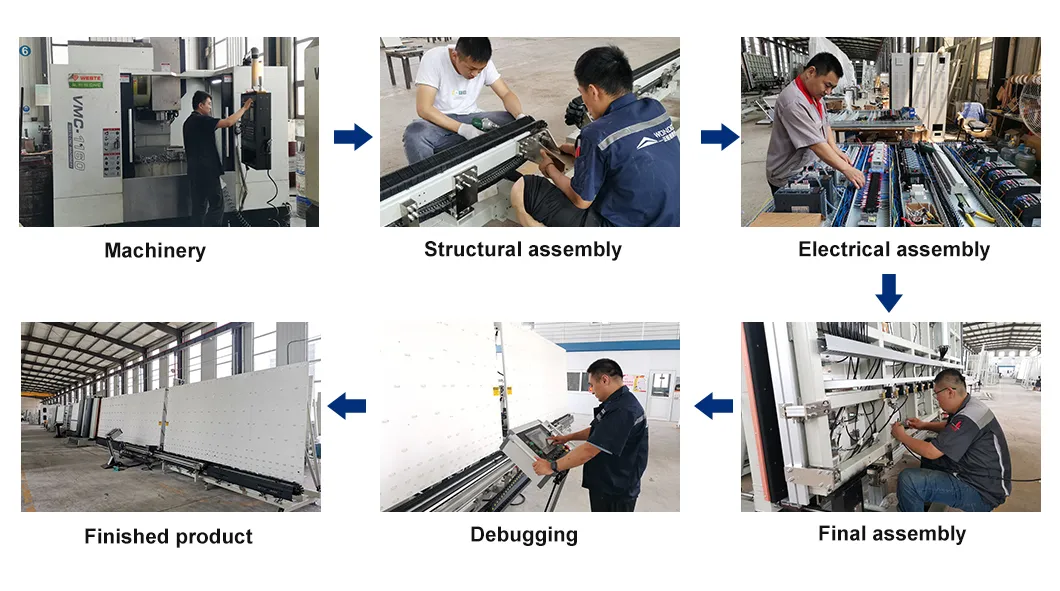

Production Workflow

📦

Packaging & Shipping

✔

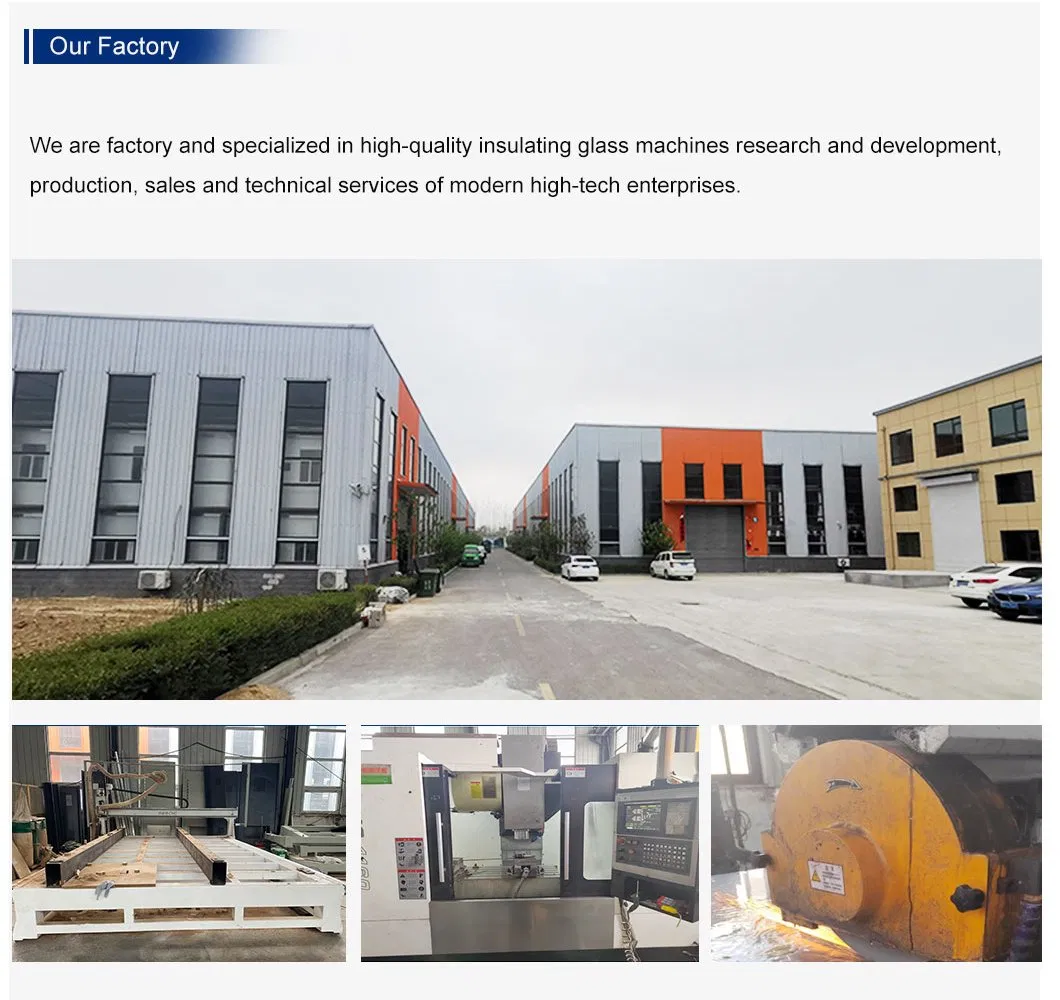

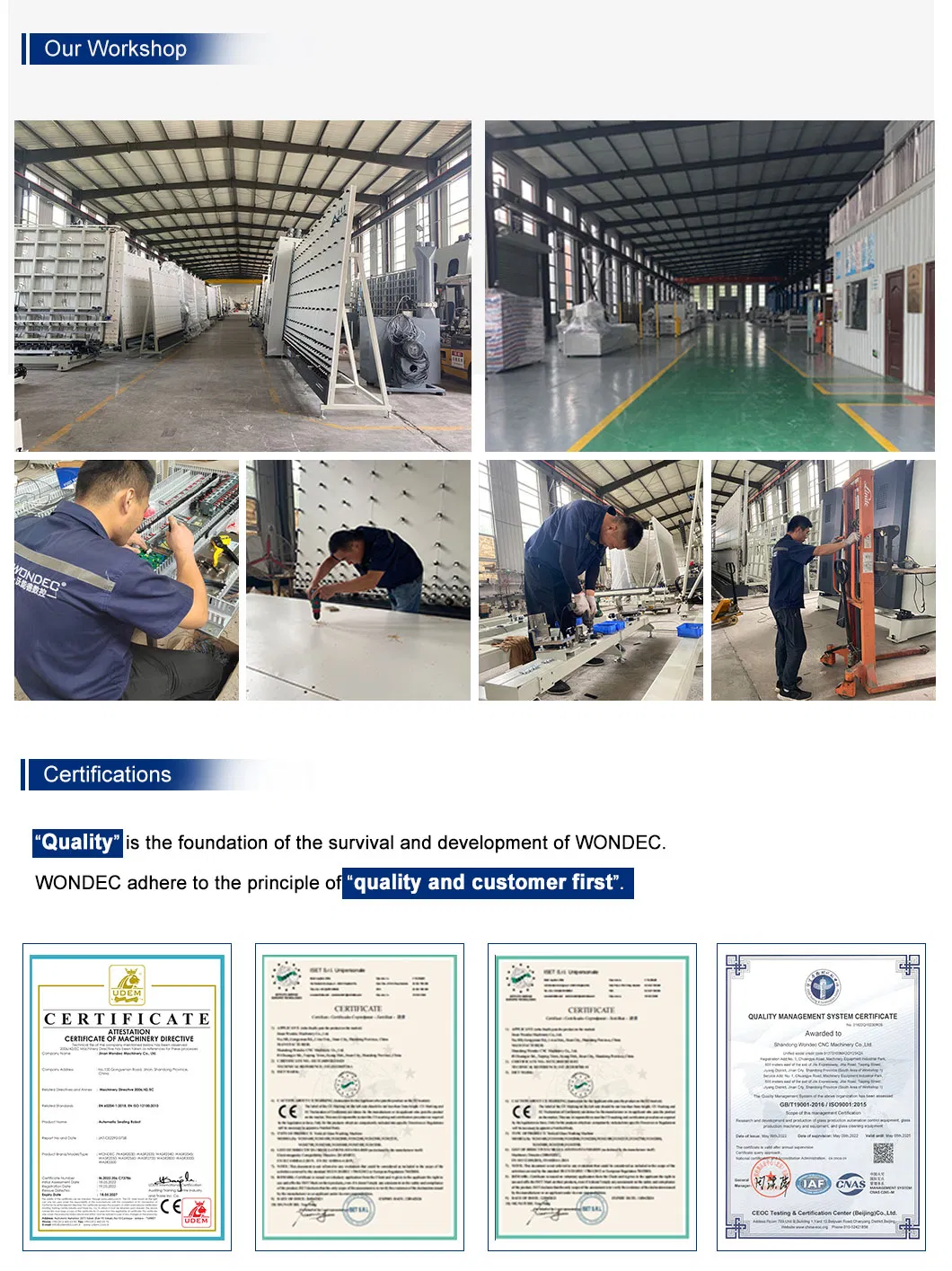

Why Choose Us

Frequently Asked Questions

1. Which countries are your products exported to? Our equipment has been exported to 50 countries and regions, including South America, South Africa, India, Turkey, Canada, Russia, and various European countries.

2. How do we operate the glass processing machinery? We provide comprehensive paper instructions in English and offer training until your team is proficient in operating the machine.

3. How is the quality control managed? The entire production procedure undergoes regular inspection and strict quality control. Every component is inspected, and the complete machine is tested thoroughly before leaving the factory.

4. Are you a manufacturer or a trading company? We are a professional manufacturer with over 10 years of experience in the glass processing machinery industry, providing both machines and integrated solutions.

5. What support is available if the machine has problems? Free replacement parts are provided during the warranty period. We offer lifetime after-sales service and 24/7 technical support via phone, mail, and messaging apps.

6. Can you provide installation services in my country? Yes, we can arrange for engineers to visit your factory to install the machine and train your personnel upon arrival.
