Product Overview
| Basic Specifications |
| Model NO. | DS-ICT2621-J |
| Max Cutting Size | 2600×2100mm |
| Maximum Cutting Thickness | 20 mm |
| Glass Thickness Range | 3-19mm |
| Cutting Precision | ±0.20mm |
| Maximum Cutting Speed | 160m/min |
| Loading Cycle | 40~50s |
| Power Supply | 380V 50Hz (Customized) |

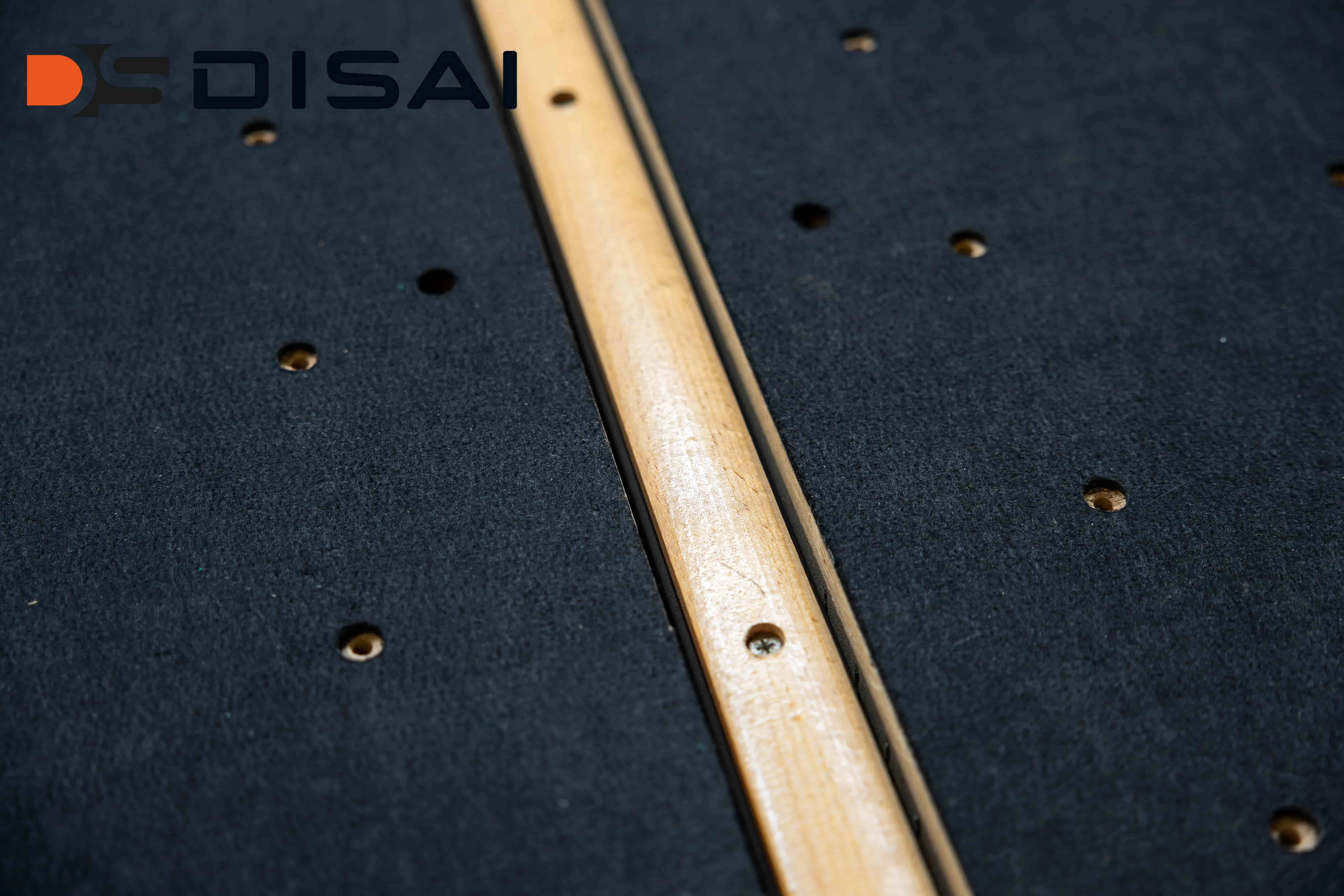

| Vacuum Pressure | -70~-99 Kpa |
| Dimension | 3440mm X 3000mm X 900mm |

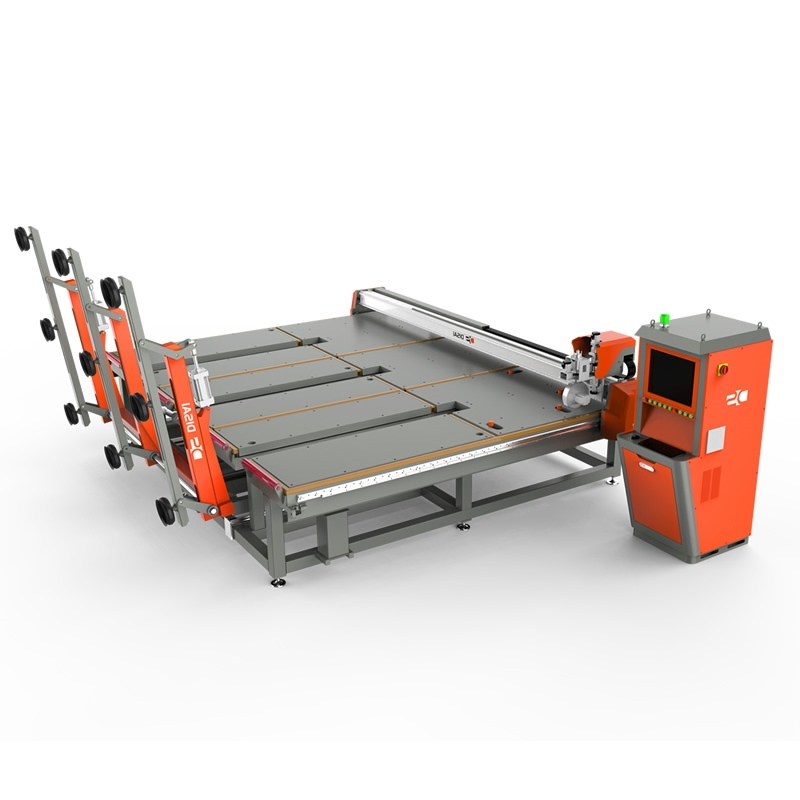

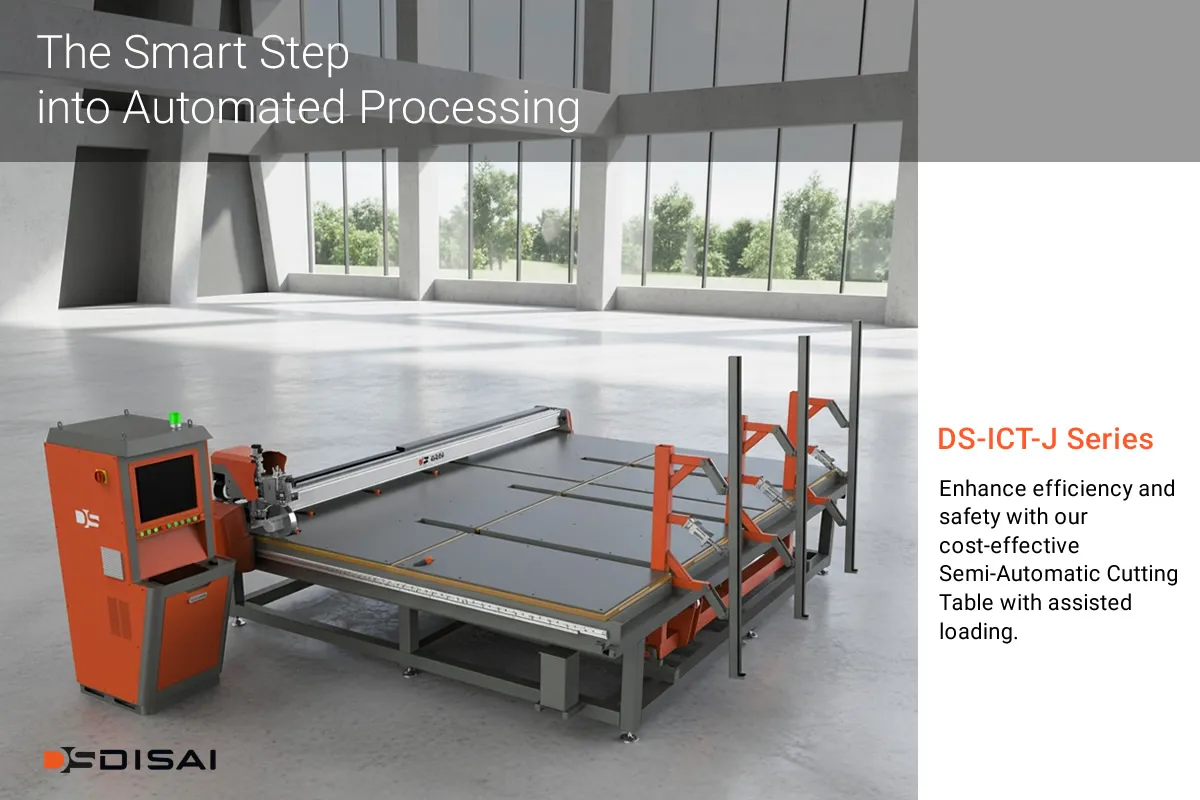

All-in-One Semi-Automatic Glass Cutting Table
The DS-ICT2621-J is an all-in-one semi-automatic glass cutting machine that combines assisted manual loading and high-precision cutting into one compact machine. It is the perfect space-saving solution for workshops looking to upgrade from manual operations.
The tilting table helps operators load glass safely and easily, while the 160m/min cutting speed ensures high efficiency. This machine offers stable performance, simple operation, and is engineered to deliver high-quality results.
⚙️
Compact Design
Saves significant workshop space with an integrated layout.
🛡️
Safety First

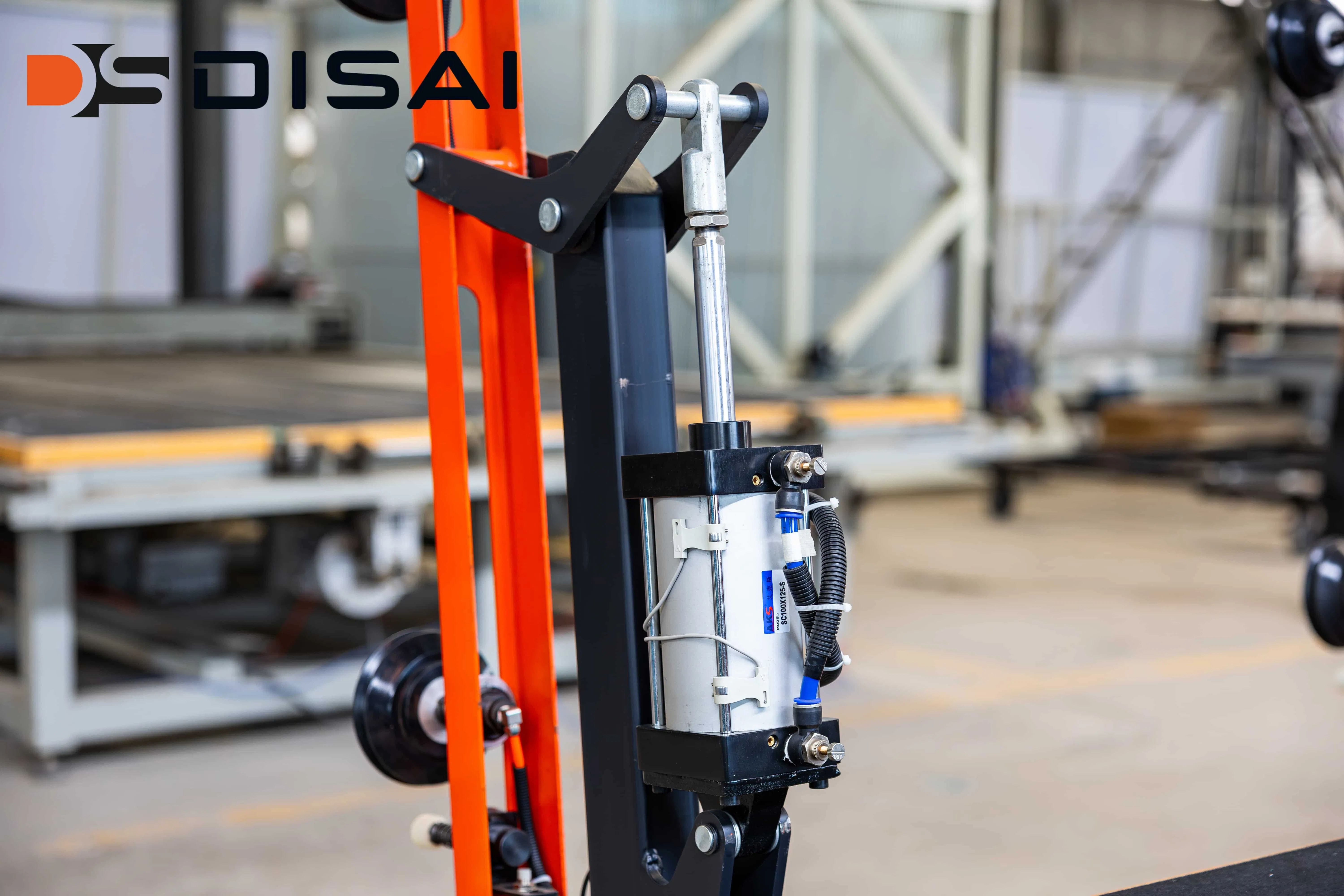

Assisted loading improves operator safety and reduces labor.
⚡
High Efficiency
160m/min cutting speed and ±0.20mm precision.

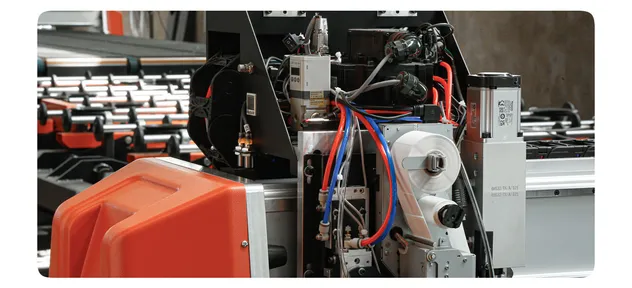

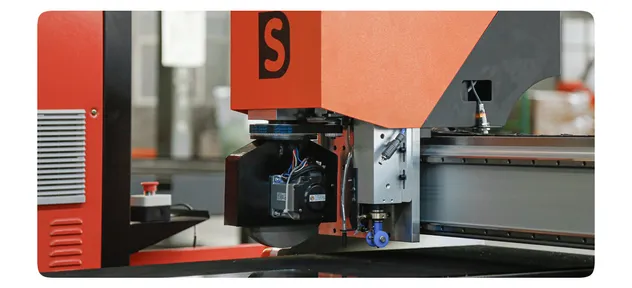

World-Class Components
| Part Name |
Brand |
Origin |
| Motion Controller | Delta Tau (PMAC) | USA |
| Servo Motor/Drive | Panasonic | Japan |
| PLC / Frequency Converter | Siemens | Germany |
| Limit Switch / Photoelectric | OMRON | Japan |
| Drag Chain / Cable | IGUS | Germany |

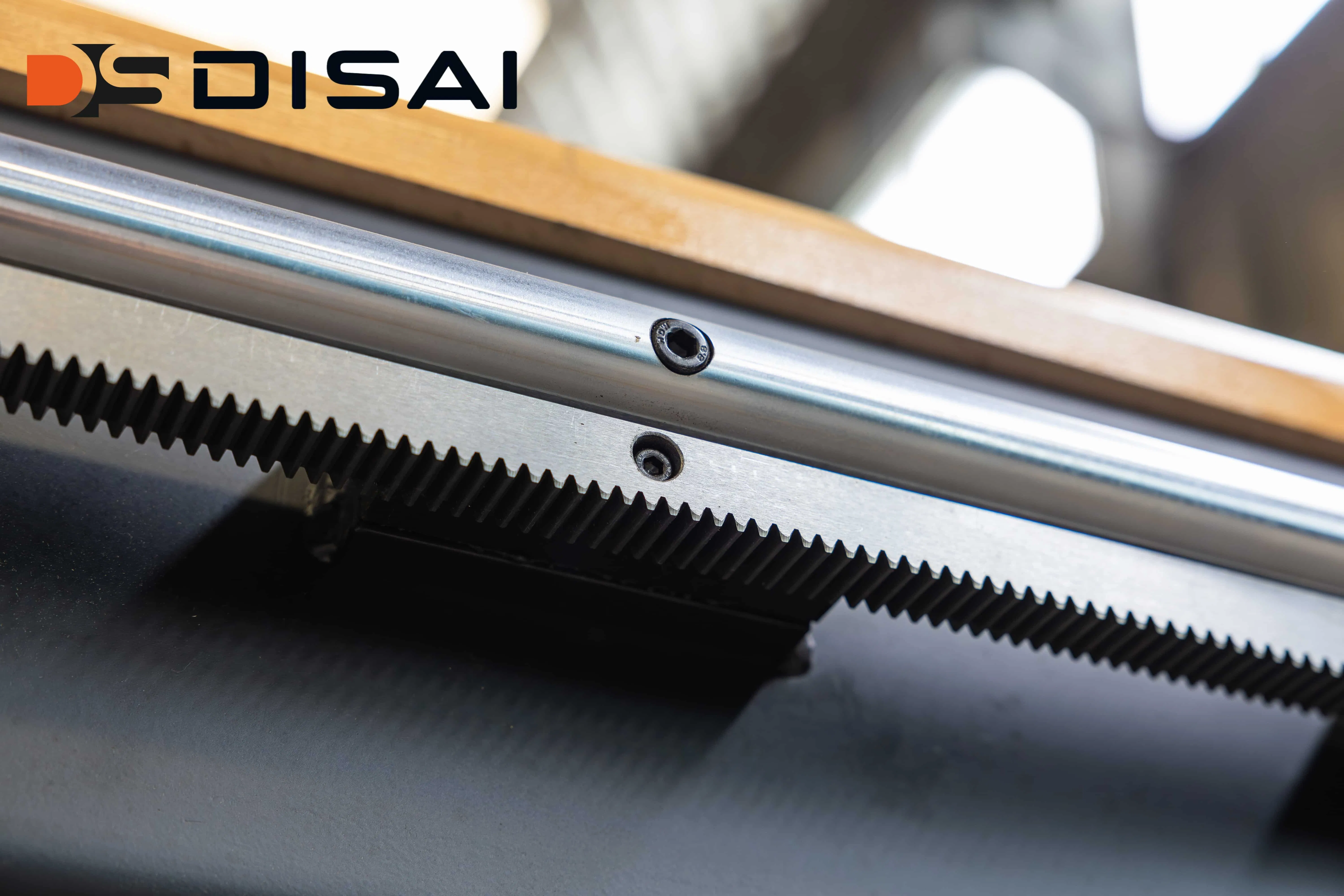

| Linear Guide Rail | HIWIN/SHAC | Taiwan |
Application Scenarios
Our intelligent solutions are critical tools for industry leaders who demand perfection across various sectors:

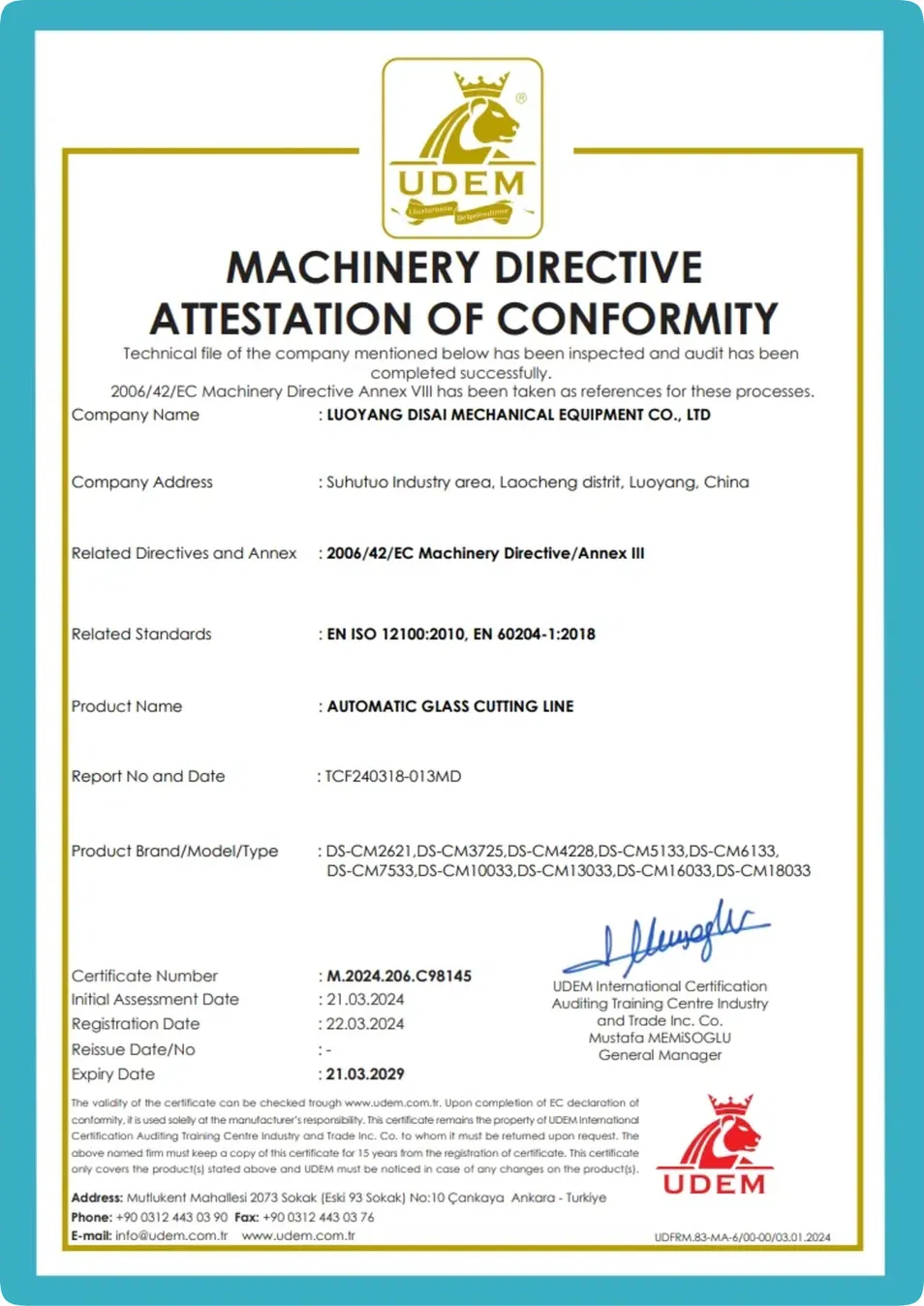

Global Standards & Certifications
CE Machinery Directive (2006/42/EC): Our product design, manufacturing, and safety performance meet leading international standards including EN ISO 12100 and EN 60204-1.
Frequently Asked Questions
What types of glass can this machine cut?
It is engineered to cut a wide variety of glass, including float, Low-E, coated, and mirrored glass, with thicknesses ranging from 3mm to 19mm.
How accurate is the cutting precision?
We guarantee a cutting accuracy of ±0.20 mm, ensuring flawless edges ready for tempering, laminating, or IGU production.
Is the machine difficult to operate?
No. It features an intuitive interface, supports direct CAD/CAM file imports, and includes intelligent nesting software to optimize material usage.
What is the expected Return on Investment (ROI)?
Most customers achieve a full ROI within 6-9 months through significant gains in output, reduced labor costs, and minimized material waste.
What certifications does the equipment have?
All machines are CE certified, and manufacturing processes follow ISO 9001 standards to ensure top-tier quality and safety.
How long does installation and training take?
Standard setup is typically completed in 2-3 days, followed by 1-2 days of comprehensive operator training.
