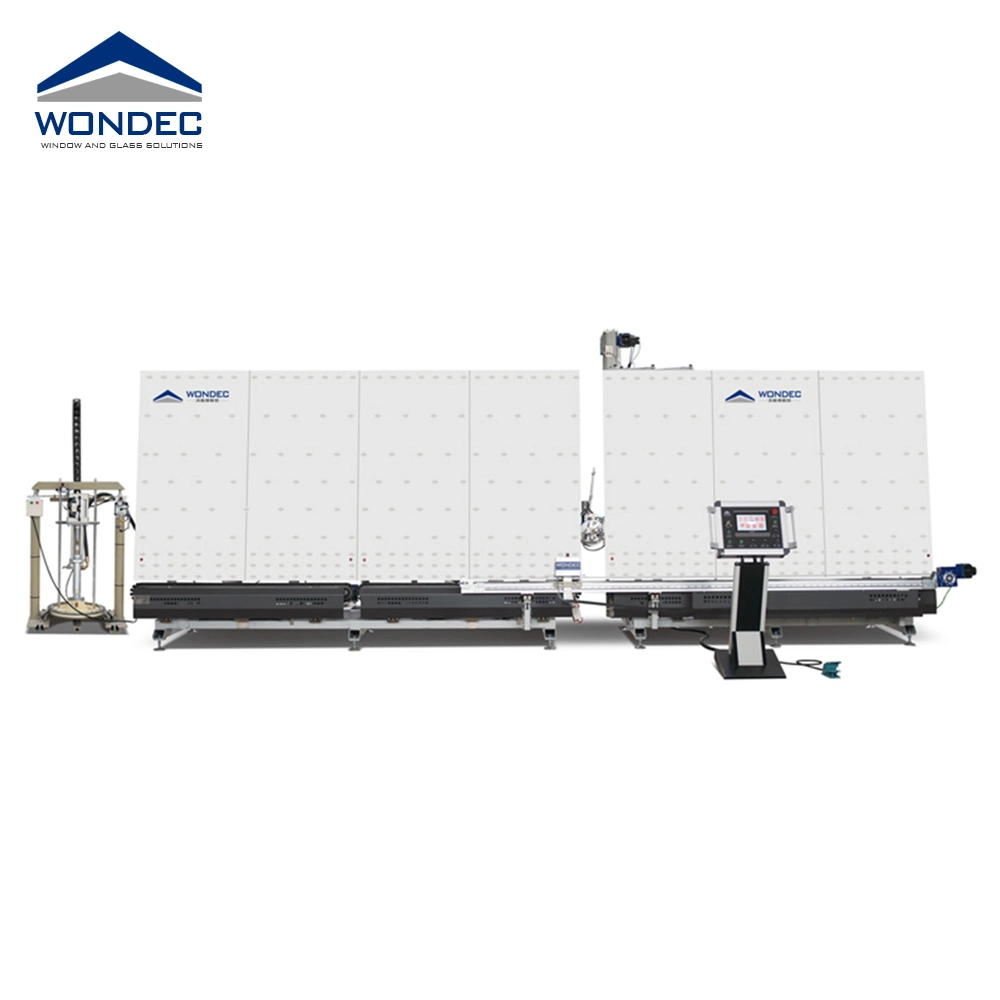

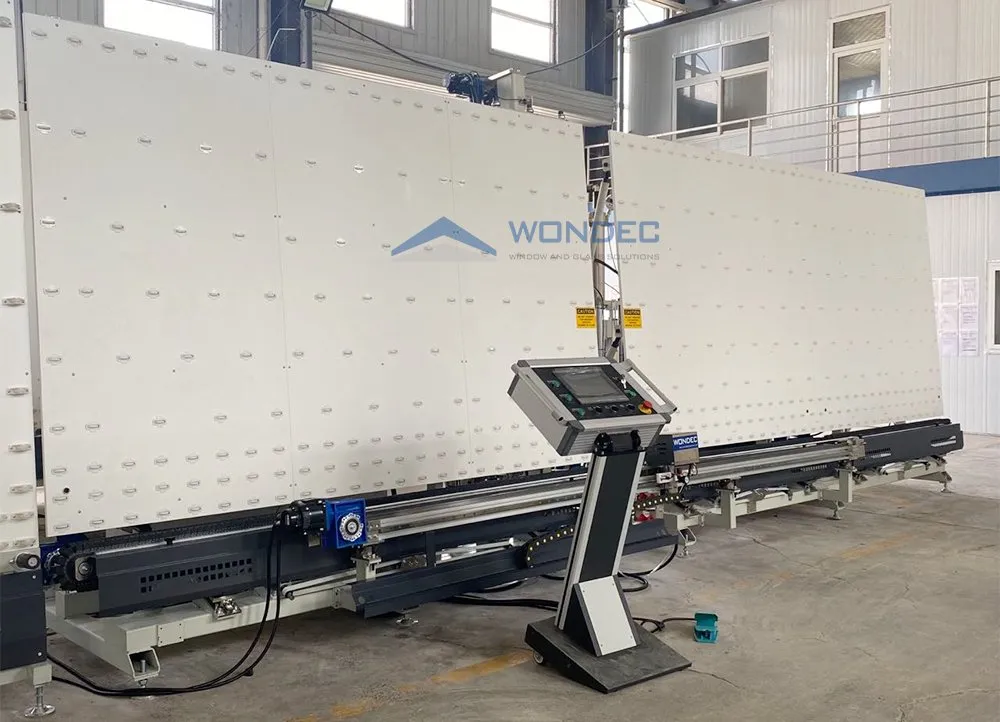

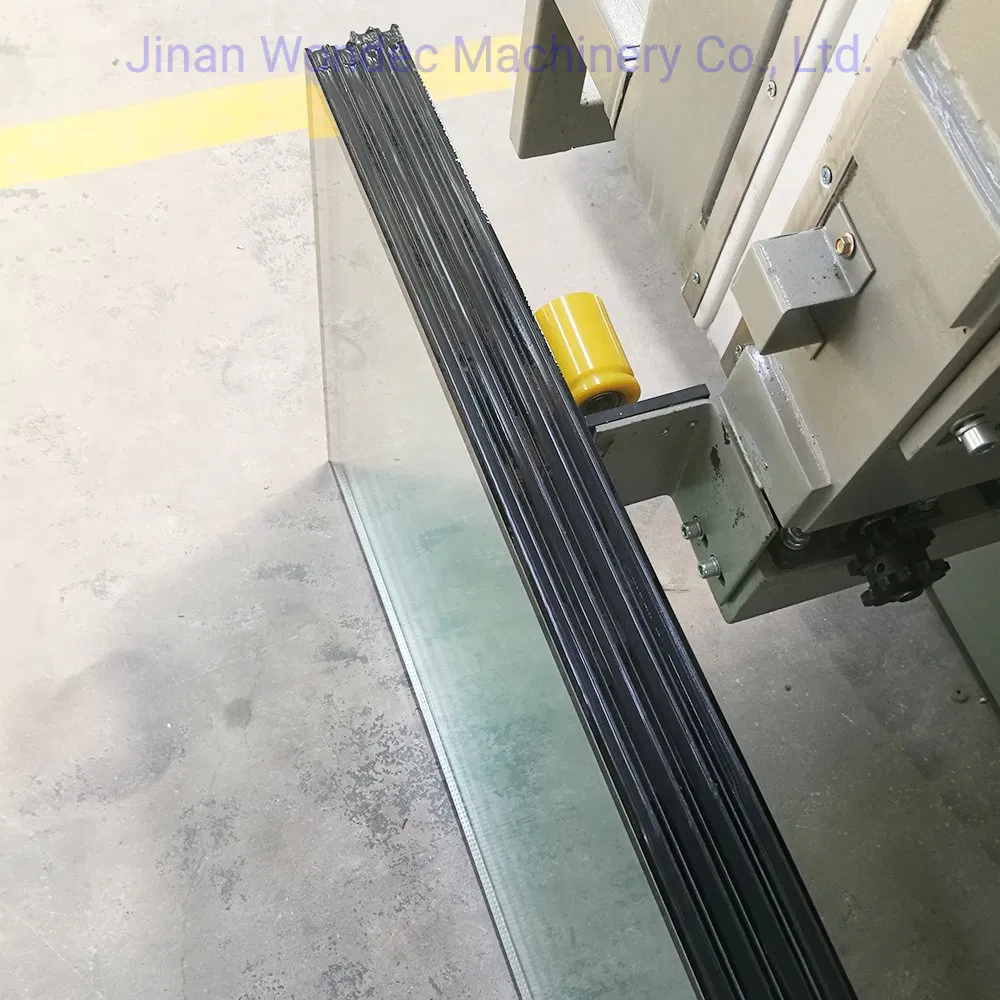

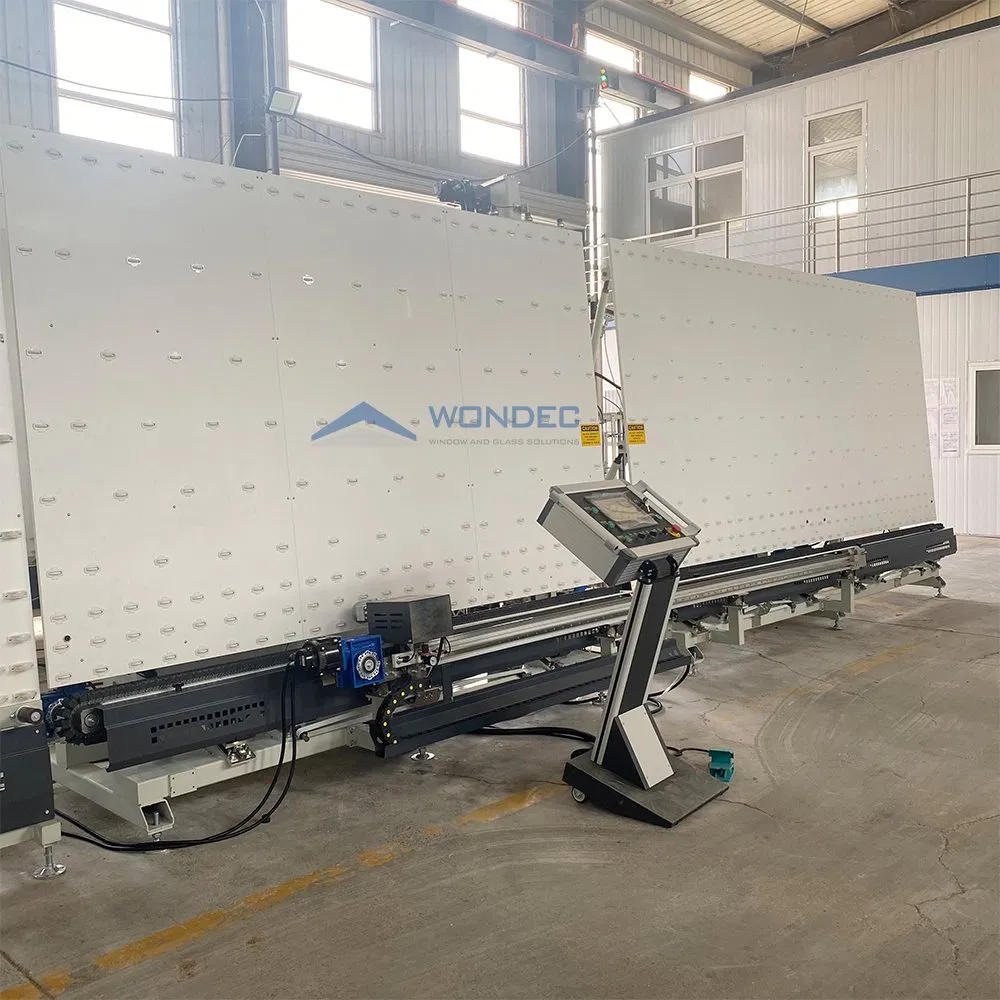

Automatic Silicone Glue Sealing Robot Machine for Final Seal of Double Triple Glazing Insulated Facade Glass Units.
Servo motor driven automatic glass sealing robot carries out the final sealing of the insulated glass units, providing accurate sealing of the angles and assuring high operating speed. With its robotic structure, the machine automatically can seal double, triple and step glasses with maximum quality.

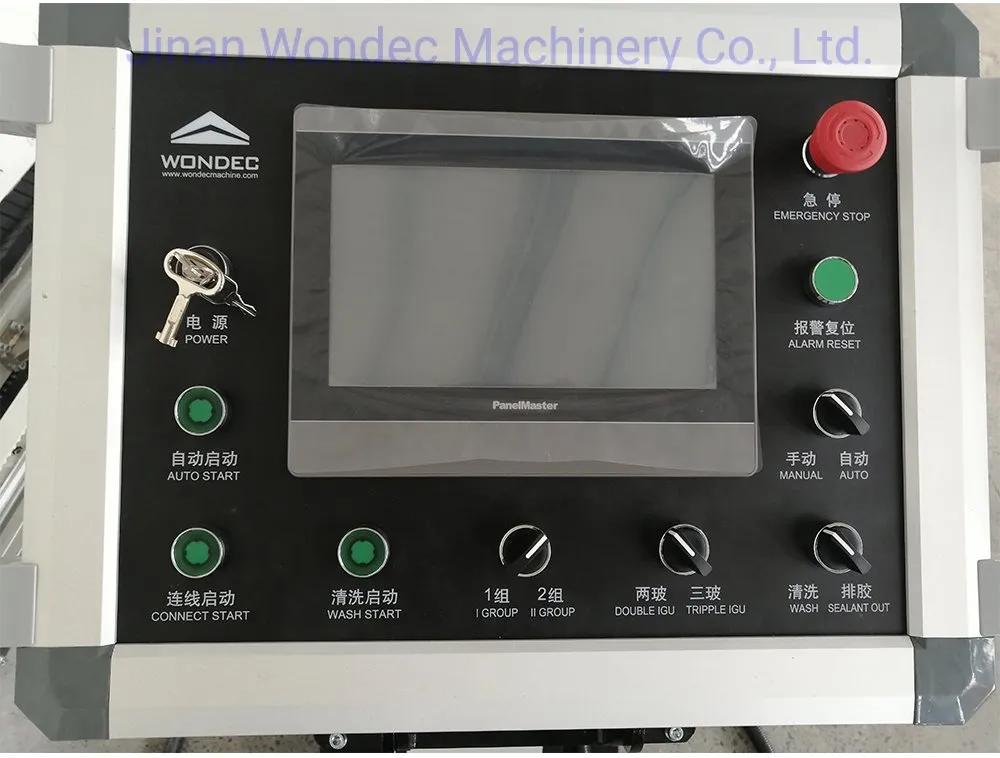

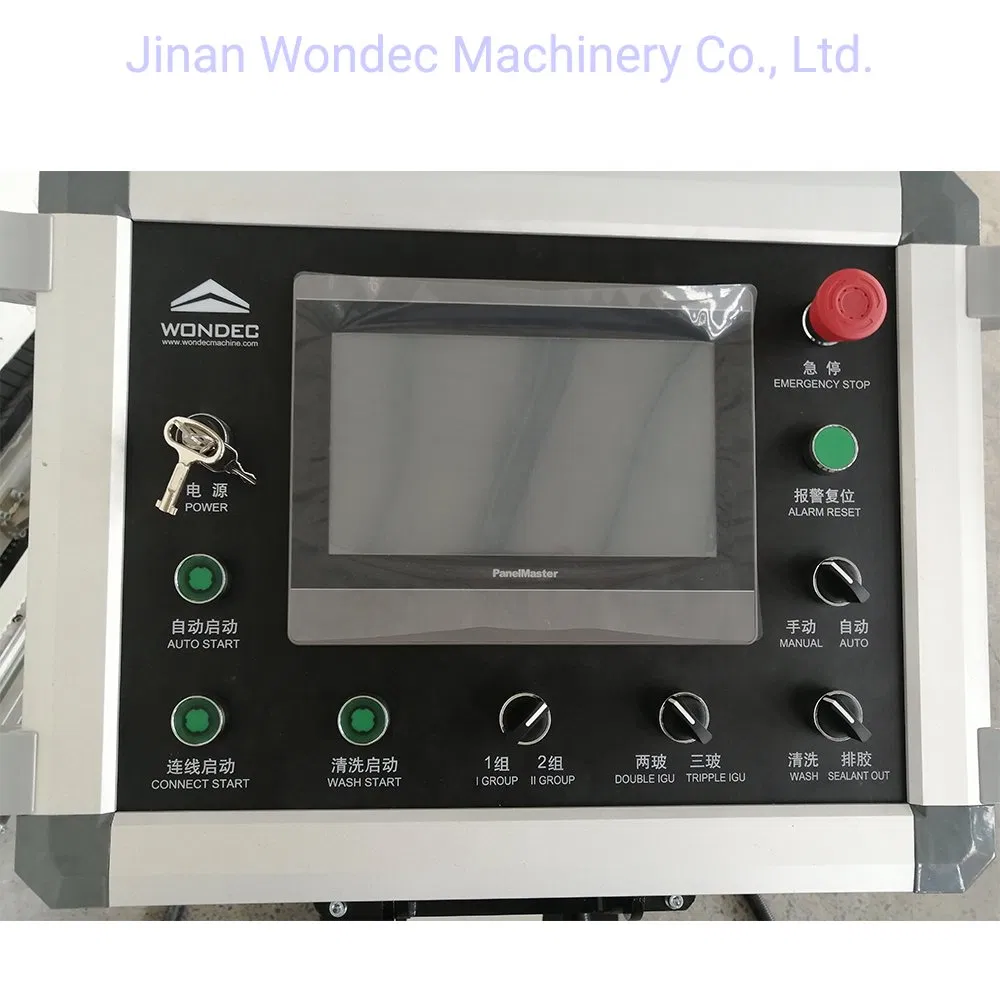

✅ Touch screen interface, manual operation and fault diagnosis can be realized.
✅ Automatic sealant discharging function to avoid pipeline blockage.
✅ The program has memory function, and different types of glass parameters can be called with one key.
✅ Equipped with high speed positioning function for accurate transmission.

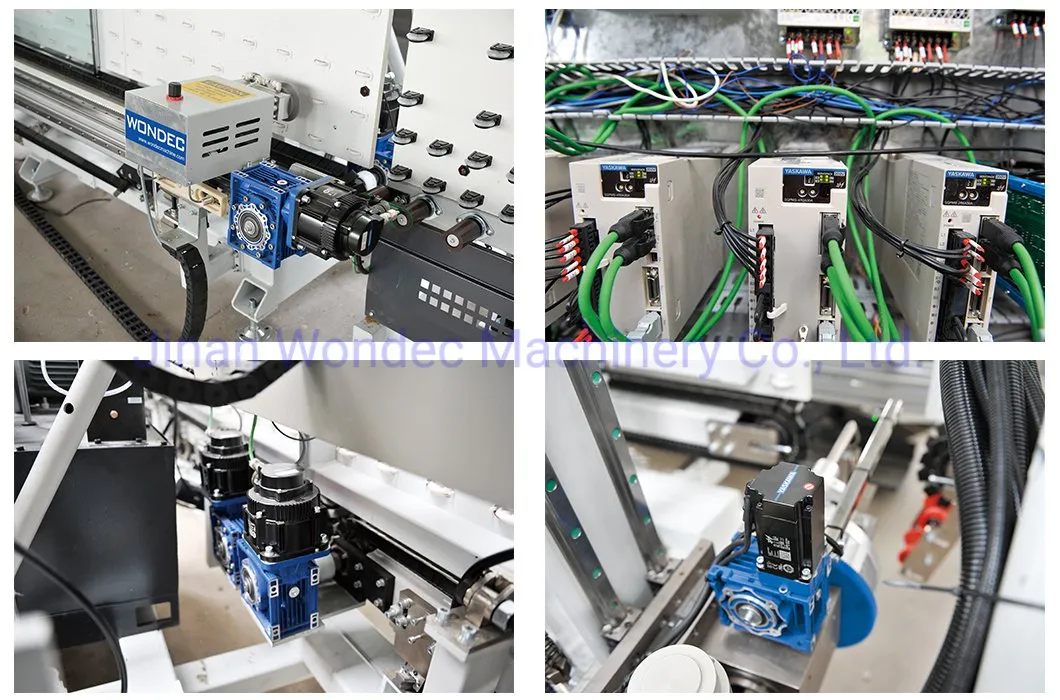

Control System: The electric control system and servo system adopt YASKAWA control system, which has fast speed and high stability.

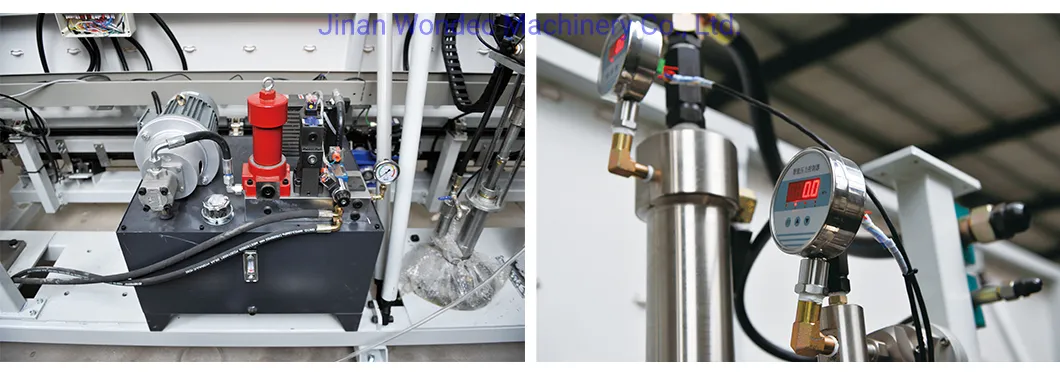

Hydraulic system: For dispensing and proportioning system, ensuring stable dispensing and precise A and B component ratios.

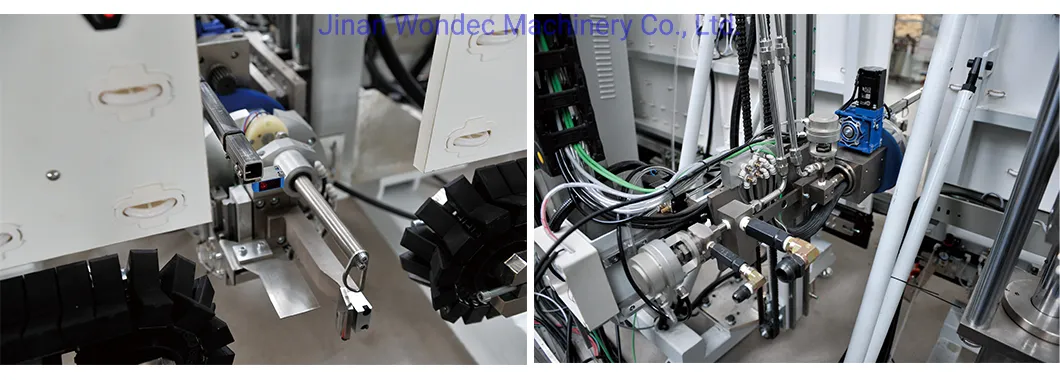

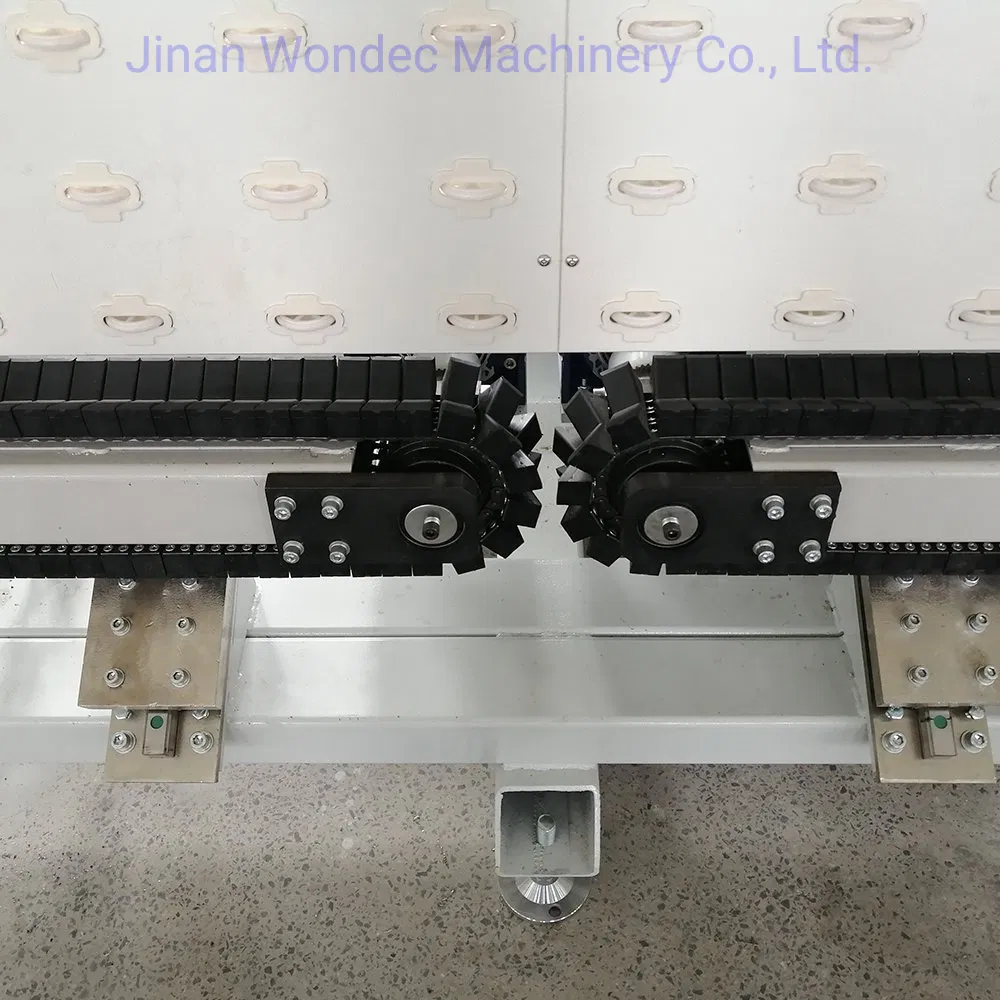

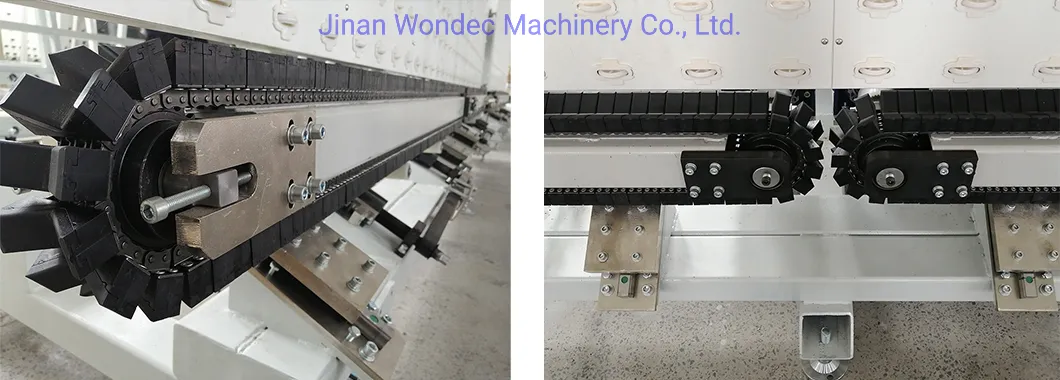

Special Design: Scan the coating depth, automatically control the sealant spreading. Chain type V shaped block conveying, more wear-resistant, high load-bearing, and stable conveying.
| Total power | 10KW |
| Max. glass size | 2000*3000mm |
| Min. glass size | 300*180mm |
| IG Unit thickness | 12~60mm(12~80mm) |
| Coating depth | 3~18mm |
| Coating speed | 5~40m/min |
| Transmission speed | 5~50m/min |
| Aluminum frame width | 6~27mm |
| Hydraulic pressure | <100kgf per square centimetre |
| Air pressure | 0.6~0.8Mpa |
| Overall dimension | 7300*2500*2900mm |

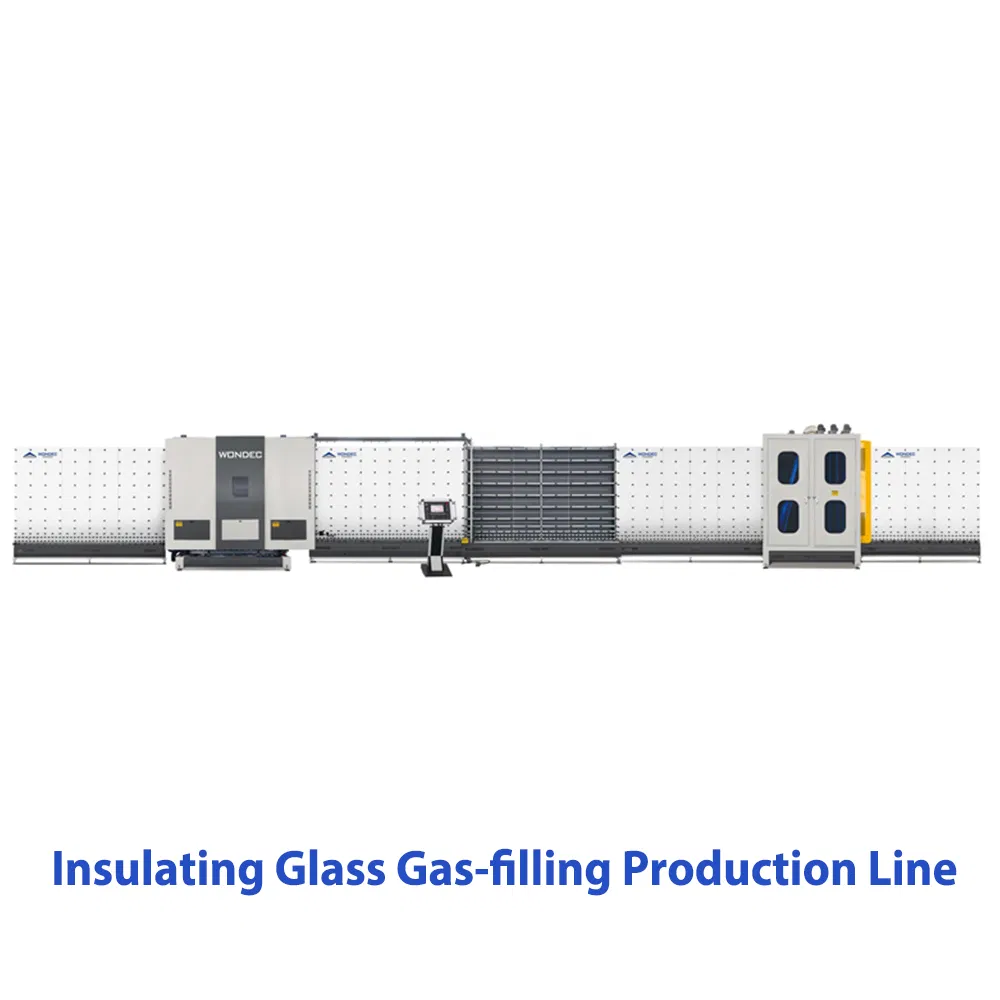

Complete set of insulating glass equipment configuration schemes are available.
