Product Description

Basic Specifications

Model NO.
WLBZ2025
Max. Glass Size
2500*2000mm
Min. Glass Size
400*200mm
Low-E Glass
Available
Glass Washing Speed
2-10m/Min
Water/Air Heating
Available
Panel Press
Servo Control
Convey Speed
2-50m/Min
Warranty
1 Year
Production Capacity
10 sets/Month

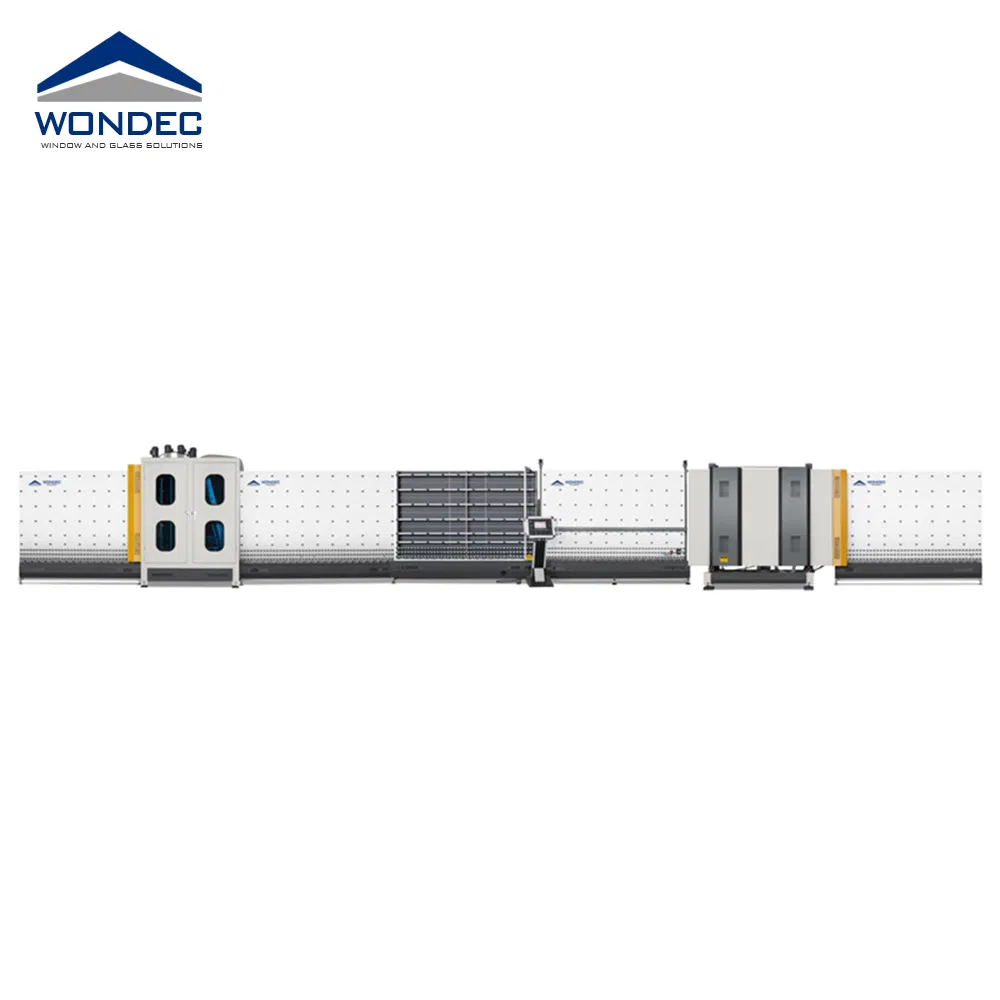

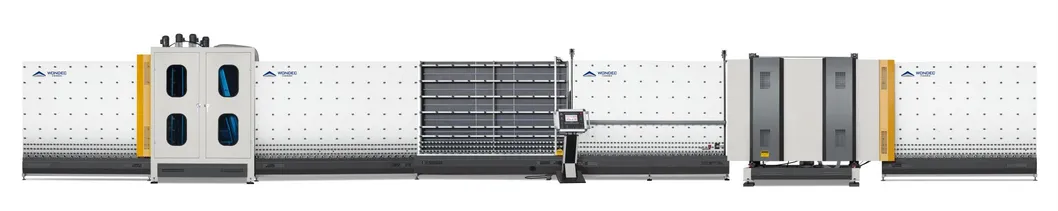

Automated Vertical Insulating Glass Production Line

Product Overview

WLBZ2025 Automated Vertical Insulating Glass Production Line is designed for high-efficiency manufacturing of double glazing units for residential and commercial applications.

Optional Customization:

◈
Production Layout: Customized direction according to your factory design drawing (CAD support provided).
◈
Machine Color: Customizable color codes to match your branding.
◈
Language Support: Multi-language switching including English, Spanish, Portuguese, Russian, Korean, and Japanese.

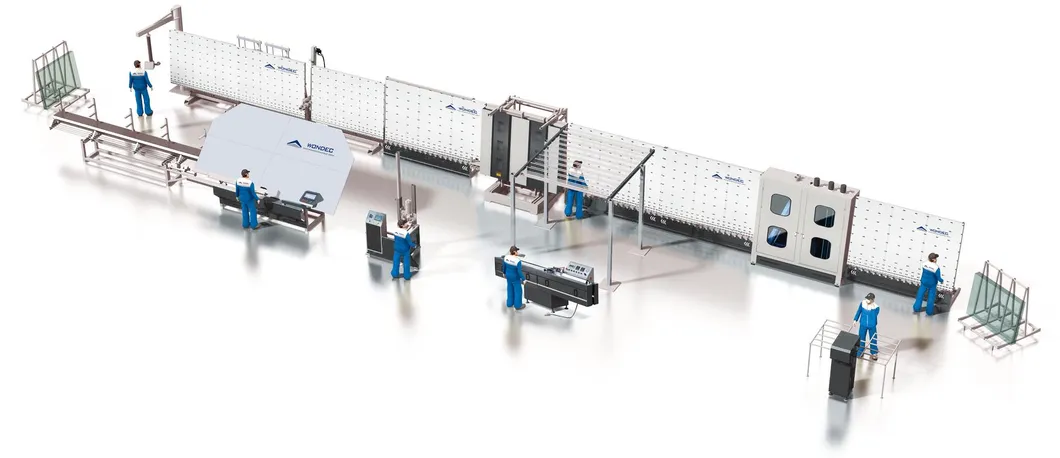

Double Glazing Production Line

Core Functions

✓
Outside glass assembly system.
✓
Integrated Low-E glass detection.
✓
Advanced water and air heating for washing/drying.
✓
Precise glass thickness detection.
✓
Aluminum spacer frame accurate positioning.
✓
Servo-controlled panel press for uniform pressure.
✓
Optional connection to automated sealing robots.

Frequently Asked Questions

Q1: What is the maximum glass size this line can process? A: The WLBZ2025 model supports a maximum glass size of 2500*2000mm.
Q2: Can the machine detect Low-E glass? A: Yes, the production line includes a Low-E glass detection function to ensure correct processing.
Q3: What languages does the control system support? A: The system supports multiple languages including English, Spanish, Portuguese, Russian, Korean, and Japanese.
Q4: Is the panel press system manual or automated? A: It uses an automated panel press system controlled by a high-precision servo system.
Q5: Does the washing section include heating? A: Yes, both water heating for washing and air heating for drying are available with separate controls.
Q6: What is the warranty period for this equipment? A: The standard warranty is 1 year, and after-sales service is fully available.
