Basic Information
| Model NO. | HPJ-DW2536 |

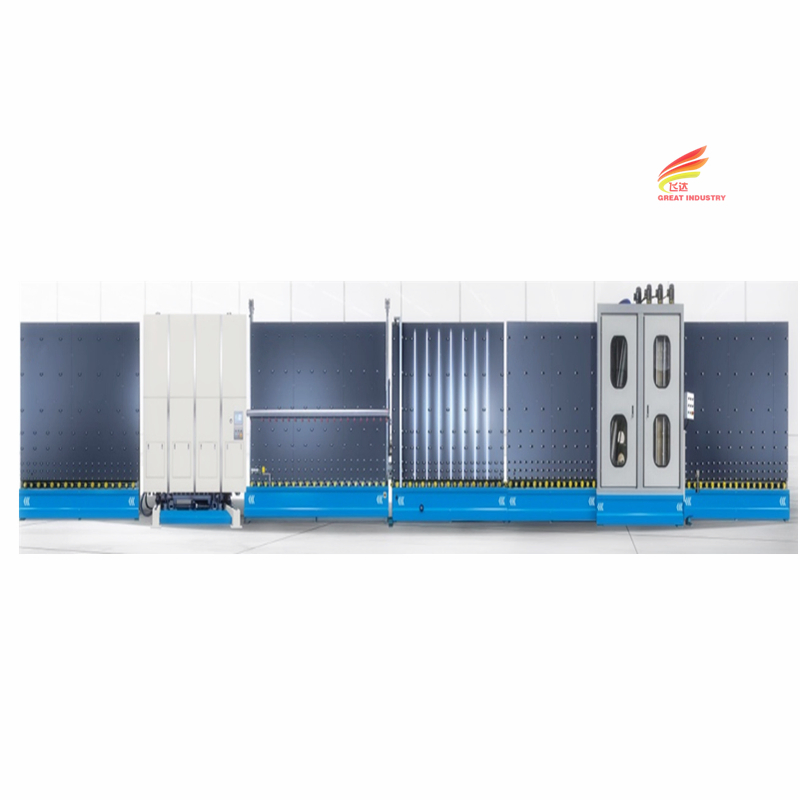

| Product Name | Insulating Glass Making with Automatic Sealing |
| Glass Thickness | 3-19 mm |
| Max. Glass Size | 2500*1800mm |
| Min. Glass Size | 500*300mm |
| Power Supply | 380V 50Hz |
| Power / Weight | 32kw / 5500kg |
| Dimensions | 18550*3000*2900mm |
| Working Speed | 2-45m/Min |
| Structure | Vertical |
| Condition / Warranty | New / 1 Year |
| Production Capacity | 5000 PCS/Year |
Product Description & Features
⚙️
High Performance: Equipped with inside and outside assembly functions for powerful operational efficiency.
💻

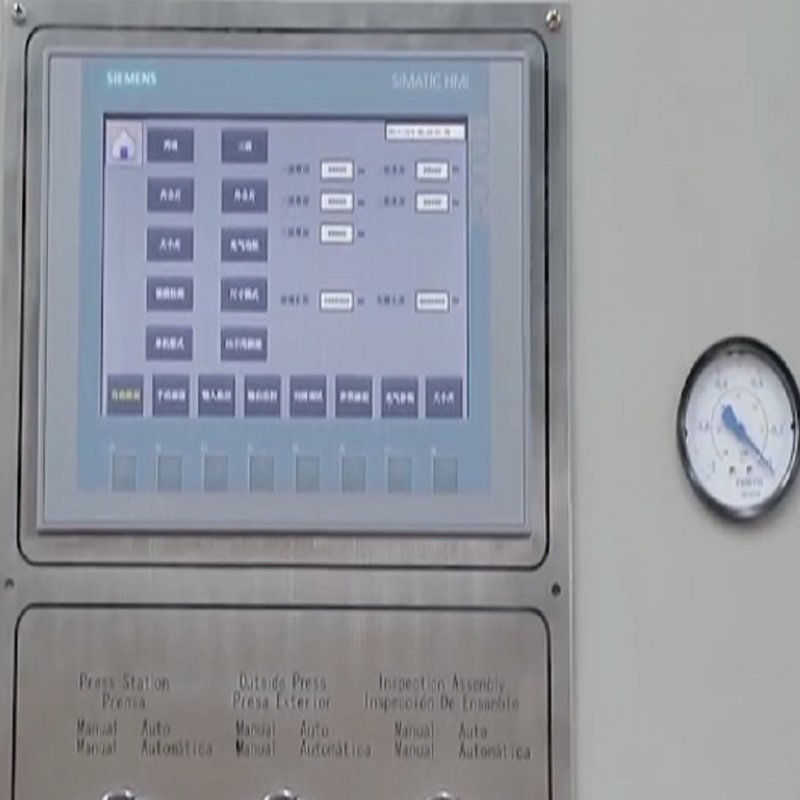

Smart Control: Siemens PLC control system with HMI touch screen, supporting both manual and automatic modes.
🔍
Auto Identification: Automatically identifies coated glass and Low-E glass types.
🌬️
Precision Adjustments: Air knife adjusts automatically based on the detected glass thickness.
🚀
Efficiency Boost: The third conveyor can pre-store glass, significantly reducing waiting time.
🏗️
Versatile Pressing: Choice between Servo and Hydraulic panel pressing drive; suitable for double, triple, step, and shaped glass.
After-Sales Service
| No. | Service Item | Details |
| 1 | Service Duration | 7*24 Hours (All Weather Service) |
| 2 | Warranty Period | 1 Year |
| 3 | Package | Non-Fumigation Plywood Wooden Pallet |
Frequently Asked Questions
What is the maximum glass size this machine can handle?
The machine can process glass up to a maximum size of 2500*1800mm, with a minimum size of 500*300mm.
Does the machine support Low-E glass?
Yes, the system features automatic identification of coated glass and Low-E glass to ensure proper processing.
What types of glass configurations are supported?
It is suitable for double glazing, triple glass, step glass, and various shaped glass units.
What control system is used in this production line?
The line uses a high-end Siemens PLC control system paired with an HMI touch screen for reliable manual and automatic operation.
What is the warranty and after-sales support?
We provide a 1-year warranty and offer 24/7 all-weather service support to ensure your production remains stable.
What are the power requirements?
The machine operates on a 380V 50Hz power supply with a total power consumption of 32kw.
