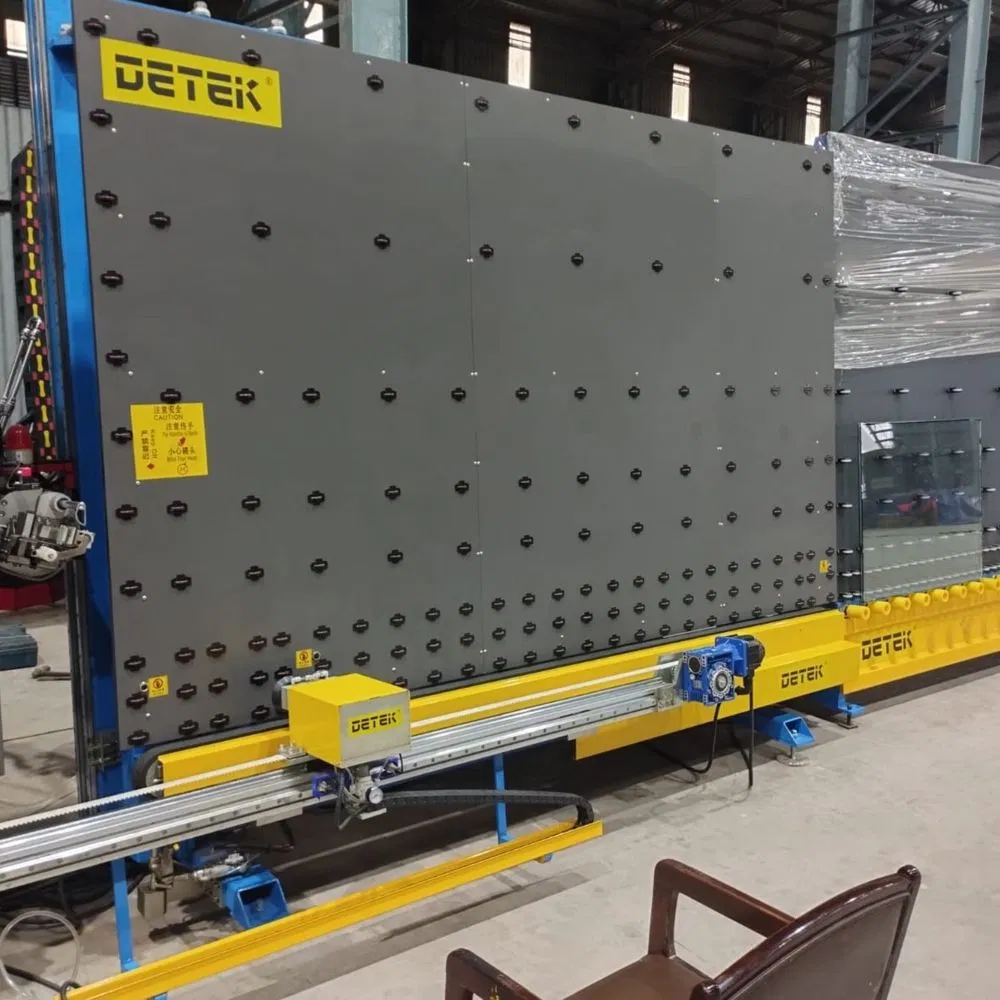

Double Glazing Insulating Glass Auto Sealing Robot with Two Dosing System Detek

Customization:	Available
Certification:	CE
Control System:	Industrial Computer

Send Inquiry

Product Description

Basic Specifications

Model NO.

ASR2030

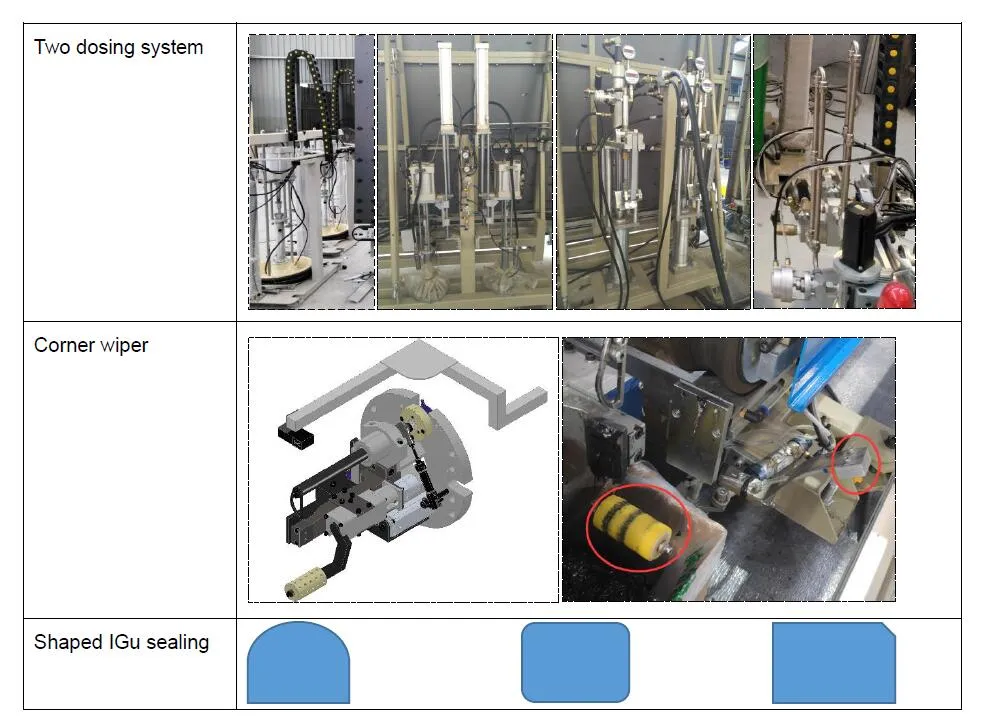

Dosing System

Two Dosing System Option

Shaped IGU

Shaped IGU Sealing Available

Corner Wiper

Corner Wiper Function

Transportation

General Container Save Freight

Unique

Triple IGU Glass Sealing

Type

Insulating Glass Production Line

Structure

Vertical

Glass Washing

Horizontal Glass Washing Machine

Glass Edging

Glass Double Straight Edging Machine

Grinding Heads

Condition

New

Warranty

One Year

HS Code

8479899990

Packaging & Delivery

Package Size

1000.00cm * 150.00cm * 3000.00cm

Gross Weight

5000.000kg

Transport Package

Seaworthy Package

Product Application

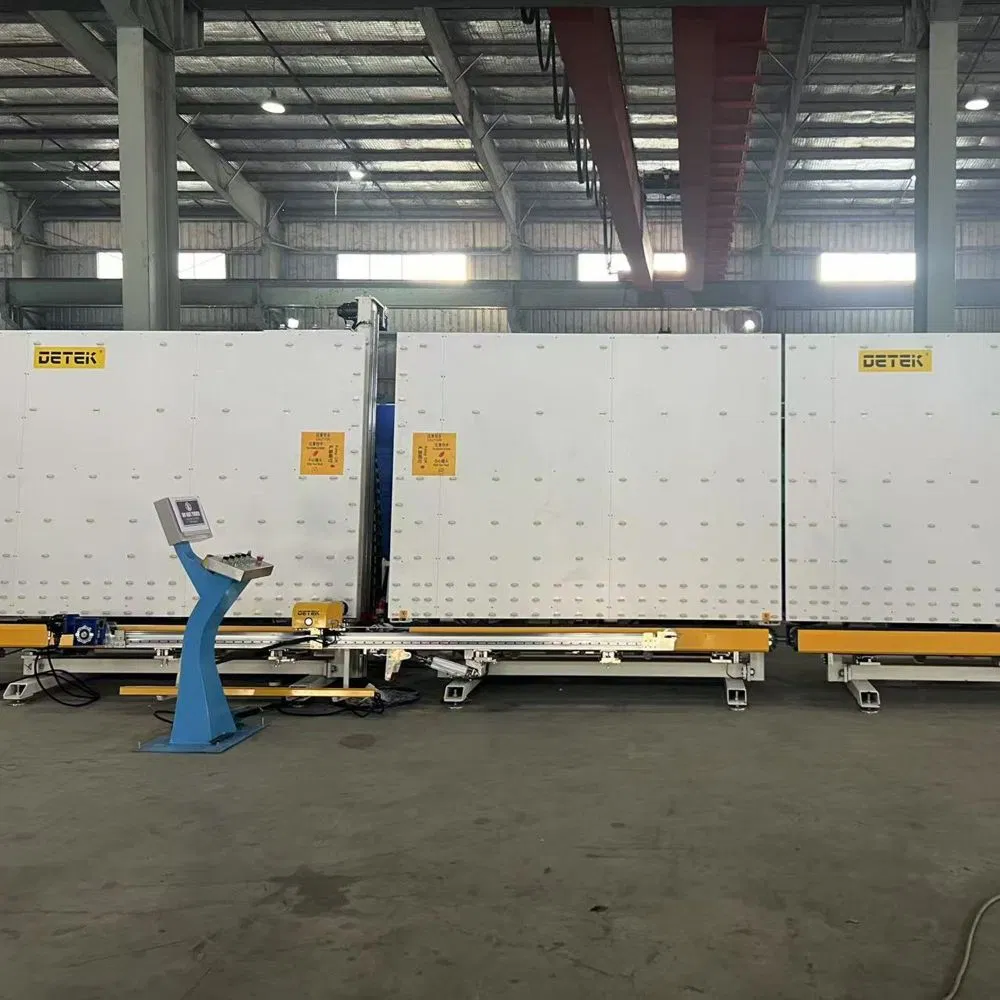

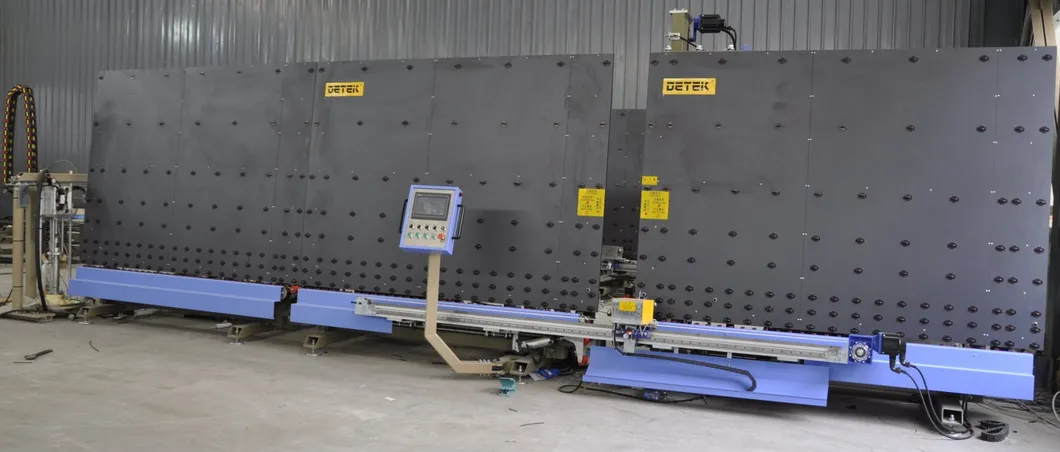

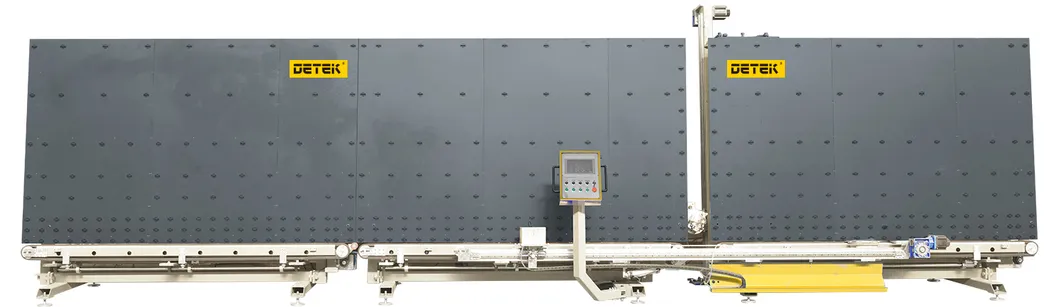

The secondary sealant sealing in Insulating Glass Units, ASR2030 is a highly automatic silicone or polysulfide sealant sealing robot. This auto sealing robot guarantees the high quality of IGU for glass processing companies.

Core Features

1Economical and practical for glass deep processing.

2Third section storage increases production efficiency.

3Intelligent touch screen with Ethernet communication and memory function.

4High automation reduces labor costs and improves sealing performance.

5Bubble-free sealing with smooth surface and corner correction.

6Equipped with an anti-blocking device in the mixer for easy cleaning.

7YASKAWA Servo control system for stable, high-precision performance.

8Special V-type transmission belt prevents sealant sticking.

9Suitable for triple IGU and shaped IGU sealing (optional).

10High-speed positioning function for accurate glass conveyor locating.

Technical Parameters

Parameter Description	Value
Max. IGU size	2000×3000mm
Min. IGU size	300×300mm
IGU thickness	12-56mm
Power supply	3P 380V 50HZ 7KW
Air pressure	0.6-0.8Mpa
Max. squeeze pressure	32Mpa
Sealing speed	5-40m/min
Dimension	8030×1400×2950mm

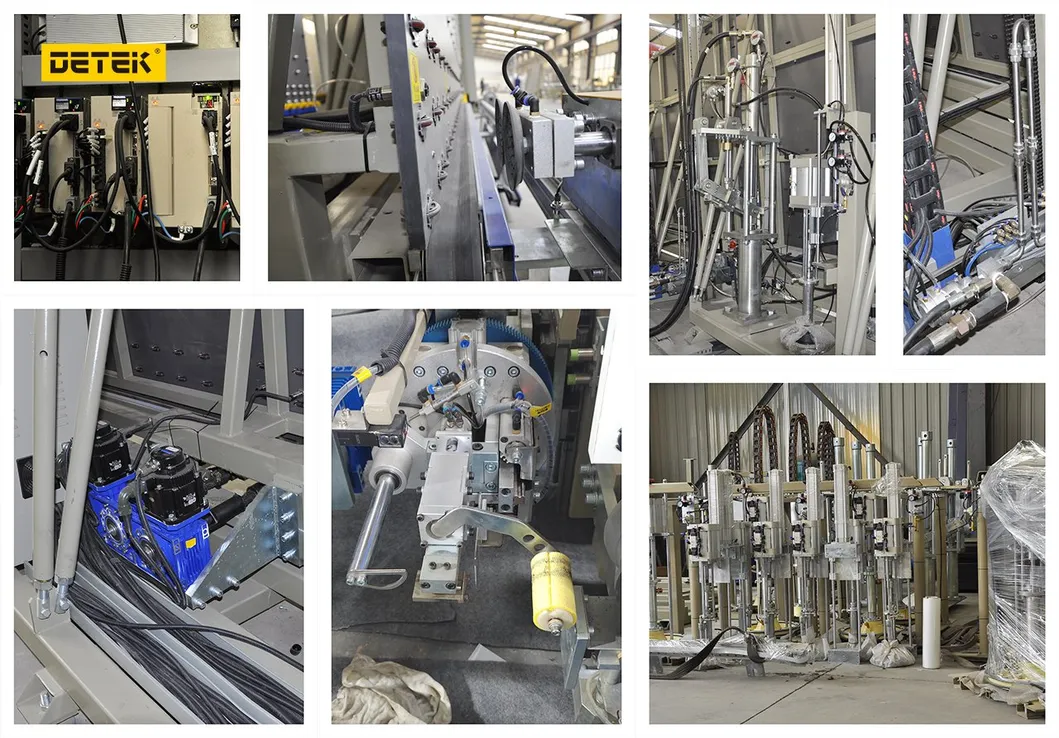

Premium Components List

Component Name	Brand	Origin
PLC / Servo Driver / Motor	Yaskawa	Japan
Touching Screen	WEINVIEW	Taiwan
Inverter	TECO	Taiwan
Breaker / Contactor / Relay	Schneider	France
Sensor / Proximity Switch	AUTONICS	S. Korea
Reduction Motor	YOUSHENG	Shanghai
Solenoid / Air Cylinder	Airtag	Taiwan
Proportional Valve / Regulator	SMC	Japan

Frequently Asked Questions

What is the estimated lead time for orders?

The standard lead time is 60 days for a whole production line and 30 days for a single machine. Special requirements should be confirmed with the sales team.

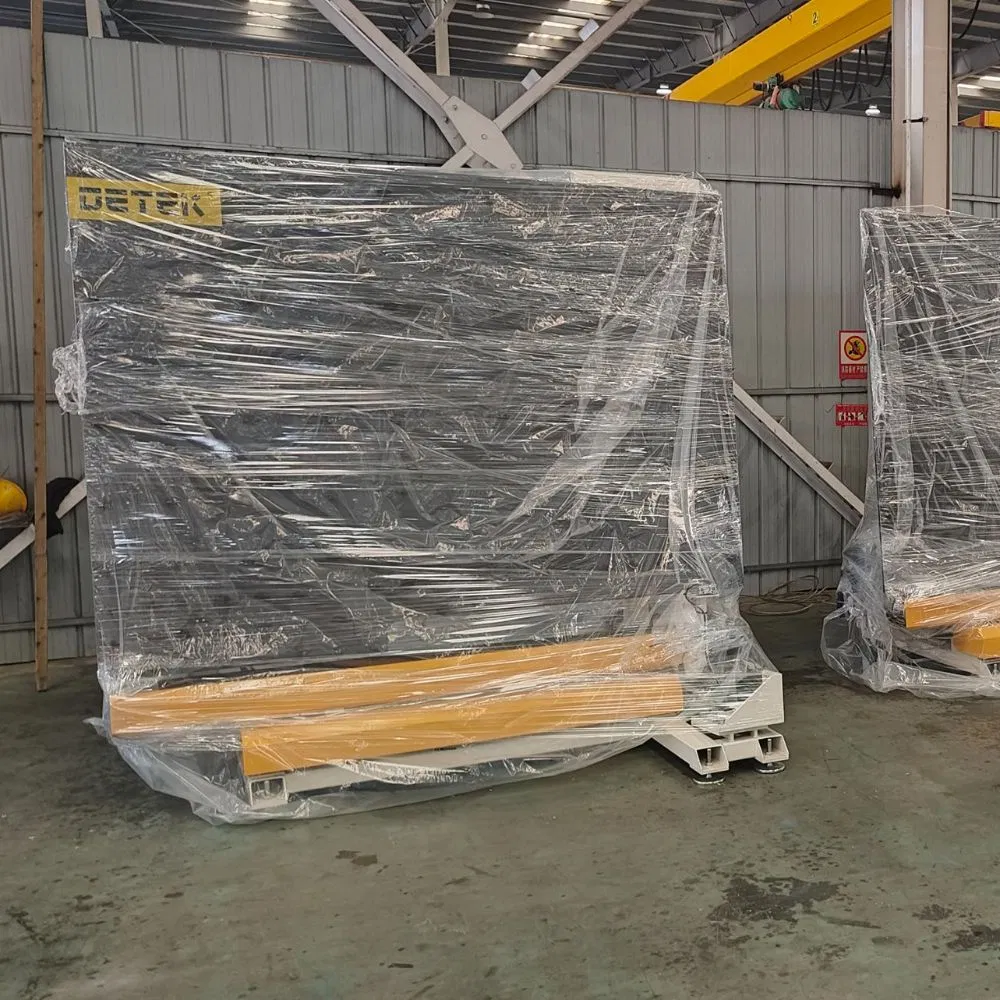

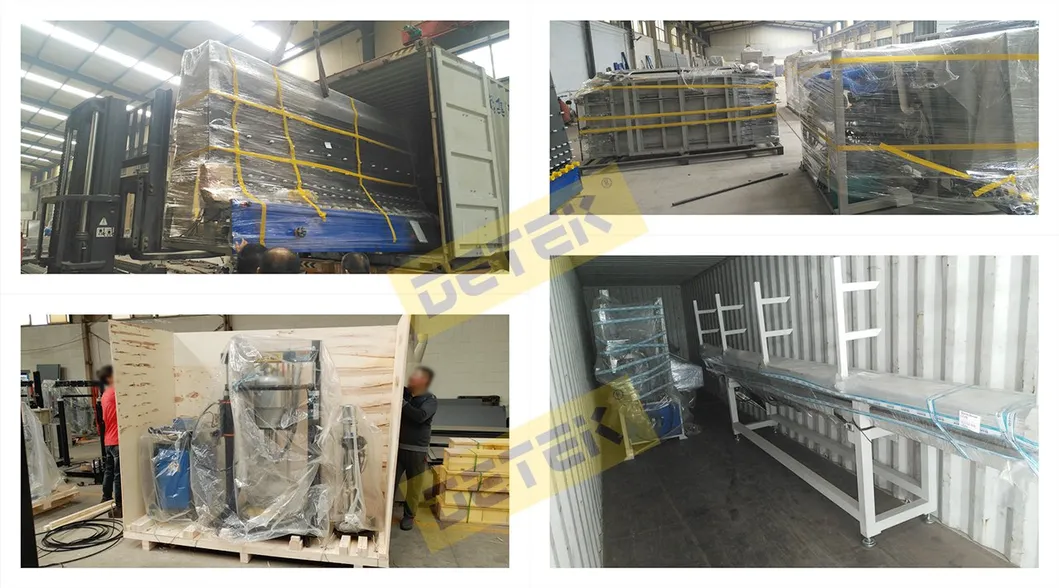

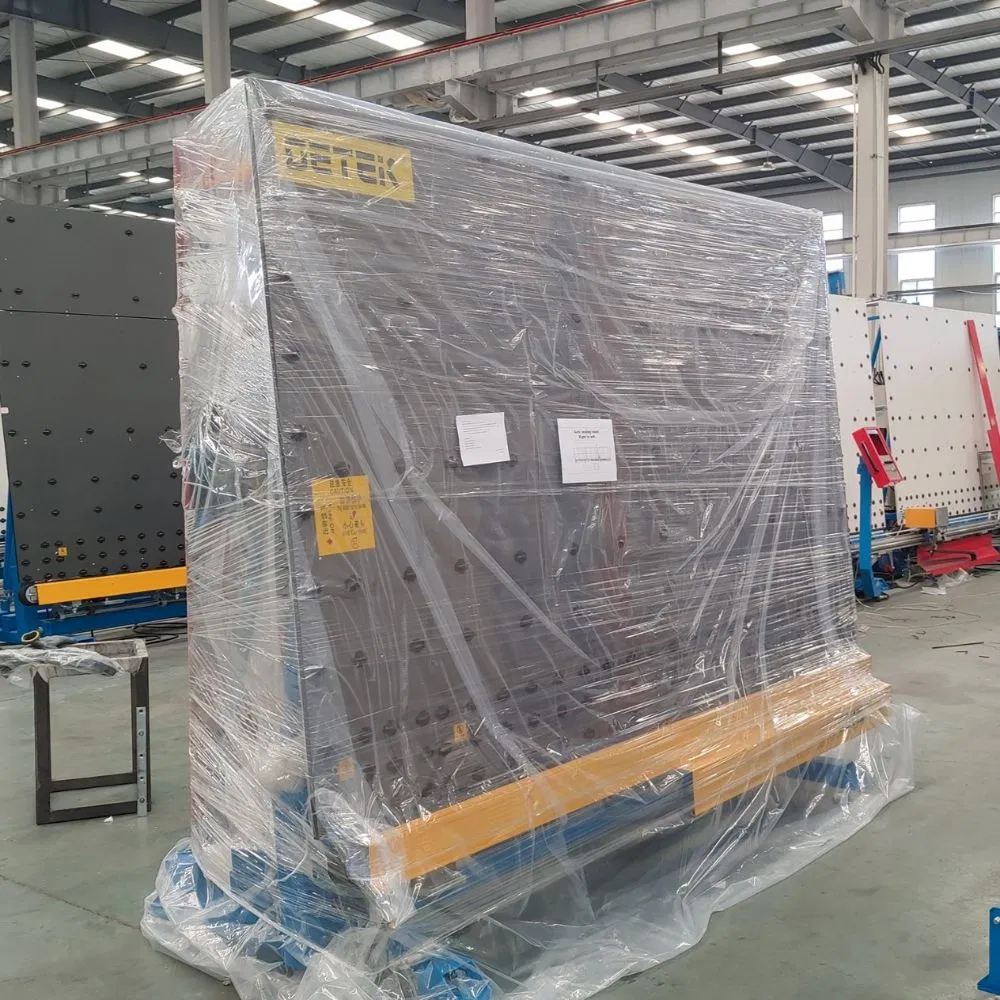

How is the equipment shipped and packaged?

All machines are designed to fit GP containers for sea freight savings. We use seaworthy packaging and professional workshop container loading to ensure safe arrival.

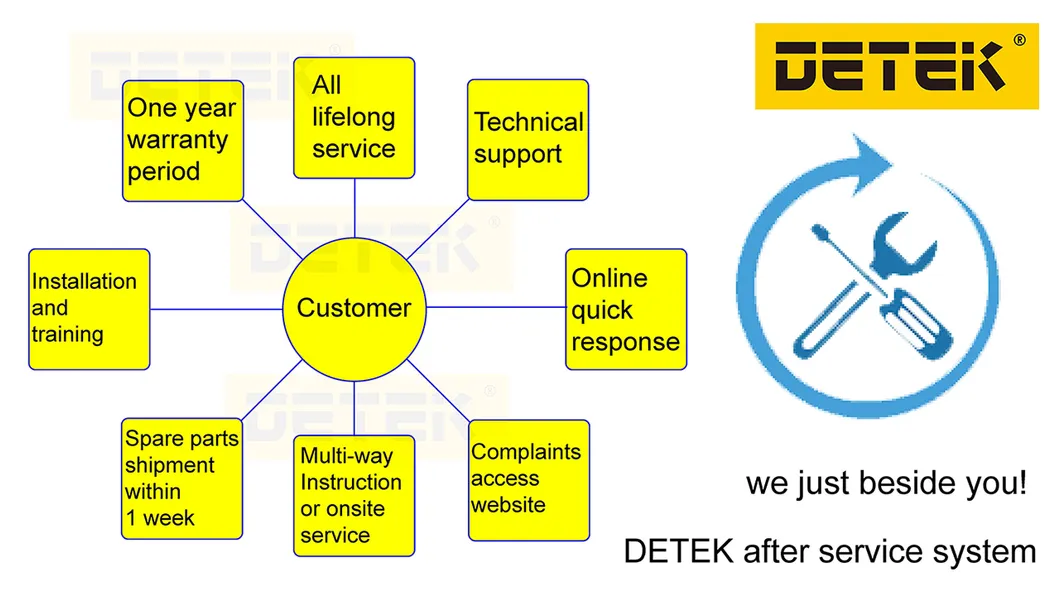

What is the warranty and service policy?

We provide a one-year guarantee (excluding wearing parts) and life-long service. Technical engineers can be dispatched for on-site service upon request.

What are the installation requirements and costs?

Installation is included. However, customers are responsible for round-trip air tickets, local transportation, and accommodation. A daily fee of 60 USD per engineer applies after 15 days.

How is after-sales support handled for spare parts?

Spare parts can be dispatched within 72 hours. Our experienced technical team and service engineers are ready to provide on-site instruction and support.

Can the machine handle triple or shaped IGU?

Yes, the machine is suitable for triple IGU sealing, and shaped IGU sealing functionality is available as an optional feature.
