Technical Specifications
Model NO.LB2500W
Glass Thickness3-19 mm
Insulating Glass Size2500*3000mm - 200*450mm
Power Supply380V 50Hz 27.91kw
Max. Glass Thickness50mm
Max. Delivery Speed45m/Min
Glass Washing Speed2-7m/Min
Air Source0.5-0.8MPa
Weight16000Kgs
Production Capacity5 Sets Per Month
Equipment for Double Glazing LB2500W
Application: Assembly of insulating glass for construction sites, glass factories, window factories, and woodworking facilities.
| No. |
Technical Item |
Parameters |
| 1 | Power Supply | 380V 50Hz 27.91Kw |
| 2 | Max. Size of Original Glass | 2500*3000mm |
| 3 | Max. Thickness of Insulating Glass | 50mm |
| 4 | Max. Delivery Speed | 45m/min |
| 5 | Air Source | 0.5-0.8Mpa | 0.8m3/min |
| 6 | Dimension | 22600*2300*3450mm |
Main Features
-
Automatic Processing: This line can produce double and triple insulating glass automatically with high efficiency.
-
Advanced Control: Adopts a famous brand PLC control system for steady work and high automation. Achieves up to 800 pieces per 8-hour shift.
-
HMI Interface: User-friendly touch screen allows easy switching between manual and auto modes, providing real-time processing and error data.
-
Stainless Steel Washing: Features a 6-brush washing device and 2-stage cleaning. Includes a water heating device for low-temperature environments.
-
Low-E Identification: Equipped with an automatic Low-E glass identification system and specialized brushes.
-
Safe Transport: Each section uses a buffer stop function to prevent glass bumping and reduce equipment wear.

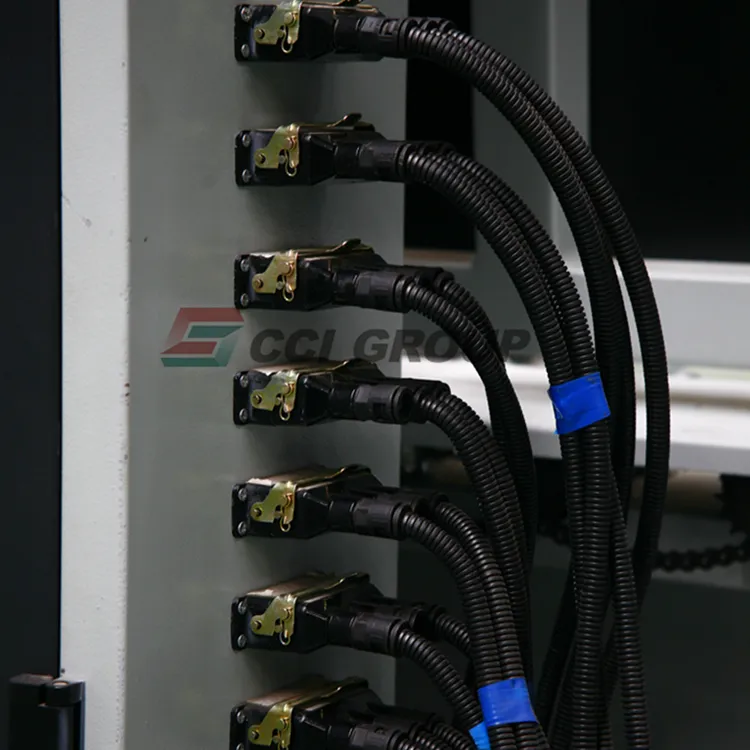

Main Components & Gallery
Related Solutions
Service & Quality Advantages
- ✓ Guaranteed Delivery: Large scale workshop ensuring 60-100 machines are inspected and accepted monthly.
- ✓ Precision Manufacturing: Strict pre-job training for workers and process-by-process inspection for accuracy.
- ✓ ODM & OEM Support: Dedicated R&D team providing custom solutions for various industrial requirements.
- ✓ Global After-Sales: 24/7 technical support and a specialized team for timely debugging and maintenance.
Frequently Asked Questions
What types of glass can this production line process?
The LB2500W line is designed for double and triple insulating glass, including specialized support for Low-E glass processing with automatic identification.
What is the standard warranty period?
The equipment comes with a 24-month warranty period after the BL time, supported by 12-hour technical feedback and a fully stocked spare parts warehouse.
How long is the typical delivery time?
If in stock, machines can be delivered within 7 days. Common machine fabrication takes 15-25 days, while CNC machines take 25-50 days depending on customization.
What are the payment terms for international orders?
Typically, 50% of the amount is required as a deposit, with the balance to be paid by T/T or LC at sight before the machines are delivered to the loading port.
How is the equipment packaged for shipping?
We use fumigated wooden pallets and wooden cases. For tight container spaces, we utilize PE film packing to ensure high product precision and protection.
What makes this machine's quality superior to others?
We use high-quality electrical and pneumatic parts imported from Europe and America, combined with professional technicians who have over 10 years of experience.
