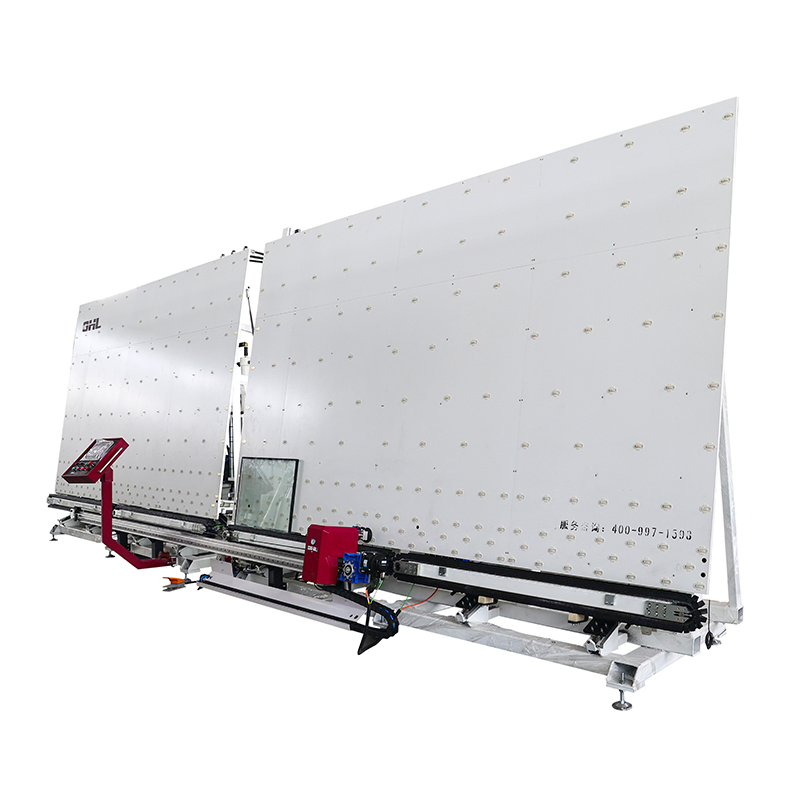

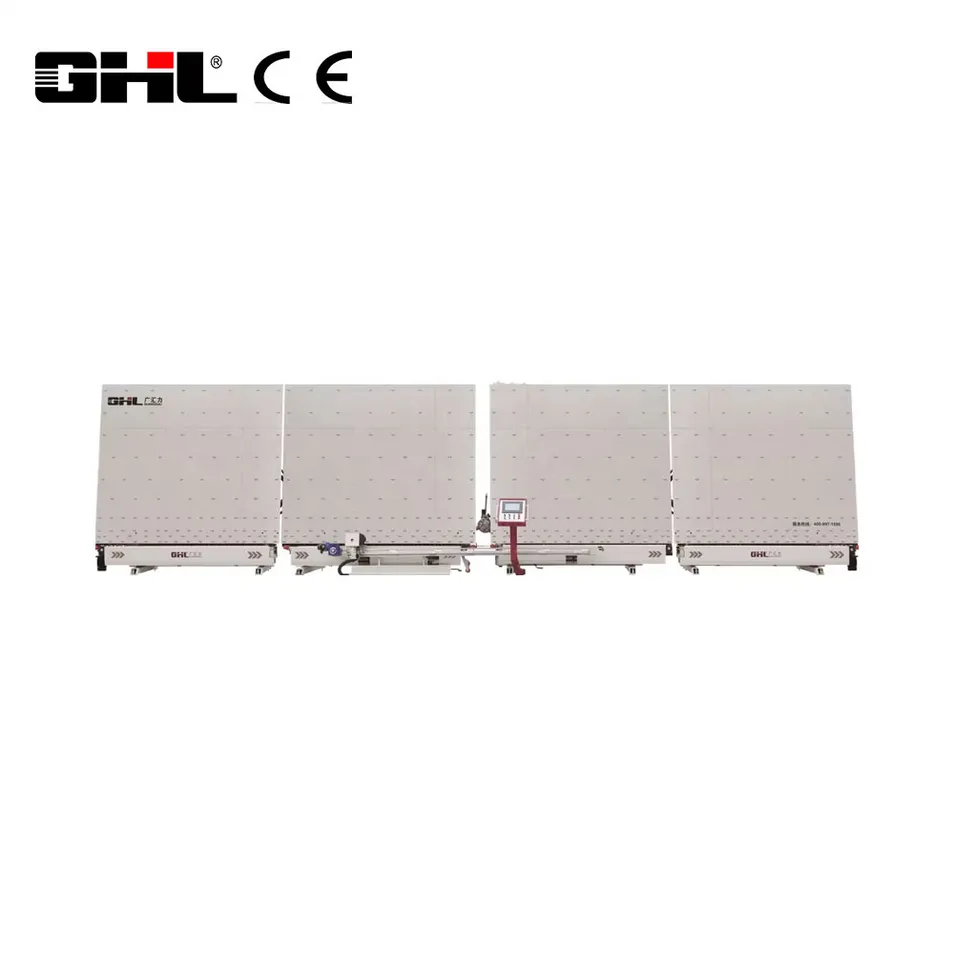

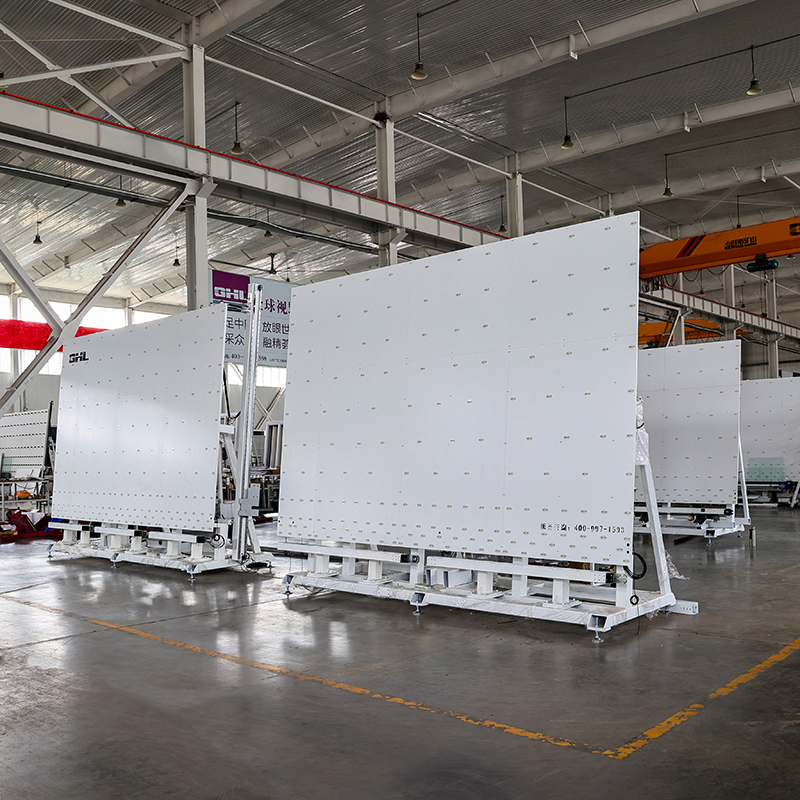

Suitable for super large and overweight glass, can be flexibly connected to ERP/MES systems. This machine is designed for glass deep processing enterprises, providing high automation to reduce labor intensity and improve production efficiency.
| Model | ZNJ2540-I | ZNJ2540-II |
|---|---|---|
| Voltage Power | 380V 50Hz 9KW | 380V 50Hz 9KW |
| Air Pressure | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Squeeze Pressure | 32Mpa | 32Mpa |
| Max Glass Size | 2500*4000mm | 2500*4000mm |
| Min Glass Size | 300*300mm | 300*300mm |
| Glass Thickness | 12-56mm | 12-56mm |
| Working Speed | 5-40m/min | 5-40m/min |
| Overall Dimension | 8630*1400*3500mm | 8630*1400*3500mm |
12 Months warranty period with long life service.
24/7 technical assistance and spare parts supply.
A: The machine can process glass with a maximum size of up to 2500*4000mm, making it ideal for super large and architectural glass requirements.
A: Yes, it is specifically designed to be suitable for triple glazing and can seal two cavities in a single operation cycle.

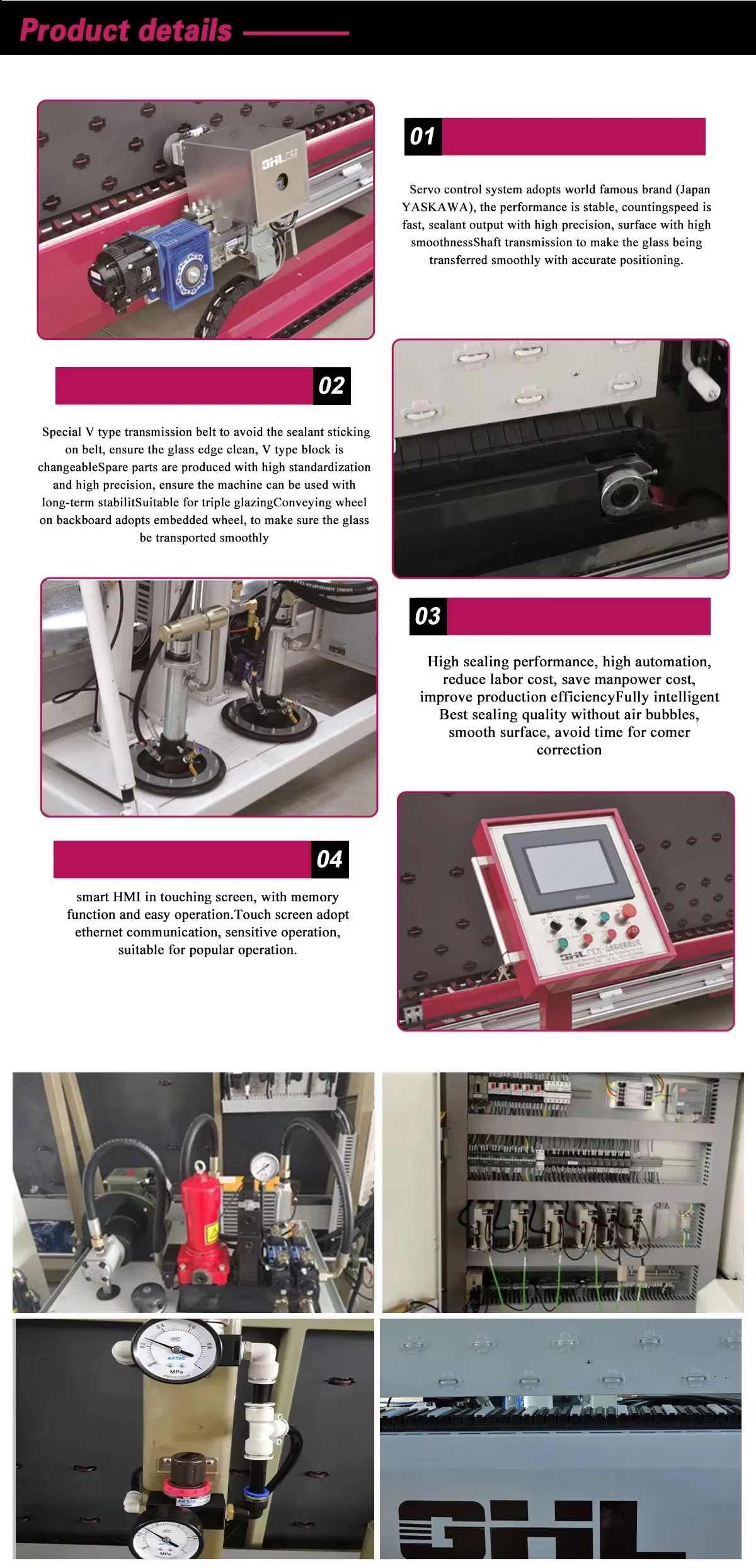

A: The machine utilizes a world-renowned Japan YASKAWA servo control system, ensuring stable performance and high-precision sealant output.
A: Yes, the machine is designed for modern smart factories and can be flexibly connected to ERP and MES systems for streamlined production.
A: It is equipped with a professional anti-blocking device and a timing sealant discharge function to prevent the sealant from hardening in the mixer.

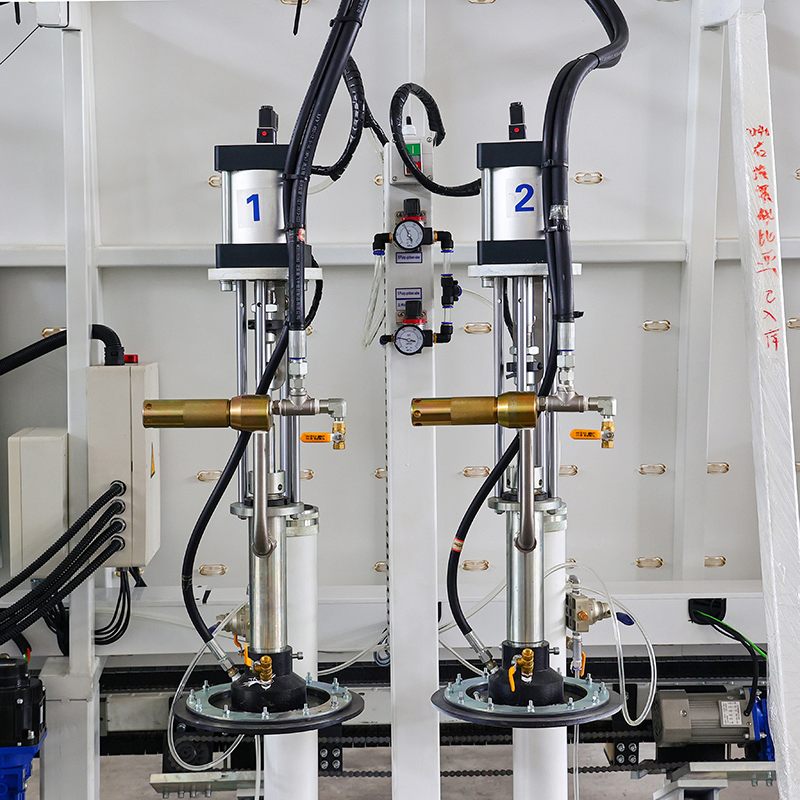

A: The dual system (on Model II) allows for fast switching between two different types of sealants with a one-button operation, significantly reducing downtime.
