. Dual-Head Sealing Robot for Large Insulating Glass

1 / 5

. Dual-Head Sealing Robot for Large Insulating Glass

Customization:	Available
Certification:	CE, ISO, SGS
Control System:	PLC Control

Send Inquiry

Product Description

⚙️ Insulating Glass CNC Sealing Machine

Suitable for super large and overweight glass, can be flexible connected to ERP MES.

📊 Basic Information

Model NO.	ZNJ2540	Glass Thickness	3-19 mm
Voltage Power	380V 9kw	Working Speed	5-40m/Min
Max Size	2500*4000mm	Min Size	300*300mm
Air Pressure	0.6-0.8MPa	Squeeze	32MPa
Specification	863140350cm	Production Capacity	1000 set/Year

📋 Main Technical Parameters

Model	ZNJ2540-I	ZNJ2540-II
Voltage Power	380V 50Hz 9KW	380V 50Hz 9KW
Air Pressure	0.6-0.8Mpa	0.6-0.8Mpa
Squeeze Pressure	32Mpa	32Mpa
Max Glass Size	2500*4000mm	2500*4000mm
Min Glass Size	300*300mm	300*300mm
Glass Thickness	12-56mm	12-56mm
Working Speed	5-40m/min	5-40m/min
Overall Dimension	863014003500mm	863014003500mm

🚀 Machine Performance & Features

High automation reduces labor intensity and improves production efficiency with a man-machine touch screen interface.

Perfect coating: Glass edges and corners are full without air bubbles, resulting in a smooth surface with no need for manual paring.

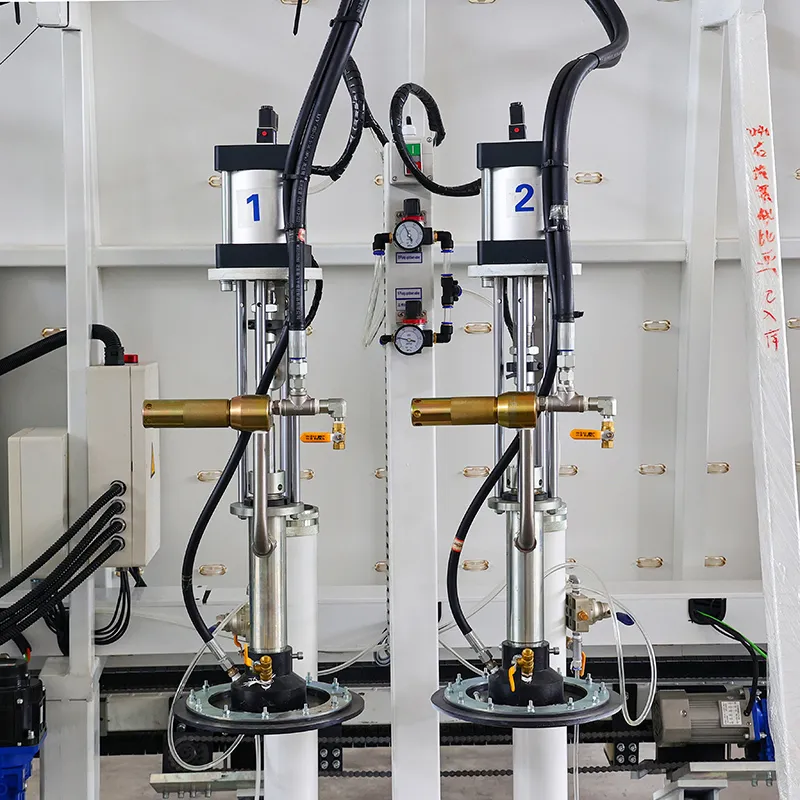

Dual sealant systems (Model II) allow for fast switching between two types of sealants with simple one-button operation.

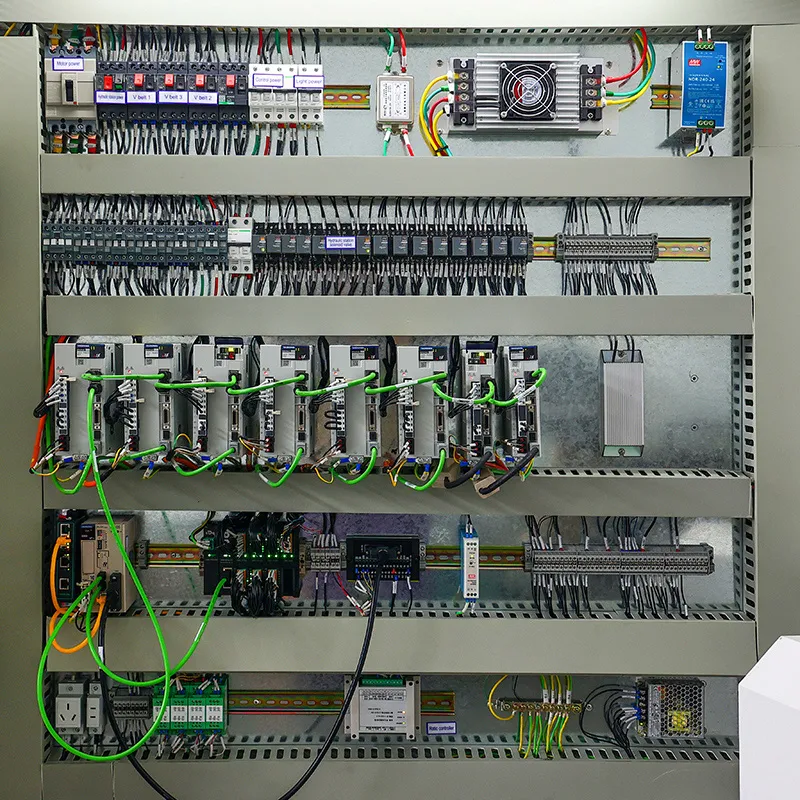

Japanese YASKAWA servo control system ensures stable performance, high-speed counting, and precision sealant output.

Suitable for triple glazing, capable of sealing two cavities in a single process.

Equipped with an anti-blocking device in the mixer and high-pressure non-return valves for easy cleaning and fast washing.

📦 Packing & Delivery

Package Size: 870.00cm * 150.00cm * 360.00cm

Gross Weight: 6000.00kg

🛠️ After Sales Service

Standard Warranty

12 Months

Global Support

24/7 technical assistance and spare parts supply.

Training

On-site or remote operation and maintenance training.

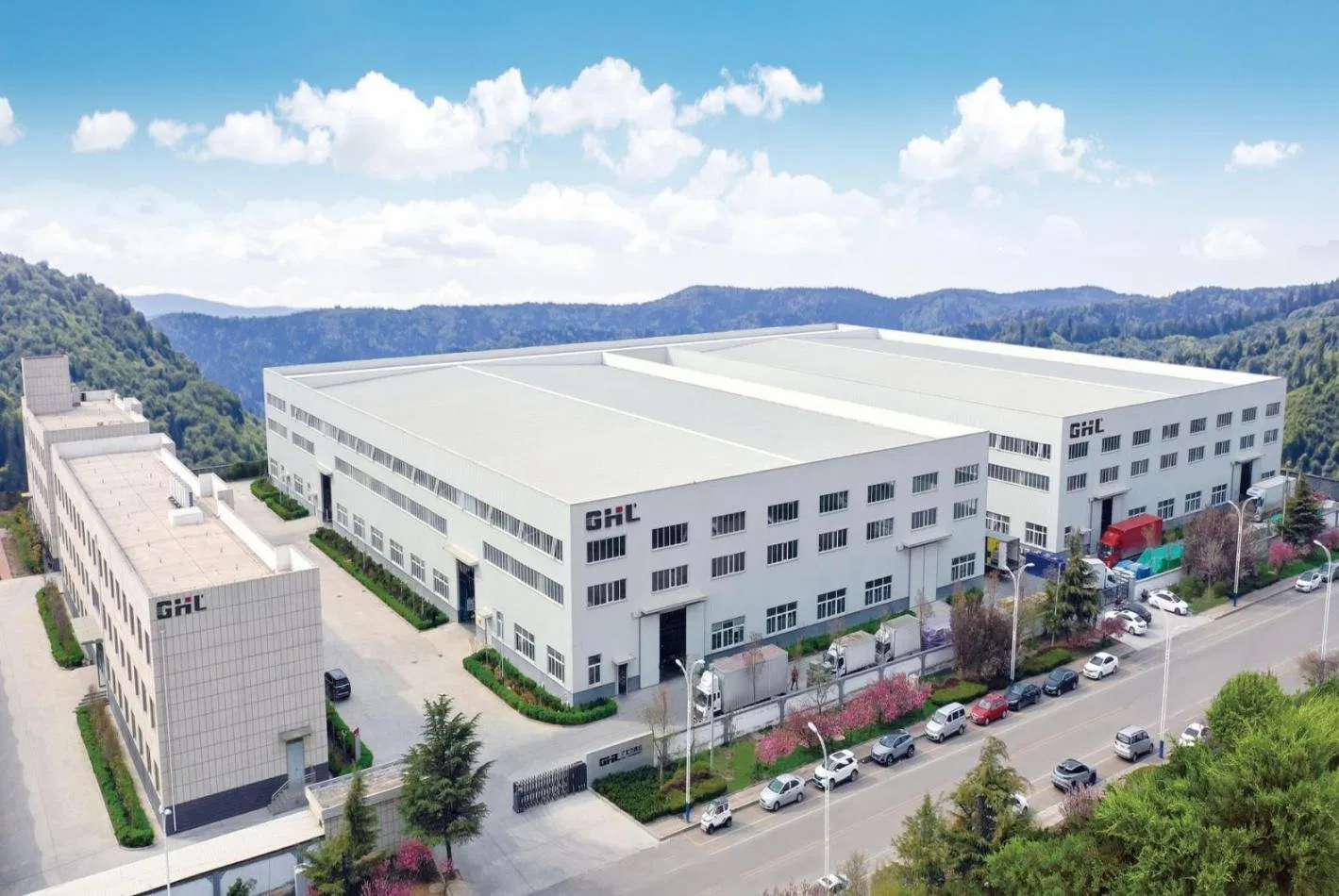

🏢 Professional Manufacturing

Specializing in the production of Insulating glass machines, curtain wall glass machines, and solar photovoltaic machinery. Main products include insulating glass production lines, automatic CNC sealing machines, sealant extruders, and more.

Certified with European CE, Switzerland SGS, and ISO 9001:2015 quality control systems.

❓ Frequently Asked Questions

Q1: What is the maximum glass size this machine can process?

The machine can handle a maximum glass size of 2500*4000mm, making it ideal for large architectural glass panels.

Q2: Can the machine handle triple glazing?

Yes, the machine is specifically designed to be suitable for triple glazing and can seal two cavities in one process cycle.

Q3: What kind of control system does the machine use?

We utilize a world-famous Japanese YASKAWA servo control system which provides stable performance, high precision, and fast operation.

Q4: How does the machine prevent the sealant mixer from blocking?

The machine is equipped with an anti-blocking device in the mixer and features a timing sealant discharge function to prevent any hardening or blockage.

Q5: Is it possible to connect this machine to an ERP/MES system?

Absolutely. The machine is designed for modern smart factories and can be flexibly connected to ERP and MES systems for integrated production management.

Q6: What is the working speed range?

The adjustable working speed ranges from 5 to 40 meters per minute, allowing for optimization based on glass size and sealant type.
