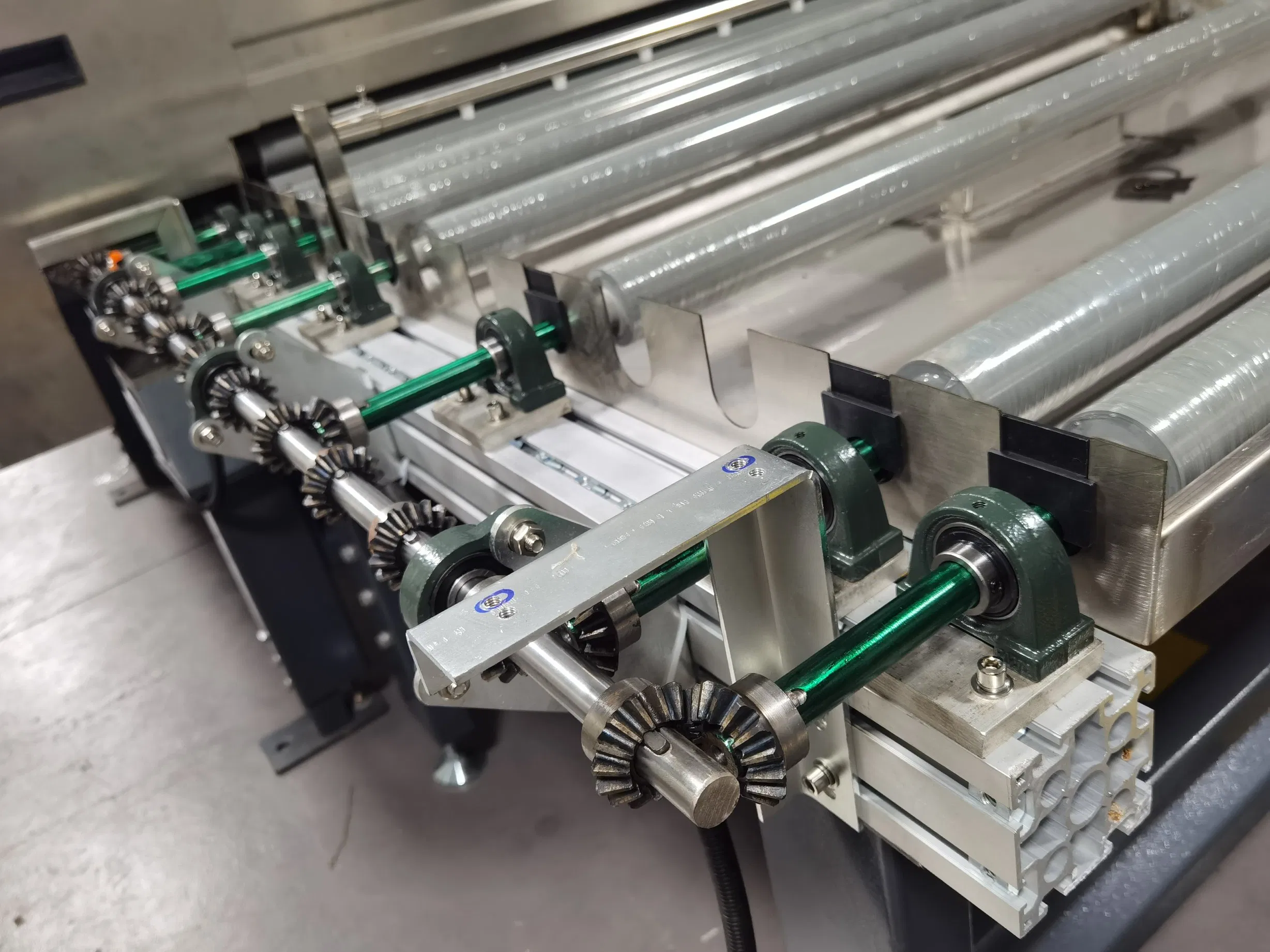

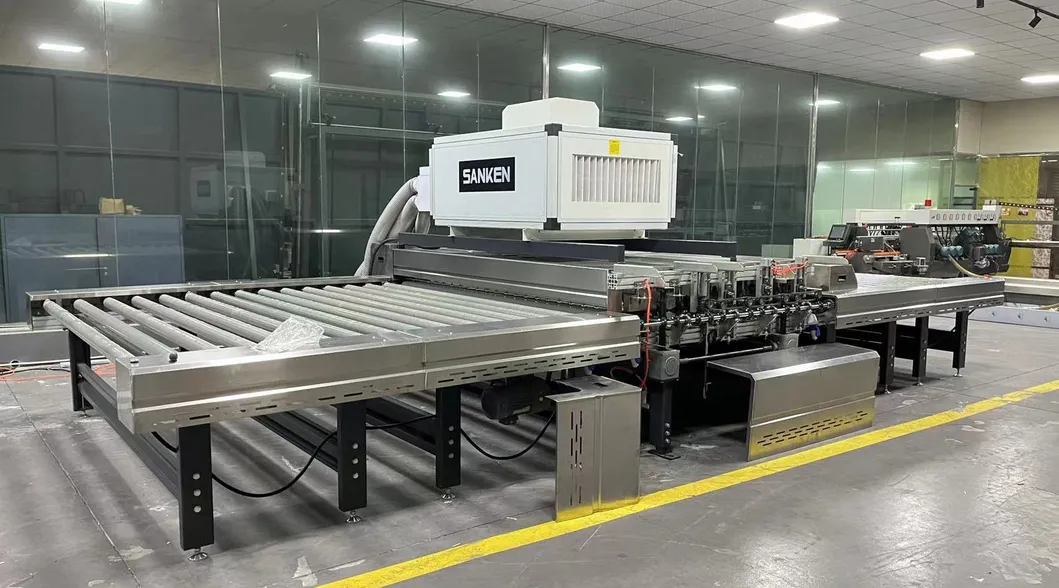

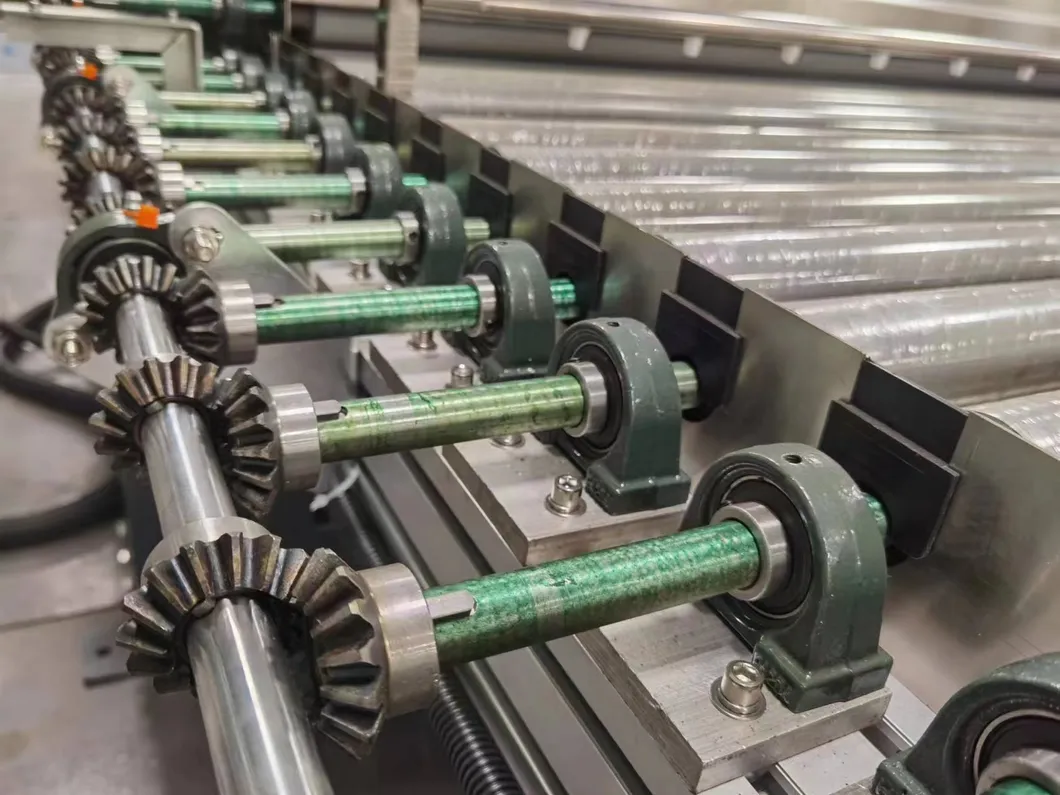

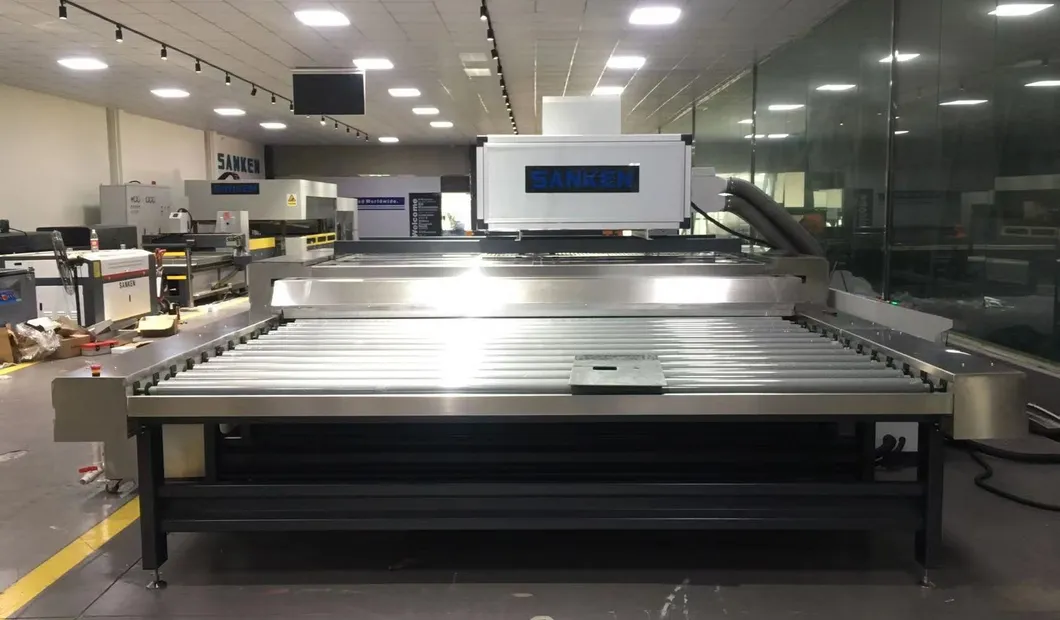

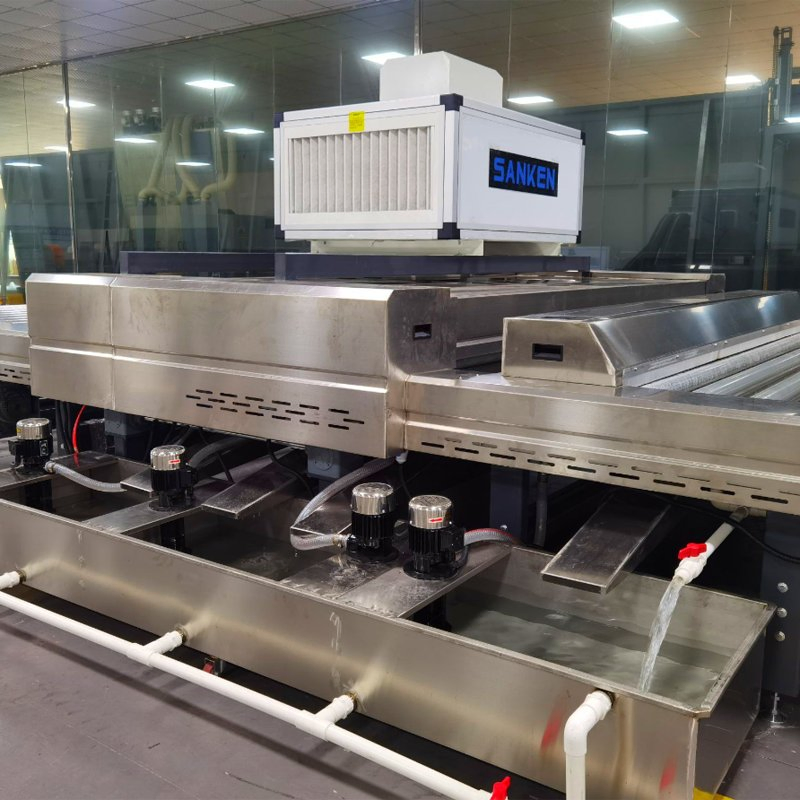

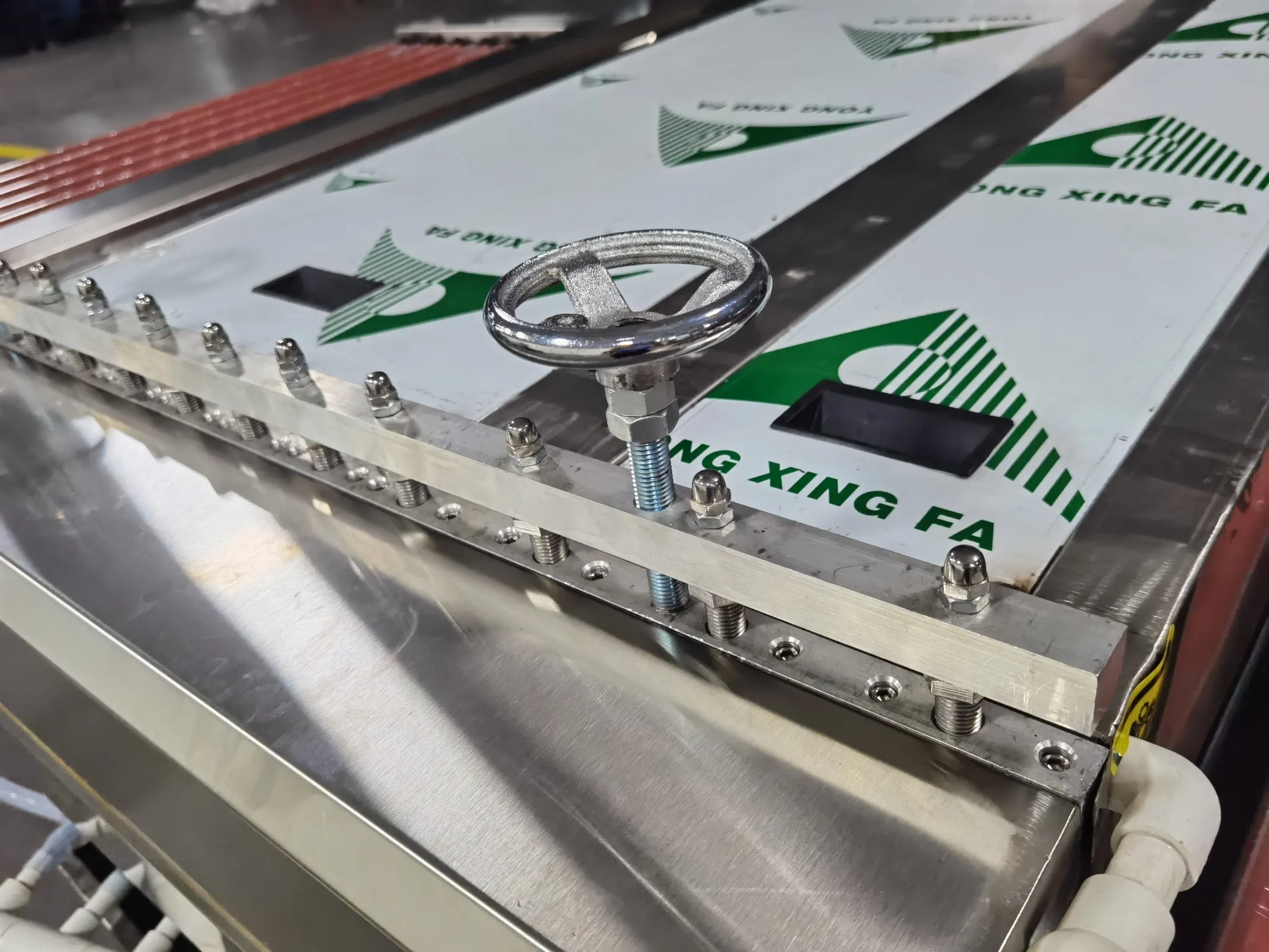

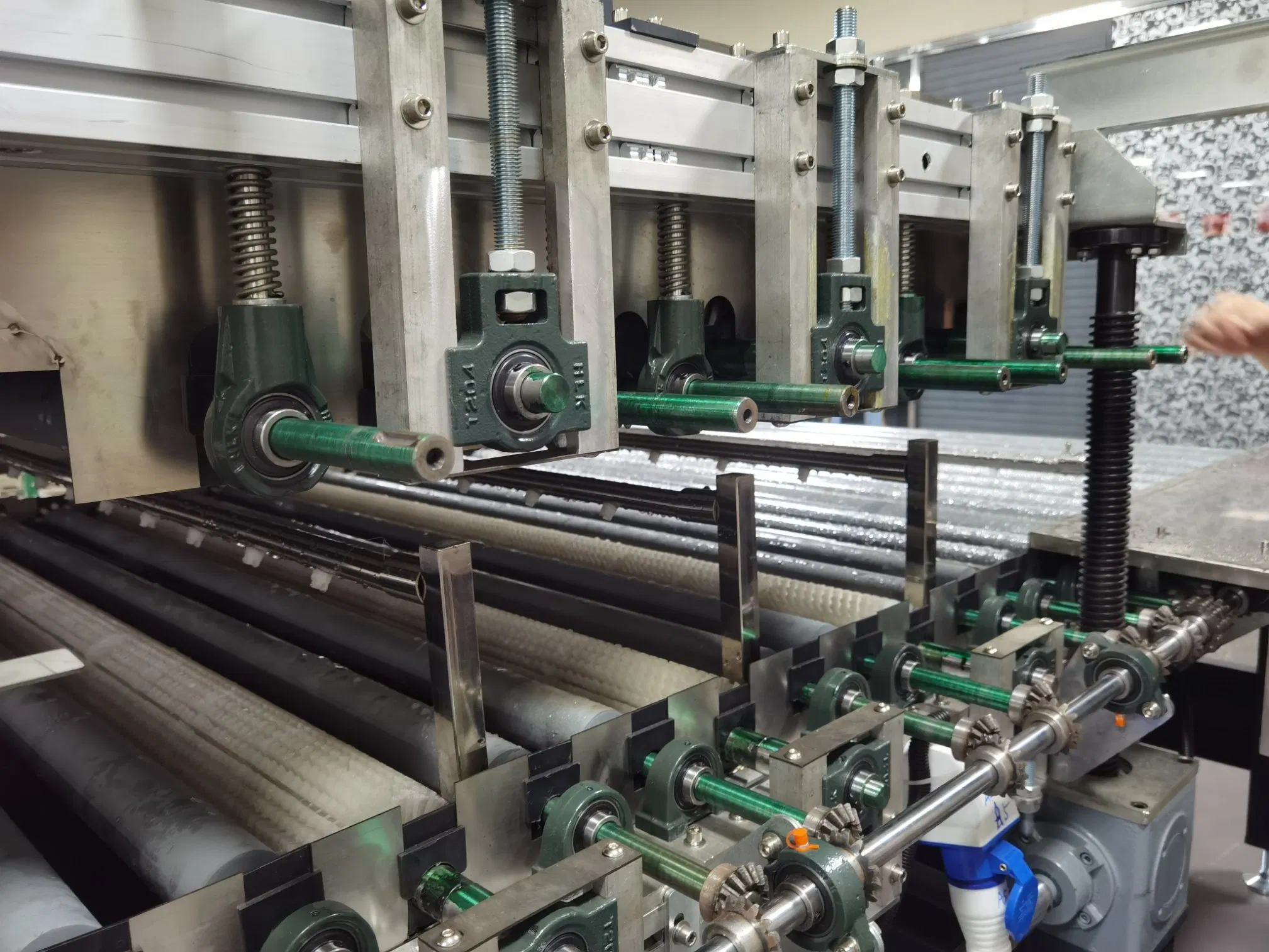

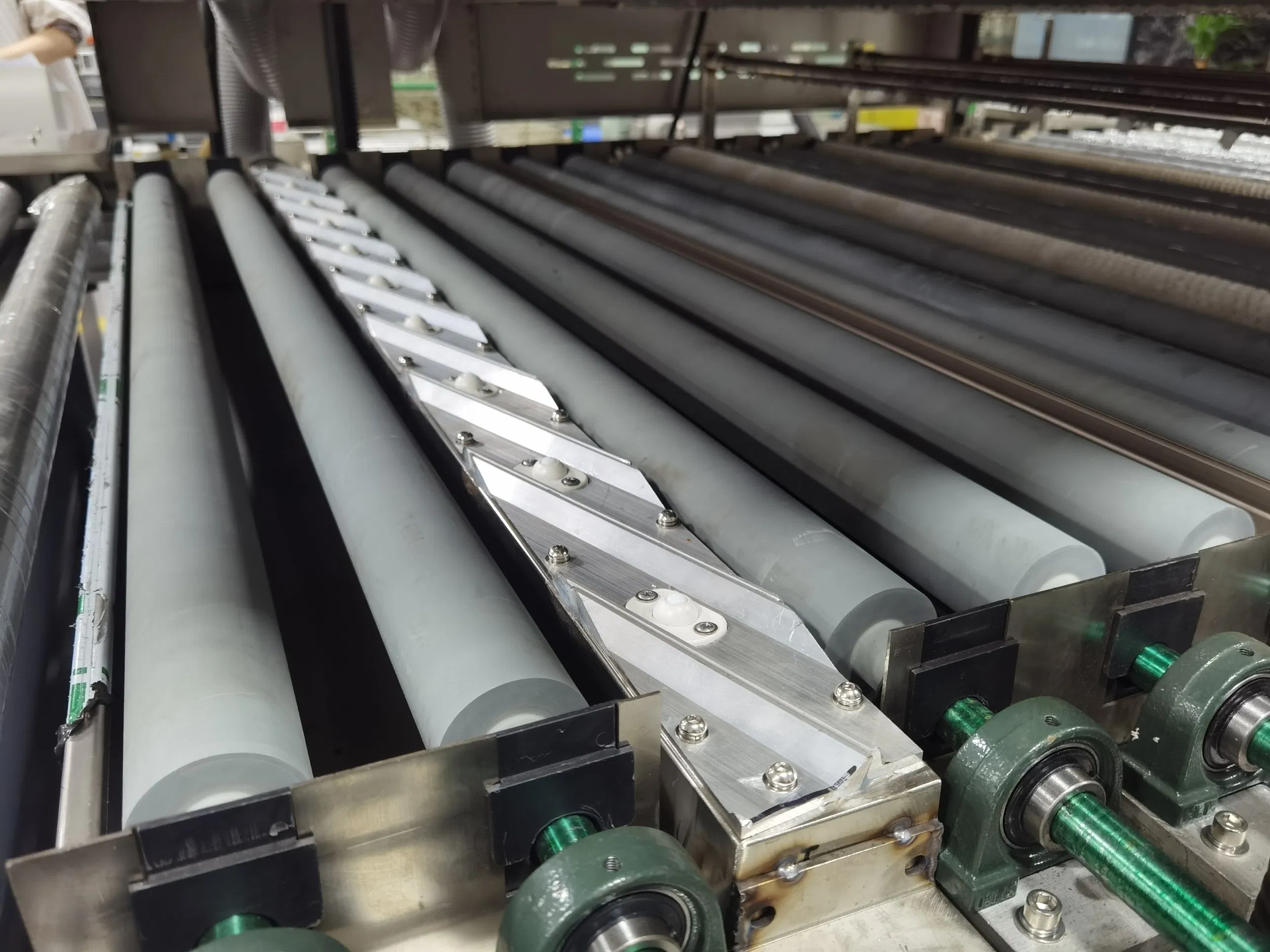

Glass Washing Machine with high pressure air knife is specially designed for tempering glass production lines, laminating glass production lines, and insulating glass production lines. It features a three-step washing function combined with a stepless regulator driving system, making it easy to process different sizes of glass.
| Model | Max. size | Min. size | Total power | Thickness | Weight | Machine size |
|---|---|---|---|---|---|---|
| SKW-1200A | 1200 x 3660 mm | 200 x 100 mm | 17 KW | 3-19 mm | 1.3 Tons | 4200x1800x2200 mm |
| SKW-1600A | 1600 x 3660 mm | 200 x 100 mm | 18.5 KW | 3-19 mm | 1.5 Tons | 4200x2500x2200 mm |
| SKW-1800A | 1800 x 3660 mm | 200 x 100 mm | 22 KW | 3-19 mm | 2.6 Tons | 5200x3200x2500 mm |
| SKW-2000A | 2000 x 3660 mm | 200 x 200 mm | 22.5 KW | 3-19 mm | 3.0 Tons | 6500x3500x2800 mm |
| SKW-2500A | 2440 x 3660 mm | 400 x 100 mm | 29 KW | 3-19 mm | 3.5 Tons | 6500x3900x2500 mm |
| SKW-2800A | 2800 x 5000 mm | 400 x 100 mm | 36 KW | 3-19 mm | 4.0 Tons | 7500x4100x2500 mm |
| SKW-3300A | 3300 x 6000 mm | 400 x 100 mm | 45 KW | 3-19 mm | 4.0 Tons | 7800x4500x2500 mm |
