EVA Laminating Furnace Machine for Safety Glass Processing and High Precision

1 / 5

EVA Laminating Furnace Machine for Safety Glass Processing and High Precision

Customization:	Available
Certification:	CE, ISO
Control System:	PLC Control

Send Inquiry

Product Description

Basic Specifications

Model NO.

BL2SS-2030

Glass Thickness

4-19 mm

Power

84kw

Silicone Bag Size

3800*2600mm

Max Glass Size

3660*2440mm

Power Supply

380V/50Hz

HS Code

84752919

Package Weight

4300.00kg

Product Description

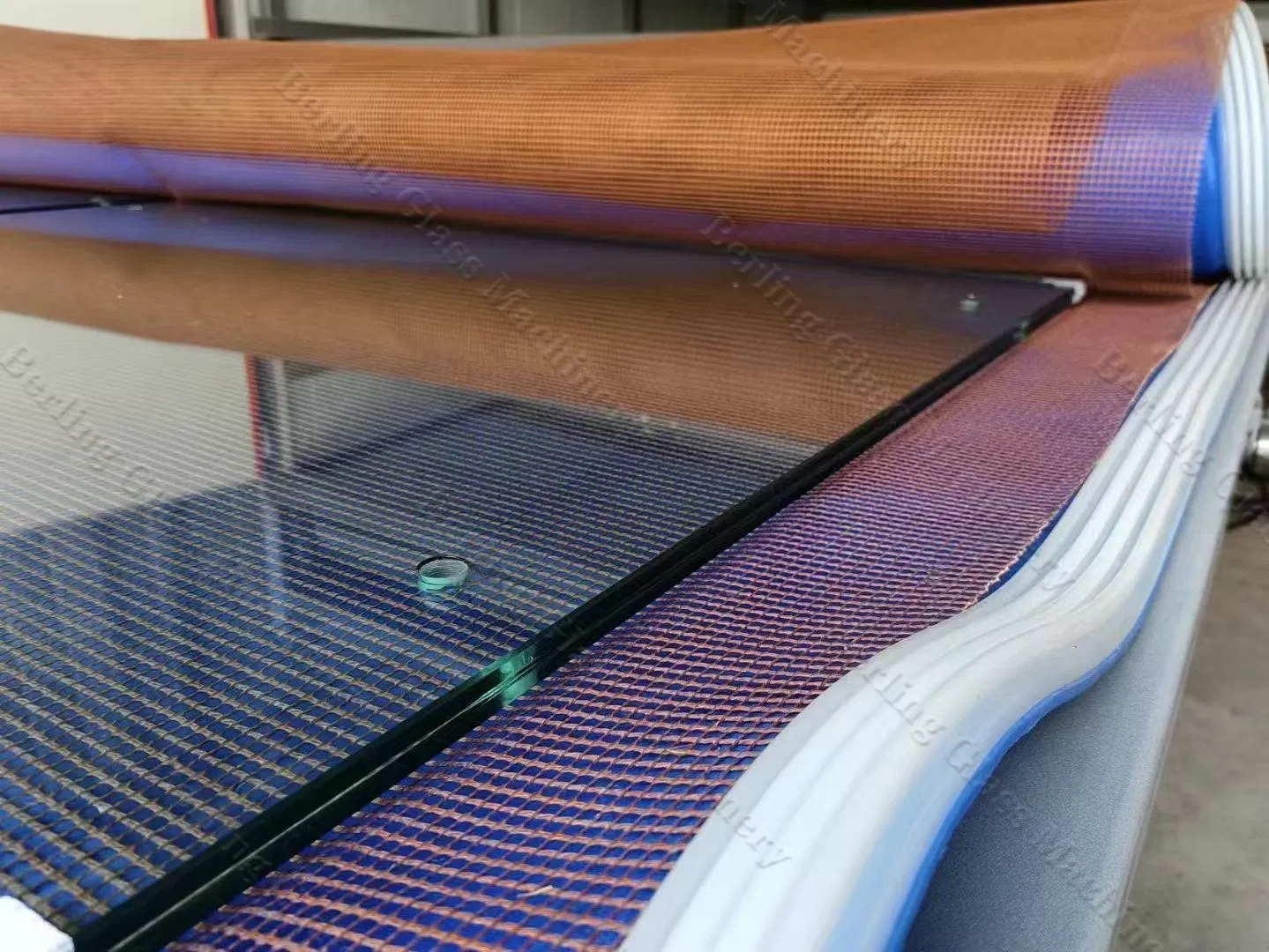

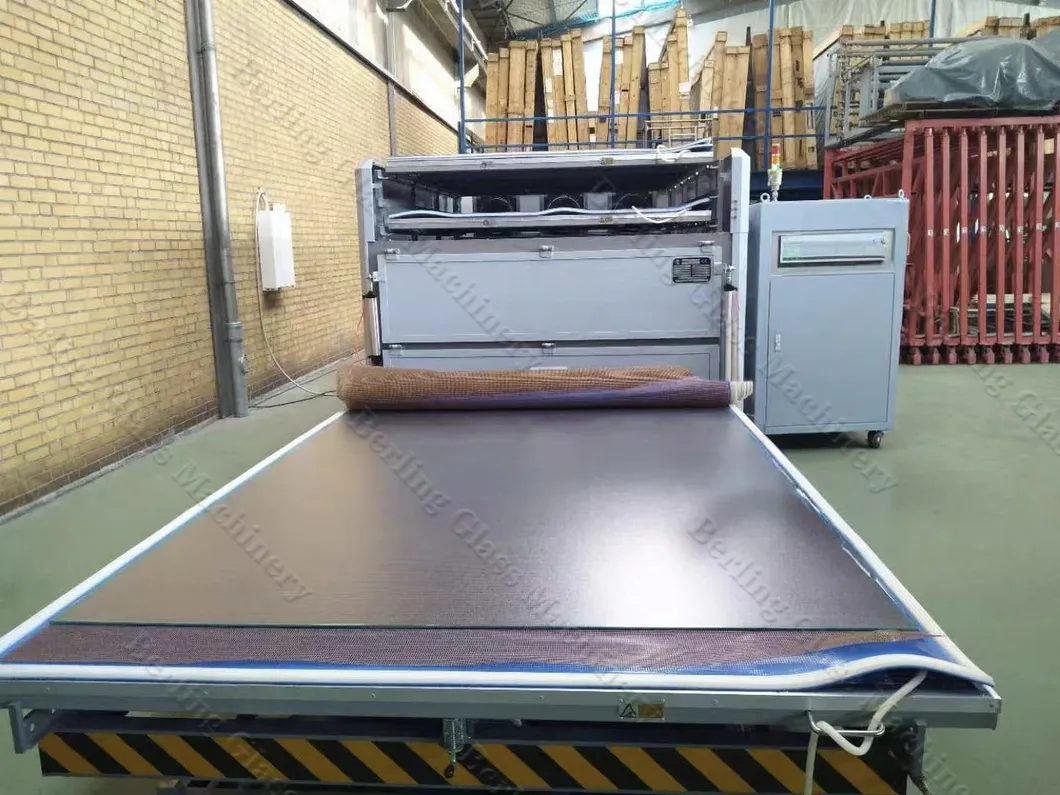

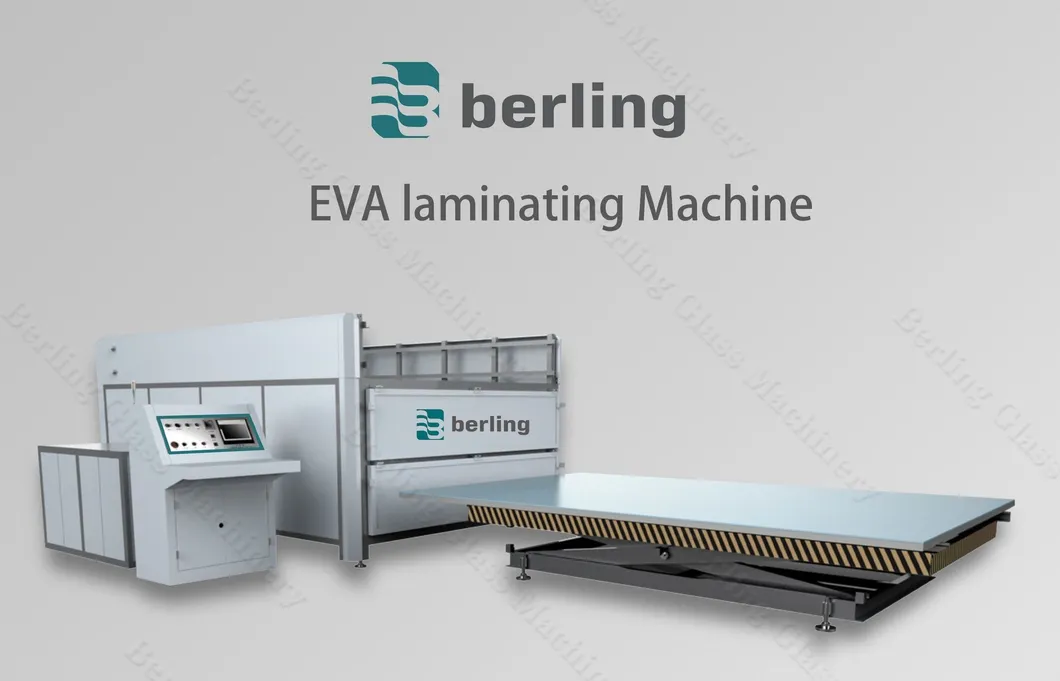

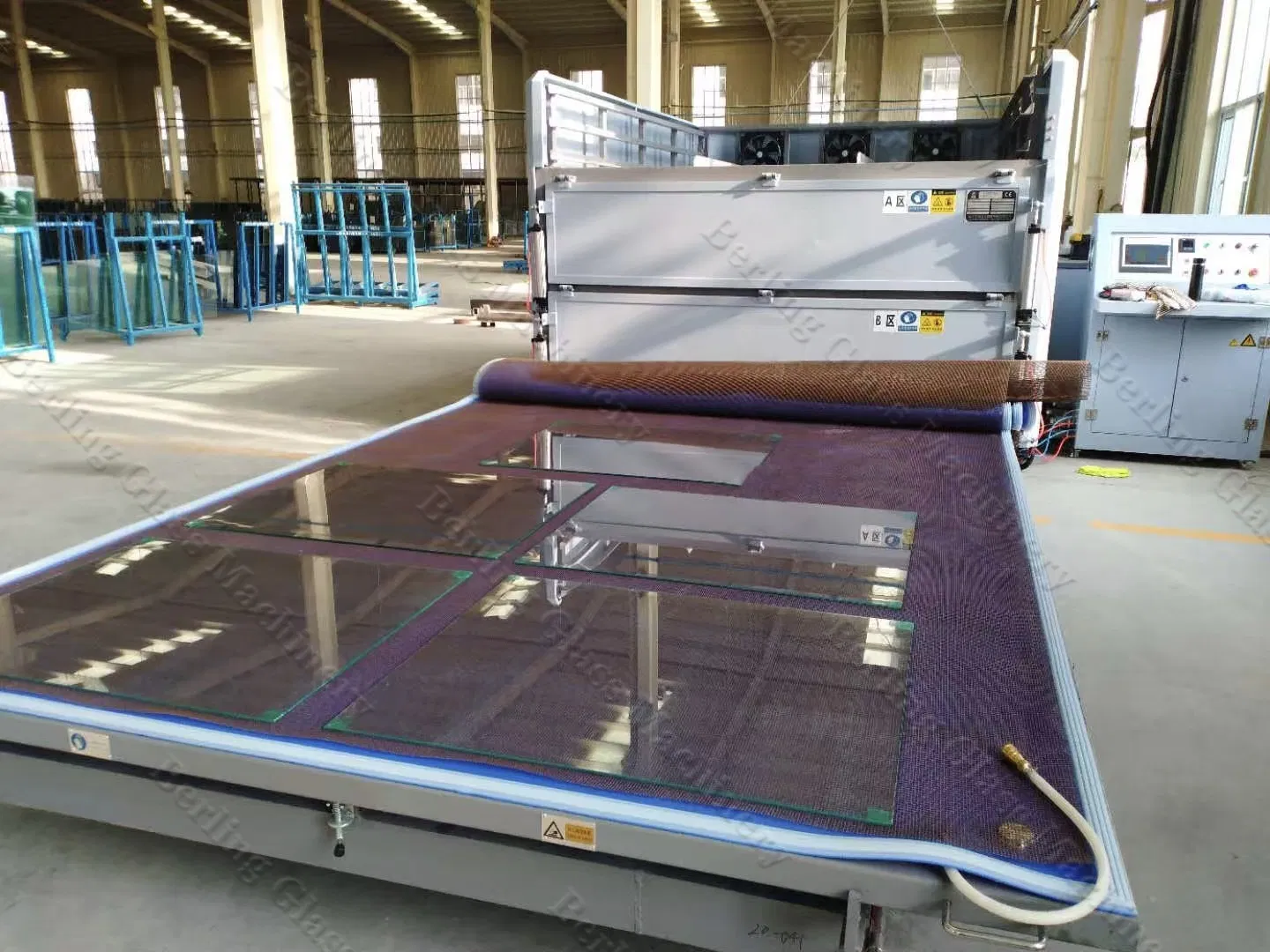

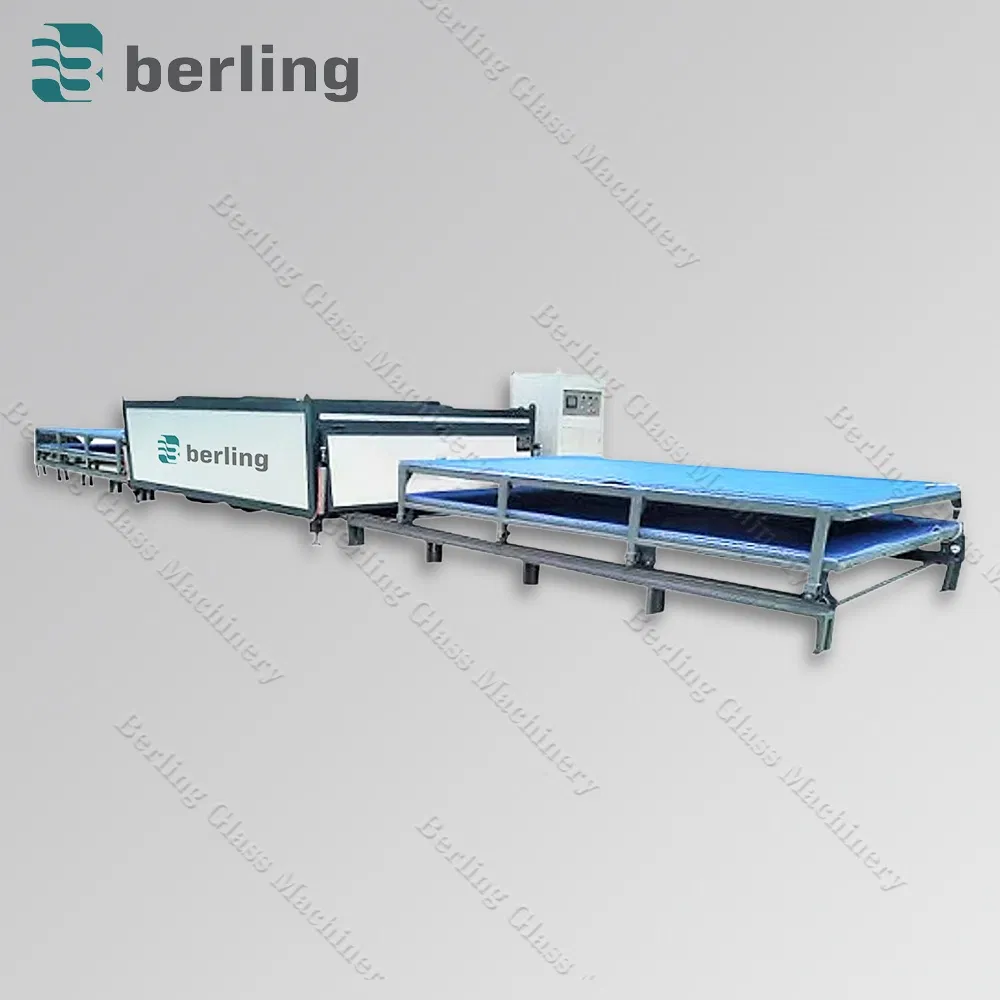

The EVA Laminated Glass Furnace is a high-efficiency, double-layer laminating machine designed for the thermal bonding of EVA (or EN) film between various types of glass sheets. With intelligent PLC temperature control, internal air circulation, vacuum systems, and durable silicone vacuum bags, it ensures stable, even heating and strong bonding, making it ideal for safety, decorative, and specialty glass manufacturing.

Key Features & Details

Efficient Heating: Fin-type circulation system for even temperature distribution.
Accurate Control: PLC-controlled intelligent temperature regulation.
Strong Vacuum System: High-performance pump with cooling protection.
Durable Structure: Thick galvanized steel frame and double insulation.
High Output: Silicone plates enable large-scale batch production.
Labor-Saving: Dual-layer design reduces manual handling.

Technical Parameters

Items	Specification	Power Supply	Total Power(KW)	Silicone bag size(MM)	Max Glass Size(MM)	Overall Dimension(MM)	Silicone bag Qty
BL2SS-2030	single station, 2 layers	380V/50HZ	27	2000*3000	1900*2900	780025001590	2
BL4DD-2030	double stations, 4 layers	380V/50HZ	27	2000*3000	1900*2900	1220025001590	4
BL2SS-2638	single station, 2 layers	380V/50HZ	42	2600*3800	2500*3700	940031001590	2
BL4DS-2638	double stations, 4 layers	380V/50HZ	42	2600*3800	2500*3700	1460031001590	4
BL4DD-2638	double systems, 4 layers	380V/50HZ	84	2600*3800	2500*3700	1040031002200	4

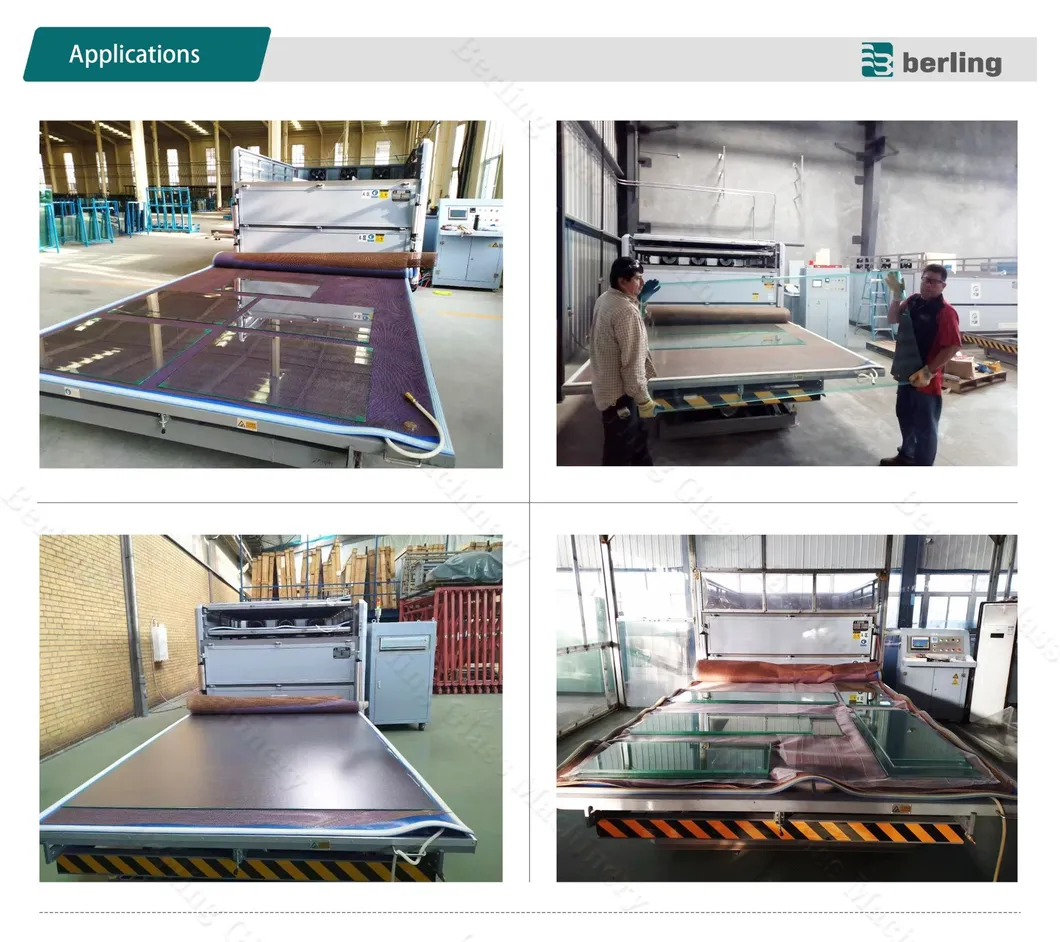

Application Scope

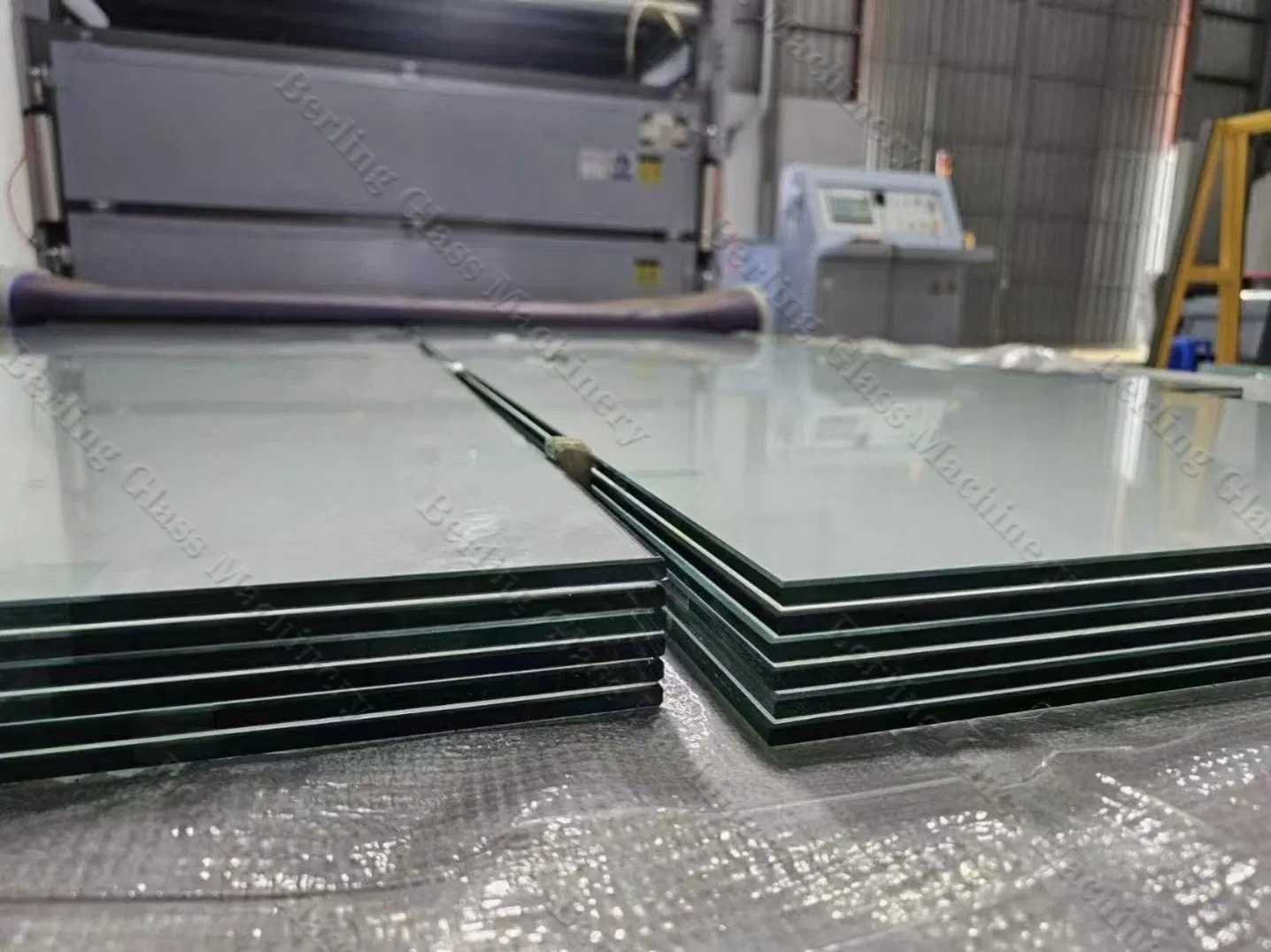

Laminated flat or curved glass & Toughened safety glass
Decorative colored laminated glass & Art glass (printed, wired, textured)
One-way perspective and dimming glass
Bulletproof and explosion-proof glass
Marble rock composite panels & Acrylic plate lamination

Packaging & Shipping

Production Capability

Frequently Asked Questions

Q1: How do you guarantee the quality of the glass machines?

We always provide a pre-production sample before bulk production and conduct a strict final inspection before shipment to ensure stable product quality.

Q2: What types of glass processing equipment do you offer?

We provide a full range of equipment including Insulated Glass Lines, Glass Cutting Machines, Washing Machines, Edging Machines, Tempering Furnaces, and Laminated Glass Production Lines.

Q3: Why choose your equipment over other suppliers?

With over 20 years of production experience, an excellent engineering team, and a professional after-sales service team, we provide highly stable and efficient machinery.

Q4: What payment and delivery terms are accepted?

We accept various terms including FOB, CFR, CIF, EXW, and DDP. Payments can be made in USD, EUR, or CNY via T/T, L/C, Credit Card, or PayPal.

Q5: Is customization available for the furnace size?

Yes, we offer multiple configurations (single/double stations, various layers) and can adjust specifications like silicone bag size to meet your specific production needs.

Q6: What materials can be processed with this laminating furnace?

It is ideal for processing toughened glass, decorative art glass, bulletproof glass, dimming glass, and even composite panels like marble-glass or acrylic lamination.
