Fastest Laminated Glass Cutting on The Market

Customization:	Available
Certification:	CE, ISO
Maximum Cutting Thickness:	30 mm

Send Inquiry

Product Description

Basic Information

Model NO.

GS-3826

Name

Automatic Laminated Glass Cutting Machine

Function

Cutting Laminated Glass

Usage

Glass Machine for Cutting Laminated Glass

Power

15kw

Weight

3000 Kg

Glass Thickness

3-19mm, 3+3mm to 12+12mm

Max Sheet Size

3700*2500mm

Control System

PLC

Warranty

12 Months

Product Characteristics

Easy operation with high cutting precision.
International standard steel construction with premium surface treatment.
Key areas annealed and milled for high stability and intensity.
Adjustable cutting and breaking pressure via proportional valve.
Adjustable far-infrared heating temperature and duration.

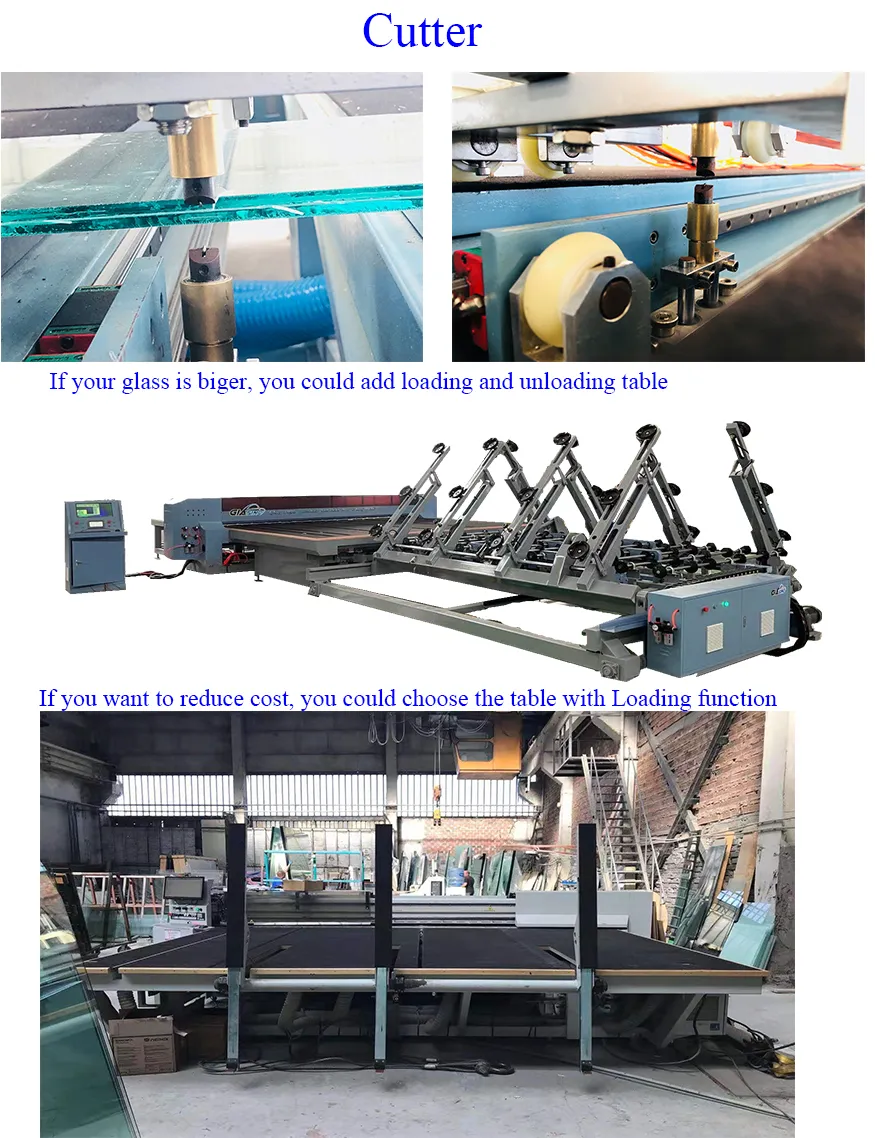

Integrated system includes loading, transfer, auto-location, stretch, and break functions.

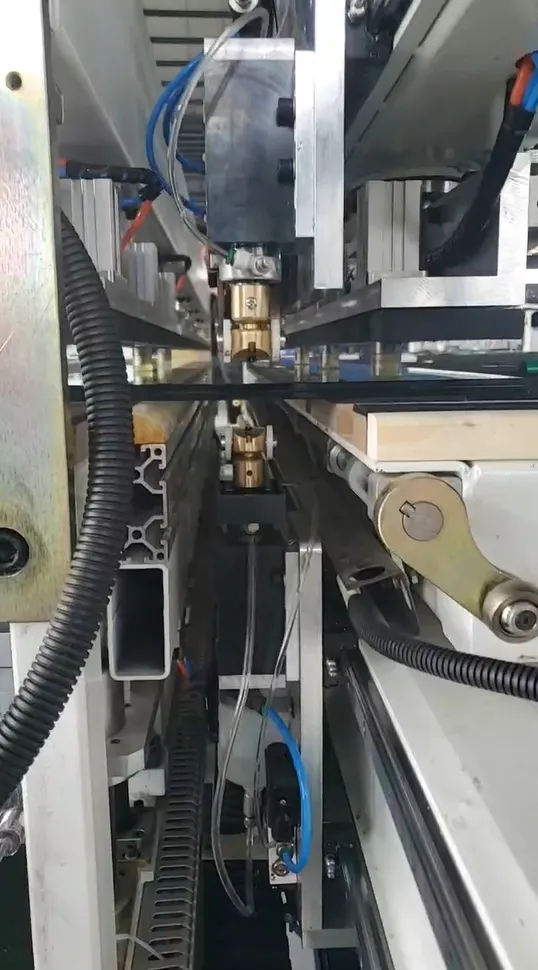

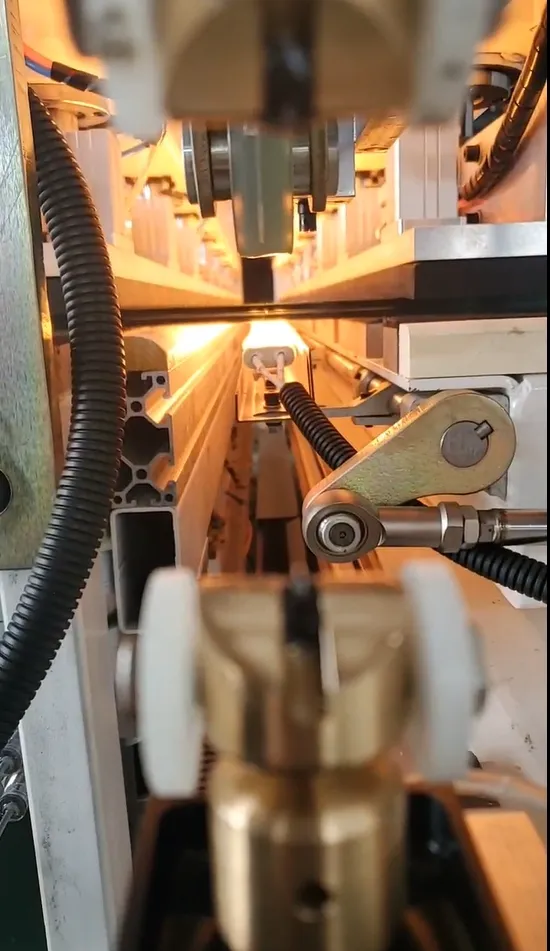

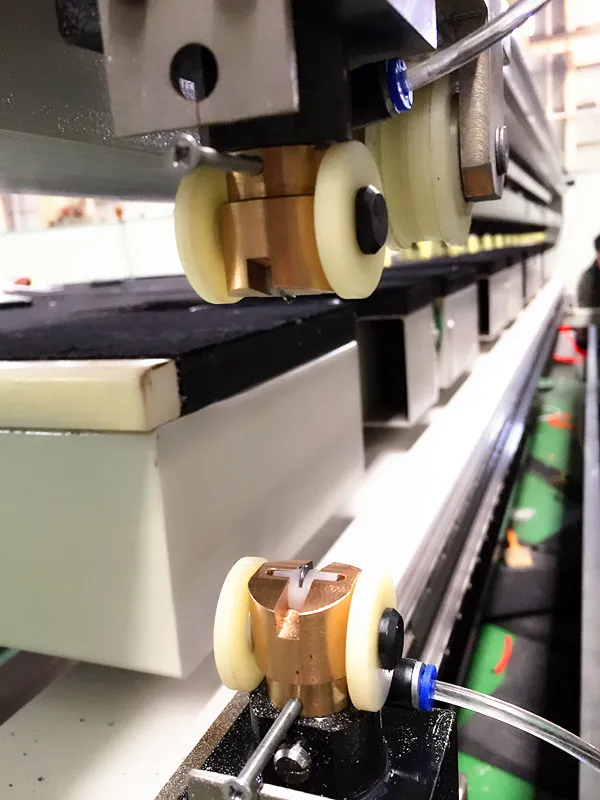

Bridge frame features double cutters (up and down), upper clamp, and film infrared cutting.

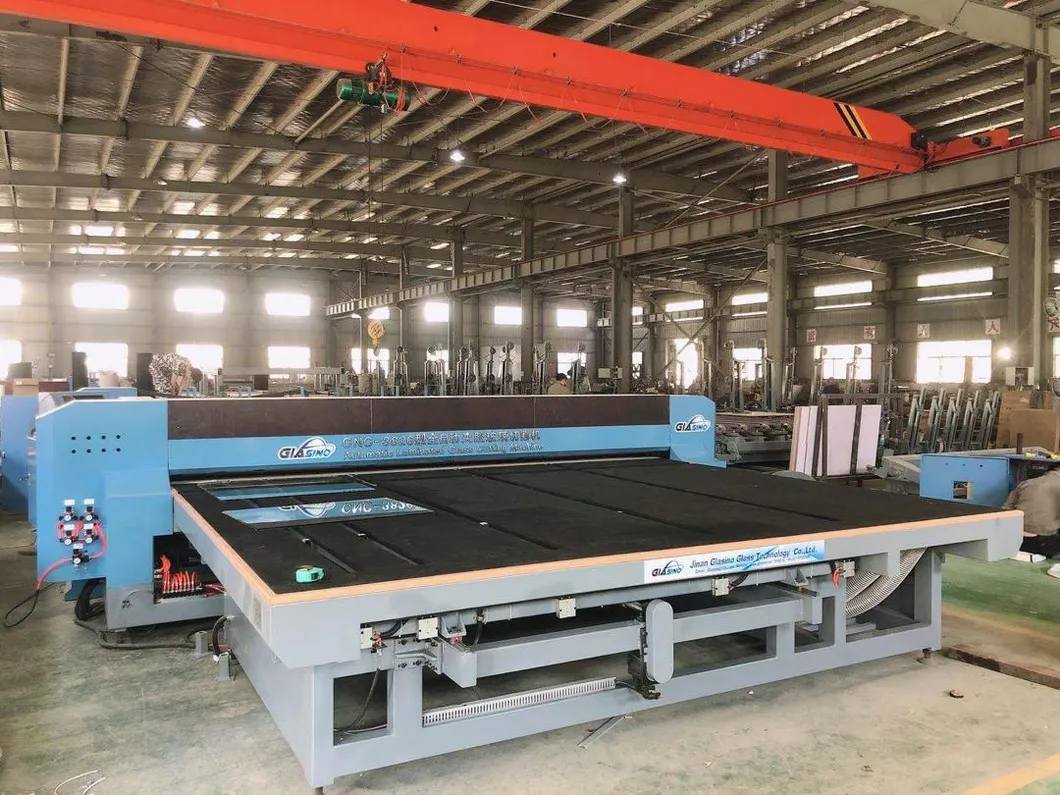

Laminated Glass Cutting Machine Overview

Technical Description

Cutting Capabilities:

Maximum size of cuttable glass: 3700mm
Minimum size of cuttable glass: 200mm × 200mm
Cutting thickness: 3+3mm to 10+10mm laminated glass
Film thickness compatibility: 0.38-1.52mm (PVB, EVA)
Workbench height: 900mm ± 50mm

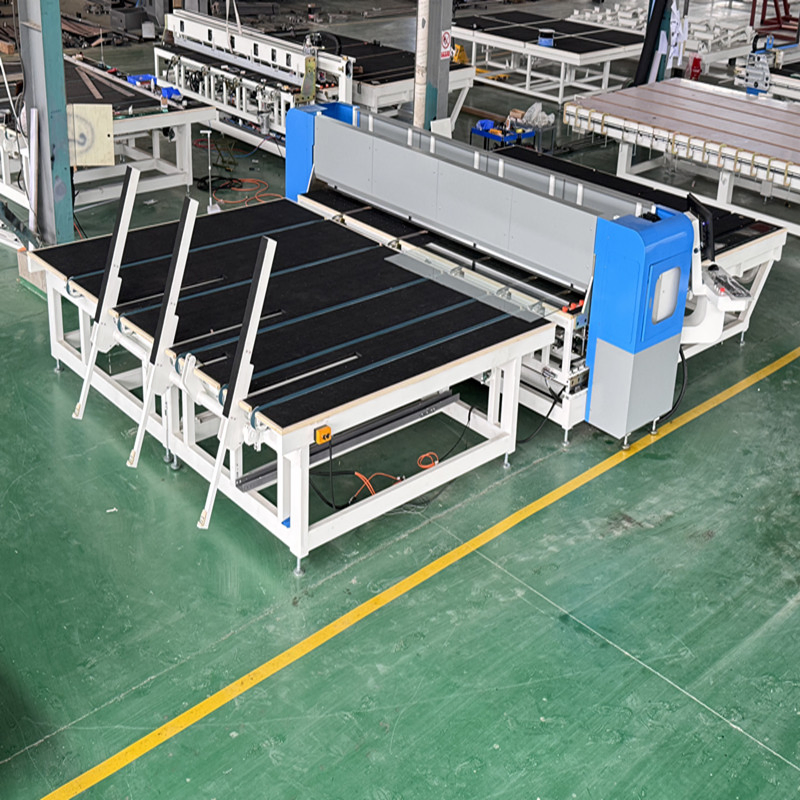

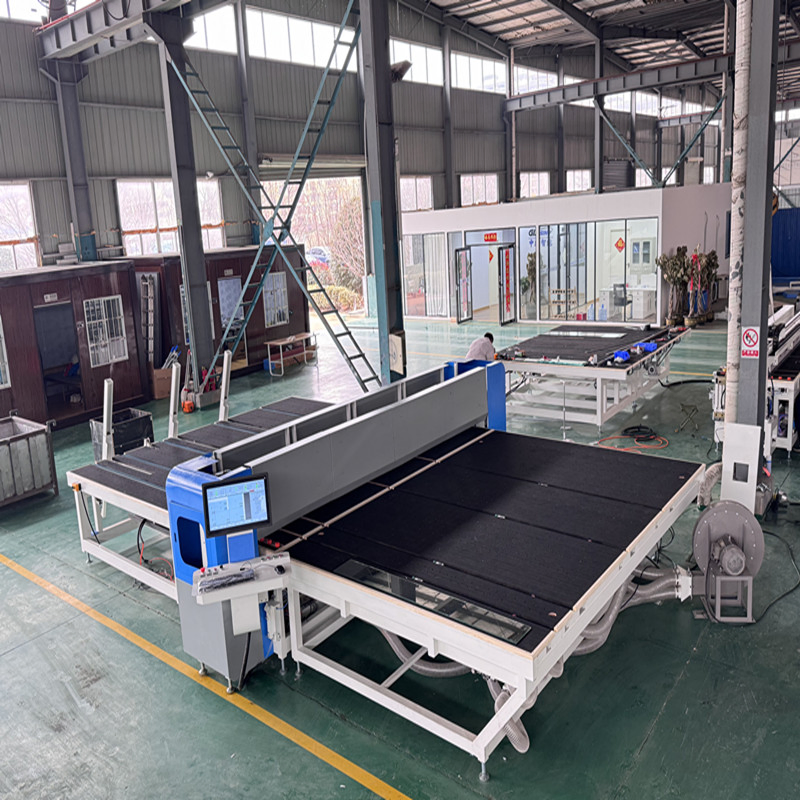

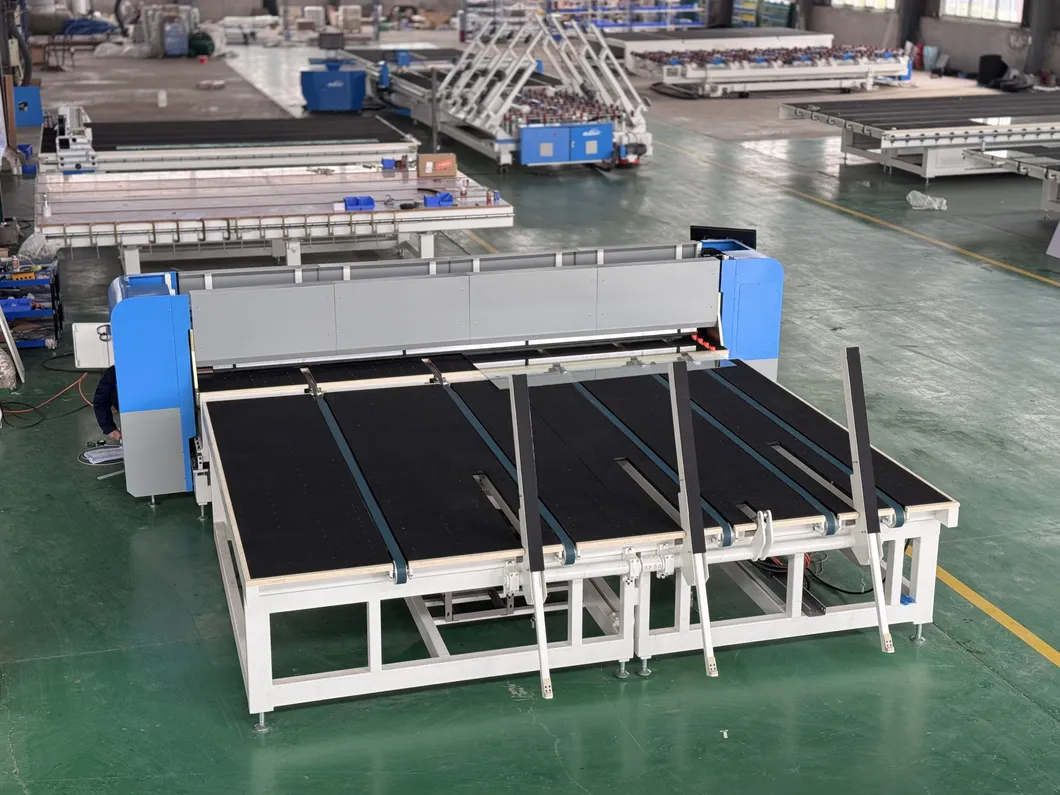

Detailed Photos

Product Parameters

Item	Value
Machine Name	Automatic Laminated Glass Cutting Machine
Model	GS-LM3826
Max. Glass Sheet Size	3700*2500mm
Min. Glass Cutting Size	400*350mm
Glass Thickness	3+3mm to 12+12mm
Heating Temperature and Time	Manual Set / Adjustable
Max. Cutting Speed	120m/min
Dimensions	710045001500mm
Weight	3000KG

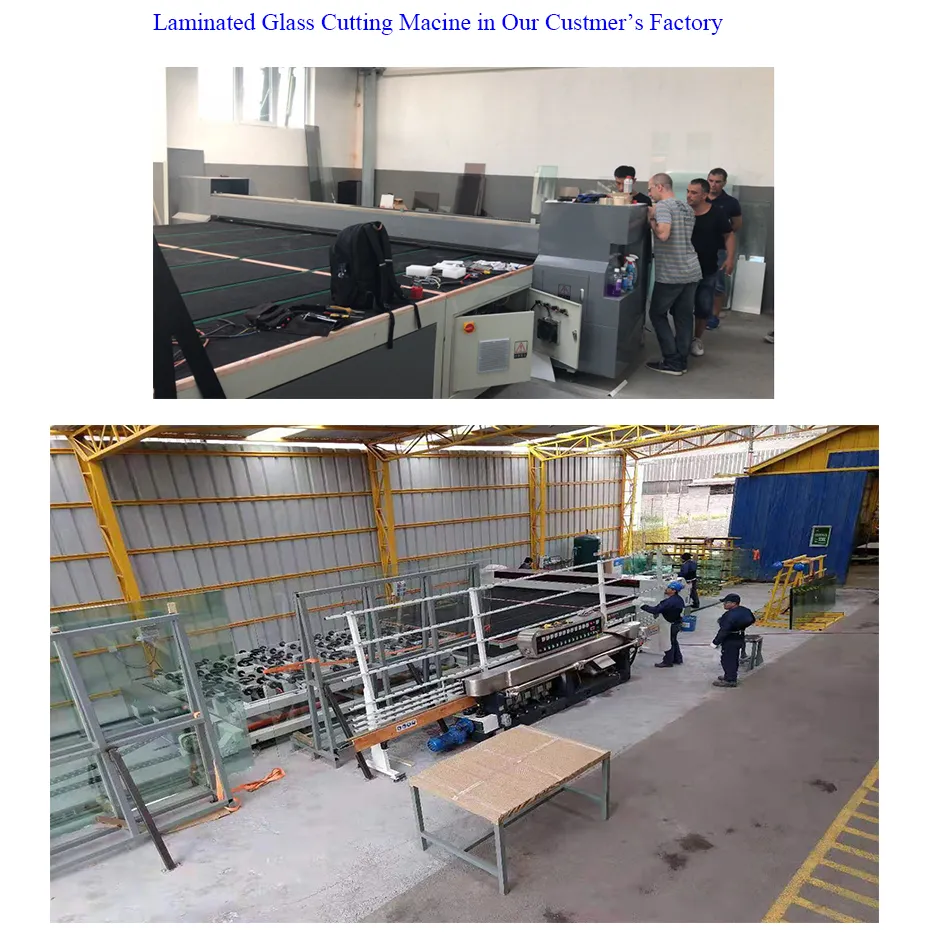

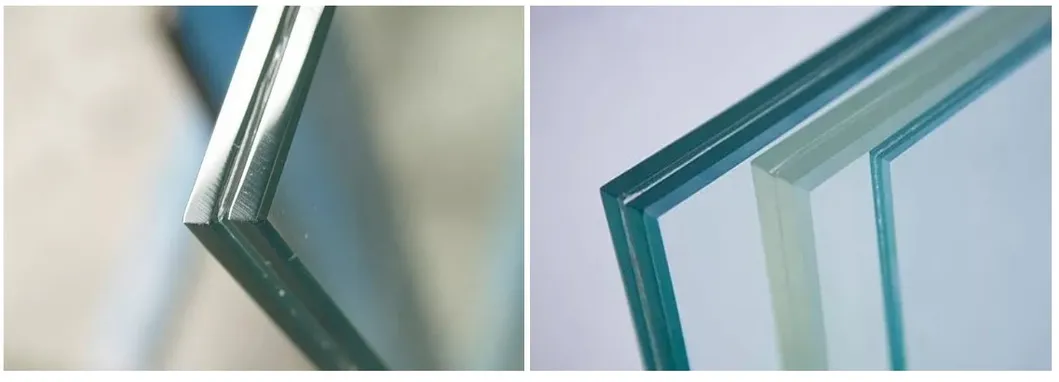

Working Samples & Production

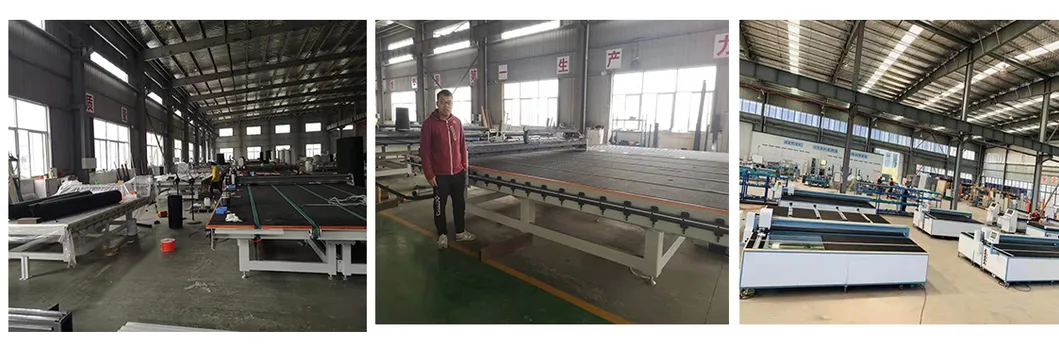

Profile

Founded in 2003, we are a high-tech enterprise specializing in the production of glass tempering furnaces, CNC glass cutting machines, insulating glass machines, and curtain wall glass machines. Our product range includes automatic glass cutting lines, multifunctional machines, and full set processing equipment for insulating glass. We hold European CE certification, Switzerland SGS certification, and ISO 9001:2008 quality control system approval. We are committed to perpetual innovation and continuous improvement of production management to meet global market needs.

Frequently Asked Questions

What is the thickness range of laminated glass this machine can cut?

The machine is capable of cutting laminated glass ranging from 3+3mm up to 12+12mm, providing high versatility for various industrial needs.

What types of interlayer films are compatible with the heating system?

The system effectively cuts and separates laminated glass with PVB and EVA films, supporting thicknesses from 0.38mm to 1.52mm.

How is the cutting pressure controlled for different glass thicknesses?

The equipment uses a proportional valve system. Operators simply input the glass thickness into the control interface, and the machine automatically adjusts the corresponding knife pressure.

What is the maximum cutting speed of the GS-LM3826 model?

The machine offers a high-efficiency performance with a maximum cutting speed of up to 120m/min.

Does the machine support automatic glass separation?

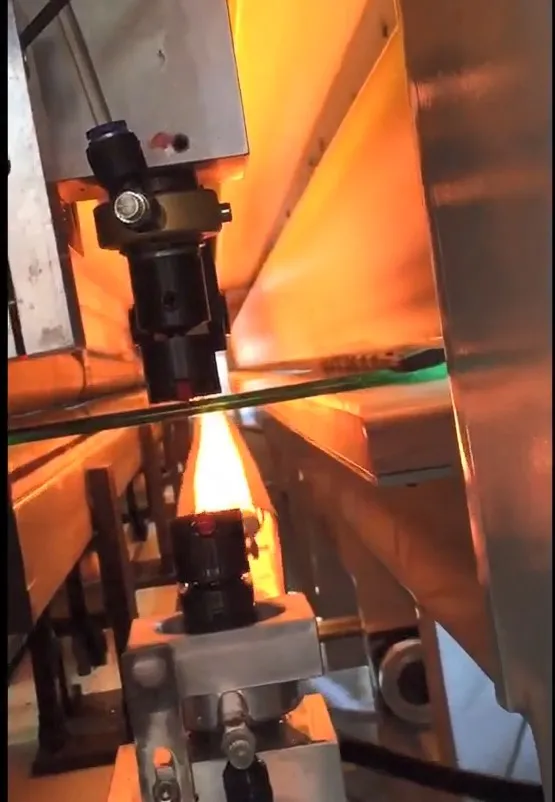

Yes, the separation process is completely automatic. It uses a separation shaft and far-infrared heating tubes to heat the cutting line, followed by a rubberized blade to complete the cut.

What kind of warranty and after-sales service is provided?

The product comes with a 12-month warranty. We provide 24-hour after-sales support to ensure continuous operation and maintenance for our customers.
