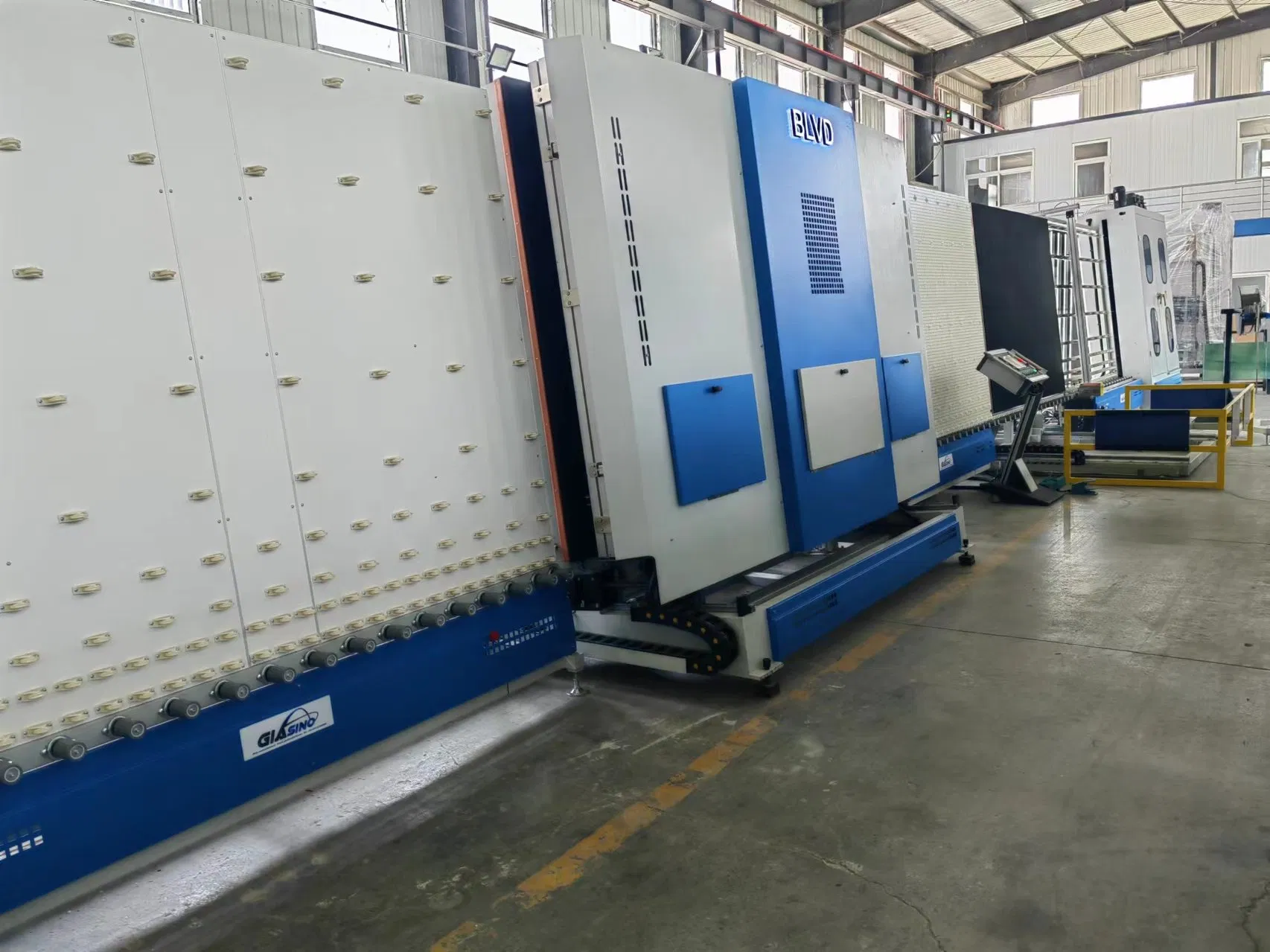

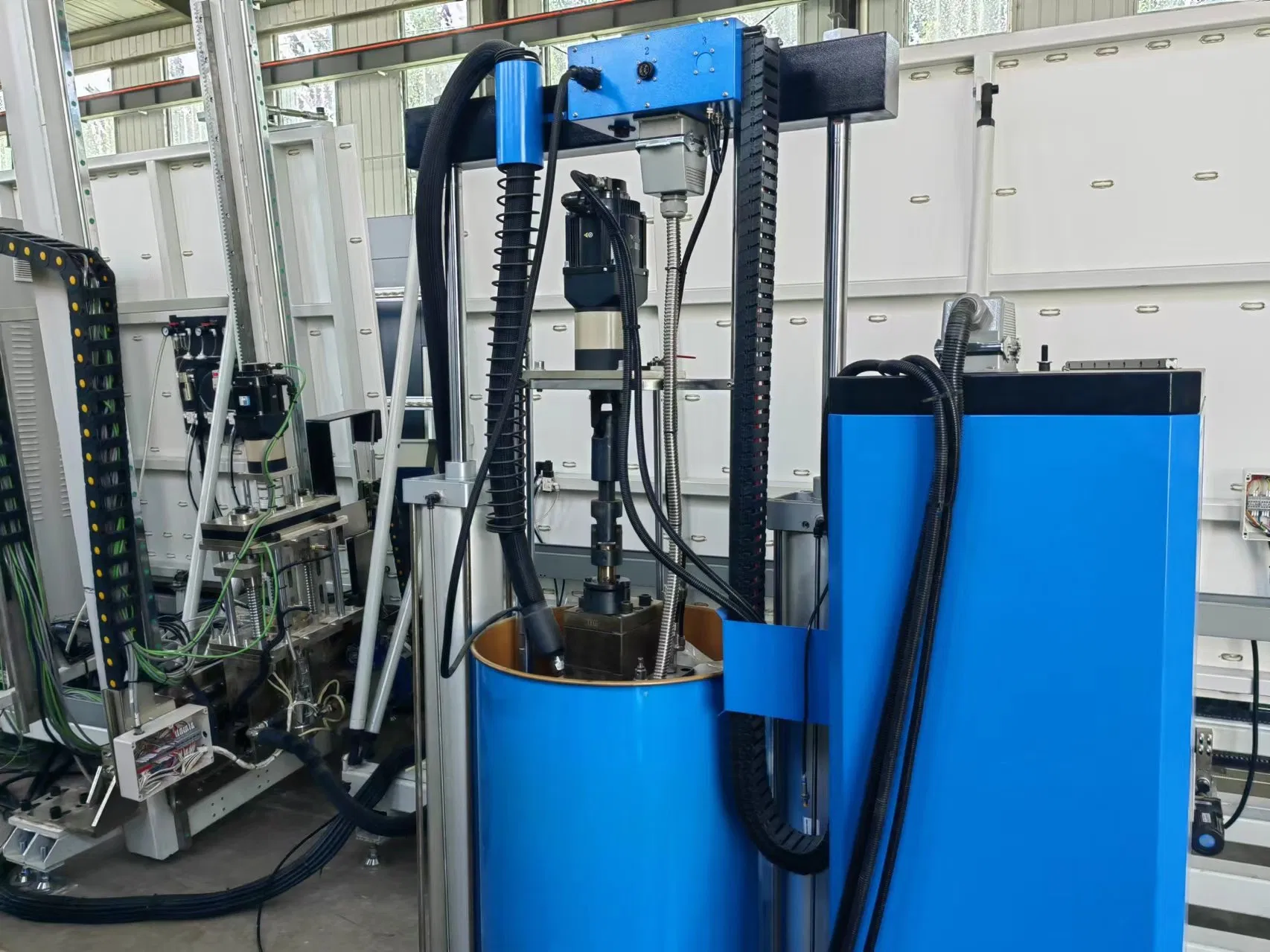

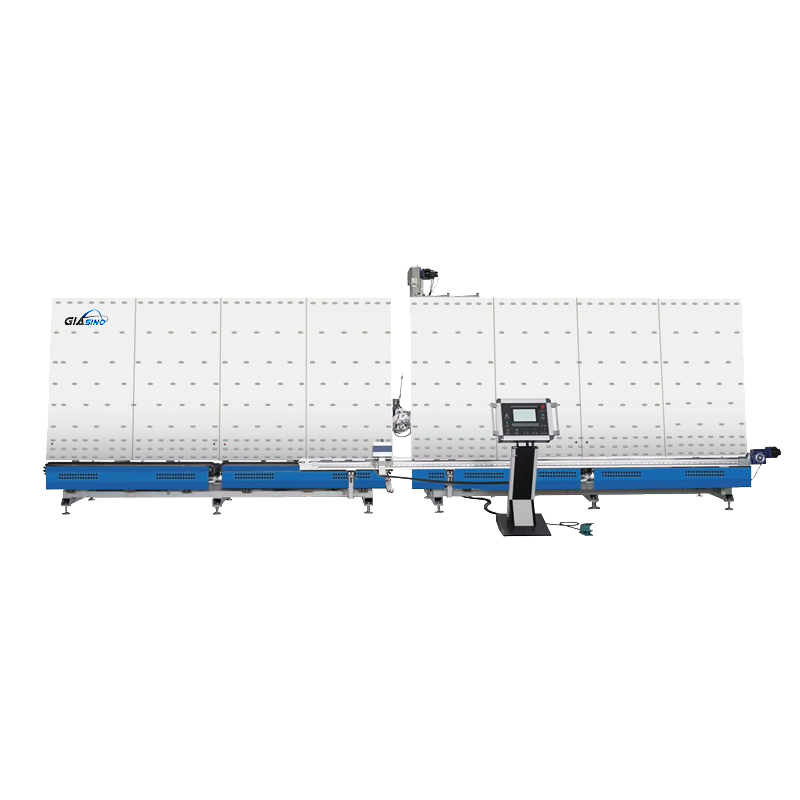

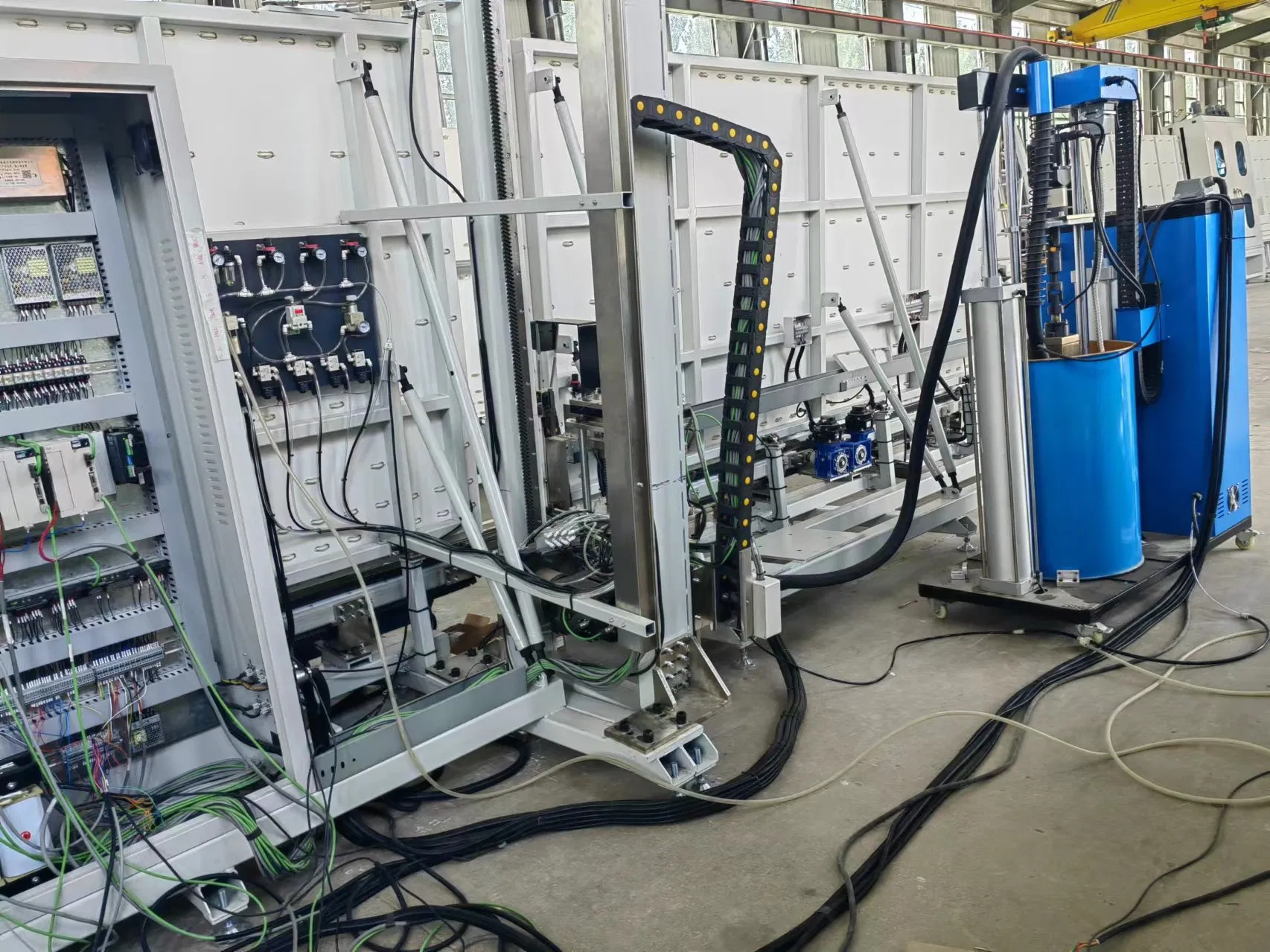

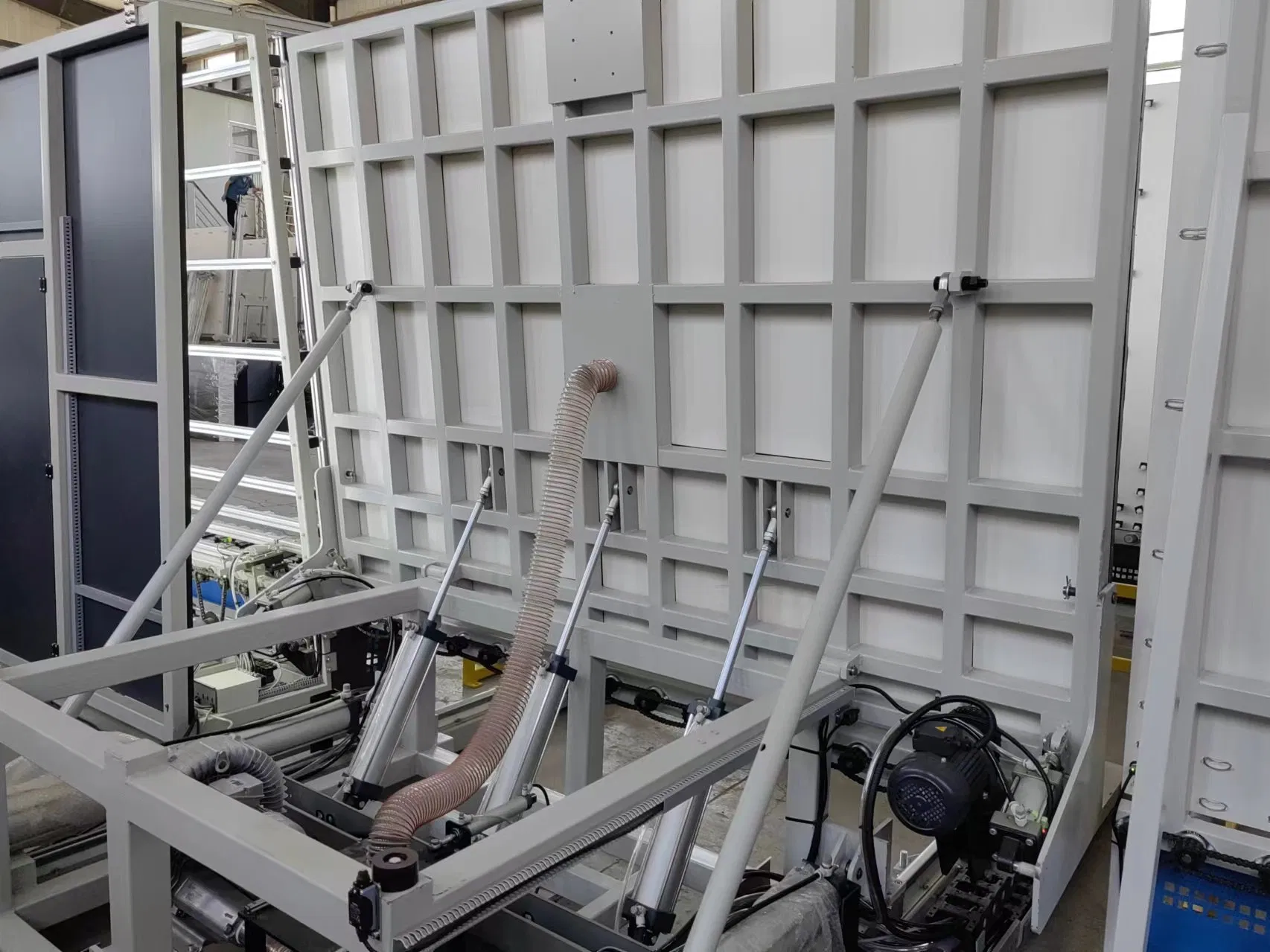

Glasino CNC Automatic Insulating Glass Hot Melt Sealing Robot Machine for Igu Double Glazing Glass Processing
Glasino CNC Automatic Insulating Glass Hot Melt Sealing Robot Machine for Igu Double Glazing Glass Processing
Glasino CNC Automatic Insulating Glass Hot Melt Sealing Robot Machine for Igu Double Glazing Glass Processing
Glasino CNC Automatic Insulating Glass Hot Melt Sealing Robot Machine for Igu Double Glazing Glass Processing
Glasino CNC Automatic Insulating Glass Hot Melt Sealing Robot Machine for Igu Double Glazing Glass Processing
1 / 5
Glasino CNC Automatic Insulating Glass Hot Melt Sealing Robot Machine for Igu Double Glazing Glass Processing
Glasino CNC Automatic Insulating Glass Hot Melt Sealing Robot Machine for Igu Double Glazing Glass Processing
Glasino CNC Automatic Insulating Glass Hot Melt Sealing Robot Machine for Igu Double Glazing Glass Processing
Glasino CNC Automatic Insulating Glass Hot Melt Sealing Robot Machine for Igu Double Glazing Glass Processing
Glasino CNC Automatic Insulating Glass Hot Melt Sealing Robot Machine for Igu Double Glazing Glass Processing

Glasino CNC Automatic Insulating Glass Hot Melt Sealing Robot Machine for Igu Double Glazing Glass Processing

Customization: Available
Certification: CE, ISO
Control System: PLC
Send Inquiry

Product Description

Technical Specifications

Model NO.
ZNJR2025
Customized
Available
Glass Thickness
3-19 mm
Type
Insulating Glass Production Line
Structure
Vertical
Warranty
1 Year
After-Sales
1 Year Support
Specification
3500kg
Capacity
30 Sets/Month

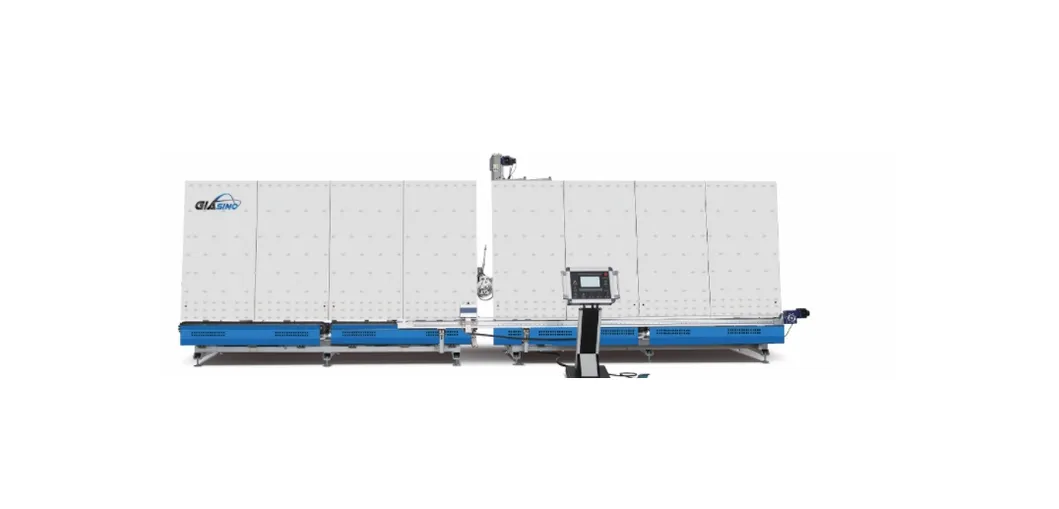

Automatic Insulating Glass Sealing Robot

Automatic Insulating Glass Sealing Robot
✓ The robot applies professional single component hot melt sealant.
✓ Finished sealed IG units can be stored on the third conveyor to significantly increase production efficiency.
✓ Economical and practical solution for all glass fabricators.
✓ Precision sealing: All edges and corners are fully sealed with no voids, leaving a smooth surface without manual corner treatment.
✓ Advanced Servo control system using world-renowned brands (YASKAWA).
✓ High-precision belt conveyor smoothly transfers and positions glass via servo motor.
✓ Unique V-belt delivery system reduces sealant contact for cleaner glass; features replaceable inserts for easy maintenance.
✓ Utilizes high-quality materials throughout to extend equipment longevity.

Premium Spare Parts Brands

No. Component Name Brand Origin
1Motion ControllerYASKAWAJapan
2Touch ScreenPANELMASTERTaiwan
3Frequency ConverterYASKAWAJapan
4AC ContactorSCHNEIDERFrance
5Intermediate RelaySCHNEIDERFrance
6BreakerSCHNEIDERFrance
7Air CylinderSMCJapan
8Intermediate RelayWeidmullerGermany
9Photoelectric SwitchAUTONICSouth Korea
10SolenoidAIRTACTaiwan
11Servo MotorYASKAWAJapan
12Low-voltage ElectricsSCHNEIDERFrance

Product Gallery

Machine Detail View 1

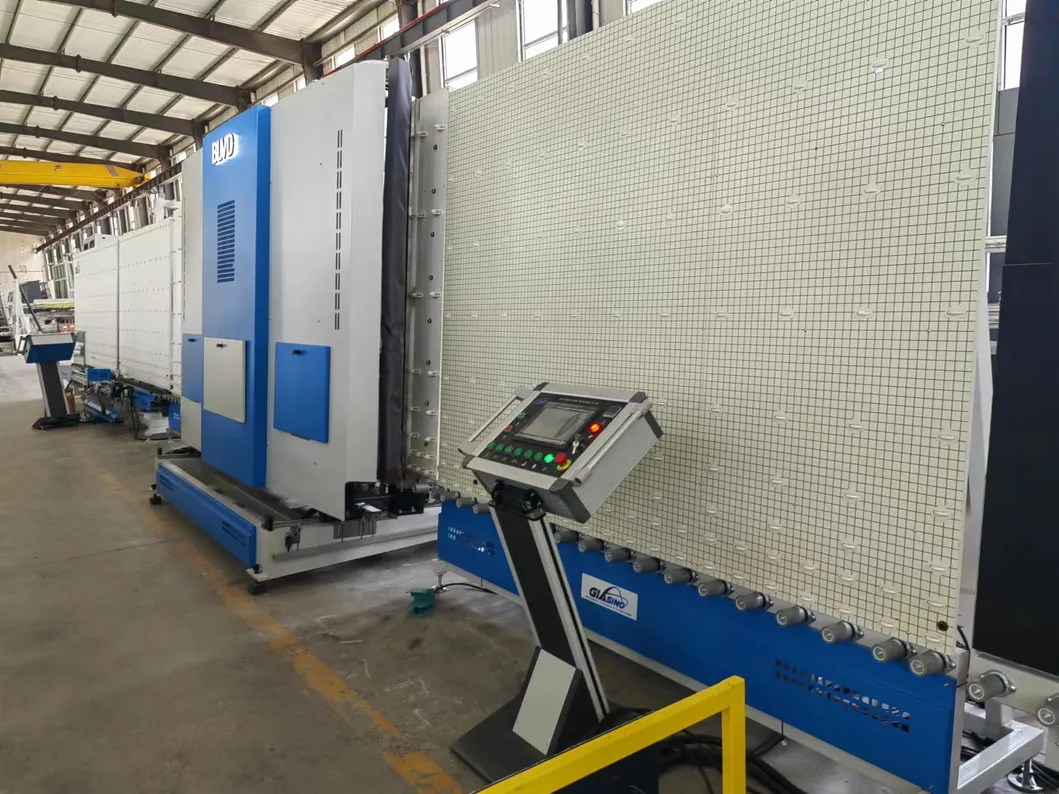

Machine Detail View 2

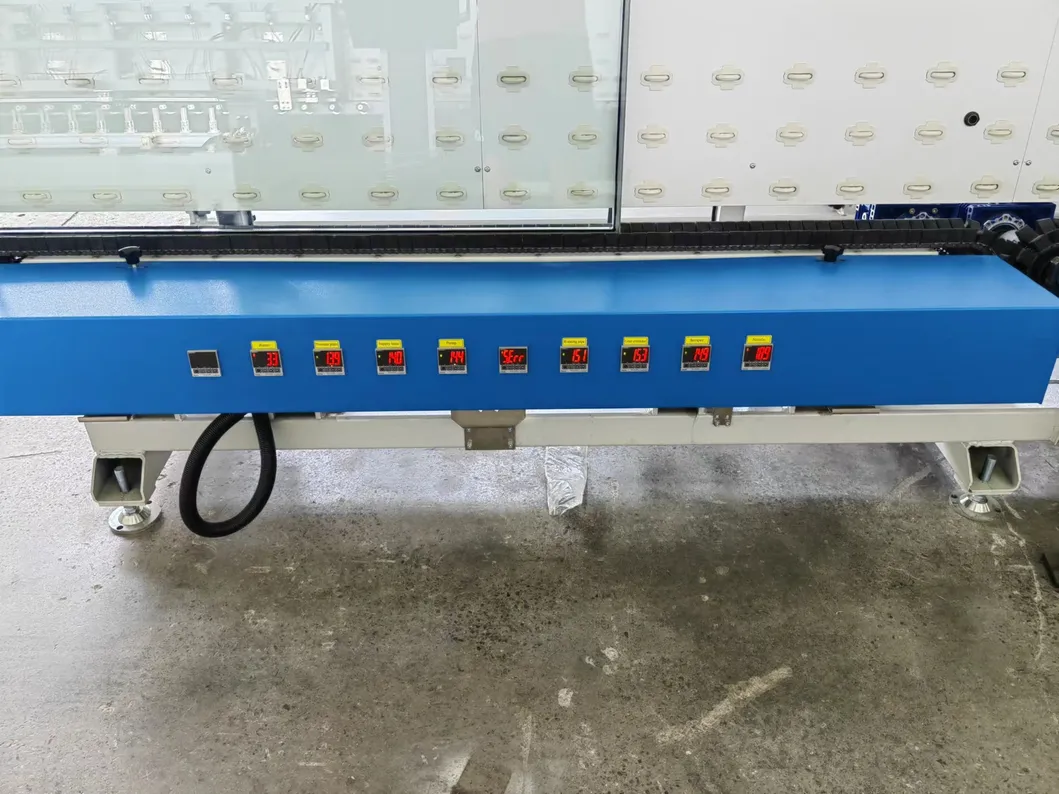

Machine Detail View 3

Frequently Asked Questions

●   What type of sealant does this robot use?
This robot is specifically designed to apply single component hot melt sealant for insulating glass units.
●   What range of glass thickness can the machine process?
The system supports glass thicknesses ranging from 3mm to 19mm.
●   How does the machine ensure corner sealing quality?
The robot ensures all edges and corners are fully sealed with no voids, providing a smooth finish that eliminates the need for manual corner treatment.
●   Which control systems are integrated into the robot?
The machine utilizes high-end YASKAWA servo control systems and motion controllers for precision and reliability.
●   How is the maintenance for the conveyor system handled?
The unique V-belt delivery system features replaceable inserts, making maintenance and cleanup quick and easy.
●   What is the standard warranty for this equipment?
The machine comes with a standard 1-year warranty and 1-year after-sales service support.
