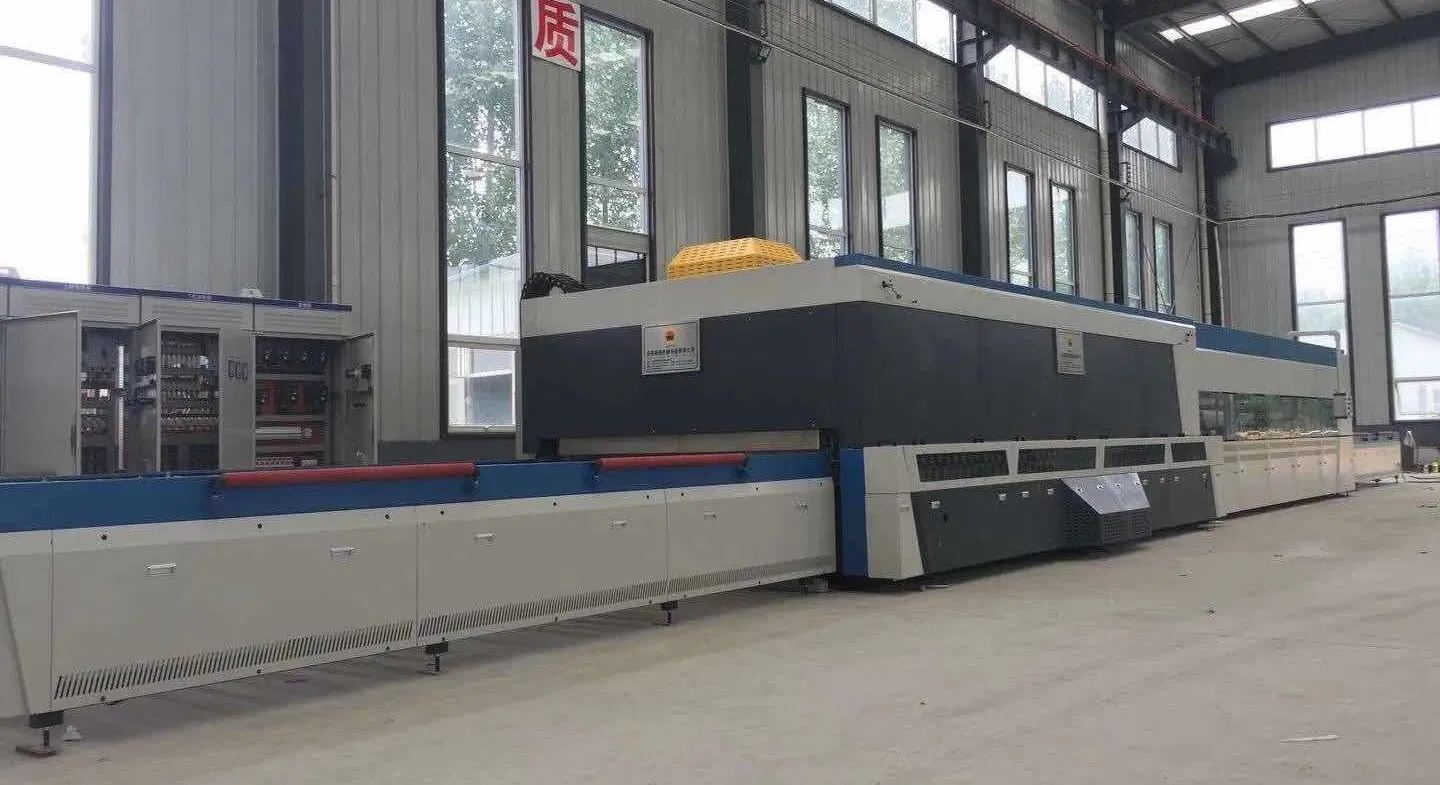

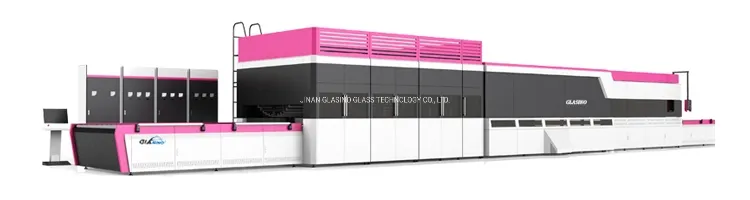

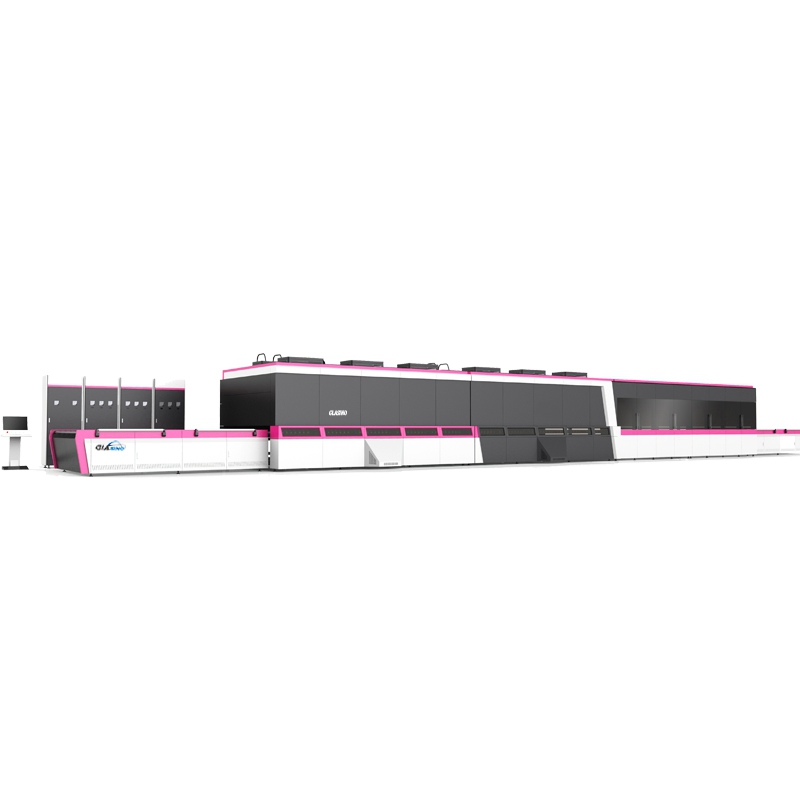

Flat Horizontal Bending Glass Tempering Furnace Glass Oven
Equipment Features: Our flat/bend glass tempering furnaces are primarily designed to produce tempered glass for various industries including photovoltaic, household electrical appliances, building glass, home decoration, Low-E glass, and furniture applications.

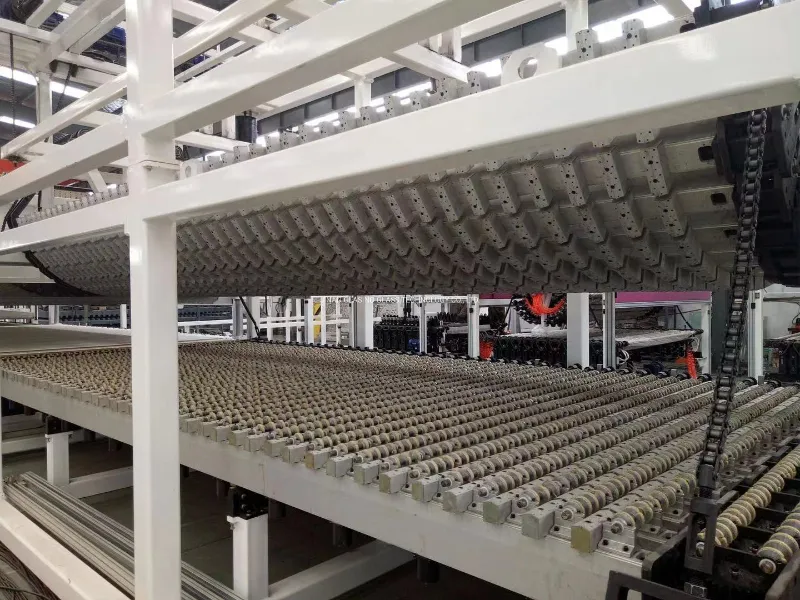

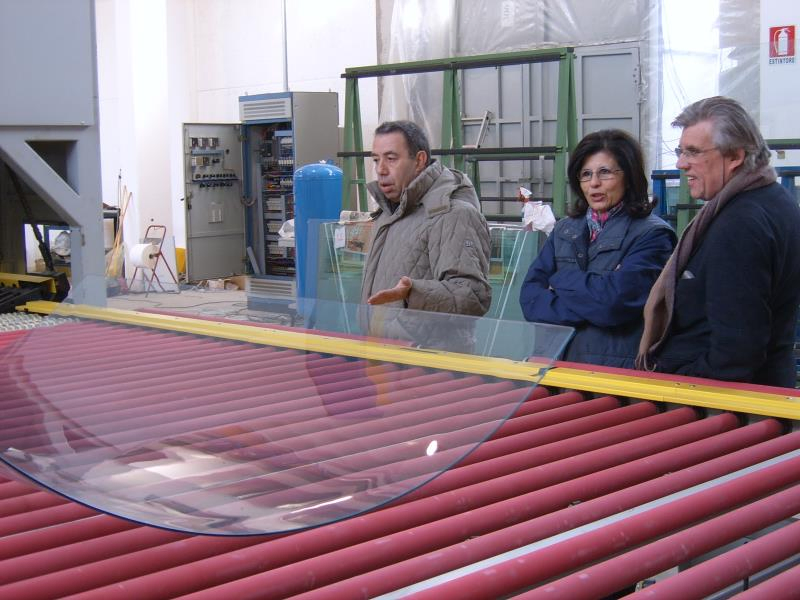

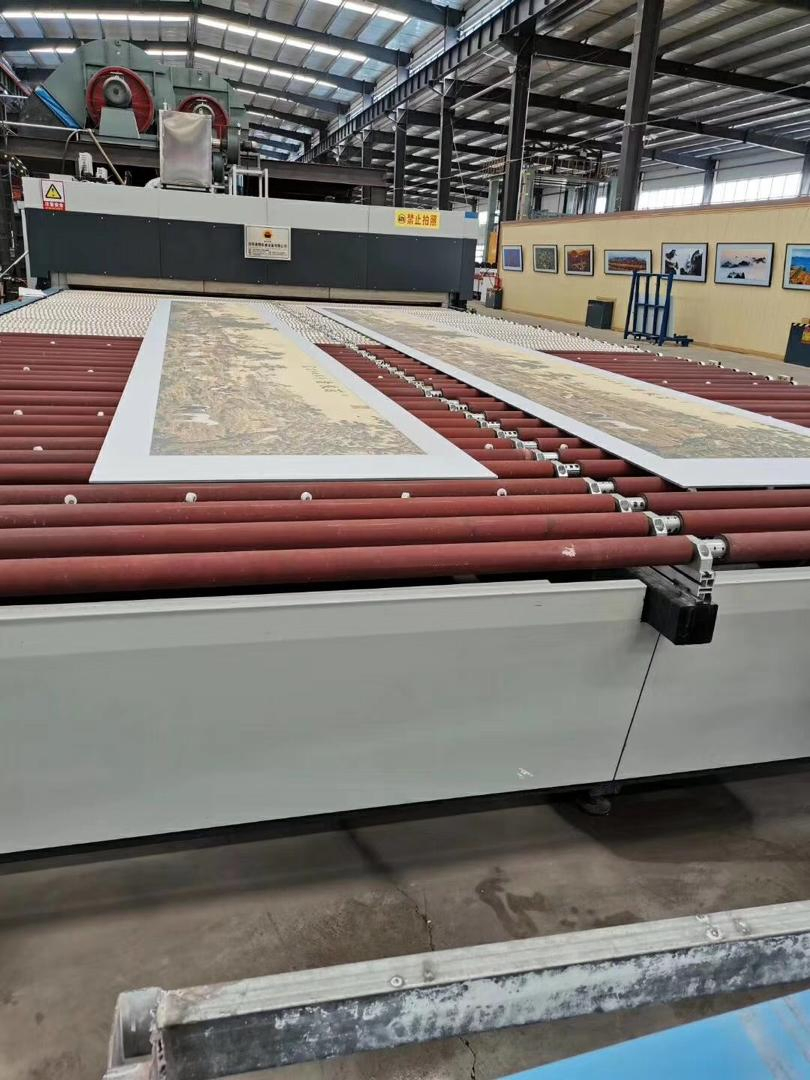

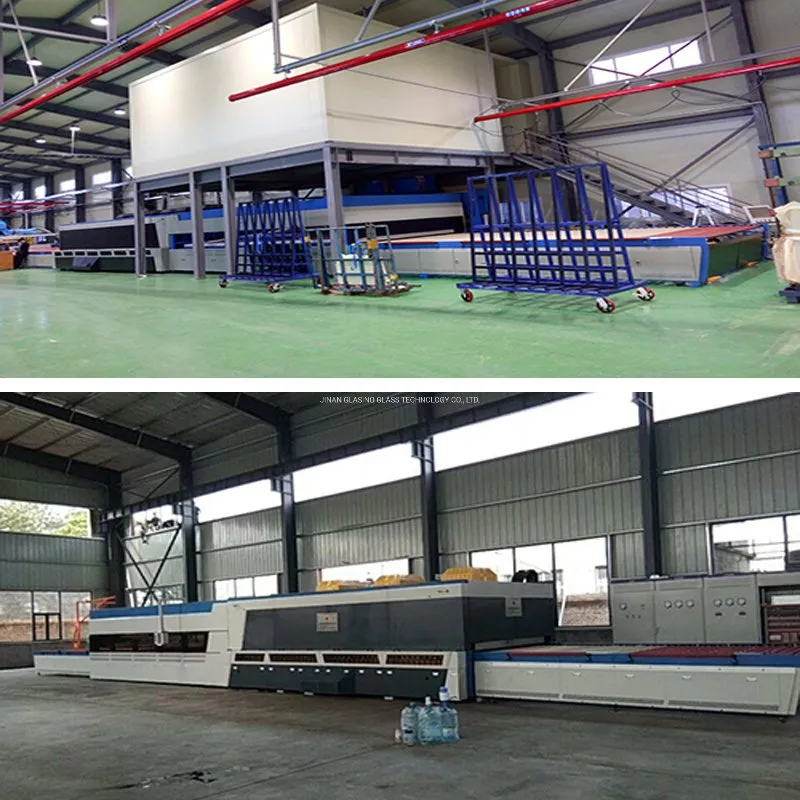

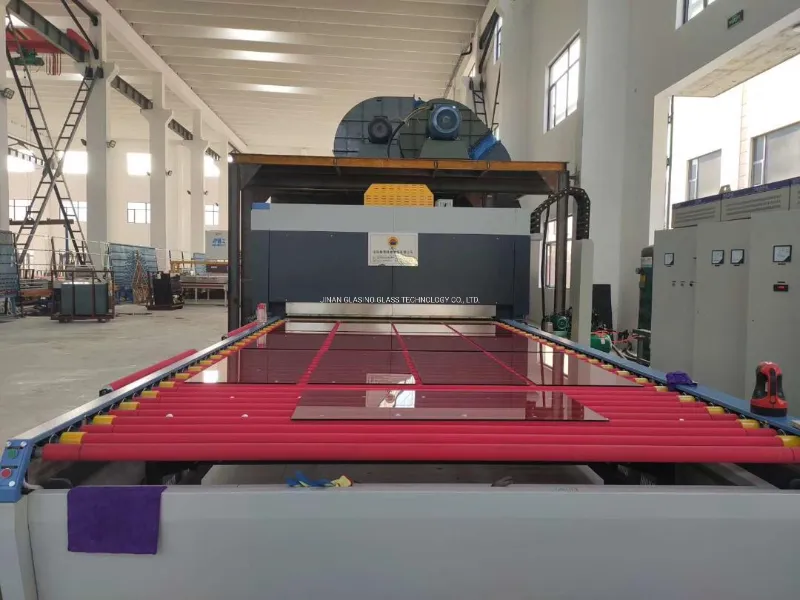

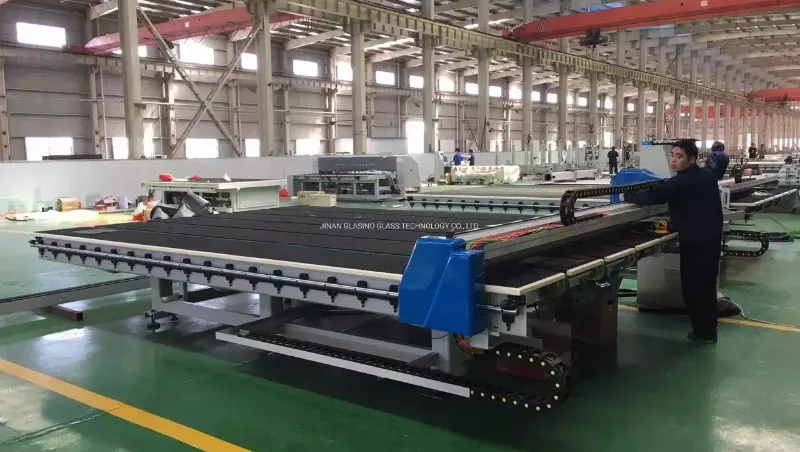

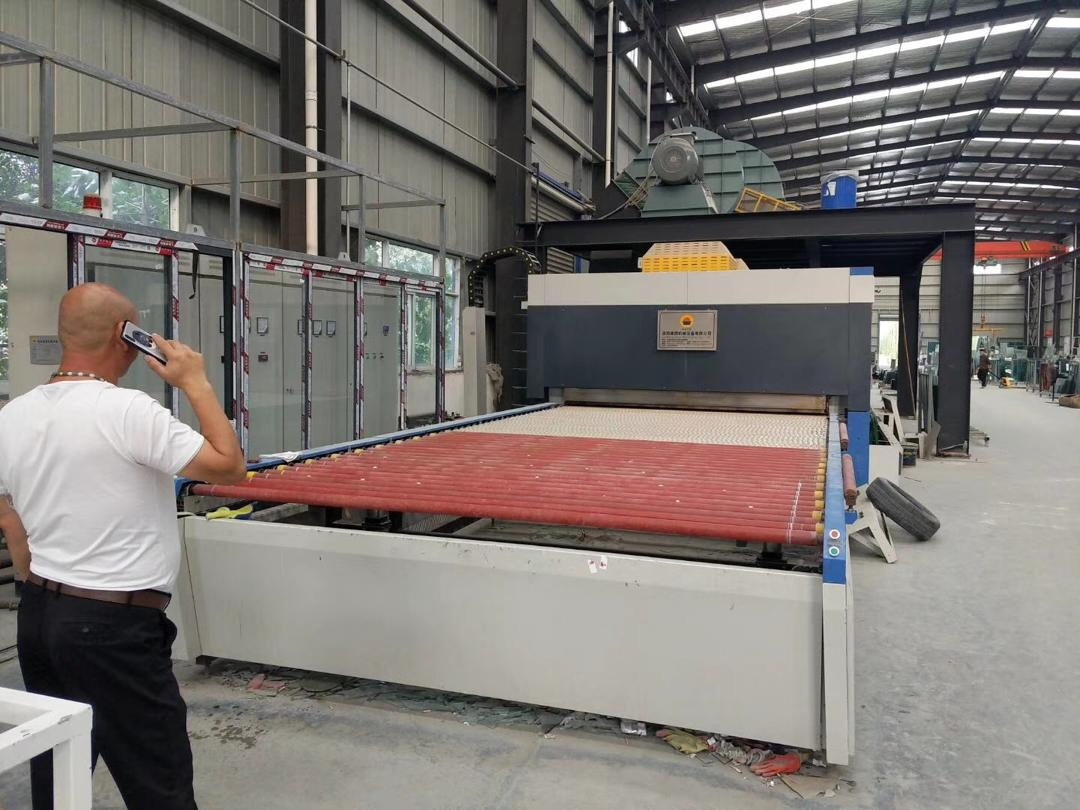

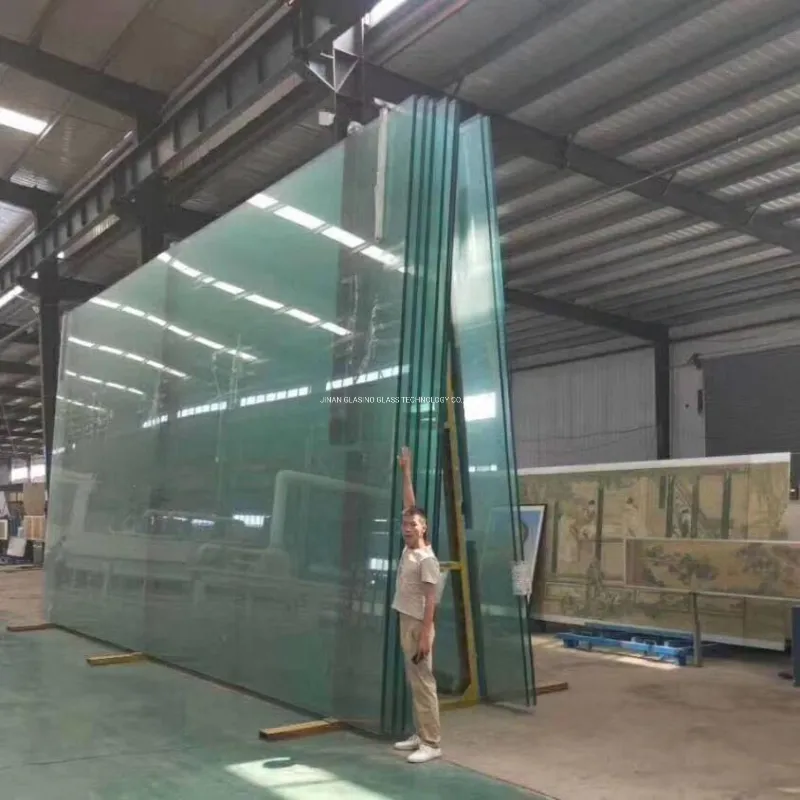

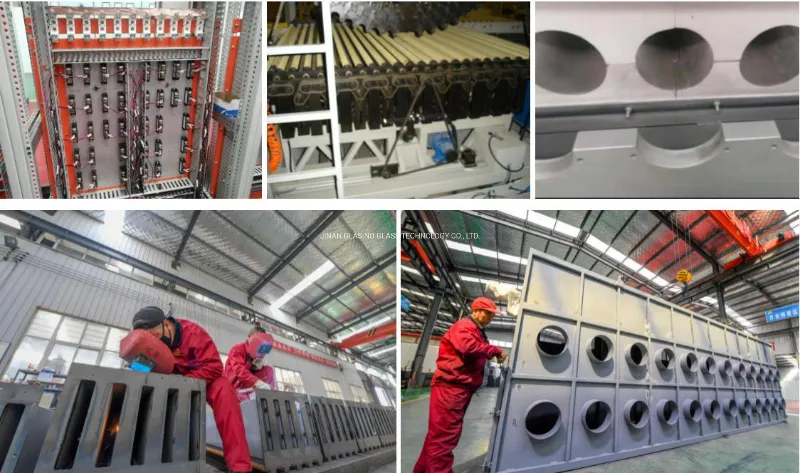

International Installations & Workshop View:
| Model | Max Loading Size (mm) | Min Size (mm) | Thickness (mm) | Output (m²/h) | Installed Capacity (KVA) |
|---|---|---|---|---|---|
| AT-TA1225 | 1250×2500 | 100×250 | 3-19 | 53 | 200 |
| AT-TA1636 | 1600×3660 | 100×250 | 3-19 | 91 | 400 |
| AT-TA2036 | 2000×3660 | 100×250 | 4-19 | 126 | 500 |
| AT-TA2436 | 2440×3660 | 100×300 | 4-25 | 152 | 630 |
| AT-TA2450 | 2440×5000 | 100×300 | 4-25 | 202 | 800 |
| AT-TA2860 | 2850×6000 | 200×350 | 5-25 | 301 | 1000 |
| AT-TA3360 | 3300×6000 | 200×400 | 5-25 | 352 | 1250 |
We are a high-tech enterprise specializing in the production of glass tempering furnaces, glass cutting machines, insulating glass machines, and curtain wall glass machinery. Our focus is on outstanding quality and satisfying service through perpetual innovation.
