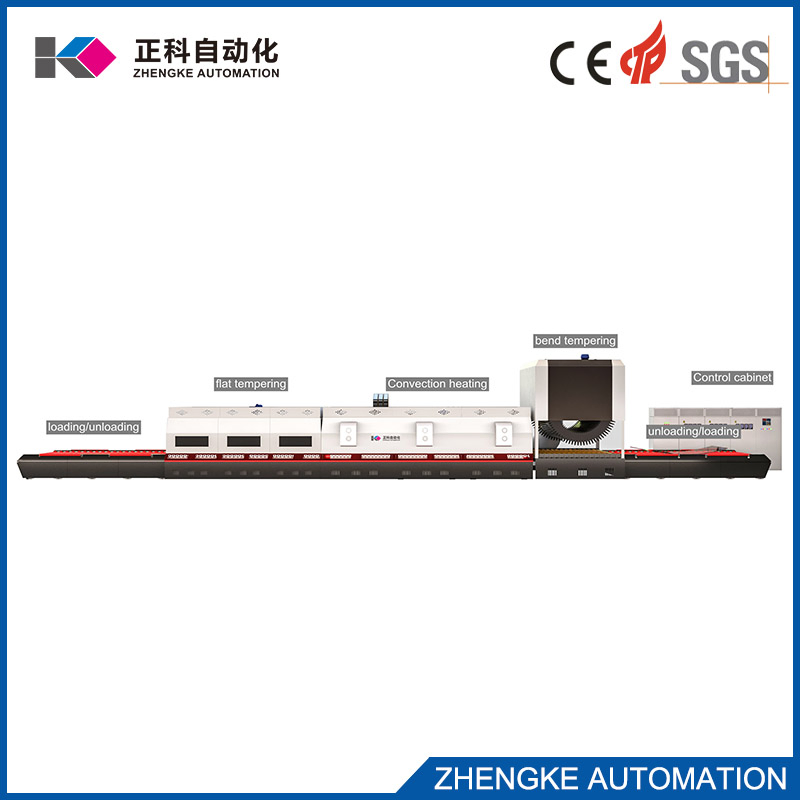

Glass Tempering Machine Tempered Making Machine Tuffen Toughening Glass Machine Glass Processing Bending Machine Tempered Glass Manufacturing Machine Price

Customization: Available
Certification: CE, FDA, ISO, PCI, PDA, UR
Control System: Industrial Computer

Product Description

i
Basic Information
Model NO.ZK2436 (5-19mm)
WarrantyOne Year
Glass Thickness5 -19mm
Maximum Specification2440*3660
Minimum Specification100*300
Comprehensive YieldNot Less Than 98%
Power ConsumptionLess Than 3.5 °/M2 - 5mm
Heating Power535kw
Fan Power185kw
Transformer630 kVA
TypeGlass Tempering Machine
Product Description

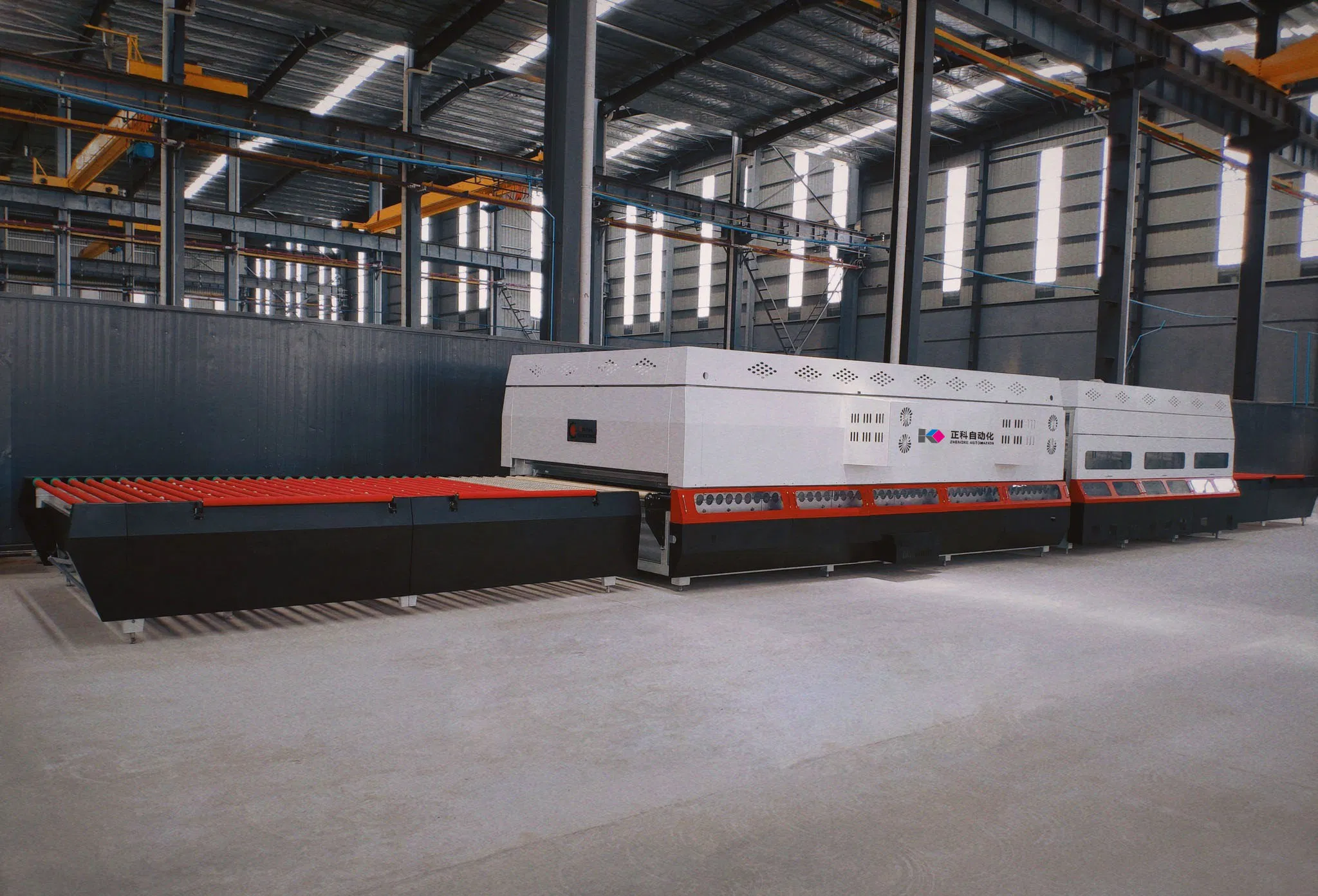

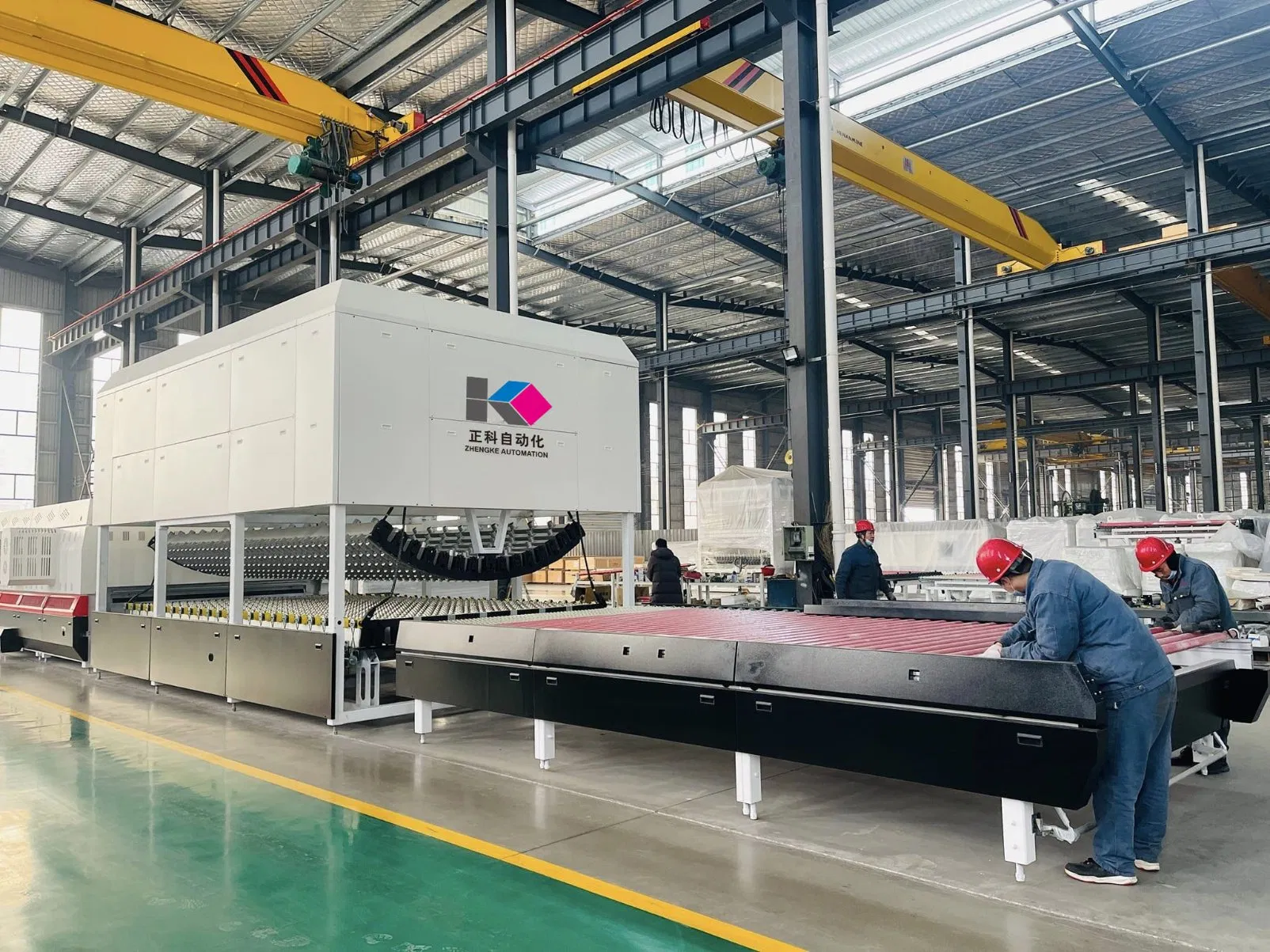

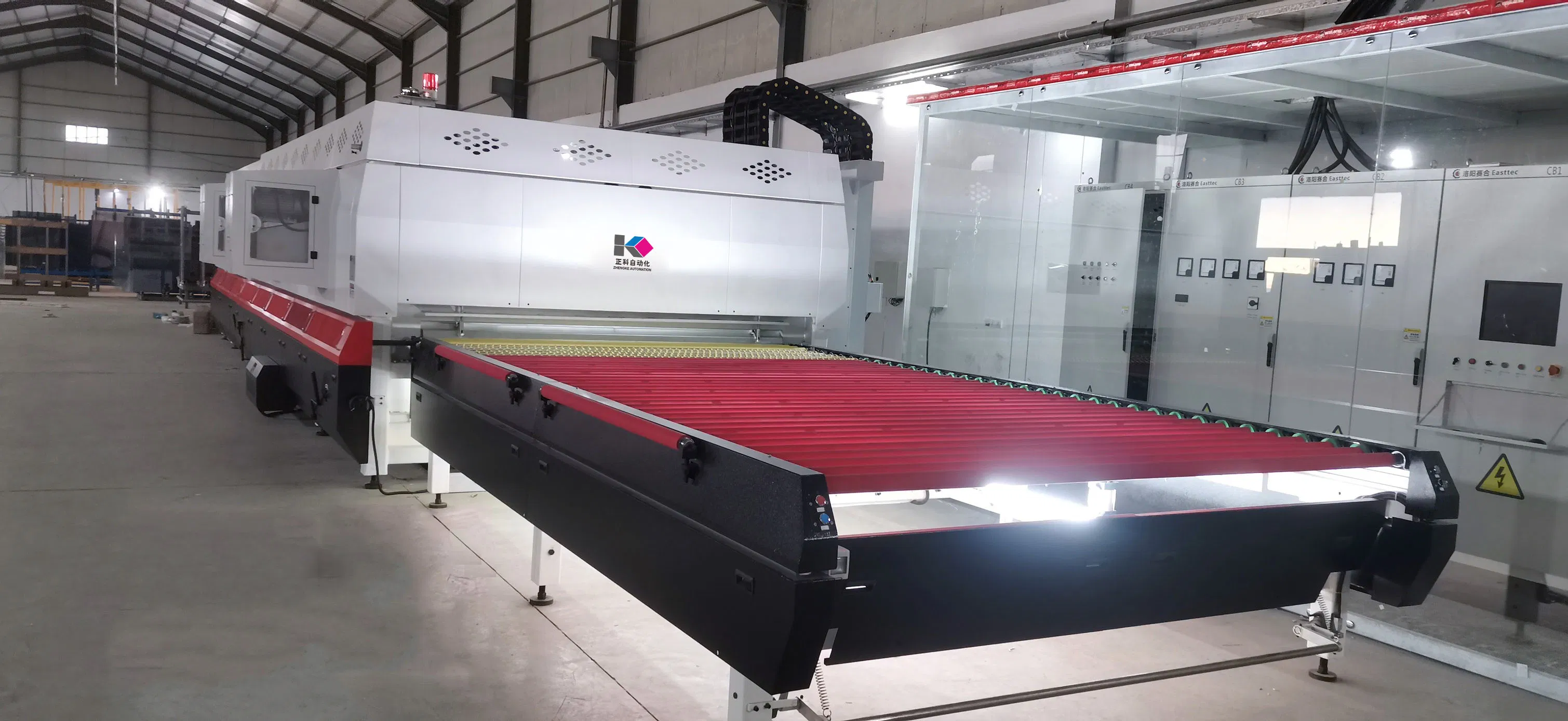

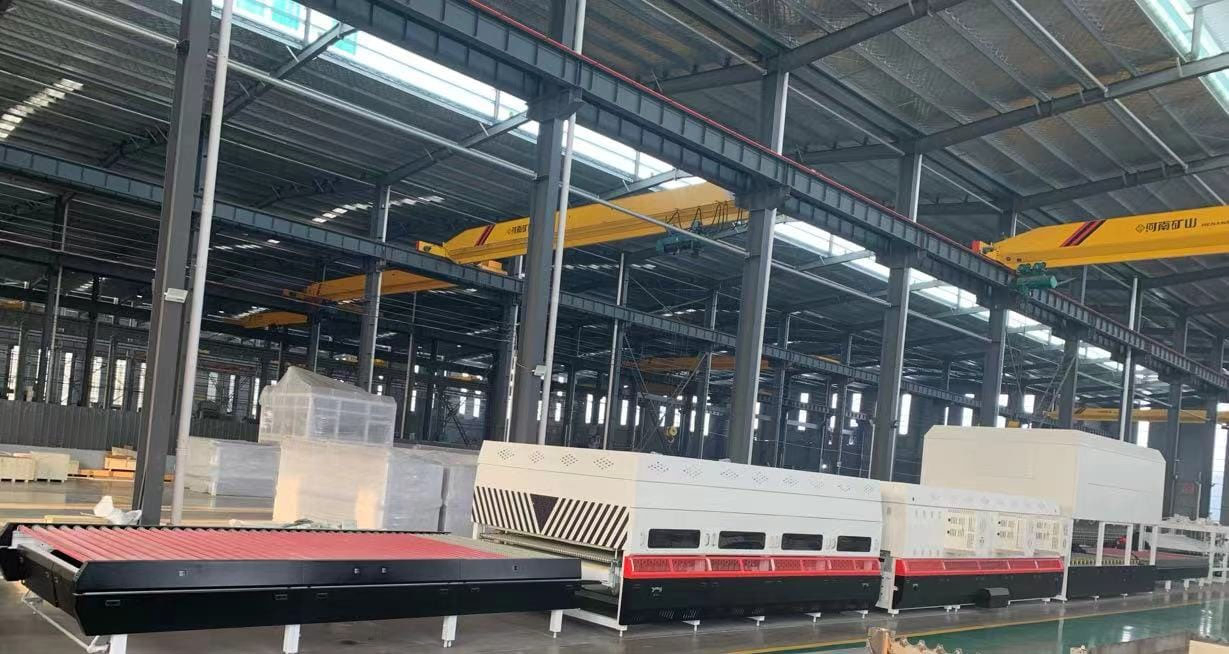

Flat glass tempering furnace

The ZK-2436 (5-19mm) series forced convection tempering electric furnace is a new generation of glass processing equipment. It features reasonable technology, strong system control software, reliability, and excellent thermal insulation performance. It is specifically designed for high-efficiency production and is particularly suitable for deep processing of Low-E glass, coated glass, and other specialized glass products.

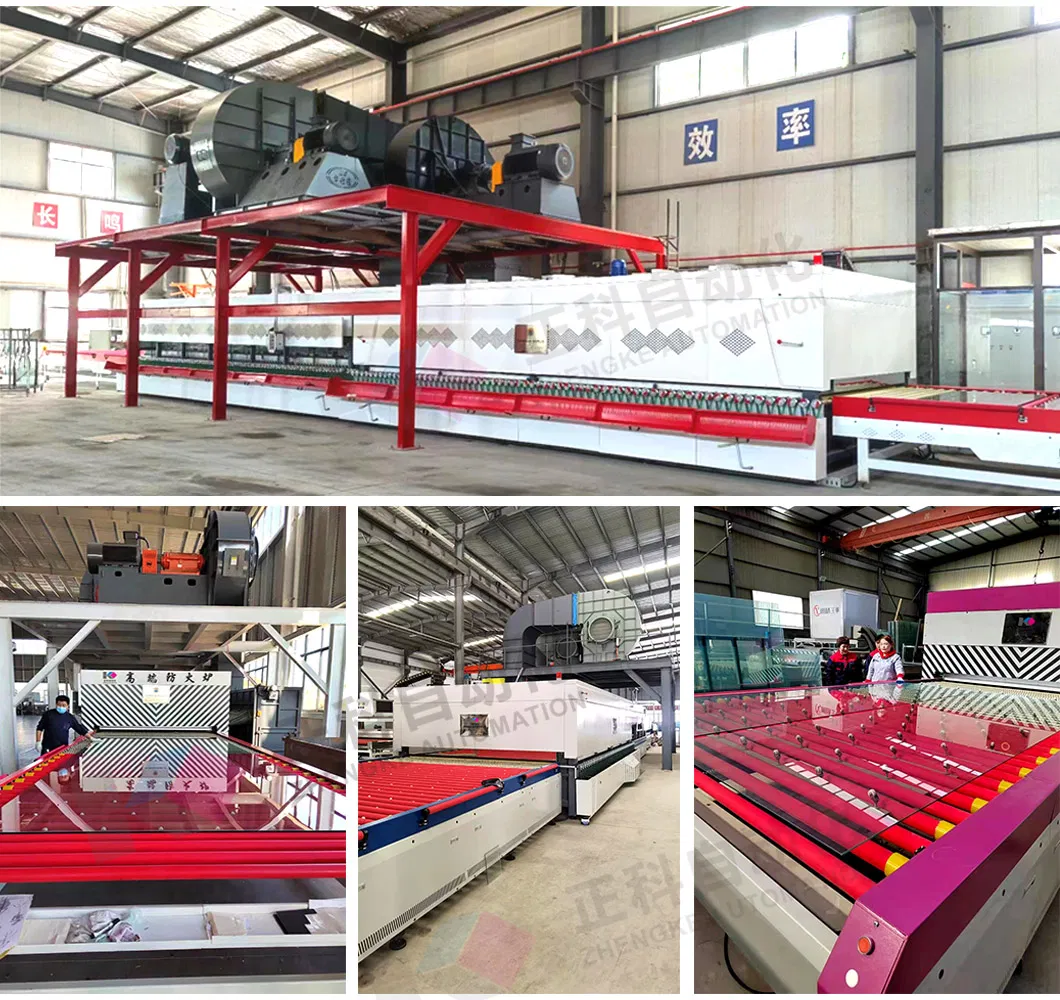

Glass Tempering Details
  • Specially designed convection cooler for stable temperature performance.
  • Advanced convection circulation ensures faster and more uniform heating.
  • Remote temperature control module for extremely accurate adjustments.
  • High-quality thermal insulation materials to maintain optical quality.
  • Compatible with float glass, embossed glass, and Low-E glass (E value up to 0.05).

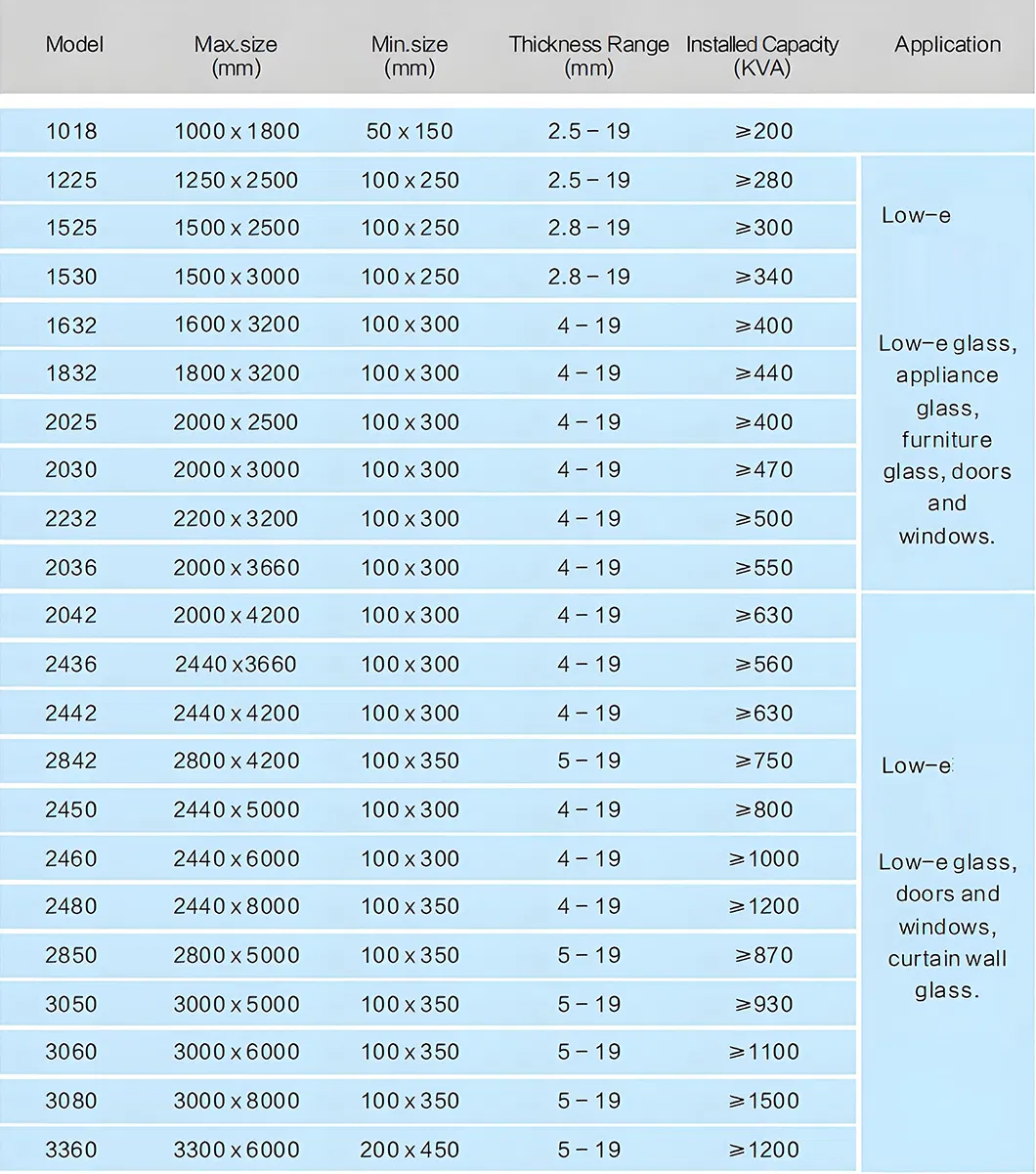

Process Chart
📷
Detailed & Sample Photos

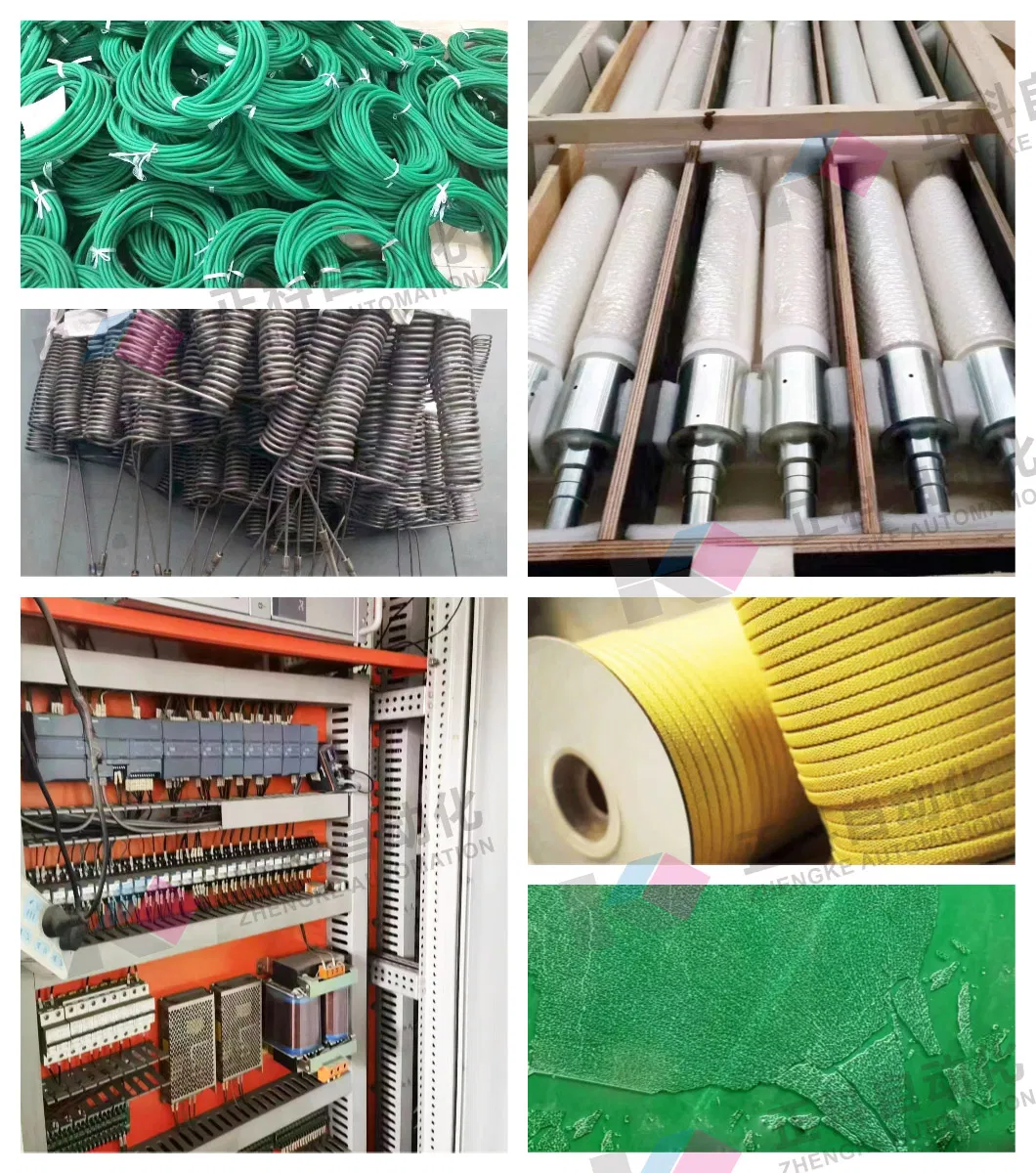

Detail 1

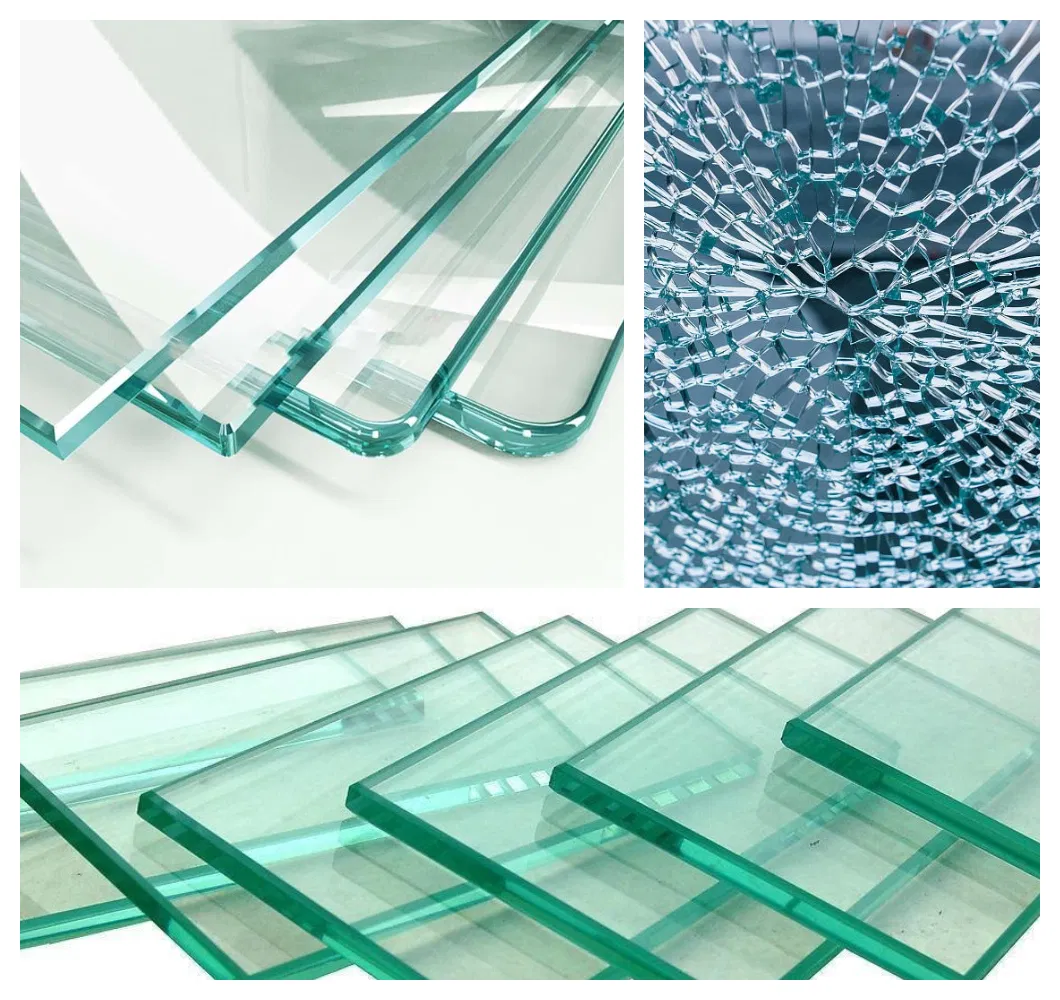

Sample 1
📦
Packaging & Delivery
Package Size6000.00cm * 4000.00cm * 3000.00cm
Package Gross Weight20000.000kg
Transport PackageWooden Box, Steel Frame
Packing Details
🏢
Production Excellence

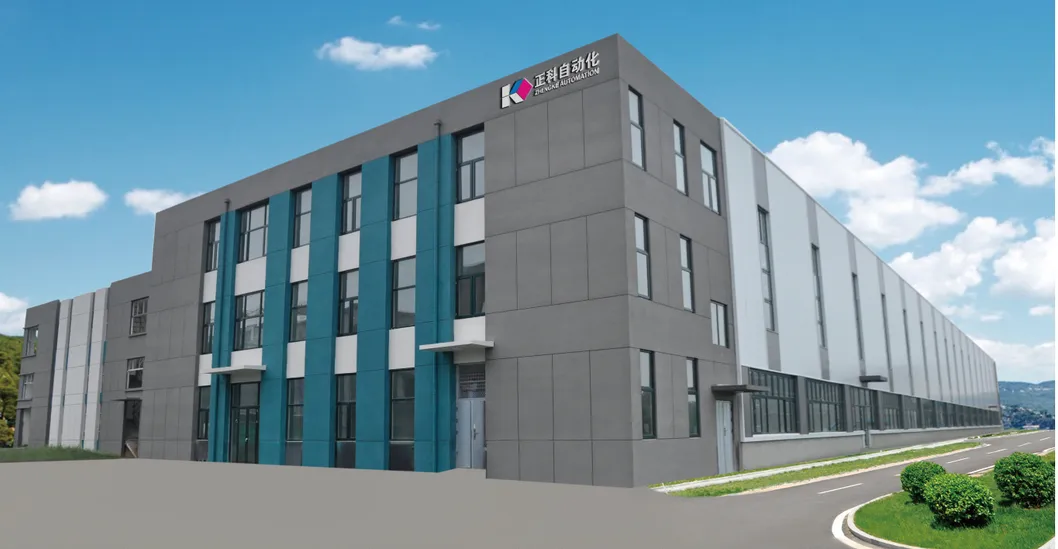

Workshop

Established in 2014, the factory covers an area of 5000 square meters with a core team of 50 professionals. We possess independent technology design and R&D capabilities, operating as a high-tech enterprise in the glass machinery industry. Our focus includes glass cutting, edging, washing, tempering, and insulating machinery.

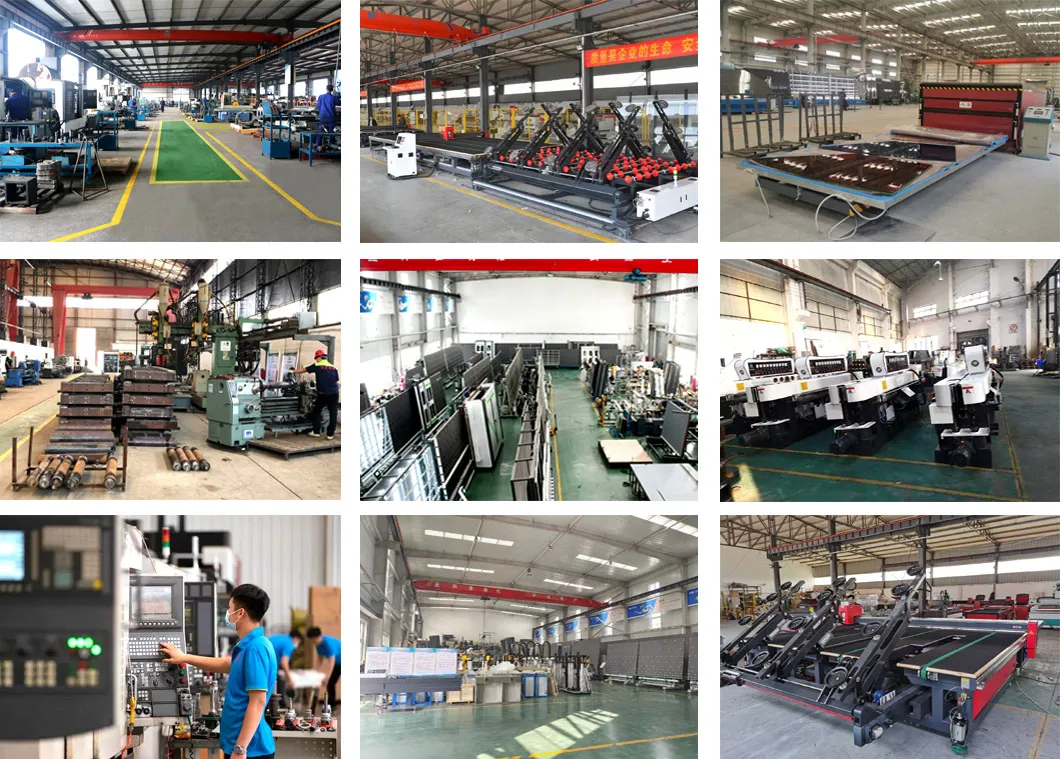

Facility 1
Facility 2
Facility 3
Our Advantages
  • Professional glass production solutions and 24-hour online support.
  • Strict quality testing and control system using advanced equipment.
  • Competitive pricing as a direct manufacturer with no middleman.
  • OEM & ODM acceptable with customized design and branding.
  • Fast delivery times supported by our own dedicated factory.
Advantage Overview
?
Frequently Asked Questions
What is the glass thickness range for this machine?
This tempering furnace is designed to process glass with a thickness ranging from 5mm to 19mm.
What are the maximum and minimum glass sizes supported?
The maximum specification is 2440*3660mm, while the minimum specification is 100*300mm.
Is the machine suitable for Low-E glass?
Yes, the forced convection system makes it ideal for processing Low-E glass, coated glass, and other specialized glass products with E-values as low as 0.05.
What is the production efficiency of the ZK2436?
For 5mm glass, it can achieve 16-18 heats per hour. For 6mm glass, it achieves 13-15 heats per hour.
What is the expected yield rate for processed glass?
The comprehensive yield of this machine is guaranteed to be not less than 98% under standard operating conditions.
What kind of after-sales service is provided?
We provide comprehensive services including case debugging, technical consulting guides, and staff operation training.
