Overview
| Model NO. |
XLD-GSM001 |
Glue Type |
Solvent-based, Water-based Adhesive |
| Machine Type |
Automatic |
Voltage |
380V |
| Power (Kw) |
10kw |
Working Coating Amount |
0-6000g/Min |
| Spray Coating Width |
0-1300mm / 1600mm / 2000mm |
Working Speed |
12m/Min |
| Core Components |
Motor, Pump |
Certification |
ISO |
| Package Size |
280cm * 170cm * 220cm |
Gross Weight |
1000.00kg |

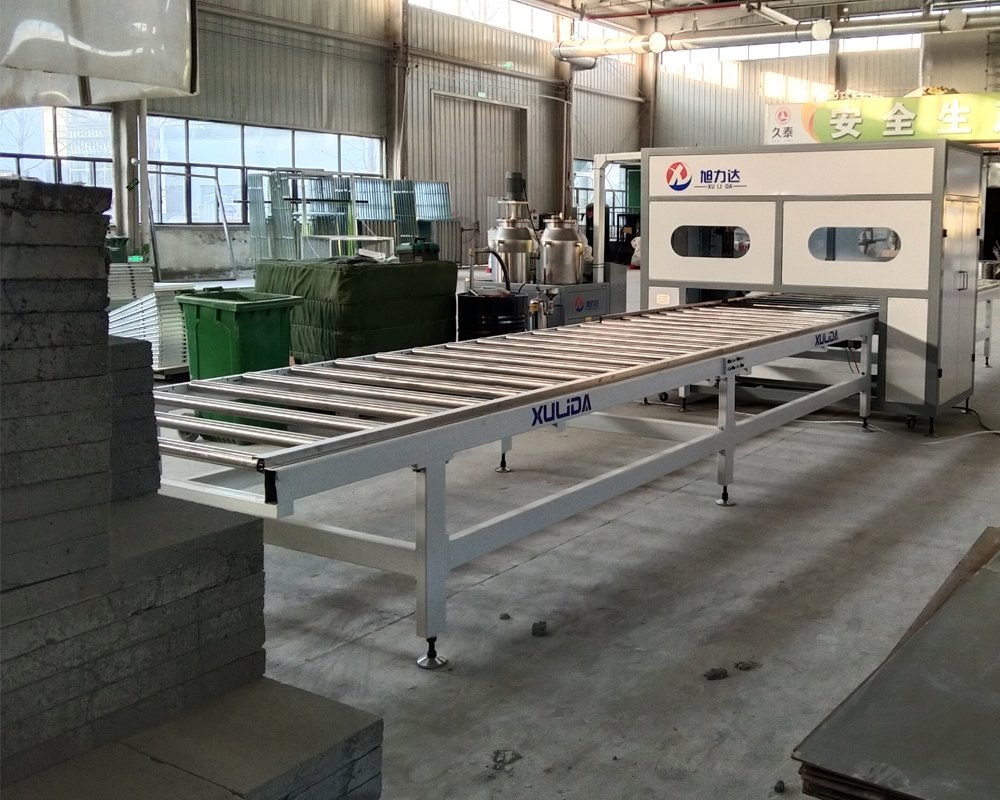

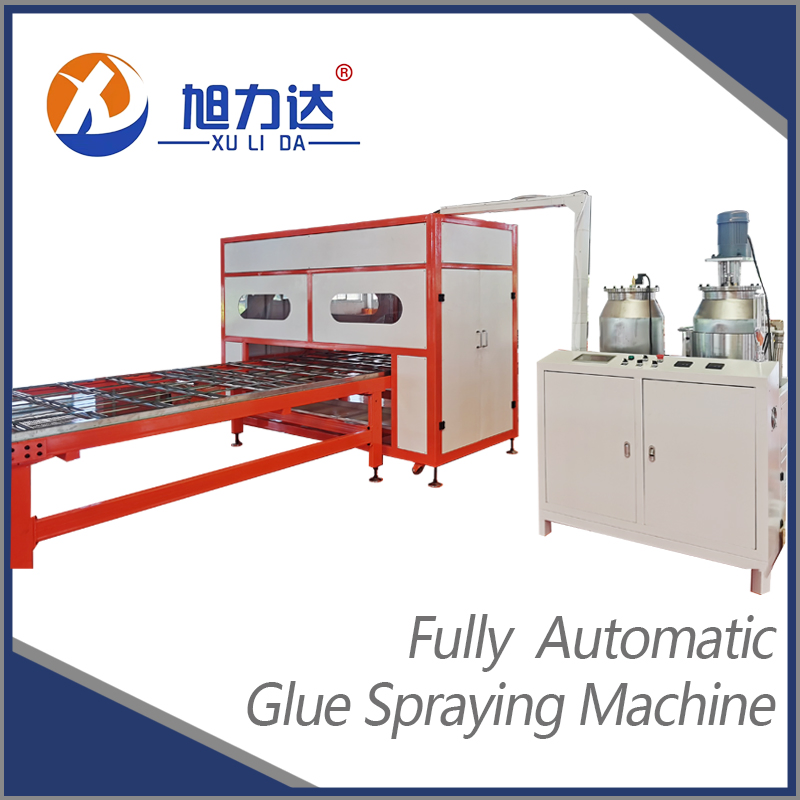

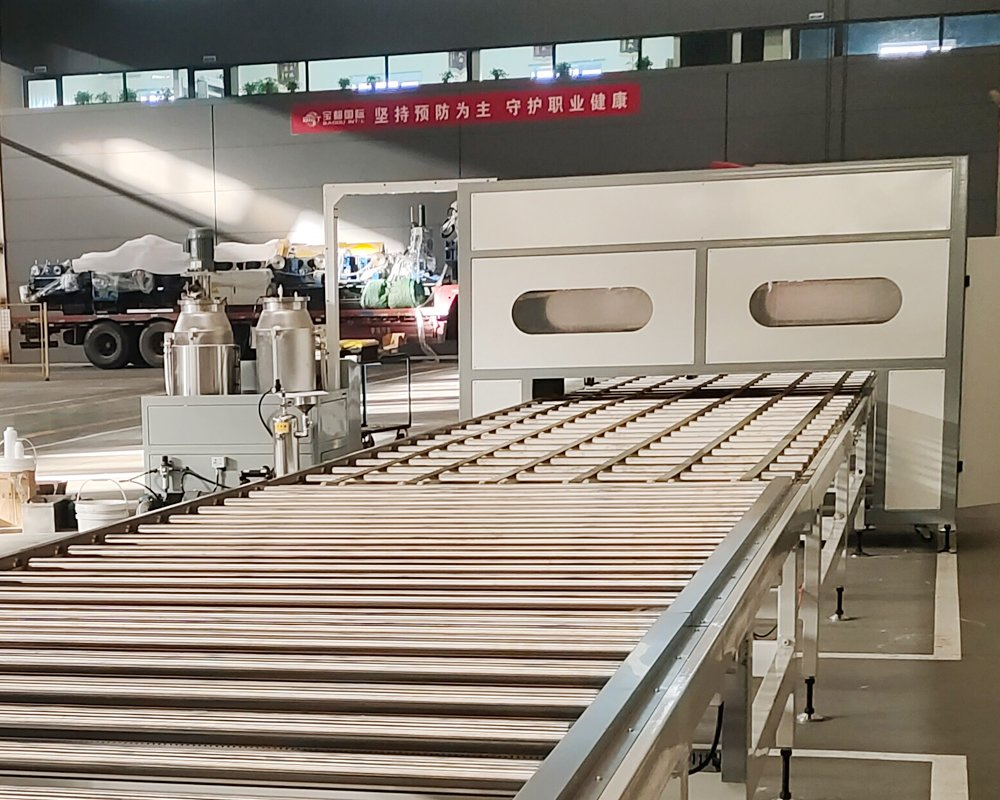

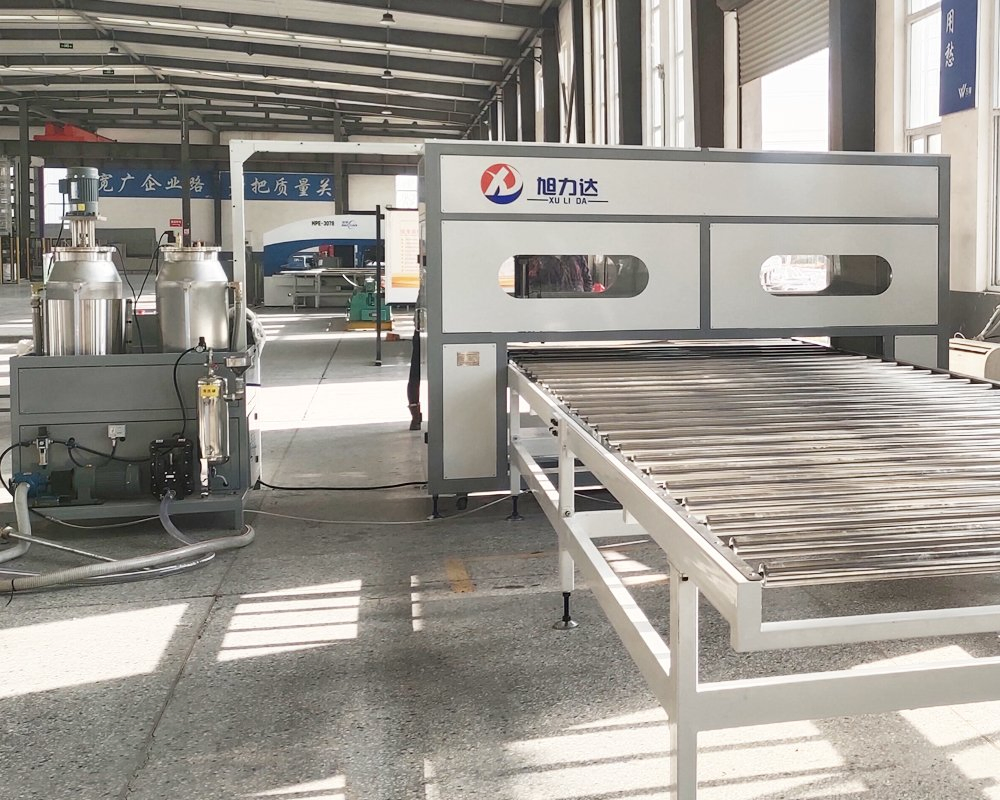

Product Description: High Degree of Automation Production Line for SIPs (Structural Insulated Panels), All-Aluminum Furniture, and HPL Honeycomb Panels.
Automatic Coating vs. Manual Scraping
| Category |
Automatic Coating |
Manual Scraping |
| Method |
Single operator; automatic proportioning and spraying. |
3-4 people required; uneven application. |
| Precision |
Controlled edge distance; prevents spillage. |
Edge contamination due to unevenness. |
| Glue Usage |
Precise data; strict cost control; zero waste. |
No accurate data; high waste; incorrect ratios. |
| Efficiency |
~4600 sqm per 8 hours. |
~1000 sqm per 8 hours. |
| Cleaning |
Automatic cleaning; no pollution. |
High container waste; prone to contamination. |
Applications & Compatible Products
01 Integrated Ceiling
02 Integrated House
03 Wallboard
04 All-Aluminum Furniture
05 Stainless Steel Cabinets
06 Honeycomb Panels
07 Rock Wool Panels
08 SIPs Panels
09 Refrigerated Truck Panels
10 Cleanroom Boards
11 Office Partitions
12 PVC Sandwich Panels
Technical Parameters
| Power Supply |
380V / 50Hz |
Air Source |
0.6 - 0.8Mpa |
| Glue Output |
0-6000g/min |
Flow Accuracy |
≤ ± 3% |
| Conveying Speed |
Up to 12m/min |
Proportion Ratio |
1:1 to 5:1 (Adjustable) |
| Viscosity Range |
≤30000mpa.s |
Ratio Precision |
≤ ± 2% |

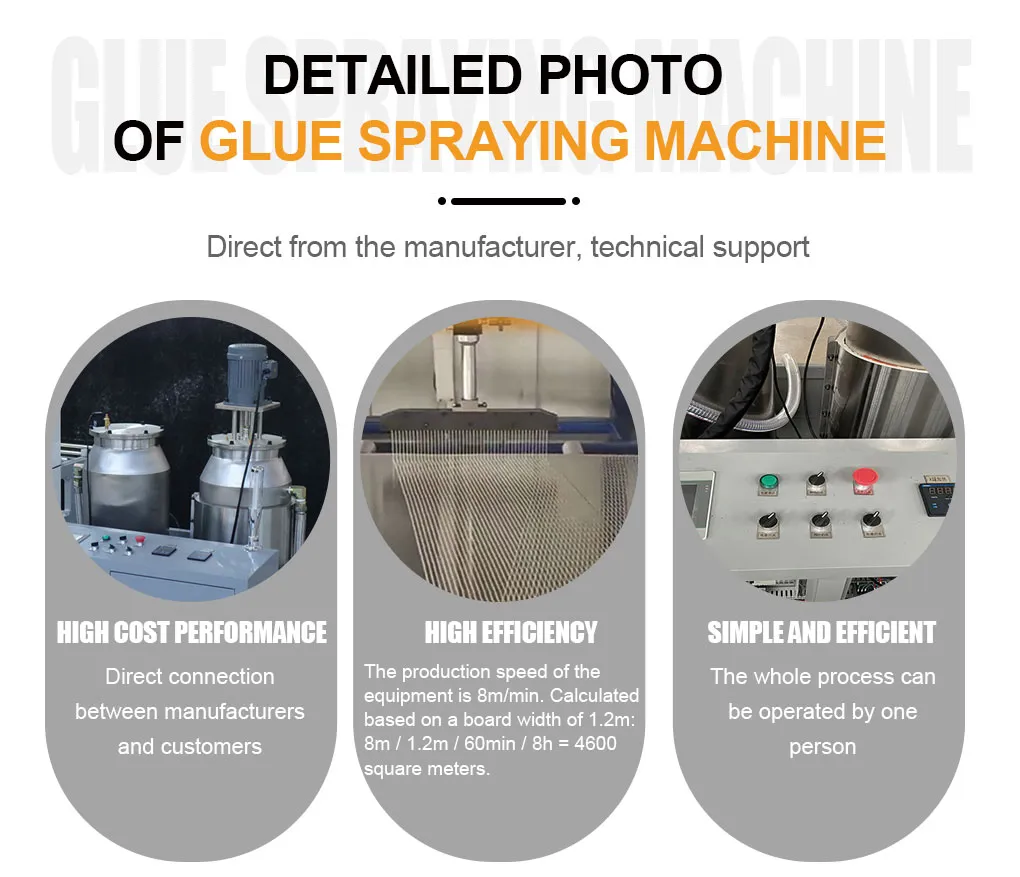

Key Equipment Functions
-
✔
Automatic Edge-Seeking: Detects workpiece size and coats only the effective area.
-
✔
Ratio Monitoring: Online testing with immediate alarms for anomalies.
-
✔
Aviation-Grade Head: One-piece aluminum coating head with anti-stick surface.
-
✔
Remote Diagnostics: Network-linked control system for troubleshooting.
-
✔
Precision Pumping: High-performance metering pumps driven by servo motors.
Our Advantages
Professional Production Solutions
24/7 Online Support
Strict Quality Control System
OEM & ODM Customization
Competitive Manufacturer Pricing
Advanced R&D Capabilities
Frequently Asked Questions
What are your terms of packing?
Generally, we pack goods in containers using standard export packages (Plywood boxes). Special requirements can be accommodated.
What is the standard payment term?
T/T 30% as deposit and 70% before delivery. We provide photos of products and packages before final payment.
How long is the typical delivery time?
It usually takes 30 to 45 days after receiving your advance payment, depending on the items and order quantity.
Can you produce equipment based on specific samples?
Yes, we can manufacture according to your samples or technical drawings, including building custom molds and fixtures.
Do you test the machinery before shipping?
Yes, we conduct a 100% functional and safety test on all goods before delivery to ensure quality.
What is your sample policy for high-value equipment?
As these are high-value products, we offer samples at a discount. If a large order follows, the sample cost may be refunded.
