Customization: Available
Certification: CE
Cutting Method: Diamond Wheel Cutting
Send Inquiry

Product Description

Basic Specifications

Model NO.
GS-CNC-4228
Max Cutting Thickness
3-19mm
Power Supply
380V, 50Hz
Safety Features
Emergency Stop Button
Optimization Software
Optima (Italy)
Control System
Galil (USA)
Pneumatic Parts
Airtac (Taiwan)
Servo Motor
Yaskawa (Japan)
Transport Package
Sea Worthy Package
Specification
14500*3600*1300mm
HS Code
84649011
Production Capacity
30 Sets/Month
High Precision Automatic Glass Cutting Line

Product Description

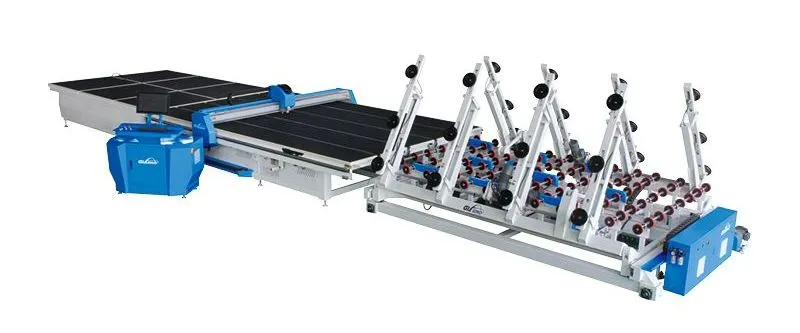

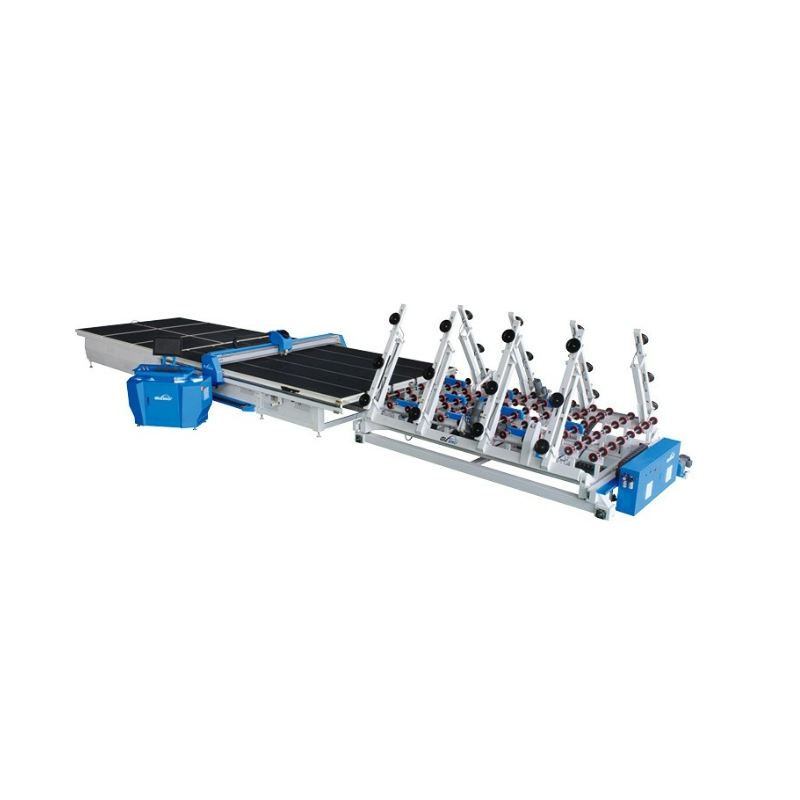

Main Machine View

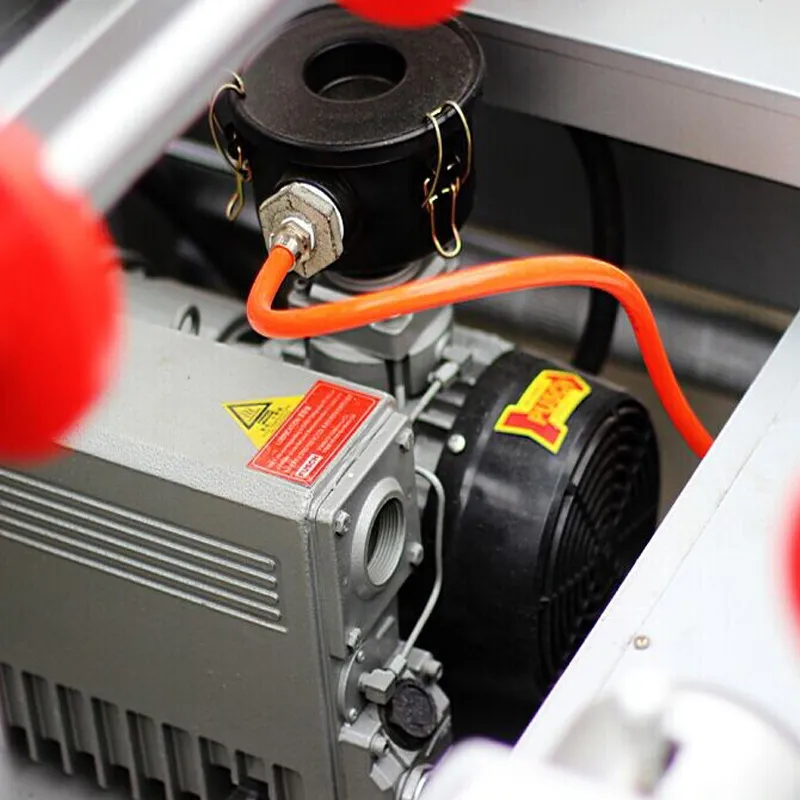

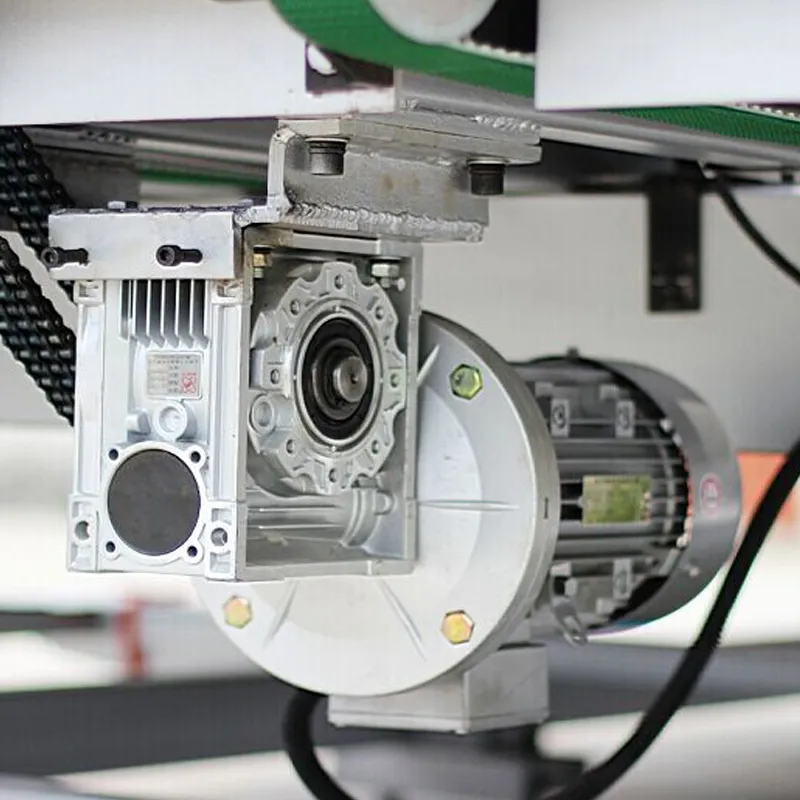

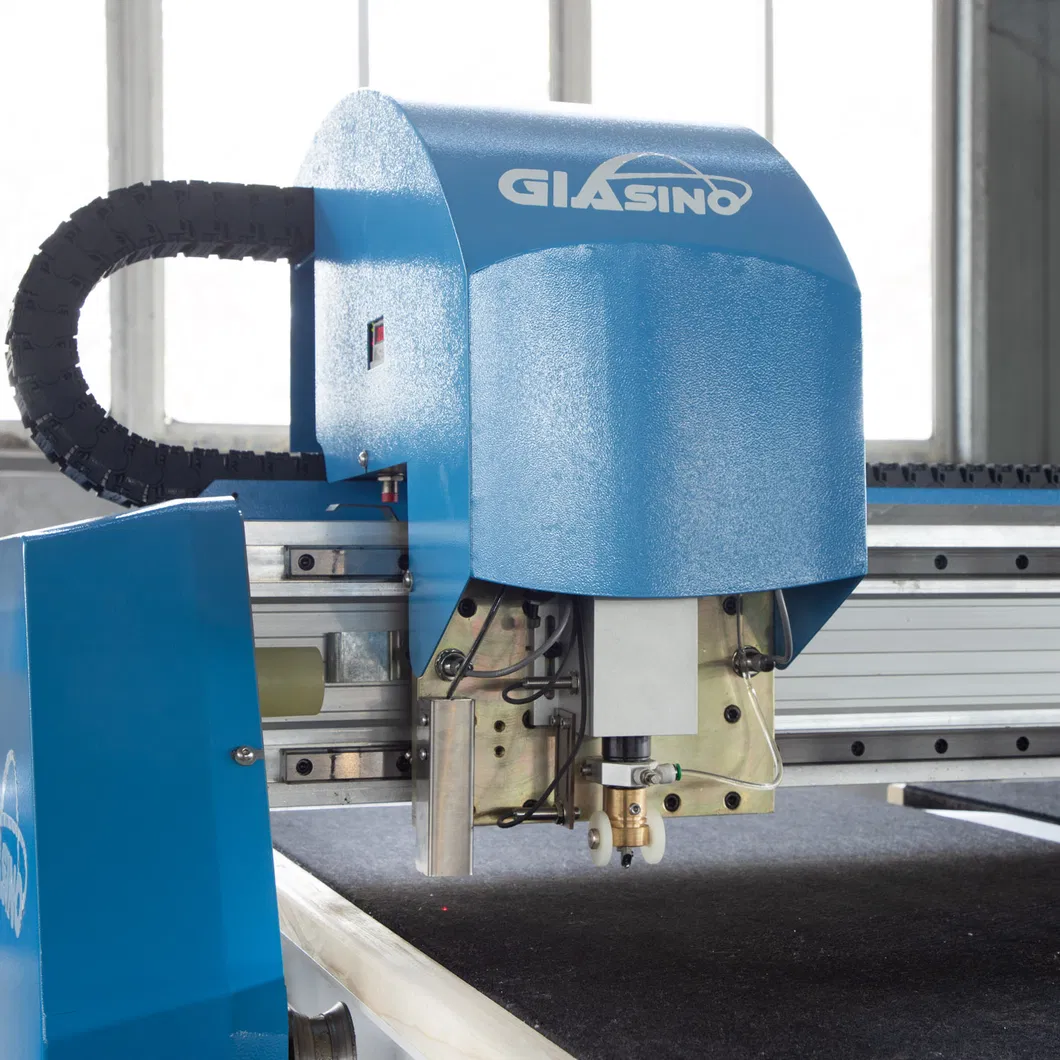

Glass Cutting Detail 1 Glass Cutting Detail 2 Glass Cutting Detail 3

System Composition

  • 🔹Automatic Glass Loading Machine
  • 🔹Automatic Shaped Glass Cutting Machine
  • 🔹Glass Breaking Table

Core Features

🚀
Double Drive System: High-speed performance with superior stability.
🎯
Automatic Edge Finding: Photoelectric positioning for convenient and labor-saving operation.
📝

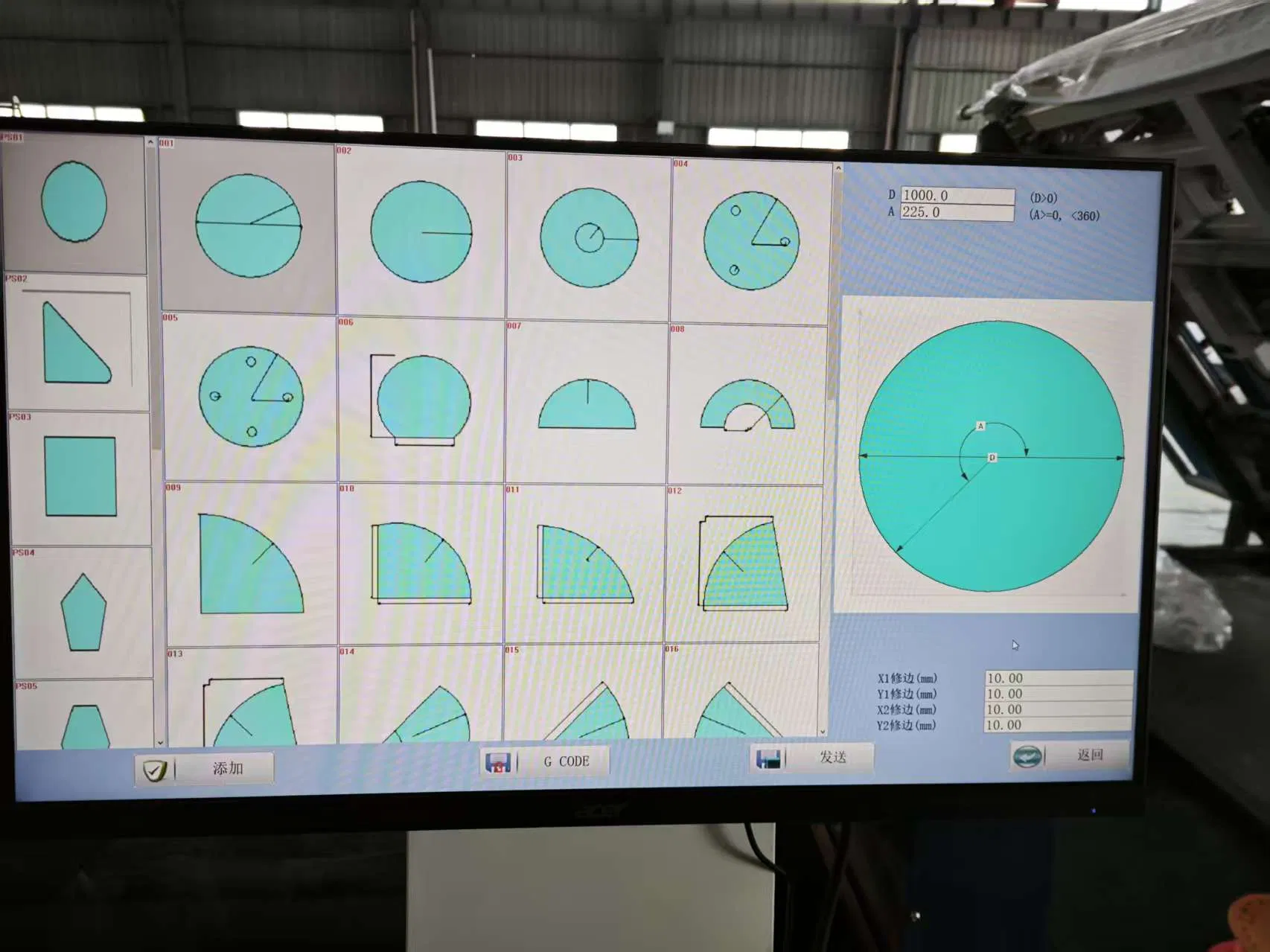

Advanced Functions: Supports shape scanning, copy, and input functions.
💎
Global Components: Features Japan KHK gear rack, Hiwin guide rail, SMC Pressure Controller, and Yaskawa servo motors.
⚙️
Integrated Pipeline: Streamlined loading, cutting, and breaking operations.
💻
Intelligent Software: Italy Optima Software optimizes layout to improve cutting quality and minimize waste.
⚠️
Fault Alarm: Equipped with an automatic alarm system for remote troubleshooting.
🛡️
Double Protection: Independent sucker switches and induction sensors for safe loading.
🛠️
Customizable: Full range of models available with customization based on special requirements.
Technical Parameters Header
Model Max. Glass Size Thickness Dimensions (L*W*H) Power Air Pressure
GS-CNC-26202600*2000mm2~19mm3560*2200*900mm8kW0.6~0.8MPa
GS-CNC-42284200*2800mm3~19mm5000*2850*900mm8kW0.6~0.8MPa
GS-CNC-51335100*3300mm3~19mm5400*3000*900mm8kW0.6~0.8MPa
GS-CNC-61336100*3300mm3~19mm6430*3340*900mm8kW0.6~0.8MPa

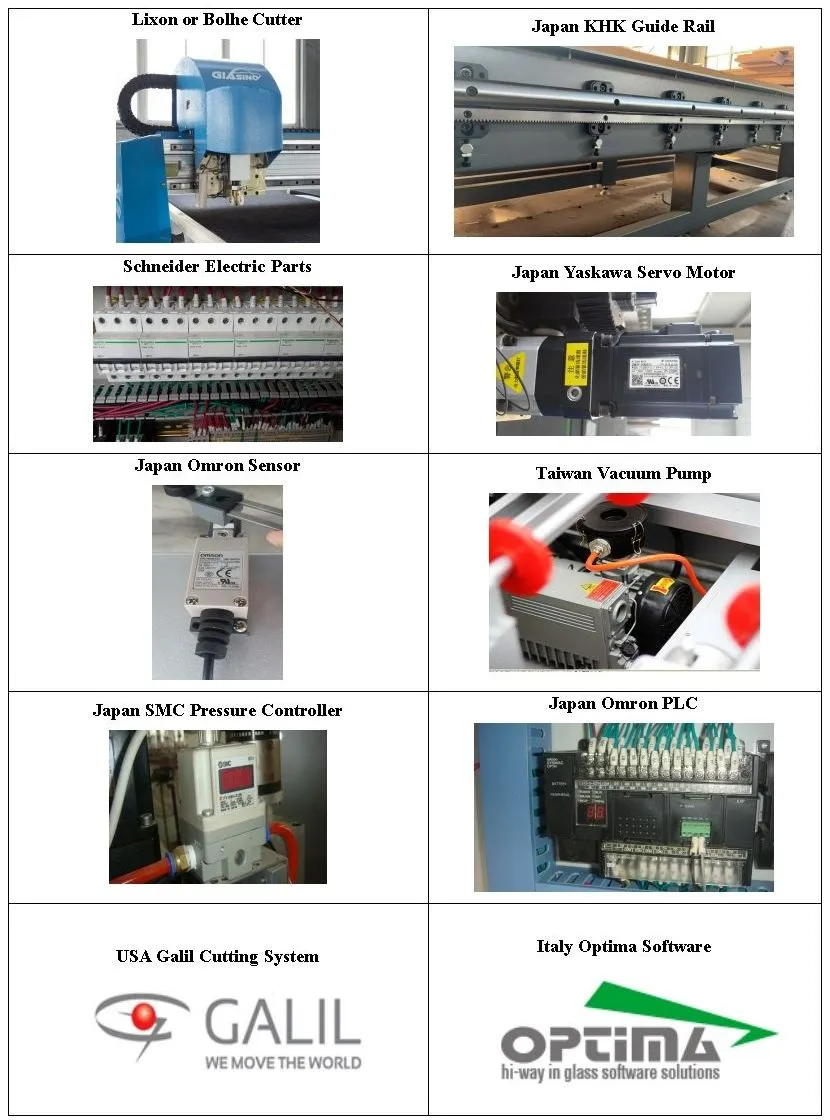

Workflow Banner Machine Configuration Component Details Banner

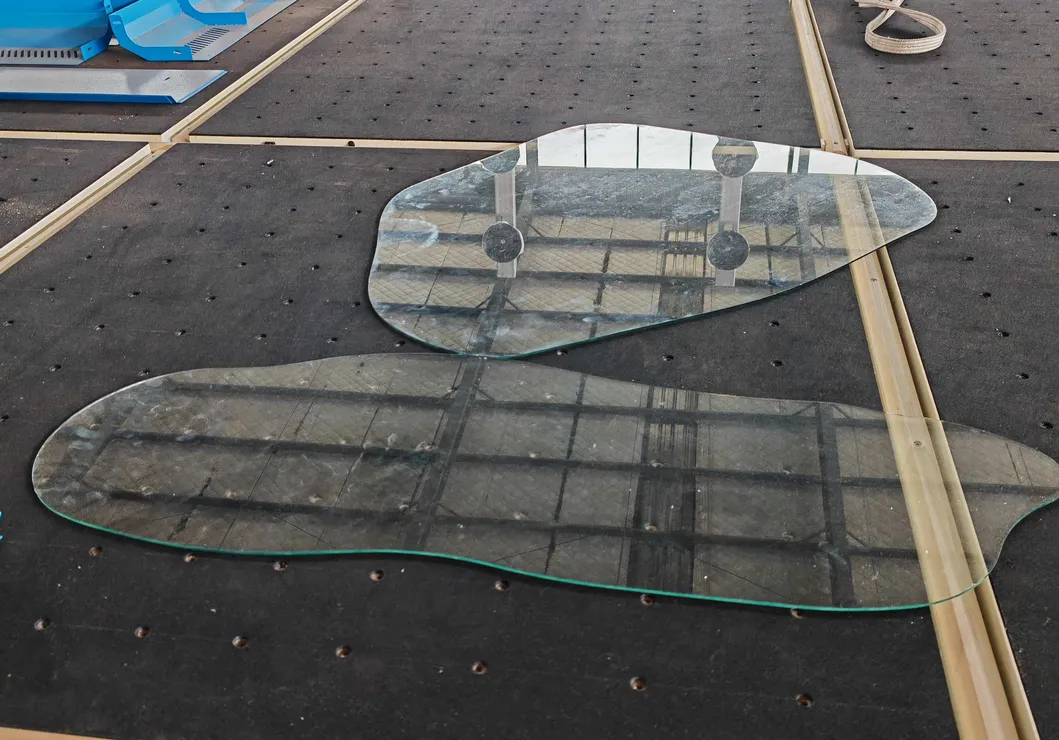

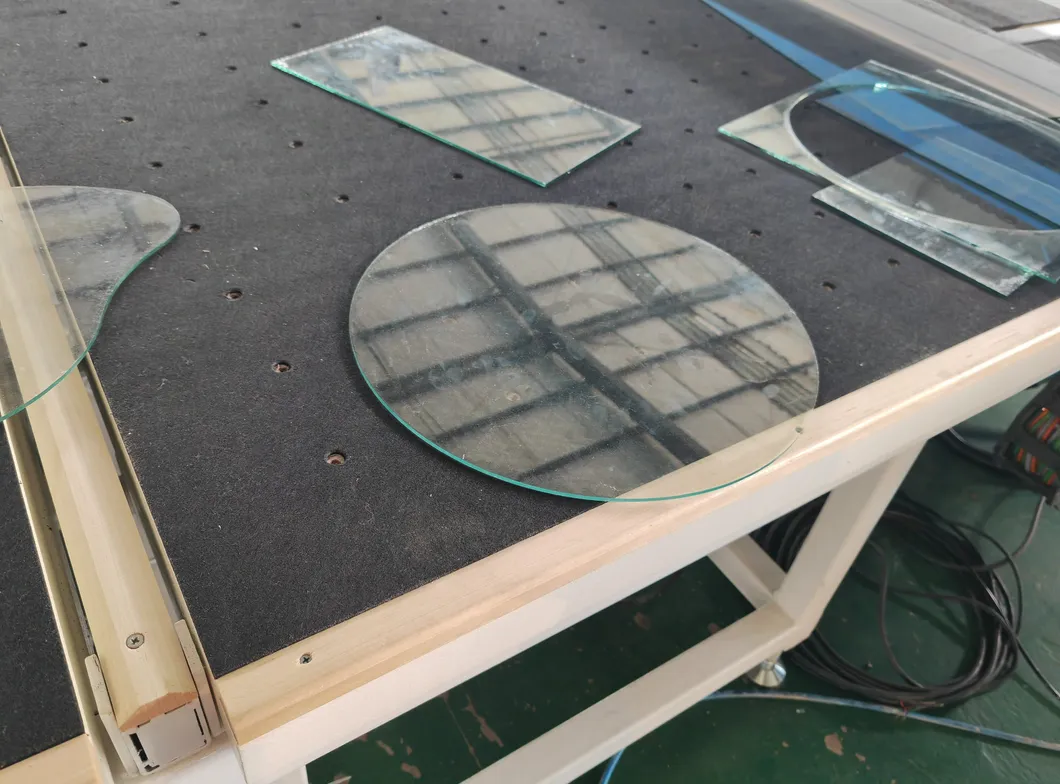

Processing View 1 Processing View 2 Processing View 3
Final Quality Control Banner

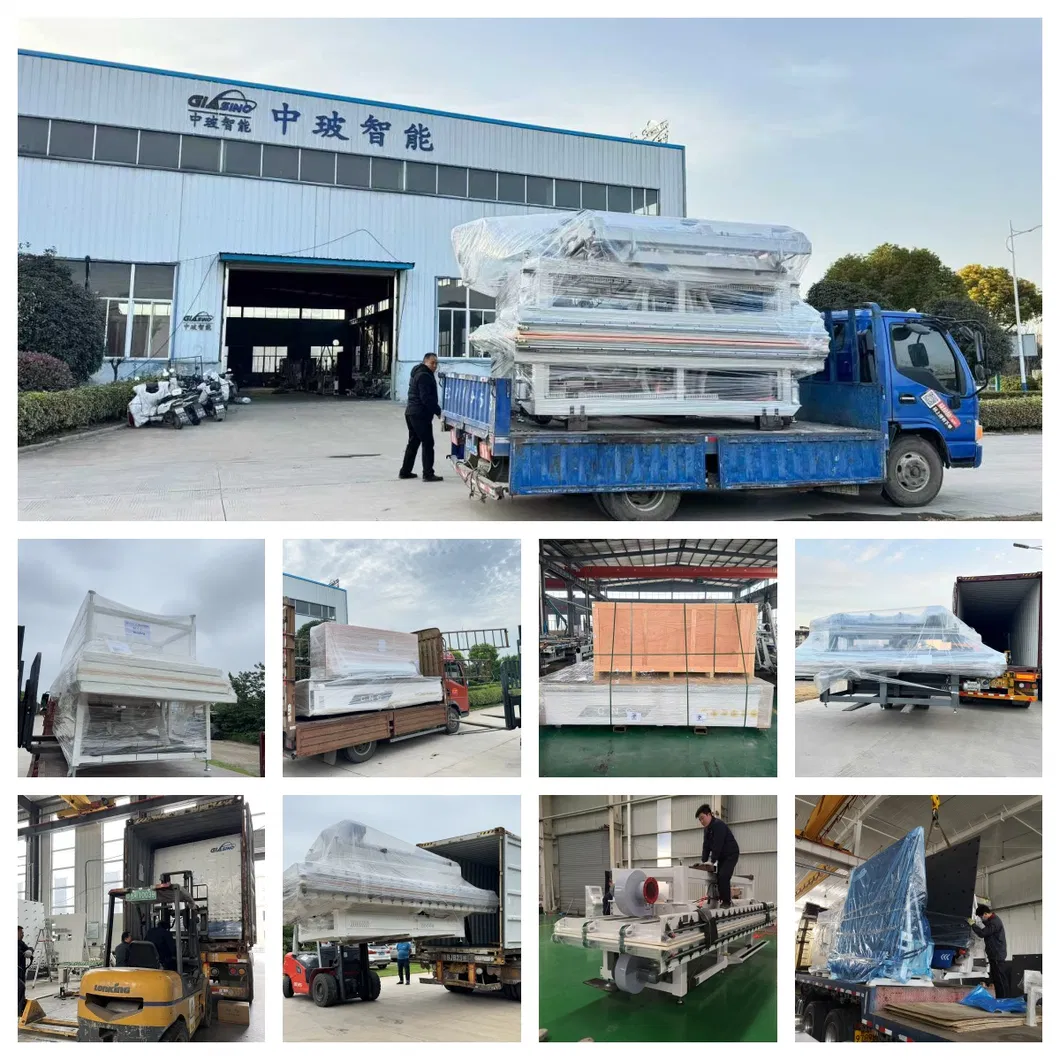

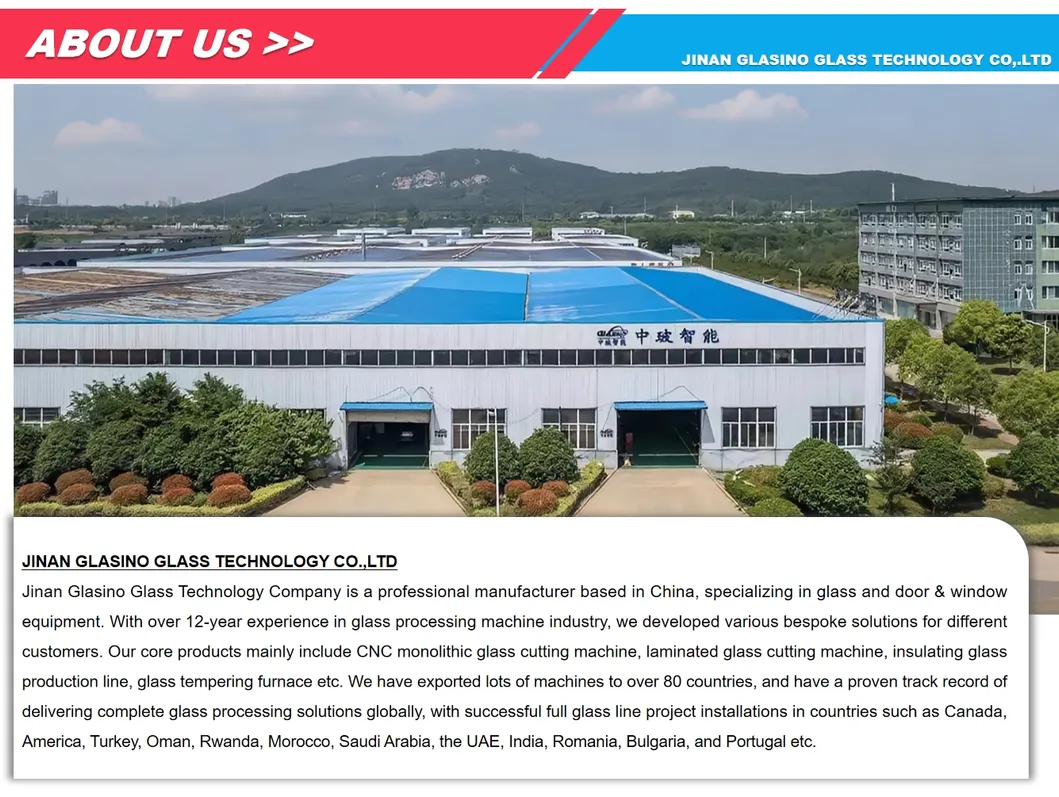

Machine Structure 1 Machine Structure 2

Frequently Asked Questions

Q1: What range of glass thickness can the machine handle?
The machine is designed to cut glass with a thickness ranging from 3mm to 19mm, depending on the specific model selected.
Q2: Which optimization software is used for cutting?
We use Italy Optima Software, which automatically optimizes the layout to improve cutting yield and speed.
Q3: How does the automatic edge finding system work?
It uses a photoelectric positioning function to accurately detect the glass edges, ensuring precision while saving labor.
Q4: What are the main components of the cutting line?
The full line consists of an Automatic Loading Machine, an Automatic Shaped Cutting Machine, and a Breaking Table.
Q5: Can the machine cut irregular shapes?
Yes, the machine supports both straight lines and special-shaped glass processing through shape scanning and input functions.
Q6: What safety features are integrated into the system?
It includes emergency stop buttons, double induction switches for glass loading, and an automatic fault alarm system for enhanced safety.
