Glass Double Facet Polishing Line-SKDE-2020AL

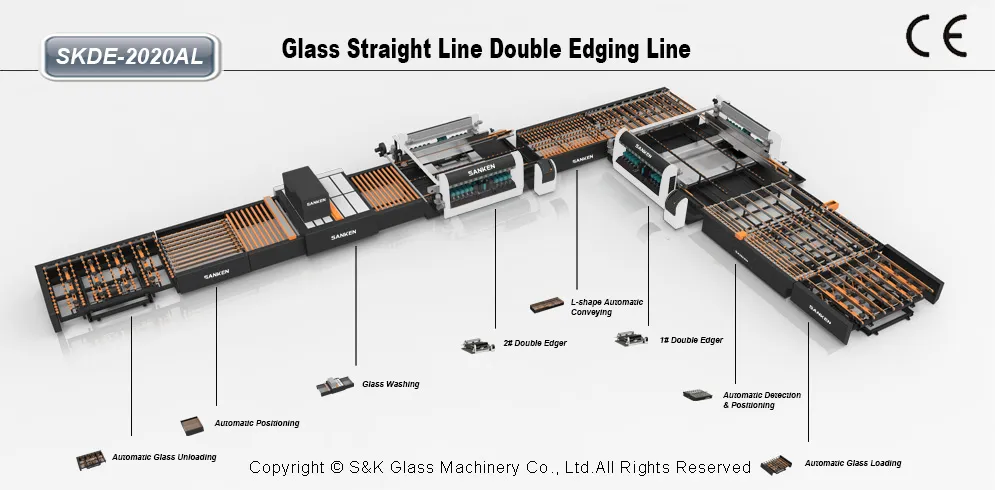

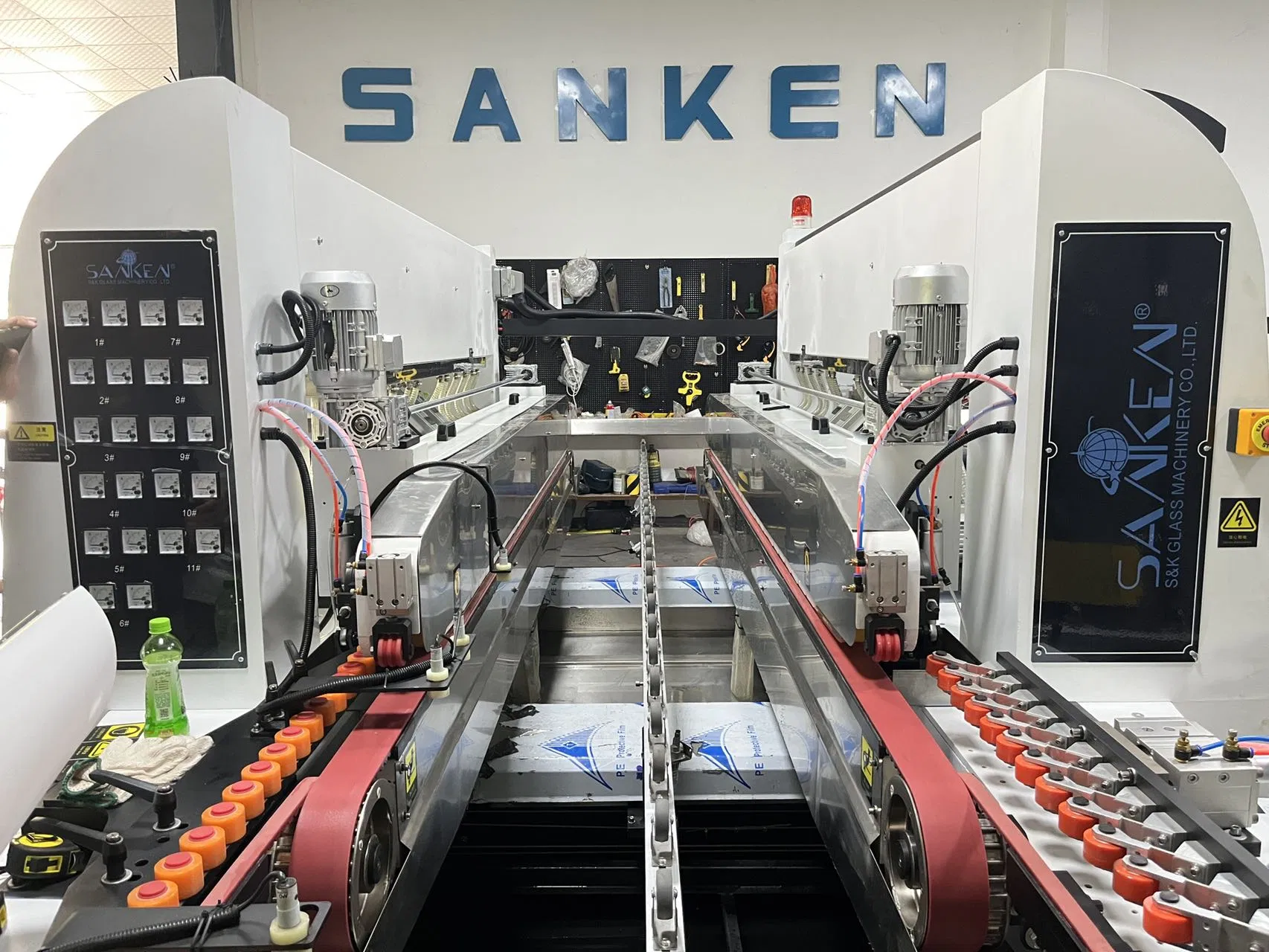

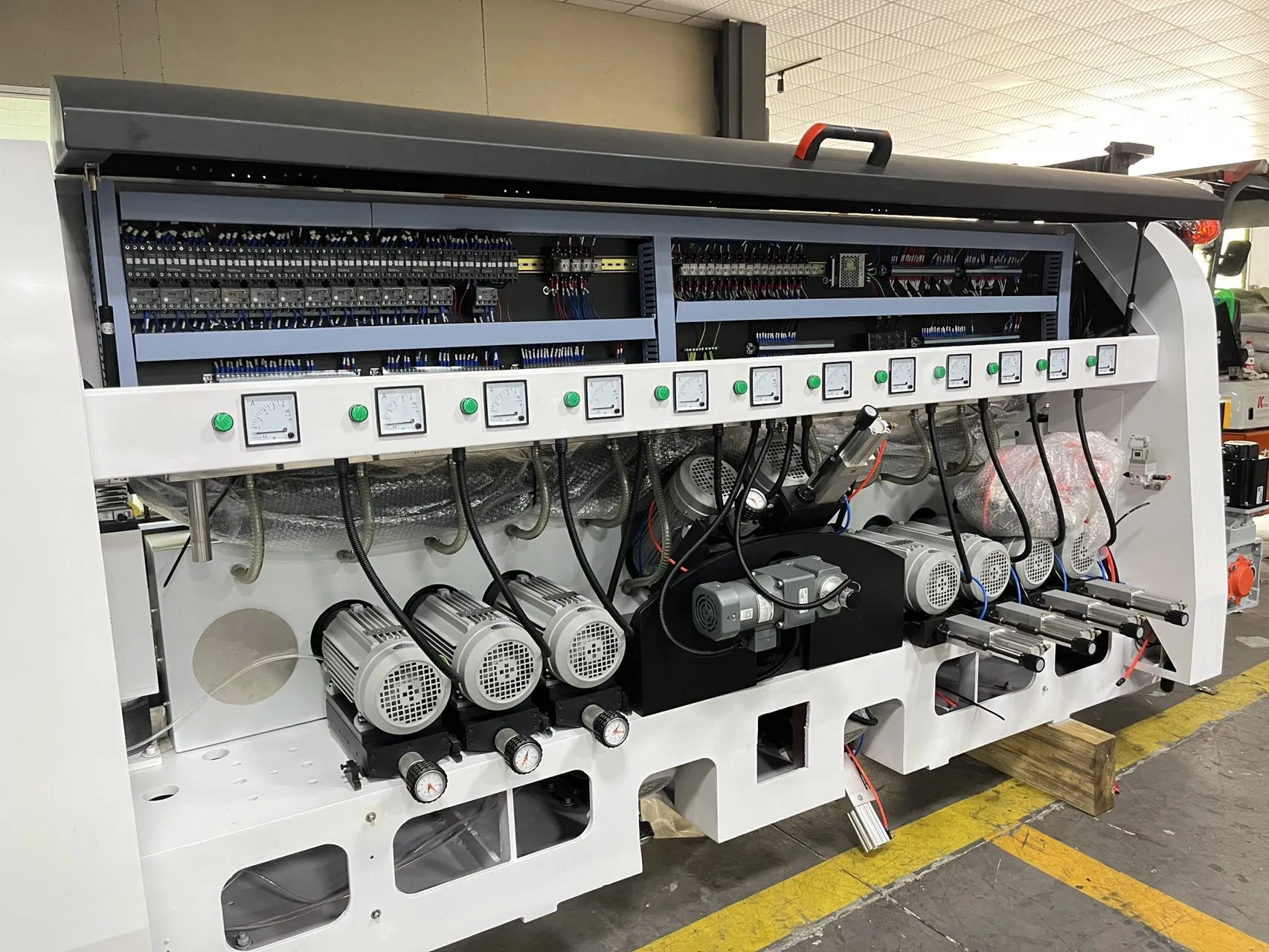

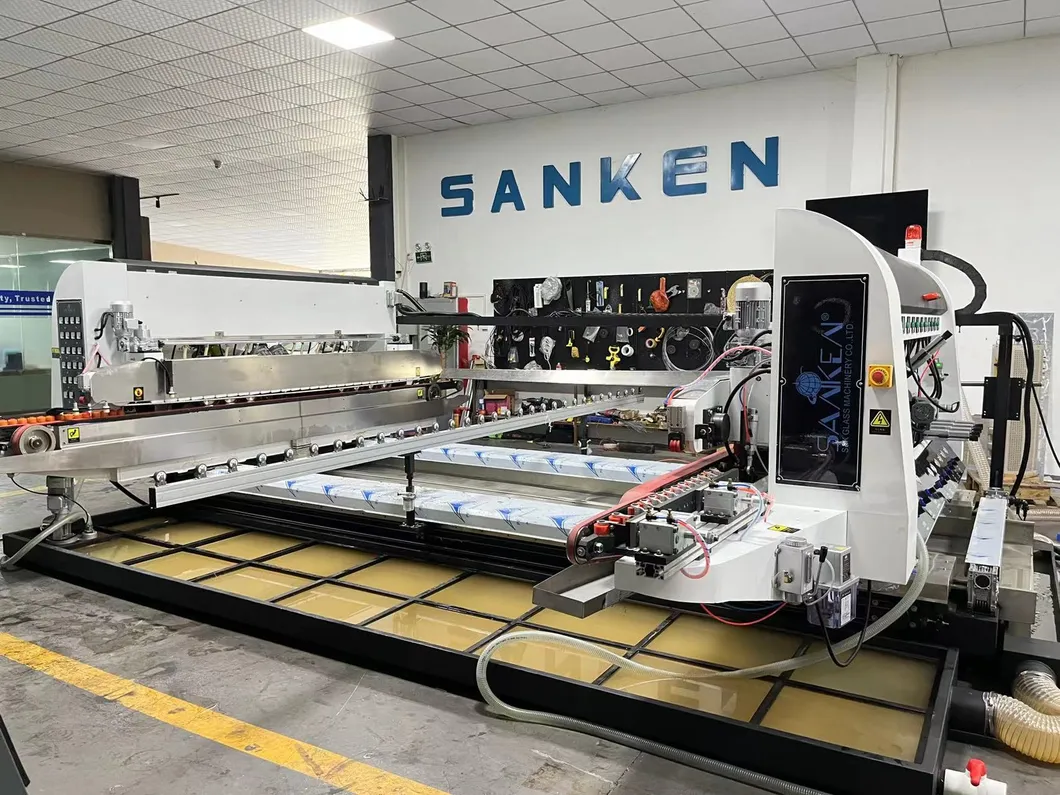

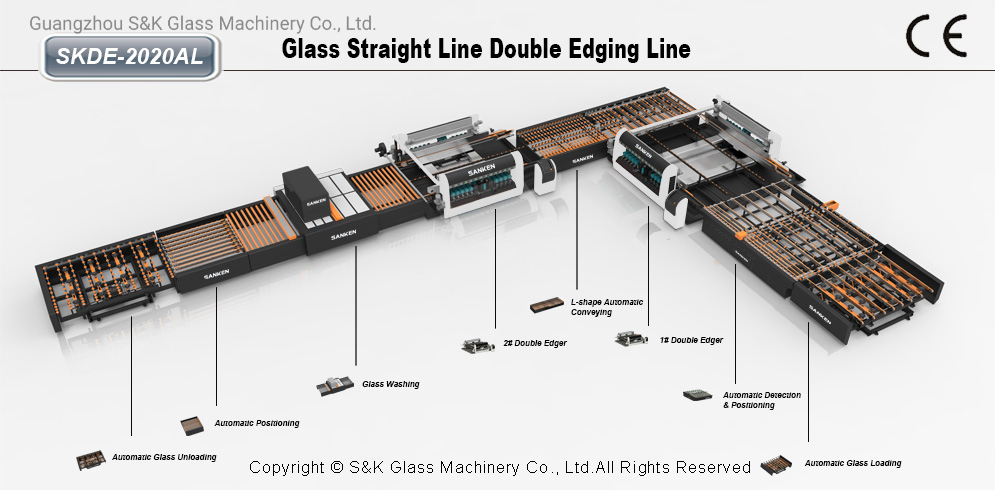

The glass double facet production line is composed of two double edgers with one automatic transit table. It is a glass deep-processing equipment that professionally used for grinding rectangular glass in batches. It can be a linear production line or an L-shaped production line according to the layout of the customer's plant.
It is suitable for processing architectural glass, home appliance glass, furniture glass, solar glass, bathroom glass, etc. Horizontal glass feeding, rough grinding, chamfering, fine grinding and polishing on all four sides of the glass are completed at once. The equipment has stable transmission, higher processing efficiency, high precision of processed glass, uniform diagonals, high polishing brightness, and labor saving. The equipment adopts high-precision transmission structure with double linear guides and double ball screws. The overall design is reasonable, the performance is stable, the safety is high, and the failure rate is very low. The touch screen operating system makes the operation easier.
| Model |
Max. Size |
Min. Size |
Total Power |
Thickness |
Speed |
Machine Size |
| SKDE-2020AL | 2000 x 2000 mm | 300 x 300 mm | 136 KW | 3-25 mm | 0-18 m/min | 11273 * 7800 * 1800 mm |
| SKDE-2520AL | 2500 x 2500 mm | 300 x 300 mm | 136 KW | 3-25 mm | 0-18 m/min | 11773 * 8000 * 1800 mm |
| SKDE-4222AL | 4200 x 2500 mm | 300 x 300 mm | 150 KW | 3-25 mm | 0-18 m/min | 13873 * 8592 * 1800 mm |
| SKDE-4522AL | 4500 x 2500 mm | 300 x 300 mm | 150 KW | 3-25 mm | 0-18 m/min | 13973 * 8392 *1800 mm |
| SKDE-5022AL | 5000 x 2500 mm | 300 x 300 mm | 150 KW | 3-25 mm | 0-18 m/min | 14473 * 8392 * 1800 mm |
| SKDE-4024AL | 4000 x 2500 mm | 300 x 300 mm | 164 KW | 3-25 mm | 0-18 m/min | 13673 * 8592 * 1800 mm |
| SKDE-4524AL | 4500 x 2500 mm | 300 x 300 mm | 164 KW | 3-25 mm | 0-18 m/min | 14173 * 8592 * 1800 mm |
| SKDE-5024AL | 5000 x 2500 mm | 300 x 300 mm | 164 KW | 3-25 mm | 0-18 m/min | 14673 * 8592 * 1800 mm |
| SKDE-6022AL | 6000 x 2500 mm | 300 x 300 mm | 150 KW | 3-25 mm | 0-18 m/min | 15473 * 8392 * 1800 mm |
| SKDE-6024AL | 6000 x 3000 mm | 300 x 300 mm | 164 KW | 3-25 mm | 0-18 m/min | 15673 * 8592 * 1800 mm |
Frequently Asked Questions
1. What types of glass can this production line process?
The equipment is suitable for architectural glass, home appliance glass, furniture glass, solar glass, bathroom glass, and other rectangular glass batches.
2. What is the maximum processing speed?
The production line offers a high-speed processing range from 0 to 18 meters per minute, depending on the glass thickness and requirements.
3. What glass thicknesses are compatible with this machine?
The line can process glass with a thickness ranging from 3mm to 25mm (standard model handles up to 19mm).

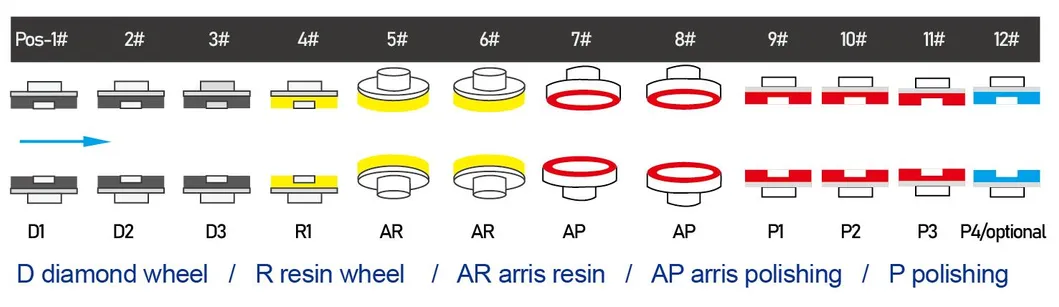

4. How many grinding heads does the SKDE-2020AL model have?
The standard SKDE-2020AL model is equipped with 40 grinding heads to ensure high-precision polishing and grinding.
5. Is the transmission system stable for high-precision work?
Yes, it utilizes a high-precision transmission structure featuring double linear guides and double ball screws for maximum stability and accuracy.
6. What is the control system used for the equipment?

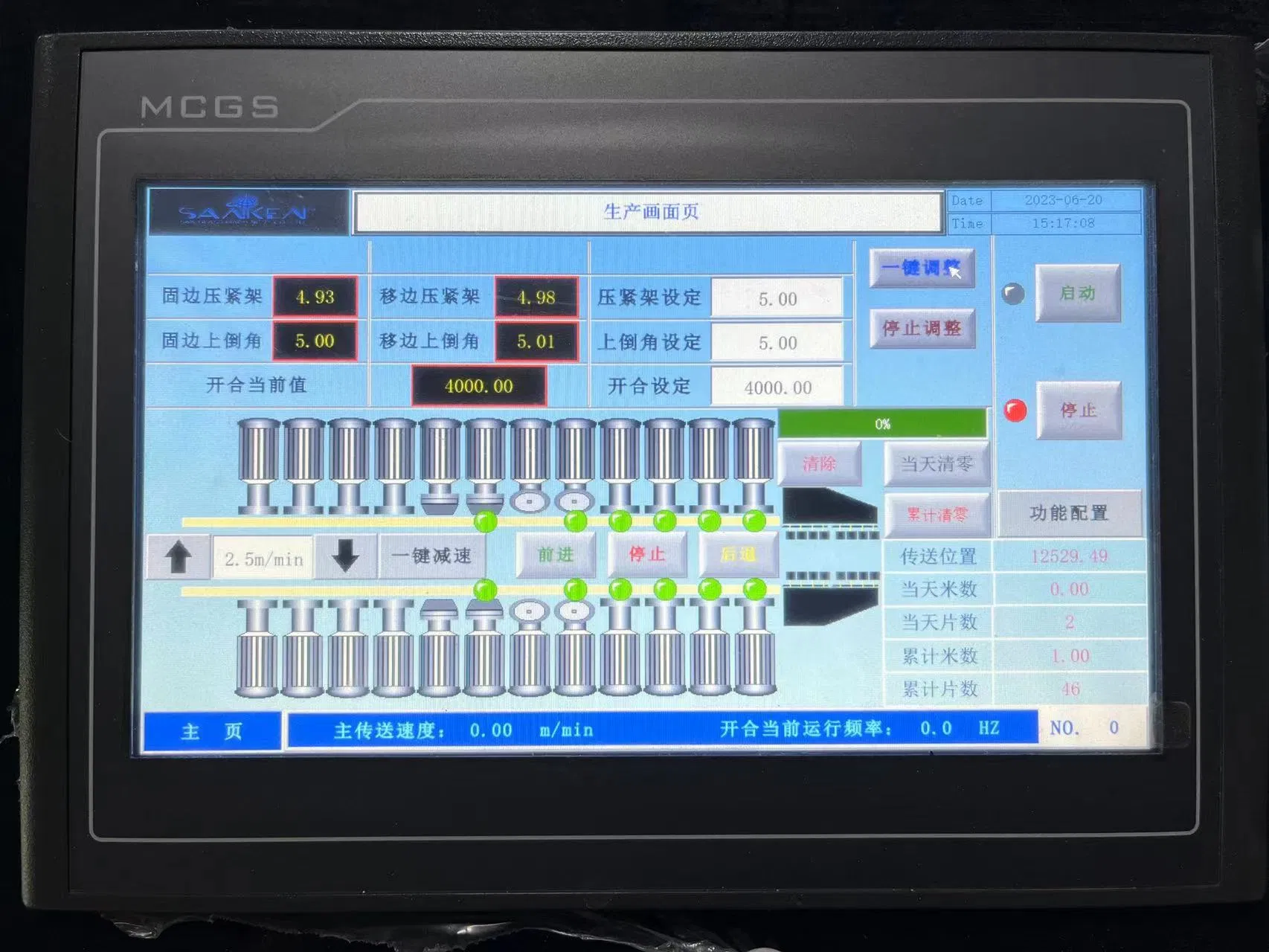

The equipment uses a user-friendly touch screen operating system, which simplifies the operation and reduces the learning curve for staff.
