High-Speed Glass Cutting Lines in Automotive Glass Production

1 / 5

High-Speed Glass Cutting Lines in Automotive Glass Production

Customization:	Available
Certification:	CE, ISO
Maximum Cutting Thickness:	20 mm

Send Inquiry

Product Description

Basic Information

Power Supply:

380V

Safety Features:

Emergency Stop, Overload Protection, Safety Sensor

Type:

Glass Cutting Machine

Condition:

New

Warranty:

One Year

Transport Package:

Container

Specification:

3900*2800 mm

Origin:

China

HS Code:

8464201000

Production Capacity:

80 Set/Year

Product Description

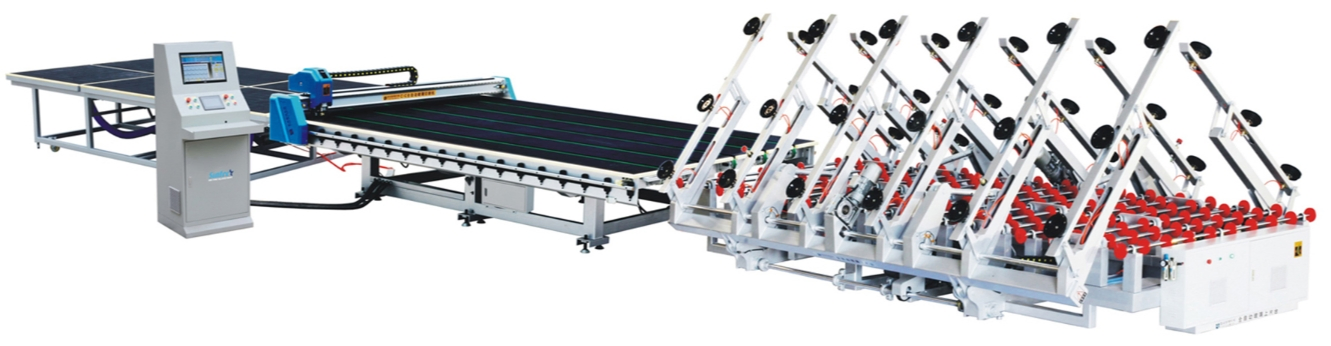

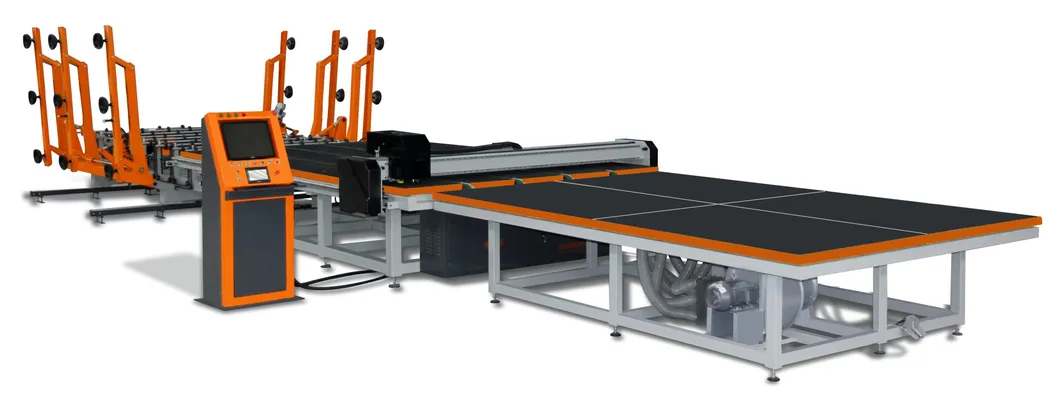

The high-speed glass cutting line mainly contains three professional sections:

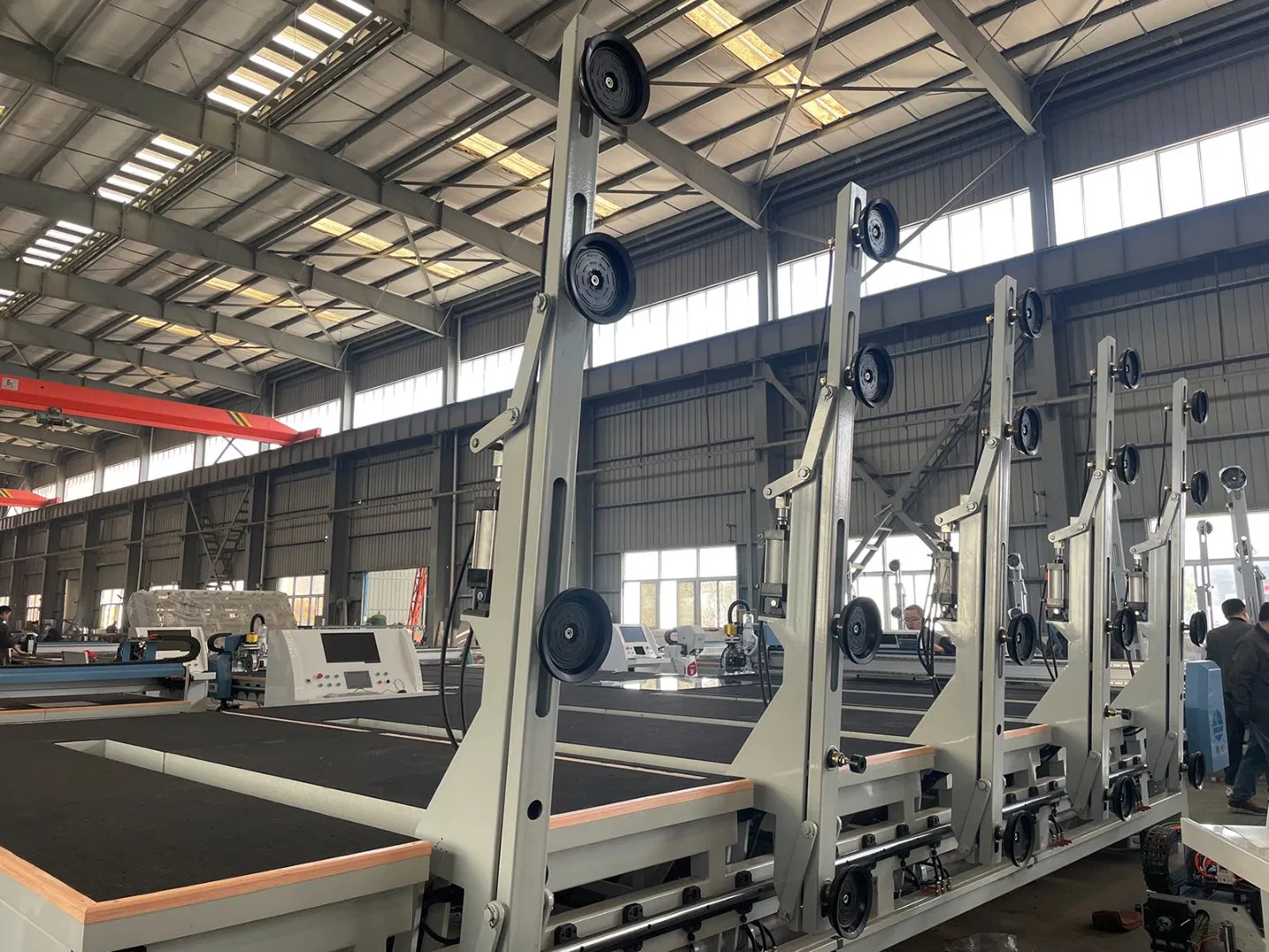

Automatic Glass Loading Machine
Automatic Shaped Glass Cutting Machine
Glass Breaking Table

Mechanical Characteristics

Mn bridge steel (Q345A) with perfect surface treatment.
Stable machine body structure ensures high flatness and prevents deformation.
Japan SMC valve controls cutting pressure for various glass thicknesses.

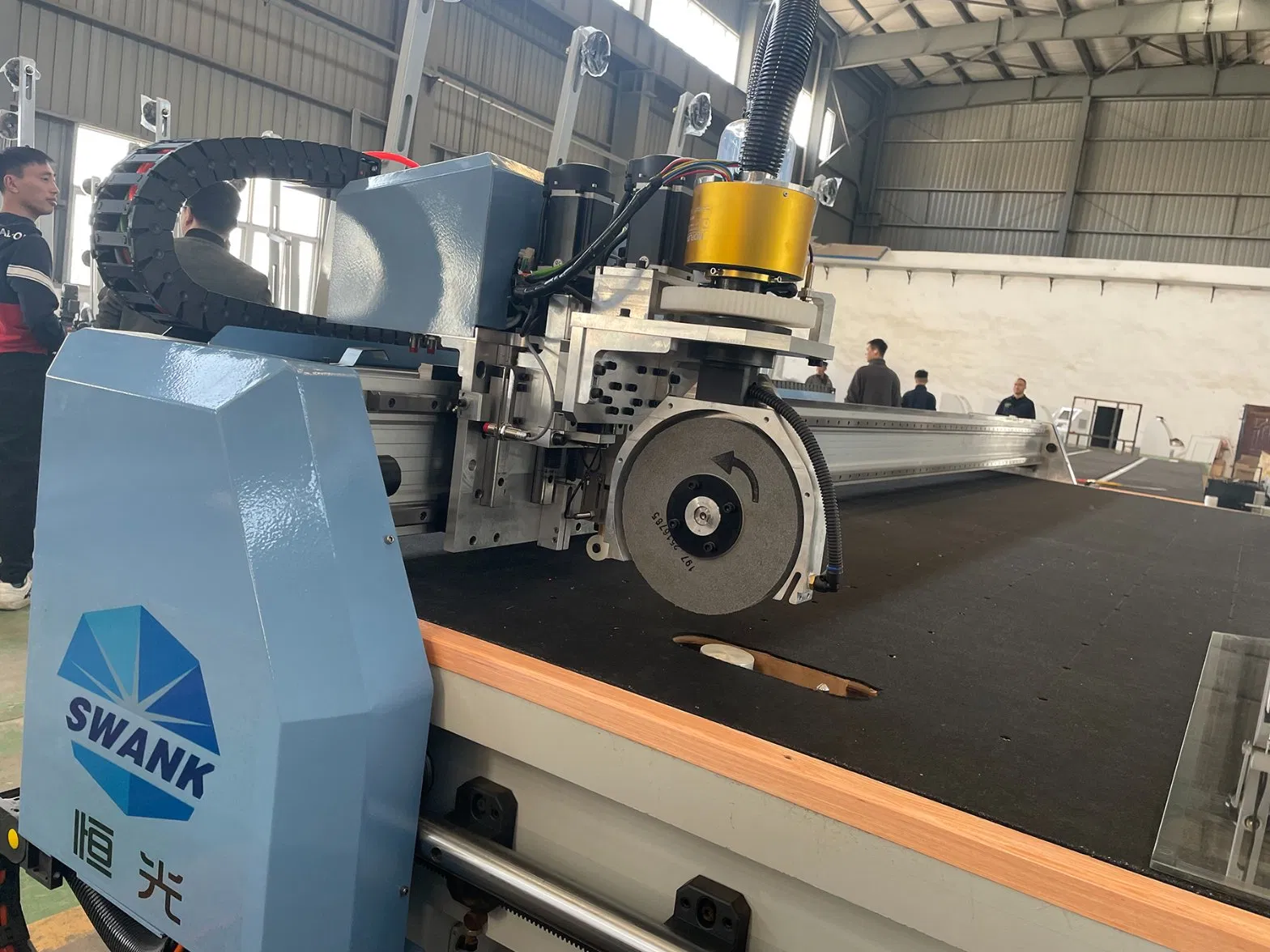

360-degree rotation cutter head with up and down buffers for protection.
High-density water-proof table with antistatic imported felt.
3D edge searing system and high precision automatic location function.
Automatic lubrication system synchronized with the cutter head.
Air float function and belt transmission for smooth handling.
Linear guide rails ensure high cutting precision and low noise operation.

Main Mechanical Parts

Table panel: High density water proof panel (flatness ≤±0.20mm/m)
Rack and rail: KHK Japan
Guide rail: Hiwin Taiwan
Belt: Maiku (Joint venture)
Cutter wheel and holder: Bolhe Germany

Main Electric Parts

CNC System: Galil (USA)
Optimization software: Optima (Italy)
Servo motor: YASKAWA (Japan)
Pneumatic parts: Airtec (Taiwan)
Low voltage electric parts: Schneider (France)
Cutting pressure valve: SMC (Japan)

Technical Parameters

Model	Max. Glass Size	Thickness	Precision	Max. Speed	Dimensions (LWH)
CT-3725	3700*2500mm	3~19mm	±0.25mm	160m/min	482031001300mm
SP-3725	3700*2500mm	-	-	~	46002850900mm
QP-3725	3700*2500mm	-	-	~	1250036001300mm

Frequently Asked Questions

Q1: What is the maximum glass thickness this machine can handle?

A: The machine is designed to cut glass with a thickness range of 3mm to 19mm.

Q2: What are the primary safety features included?

A: It includes an Emergency Stop Button, Overload Protection, and Safety Sensors to ensure operator safety.

Q3: What control system does the cutting machine use?

A: The system uses the Galil (USA) CNC System combined with Optima (Italy) optimization software for high efficiency.

Q4: Does the machine support irregular or shaped glass cutting?

A: Yes, it features an Automatic Shaped Glass Cutting Machine and 3D edge searing for high precision irregular cutting.

Q5: What kind of precision can be expected from the CT-3725 model?

A: The CT-3725 model offers a cutting precision of ±0.25mm.

Q6: What is the warranty period for this equipment?

A: The glass cutting line comes with a standard one-year warranty.
