Max Glass Size
2000*3000mm
Control System
PLC (Mitsubishi)

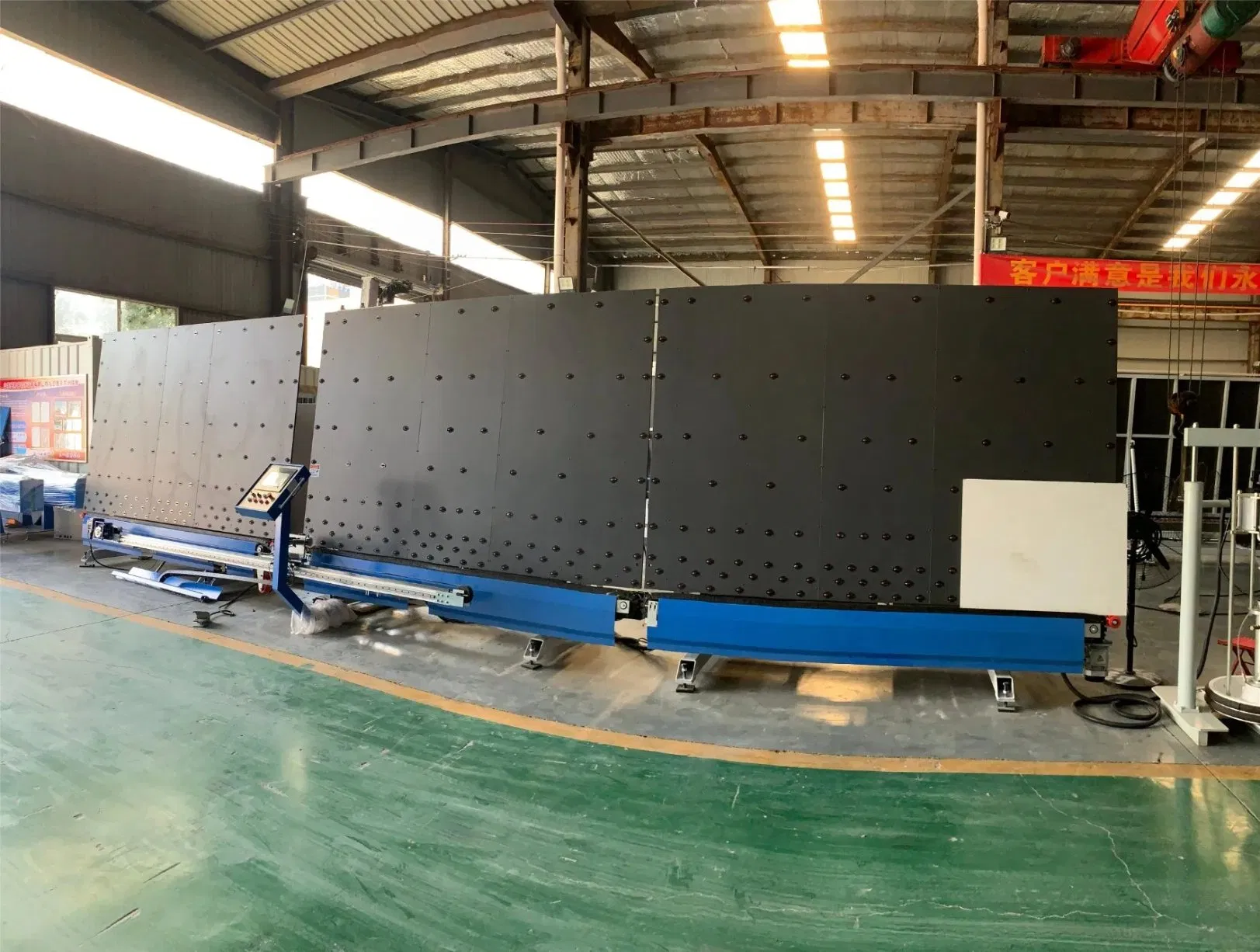

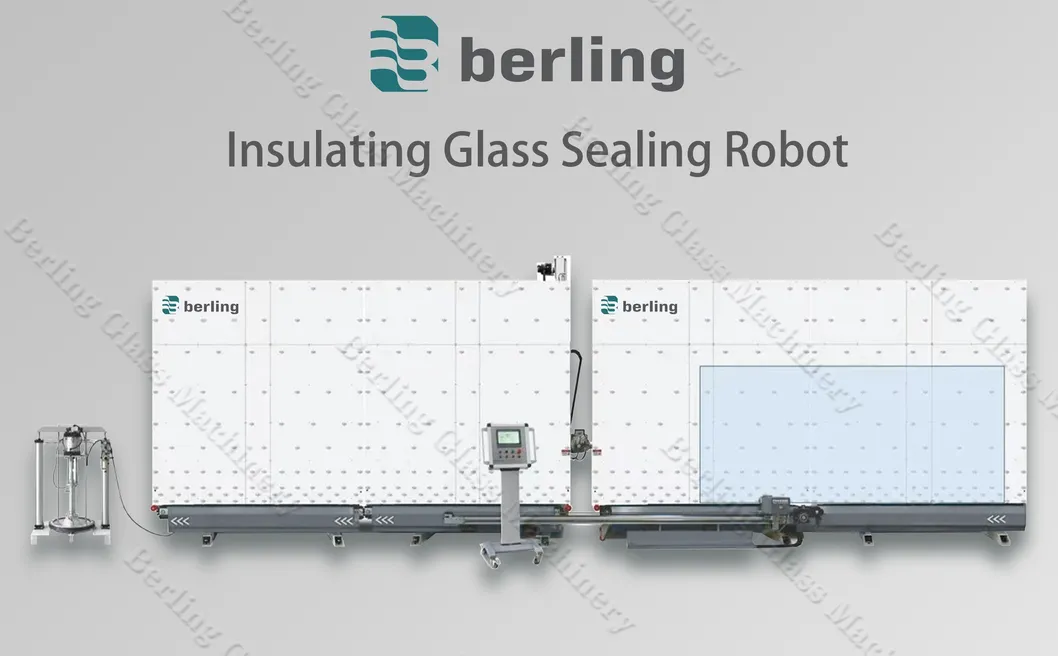

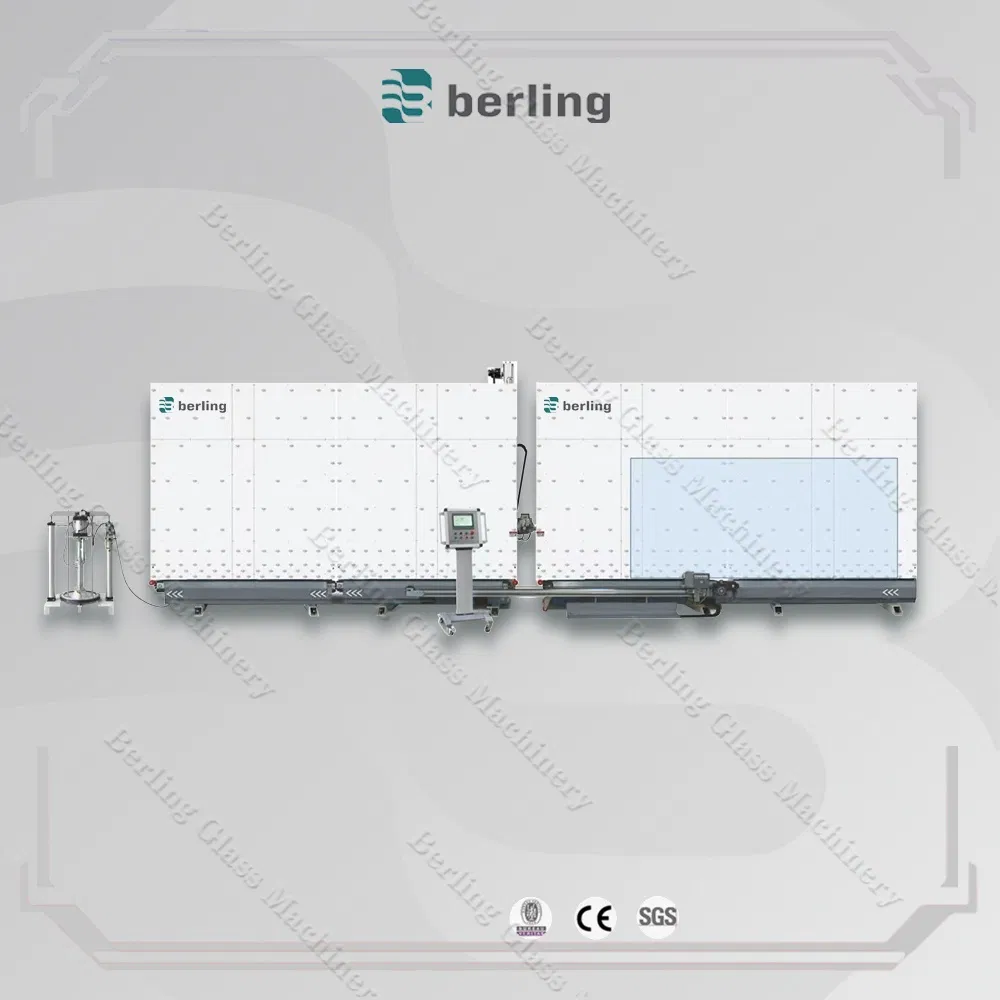

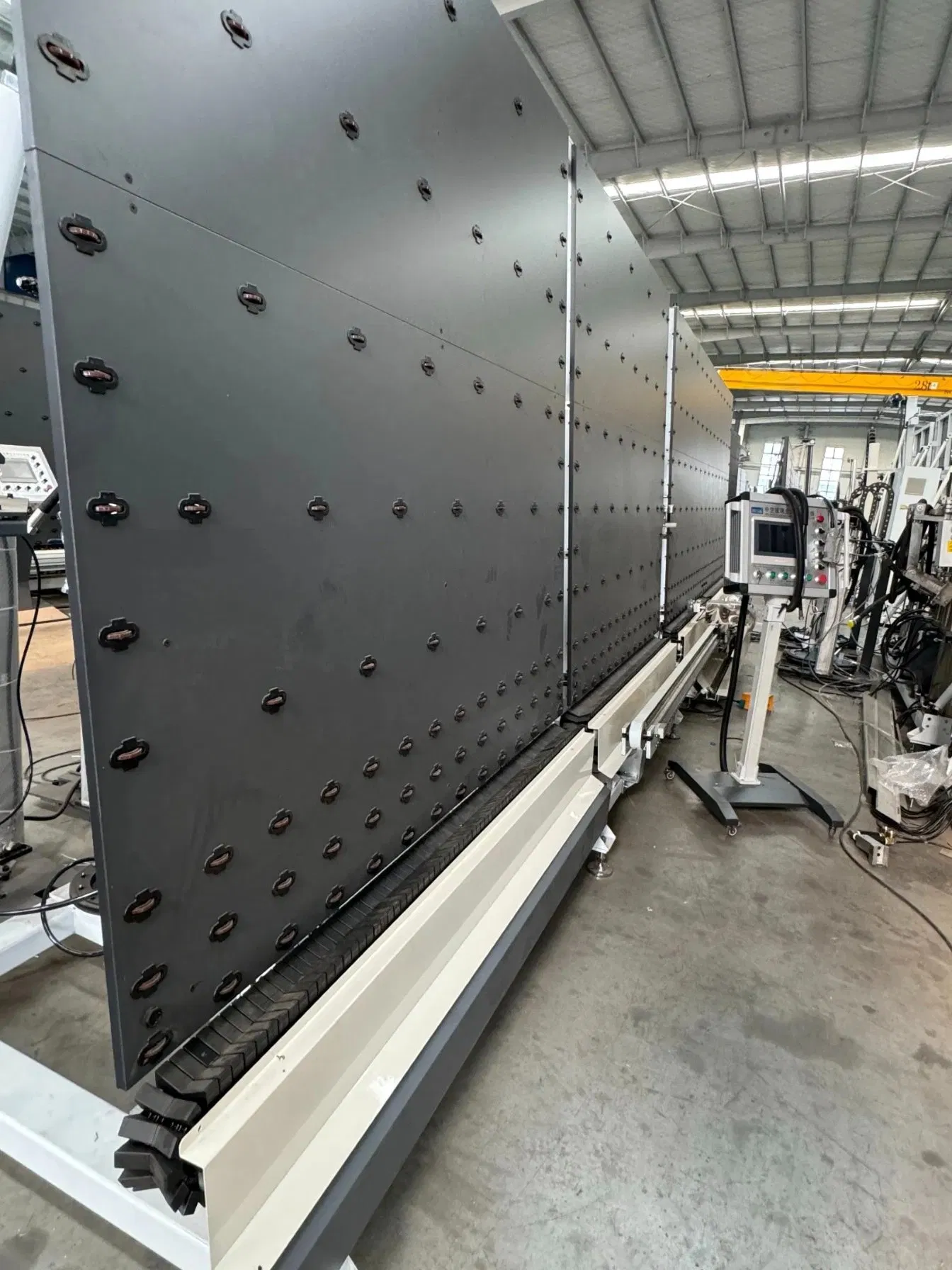

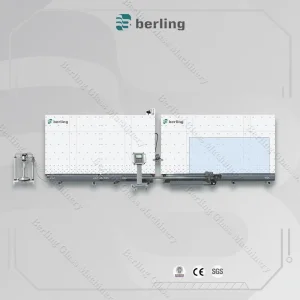

The Automatic Insulating Glass Sealing Robot is an advanced, fully automatic glue applicator designed for the secondary sealing of IG units. After cleaning, drying, framing, and pressing, this sealing robot completes the final step to ensure the IGU is perfectly sealed for long-term performance.
Equipped with a servo-driven control system, a user-friendly touch screen interface, and dual independent glue supply systems, the robot ensures high-precision, high-efficiency sealing operations. It supports pre-storage of glass units for continuous production, automatic adjustment of sealing width and depth, and special-shaped glass coating.
High Compatibility
Suitable for extra-large IG units, special-shaped glass, and multi-cavity structures.
Efficiency Boost
Third-stage glass pre-storage allows continuous online sealing to enhance production speed.
Precision Engineering
CNC pressure control and servo drive for superior sealing quality without bubbles.
User-friendly
Simple touch-screen operation via HMI interface for easy adjustments.
| Item |
BL-ZNJ3390 |
BL-ZNJ3060 |
BL-ZNJ2850 |
BL-ZNJ2540 |
BL-ZNJ2030 |
| Max glass size |
3300*9000mm |
3000*6000mm |
2800*5000mm |
2500*4000mm |
2000*3000mm |
| Min glass size |
200*300mm |
200*300mm |
200*300mm |
200*300mm |
200*300mm |
| IG unit thickness |
12~80mm |
12~80mm |
12~80mm |
12~80mm |
12~80mm |
| Working Speed |
2-45m/min |
2-45m/min |
2-45m/min |
2-45m/min |
2-40m/min |
| Total power |
15KW |
12KW |
10KW |
9KW |
7KW |
✔
Key Features & Technical Advantages
- Fully automatic digital sealing process with high precision.
- Automatic detection of sealing depth and width adjustment.
- Optional automatic corner trimming function for a cleaner finish.
- High-speed servo motion control system ensures stable operation.
- Support for rectangular, triple-glazing, and quadruple-glazing IGUs.
- Stable and durable structure with tank chain transmission.
- Equipped with an automatic glue quantity alarm system to prevent downtime.

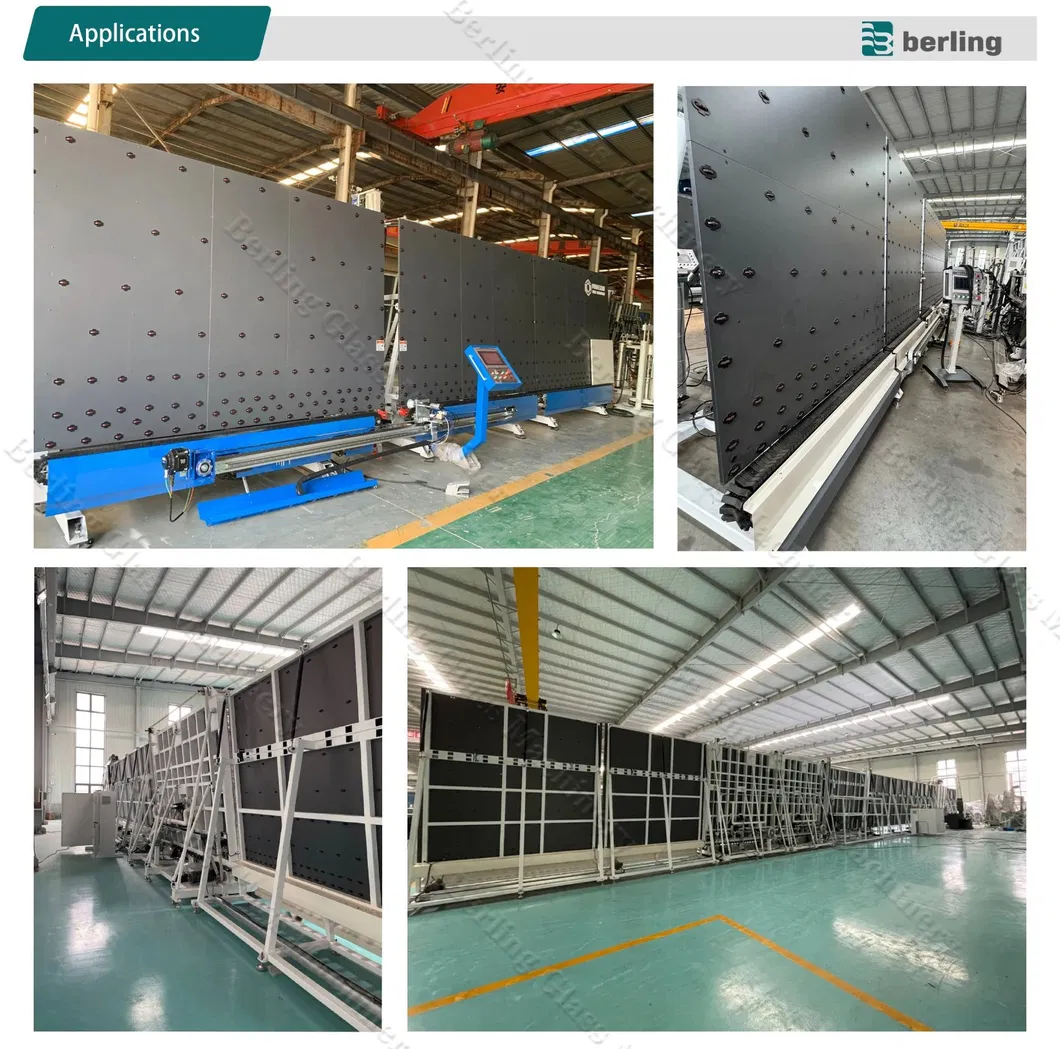

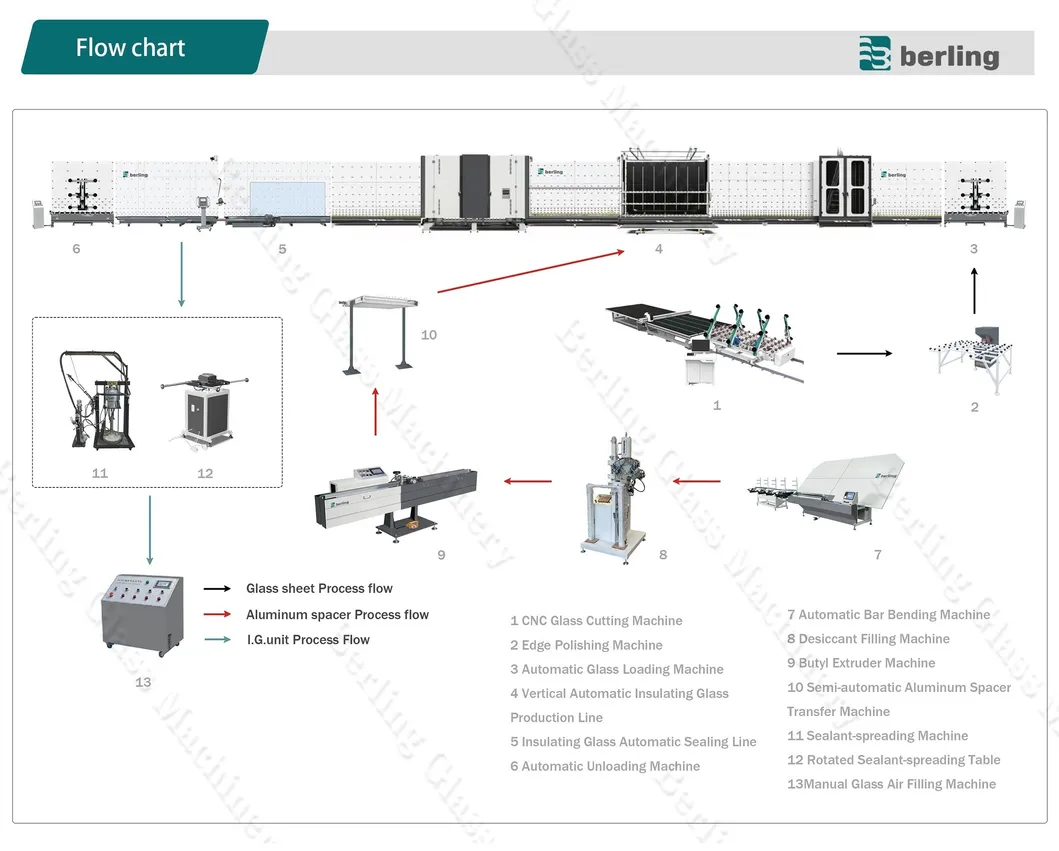

- Insulated Glass Unit (IGU) industrial production.
- Double/Triple glazing window and door manufacturing.
- Curtain wall insulating glass processing for architectural use.
- High-speed train windows and energy-saving glass production.
What types of glass can this sealing robot process?
The robot is compatible with standard rectangular glass, special-shaped glass, and multi-cavity structures including triple and quadruple glazing units.
How is the sealing quality guaranteed?
Sealing quality is ensured through a high-precision servo-driven control system, automatic depth detection, and a pollution-free belt transmission that provides seamless adhesive coverage without air bubbles.
Does the machine support continuous production?
Yes, it features a third-stage glass pre-storage area that allows for continuous online sealing, significantly boosting production efficiency.
Is the operation difficult for new workers?
The machine uses a user-friendly touch screen HMI (Human-Machine Interface), making it simple to operate and adjust parameters with minimal training.
What core components are used in the control system?

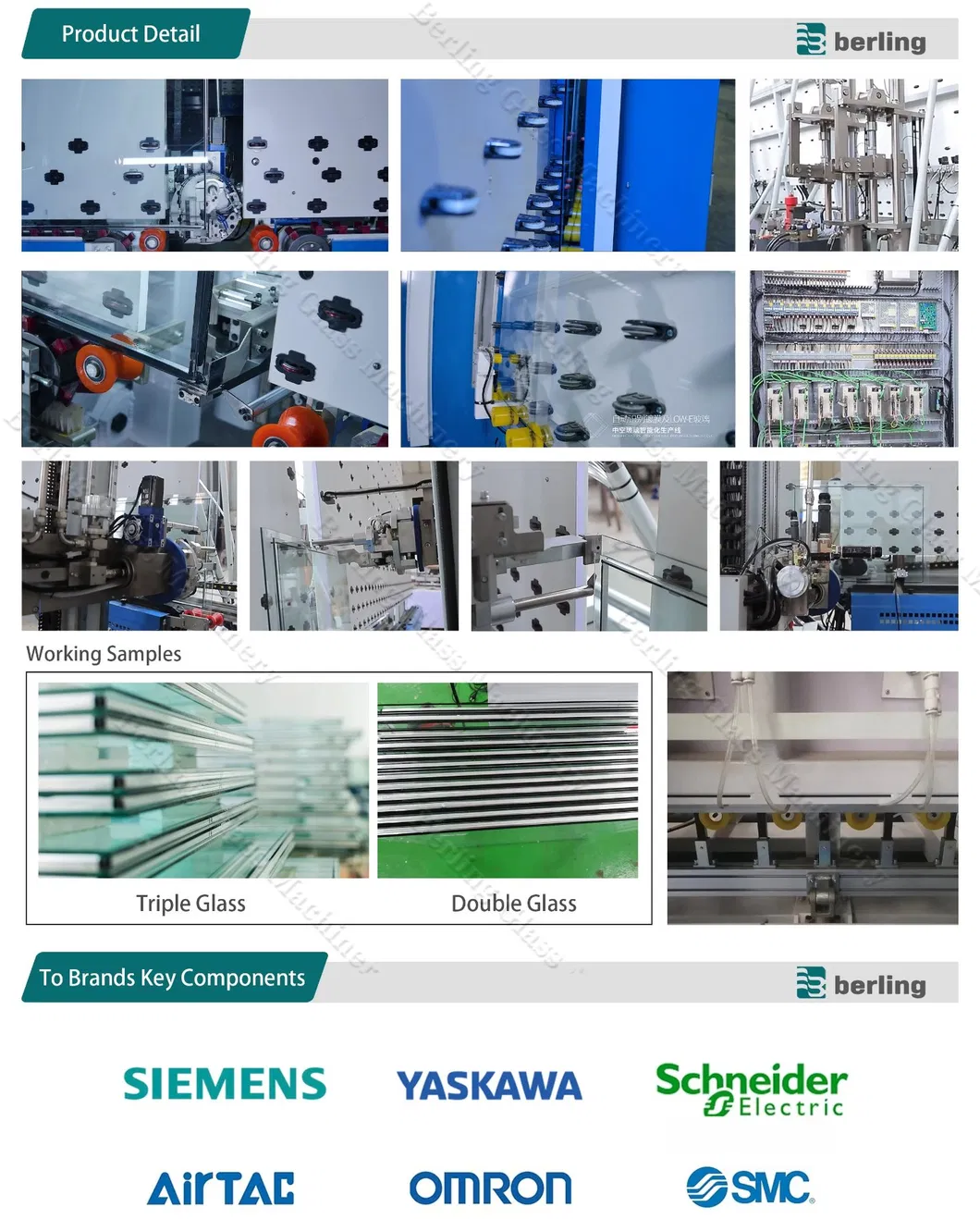

The robot is equipped with high-end electrical components including Mitsubishi or Yaskawa servo drives and PLC systems for long service life and consistent performance.
Can the machine handle different types of sealants?
Yes, it can be equipped with dual independent glue supply systems, allowing for quick switching between two sealant types via one-button control.
