| Model NO. | 7120 | Color | Black |
| Compressive Strength | 6 MPa | Density | 150 kg/m³ |
| Environmental Grade | Low VOC Emissions, Non-toxic, Recyclable | Sheet Size | 1200 mm x 1200 mm |
| Thermal Conductivity | 0.04 W/(m.K) | Thickness | 70 mm |
| Flame Rating | A | Max Temperature | 480℃ |
| Origin | China | HS Code | 7019802000 |

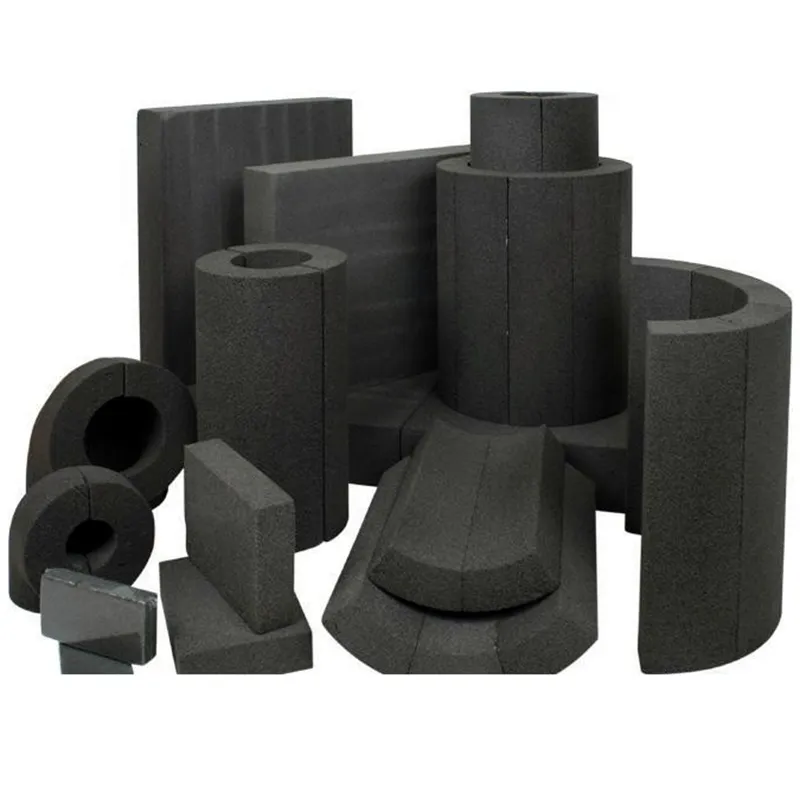

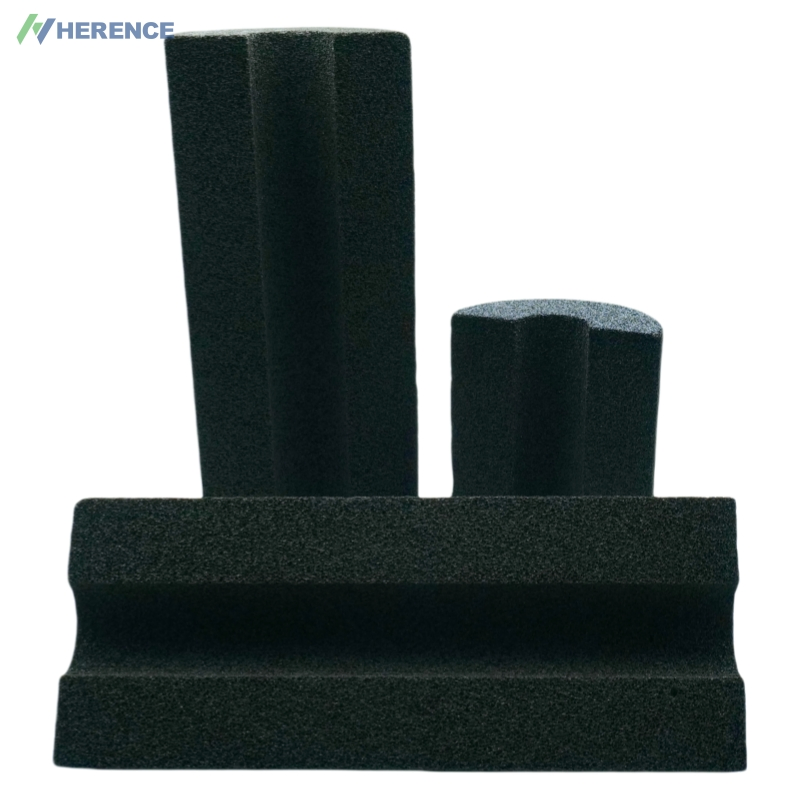

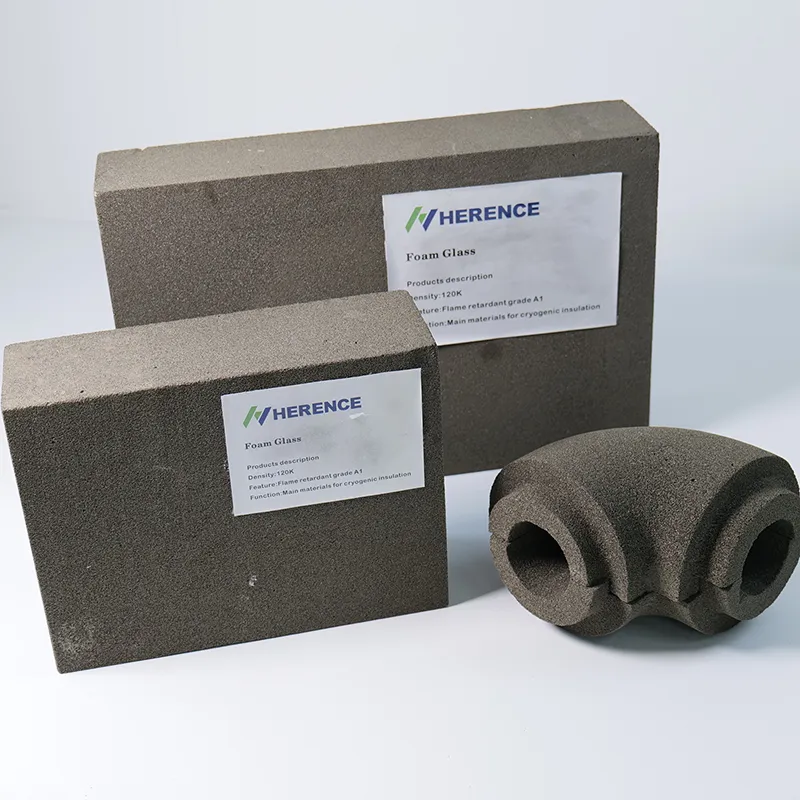

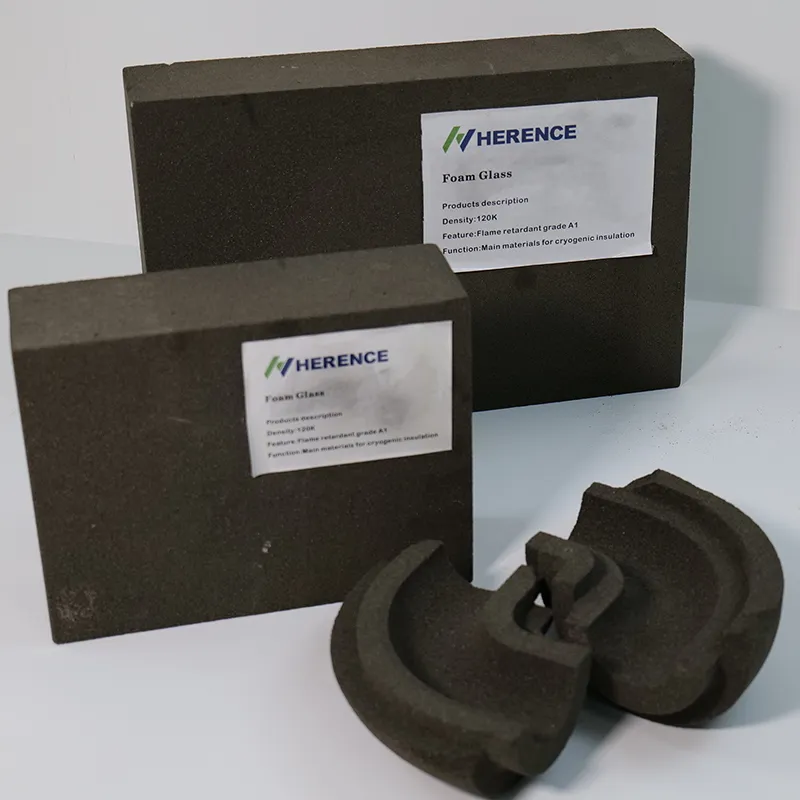

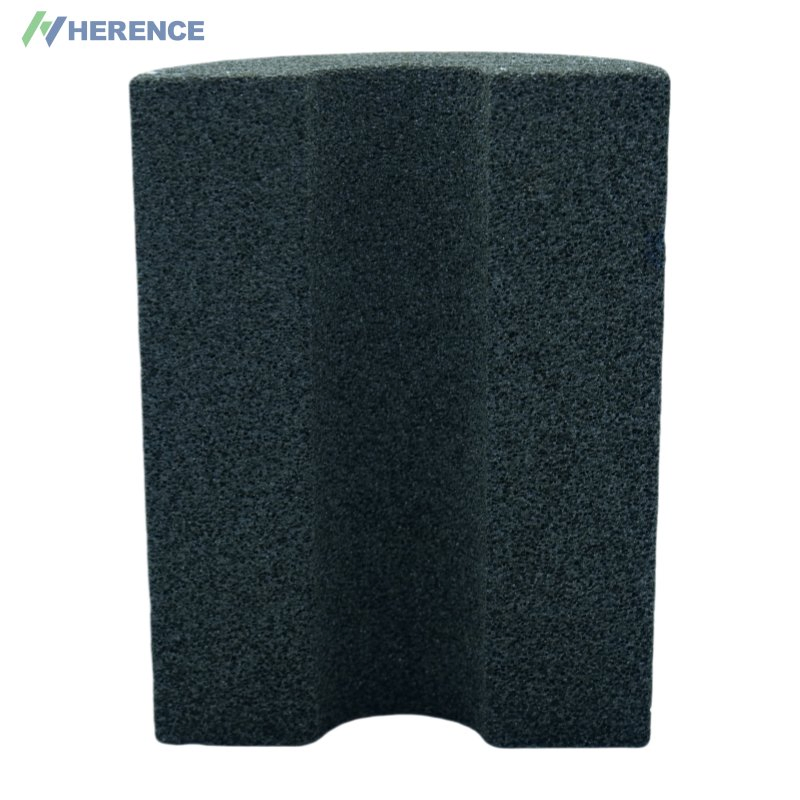

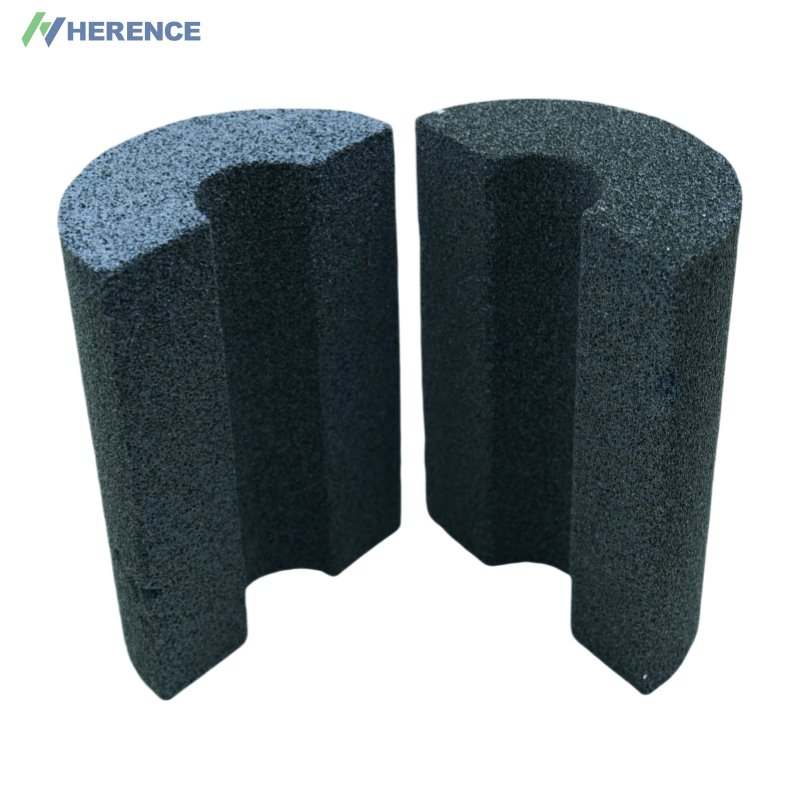

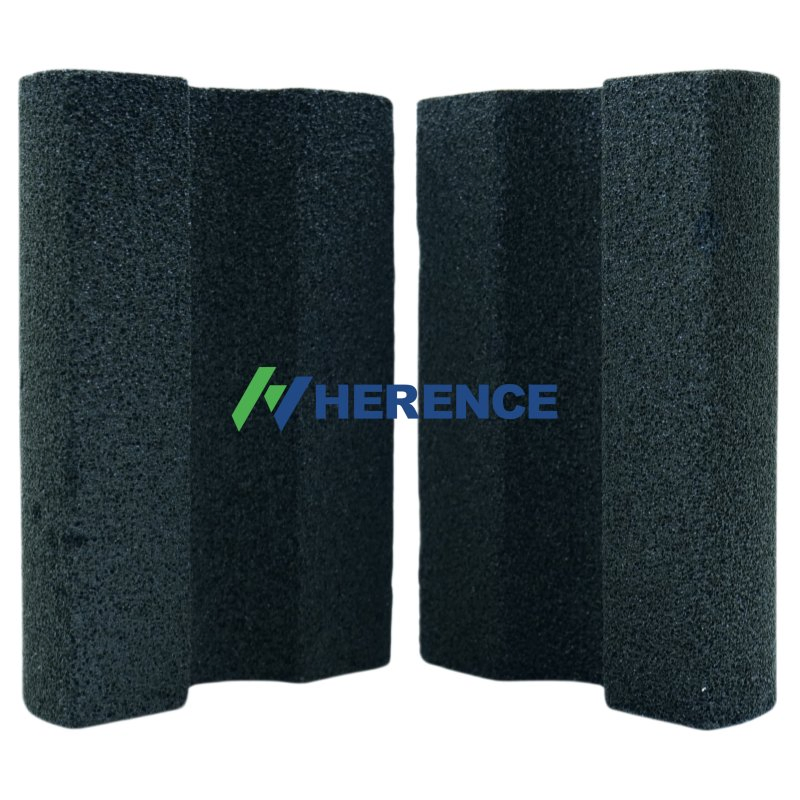

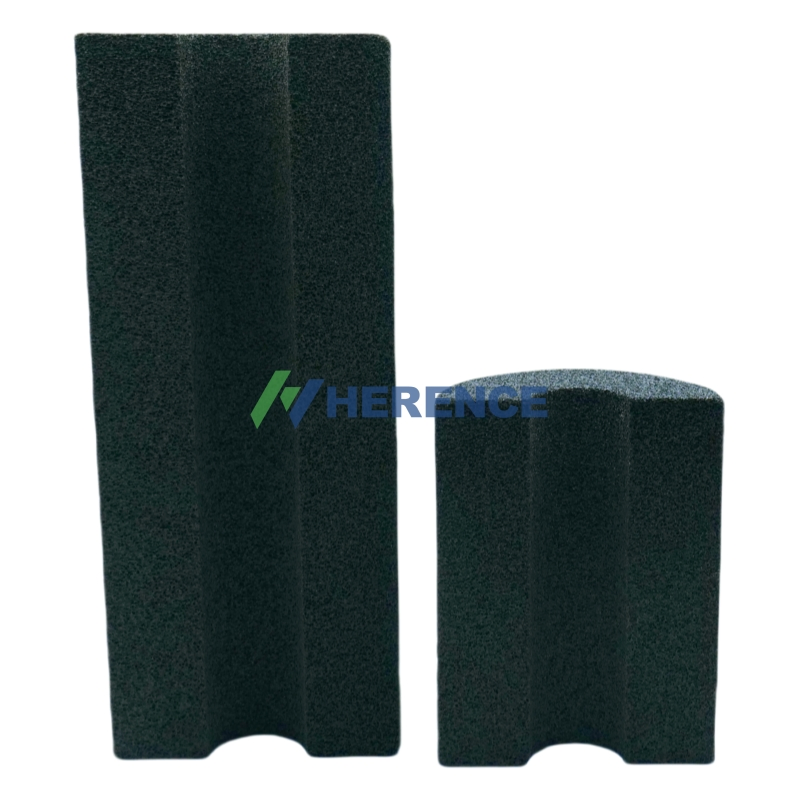

Foam glass is a new type of inorganic material that provides thermal insulation, flame retardancy, and sound absorption. Made from pure glass, it is foamed in a high-temperature tunnel kiln with an appropriate amount of foaming agent, followed by annealing and cooling. It exhibits excellent chemical stability, corrosion resistance, UV resistance, and thermal radiation resistance.

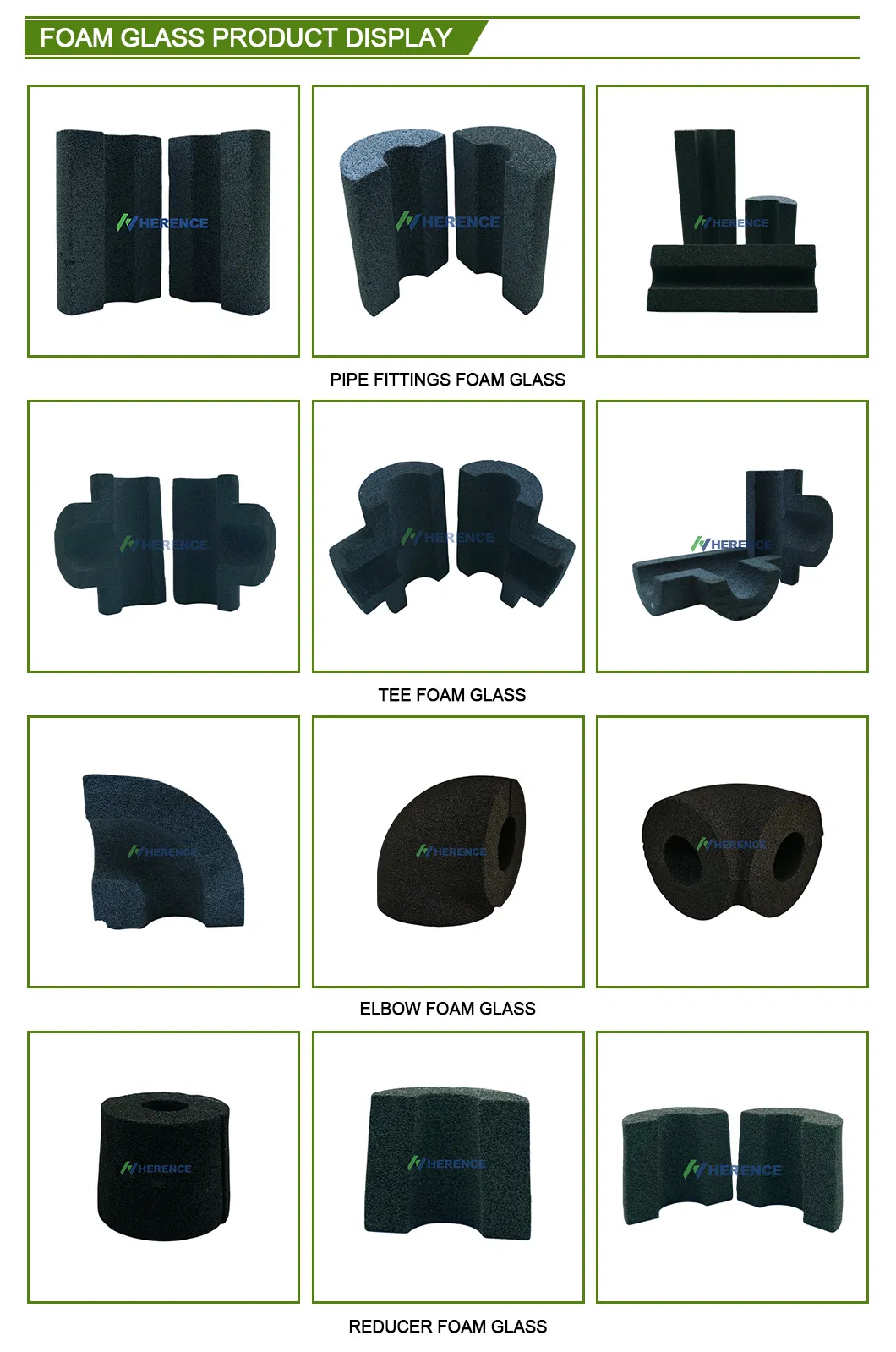

It resists decomposition at high temperatures and prevents deterioration at low temperatures. It also boasts high mechanical strength and is easy to process and cut into various shapes. With a long service life, it resists weathering and aging. This material is widely used in petrochemical, power, defense, and factory decoration applications. Foam glass pipe insulation can be highly customized to meet specific technical needs.
| Property | Unit | Value |
|---|---|---|
| Density | kg/m³ | 150 |
| Thermal conductivity | W/(m.k) | 0.042 |
| Water absorption | % | < 0.5 |
| Percentage of close area | % | 99 |
| Compressive strength | Kpa | 890 |
| Flame Rating | - | A |

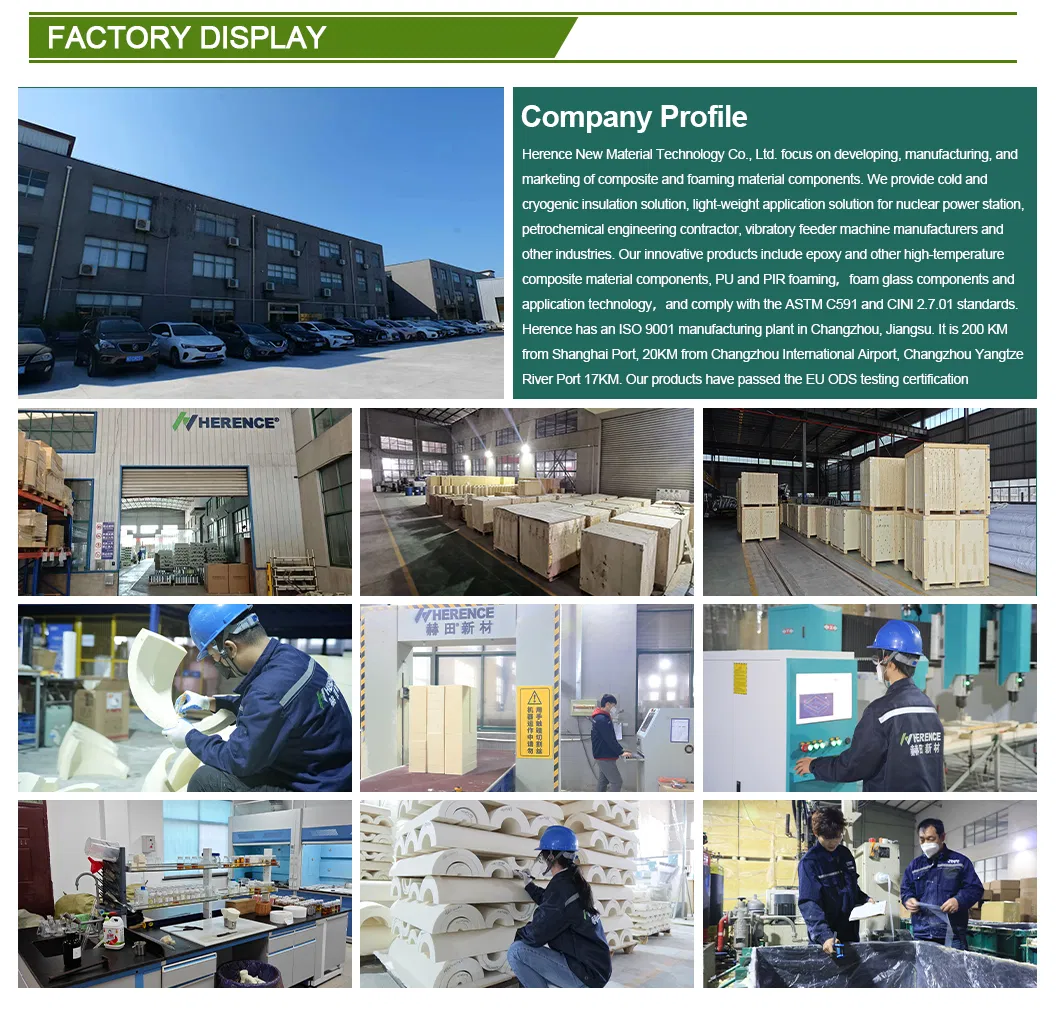

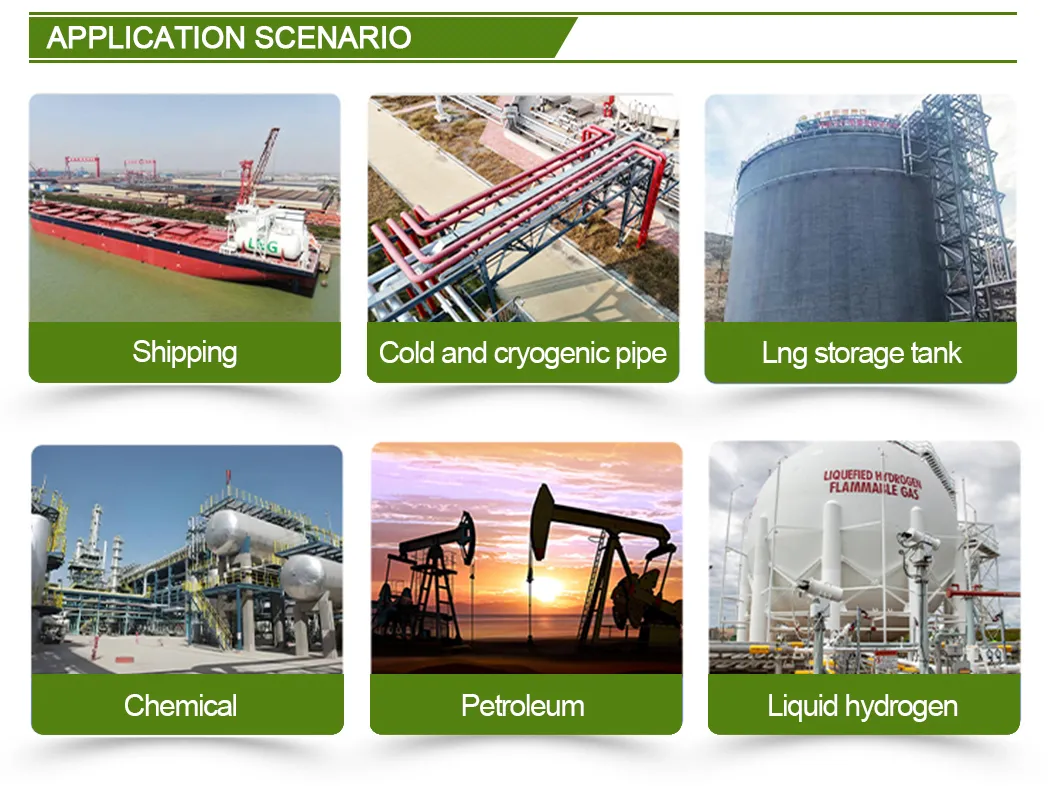

Dedicated to the development, manufacture, and global promotion of advanced foamed and composite molded components, the company specializes in providing cryogenic and ultra-cryogenic insulation solutions. We offer lightweight-application solutions for industries including city-gas, petrochemical, air-separation plants, nuclear power, and LNG shipping.

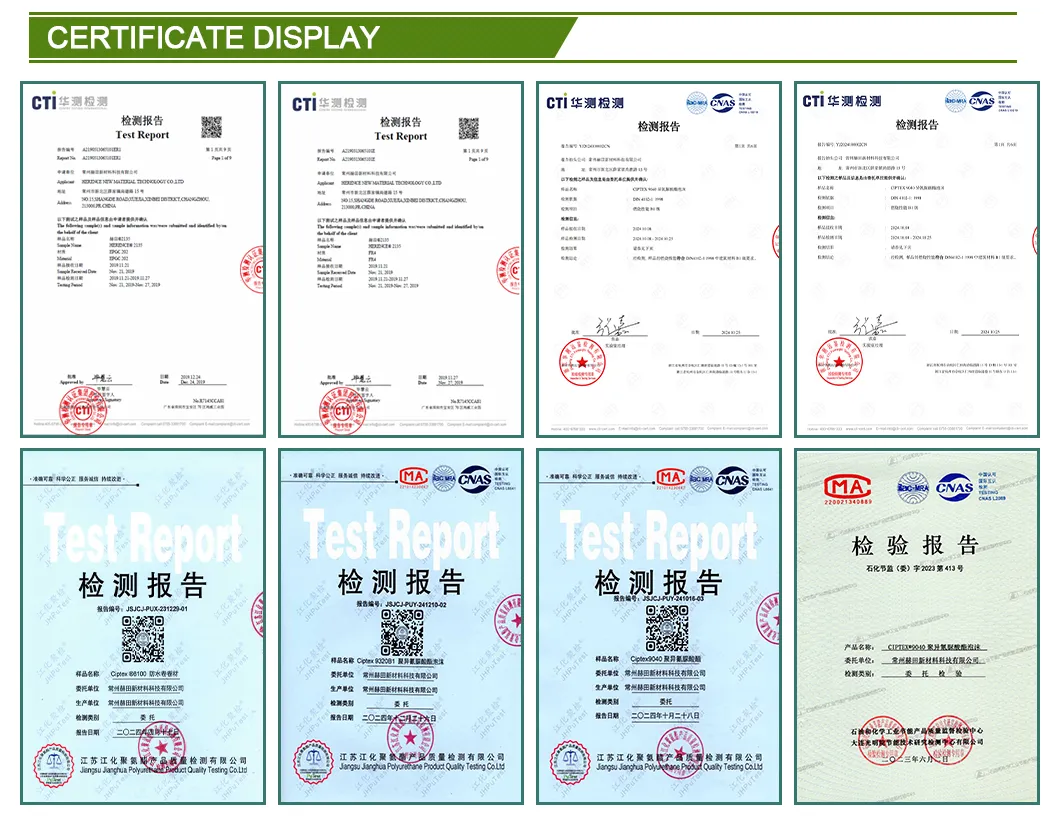

Our core innovations include PIR rigid foam, HDPIR, epoxy and bismaleimide (BMI) resin-based composite molded parts, and foam-glass components. All products comply with ASTM C591 and CINI 2.7.01 standards, ensuring high quality and energy efficiency for global project sites.
