Industrial Glass Laminating Furnace with Dual Positions and Silicone Bag System
Industrial Glass Laminating Furnace with Dual Positions and Silicone Bag System
Industrial Glass Laminating Furnace with Dual Positions and Silicone Bag System
Industrial Glass Laminating Furnace with Dual Positions and Silicone Bag System
Industrial Glass Laminating Furnace with Dual Positions and Silicone Bag System
1 / 5
Industrial Glass Laminating Furnace with Dual Positions and Silicone Bag System
Industrial Glass Laminating Furnace with Dual Positions and Silicone Bag System
Industrial Glass Laminating Furnace with Dual Positions and Silicone Bag System
Industrial Glass Laminating Furnace with Dual Positions and Silicone Bag System
Industrial Glass Laminating Furnace with Dual Positions and Silicone Bag System

Industrial Glass Laminating Furnace with Dual Positions and Silicone Bag System

Customization: Available
Certification: CE, ISO
Control System: PLC Control
Send Inquiry

Product Description

Basic Product Information

Model NO.
BL2SS-2030
Glass Thickness
4-19 mm
Power
84kw
Silicone Bag Size
3800*2600mm
Max Glass Size
3660*2440mm
Power Supply
380V/50Hz
Package Size
1100.00cm * 210.00cm * 360.00cm
Gross Weight
4300.000kg

Product Description

The EVA Laminated Glass Furnace is a high-efficiency, double-layer laminating machine designed for the thermal bonding of EVA (or EN) film between various types of glass sheets. With intelligent PLC temperature control, internal air circulation, vacuum systems, and durable silicone vacuum bags, it ensures stable, even heating and strong bonding, making it ideal for safety, decorative, and specialty glass manufacturing.

EVA Laminated Glass Furnace

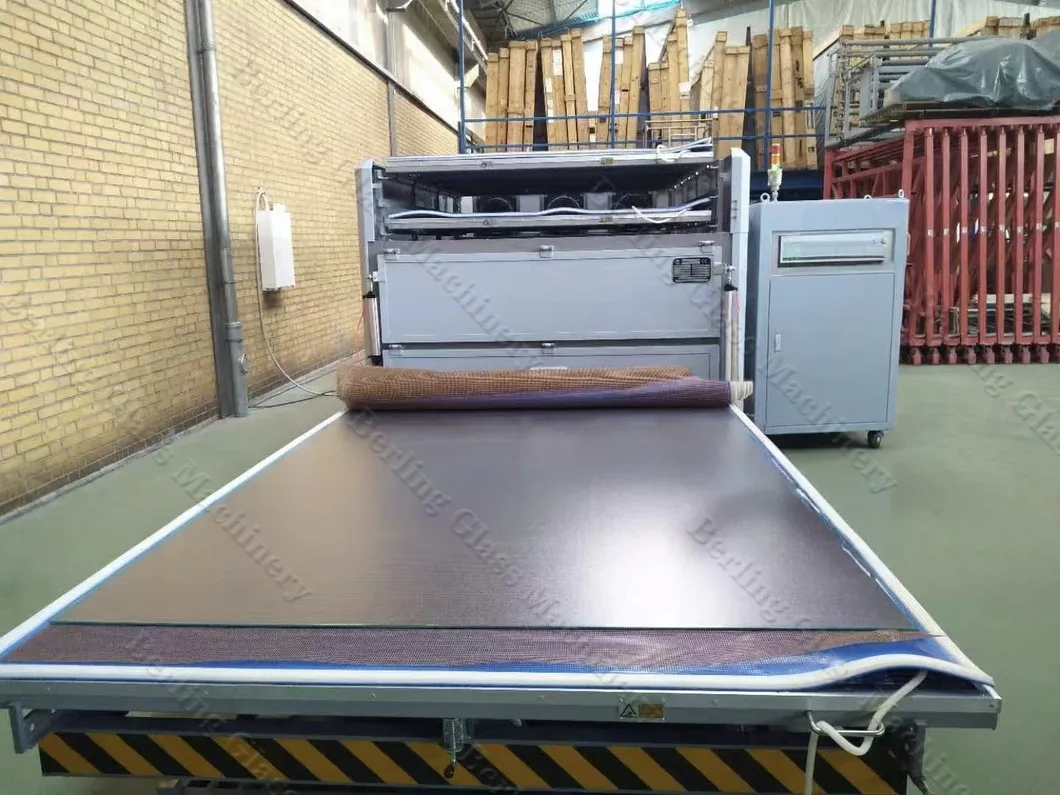

Detailed View of Glass Furnace

Key Technical Features

Efficient HeatingFin-type circulation system with fast and even temperature distribution.
Accurate ControlPLC-controlled intelligent temperature regulation with programmable operations.
Strong Vacuum SystemHigh-performance pump with air-oil separation and cooling protection.
Durable StructureThick galvanized steel frame and double insulation for stable, long-term use.
High Output CapacitySilicone plates with strong vacuum sealing enable large-scale batch production.
Labor-Saving DesignDual-layer and optional lifting system reduce manual handling intensity.

Technical Parameters

Items Specification Power Supply Total Power(KW) Silicone bag size(MM) Max Glass Size(MM) Overall Dimension(MM) Silicone bag Qty
BL2SS-2030single station, 2 layers380V/50HZ272000*30001900*29007800*2500*15902
BL4DD-2030double stations, 4 layers380V/50HZ272000*30001900*290012200*2500*15904
BL2SS-2638single station, 2 layers380V/50HZ422600*38002500*37009400*3100*15902
BL4DS-2642double stations, 4 layers380V/50HZ422600*42002500*410015800*3100*15904
BL4DD-2638double systems, 4 layers380V/50HZ842600*38002500*370010400*3100*22004

Application Scope

  • Laminated flat or curved glass
  • Toughened laminated safety glass
  • Decorative colored glass
  • Dimming glass
  • Bulletproof glass
  • Art glass (printed/wired)
  • Marble rock composite panels

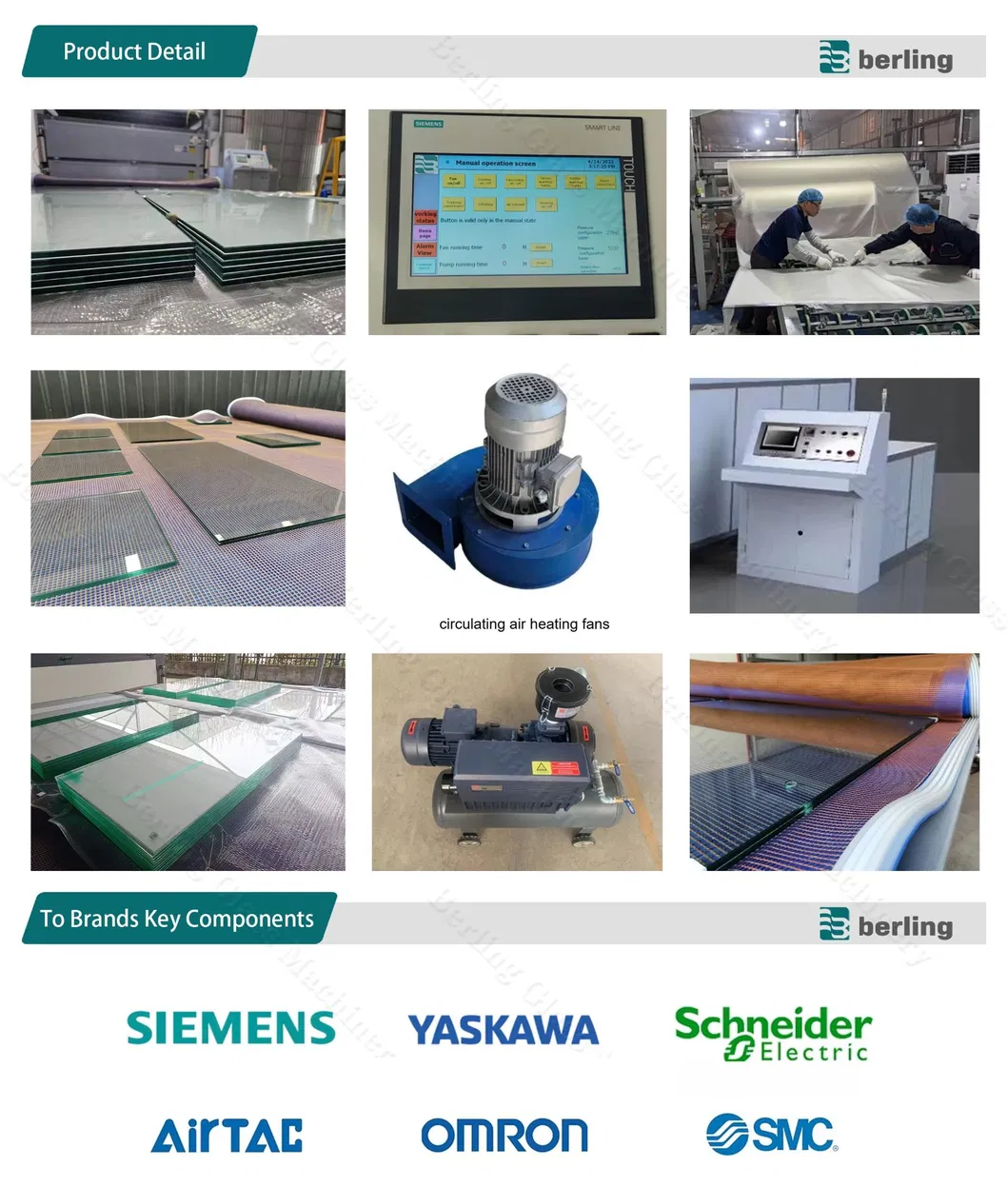

Application 1

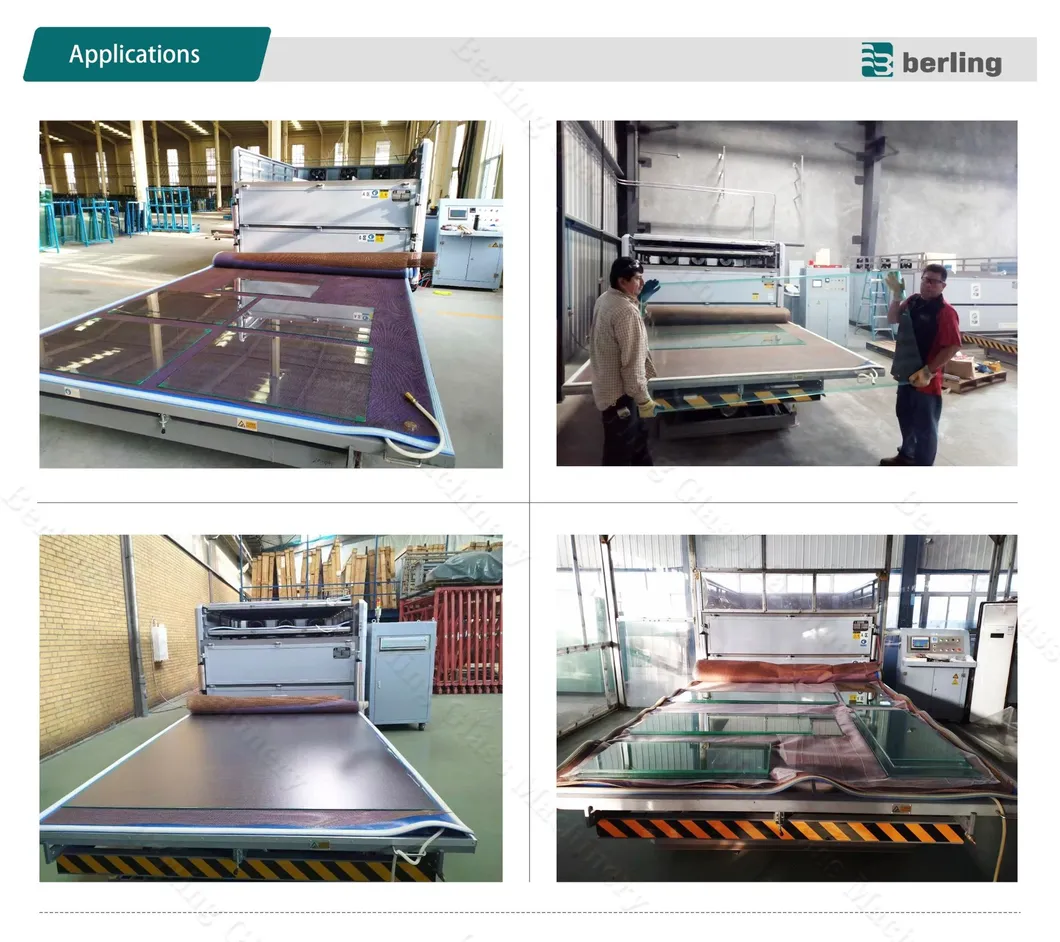

Application 2

Quality & Logistics

Certifications
Packaging

Professional Manufacturing

Manufacturing
Workshop
After Sales

Frequently Asked Questions

How do you ensure the quality of the glass furnace?
We always provide a pre-production sample before bulk production and conduct a strict final inspection before shipment to ensure stable performance.
What types of glass machinery do you provide?
Our range includes insulated glass production lines, glass cutting machines, washing machines, edging machines, tempering furnaces, and laminated glass production lines.
Why choose this laminating furnace over others?
With over 20 years of experience, our equipment features an excellent engineering design, a professional after-sales support system, and highly stable product quality.
What payment and delivery terms are accepted?
We accept multiple terms including FOB, CFR, CIF, EXW, and DDP. Payments can be made via T/T, L/C, Credit Card, or PayPal in USD, EUR, or CNY.
Is the furnace suitable for artistic decorative glass?
Yes, it is ideal for producing decorative colored glass, art glass with printed or textured styles, and even marble rock composite panels.
What languages does your service team support?
Our professional team can communicate in English, Spanish, German, French, Russian, Arabic, and several other languages to support global clients.
