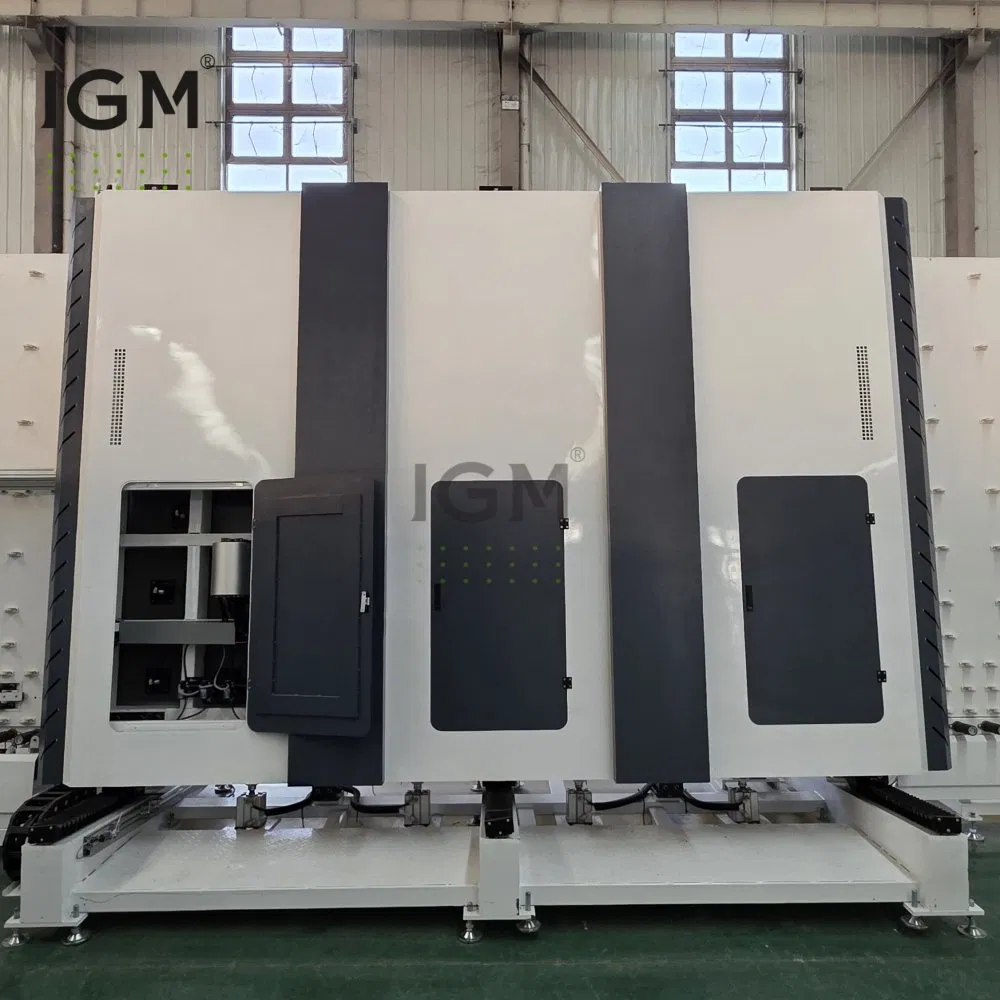

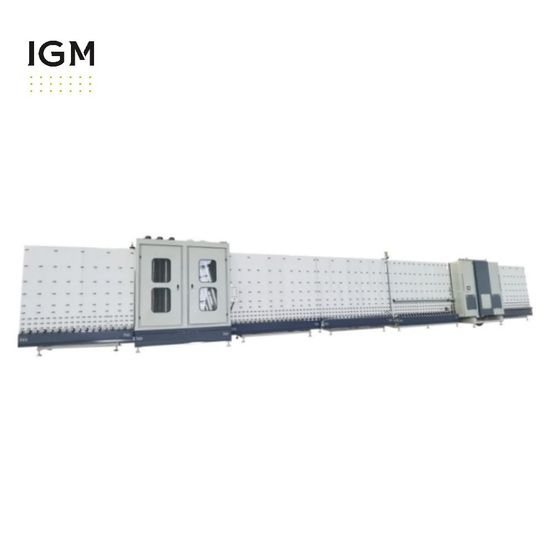

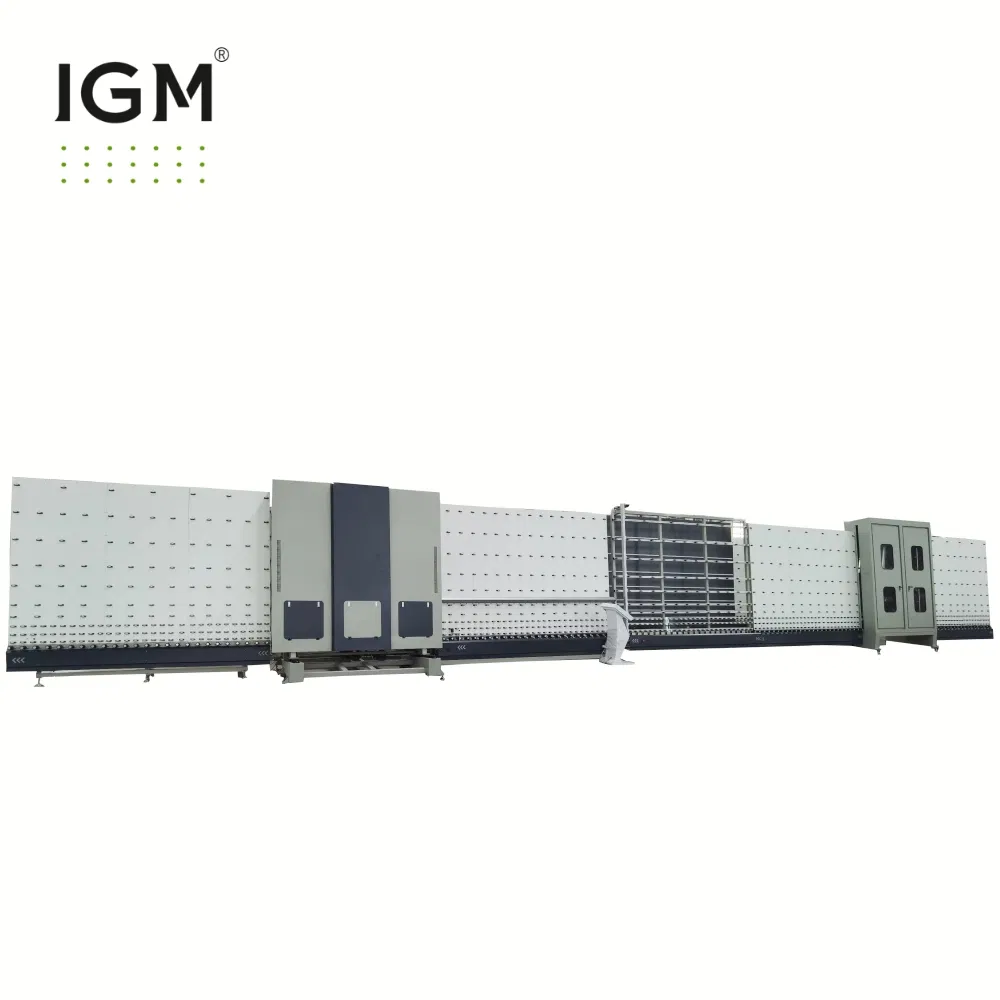

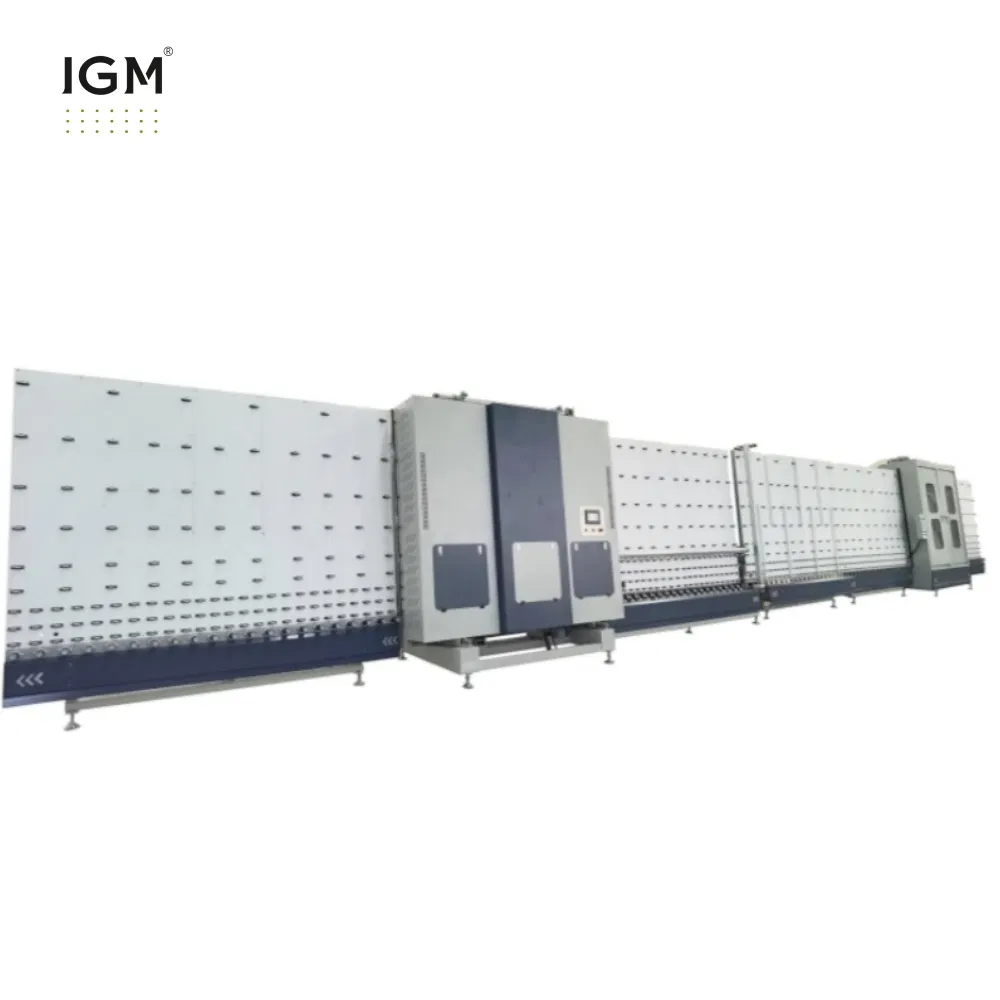

Insulating Glass Making Machine CE ISO Vertical Automatic Double Glazing Production Line
Model: LZK2000
Application: High-efficiency production of double layer, triple layer, and special-shaped insulating glass.
| Technical Parameters | |
|---|---|
| Working Air Pressure | 0.8 -1 Mpa |
| Max Glass Size | 2000*3000 mm |
| Min. Glass Size | 300*300mm |
| Original Glass thickness | 3-12mm |
| Max Double Glazing thickness | 12-50mm |
| Glass Washing Speed | 2-12 m/min |
| Overall Size | 19000*3000*3000mm |
| PLC / Servo Motor / Touch Screen | SIEMENS |
| Photoelectric switch | Omron |
| Low-voltage Electrical | Famous French brand |
| Negative pressure gauge | Famous German brand |
| Guide Rail | CSK |
| Roller screw | Taiwan Brand |

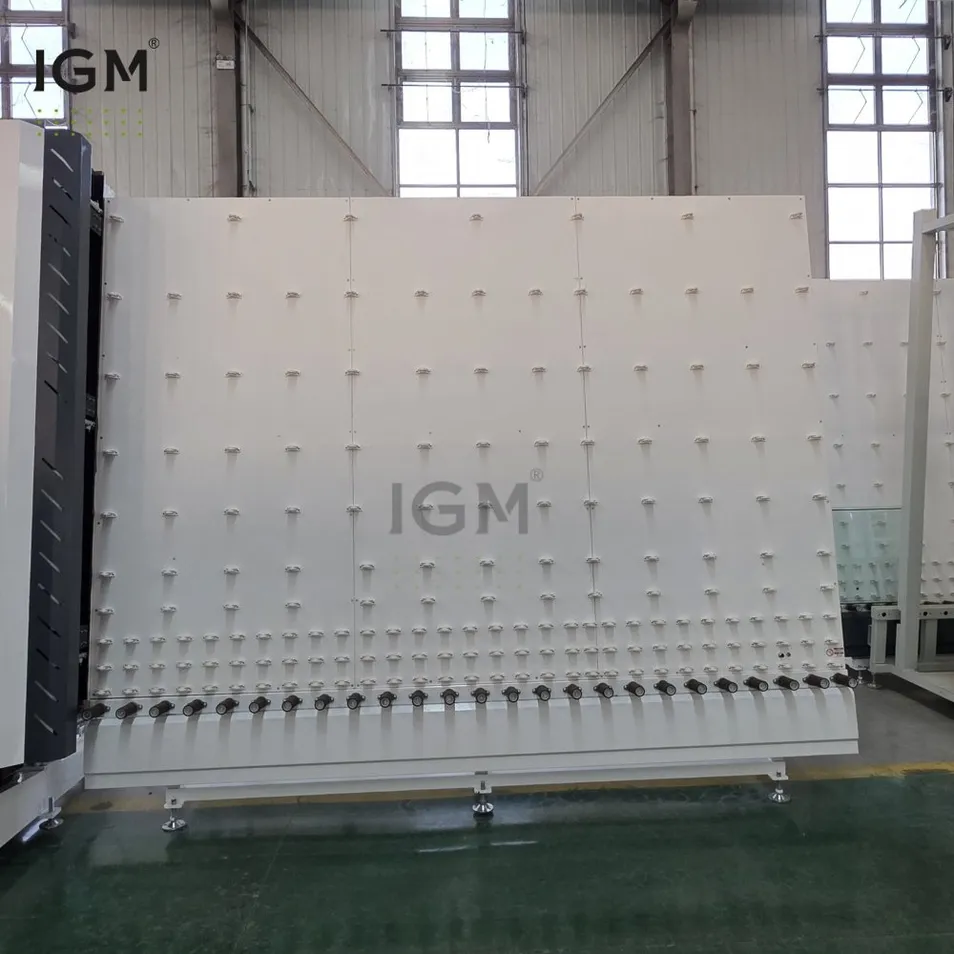

01 Section: Glass Loading

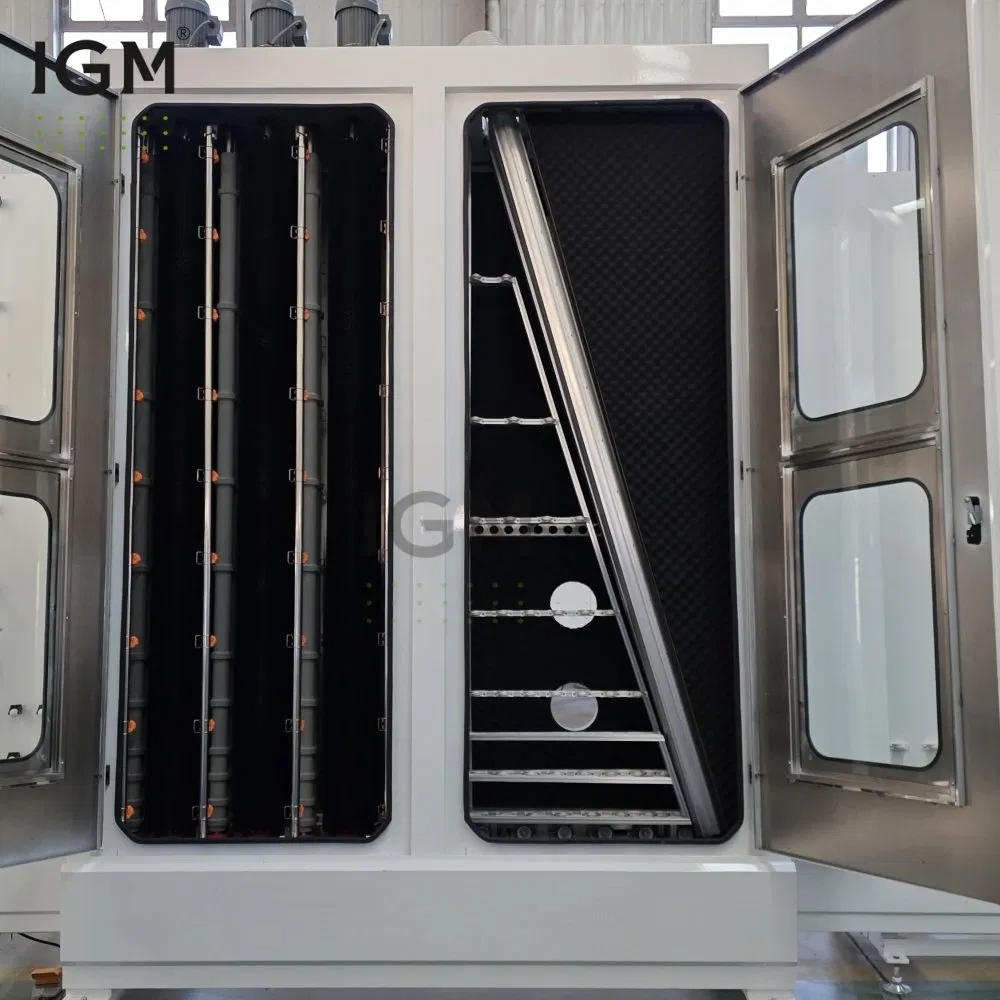

02 Section: Washing & Drying

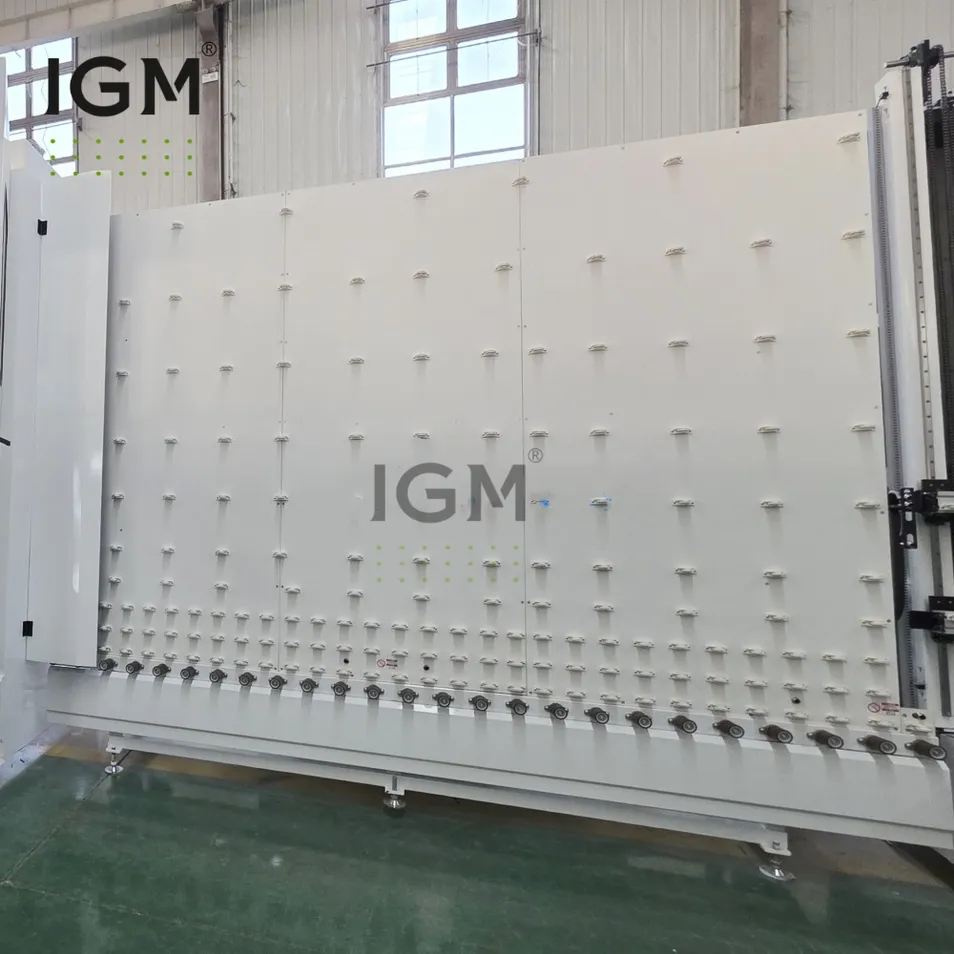

03 Section: Conveying
04 Section: Spacer Assembly

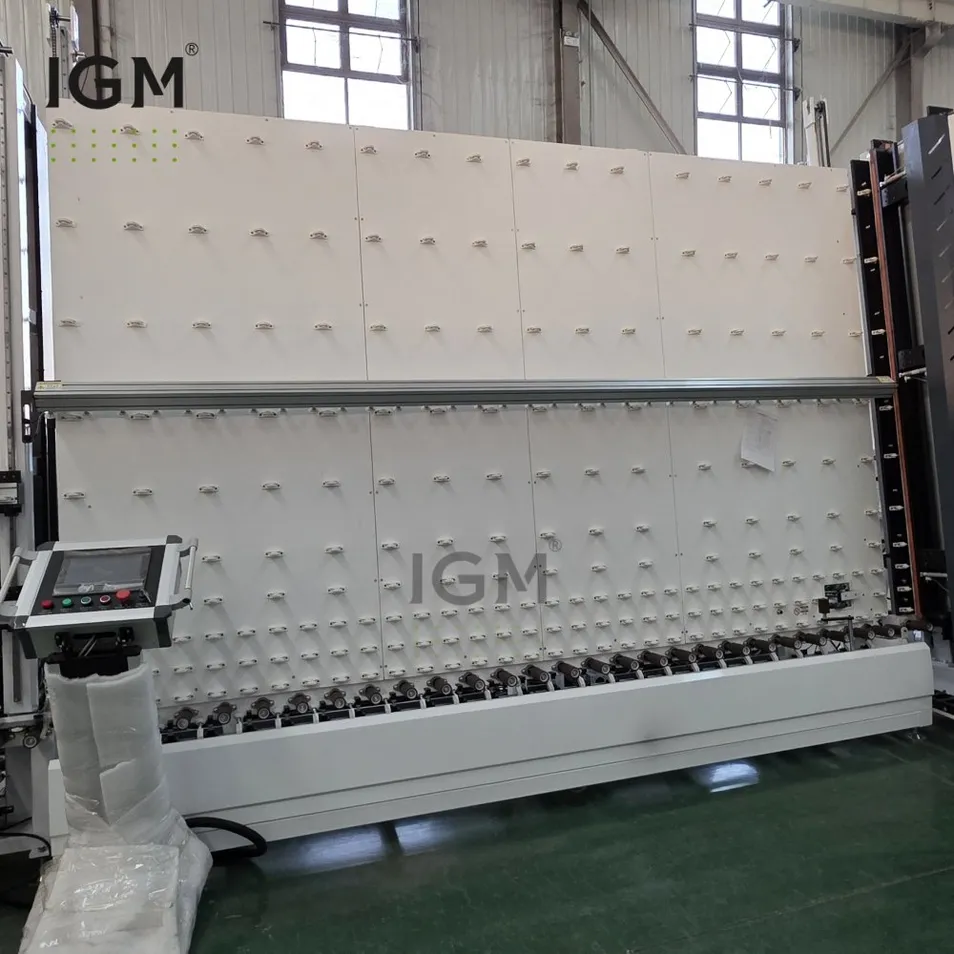

05 Section: Glass Assembly
06 Section: Pressing Section

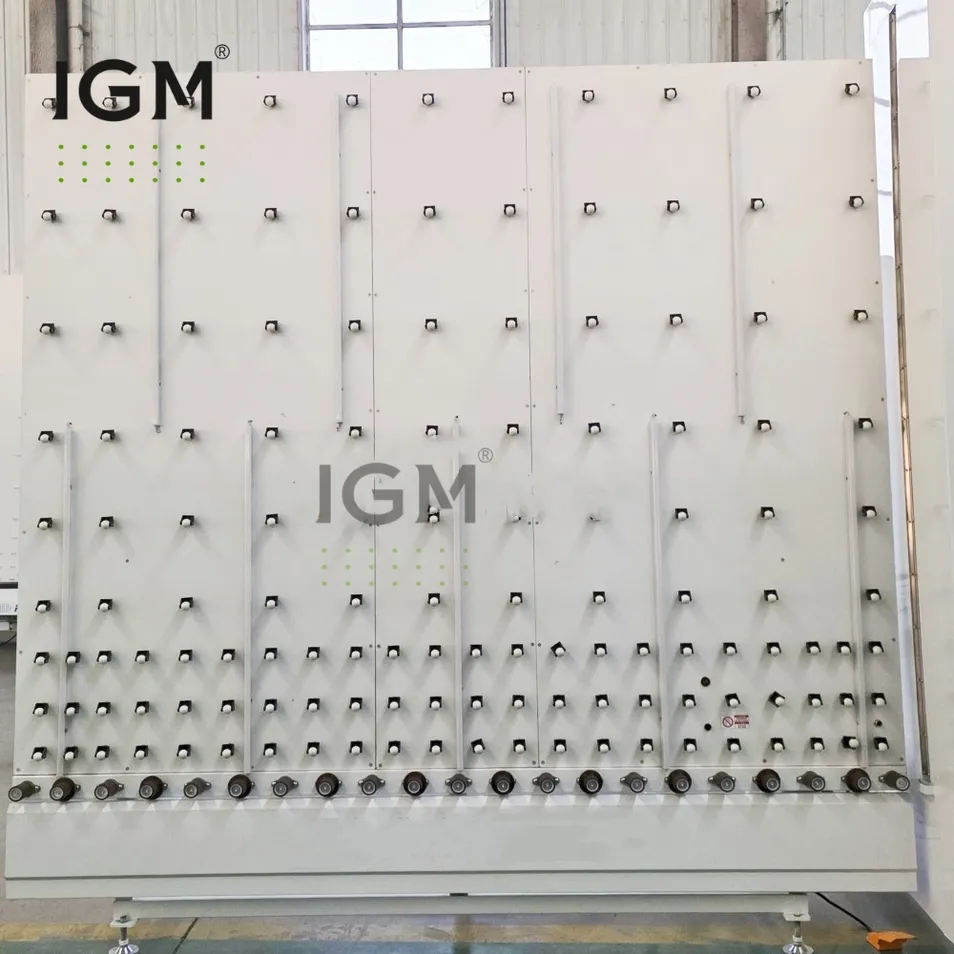

07 Section: Output

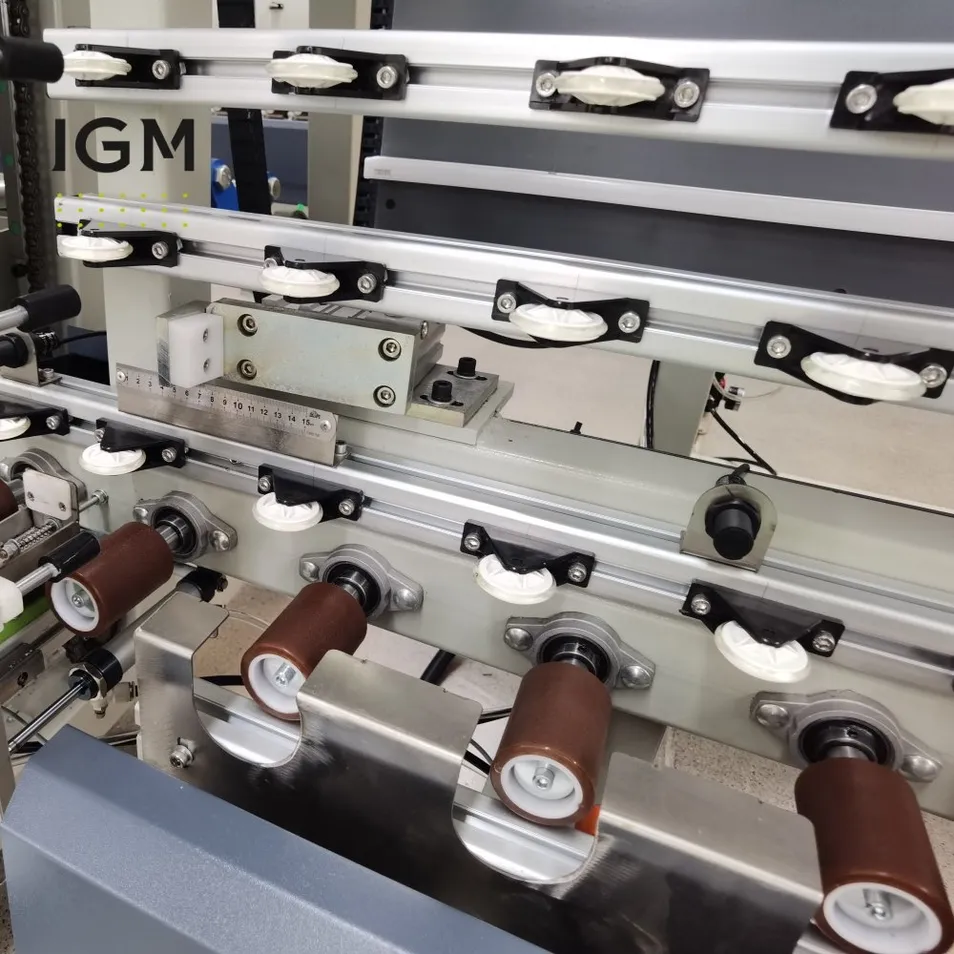

Position Wheel Detail

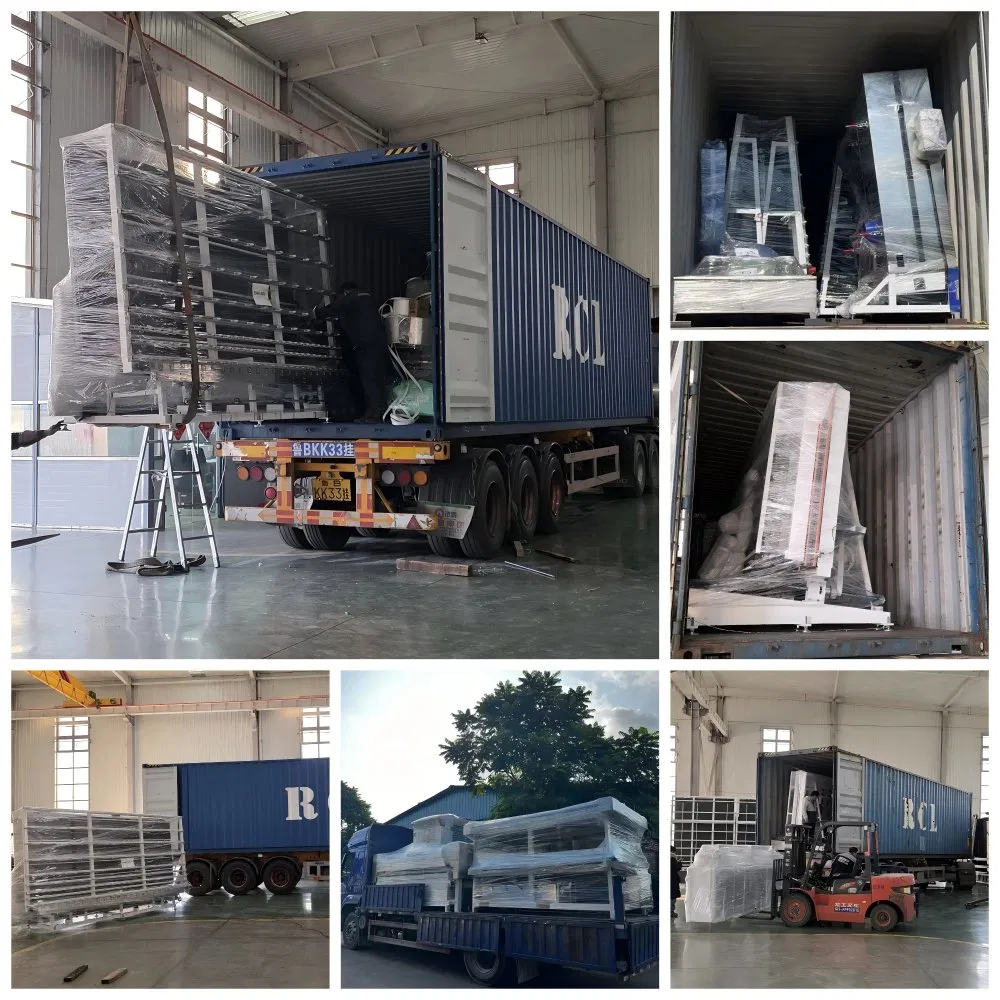

LCL: Packed in fumigation-free plywood with thickened pallets and fixed with steel wire.
FCL: Fixed in 20/40-foot containers with plastic film and steel wire or special packaging tape.
Our products have passed the EU CE certification and the US UL certification, exporting to more than 50 countries including the USA, France, Russia, and Brazil.
We are a leading enterprise specializing in the design and manufacturing of high-quality Aluminum window machines, UPVC Window Machines, and Double glazing machines. Our global presence spans North America, Europe, and the Middle East, driven by rigorous R&D and standardized quality inspections.
