Insulating Glass Production Double Components Line Sealing Robot

Customization: Available
Certification: CE, ISO
Control System: PLC

Product Description

Basic Specifications

Model NO.
SMT 1800
Total Power
380V50Hz 11kw
Air Pressure
0.5-0.7MPa
Max Glass Size
1800*3000mm
Min Glass Size
350*500mm
Size of Machine
10800*3800*3300mm
Working Speed
5-40m/Min
Sealing Depth
2-10mm
Sealing Width
6-20mm
Insulating Glass Thickness
12-48mm
Convey Weight
120kg
Structure
Vertical
Warranty
One Year

Insulating Glass Sealing Robot

Sealing Robot

Brief Introduction

  • High automation, suitable for glass deep processing enterprises.

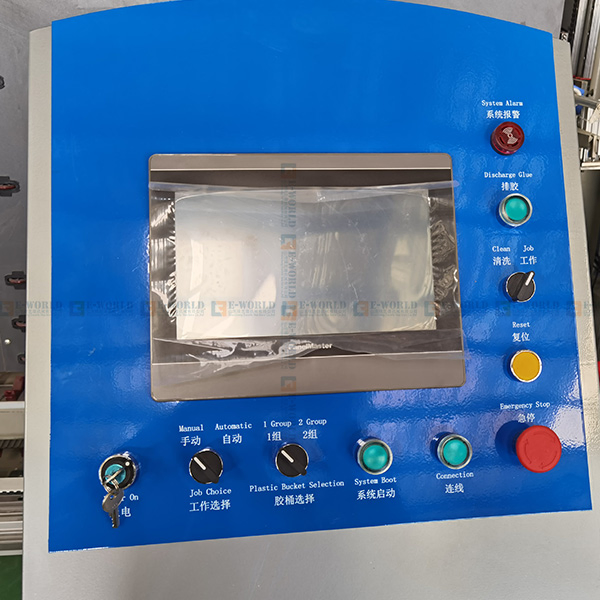

  • Whole machine adopts man-machine interface for convenient and intuitive operation.
  • The glass edge and corner are full without air bubbles, providing a smooth surface.

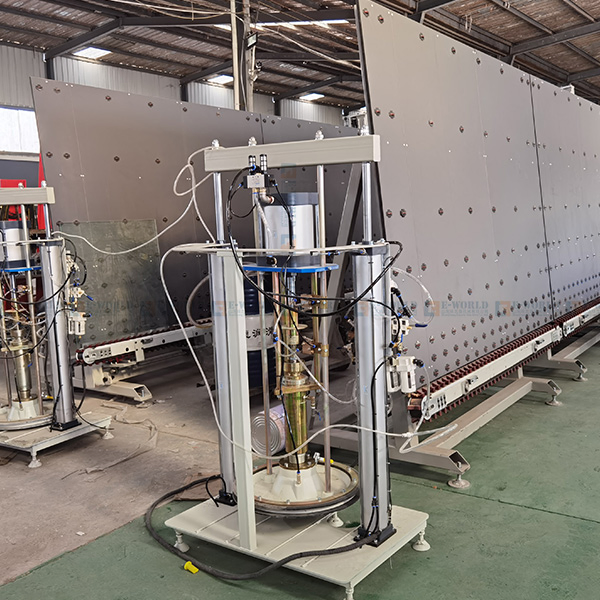

  • Using two sets of independent sealant supply systems with easy one-key switching.
  • The third section can pre-store glass to improve efficiency; supports three-layer glass sealing.

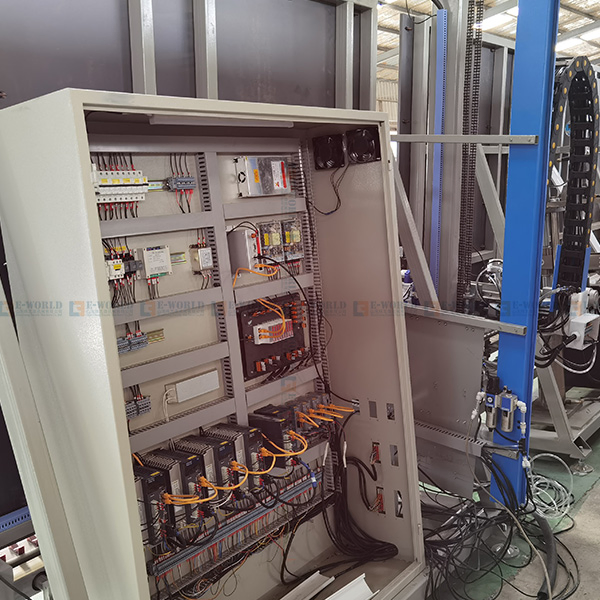

  • Servo control system adopts world-famous brands for stable performance.
  • Synchronous belt transmission ensures smooth transfer and accurate positioning.

Technical Parameters

Model Total Power Air Pressure Squeeze Pressure
SMT-1800 380V 50Hz 11KW 0.5-0.7MPa 32MPa
Max Glass Size Min Glass Size Working Speed Convey Weight
1800*3000mm 350*500mm 5-40m/min 120kg/m

Key Features

  • CNC control system with 9-axis servo motors for continuous sealing.
  • Servo motor drive hydraulic pump for precise flow rate control.
  • Automatically checks sealing depth and spacer width.
  • Automatic corner trimming function.
  • Perfect chain driving style ensures glass stays stable and clean.
  • Available for polysulfide, silicon, or polyurethane sealants.
  • Free option for straight line and irregular shape processing.

Machine Details

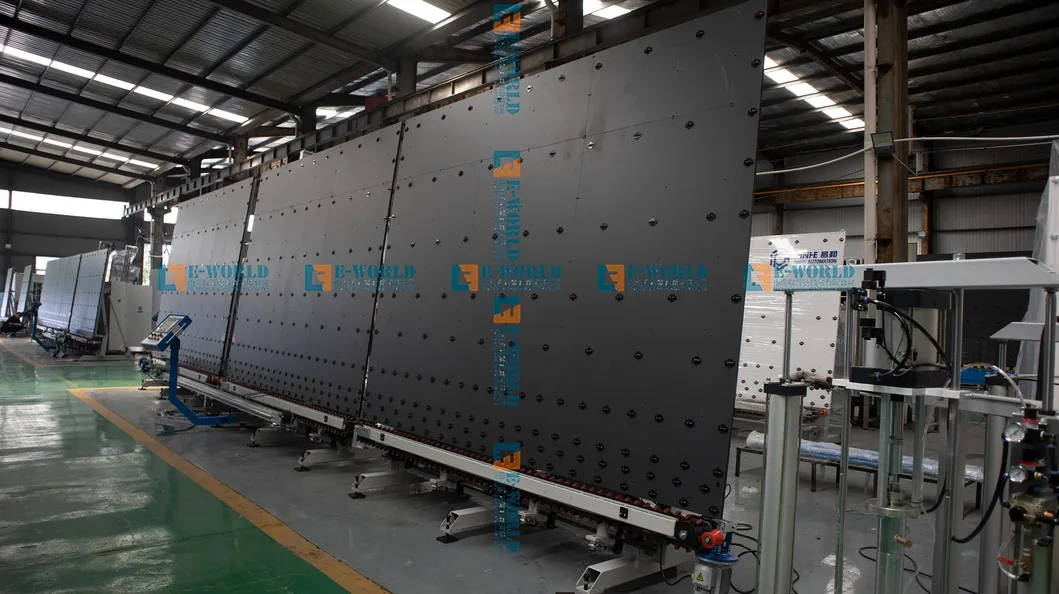

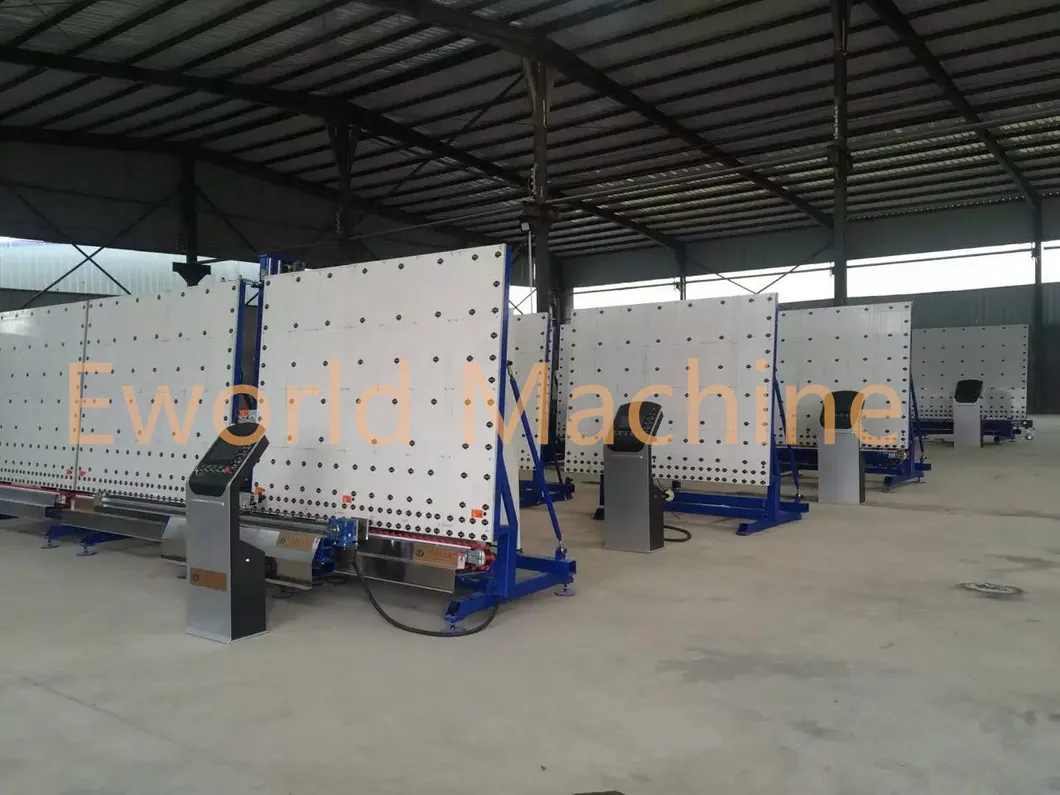

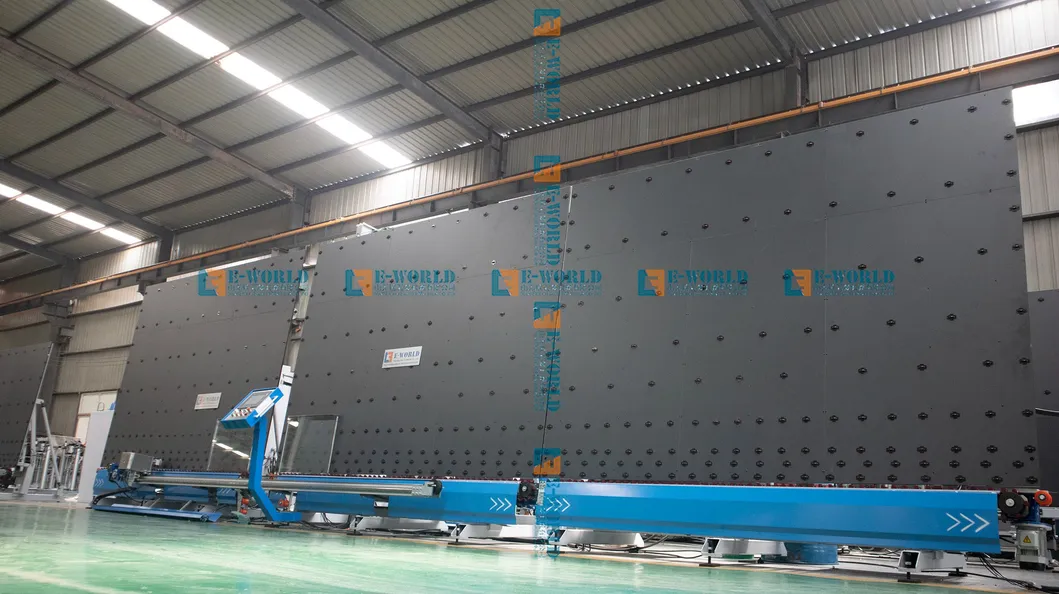

Detail 1 Detail 2 Detail 3

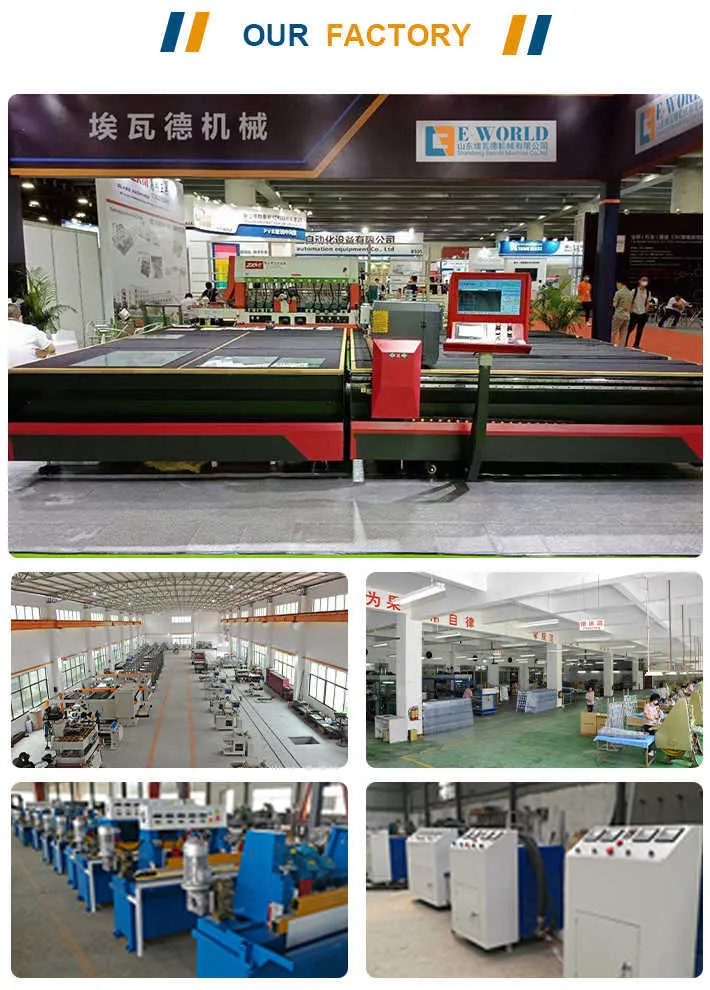

Detail 4 Detail 5 Detail 6 Detail 7 Detail 8
Detail 9 Detail 10

Frequently Asked Questions

How is the after-sales service handled?
We provide a response within 12 hours via email and offer 24-hour after-sales support. With over 12 years of experience, we ensure fluent communication and efficient problem-solving.
What is the guarantee for the machine?
The machine comes with an 18-month guarantee. We provide 24-hour technical support, English manuals, and video tutorials. Consumable parts are provided at agency prices.
Do you provide equipment operation training?
Yes, professional engineers can be sent to the working site for installation, adjustment, and comprehensive operation training.
Why might your price differ from other factories?
Quality is determined by internal components. We use world-famous and reliable electrical parts to minimize breakdowns and ensure long-term stability, which may be reflected in the price.
What is the expected delivery time?
Standard machines are typically delivered within 3-15 days. For non-standard or customized machines based on specific requirements, the timeframe is usually 15 to 30 days.
