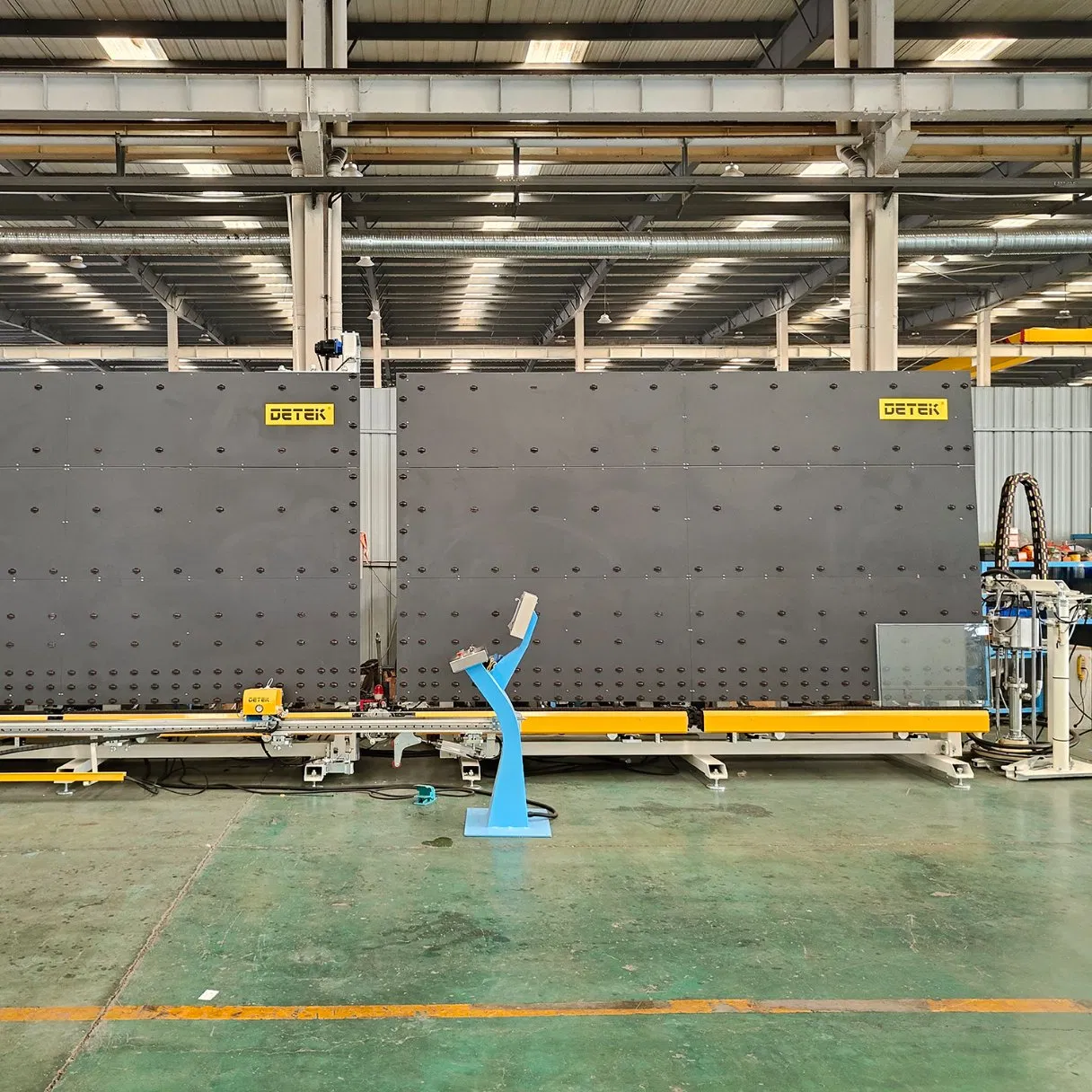

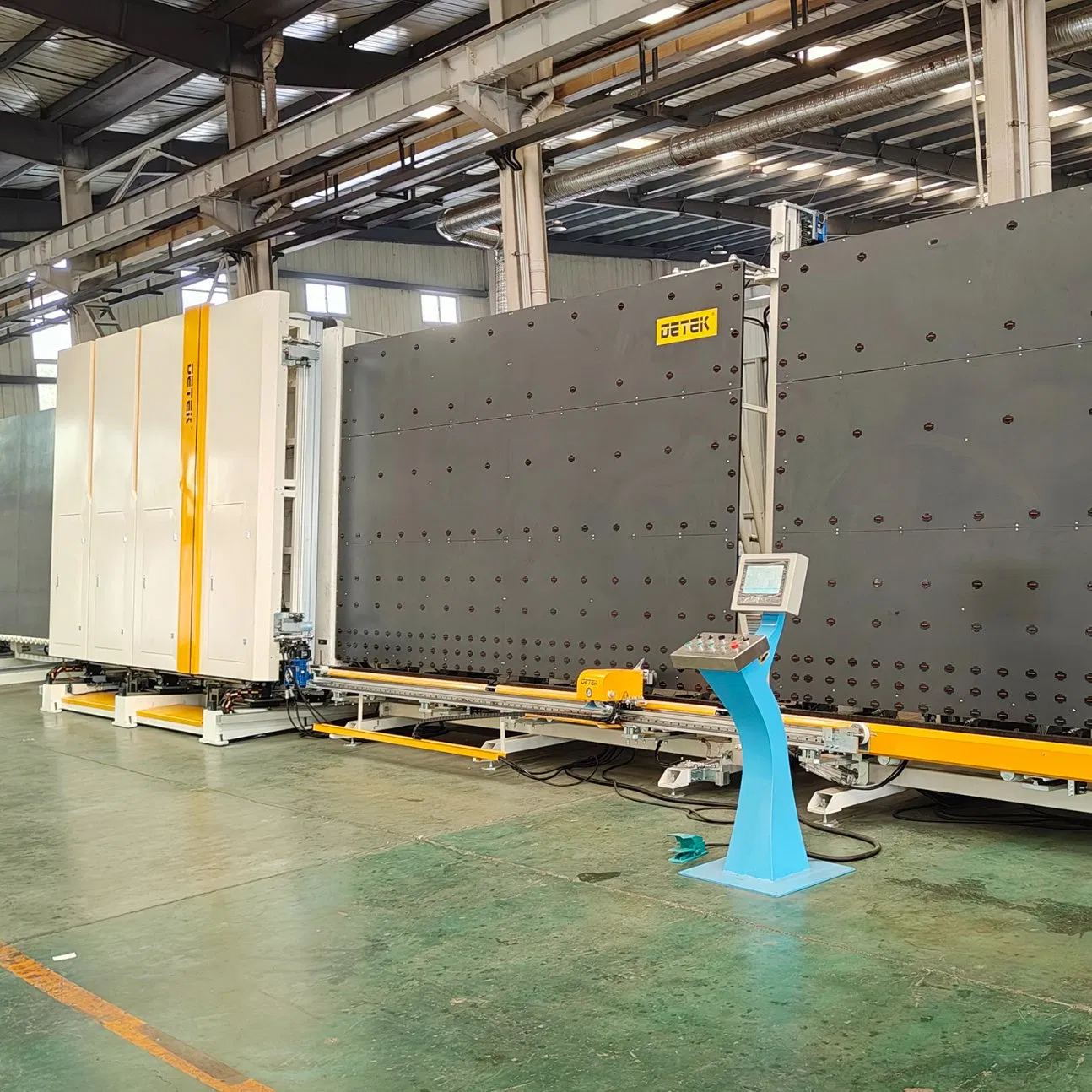

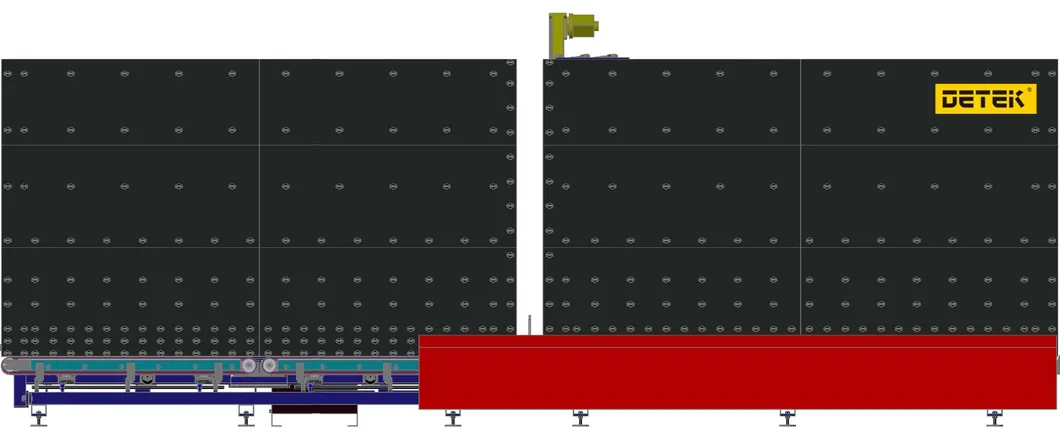

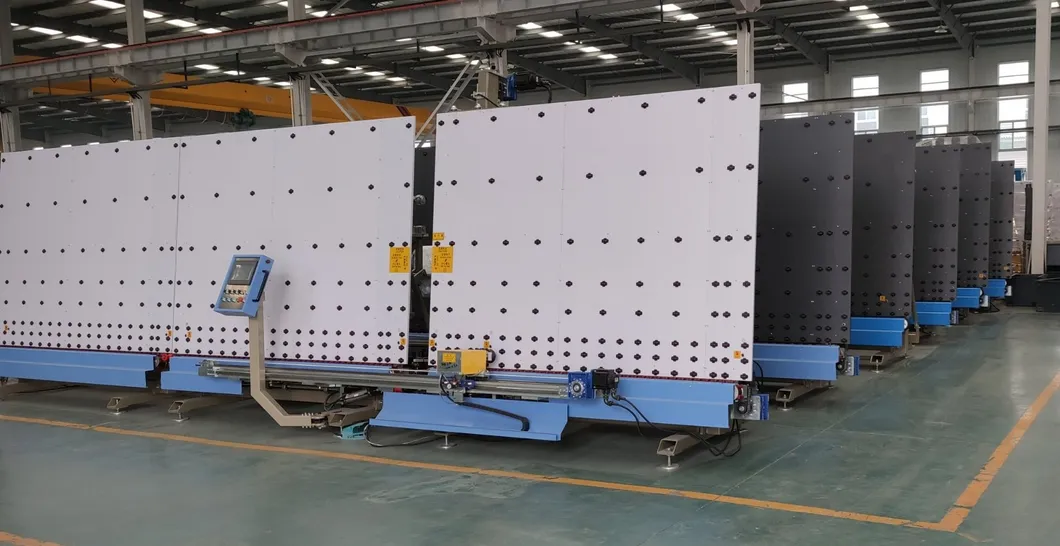

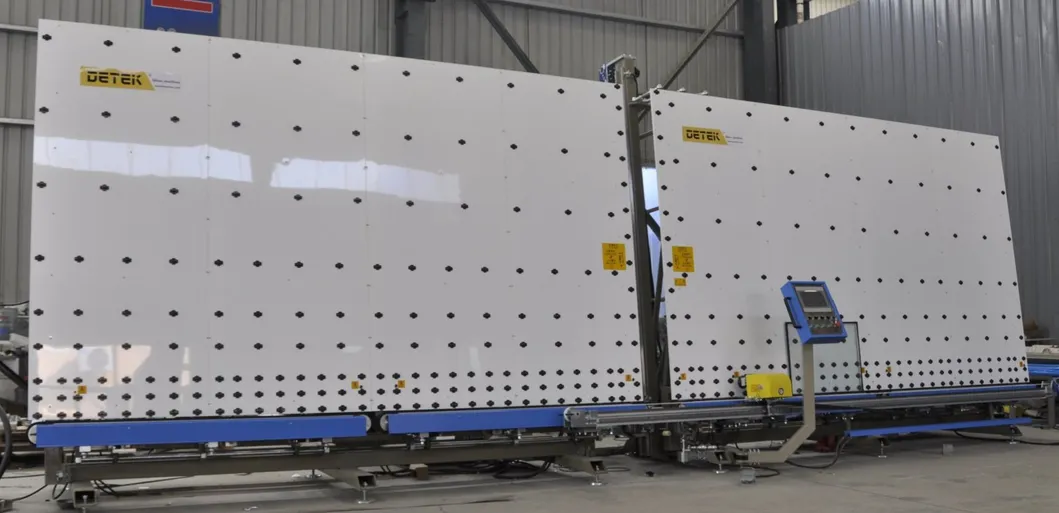

The secondary sealant sealing in Insulating Glass Units, ASR2540 is highly automatic silicone or polysulfide sealant sealing robot. Auto sealing robot guarantees the high quality of IGU for glass processing companies.
Features

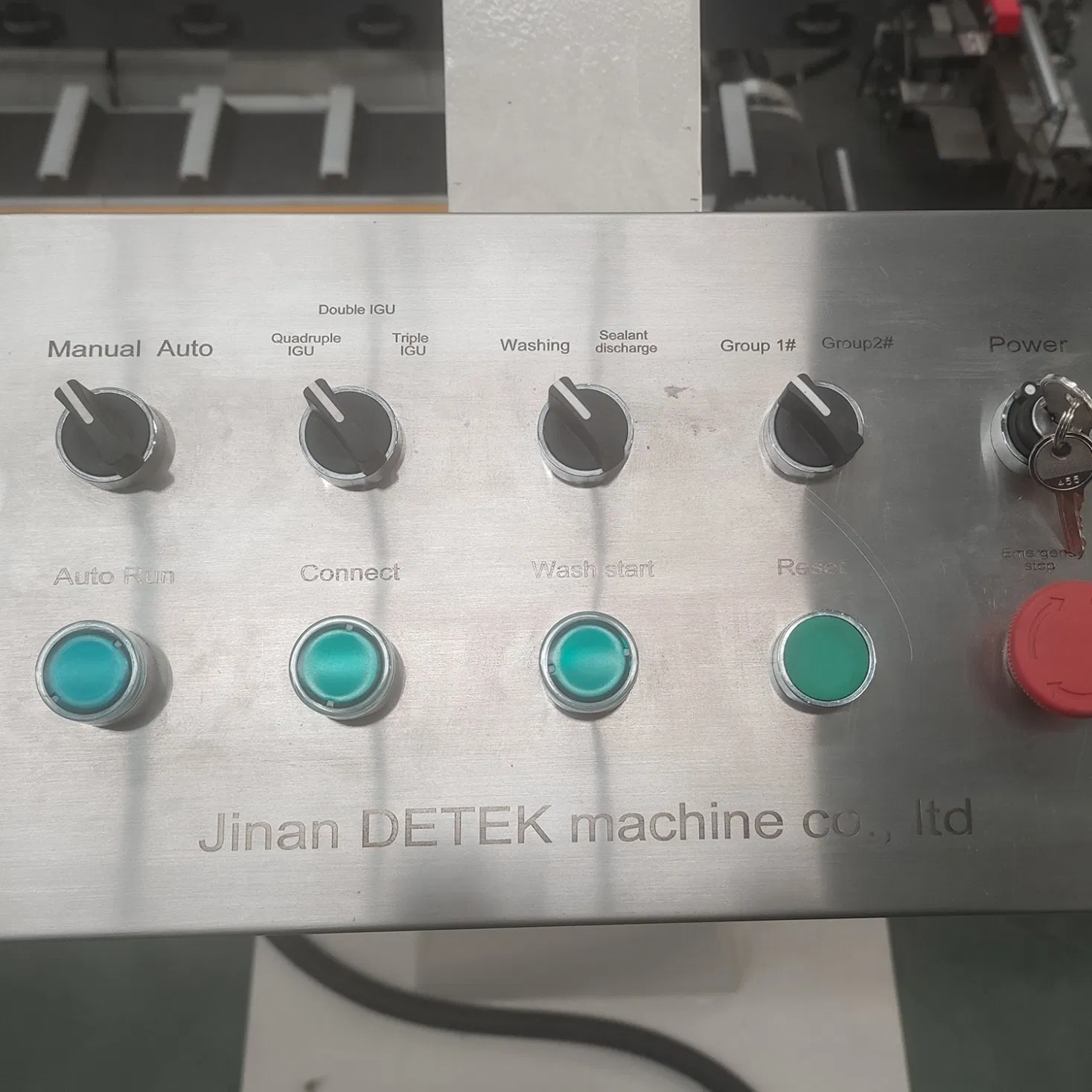

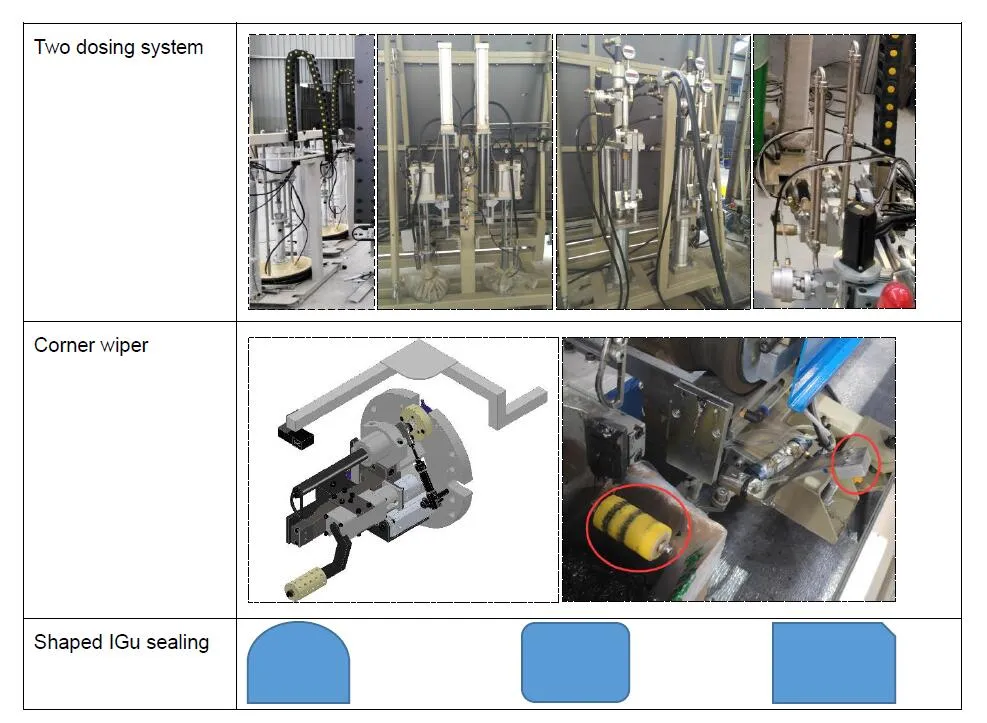

Two separate dosing system, one key switch system. (Option)
Automatic corner wiper (option).
Economical and practical, used for glass deep processing company.

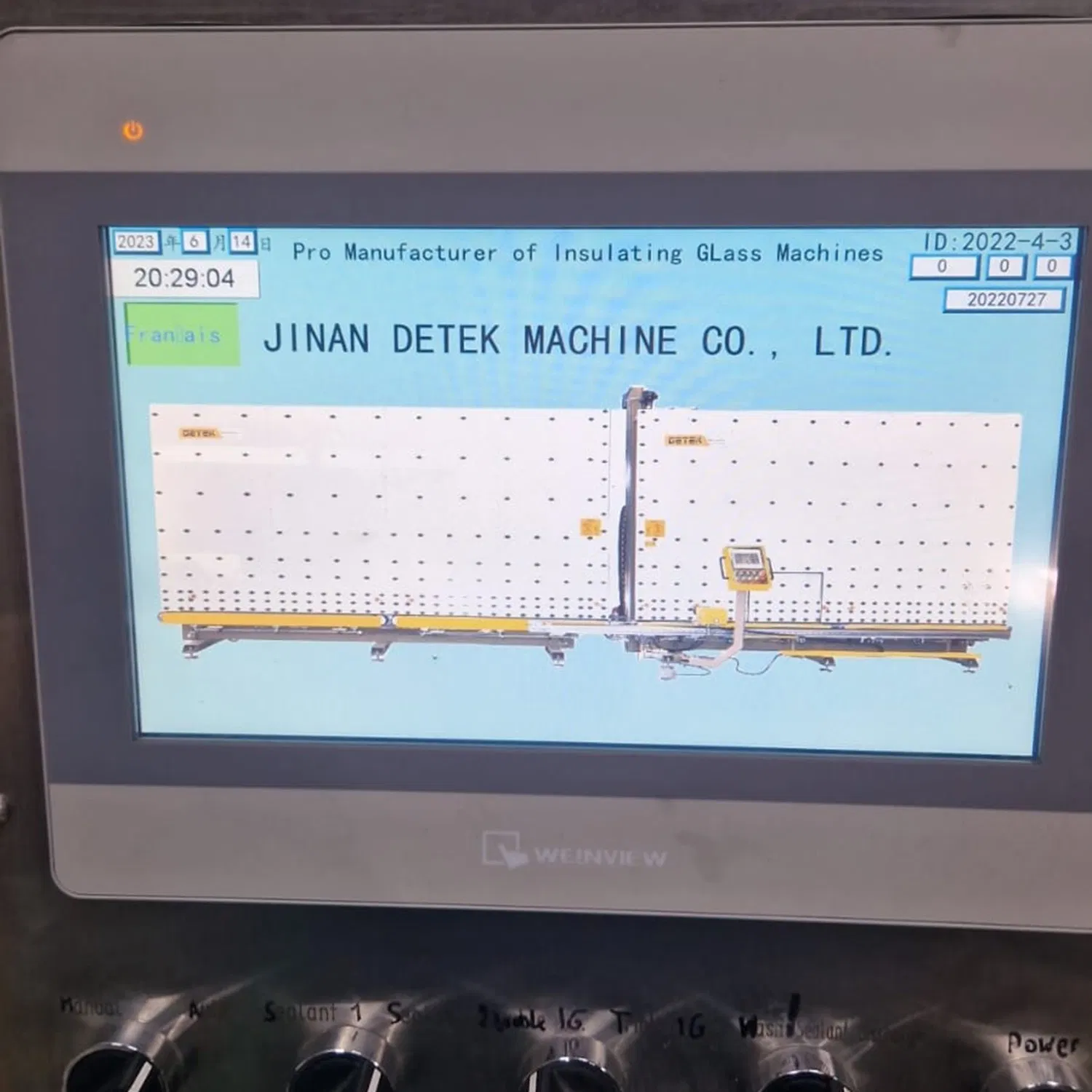

Fully intelligent and friendly touching screen adopt Ethernet communication, with memory function and easy operation.
High sealing performance, high automation, reduce labor cost, improve production efficiency.
Best sealing quality without air bubbles, smooth surface, save time for corner correction.

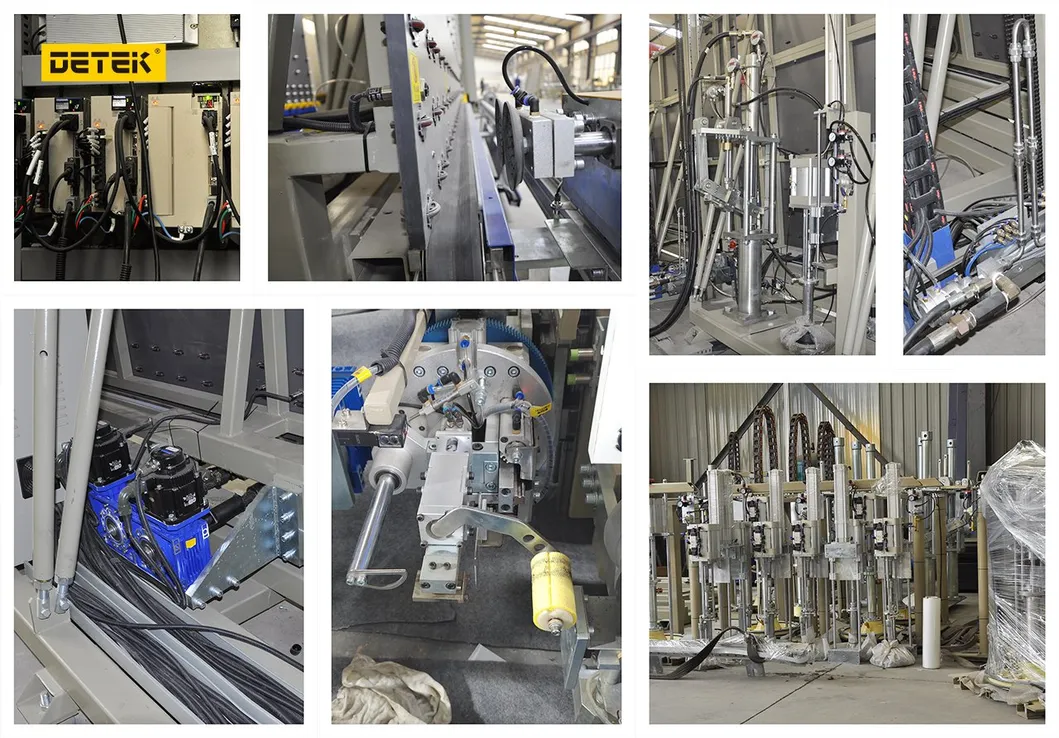

Equipped with anti-blocking device in the mixer, easy to clean.
Servo control system adopts world famous brand (Japan YASKAWA), performance is stable.
Special V type transmission belt to avoid sealant sticking on the belt, ensure the glass edge clean.
Suitable for triple IGu, stepped IGu and shaped IGu (Option).
Equipped with high speed positioning function, glass can be located accurately.
Technical Parameters
Specification Item
Details
Max. IGu size
2500×4000mm (5000mm option)
Min. IGu size
300×300mm
IGu thickness
12-56mm
Power supply
3P 380V 50HZ 13KW
Air pressure
0.6-0.8Mpa
Max. squeeze pressure
32Mpa
Sealing speed
5-40m/min
Dimension
8900×1500×3400mm

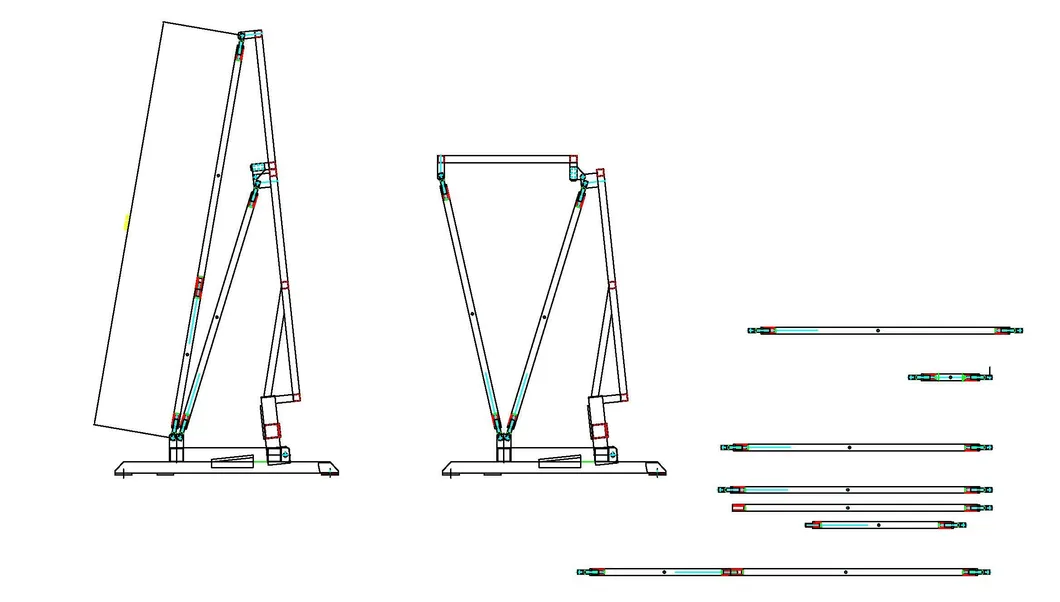

Bendable structure to save SEA FREIGHT (General container)
Brand Component List
Name
Brand
Country
PLC
Yaskawa
Japan
Servo driver / Motor
Yaskawa
Japan
Touching screen
WEINVIEW
Taiwan
Inverter
TECO
Taiwan
Breaker / Contactor / Relay
Schneider
French
Sensor / Proximity switch
AUTONICS
S. Korea
Reduction motor
YOUSHENG
Shanghai
Solenoid / Air cylinder
Airtag
Taiwan
Proportional valve / Regulator
SMC
Japan
Frequently Asked Questions
1. What is the standard lead time for orders?
The lead time is approximately 60 days for a whole production line and 30 days for a single machine. Special requirements should be confirmed with the sales team.

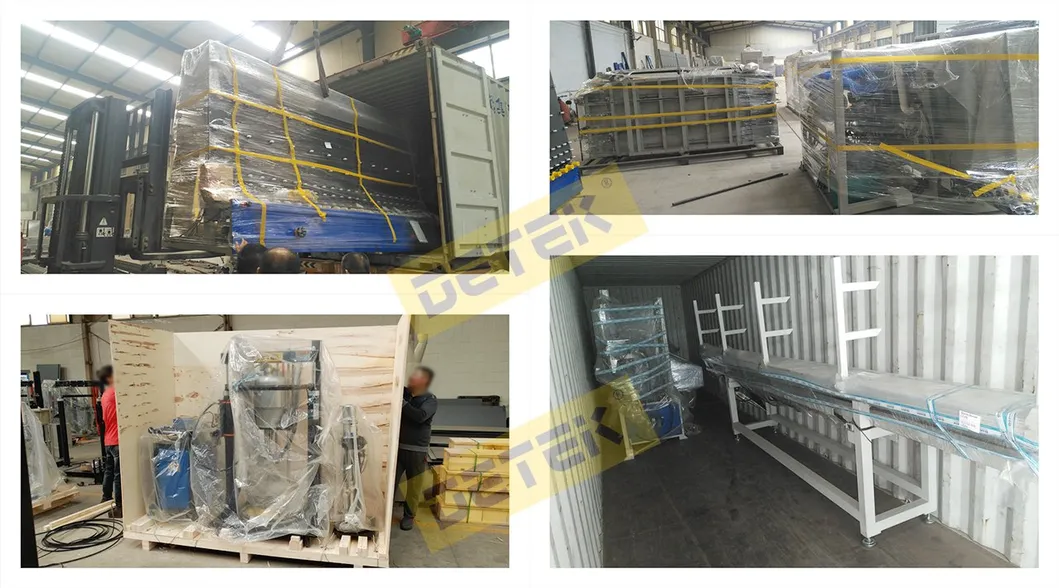

2. How is the machine shipment arranged?

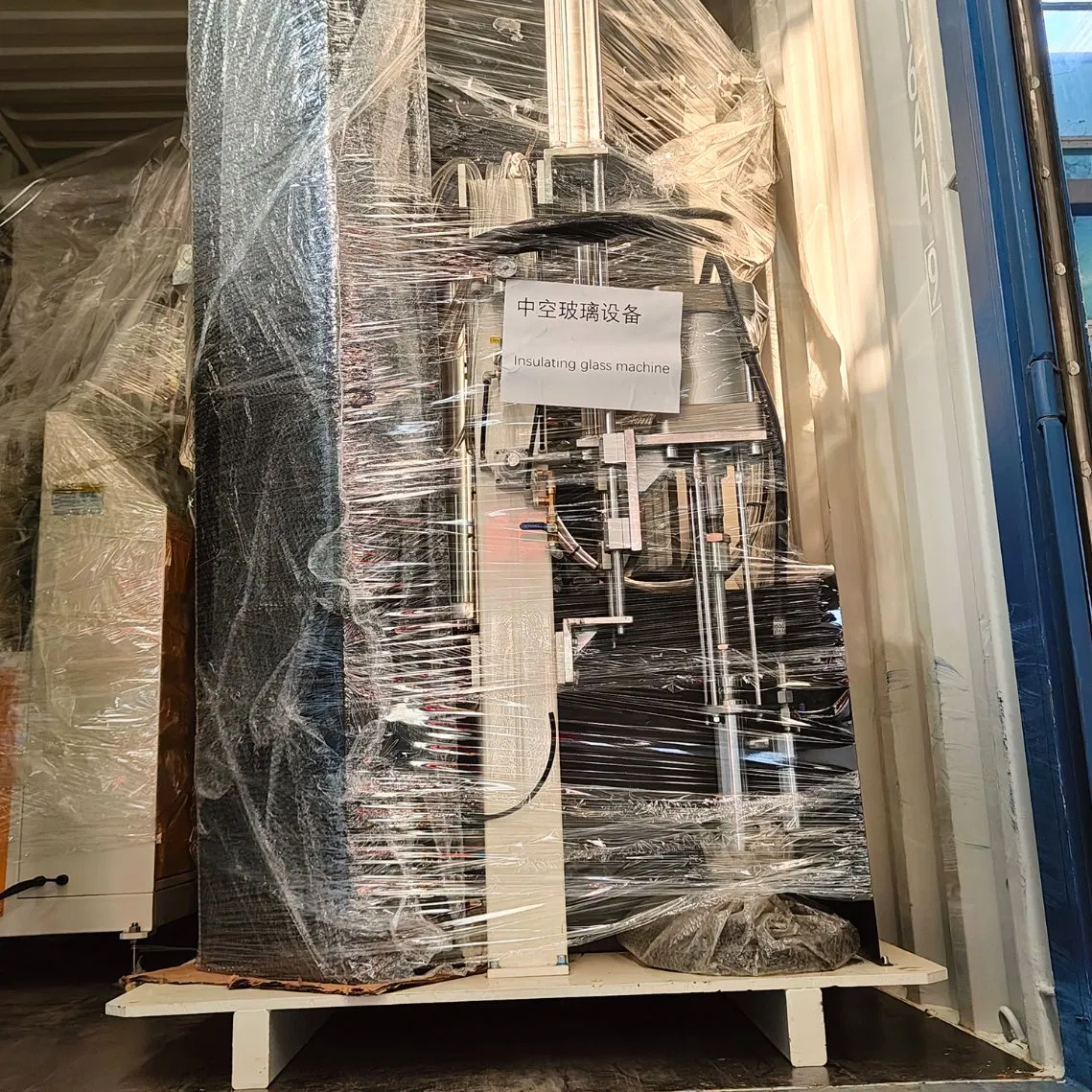

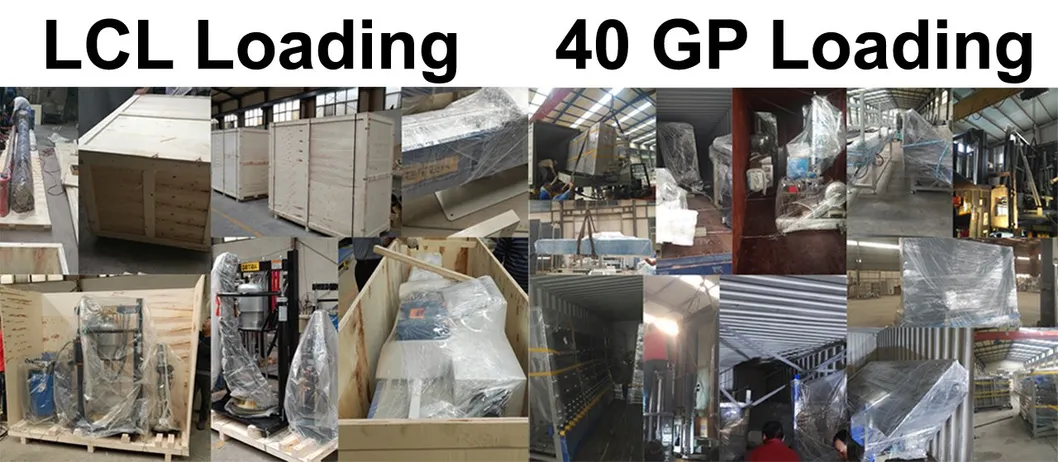

All machines are designed to fit GP containers to save on sea freight. We use seaworthy packaging and professional workshop container loading to ensure safe arrival.
3. What does the warranty cover?
We provide a one-year guarantee (excluding wearing parts) and offer life-long after-service. Engineers can be sent for on-site service upon request.
4. How is the on-site installation handled?
Installation is included. However, customers are responsible for the engineer's round-trip air tickets, local transportation, and accommodation. Installation typically takes up to 15 days at a daily rate per engineer.

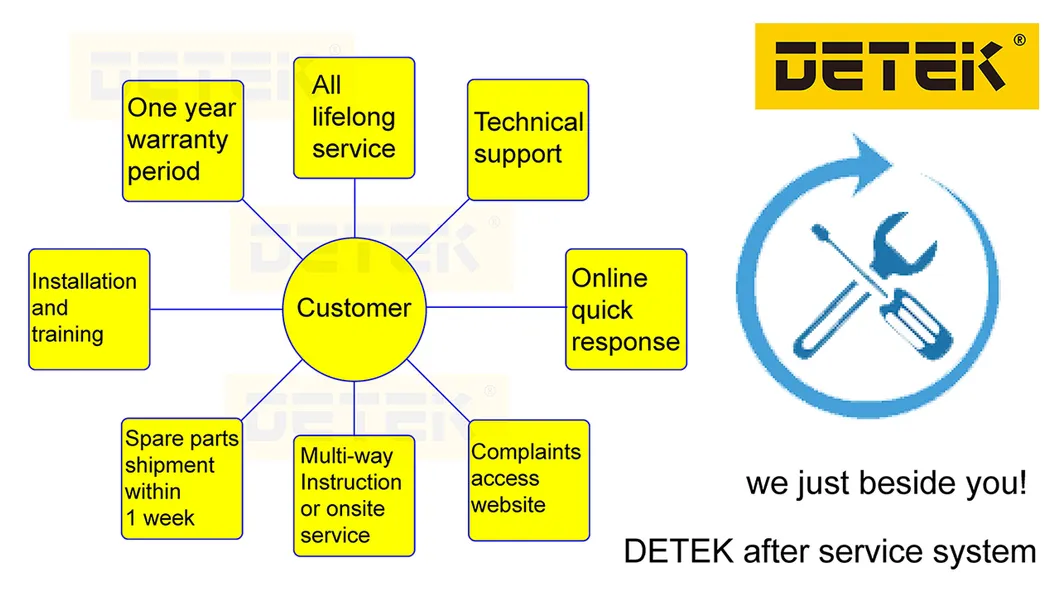

5. What kind of after-sales support is available?
Spare parts can be provided within 72 hours. Our experienced technical sales and service engineers are ready for on-site instruction and troubleshooting.
6. Can the machine handle shaped or triple IGU?
Yes, the machine is suitable for triple IGU, stepped IGU, and shaped IGU as an optional feature, ensuring high flexibility for glass processing companies.
