Product Description

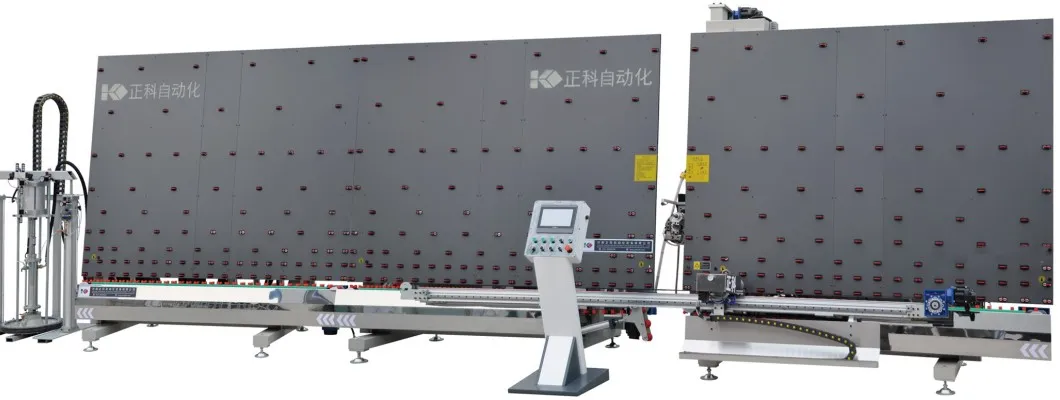

ZDJ2500B CNC Insulating Glass Sealant Coating Line

Technical Specifications

Model NO.ZDJ2500B

Glass Thickness3-12mm

Max. Glass Size2500*3500mm

Min. Glass Size280X400mm

Feeding Speeds5-50m/Min

Power380V 50Hz 13kw

Air Pressure0.6~0.8MPa

Overall Dimension11500×4000×3400mm

Weight3500 Kg

Production Capacity1000 Sets/Year

Equipment Features

High efficiency and stable quality for various rectangular insulating glass sizes.
Two independent glue supply systems allow arbitrary switching between two sealant types (optional).
Glass pre-storage capability in the third section for continuous operation and improved productivity.
User-friendly Panelmaster human-computer interface for simple and convenient operation.
Full side coating without bubbles and perfect corners without manual trimming.
Equipped with Yaskawa motion control and servo systems for stable performance.
Unique automatic alarm device for glue quantity monitoring.
Supports special-shaped glue coating for various graphics, arc glass, and more (optional).

Technical Parameters

Model	ZDJ2500B
Voltage Power	380V 50Hz 13KW
Air Pressure	0.5~0.7Mpa
Cutting Glass Size	2500×3500mm
Min Glass size	280×400mm
Insulating Glass Thickness	≤60mm
Max. Dispensing Pressure	≤30Mpa
Working Speed	5~50m/min

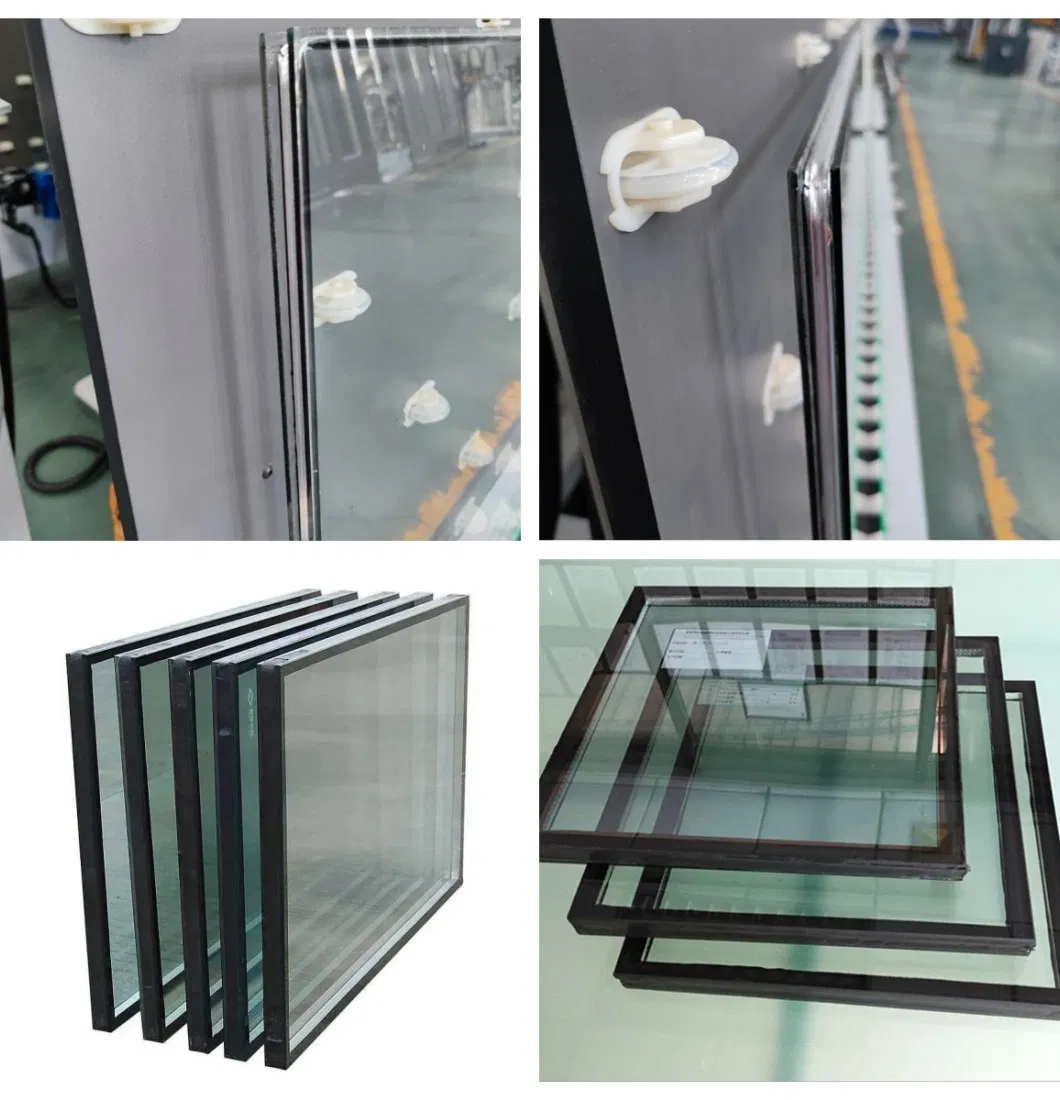

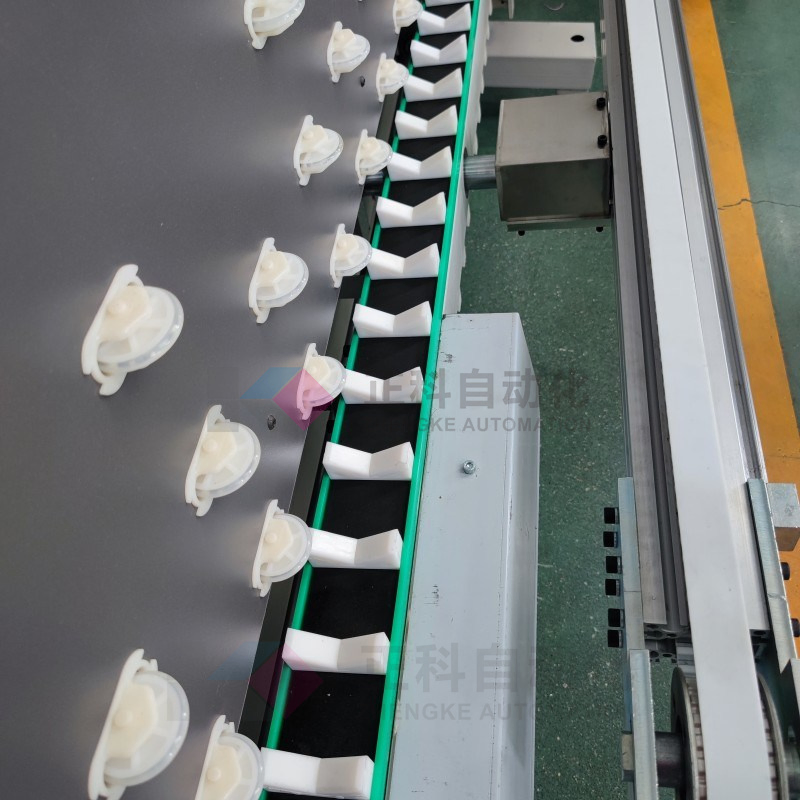

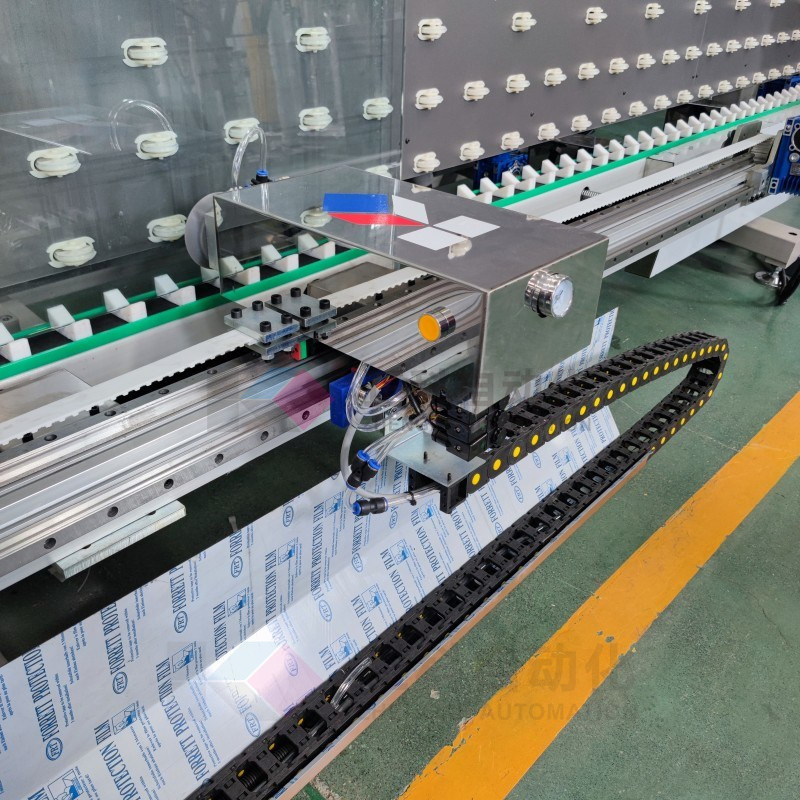

Product Gallery

Packaging & Transport

Package Size12500.00cm * 4500.00cm * 3700.00cm

Gross Weight1100.000kg

Our Core Advantages

1. Professional Solutions: Expertly tailored glass production lines.

2. Quality First: Strict testing and control systems ensure superior equipment quality.

3. Direct Manufacturer: Professional production with competitive pricing and no middlemen.

4. Support: Comprehensive after-sales service including training and technical guides.

5. Advanced Tech: Utilization of world-renowned Yaskawa and Panasonic control systems.

Frequently Asked Questions

Q1: What is the maximum glass size the ZDJ2500B can process? A: The machine can handle a maximum glass size of 2500mm x 3500mm.

Q2: Can this robot handle special-shaped glass coating? A: Yes, the ZDJ2500B supports optional special-shaped glue coating for various graphics and arcs.

Q3: Which control systems are integrated into the machine? A: It uses the world-renowned Yaskawa motion control system and Panasonic CNC output for pressure adjustment.

Q4: What types of sealants are compatible with this sealing robot? A: It is widely used with two-component silicone structural adhesives, polysulfide adhesives, and polyamine glues.

Q5: Is there an alarm system for glue monitoring? A: Yes, the machine features a unique automatic alarm device that monitors glue quantity to ensure continuous production.

Q6: What is the feeding speed of the sealing robot? A: The feeding speed is adjustable between 5 and 50 meters per minute.
